Technical Information · issue 34 of 2004
New STIHL ROLLOMATIC® E Super 25" guide bar
IssueTI 34/2004
Full text

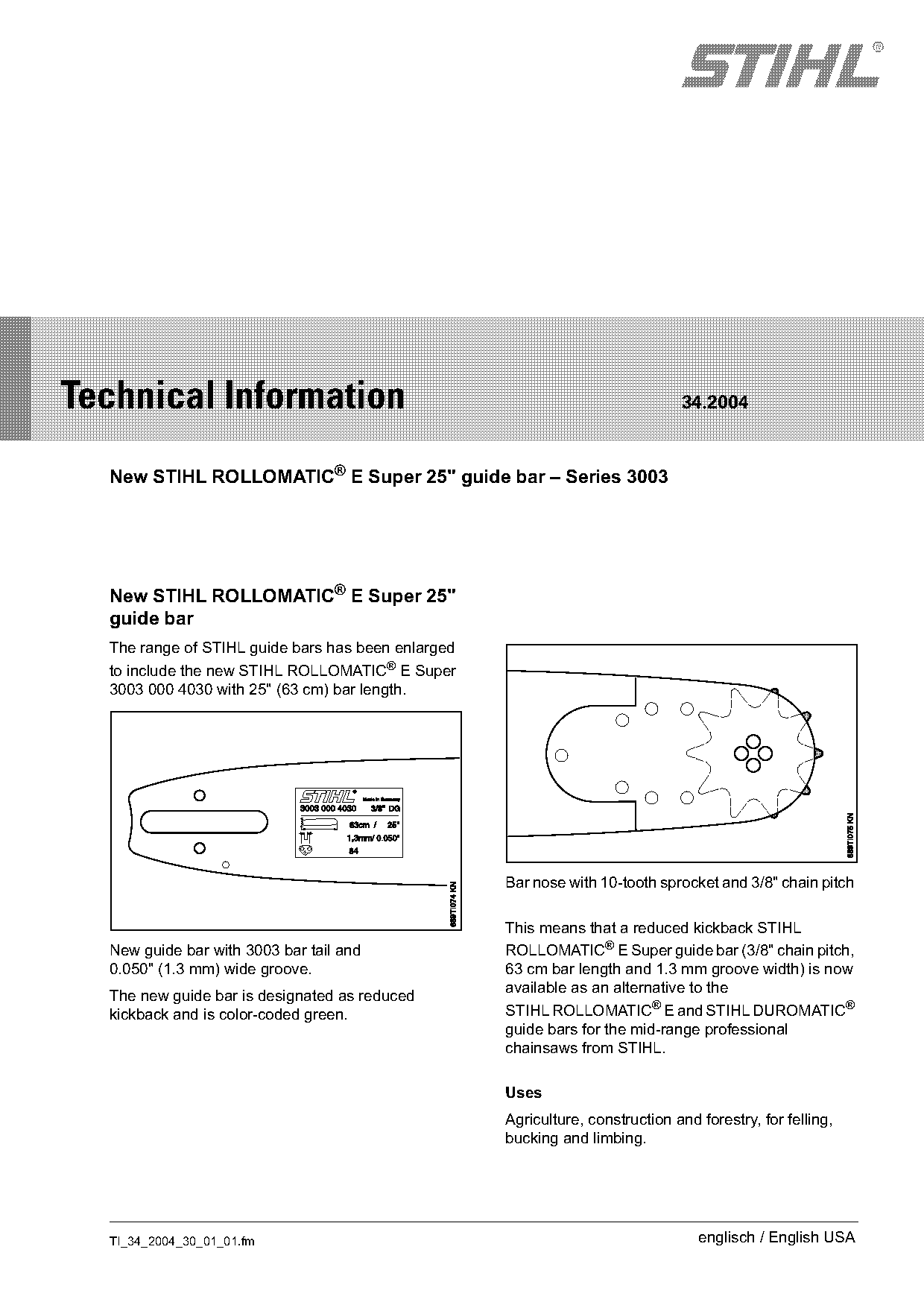

Page 1 of 2
STIH)
Technical Information 34.2004
New STIHL ROLLOMATIC® E Super 25" guide bar – Series 3003
New STIHL ROLLOMATIC® E Super 25"
guide bar
The range of STIHL guide bars has been enlarged
to include the new STIHL ROLLOMATIC® E Super
3003 000 4030 with 25" (63 cm) bar length.
Bar nose with 10-tooth sprocket and 3/8" chain pitch
This means that a reduced kickback STIHL
New guide bar with 3003 bar tail and ROLLOMATIC® E Super guide bar (3/8" chain pitch,
0.050" (1.3 mm) wide groove. 63 cm bar length and 1.3 mm groove width) is now
available as an alternative to the
The new guide bar is designated as reduced
kickback and is color-coded green. STIHL ROLLOMATIC® E and STIHL DUROMATIC®
guide bars for the mid-range professional
chainsaws from STIHL.
Uses
Agriculture, construction and forestry, for felling,
bucking and limbing.
TI_34_2004_30_01_01.fm englisch / English USA

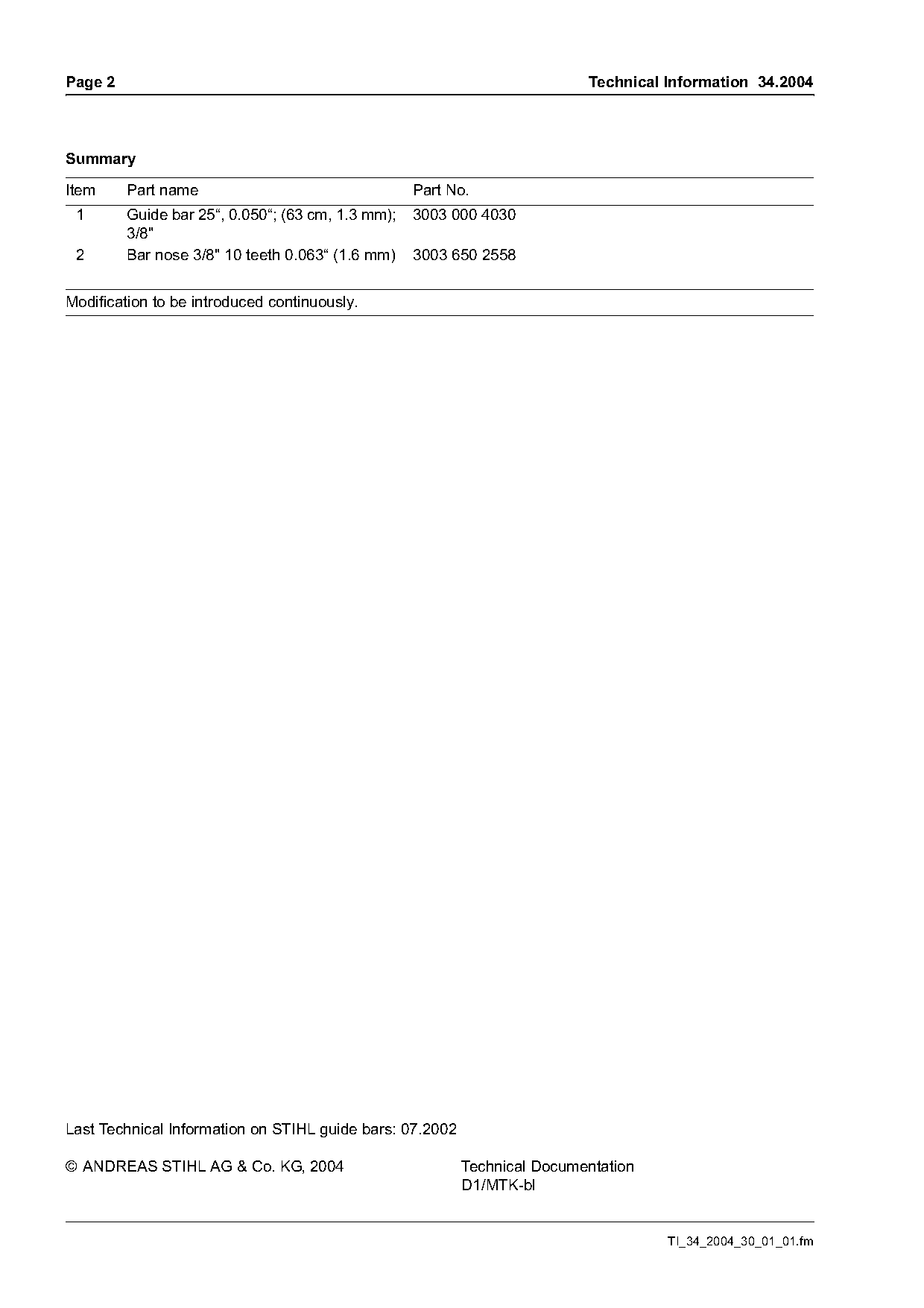

)m~ge 2 Technical Information 34.2004
Summary
Item Part name Part No.
1 Guide bar 25“, 0.050“; (63 cm, 1.3 mm); 3003 000 4030
3/8"
2 Bar nose 3/8" 10 teeth 0.063“ (1.6 mm) 3003 650 2558
Modification to be introduced continuously.
Last Technical Information on STIHL guide bars: 07.2002
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-bl
TI_34_2004_30_01_01.fm Page 2 of 2
