Technical Information · issue 39 of 2004

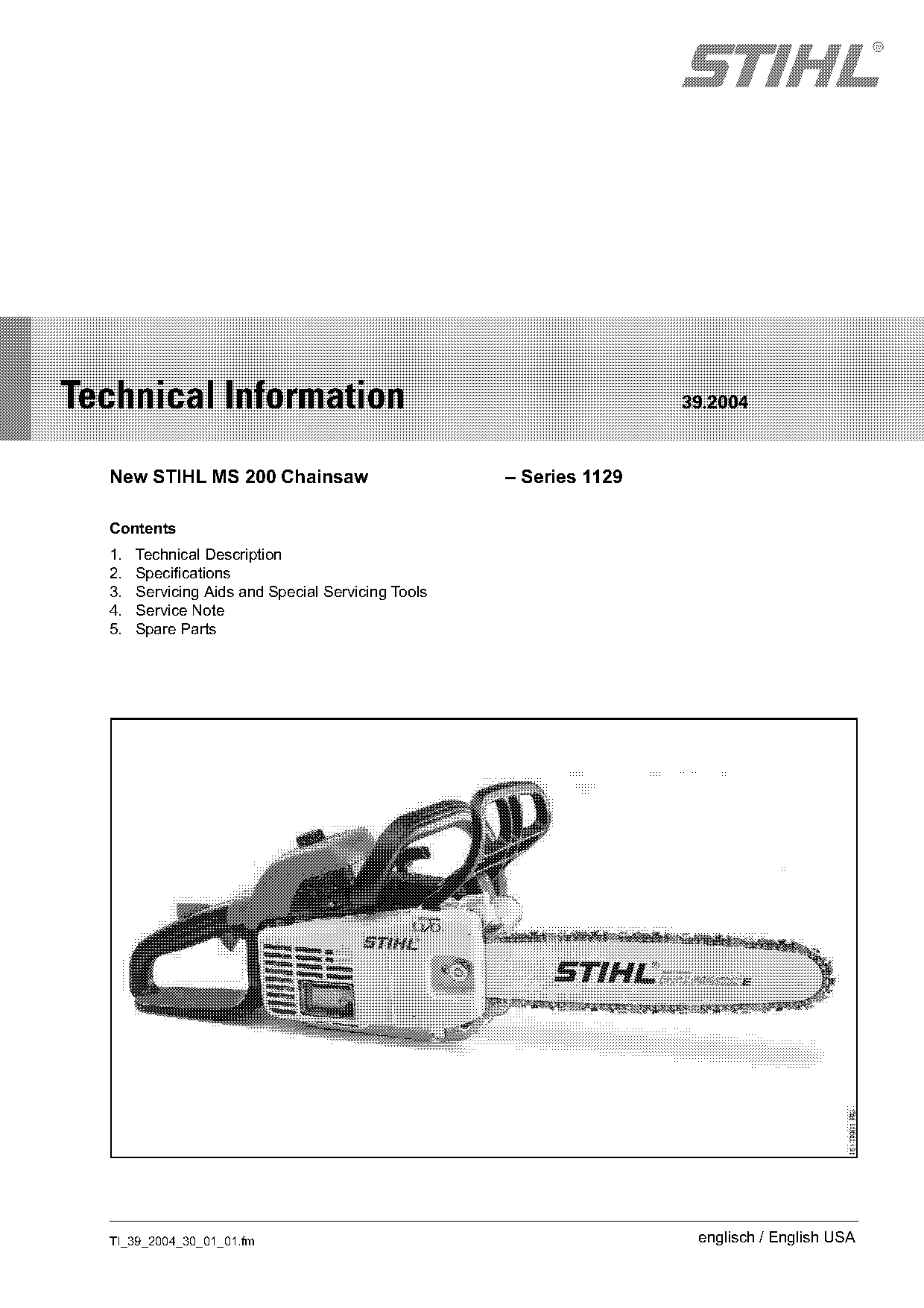

New STIHL MS 200 Chainsaw
IssueTI 39/2004
Engine family 1129
Full text
Page 1 of 4
STIH)
Technical Information 39.2004
New STIHL MS 200 Chainsaw – Series 1129
Contents
1. Technical Description
2. Specifications
3. Servicing Aids and Special Servicing Tools
4. Service Note
5. Spare Parts
TI_39_2004_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 39.2004

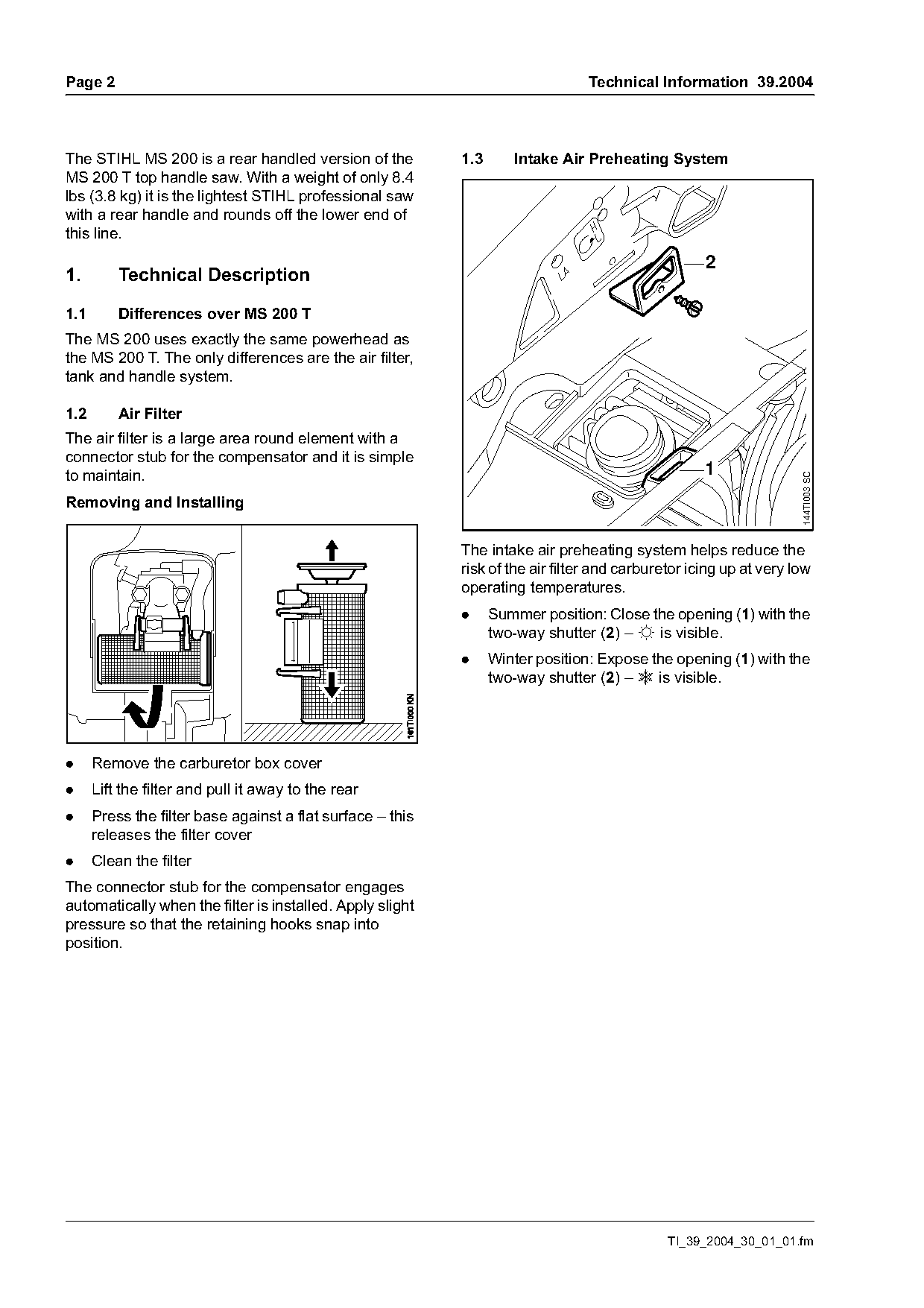

The STIHL MS 200 is a rear handled version of the 1.3 Intake Air Preheating System
MS 200 T top handle saw. With a weight of only 8.4
lbs (3.8 kg) it is the lightest STIHL professional saw
with a rear handle and rounds off the lower end of
this line.
2
1. Technical Description
1.1 Differences over MS 200 T
The MS 200 uses exactly the same powerhead as
the MS 200 T. The only differences are the air filter,
tank and handle system.
1.2 Air Filter
The air filter is a large area round element with a
connector stub for the compensator and it is simple
to maintain. 1
144TI003 SC
Removing and Installing
The intake air preheating system helps reduce the
risk of the air filter and carburetor icing up at very low
operating temperatures.
. Summer position: Close the opening (1) with the
two-way shutter (2) – s is visible.
. Winter position: Expose the opening (1) with the
two-way shutter (2) – r is visible.
. Remove the carburetor box cover
. Lift the filter and pull it away to the rear
. Press the filter base against a flat surface – this
releases the filter cover
. Clean the filter
The connector stub for the compensator engages
automatically when the filter is installed. Apply slight
pressure so that the retaining hooks snap into
position.
TI_39_2004_30_01_01.fm Page 2 of 4
Technical Information 39.2004 Page 3

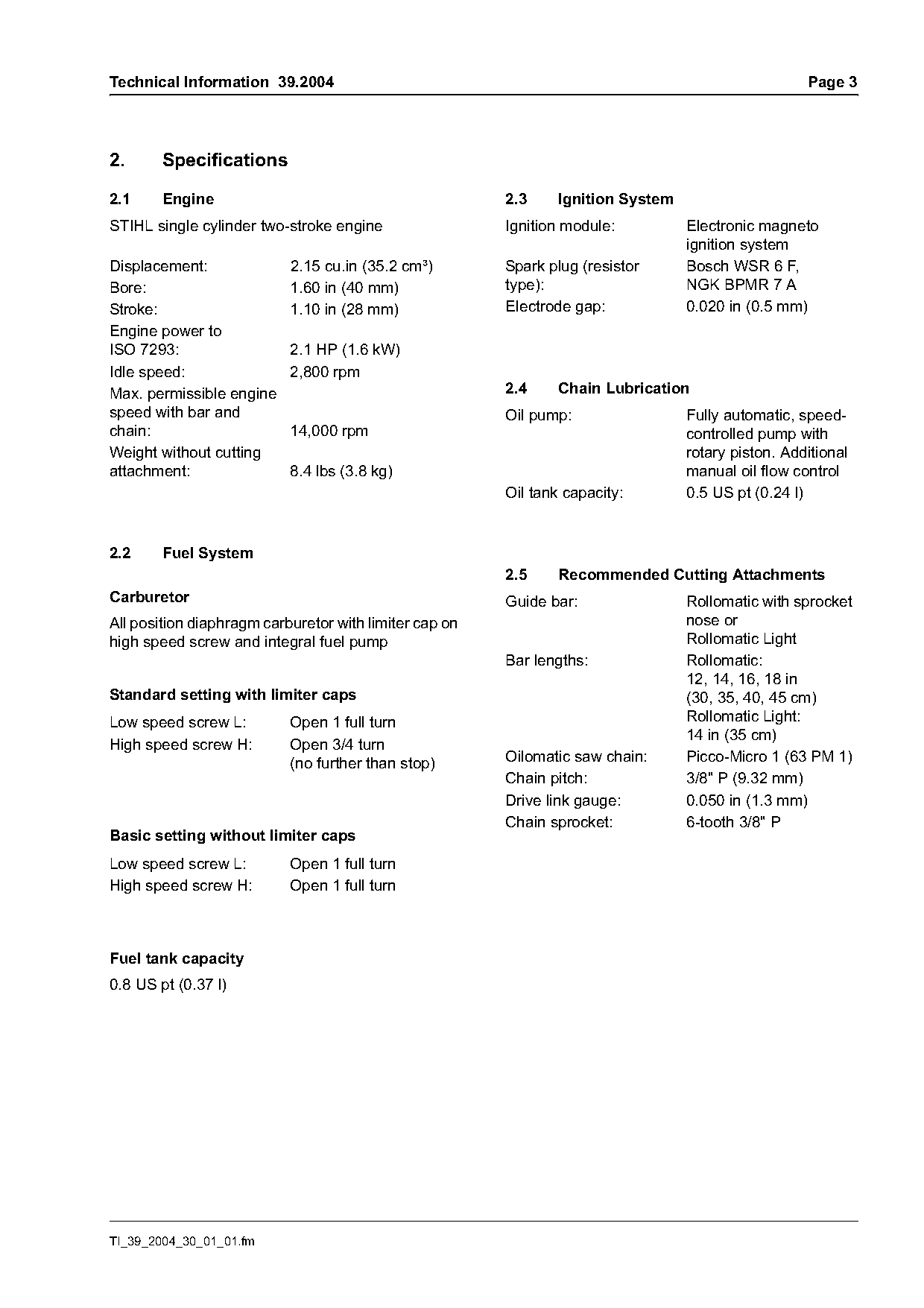

2. Specifications
2.1 Engine 2.3 Ignition System
STIHL single cylinder two-stroke engine Ignition module: Electronic magneto
ignition system
Displacement: 2.15 cu.in (35.2 cm³) Spark plug (resistor Bosch WSR 6 F,
Bore: 1.60 in (40 mm) type): NGK BPMR 7 A
Stroke: 1.10 in (28 mm) Electrode gap: 0.020 in (0.5 mm)
Engine power to
ISO 7293: 2.1 HP (1.6 kW)
Idle speed: 2,800 rpm
Max. permissible engine 2.4 Chain Lubrication
speed with bar and Oil pump: Fully automatic, speed-
chain: 14,000 rpm controlled pump with
Weight without cutting rotary piston. Additional
attachment: 8.4 lbs (3.8 kg) manual oil flow control
Oil tank capacity: 0.5 US pt (0.24 l)
2.2 Fuel System
2.5 Recommended Cutting Attachments
Carburetor Guide bar: Rollomatic with sprocket
All position diaphragm carburetor with limiter cap on nose or
high speed screw and integral fuel pump Rollomatic Light
Bar lengths: Rollomatic:
12, 14, 16, 18 in
Standard setting with limiter caps (30, 35, 40, 45 cm)
Low speed screw L: Open 1 full turn Rollomatic Light:
14 in (35 cm)
High speed screw H: Open 3/4 turn
(no further than stop) Oilomatic saw chain: Picco-Micro 1 (63 PM 1)
Chain pitch: 3/8" P (9.32 mm)
Drive link gauge: 0.050 in (1.3 mm)
Chain sprocket: 6-tooth 3/8" P
Basic setting without limiter caps
Low speed screw L: Open 1 full turn
High speed screw H: Open 1 full turn
Fuel tank capacity
0.8 US pt (0.37 l)
TI_39_2004_30_01_01.fm
)m~ge 4 Technical Information 39.2004

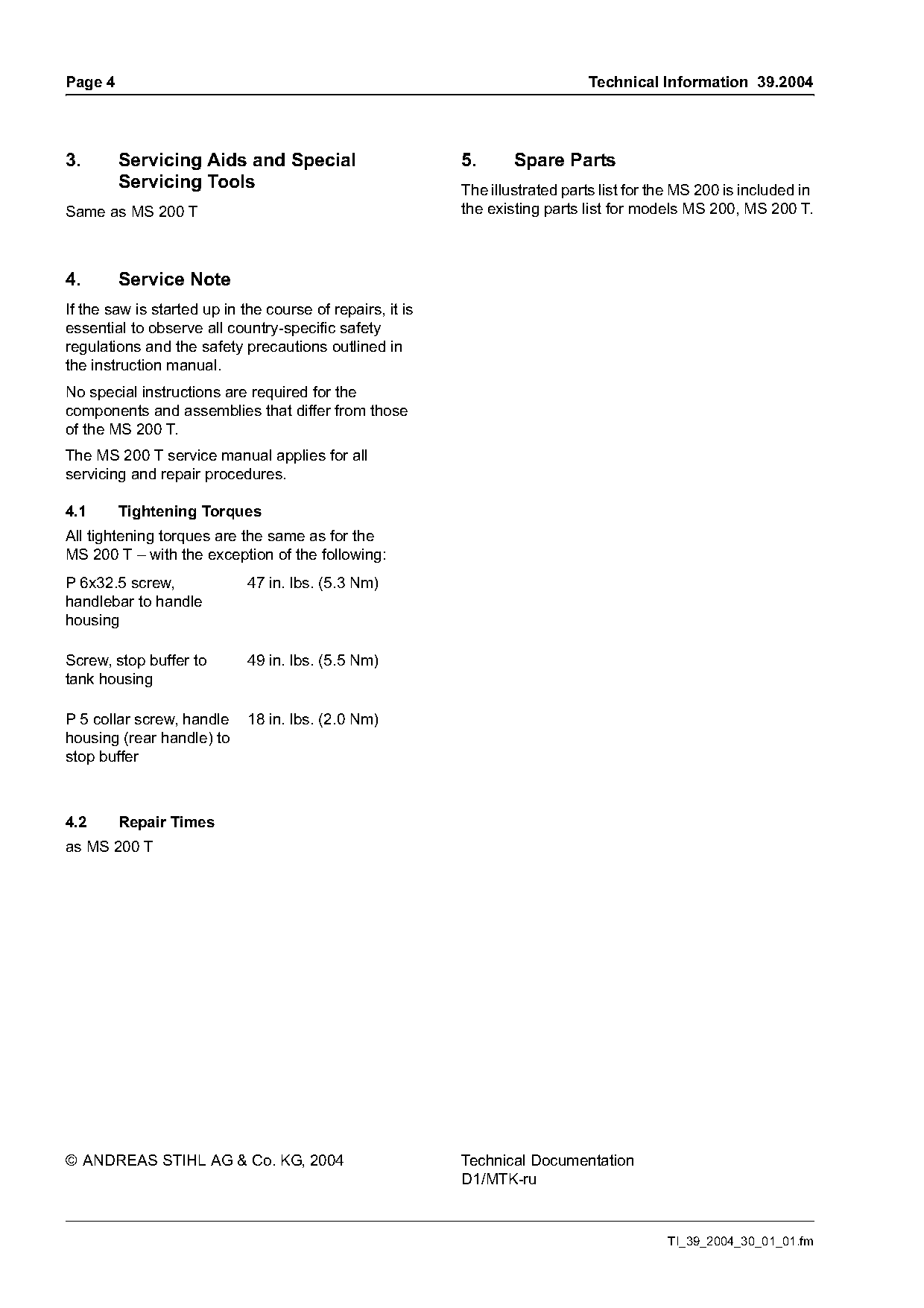

3. Servicing Aids and Special 5. Spare Parts
Servicing Tools The illustrated parts list for the MS 200 is included in
Same as MS 200 T the existing parts list for models MS 200, MS 200 T.
4. Service Note
If the saw is started up in the course of repairs, it is
essential to observe all country-specific safety
regulations and the safety precautions outlined in
the instruction manual.
No special instructions are required for the
components and assemblies that differ from those
of the MS 200 T.
The MS 200 T service manual applies for all
servicing and repair procedures.
4.1 Tightening Torques
All tightening torques are the same as for the
MS 200 T – with the exception of the following:
P 6x32.5 screw, 47 in. lbs. (5.3 Nm)
handlebar to handle
housing
Screw, stop buffer to 49 in. lbs. (5.5 Nm)
tank housing
P 5 collar screw, handle 18 in. lbs. (2.0 Nm)
housing (rear handle) to
stop buffer
4.2 Repair Times
as MS 200 T
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ru
TI_39_2004_30_01_01.fm Page 3 of 4
Page 4 of 4
