Oil pump, worm (optimized gearing)
IssueTI 40/2004
Engine family 1121
Full text
Page 1 of 2
STIH)
Technical Information 40.2004
Chain saws STIHL MS 260 – Series 1121
Oil pump, worm gear (optimized
gearing)
To further improve functional reliability, the gearing The new oil pump 1121 640 3203 and the new worm
on the piston of the oil pump and worm gear is being gear 1121 640 7111 are now used in production of
modified from serial No. 2 63 352 214 onwards. the MS 260.
Service note / spare parts
The new oil pump can only be replaced as a
complete unit together with the new worm gear. The
spare parts for the previous oil pump and previous
worm gear remain available for previous versions.
After removing the clutch, the number on the worm
gear shows whether parts of the previous or new
version have been installed (see diagram).
Important! The number shown on the face of the
worm in the diagram is not an order number for
spare parts!
The previous and new oil pumps are outwardly
distinguished by the shape of the plug and bushing
(see arrows in diagram).
If malfunctions of an oil pump occur in machines
with the previous oil pump, we recommend
installation of the new oil pump and new worm gear.
The new oil pump (with new worm gear) are
172TI017 KN
included in a "oil pump conversion kit"
1121 007 1043 for older machines.

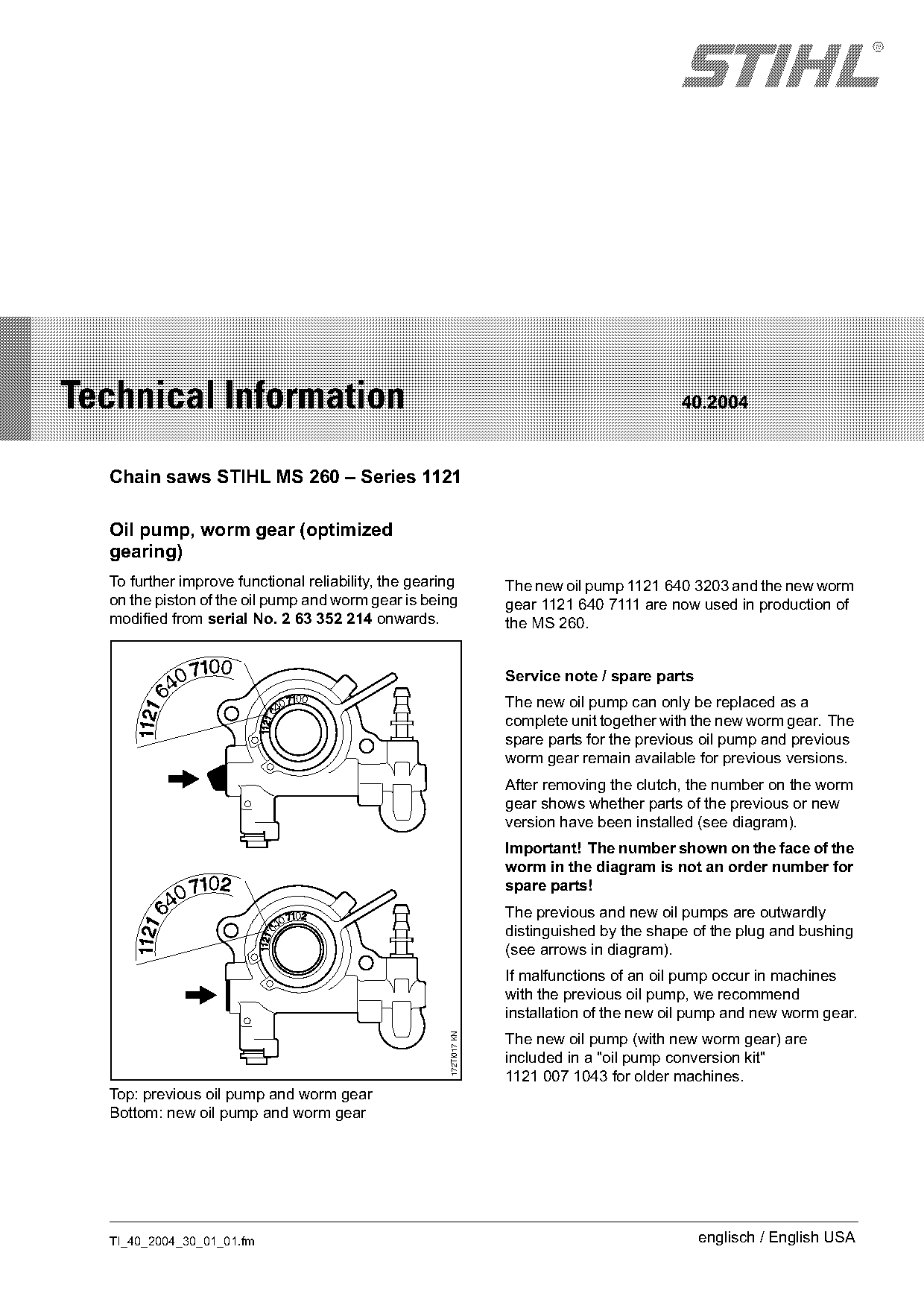

Top: previous oil pump and worm gear
Bottom: new oil pump and worm gear
TI_40_2004_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information

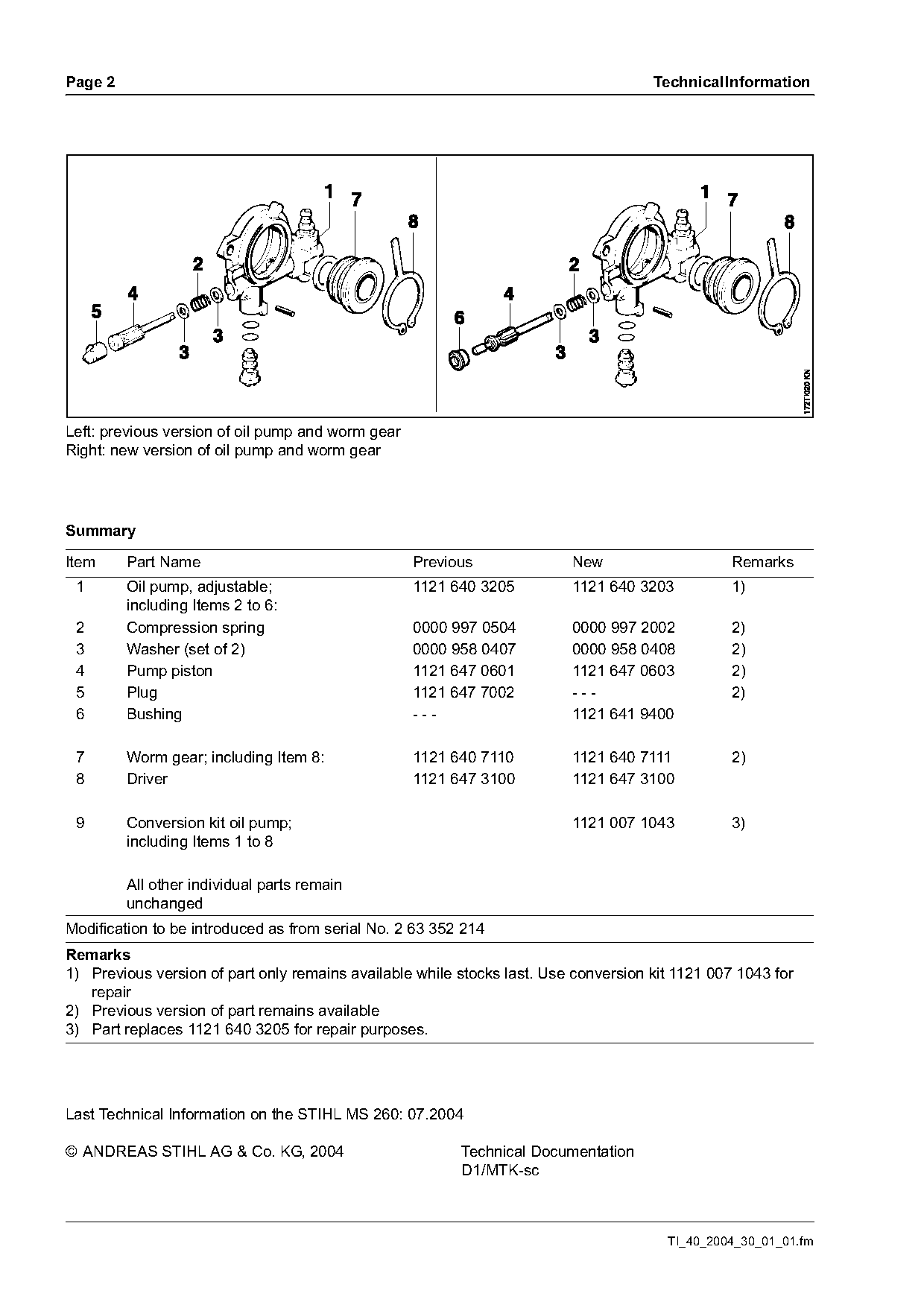

Left: previous version of oil pump and worm gear
Right: new version of oil pump and worm gear
Summary
Item Part Name Previous New Remarks
1 Oil pump, adjustable; 1121 640 3205 1121 640 3203 1)
including Items 2 to 6:
2 Compression spring 0000 997 0504 0000 997 2002 2)
3 Washer (set of 2) 0000 958 0407 0000 958 0408 2)
4 Pump piston 1121 647 0601 1121 647 0603 2)
5 Plug 1121 647 7002 --- 2)
6 Bushing --- 1121 641 9400
7 Worm gear; including Item 8: 1121 640 7110 1121 640 7111 2)
8 Driver 1121 647 3100 1121 647 3100
9 Conversion kit oil pump; 1121 007 1043 3)
including Items 1 to 8
All other individual parts remain
unchanged
Modification to be introduced as from serial No. 2 63 352 214
Remarks
1) Previous version of part only remains available while stocks last. Use conversion kit 1121 007 1043 for
repair
2) Previous version of part remains available
3) Part replaces 1121 640 3205 for repair purposes.
