Technical Information · issue 42 of 2004
Coupling (clamp); Loop handle without barrier bar; Nameplate (FS 80, FS 85); ElastoStart (cap); Handle (bike handle); Clutch drum / drive shaft (SP 85); Thrust plate / guard washer (cutting tool attachment FS 80, 85); Service manuals; Documentati
IssueTI 42/2004
Full text
Page 1 of 7
STIH)

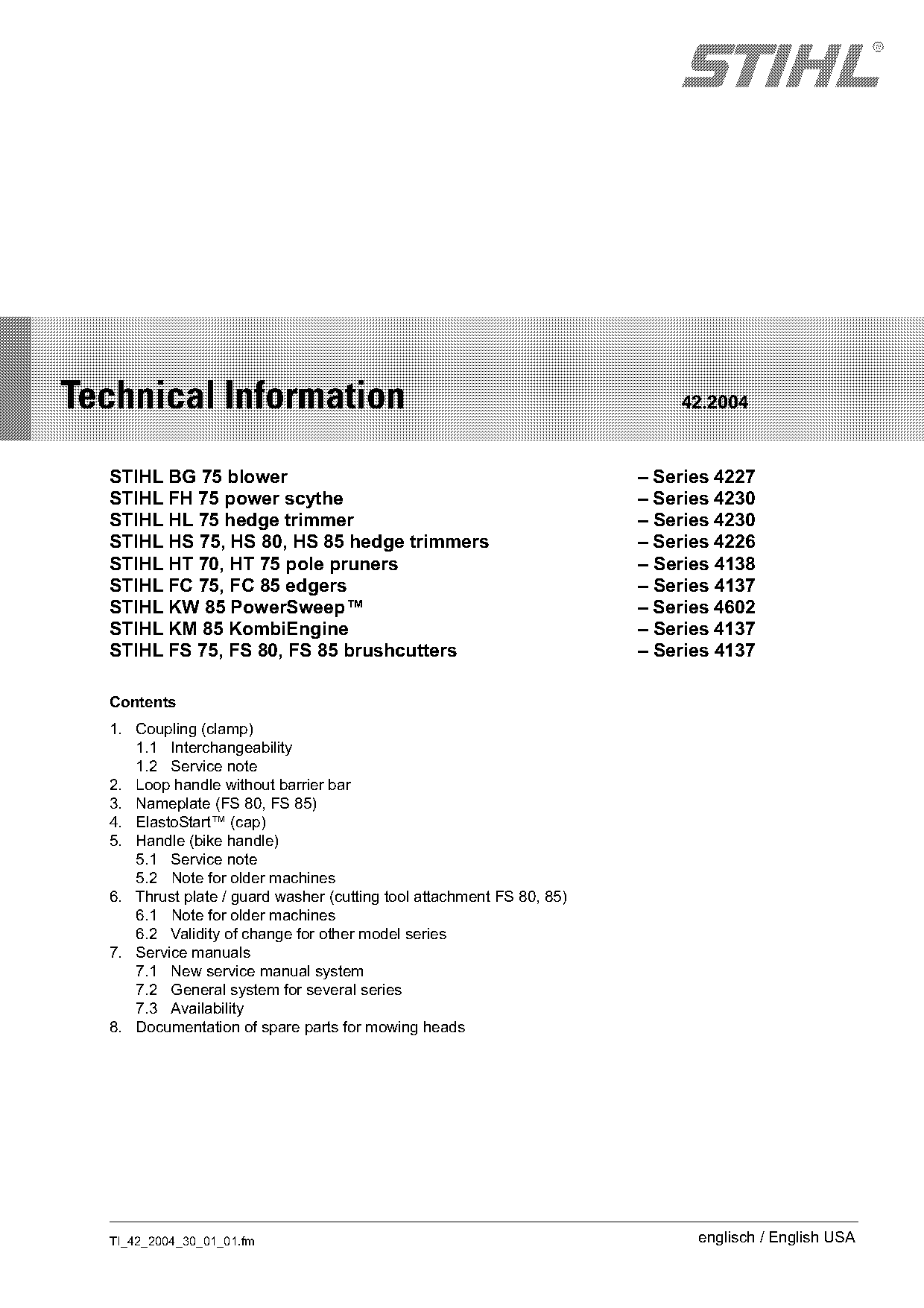

Technical Information 42.2004
STIHL BG 75 blower – Series 4227
STIHL FH 75 power scythe – Series 4230
STIHL HL 75 hedge trimmer – Series 4230
STIHL HS 75, HS 80, HS 85 hedge trimmers – Series 4226
STIHL HT 70, HT 75 pole pruners – Series 4138
STIHL FC 75, FC 85 edgers – Series 4137
STIHL KW 85 PowerSweep™ – Series 4602
STIHL KM 85 KombiEngine – Series 4137
STIHL FS 75, FS 80, FS 85 brushcutters – Series 4137
Contents
1. Coupling (clamp)
1.1 Interchangeability
1.2 Service note
2. Loop handle without barrier bar
3. Nameplate (FS 80, FS 85)
4. ElastoStart™ (cap)
5. Handle (bike handle)
5.1 Service note
5.2 Note for older machines
6. Thrust plate / guard washer (cutting tool attachment FS 80, 85)
6.1 Note for older machines
6.2 Validity of change for other model series
7. Service manuals
7.1 New service manual system
7.2 General system for several series
7.3 Availability
8. Documentation of spare parts for mowing heads
TI_42_2004_30_01_01.fm englisch / English USA

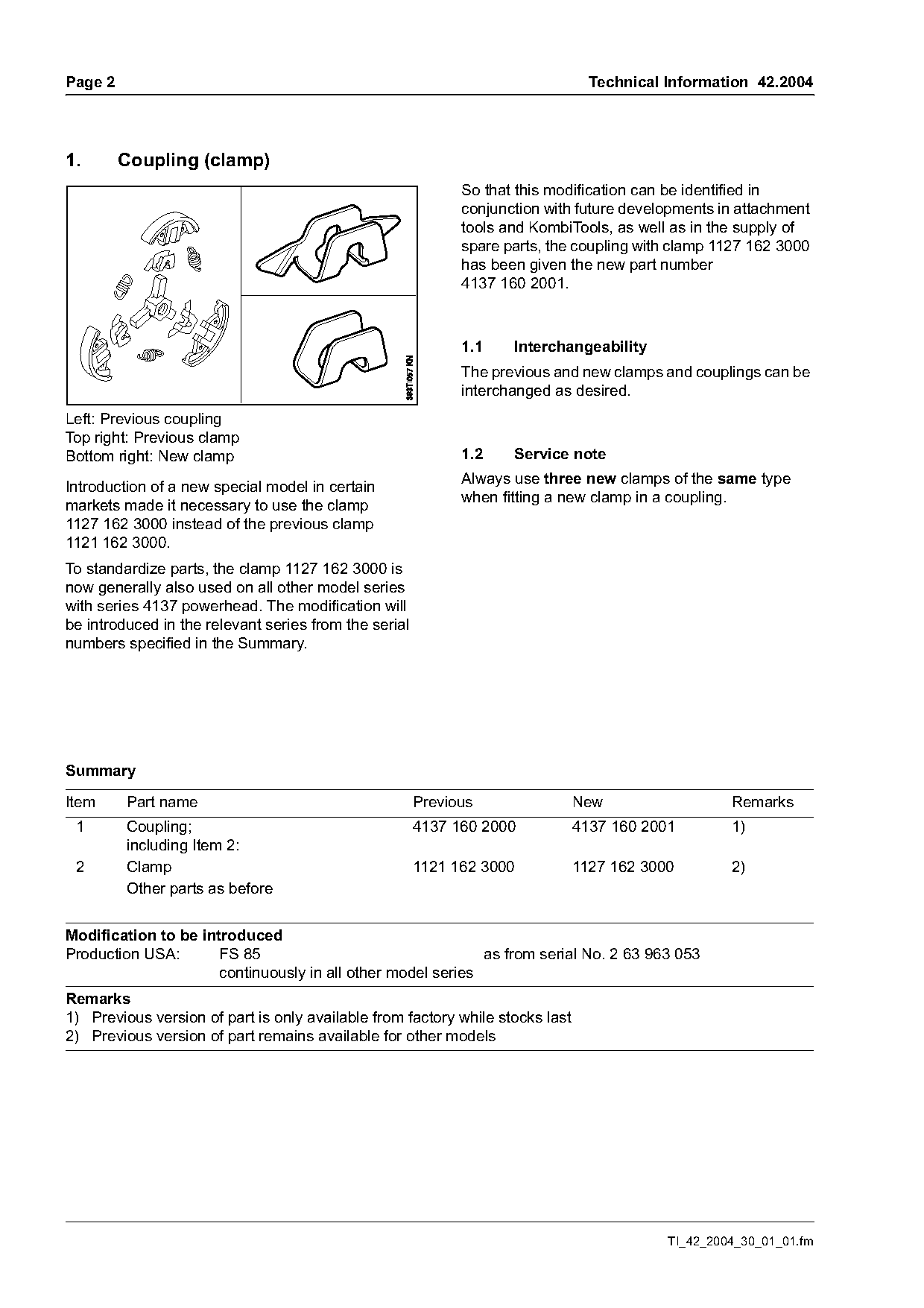

)m~ge 2 Technical Information 42.2004
1. Coupling (clamp)
So that this modification can be identified in
conjunction with future developments in attachment
tools and KombiTools, as well as in the supply of
spare parts, the coupling with clamp 1127 162 3000
has been given the new part number
4137 160 2001.
1.1 Interchangeability
The previous and new clamps and couplings can be
interchanged as desired.
Left: Previous coupling
Top right: Previous clamp
Bottom right: New clamp 1.2 Service note
Always use three new clamps of the same type
Introduction of a new special model in certain
when fitting a new clamp in a coupling.
markets made it necessary to use the clamp
1127 162 3000 instead of the previous clamp
1121 162 3000.
To standardize parts, the clamp 1127 162 3000 is
now generally also used on all other model series
with series 4137 powerhead. The modification will
be introduced in the relevant series from the serial
numbers specified in the Summary.
Summary
Item Part name Previous New Remarks
1 Coupling; 4137 160 2000 4137 160 2001 1)
including Item 2:
2 Clamp 1121 162 3000 1127 162 3000 2)
Other parts as before
Modification to be introduced
Production USA: FS 85 as from serial No. 2 63 963 053
continuously in all other model series
Remarks
1) Previous version of part is only available from factory while stocks last
2) Previous version of part remains available for other models
TI_42_2004_30_01_01.fm Page 2 of 7

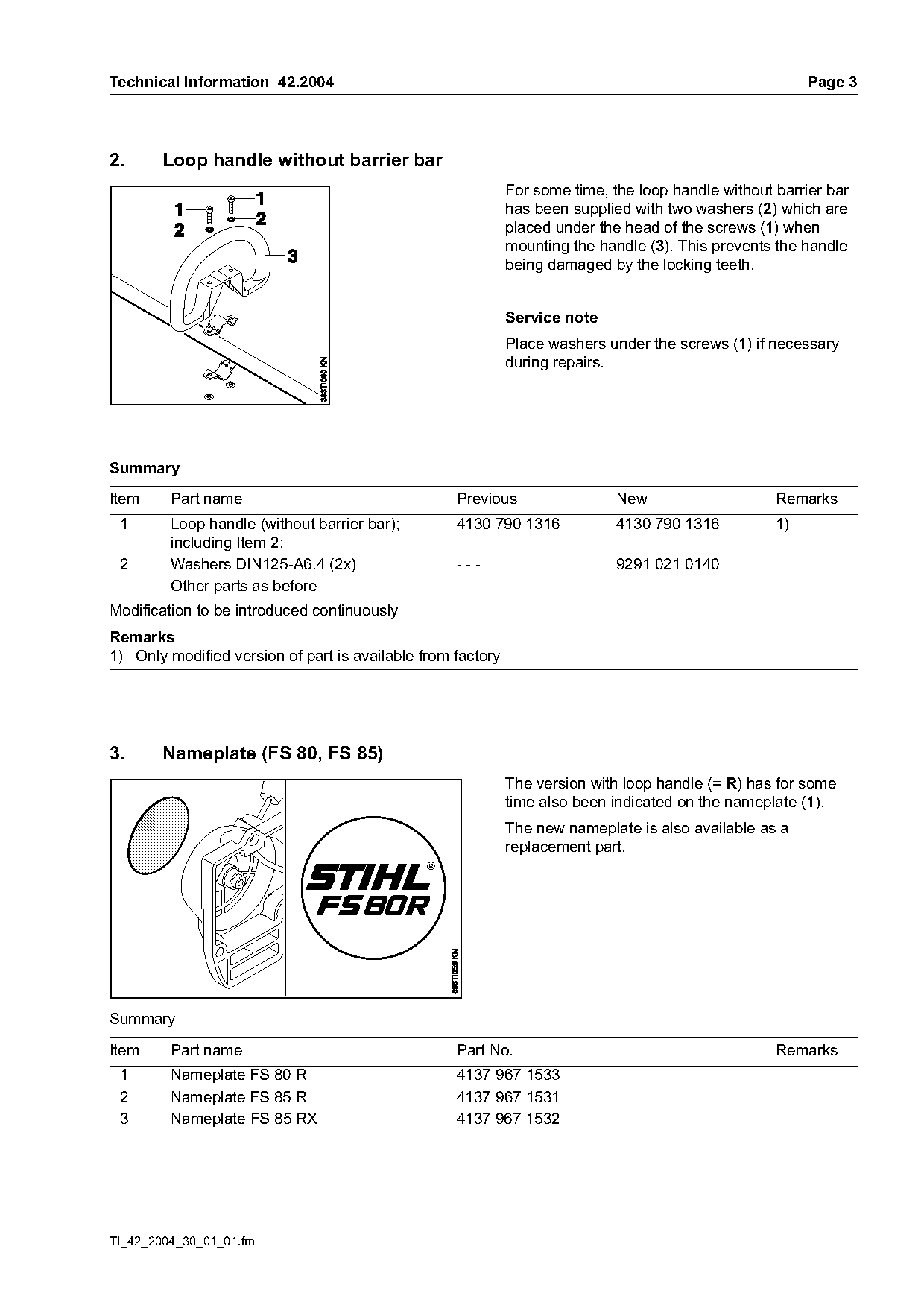

Technical Information 42.2004 Page 3
2. Loop handle without barrier bar
For some time, the loop handle without barrier bar
has been supplied with two washers (2) which are
placed under the head of the screws (1) when
mounting the handle (3). This prevents the handle
being damaged by the locking teeth.
Service note
Place washers under the screws (1) if necessary
during repairs.
Summary
Item Part name Previous New Remarks
1 Loop handle (without barrier bar); 4130 790 1316 4130 790 1316 1)
including Item 2:
2 Washers DIN125-A6.4 (2x) --- 9291 021 0140
Other parts as before
Modification to be introduced continuously
Remarks
1) Only modified version of part is available from factory
3. Nameplate (FS 80, FS 85)
The version with loop handle (= R) has for some
time also been indicated on the nameplate (1).
The new nameplate is also available as a
replacement part.
Summary
Item Part name Part No. Remarks
1 Nameplate FS 80 R 4137 967 1533
2 Nameplate FS 85 R 4137 967 1531
3 Nameplate FS 85 RX 4137 967 1532
TI_42_2004_30_01_01.fm

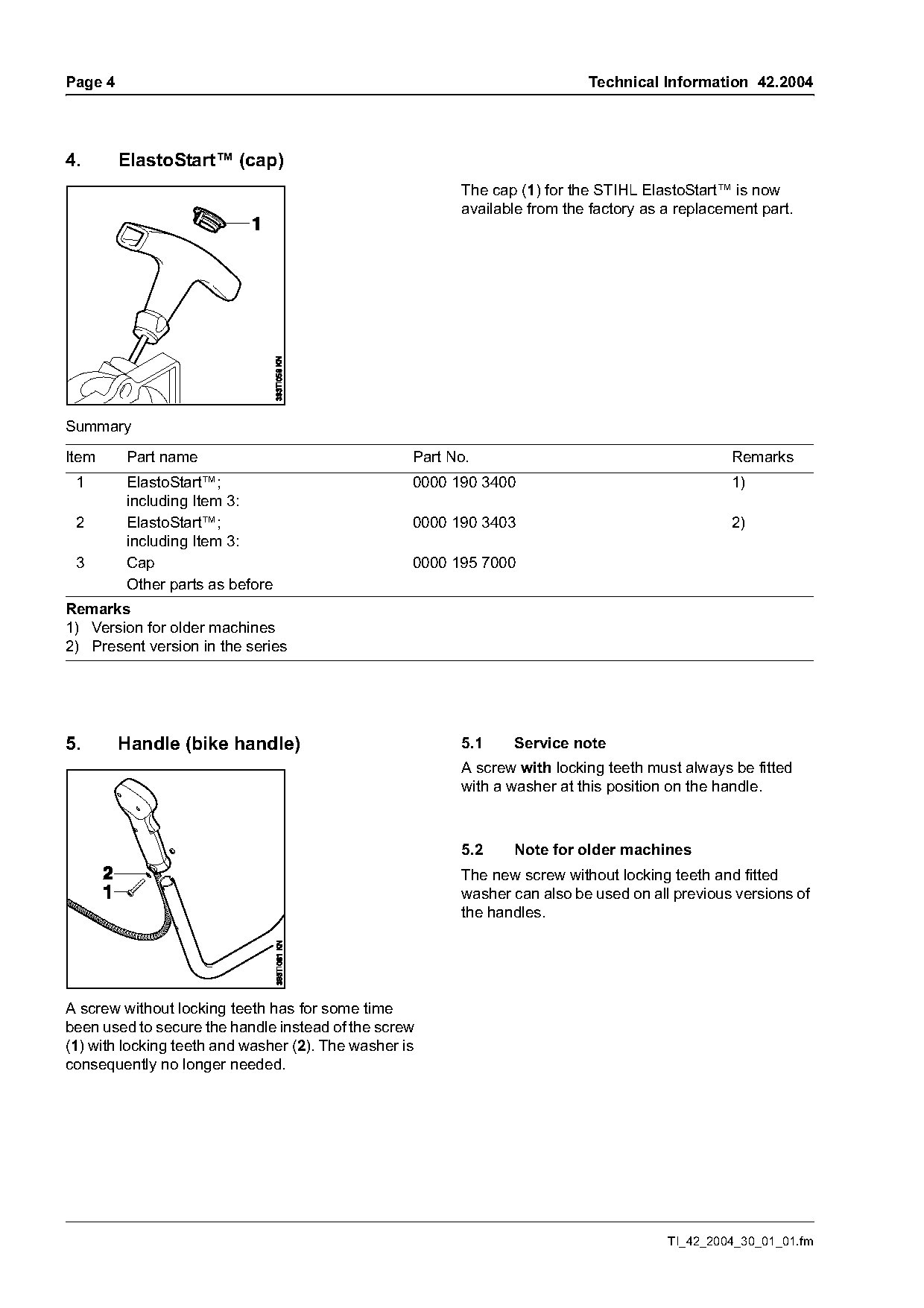

)m~ge 4 Technical Information 42.2004
4. ElastoStart™ (cap)
The cap (1) for the STIHL ElastoStart™ is now
available from the factory as a replacement part.
Summary
Item Part name Part No. Remarks
1 ElastoStart™; 0000 190 3400 1)
including Item 3:
2 ElastoStart™; 0000 190 3403 2)
including Item 3:
3 Cap 0000 195 7000
Other parts as before
Remarks
1) Version for older machines
2) Present version in the series
5. Handle (bike handle) 5.1 Service note
A screw with locking teeth must always be fitted
with a washer at this position on the handle.
5.2 Note for older machines
The new screw without locking teeth and fitted
washer can also be used on all previous versions of
the handles.
A screw without locking teeth has for some time
been used to secure the handle instead of the screw
(1) with locking teeth and washer (2). The washer is
consequently no longer needed.
TI_42_2004_30_01_01.fm Page 3 of 7

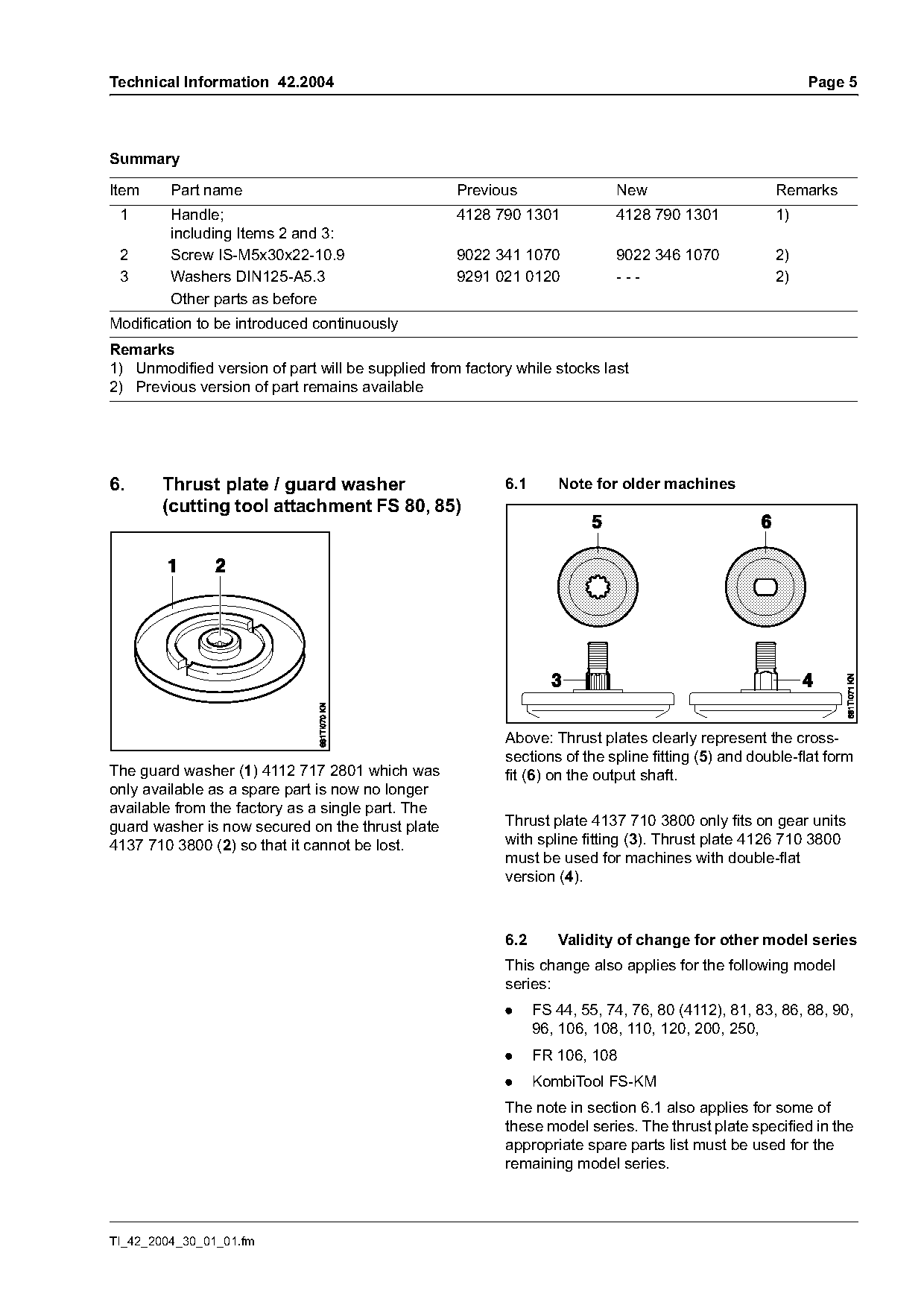

Technical Information 42.2004 Page 5
Summary
Item Part name Previous New Remarks
1 Handle; 4128 790 1301 4128 790 1301 1)
including Items 2 and 3:
2 Screw IS-M5x30x22-10.9 9022 341 1070 9022 346 1070 2)
3 Washers DIN125-A5.3 9291 021 0120 --- 2)
Other parts as before
Modification to be introduced continuously
Remarks
1) Unmodified version of part will be supplied from factory while stocks last
2) Previous version of part remains available
6. Thrust plate / guard washer 6.1 Note for older machines
(cutting tool attachment FS 80, 85)
Above: Thrust plates clearly represent the cross-
sections of the spline fitting (5) and double-flat form
The guard washer (1) 4112 717 2801 which was fit (6) on the output shaft.
only available as a spare part is now no longer
available from the factory as a single part. The
guard washer is now secured on the thrust plate Thrust plate 4137 710 3800 only fits on gear units
4137 710 3800 (2) so that it cannot be lost. with spline fitting (3). Thrust plate 4126 710 3800
must be used for machines with double-flat
version (4).
6.2 Validity of change for other model series
This change also applies for the following model
series:
. FS 44, 55, 74, 76, 80 (4112), 81, 83, 86, 88, 90,
96, 106, 108, 110, 120, 200, 250,
. FR 106, 108
. KombiTool FS-KM
The note in section 6.1 also applies for some of
these model series. The thrust plate specified in the
appropriate spare parts list must be used for the
remaining model series.
TI_42_2004_30_01_01.fm

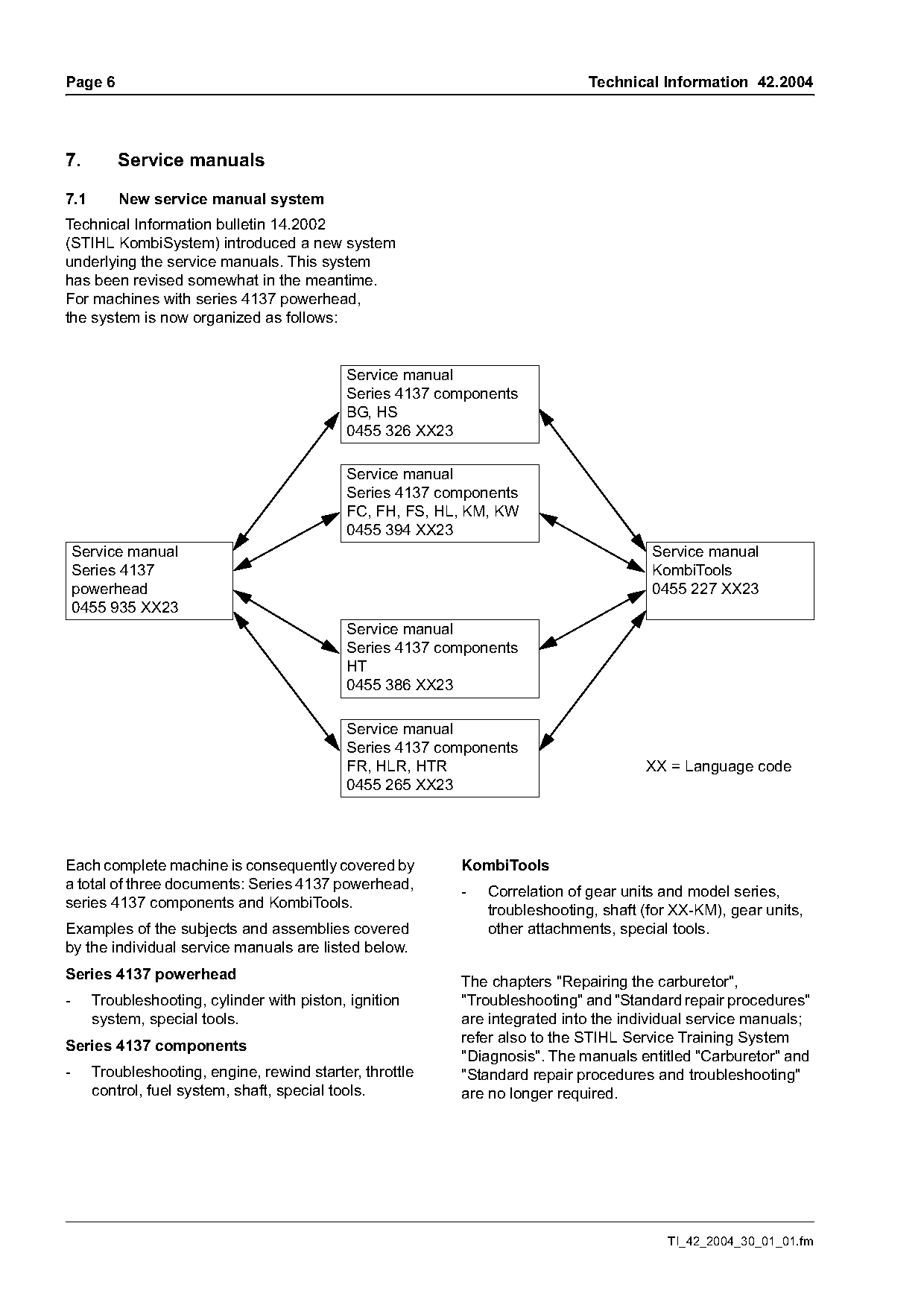

)m~ge 6 Technical Information 42.2004
7. Service manuals
7.1 New service manual system
Technical Information bulletin 14.2002
(STIHL KombiSystem) introduced a new system
underlying the service manuals. This system
has been revised somewhat in the meantime.
For machines with series 4137 powerhead,
the system is now organized as follows:
Service manual
Series 4137 components
BG, HS
0455 326 XX23
Service manual
Series 4137 components
FC, FH, FS, HL, KM, KW
0455 394 XX23
Service manual Service manual
Series 4137 KombiTools
powerhead 0455 227 XX23
0455 935 XX23
Service manual
Series 4137 components
HT
0455 386 XX23
Service manual
Series 4137 components
FR, HLR, HTR XX = Language code
0455 265 XX23
Each complete machine is consequently covered by KombiTools
a total of three documents: Series 4137 powerhead, - Correlation of gear units and model series,
series 4137 components and KombiTools. troubleshooting, shaft (for XX-KM), gear units,
Examples of the subjects and assemblies covered other attachments, special tools.
by the individual service manuals are listed below.
Series 4137 powerhead
The chapters "Repairing the carburetor",
- Troubleshooting, cylinder with piston, ignition "Troubleshooting" and "Standard repair procedures"
system, special tools. are integrated into the individual service manuals;
Series 4137 components refer also to the STIHL Service Training System
"Diagnosis". The manuals entitled "Carburetor" and
- Troubleshooting, engine, rewind starter, throttle "Standard repair procedures and troubleshooting"
control, fuel system, shaft, special tools. are no longer required.
TI_42_2004_30_01_01.fm Page 4 of 7

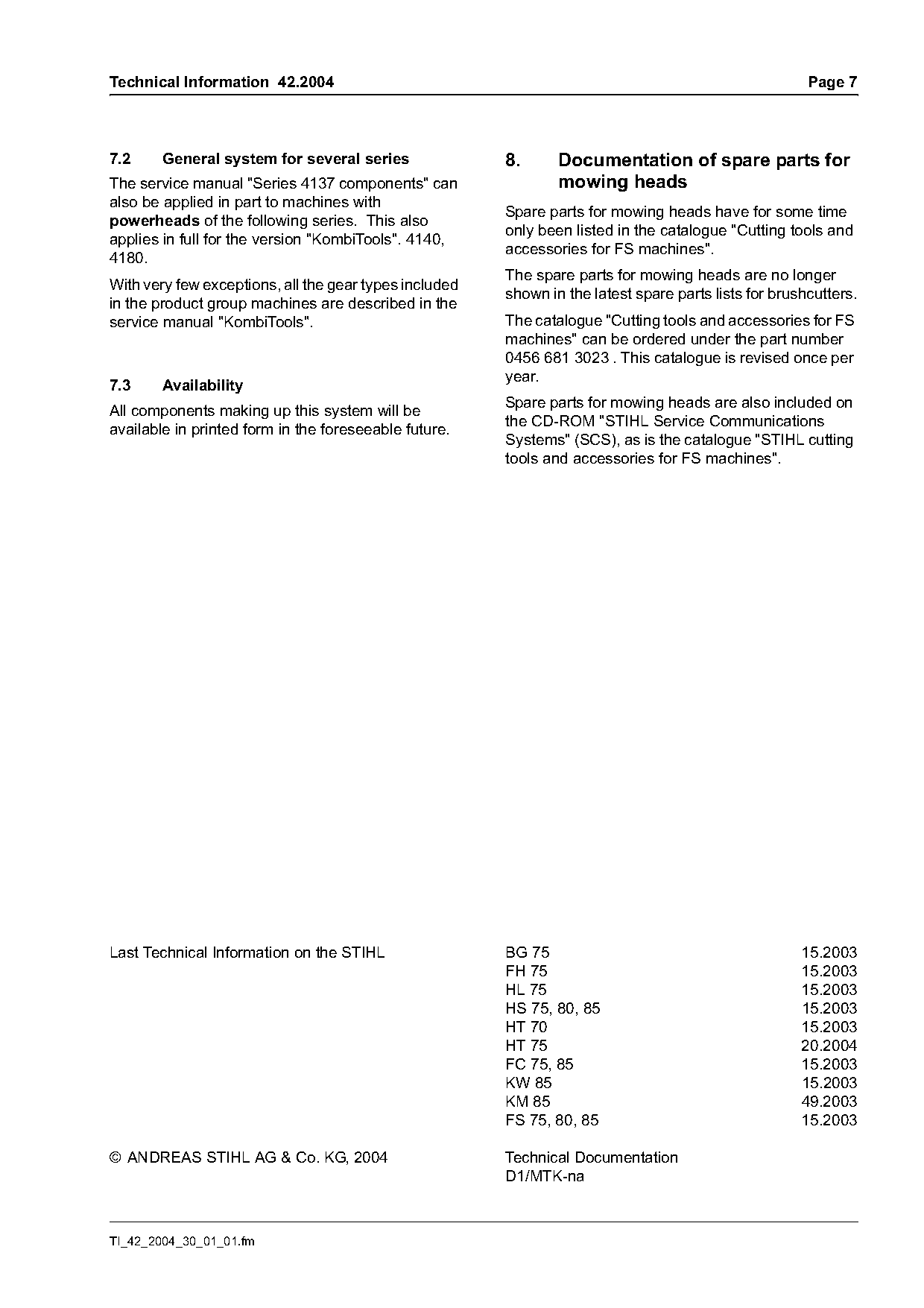

Technical Information 42.2004 Page 7
7.2 General system for several series 8. Documentation of spare parts for
The service manual "Series 4137 components" can mowing heads
also be applied in part to machines with
Spare parts for mowing heads have for some time
powerheads of the following series. This also
only been listed in the catalogue "Cutting tools and
applies in full for the version "KombiTools". 4140,
accessories for FS machines".
4180.
The spare parts for mowing heads are no longer
With very few exceptions, all the gear types included
shown in the latest spare parts lists for brushcutters.
in the product group machines are described in the
service manual "KombiTools". The catalogue "Cutting tools and accessories for FS
machines" can be ordered under the part number
0456 681 3023 . This catalogue is revised once per
year.
7.3 Availability
Spare parts for mowing heads are also included on
All components making up this system will be
the CD-ROM "STIHL Service Communications
available in printed form in the foreseeable future.
Systems" (SCS), as is the catalogue "STIHL cutting
tools and accessories for FS machines".
Last Technical Information on the STIHL BG 75 15.2003
FH 75 15.2003
HL 75 15.2003
HS 75, 80, 85 15.2003
HT 70 15.2003
HT 75 20.2004
FC 75, 85 15.2003
KW 85 15.2003
KM 85 49.2003
FS 75, 80, 85 15.2003
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-na
TI_42_2004_30_01_01.fm Page 5 of 7
