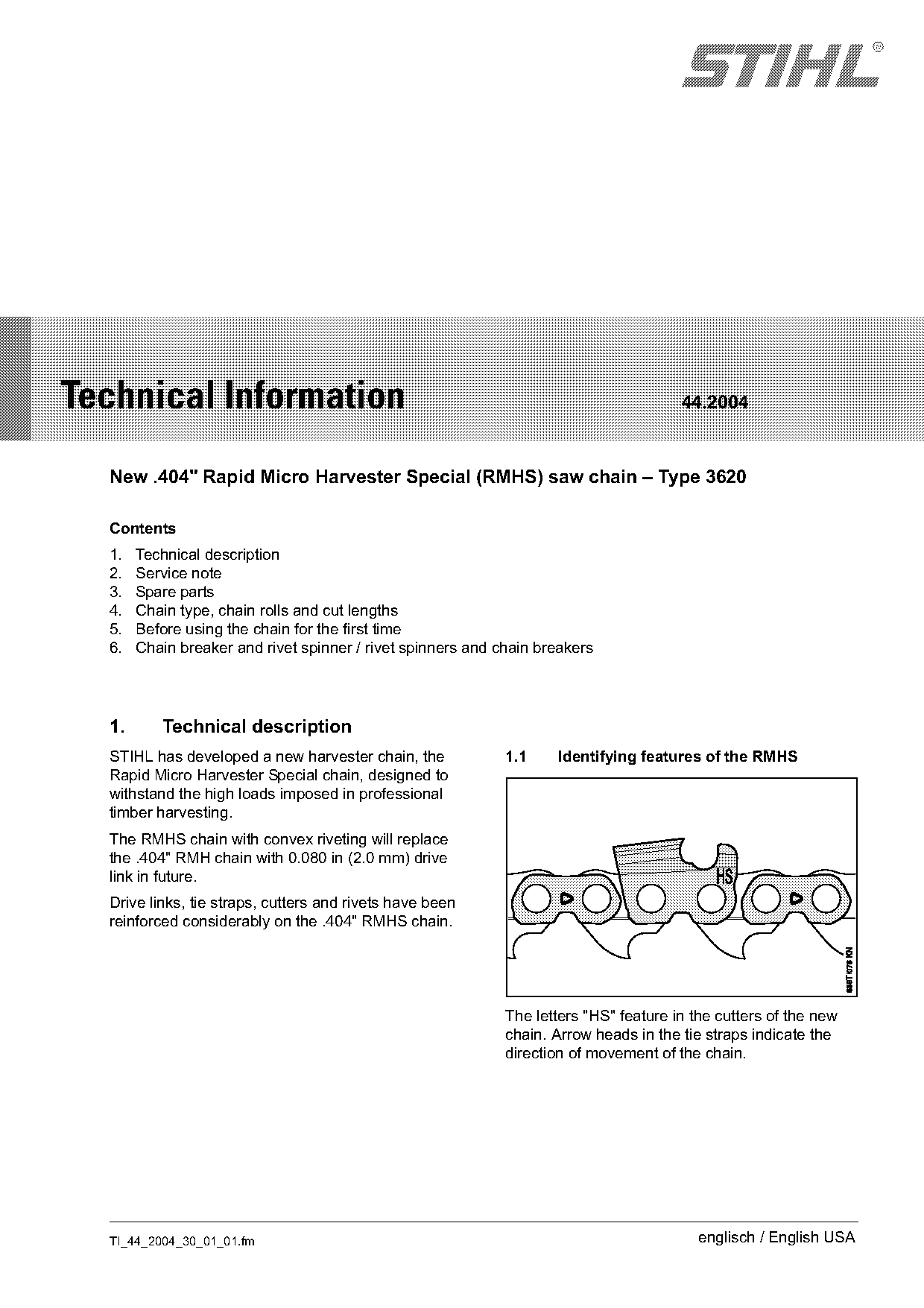

Technical Information 44.2004
New .404" Rapid Micro Harvester Special (RMHS) saw chain – Type 3620
Contents
1. Technical description
2. Service note
3. Spare parts
4. Chain type, chain rolls and cut lengths
5. Before using the chain for the first time
6. Chain breaker and rivet spinner / rivet spinners and chain breakers
1. Technical description
STIHL has developed a new harvester chain, the 1.1 Identifying features of the RMHS
Rapid Micro Harvester Special chain, designed to
withstand the high loads imposed in professional
timber harvesting.
The RMHS chain with convex riveting will replace
the .404" RMH chain with 0.080 in (2.0 mm) drive
link in future.
Drive links, tie straps, cutters and rivets have been
reinforced considerably on the .404" RMHS chain.
The letters "HS" feature in the cutters of the new
chain. Arrow heads in the tie straps indicate the
direction of movement of the chain.
TI_44_2004_30_01_01.fm englisch / English USA

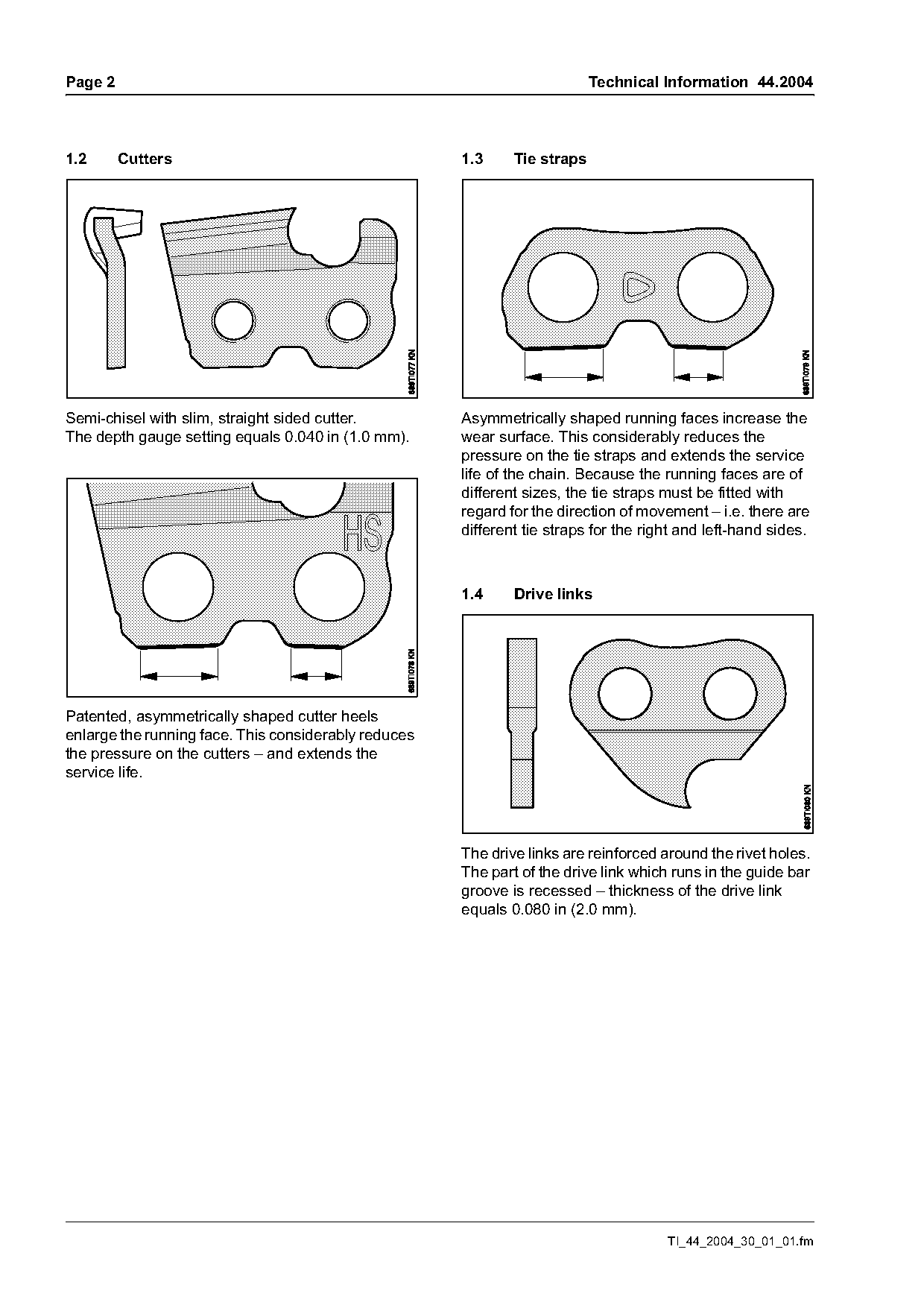

)m~ge 2 Technical Information 44.2004
1.2 Cutters 1.3 Tie straps
Semi-chisel with slim, straight sided cutter. Asymmetrically shaped running faces increase the
The depth gauge setting equals 0.040 in (1.0 mm). wear surface. This considerably reduces the
pressure on the tie straps and extends the service
life of the chain. Because the running faces are of
different sizes, the tie straps must be fitted with
regard for the direction of movement – i.e. there are
different tie straps for the right and left-hand sides.
1.4 Drive links
Patented, asymmetrically shaped cutter heels
enlarge the running face. This considerably reduces
the pressure on the cutters – and extends the
service life.
The drive links are reinforced around the rivet holes.
The part of the drive link which runs in the guide bar
groove is recessed – thickness of the drive link
equals 0.080 in (2.0 mm).
TI_44_2004_30_01_01.fm Page 2 of 5

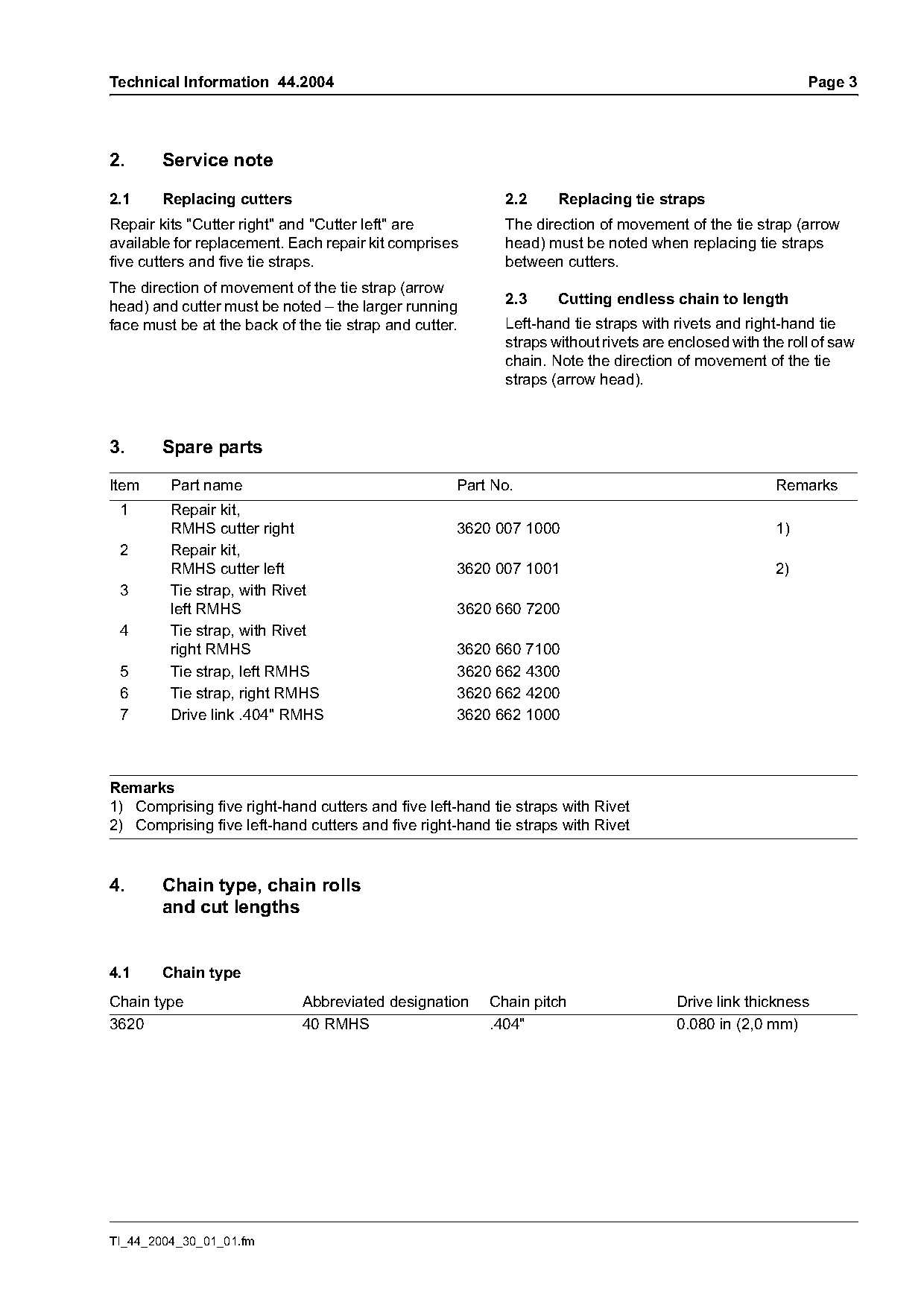

Technical Information 44.2004 Page 3
2. Service note
2.1 Replacing cutters 2.2 Replacing tie straps
Repair kits "Cutter right" and "Cutter left" are The direction of movement of the tie strap (arrow
available for replacement. Each repair kit comprises head) must be noted when replacing tie straps
five cutters and five tie straps. between cutters.
The direction of movement of the tie strap (arrow
2.3 Cutting endless chain to length
head) and cutter must be noted – the larger running
face must be at the back of the tie strap and cutter. Left-hand tie straps with rivets and right-hand tie
straps without rivets are enclosed with the roll of saw
chain. Note the direction of movement of the tie
straps (arrow head).
3. Spare parts
Item Part name Part No. Remarks
1 Repair kit,
RMHS cutter right 3620 007 1000 1)
2 Repair kit,
RMHS cutter left 3620 007 1001 2)
3 Tie strap, with Rivet
left RMHS 3620 660 7200
4 Tie strap, with Rivet
right RMHS 3620 660 7100
5 Tie strap, left RMHS 3620 662 4300
6 Tie strap, right RMHS 3620 662 4200
7 Drive link .404" RMHS 3620 662 1000
Remarks
1) Comprising five right-hand cutters and five left-hand tie straps with Rivet
2) Comprising five left-hand cutters and five right-hand tie straps with Rivet
4. Chain type, chain rolls
and cut lengths
4.1 Chain type
Chain type Abbreviated designation Chain pitch Drive link thickness
3620 40 RMHS .404" 0.080 in (2,0 mm)
TI_44_2004_30_01_01.fm

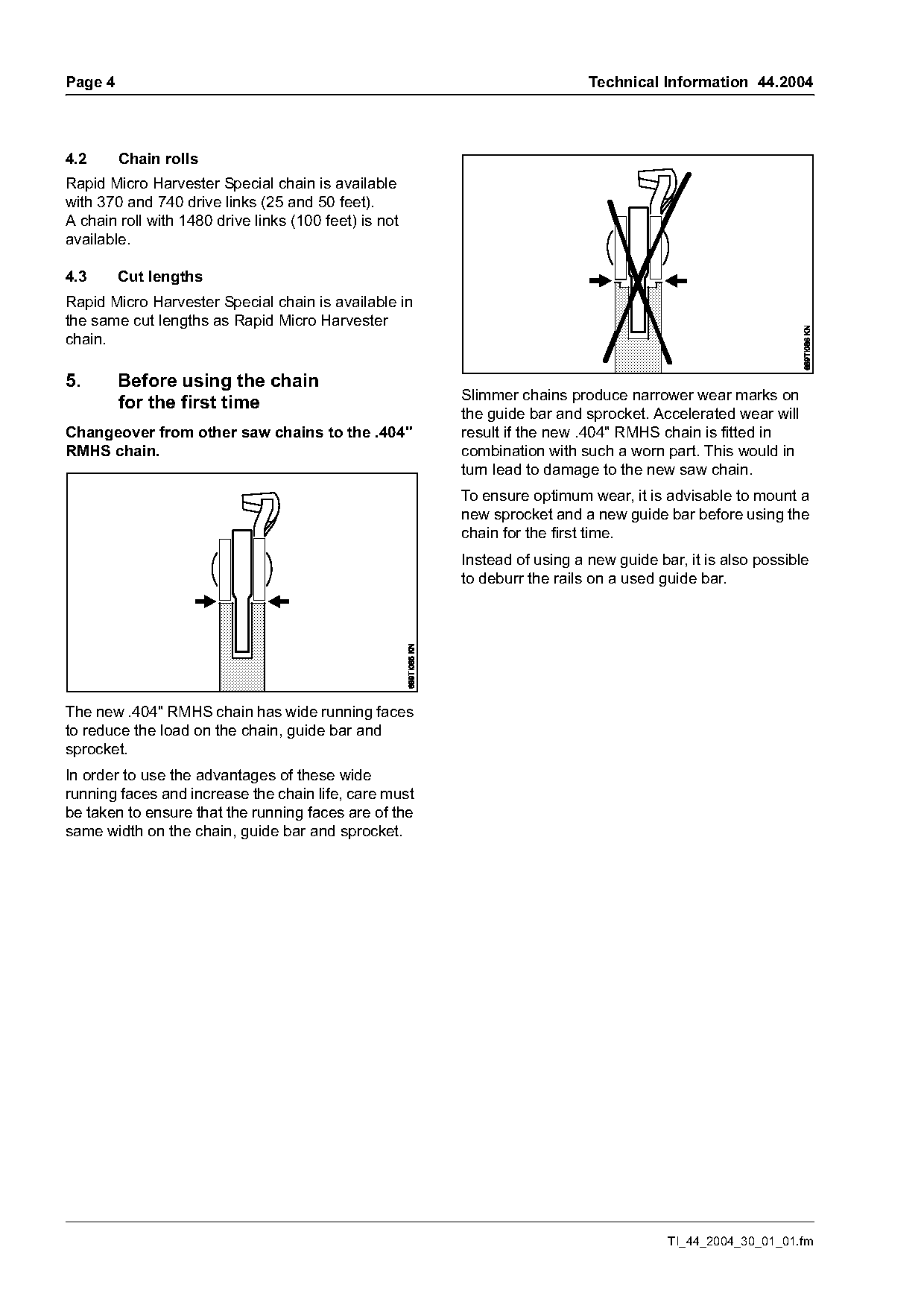

)m~ge 4 Technical Information 44.2004
4.2 Chain rolls
Rapid Micro Harvester Special chain is available
with 370 and 740 drive links (25 and 50 feet).
A chain roll with 1480 drive links (100 feet) is not
available.
4.3 Cut lengths
Rapid Micro Harvester Special chain is available in
the same cut lengths as Rapid Micro Harvester
chain.
5. Before using the chain
Slimmer chains produce narrower wear marks on
for the first time
the guide bar and sprocket. Accelerated wear will
Changeover from other saw chains to the .404" result if the new .404" RMHS chain is fitted in
RMHS chain. combination with such a worn part. This would in
turn lead to damage to the new saw chain.
To ensure optimum wear, it is advisable to mount a
new sprocket and a new guide bar before using the
chain for the first time.
Instead of using a new guide bar, it is also possible
to deburr the rails on a used guide bar.
The new .404" RMHS chain has wide running faces
to reduce the load on the chain, guide bar and
sprocket.
In order to use the advantages of these wide
running faces and increase the chain life, care must
be taken to ensure that the running faces are of the
same width on the chain, guide bar and sprocket.
TI_44_2004_30_01_01.fm Page 3 of 5

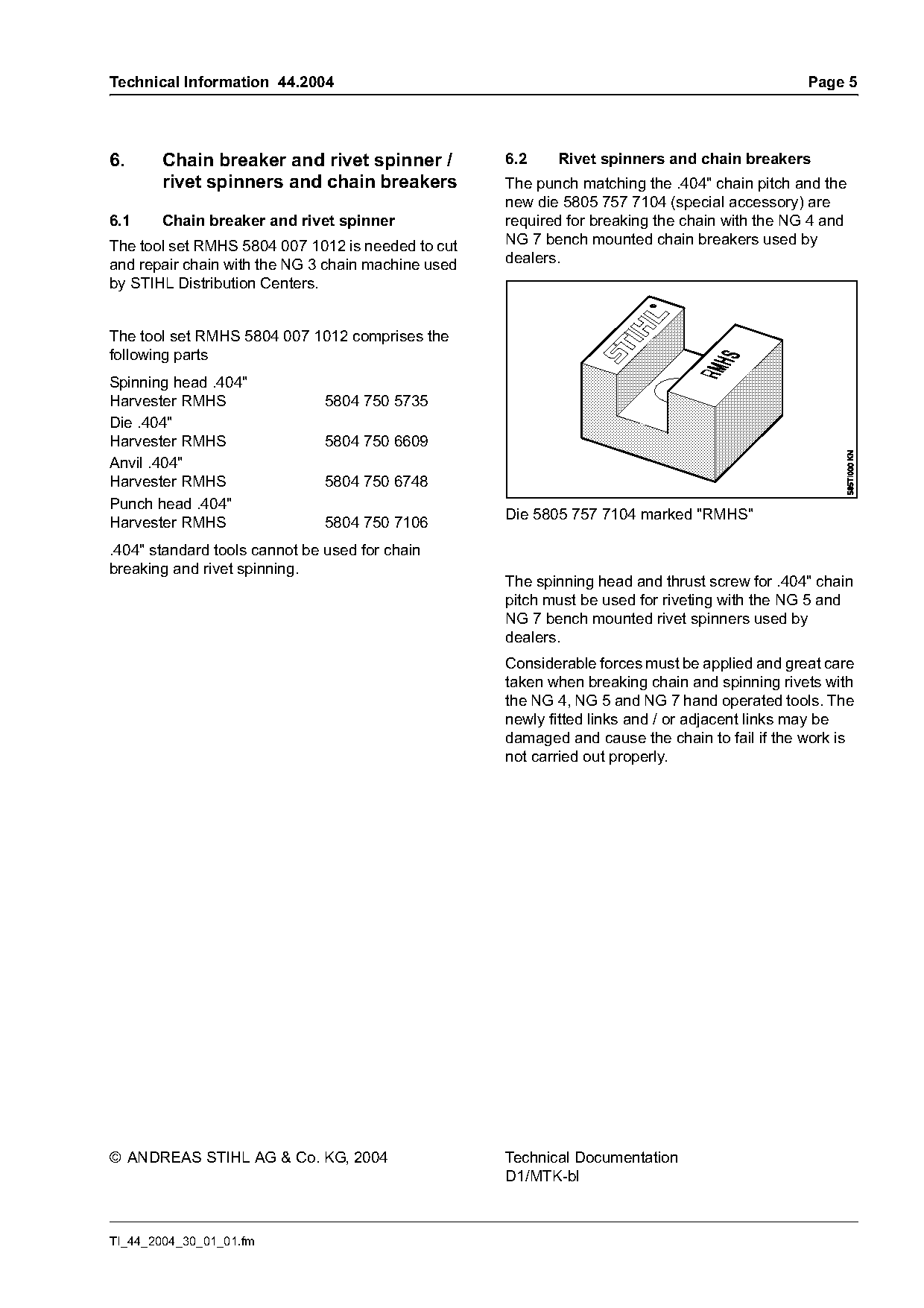

Technical Information 44.2004 Page 5
6. Chain breaker and rivet spinner / 6.2 Rivet spinners and chain breakers
rivet spinners and chain breakers The punch matching the .404" chain pitch and the
new die 5805 757 7104 (special accessory) are
6.1 Chain breaker and rivet spinner required for breaking the chain with the NG 4 and
The tool set RMHS 5804 007 1012 is needed to cut NG 7 bench mounted chain breakers used by
and repair chain with the NG 3 chain machine used dealers.
by STIHL Distribution Centers.
The tool set RMHS 5804 007 1012 comprises the
following parts
Spinning head .404"
Harvester RMHS 5804 750 5735
Die .404"
Harvester RMHS 5804 750 6609
Anvil .404"
Harvester RMHS 5804 750 6748
Punch head .404"
Die 5805 757 7104 marked "RMHS"
Harvester RMHS 5804 750 7106
.404" standard tools cannot be used for chain
breaking and rivet spinning.
The spinning head and thrust screw for .404" chain
pitch must be used for riveting with the NG 5 and
NG 7 bench mounted rivet spinners used by
dealers.
Considerable forces must be applied and great care
taken when breaking chain and spinning rivets with
the NG 4, NG 5 and NG 7 hand operated tools. The
newly fitted links and / or adjacent links may be
damaged and cause the chain to fail if the work is
not carried out properly.
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-bl
TI_44_2004_30_01_01.fm Page 4 of 5
