Technical Information · issue 51 of 2004
Cylinder with piston, washers and pins; Cam follower; Summary
IssueTI 51/2004
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4180 020 1202 | 4180 020 1203 | Cylinder with piston, washers and pins In order to improve the function, the existing "Cylinder with piston" 4180 020 1202 will be replaced by the version 4180 020 1203. |
Full text
Page 1 of 4

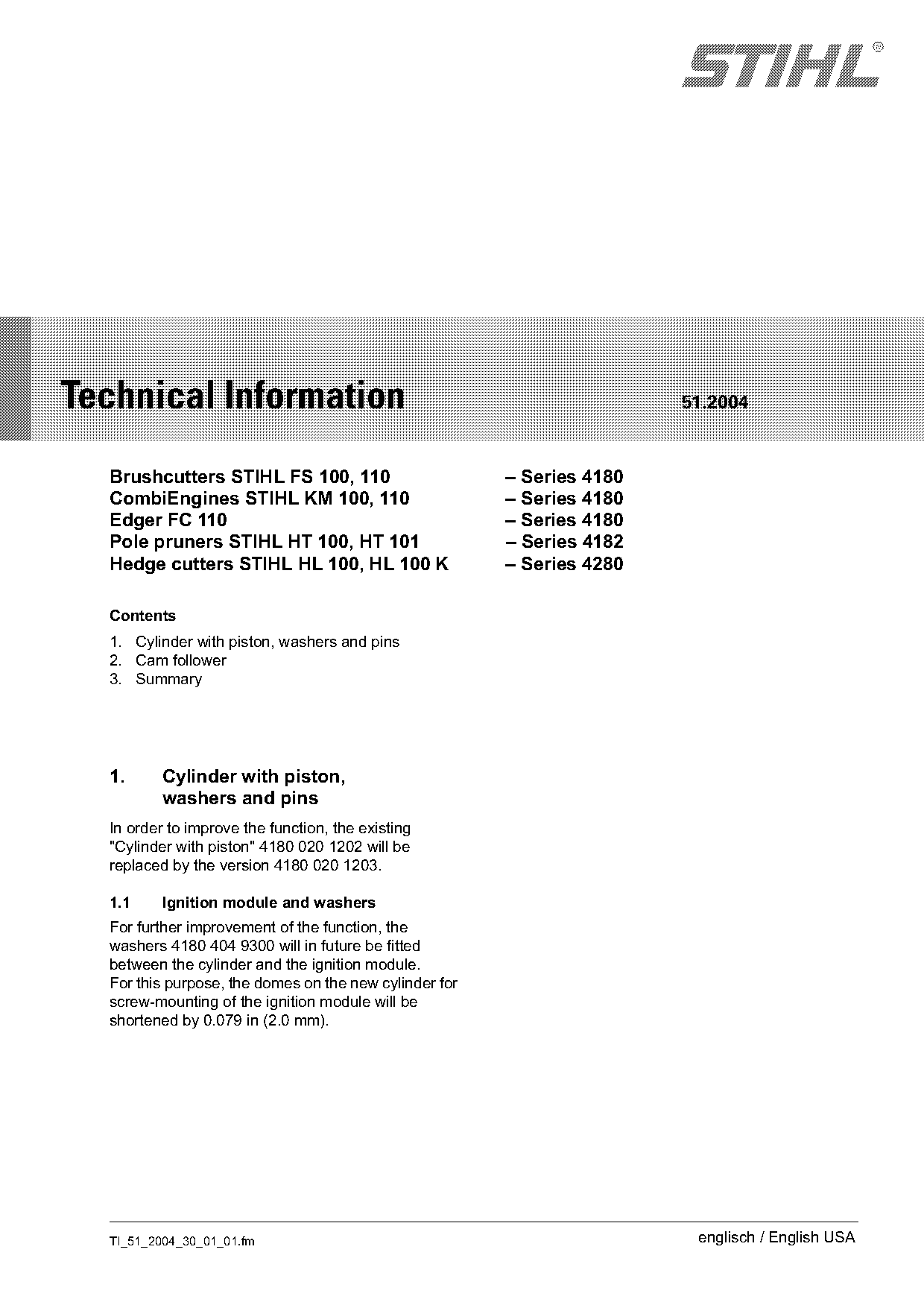

STIH)
Technical Information 51.2004
Brushcutters STIHL FS 100, 110 – Series 4180
CombiEngines STIHL KM 100, 110 – Series 4180
Edger FC 110 – Series 4180
Pole pruners STIHL HT 100, HT 101 – Series 4182
Hedge cutters STIHL HL 100, HL 100 K – Series 4280
Contents
1. Cylinder with piston, washers and pins
2. Cam follower
3. Summary
1. Cylinder with piston,
washers and pins
In order to improve the function, the existing
"Cylinder with piston" 4180 020 1202 will be
replaced by the version 4180 020 1203.
1.1 Ignition module and washers
For further improvement of the function, the
washers 4180 404 9300 will in future be fitted
between the cylinder and the ignition module.
For this purpose, the domes on the new cylinder for
screw-mounting of the ignition module will be
shortened by 0.079 in (2.0 mm).
TI_51_2004_30_01_01.fm englisch / English USA

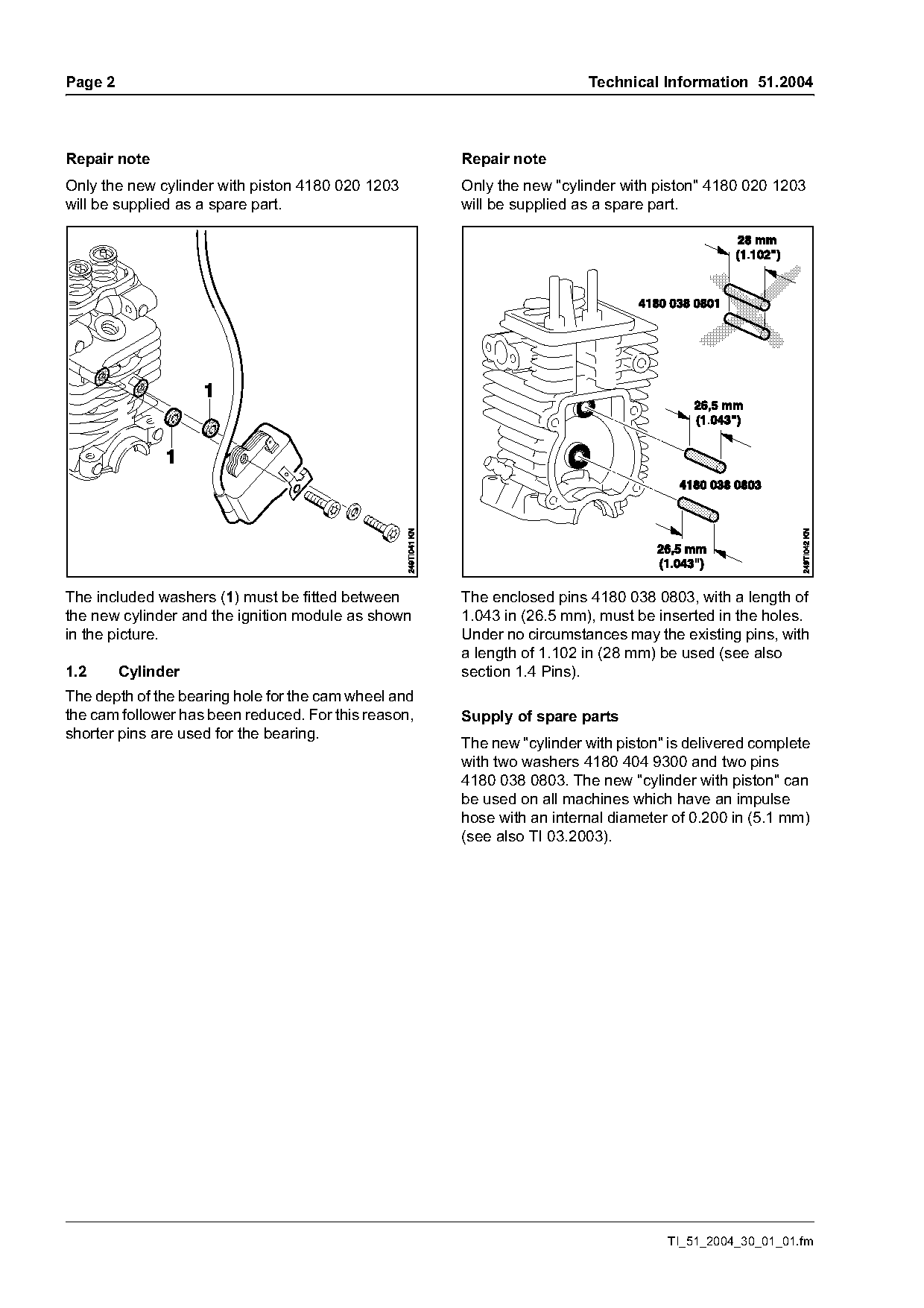

)m~ge 2 Technical Information 51.2004
Repair note Repair note
Only the new cylinder with piston 4180 020 1203 Only the new "cylinder with piston" 4180 020 1203
will be supplied as a spare part. will be supplied as a spare part.
The included washers (1) must be fitted between The enclosed pins 4180 038 0803, with a length of
the new cylinder and the ignition module as shown 1.043 in (26.5 mm), must be inserted in the holes.
in the picture. Under no circumstances may the existing pins, with
a length of 1.102 in (28 mm) be used (see also
1.2 Cylinder section 1.4 Pins).
The depth of the bearing hole for the cam wheel and
the cam follower has been reduced. For this reason, Supply of spare parts
shorter pins are used for the bearing.
The new "cylinder with piston" is delivered complete
with two washers 4180 404 9300 and two pins
4180 038 0803. The new "cylinder with piston" can
be used on all machines which have an impulse
hose with an internal diameter of 0.200 in (5.1 mm)
(see also TI 03.2003).
TI_51_2004_30_01_01.fm Page 2 of 4

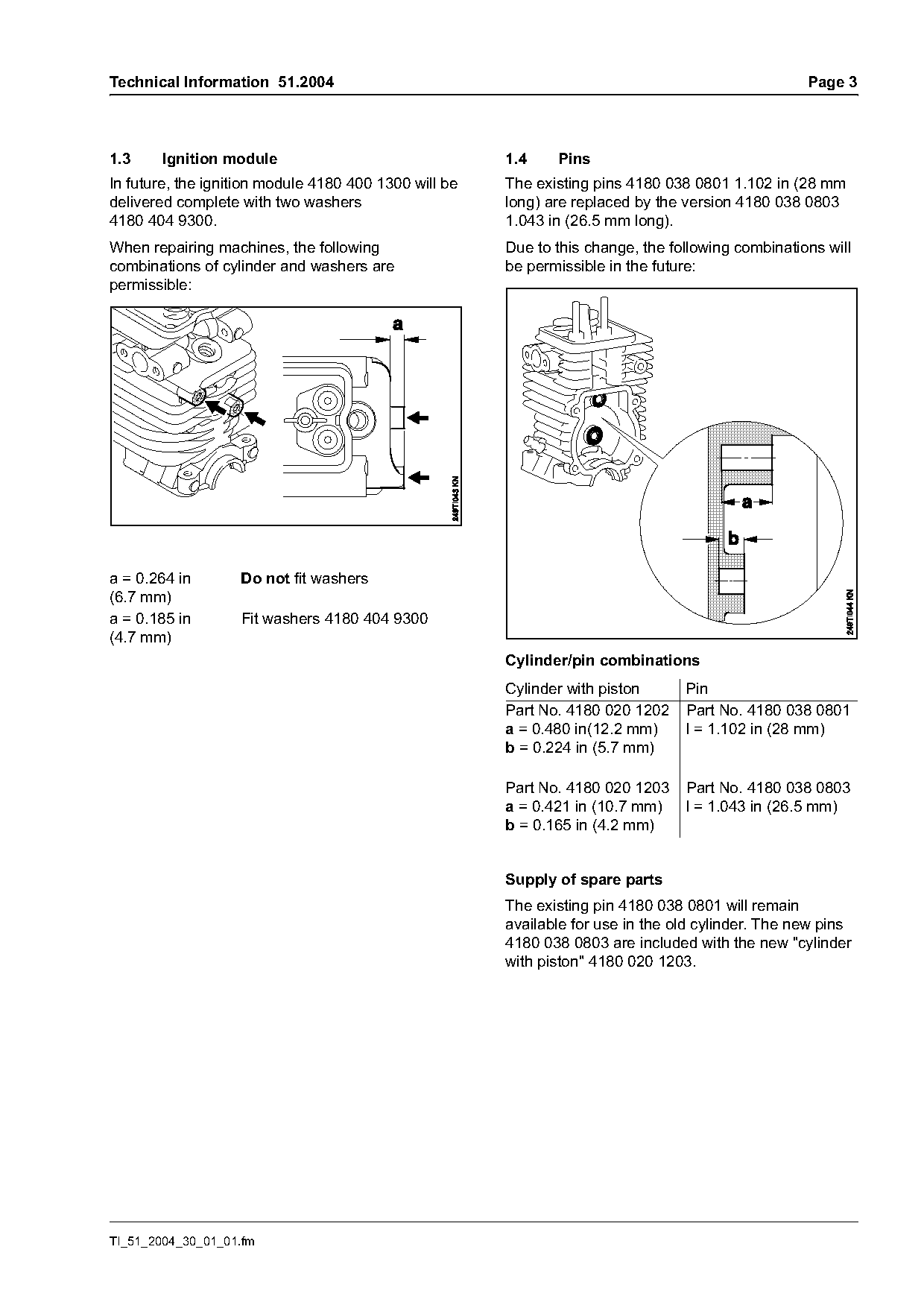

Technical Information 51.2004 Page 3
1.3 Ignition module 1.4 Pins
In future, the ignition module 4180 400 1300 will be The existing pins 4180 038 0801 1.102 in (28 mm
delivered complete with two washers long) are replaced by the version 4180 038 0803
4180 404 9300. 1.043 in (26.5 mm long).
When repairing machines, the following Due to this change, the following combinations will
combinations of cylinder and washers are be permissible in the future:
permissible:
a = 0.264 in Do not fit washers
(6.7 mm)
a = 0.185 in Fit washers 4180 404 9300
(4.7 mm)
Cylinder/pin combinations
Cylinder with piston Pin
Part No. 4180 020 1202 Part No. 4180 038 0801
a = 0.480 in(12.2 mm) l = 1.102 in (28 mm)
b = 0.224 in (5.7 mm)
Part No. 4180 020 1203 Part No. 4180 038 0803
a = 0.421 in (10.7 mm) l = 1.043 in (26.5 mm)
b = 0.165 in (4.2 mm)
Supply of spare parts
The existing pin 4180 038 0801 will remain
available for use in the old cylinder. The new pins
4180 038 0803 are included with the new "cylinder
with piston" 4180 020 1203.
TI_51_2004_30_01_01.fm

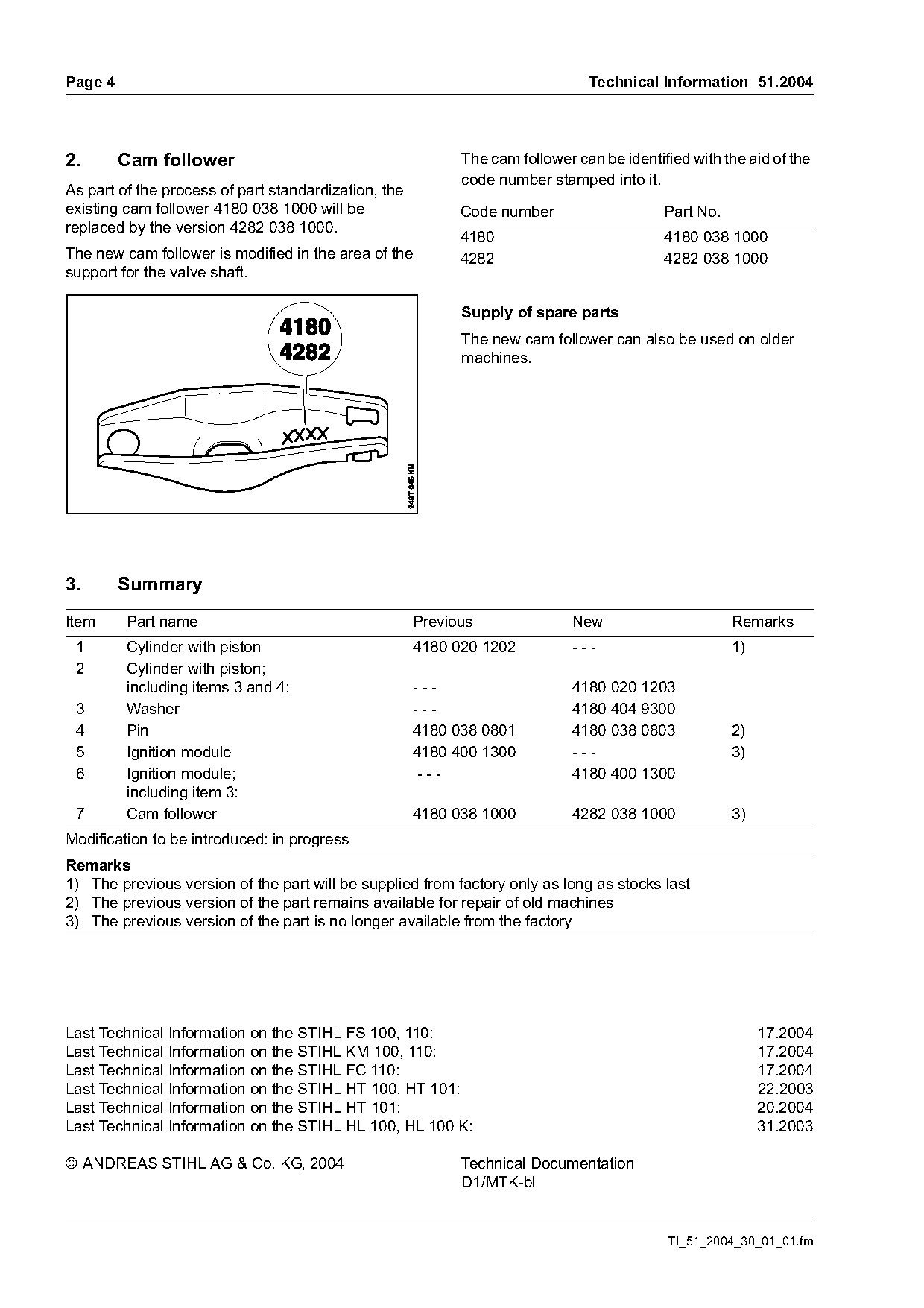

)m~ge 4 Technical Information 51.2004
2. Cam follower The cam follower can be identified with the aid of the
code number stamped into it.
As part of the process of part standardization, the
existing cam follower 4180 038 1000 will be Code number Part No.
replaced by the version 4282 038 1000.
4180 4180 038 1000
The new cam follower is modified in the area of the 4282 4282 038 1000
support for the valve shaft.
Supply of spare parts
The new cam follower can also be used on older
machines.
3. Summary
Item Part name Previous New Remarks
1 Cylinder with piston 4180 020 1202 --- 1)
2 Cylinder with piston;
including items 3 and 4: --- 4180 020 1203
3 Washer --- 4180 404 9300
4 Pin 4180 038 0801 4180 038 0803 2)
5 Ignition module 4180 400 1300 --- 3)
6 Ignition module; --- 4180 400 1300
including item 3:
7 Cam follower 4180 038 1000 4282 038 1000 3)
Modification to be introduced: in progress
Remarks
1) The previous version of the part will be supplied from factory only as long as stocks last
2) The previous version of the part remains available for repair of old machines
3) The previous version of the part is no longer available from the factory
Last Technical Information on the STIHL FS 100, 110: 17.2004
Last Technical Information on the STIHL KM 100, 110: 17.2004
Last Technical Information on the STIHL FC 110: 17.2004
Last Technical Information on the STIHL HT 100, HT 101: 22.2003
Last Technical Information on the STIHL HT 101: 20.2004
Last Technical Information on the STIHL HL 100, HL 100 K: 31.2003
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-bl
TI_51_2004_30_01_01.fm Page 3 of 4
