Technical Information · issue 57 of 2004
New saw chain STIHL 3/8" Rapid Super Comfort 3
IssueTI 57/2004
Full text
Page 1 of 4
STIH)
Technical Information 57.2004

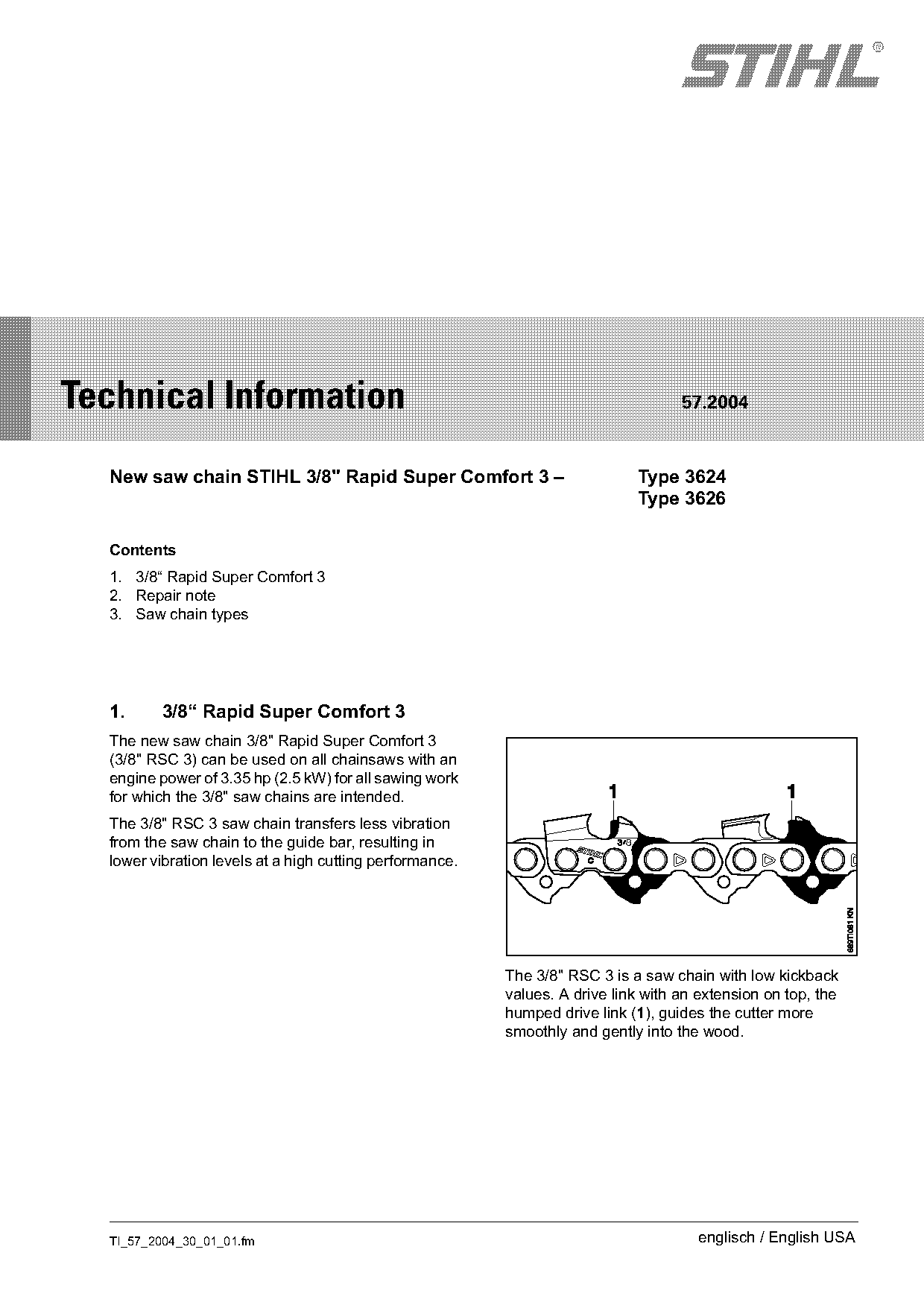

New saw chain STIHL 3/8" Rapid Super Comfort 3 – Type 3624
Type 3626
Contents
1. 3/8“ Rapid Super Comfort 3
2. Repair note
3. Saw chain types
1. 3/8“ Rapid Super Comfort 3
The new saw chain 3/8" Rapid Super Comfort 3
(3/8" RSC 3) can be used on all chainsaws with an
engine power of 3.35 hp (2.5 kW) for all sawing work
for which the 3/8" saw chains are intended.
The 3/8" RSC 3 saw chain transfers less vibration
from the saw chain to the guide bar, resulting in
lower vibration levels at a high cutting performance.
The 3/8" RSC 3 is a saw chain with low kickback
values. A drive link with an extension on top, the
humped drive link (1), guides the cutter more
smoothly and gently into the wood.
TI_57_2004_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 57.2004

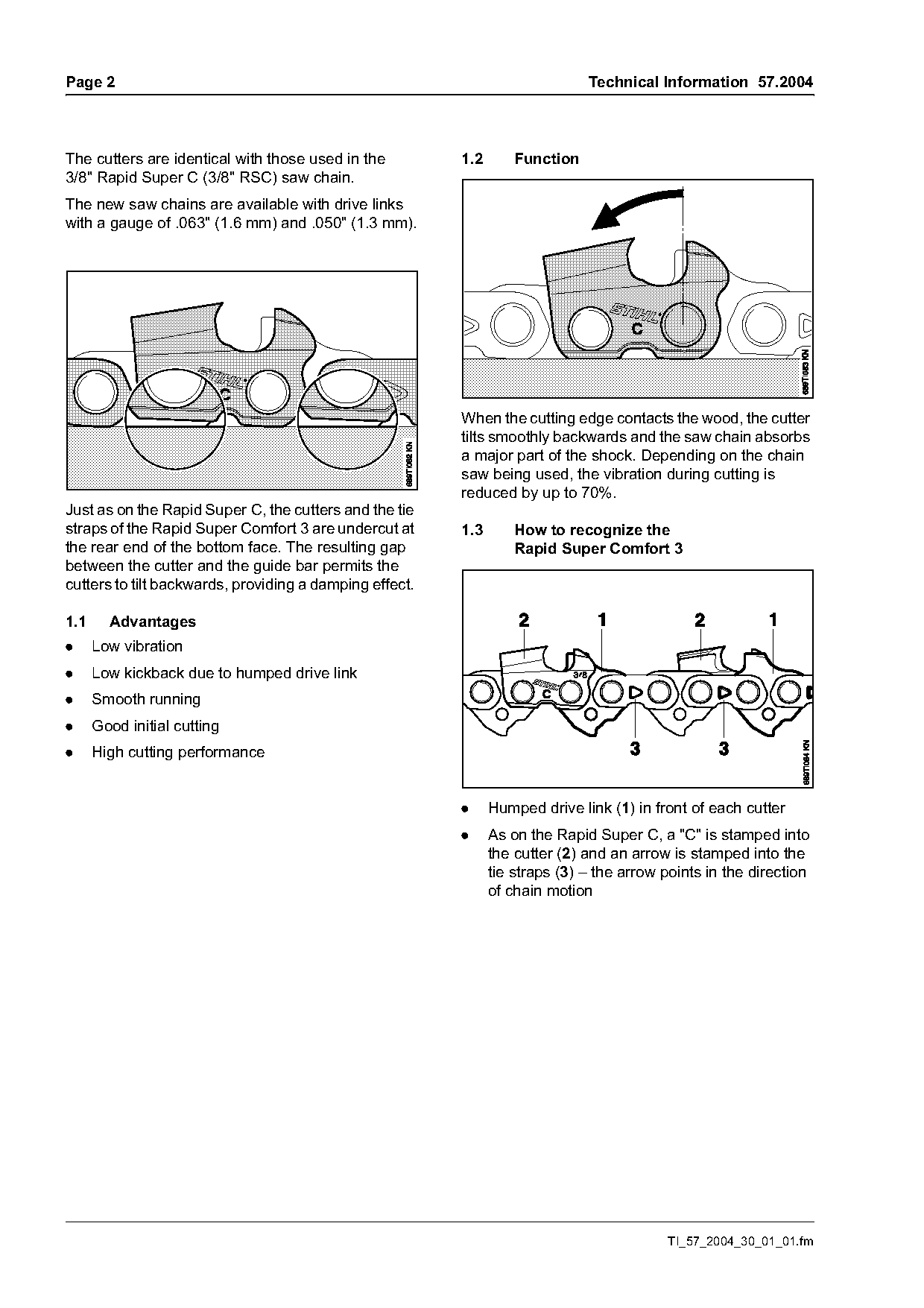

The cutters are identical with those used in the 1.2 Function
3/8" Rapid Super C (3/8" RSC) saw chain.
The new saw chains are available with drive links
with a gauge of .063" (1.6 mm) and .050" (1.3 mm).
When the cutting edge contacts the wood, the cutter
tilts smoothly backwards and the saw chain absorbs
a major part of the shock. Depending on the chain
saw being used, the vibration during cutting is
reduced by up to 70%.
Just as on the Rapid Super C, the cutters and the tie
straps of the Rapid Super Comfort 3 are undercut at 1.3 How to recognize the
the rear end of the bottom face. The resulting gap Rapid Super Comfort 3
between the cutter and the guide bar permits the
cutters to tilt backwards, providing a damping effect.
1.1 Advantages
. Low vibration
. Low kickback due to humped drive link
. Smooth running
. Good initial cutting
. High cutting performance
. Humped drive link (1) in front of each cutter
. As on the Rapid Super C, a "C" is stamped into
the cutter (2) and an arrow is stamped into the
tie straps (3) – the arrow points in the direction
of chain motion
TI_57_2004_30_01_01.fm Page 2 of 4
Technical Information 57.2004 Page 3

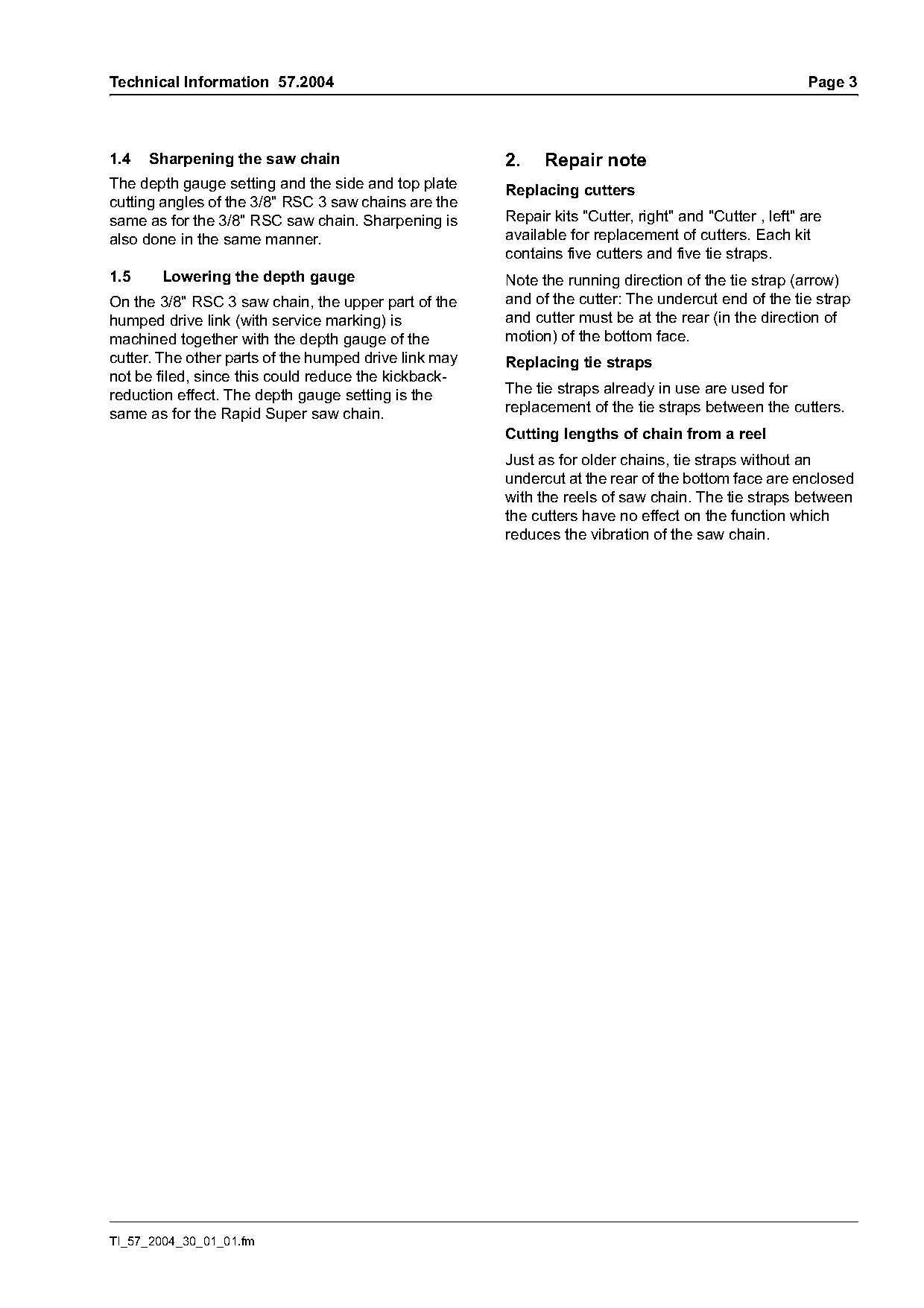

1.4 Sharpening the saw chain 2. Repair note
The depth gauge setting and the side and top plate Replacing cutters
cutting angles of the 3/8" RSC 3 saw chains are the
same as for the 3/8" RSC saw chain. Sharpening is Repair kits "Cutter, right" and "Cutter , left" are
also done in the same manner. available for replacement of cutters. Each kit
contains five cutters and five tie straps.
1.5 Lowering the depth gauge Note the running direction of the tie strap (arrow)
On the 3/8" RSC 3 saw chain, the upper part of the and of the cutter: The undercut end of the tie strap
humped drive link (with service marking) is and cutter must be at the rear (in the direction of
machined together with the depth gauge of the motion) of the bottom face.
cutter. The other parts of the humped drive link may Replacing tie straps
not be filed, since this could reduce the kickback-
reduction effect. The depth gauge setting is the The tie straps already in use are used for
same as for the Rapid Super saw chain. replacement of the tie straps between the cutters.
Cutting lengths of chain from a reel
Just as for older chains, tie straps without an
undercut at the rear of the bottom face are enclosed
with the reels of saw chain. The tie straps between
the cutters have no effect on the function which
reduces the vibration of the saw chain.
TI_57_2004_30_01_01.fm
)m~ge 4 Technical Information 57.2004

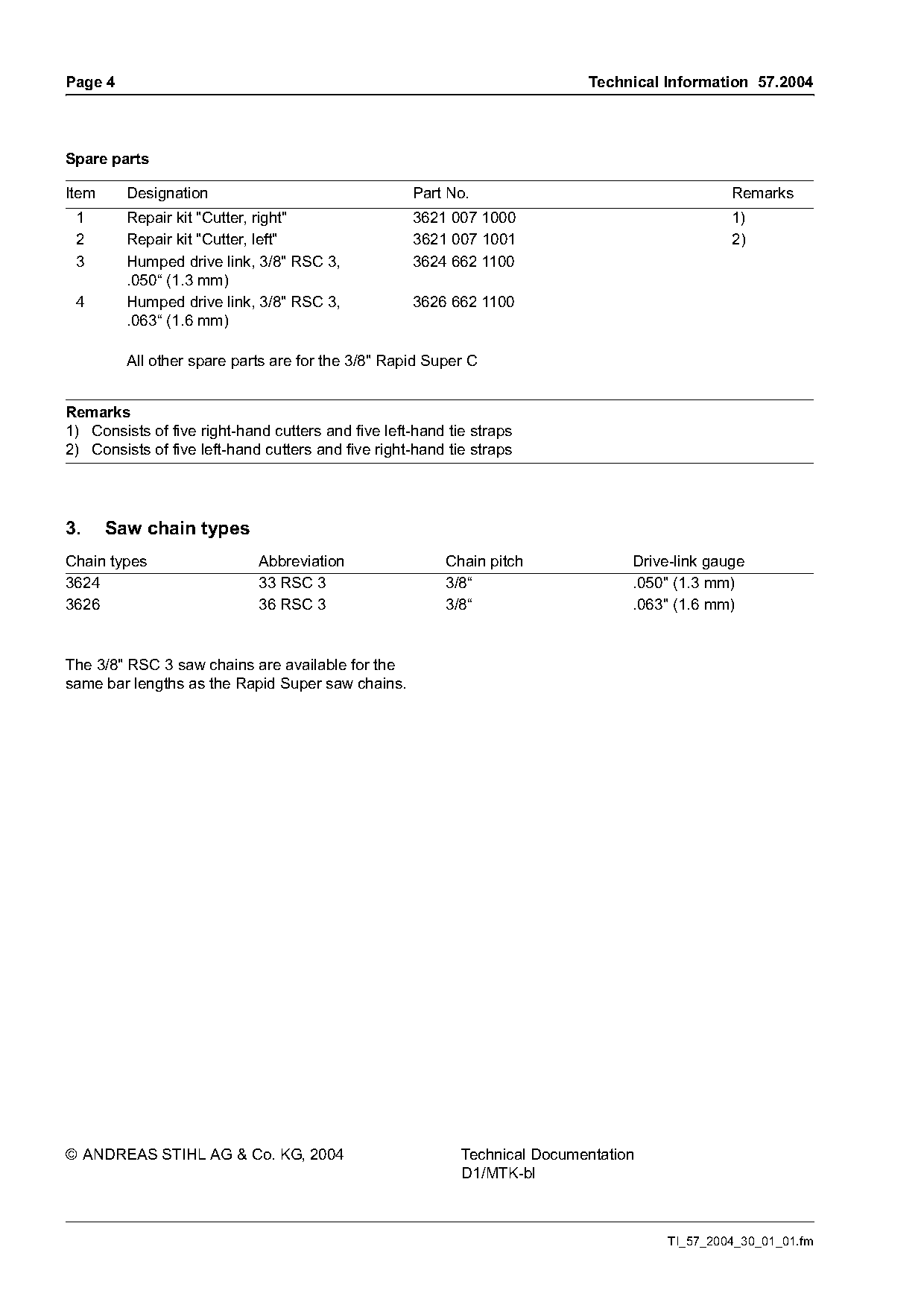

Spare parts
Item Designation Part No. Remarks
1 Repair kit "Cutter, right" 3621 007 1000 1)
2 Repair kit "Cutter, left" 3621 007 1001 2)
3 Humped drive link, 3/8" RSC 3, 3624 662 1100
.050“ (1.3 mm)
4 Humped drive link, 3/8" RSC 3, 3626 662 1100
.063“ (1.6 mm)
All other spare parts are for the 3/8" Rapid Super C
Remarks
1) Consists of five right-hand cutters and five left-hand tie straps
2) Consists of five left-hand cutters and five right-hand tie straps
3. Saw chain types
Chain types Abbreviation Chain pitch Drive-link gauge
3624 33 RSC 3 3/8“ .050" (1.3 mm)
3626 36 RSC 3 3/8“ .063" (1.6 mm)
The 3/8" RSC 3 saw chains are available for the
same bar lengths as the Rapid Super saw chains.
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-bl
TI_57_2004_30_01_01.fm Page 3 of 4
Page 4 of 4
