Technical Information · issue 58 of 2004
New STIHL FW 20 Cutquik Cart
IssueTI 58/2004
Full text

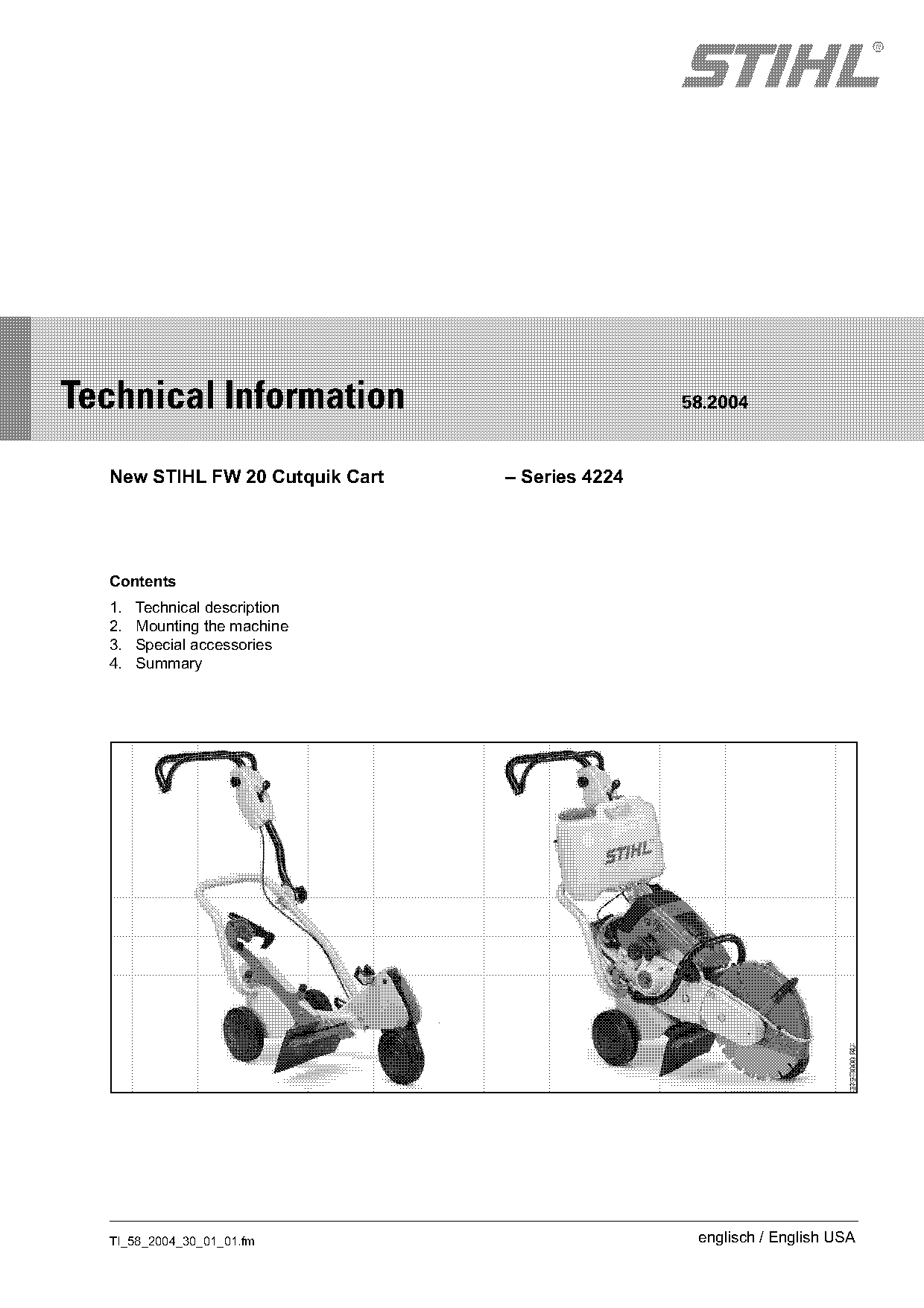

Page 1 of 4
STIH)
Technical Information 58.2004
New STIHL FW 20 Cutquik Cart – Series 4224
Contents
1. Technical description
2. Mounting the machine
3. Special accessories
4. Summary
TI_58_2004_30_01_01.fm englisch / English USA

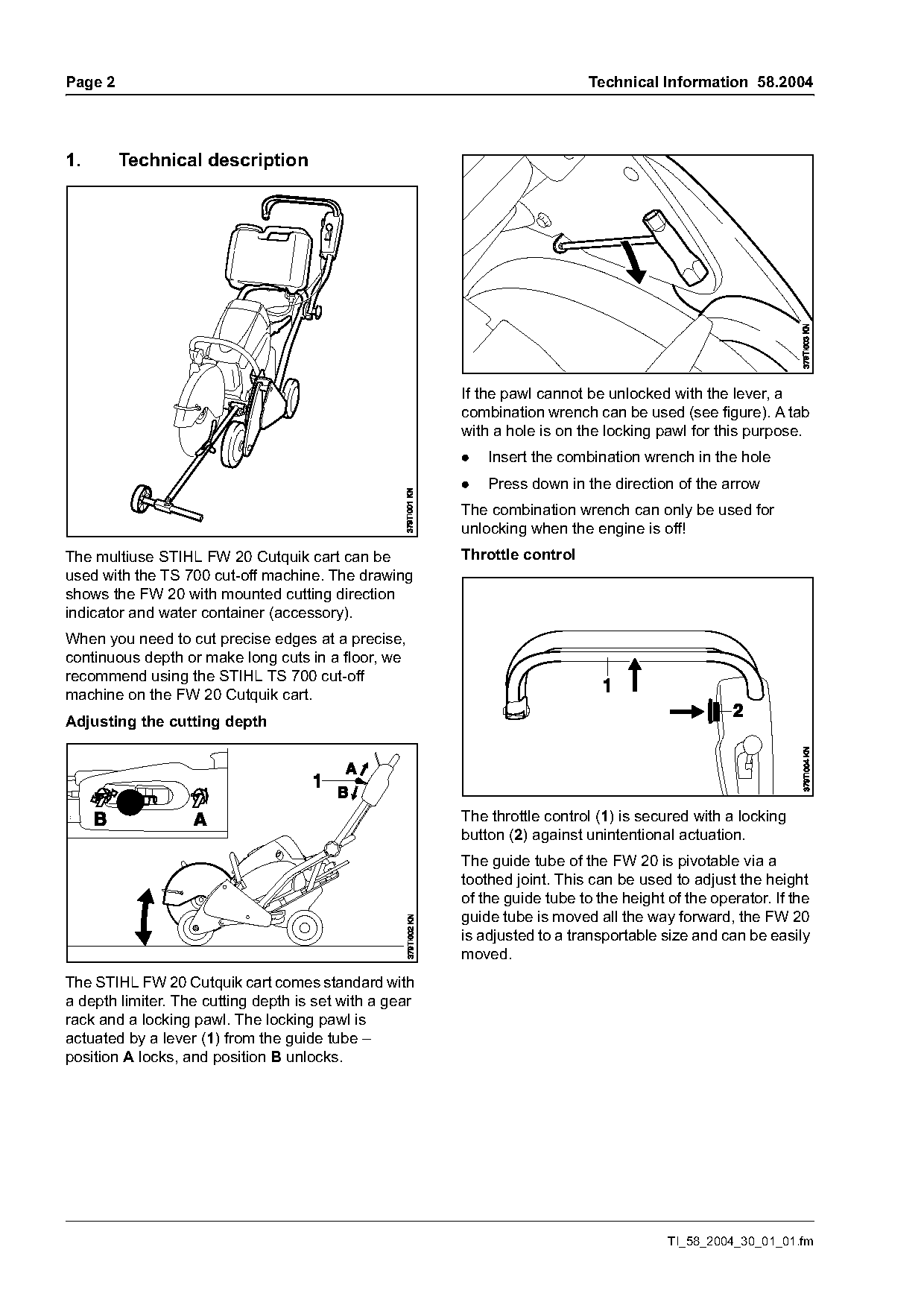

)m~ge 2 Technical Information 58.2004
1. Technical description
If the pawl cannot be unlocked with the lever, a
combination wrench can be used (see figure). A tab
with a hole is on the locking pawl for this purpose.
. Insert the combination wrench in the hole
. Press down in the direction of the arrow
The combination wrench can only be used for
unlocking when the engine is off!
The multiuse STIHL FW 20 Cutquik cart can be Throttle control
used with the TS 700 cut-off machine. The drawing
shows the FW 20 with mounted cutting direction
indicator and water container (accessory).
When you need to cut precise edges at a precise,
continuous depth or make long cuts in a floor, we
recommend using the STIHL TS 700 cut-off
machine on the FW 20 Cutquik cart.
Adjusting the cutting depth
The throttle control (1) is secured with a locking
button (2) against unintentional actuation.
The guide tube of the FW 20 is pivotable via a
toothed joint. This can be used to adjust the height
of the guide tube to the height of the operator. If the
guide tube is moved all the way forward, the FW 20
is adjusted to a transportable size and can be easily
moved.
The STIHL FW 20 Cutquik cart comes standard with
a depth limiter. The cutting depth is set with a gear
rack and a locking pawl. The locking pawl is
actuated by a lever (1) from the guide tube –
position A locks, and position B unlocks.
TI_58_2004_30_01_01.fm Page 2 of 4

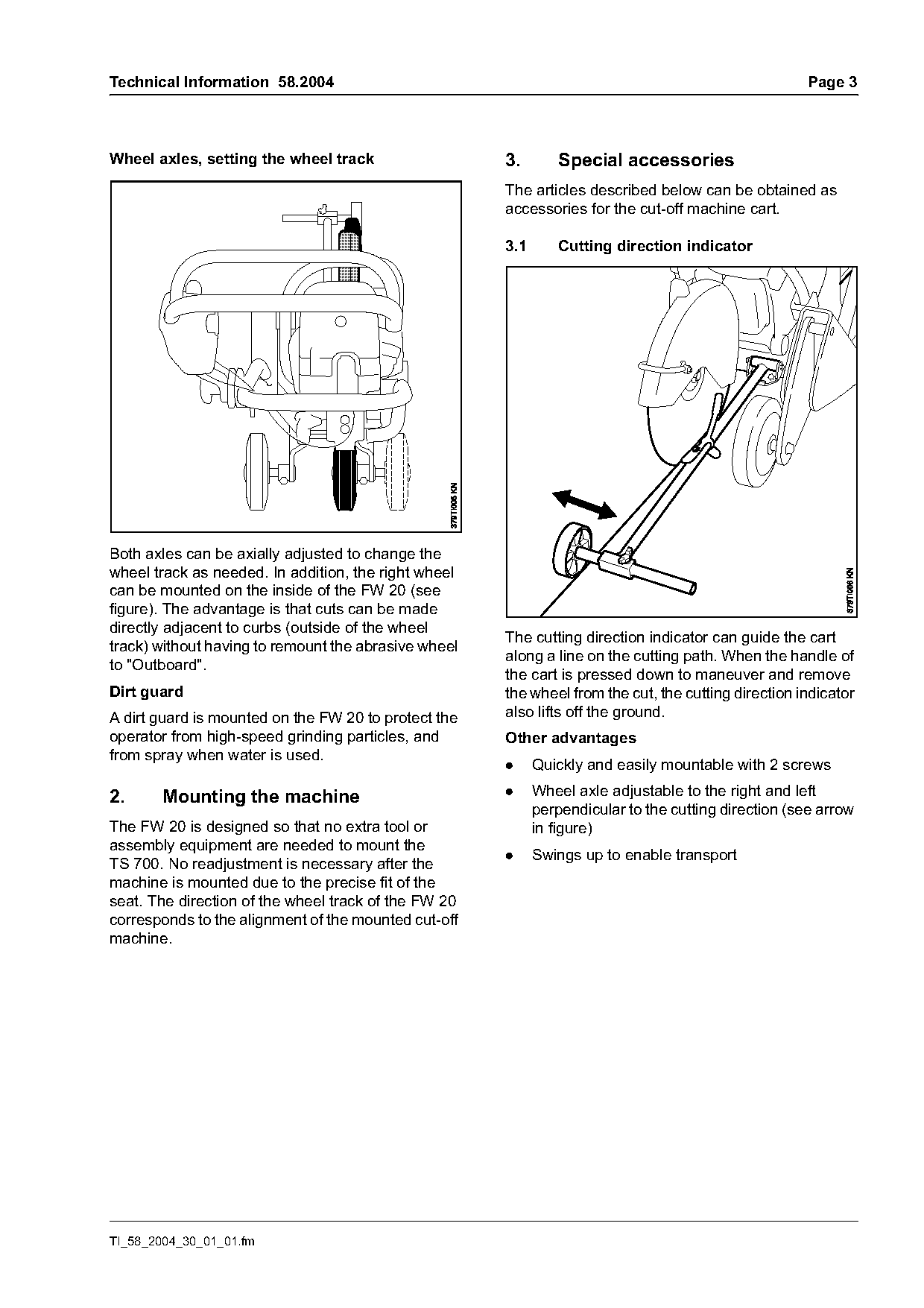

Technical Information 58.2004 Page 3
Wheel axles, setting the wheel track 3. Special accessories
The articles described below can be obtained as
accessories for the cut-off machine cart.
3.1 Cutting direction indicator
Both axles can be axially adjusted to change the
wheel track as needed. In addition, the right wheel
can be mounted on the inside of the FW 20 (see
figure). The advantage is that cuts can be made
directly adjacent to curbs (outside of the wheel
The cutting direction indicator can guide the cart
track) without having to remount the abrasive wheel
along a line on the cutting path. When the handle of
to "Outboard".
the cart is pressed down to maneuver and remove
Dirt guard the wheel from the cut, the cutting direction indicator
A dirt guard is mounted on the FW 20 to protect the also lifts off the ground.
operator from high-speed grinding particles, and Other advantages
from spray when water is used.
. Quickly and easily mountable with 2 screws
2. Mounting the machine . Wheel axle adjustable to the right and left
perpendicular to the cutting direction (see arrow
The FW 20 is designed so that no extra tool or in figure)
assembly equipment are needed to mount the
. Swings up to enable transport
TS 700. No readjustment is necessary after the
machine is mounted due to the precise fit of the
seat. The direction of the wheel track of the FW 20
corresponds to the alignment of the mounted cut-off
machine.
TI_58_2004_30_01_01.fm

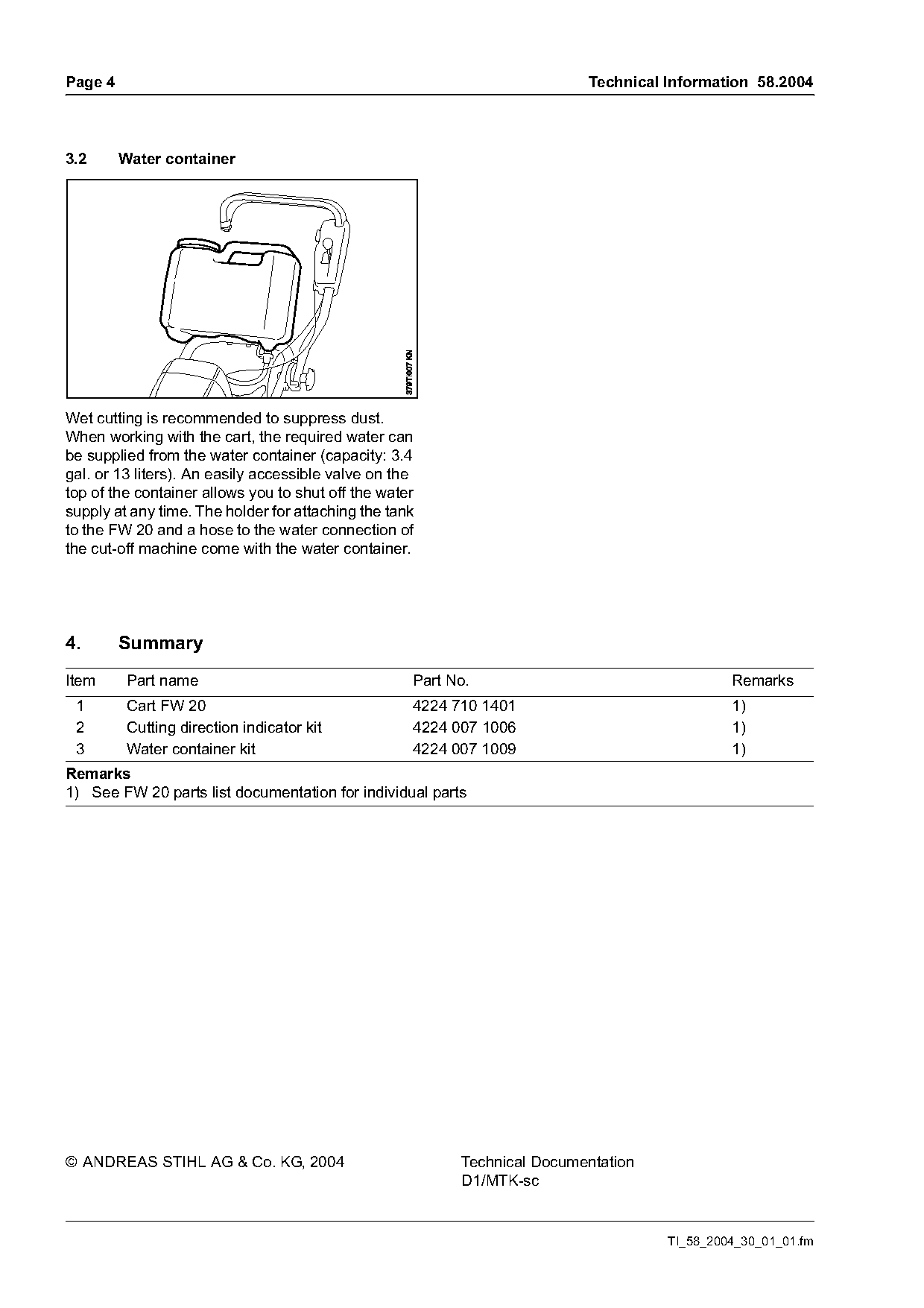

)m~ge 4 Technical Information 58.2004
3.2 Water container
Wet cutting is recommended to suppress dust.
When working with the cart, the required water can
be supplied from the water container (capacity: 3.4
gal. or 13 liters). An easily accessible valve on the
top of the container allows you to shut off the water
supply at any time. The holder for attaching the tank
to the FW 20 and a hose to the water connection of
the cut-off machine come with the water container.
4. Summary
Item Part name Part No. Remarks
1 Cart FW 20 4224 710 1401 1)
2 Cutting direction indicator kit 4224 007 1006 1)
3 Water container kit 4224 007 1009 1)
Remarks
1) See FW 20 parts list documentation for individual parts
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-sc
TI_58_2004_30_01_01.fm Page 3 of 4
