Technical Information 11.2005

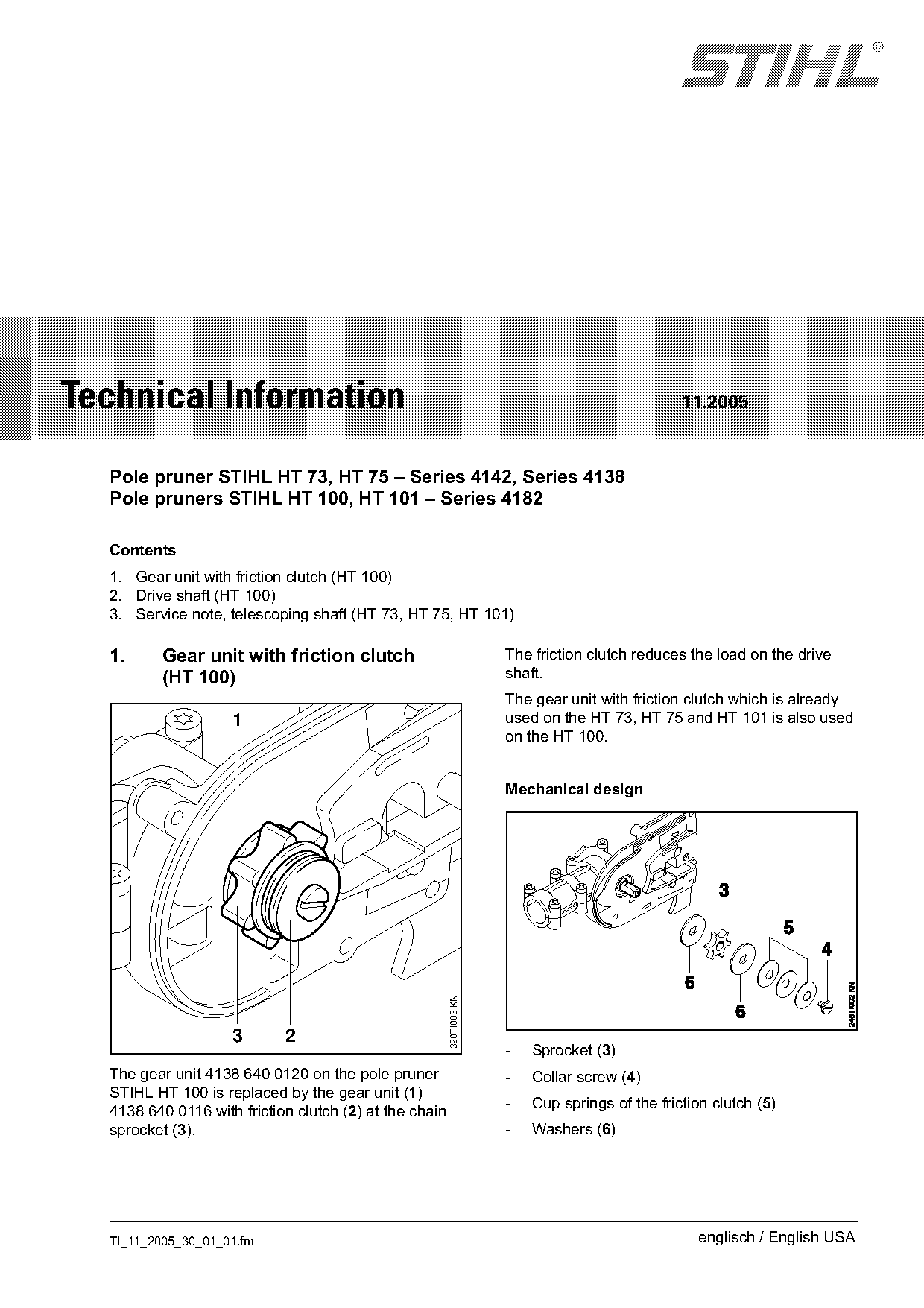

Pole pruner STIHL HT 73, HT 75 – Series 4142, Series 4138
Pole pruners STIHL HT 100, HT 101 – Series 4182
Contents
1. Gear unit with friction clutch (HT 100)
2. Drive shaft (HT 100)
3. Service note, telescoping shaft (HT 73, HT 75, HT 101)
1. Gear unit with friction clutch The friction clutch reduces the load on the drive
(HT 100) shaft.
The gear unit with friction clutch which is already
1 used on the HT 73, HT 75 and HT 101 is also used
on the HT 100.
Mechanical design
390TI003 KN
3 2
- Sprocket (3)
The gear unit 4138 640 0120 on the pole pruner - Collar screw (4)
STIHL HT 100 is replaced by the gear unit (1)
- Cup springs of the friction clutch (5)
4138 640 0116 with friction clutch (2) at the chain
sprocket (3). - Washers (6)
TI_11_2005_30_01_01.fm englisch / English USA

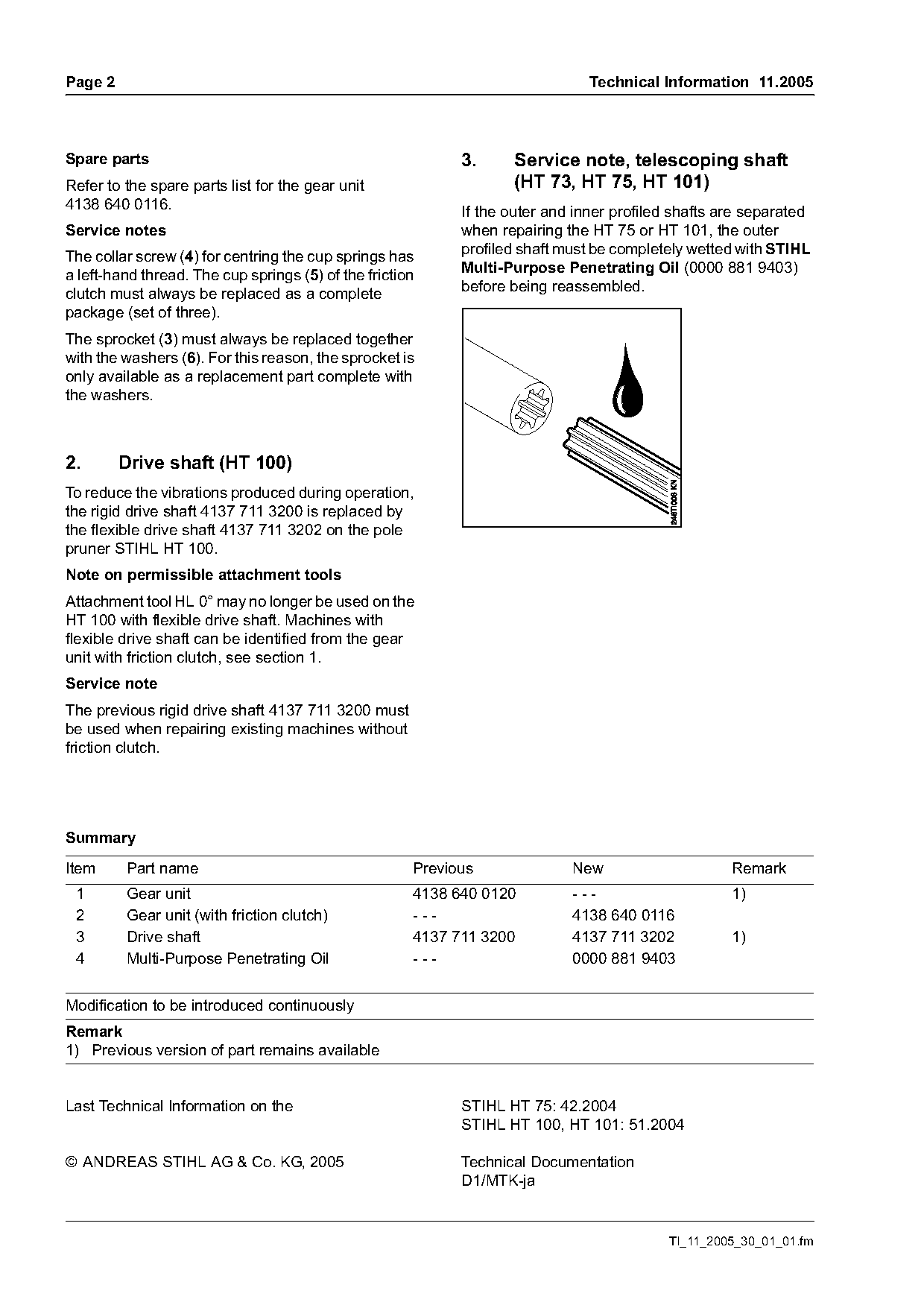

)m~ge 2 Technical Information 11.2005
Spare parts 3. Service note, telescoping shaft
Refer to the spare parts list for the gear unit (HT 73, HT 75, HT 101)
4138 640 0116.
If the outer and inner profiled shafts are separated
Service notes when repairing the HT 75 or HT 101, the outer
The collar screw (4) for centring the cup springs has profiled shaft must be completely wetted with STIHL
a left-hand thread. The cup springs (5) of the friction Multi-Purpose Penetrating Oil (0000 881 9403)
clutch must always be replaced as a complete before being reassembled.
package (set of three).
The sprocket (3) must always be replaced together
with the washers (6). For this reason, the sprocket is
only available as a replacement part complete with
the washers.
2. Drive shaft (HT 100)
To reduce the vibrations produced during operation,
the rigid drive shaft 4137 711 3200 is replaced by
the flexible drive shaft 4137 711 3202 on the pole
pruner STIHL HT 100.
Note on permissible attachment tools
Attachment tool HL 0° may no longer be used on the
HT 100 with flexible drive shaft. Machines with
flexible drive shaft can be identified from the gear
unit with friction clutch, see section 1.
Service note
The previous rigid drive shaft 4137 711 3200 must
be used when repairing existing machines without
friction clutch.
Summary
Item Part name Previous New Remark
1 Gear unit 4138 640 0120 --- 1)
2 Gear unit (with friction clutch) --- 4138 640 0116
3 Drive shaft 4137 711 3200 4137 711 3202 1)
4 Multi-Purpose Penetrating Oil --- 0000 881 9403
Modification to be introduced continuously
Remark
1) Previous version of part remains available
Last Technical Information on the STIHL HT 75: 42.2004
STIHL HT 100, HT 101: 51.2004
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-ja
TI_11_2005_30_01_01.fm Page 2 of 2
