Technical Information 16.2005
Chainsaws STIHL MS 361, MS 361 C – Series 1135
Contents
1. Muffler
2. Stop buffer
3. Crankcase and ball bearing
4. Tightening torques
5. Summary
1. Muffler
Service note

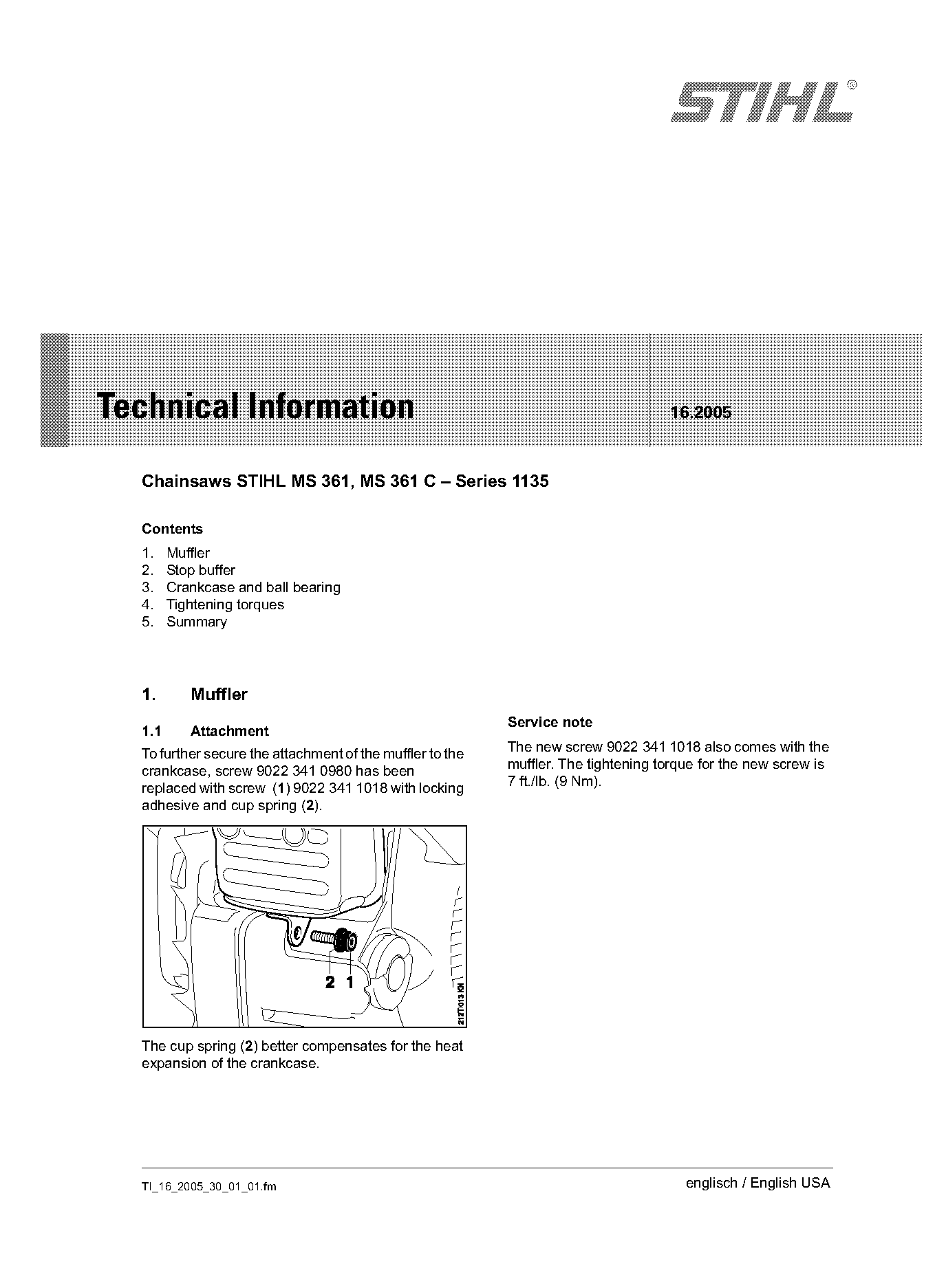

1.1 Attachment
The new screw 9022 341 1018 also comes with the
To further secure the attachment of the muffler to the
muffler. The tightening torque for the new screw is
crankcase, screw 9022 341 0980 has been
7 ft./lb. (9 Nm).
replaced with screw (1) 9022 341 1018 with locking
adhesive and cup spring (2).
The cup spring (2) better compensates for the heat
expansion of the crankcase.
TI_16_2005_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 16.2005
1.2 Plug 2. Stop buffer

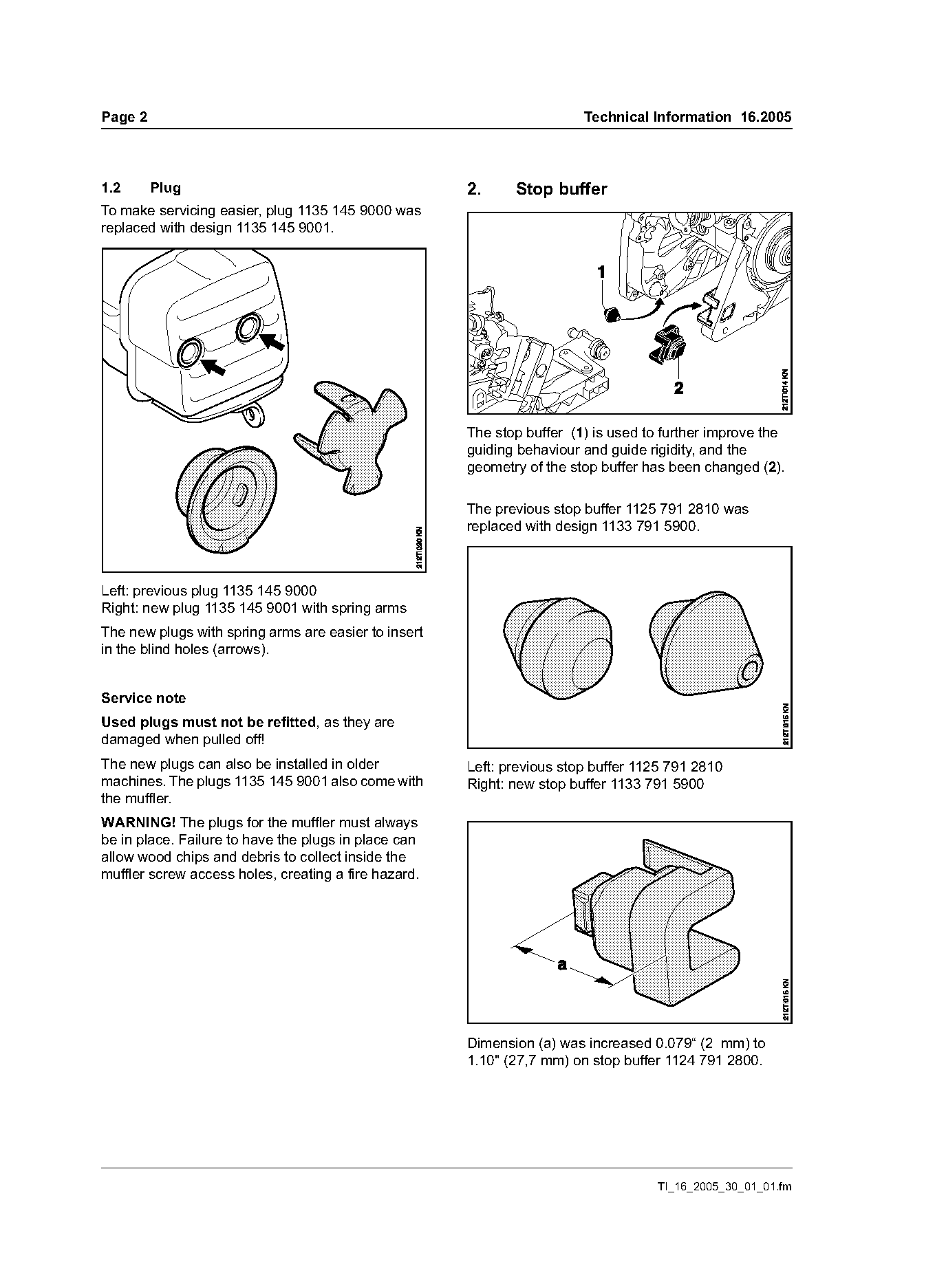

To make servicing easier, plug 1135 145 9000 was
replaced with design 1135 145 9001.
The stop buffer (1) is used to further improve the
guiding behaviour and guide rigidity, and the
geometry of the stop buffer has been changed (2).
The previous stop buffer 1125 791 2810 was
replaced with design 1133 791 5900.
Left: previous plug 1135 145 9000
Right: new plug 1135 145 9001 with spring arms
The new plugs with spring arms are easier to insert
in the blind holes (arrows).
Service note
Used plugs must not be refitted, as they are
damaged when pulled off!
The new plugs can also be installed in older Left: previous stop buffer 1125 791 2810
machines. The plugs 1135 145 9001 also come with Right: new stop buffer 1133 791 5900
the muffler.
WARNING! The plugs for the muffler must always
be in place. Failure to have the plugs in place can
allow wood chips and debris to collect inside the
muffler screw access holes, creating a fire hazard.
Dimension (a) was increased 0.079“ (2 mm) to
1.10" (27,7 mm) on stop buffer 1124 791 2800.
TI_16_2005_30_01_01.fm Page 2 of 4
Technical Information 16.2005 Page 3

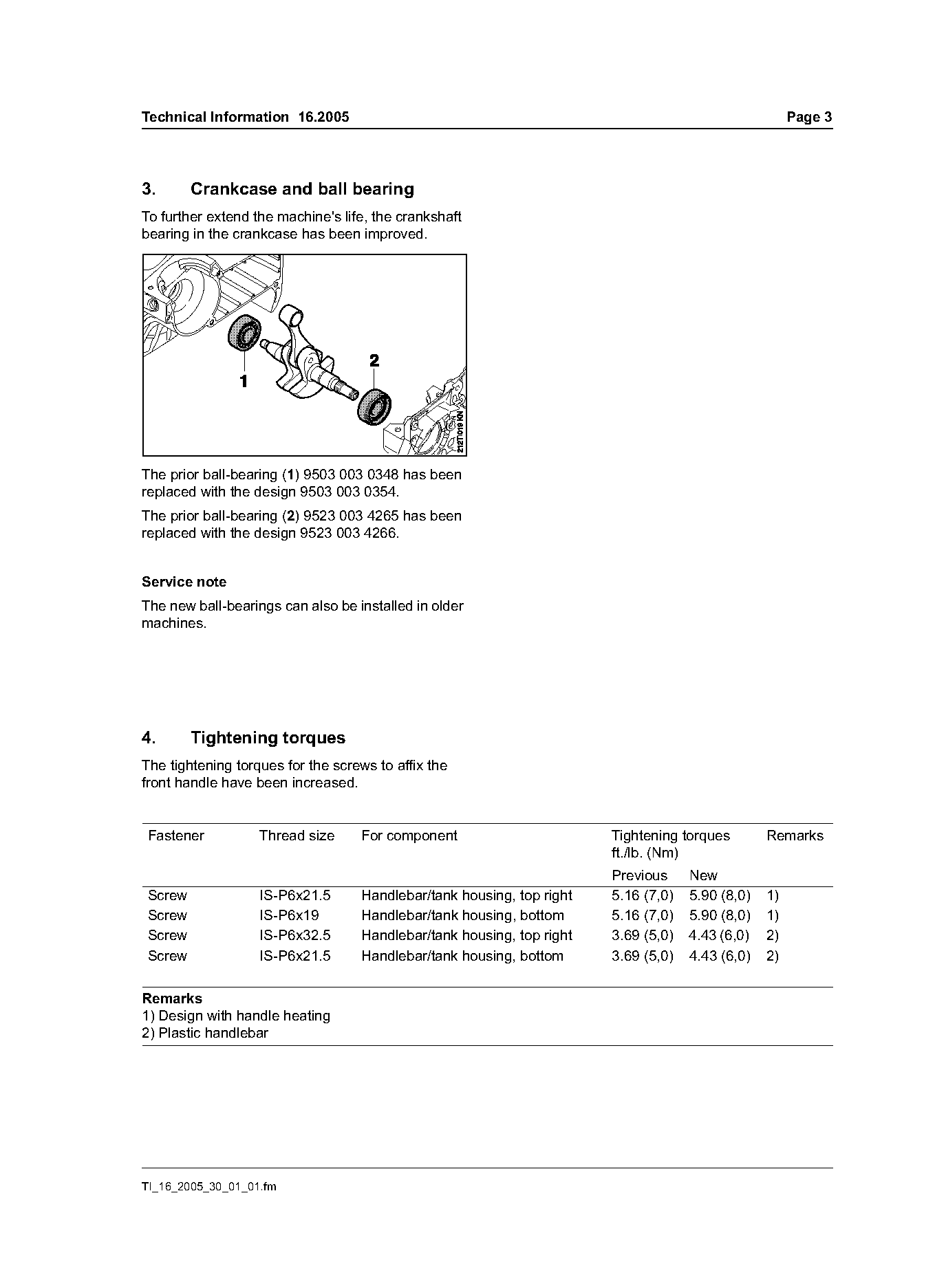

3. Crankcase and ball bearing
To further extend the machine's life, the crankshaft
bearing in the crankcase has been improved.
The prior ball-bearing (1) 9503 003 0348 has been
replaced with the design 9503 003 0354.
The prior ball-bearing (2) 9523 003 4265 has been
replaced with the design 9523 003 4266.
Service note
The new ball-bearings can also be installed in older
machines.
4. Tightening torques
The tightening torques for the screws to affix the
front handle have been increased.
Fastener Thread size For component Tightening torques Remarks
ft./lb. (Nm)
Previous New
Screw IS-P6x21.5 Handlebar/tank housing, top right 5.16 (7,0) 5.90 (8,0) 1)
Screw IS-P6x19 Handlebar/tank housing, bottom 5.16 (7,0) 5.90 (8,0) 1)
Screw IS-P6x32.5 Handlebar/tank housing, top right 3.69 (5,0) 4.43 (6,0) 2)
Screw IS-P6x21.5 Handlebar/tank housing, bottom 3.69 (5,0) 4.43 (6,0) 2)
Remarks
1) Design with handle heating
2) Plastic handlebar
TI_16_2005_30_01_01.fm
)m~ge 4 Technical Information 16.2005
5. Summary

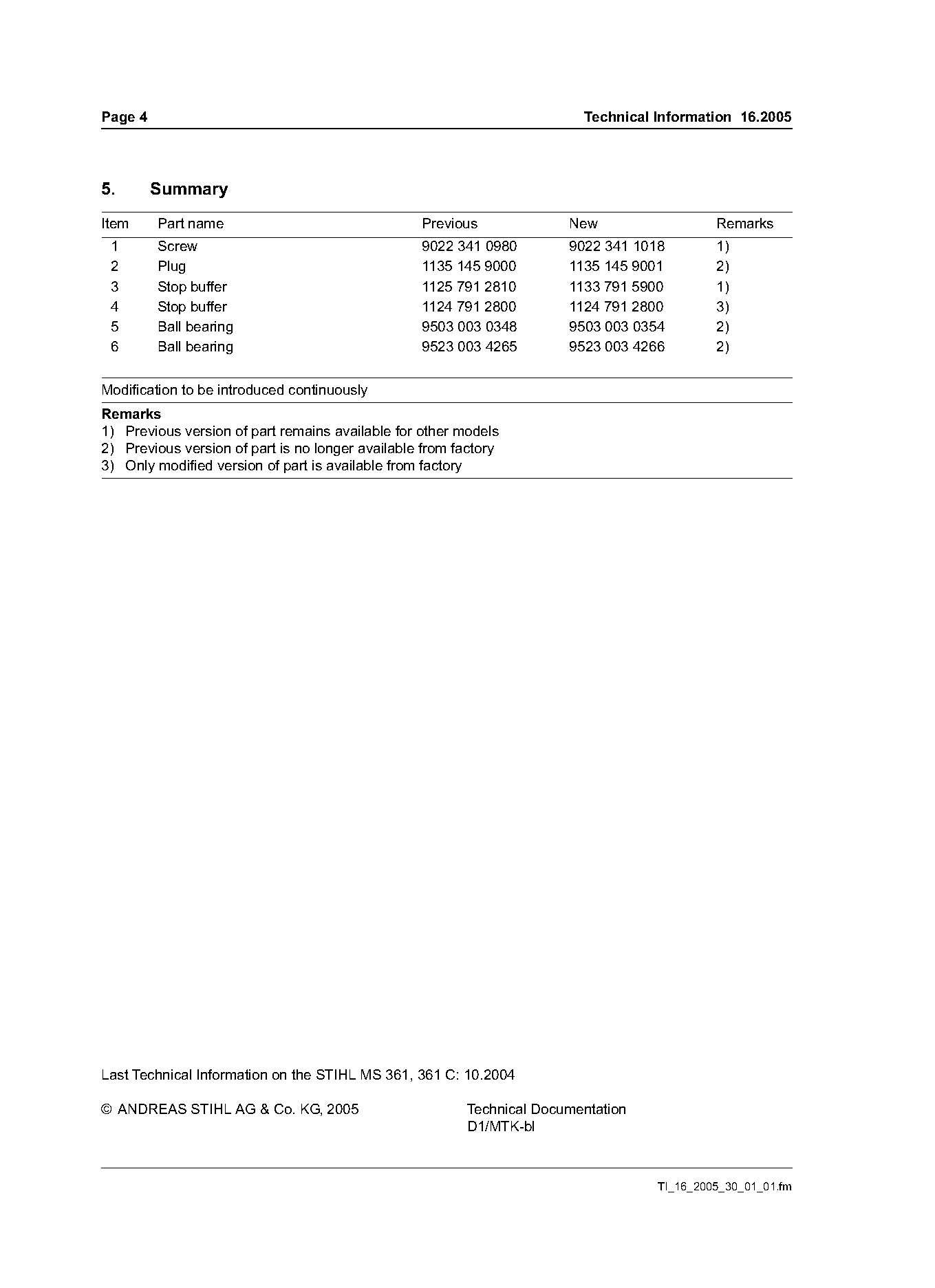

Item Part name Previous New Remarks
1 Screw 9022 341 0980 9022 341 1018 1)
2 Plug 1135 145 9000 1135 145 9001 2)
3 Stop buffer 1125 791 2810 1133 791 5900 1)
4 Stop buffer 1124 791 2800 1124 791 2800 3)
5 Ball bearing 9503 003 0348 9503 003 0354 2)
6 Ball bearing 9523 003 4265 9523 003 4266 2)
Modification to be introduced continuously
Remarks
1) Previous version of part remains available for other models
2) Previous version of part is no longer available from factory
3) Only modified version of part is available from factory
Last Technical Information on the STIHL MS 361, 361 C: 10.2004
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-bl
TI_16_2005_30_01_01.fm Page 3 of 4
Page 4 of 4
