Technical Information · issue 22 of 2005
New cutting tool for STIHL brushcutters
IssueTI 22/2005
Full text
Page 1 of 6
STIH)

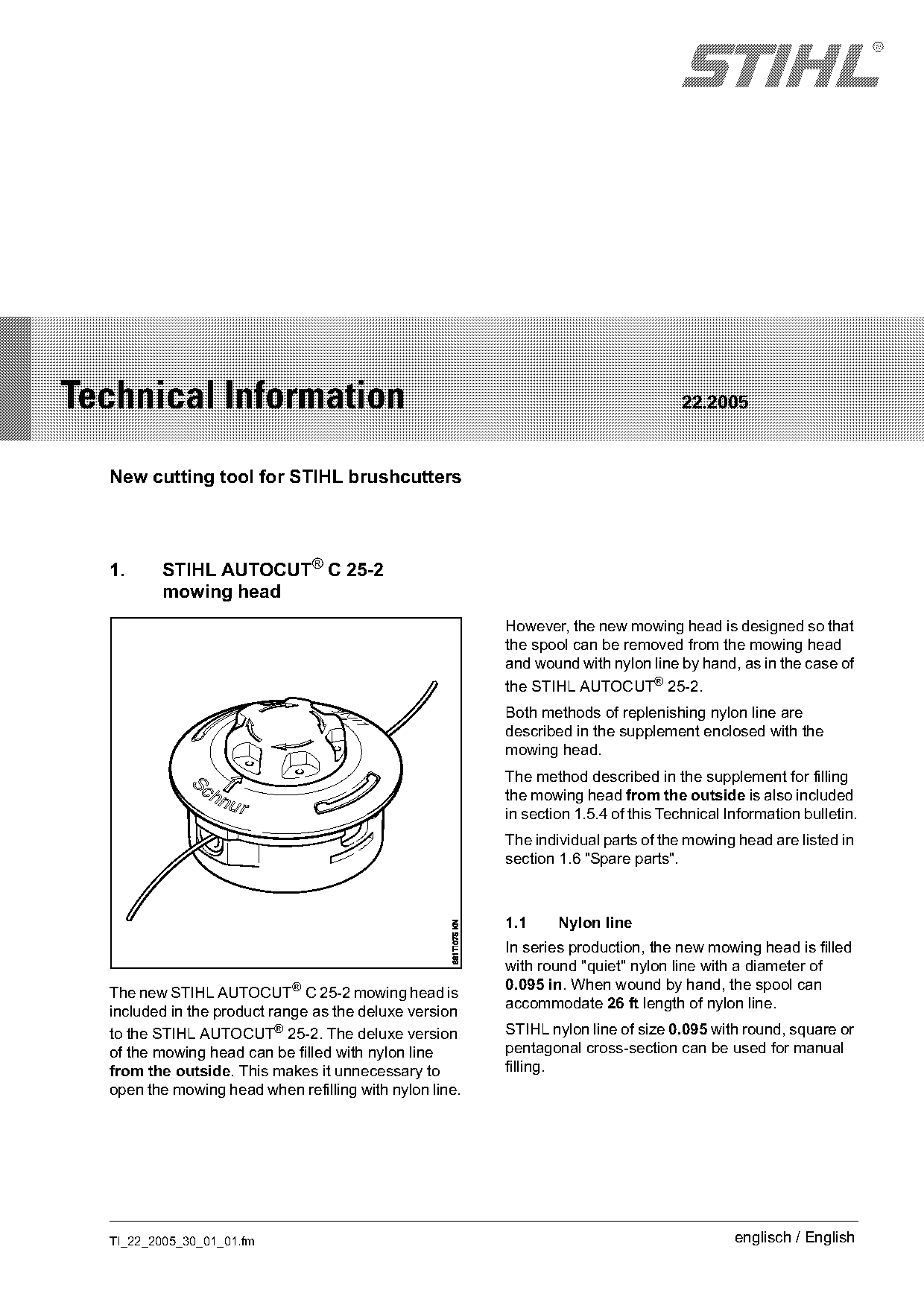

Technical Information 22.2005
New cutting tool for STIHL brushcutters
1. STIHL AUTOCUT® C 25-2
mowing head
However, the new mowing head is designed so that
the spool can be removed from the mowing head
and wound with nylon line by hand, as in the case of
the STIHL AUTOCUT® 25-2.
Both methods of replenishing nylon line are
described in the supplement enclosed with the
mowing head.
The method described in the supplement for filling
the mowing head from the outside is also included
in section 1.5.4 of this Technical Information bulletin.
The individual parts of the mowing head are listed in
section 1.6 "Spare parts".
1.1 Nylon line
In series production, the new mowing head is filled
with round "quiet" nylon line with a diameter of
0.095 in. When wound by hand, the spool can
The new STIHL AUTOCUT® C 25-2 mowing head is
accommodate 26 ft length of nylon line.
included in the product range as the deluxe version
to the STIHL AUTOCUT® 25-2. The deluxe version STIHL nylon line of size 0.095 with round, square or
of the mowing head can be filled with nylon line pentagonal cross-section can be used for manual
from the outside. This makes it unnecessary to filling.
open the mowing head when refilling with nylon line.
TI_22_2005_30_01_01.fm englisch / English
)m~ge 2 Technical Information 22.2005

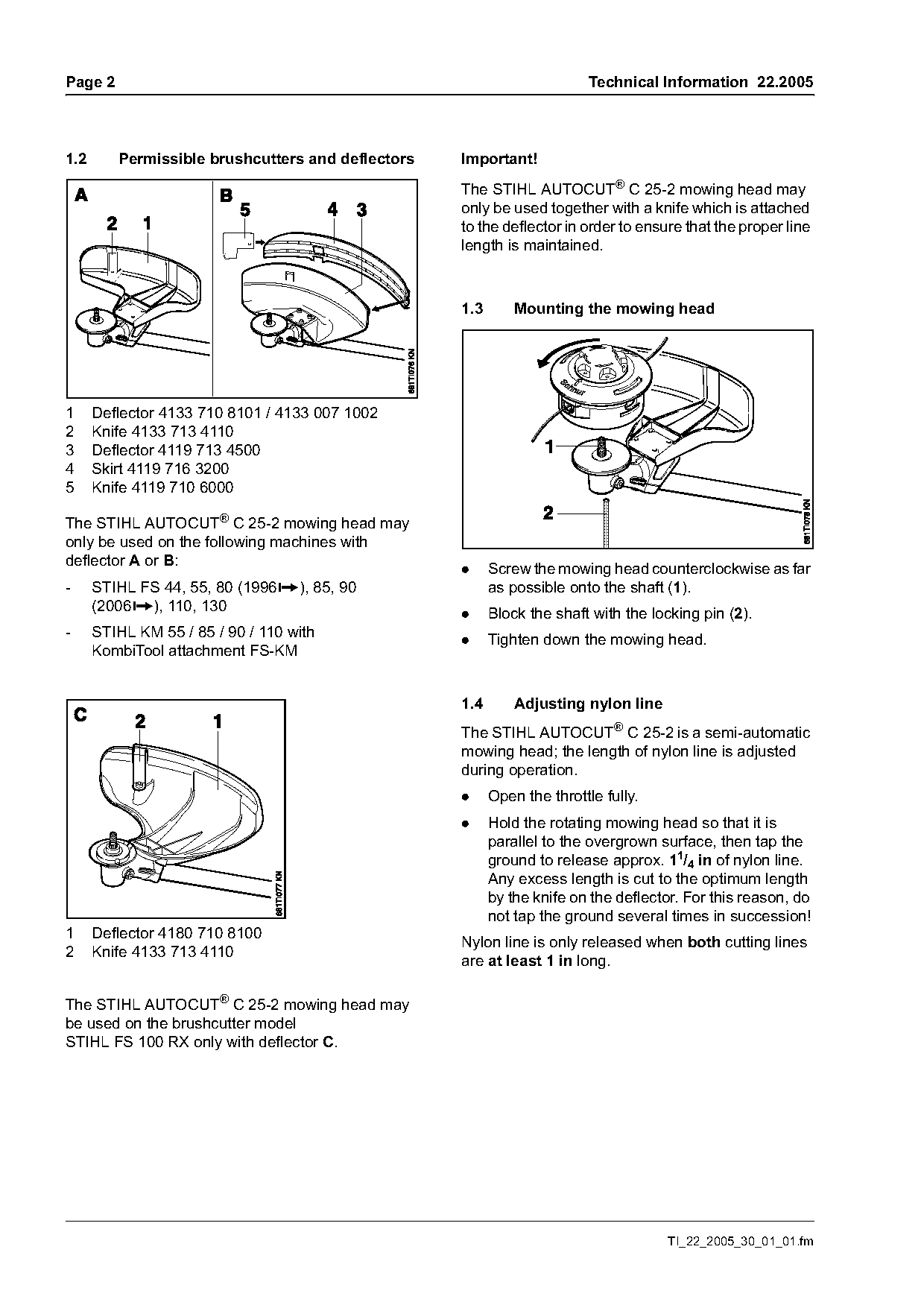

1.2 Permissible brushcutters and deflectors Important!
The STIHL AUTOCUT® C 25-2 mowing head may
only be used together with a knife which is attached
to the deflector in order to ensure that the proper line
length is maintained.
1.3 Mounting the mowing head
1 Deflector 4133 710 8101 / 4133 007 1002
2 Knife 4133 713 4110
3 Deflector 4119 713 4500
4 Skirt 4119 716 3200
5 Knife 4119 710 6000
The STIHL AUTOCUT® C 25-2 mowing head may
only be used on the following machines with
deflector A or B: . Screw the mowing head counterclockwise as far
- STIHL FS 44, 55, 80 (1996+), 85, 90 as possible onto the shaft (1).
(2006+), 110, 130 . Block the shaft with the locking pin (2).
- STIHL KM 55 / 85 / 90 / 110 with . Tighten down the mowing head.
KombiTool attachment FS-KM
1.4 Adjusting nylon line
The STIHL AUTOCUT® C 25-2 is a semi-automatic
mowing head; the length of nylon line is adjusted
during operation.
. Open the throttle fully.
. Hold the rotating mowing head so that it is
parallel to the overgrown surface, then tap the
ground to release approx. 11/4 in of nylon line.
Any excess length is cut to the optimum length
by the knife on the deflector. For this reason, do
not tap the ground several times in succession!
1 Deflector 4180 710 8100
Nylon line is only released when both cutting lines
2 Knife 4133 713 4110
are at least 1 in long.
The STIHL AUTOCUT® C 25-2 mowing head may
be used on the brushcutter model
STIHL FS 100 RX only with deflector C.
TI_22_2005_30_01_01.fm Page 2 of 6
Technical Information 22.2005 Page 3

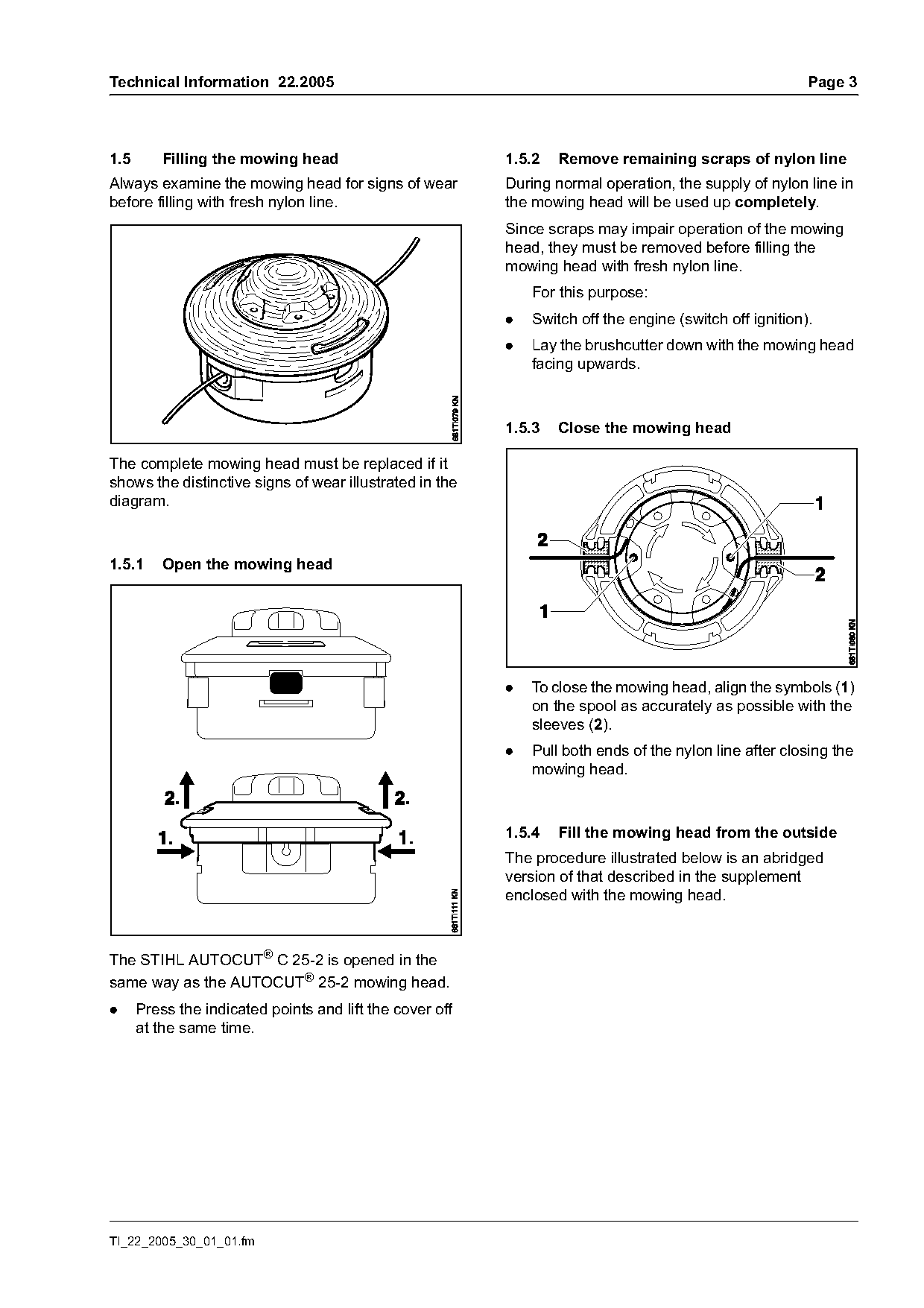

1.5 Filling the mowing head 1.5.2 Remove remaining scraps of nylon line
Always examine the mowing head for signs of wear During normal operation, the supply of nylon line in
before filling with fresh nylon line. the mowing head will be used up completely.
Since scraps may impair operation of the mowing
head, they must be removed before filling the
mowing head with fresh nylon line.
For this purpose:
. Switch off the engine (switch off ignition).
. Lay the brushcutter down with the mowing head
facing upwards.
1.5.3 Close the mowing head
The complete mowing head must be replaced if it
shows the distinctive signs of wear illustrated in the
diagram.
1.5.1 Open the mowing head
. To close the mowing head, align the symbols (1)
on the spool as accurately as possible with the
sleeves (2).
. Pull both ends of the nylon line after closing the
mowing head.
1.5.4 Fill the mowing head from the outside
The procedure illustrated below is an abridged
version of that described in the supplement
enclosed with the mowing head.
The STIHL AUTOCUT® C 25-2 is opened in the
same way as the AUTOCUT® 25-2 mowing head.
. Press the indicated points and lift the cover off
at the same time.
TI_22_2005_30_01_01.fm

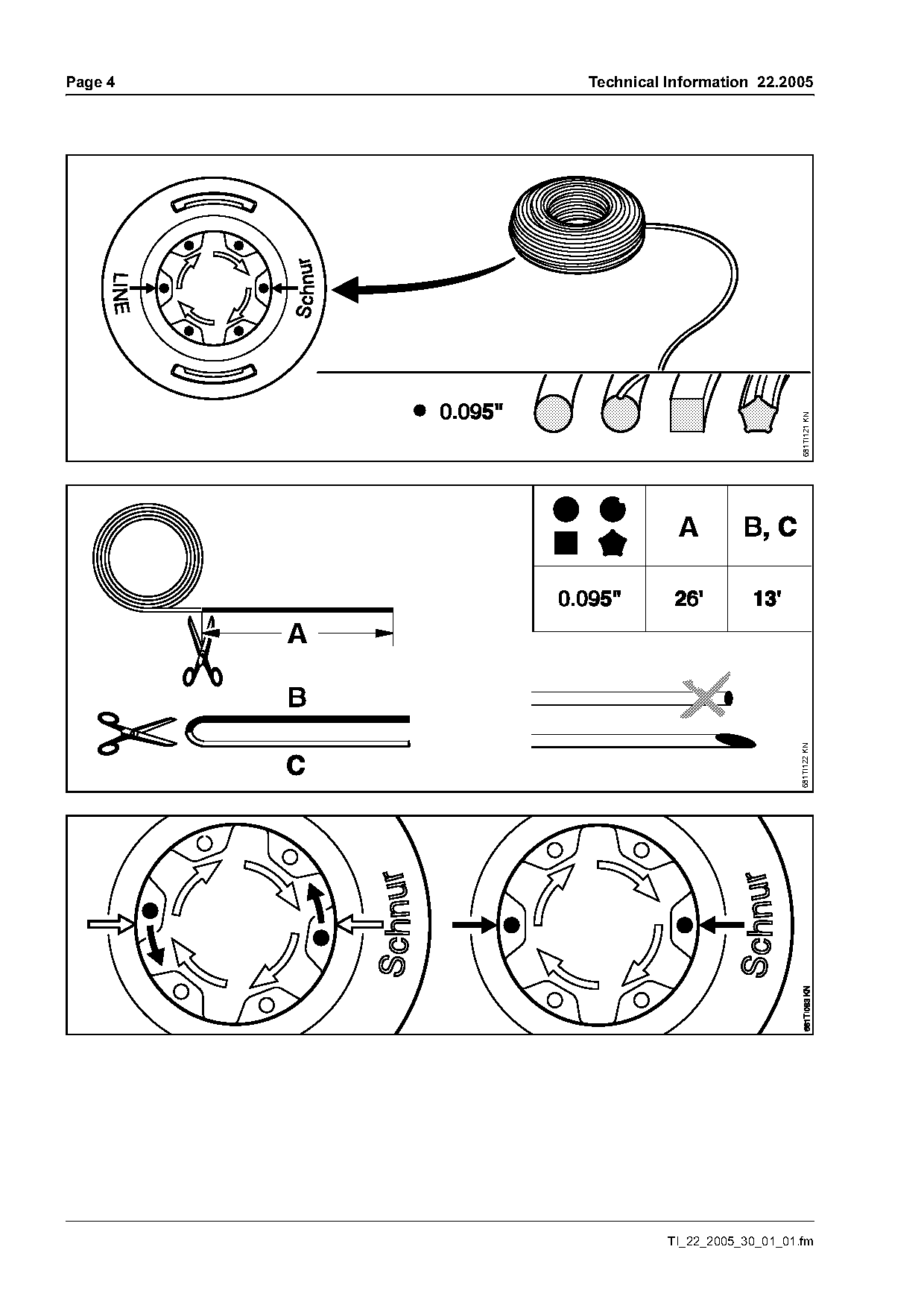

)m~ge 4 Technical Information 22.2005
681TI121 KN
681TI122 KN
TI_22_2005_30_01_01.fm Page 3 of 6

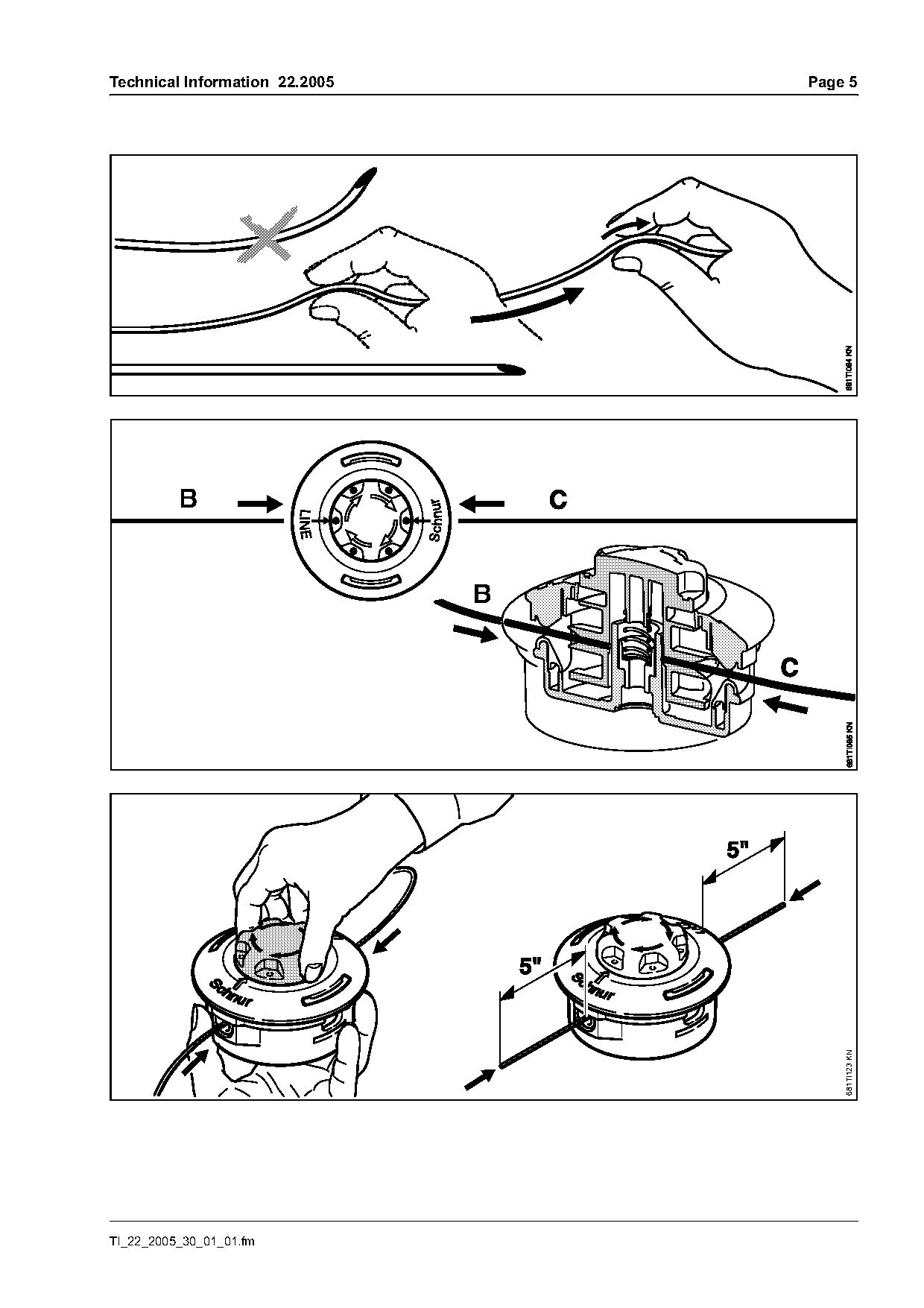

Technical Information 22.2005 Page 5
681TI123 KN
TI_22_2005_30_01_01.fm
)m~ge 6 Technical Information 22.2005

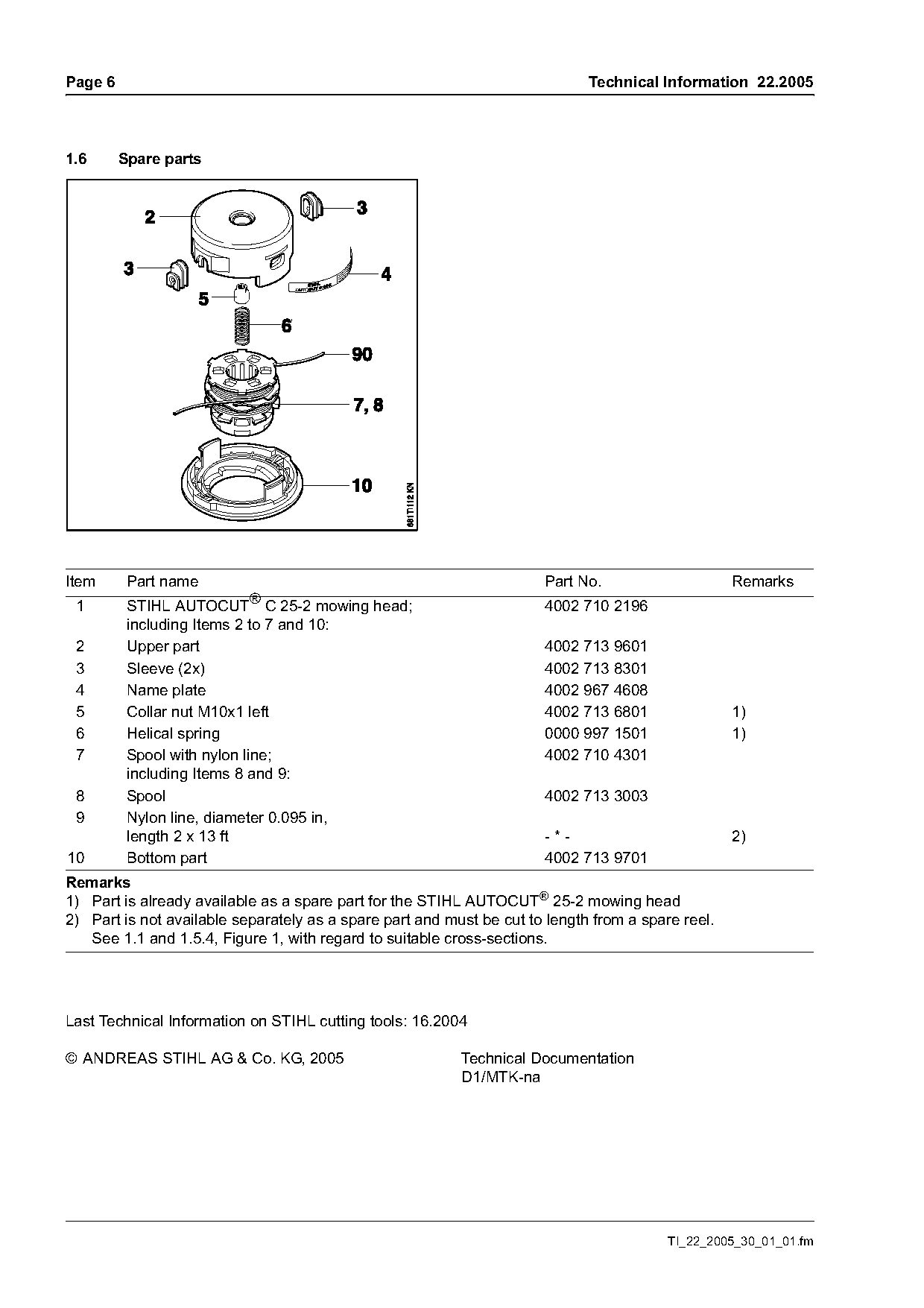

1.6 Spare parts
Item Part name Part No. Remarks
1 STIHL AUTOCUT® C 25-2 mowing head; 4002 710 2196
including Items 2 to 7 and 10:
2 Upper part 4002 713 9601
3 Sleeve (2x) 4002 713 8301
4 Name plate 4002 967 4608
5 Collar nut M10x1 left 4002 713 6801 1)
6 Helical spring 0000 997 1501 1)
7 Spool with nylon line; 4002 710 4301
including Items 8 and 9:
8 Spool 4002 713 3003
9 Nylon line, diameter 0.095 in,
length 2 x 13 ft -*- 2)
10 Bottom part 4002 713 9701
Remarks
1) Part is already available as a spare part for the STIHL AUTOCUT® 25-2 mowing head
2) Part is not available separately as a spare part and must be cut to length from a spare reel.
See 1.1 and 1.5.4, Figure 1, with regard to suitable cross-sections.
Last Technical Information on STIHL cutting tools: 16.2004
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-na
TI_22_2005_30_01_01.fm Page 4 of 6
