Technical Information · issue 23 of 2005
Testing Tool Kit; Pump; Summary
IssueTI 23/2005
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 0000 850 3501 | 0000 850 1300 | vacuum pump 0000 850 3501 are replaced by the new pump 0000 850 1300. |
| 1106 850 2905 | 0000 850 1300 | The crankcase tester 1106 850 2905 and the vacuum pump 0000 850 3501 which were contained in the previous Testing Tool Kit are now replaced by the pump 0000 850 1300 (see section 2). |
Full text
Page 1 of 3
STIH)
Technical Information 23.2005
STIHL Special Tools
Contents
1. Testing Tool Kit
2. Pump
3. Summary

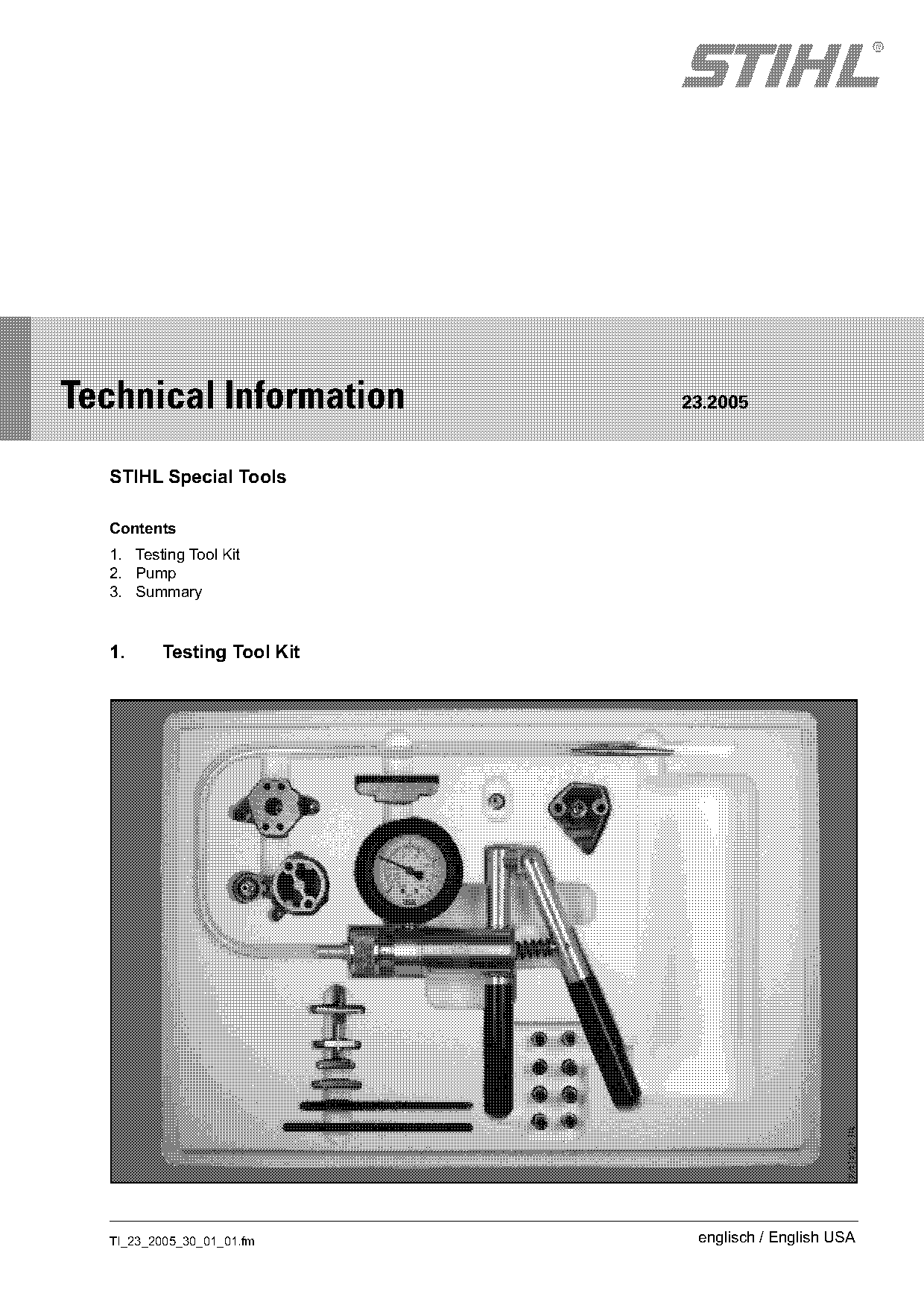

1. Testing Tool Kit
TI_23_2005_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 23.2005

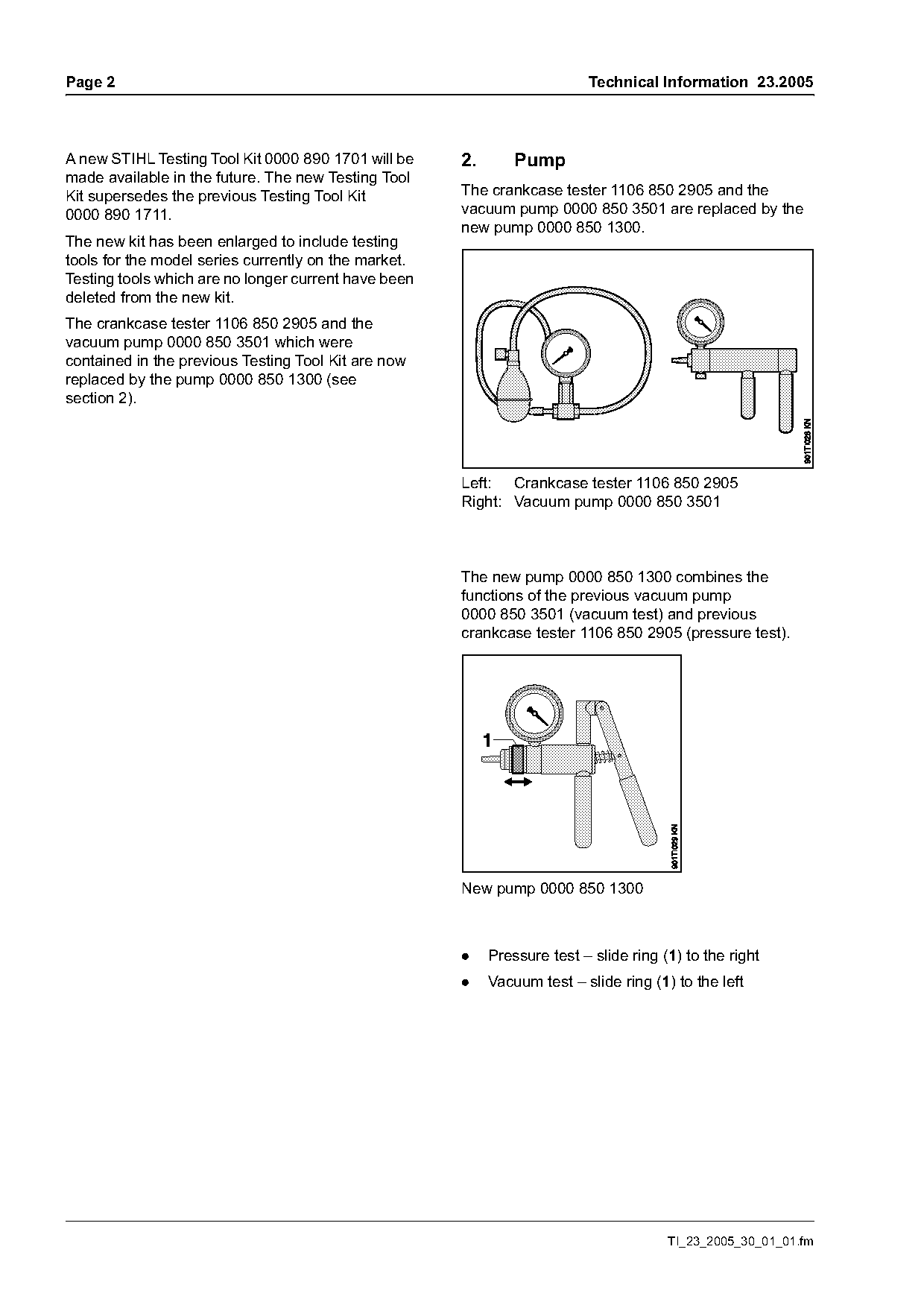

A new STIHL Testing Tool Kit 0000 890 1701 will be 2. Pump
made available in the future. The new Testing Tool
Kit supersedes the previous Testing Tool Kit The crankcase tester 1106 850 2905 and the
0000 890 1711. vacuum pump 0000 850 3501 are replaced by the
new pump 0000 850 1300.
The new kit has been enlarged to include testing
tools for the model series currently on the market.
Testing tools which are no longer current have been
deleted from the new kit.
The crankcase tester 1106 850 2905 and the
vacuum pump 0000 850 3501 which were
contained in the previous Testing Tool Kit are now
replaced by the pump 0000 850 1300 (see
section 2).
Left: Crankcase tester 1106 850 2905
Right: Vacuum pump 0000 850 3501
The new pump 0000 850 1300 combines the
functions of the previous vacuum pump
0000 850 3501 (vacuum test) and previous
crankcase tester 1106 850 2905 (pressure test).
New pump 0000 850 1300
. Pressure test – slide ring (1) to the right
. Vacuum test – slide ring (1) to the left
TI_23_2005_30_01_01.fm Page 2 of 3
Technical Information 23.2005 Page 3

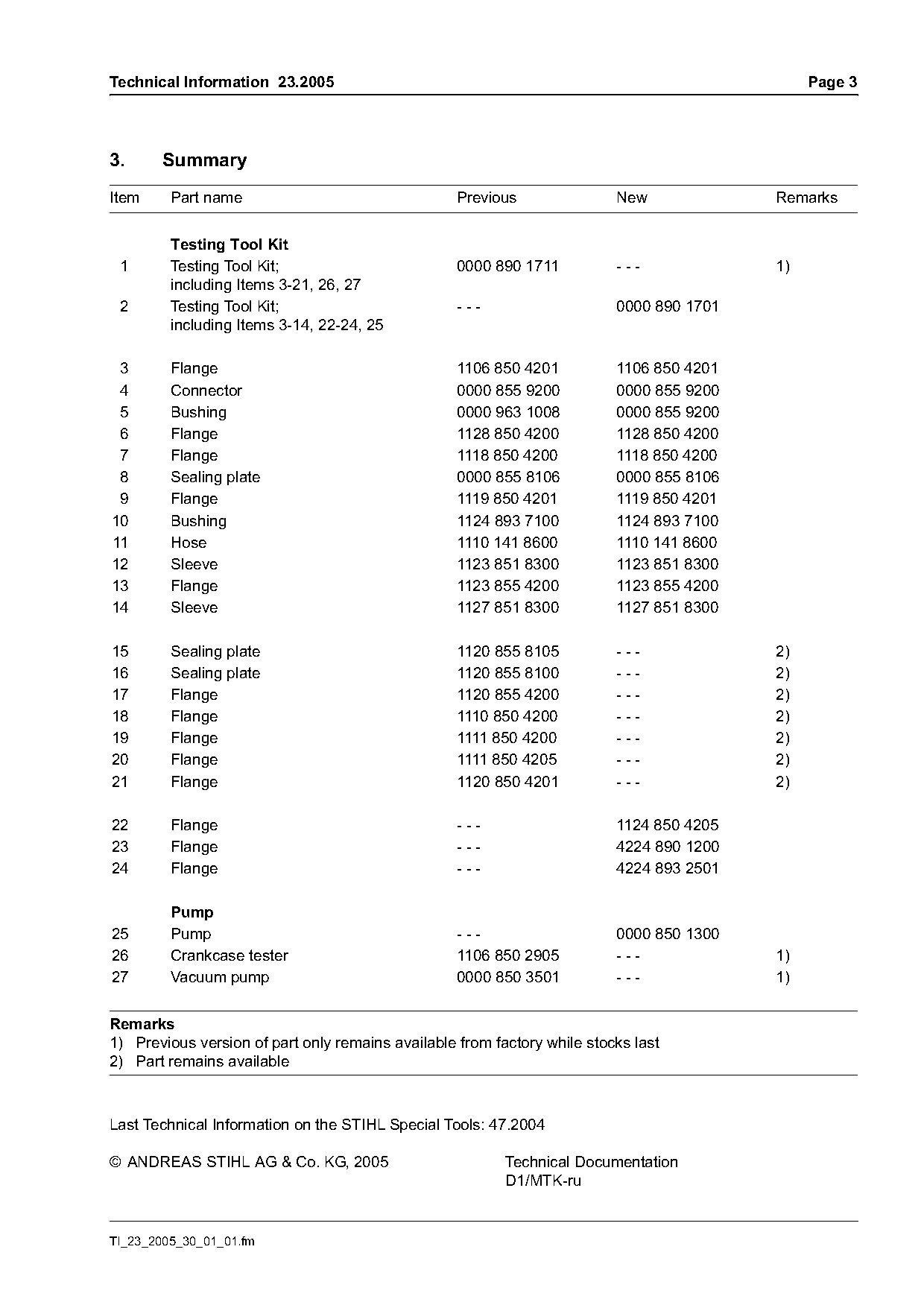

3. Summary
Item Part name Previous New Remarks
Testing Tool Kit
1 Testing Tool Kit; 0000 890 1711 --- 1)
including Items 3-21, 26, 27
2 Testing Tool Kit; --- 0000 890 1701
including Items 3-14, 22-24, 25
3 Flange 1106 850 4201 1106 850 4201
4 Connector 0000 855 9200 0000 855 9200
5 Bushing 0000 963 1008 0000 855 9200
6 Flange 1128 850 4200 1128 850 4200
7 Flange 1118 850 4200 1118 850 4200
8 Sealing plate 0000 855 8106 0000 855 8106
9 Flange 1119 850 4201 1119 850 4201
10 Bushing 1124 893 7100 1124 893 7100
11 Hose 1110 141 8600 1110 141 8600
12 Sleeve 1123 851 8300 1123 851 8300
13 Flange 1123 855 4200 1123 855 4200
14 Sleeve 1127 851 8300 1127 851 8300
15 Sealing plate 1120 855 8105 --- 2)
16 Sealing plate 1120 855 8100 --- 2)
17 Flange 1120 855 4200 --- 2)
18 Flange 1110 850 4200 --- 2)
19 Flange 1111 850 4200 --- 2)
20 Flange 1111 850 4205 --- 2)
21 Flange 1120 850 4201 --- 2)
22 Flange --- 1124 850 4205
23 Flange --- 4224 890 1200
24 Flange --- 4224 893 2501
Pump
25 Pump --- 0000 850 1300
26 Crankcase tester 1106 850 2905 --- 1)
27 Vacuum pump 0000 850 3501 --- 1)
Remarks
1) Previous version of part only remains available from factory while stocks last
2) Part remains available
Last Technical Information on the STIHL Special Tools: 47.2004
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-ru
TI_23_2005_30_01_01.fm Page 3 of 3
