Technical Information · issue 32 of 2005
Tank vent MS 200; Tank vent MS 200 T; Carburetor
IssueTI 32/2005
Engine family 1129
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1129 358 7702 | 1129 358 7705 | Hose (3) 1129 358 7702 must no longer be used on the MS 200 T and is replaced by hose (4) 1129 358 7705. |
| 1129 120 0651 | 1129 120 0605 | MS 200 T MS 200 The previous carburetor (C1Q-S61) 1129 120 0651 The previous carburetor (C1Q-S61) 1129 120 0651 is replaced by the carburetor (C1Q-S61D) is replaced by the carburetor (C1Q-S96A) 1129 120 0605. |
Full text
Page 1 of 12
STIH)

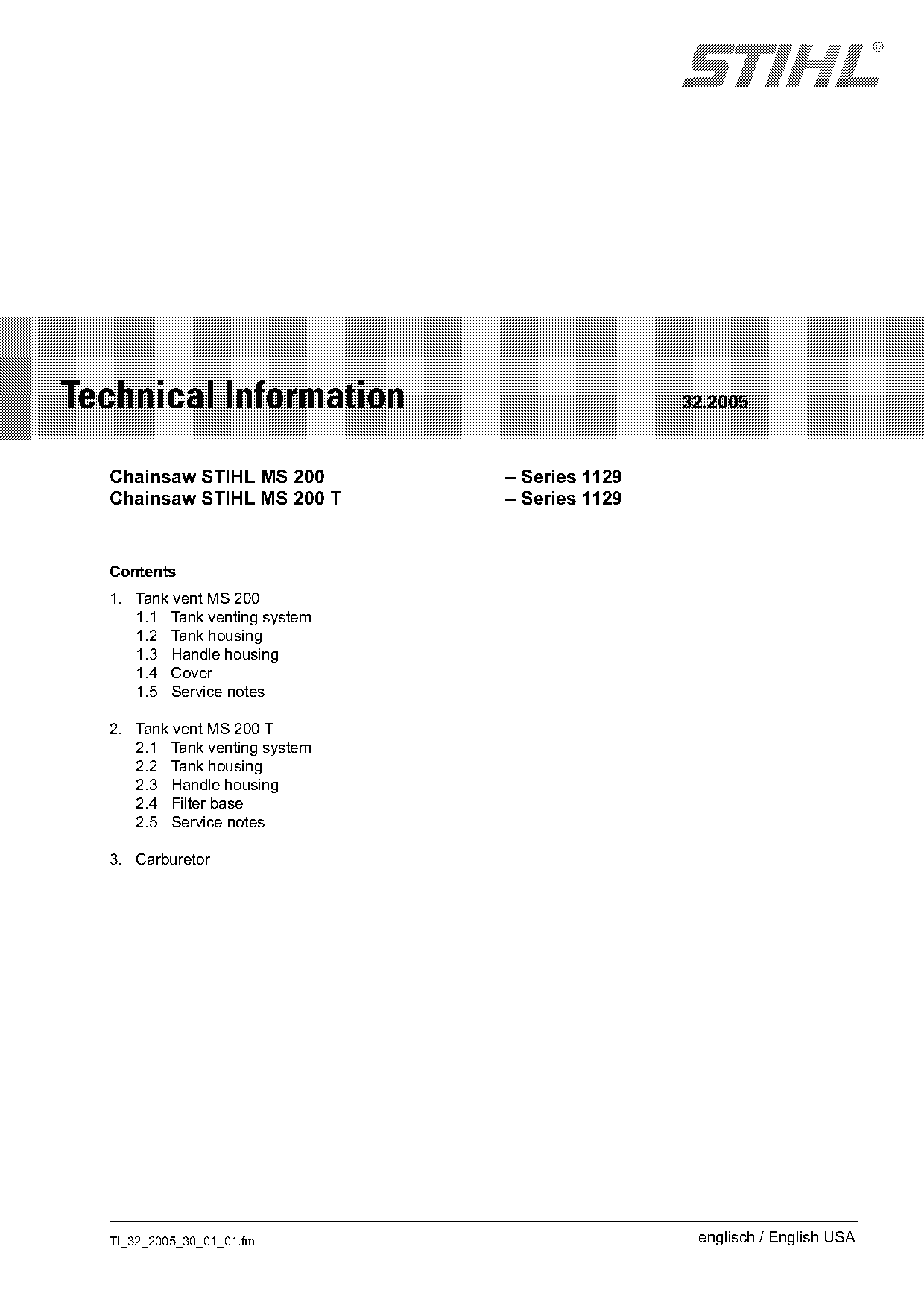

Technical Information 32.2005
Chainsaw STIHL MS 200 – Series 1129
Chainsaw STIHL MS 200 T – Series 1129
Contents
1. Tank vent MS 200
1.1 Tank venting system
1.2 Tank housing
1.3 Handle housing
1.4 Cover
1.5 Service notes
2. Tank vent MS 200 T
2.1 Tank venting system
2.2 Tank housing
2.3 Handle housing
2.4 Filter base
2.5 Service notes
3. Carburetor
TI_32_2005_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 32.2005

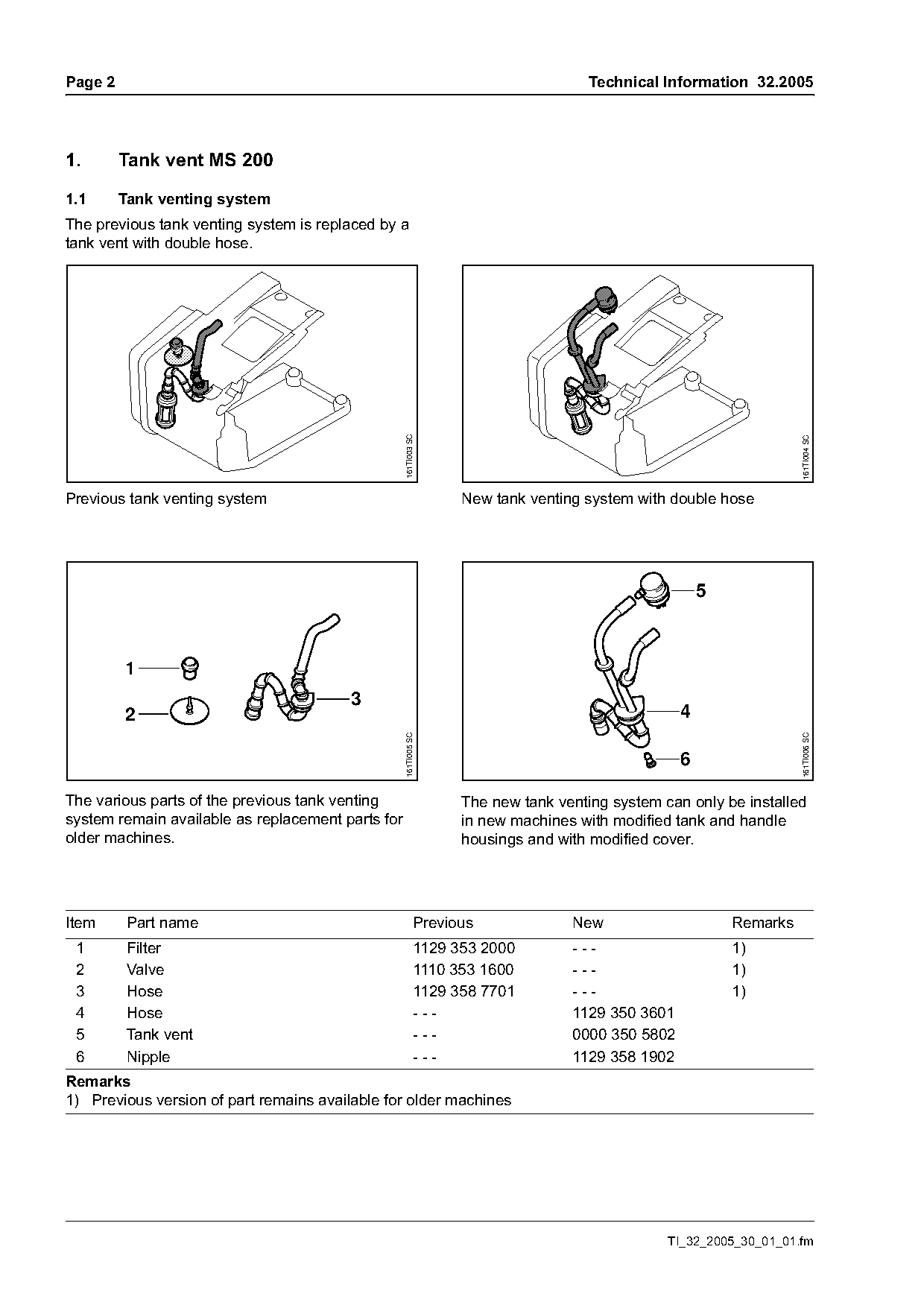

1. Tank vent MS 200
1.1 Tank venting system
The previous tank venting system is replaced by a
tank vent with double hose.
161TI003 SC
161TI004 SC
Previous tank venting system New tank venting system with double hose
1
3
2 4
161TI005 SC
161TI006 SC
6
The various parts of the previous tank venting The new tank venting system can only be installed
system remain available as replacement parts for in new machines with modified tank and handle
older machines. housings and with modified cover.
Item Part name Previous New Remarks
1 Filter 1129 353 2000 --- 1)
2 Valve 1110 353 1600 --- 1)
3 Hose 1129 358 7701 --- 1)
4 Hose --- 1129 350 3601
5 Tank vent --- 0000 350 5802
6 Nipple --- 1129 358 1902
Remarks
1) Previous version of part remains available for older machines
TI_32_2005_30_01_01.fm Page 2 of 12
Technical Information 32.2005 Page 3

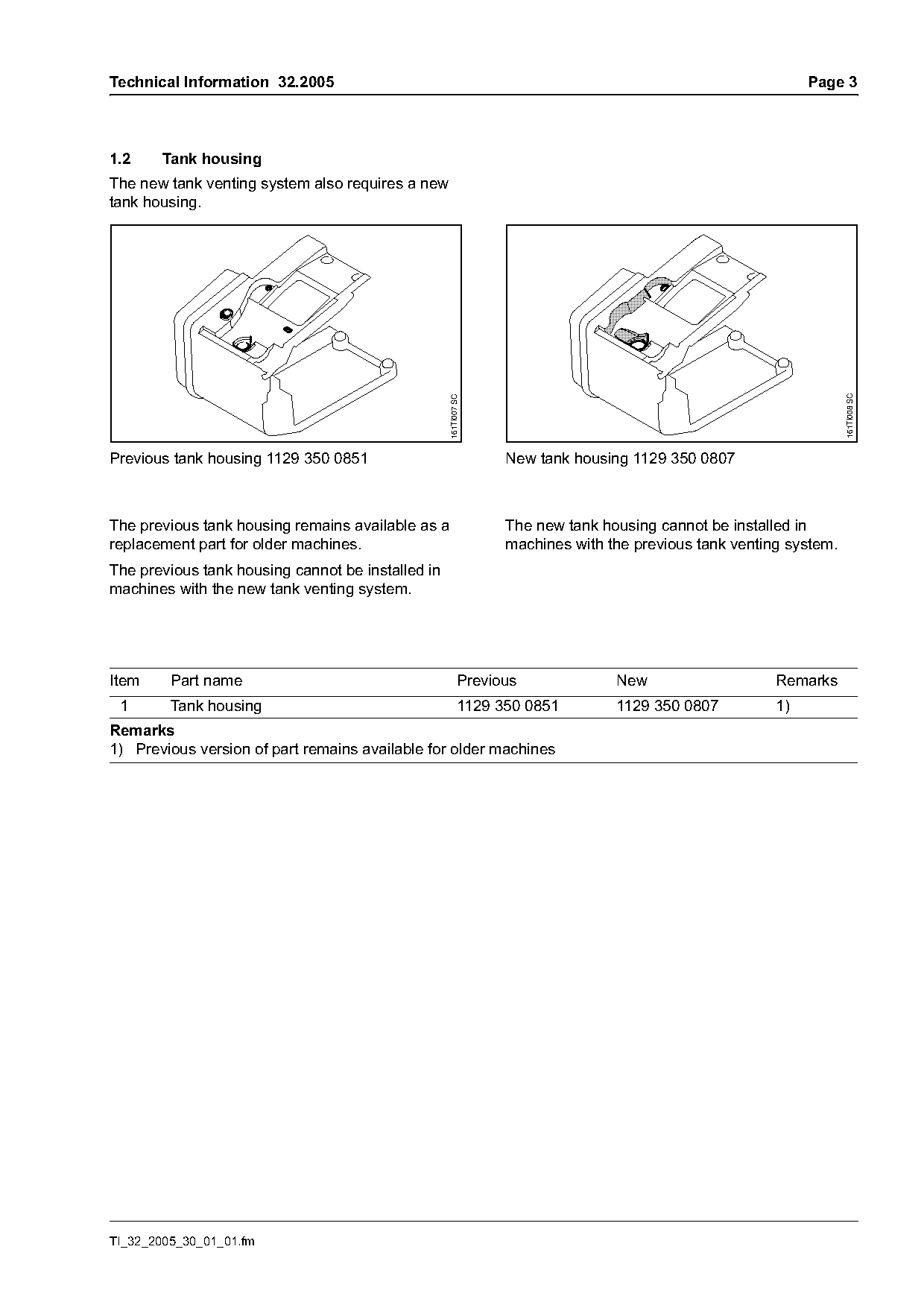

1.2 Tank housing
The new tank venting system also requires a new
tank housing.
161TI008 SC
161TI007 SC
Previous tank housing 1129 350 0851 New tank housing 1129 350 0807
The previous tank housing remains available as a The new tank housing cannot be installed in
replacement part for older machines. machines with the previous tank venting system.
The previous tank housing cannot be installed in
machines with the new tank venting system.
Item Part name Previous New Remarks
1 Tank housing 1129 350 0851 1129 350 0807 1)
Remarks
1) Previous version of part remains available for older machines
TI_32_2005_30_01_01.fm
)m~ge 4 Technical Information 32.2005

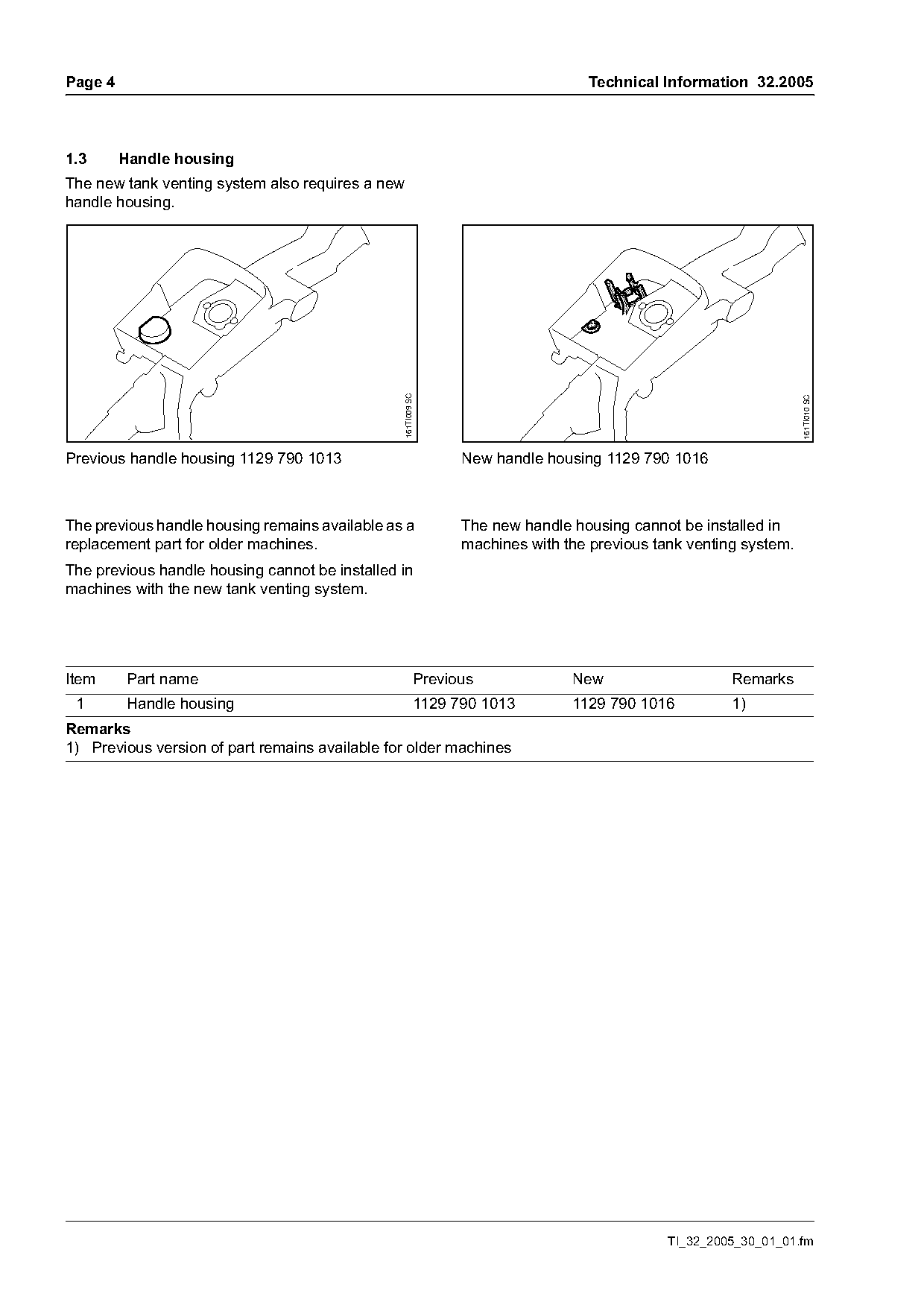

1.3 Handle housing
The new tank venting system also requires a new
handle housing.
161TI009 SC
161TI010 SC
Previous handle housing 1129 790 1013 New handle housing 1129 790 1016
The previous handle housing remains available as a The new handle housing cannot be installed in
replacement part for older machines. machines with the previous tank venting system.
The previous handle housing cannot be installed in
machines with the new tank venting system.
Item Part name Previous New Remarks
1 Handle housing 1129 790 1013 1129 790 1016 1)
Remarks
1) Previous version of part remains available for older machines
TI_32_2005_30_01_01.fm Page 3 of 12
Technical Information 32.2005 Page 5

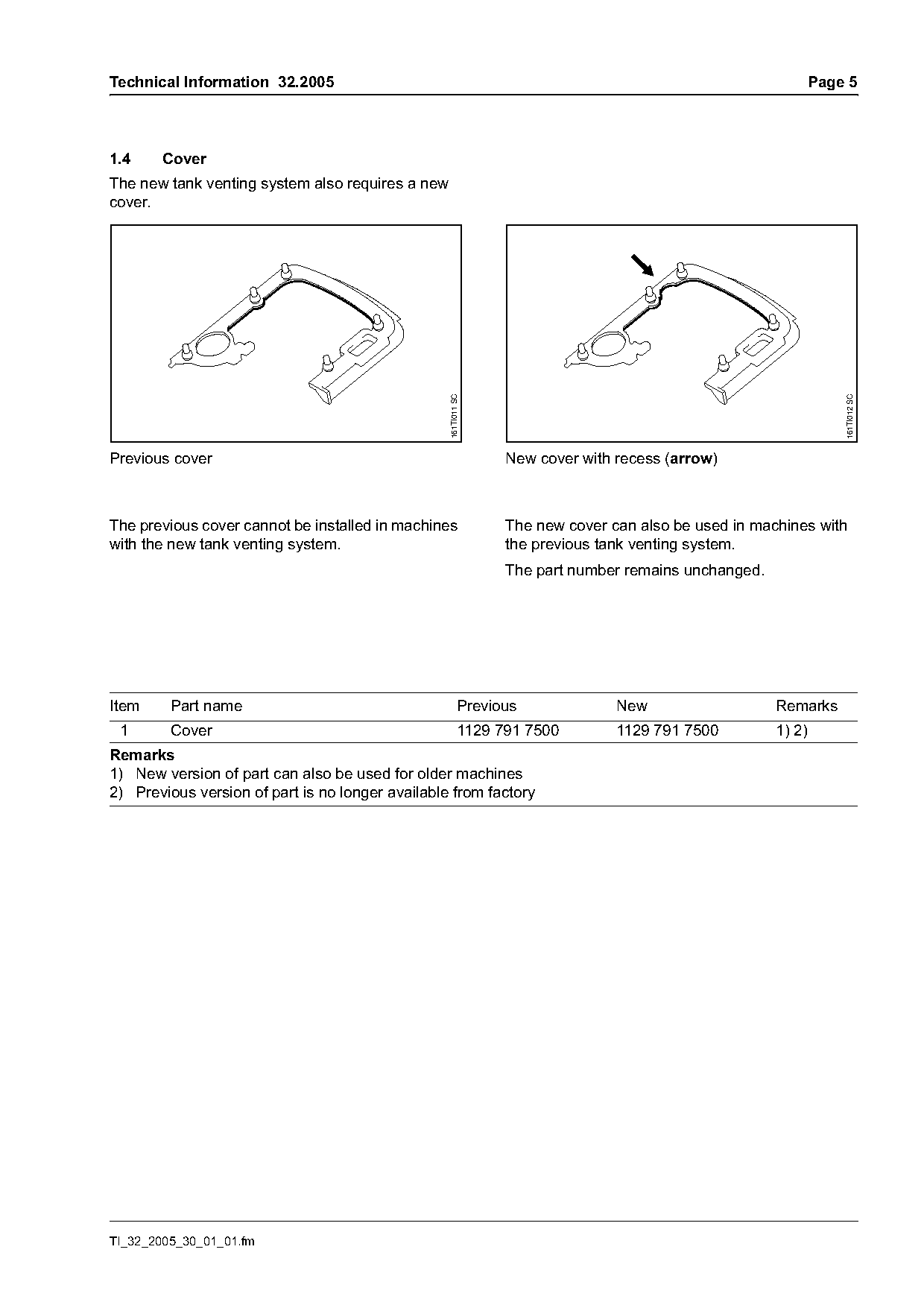

1.4 Cover
The new tank venting system also requires a new
cover.
161TI011 SC
161TI012 SC
Previous cover New cover with recess (arrow)
The previous cover cannot be installed in machines The new cover can also be used in machines with
with the new tank venting system. the previous tank venting system.
The part number remains unchanged.
Item Part name Previous New Remarks
1 Cover 1129 791 7500 1129 791 7500 1) 2)
Remarks
1) New version of part can also be used for older machines
2) Previous version of part is no longer available from factory
TI_32_2005_30_01_01.fm
)m~ge 6 Technical Information 32.2005

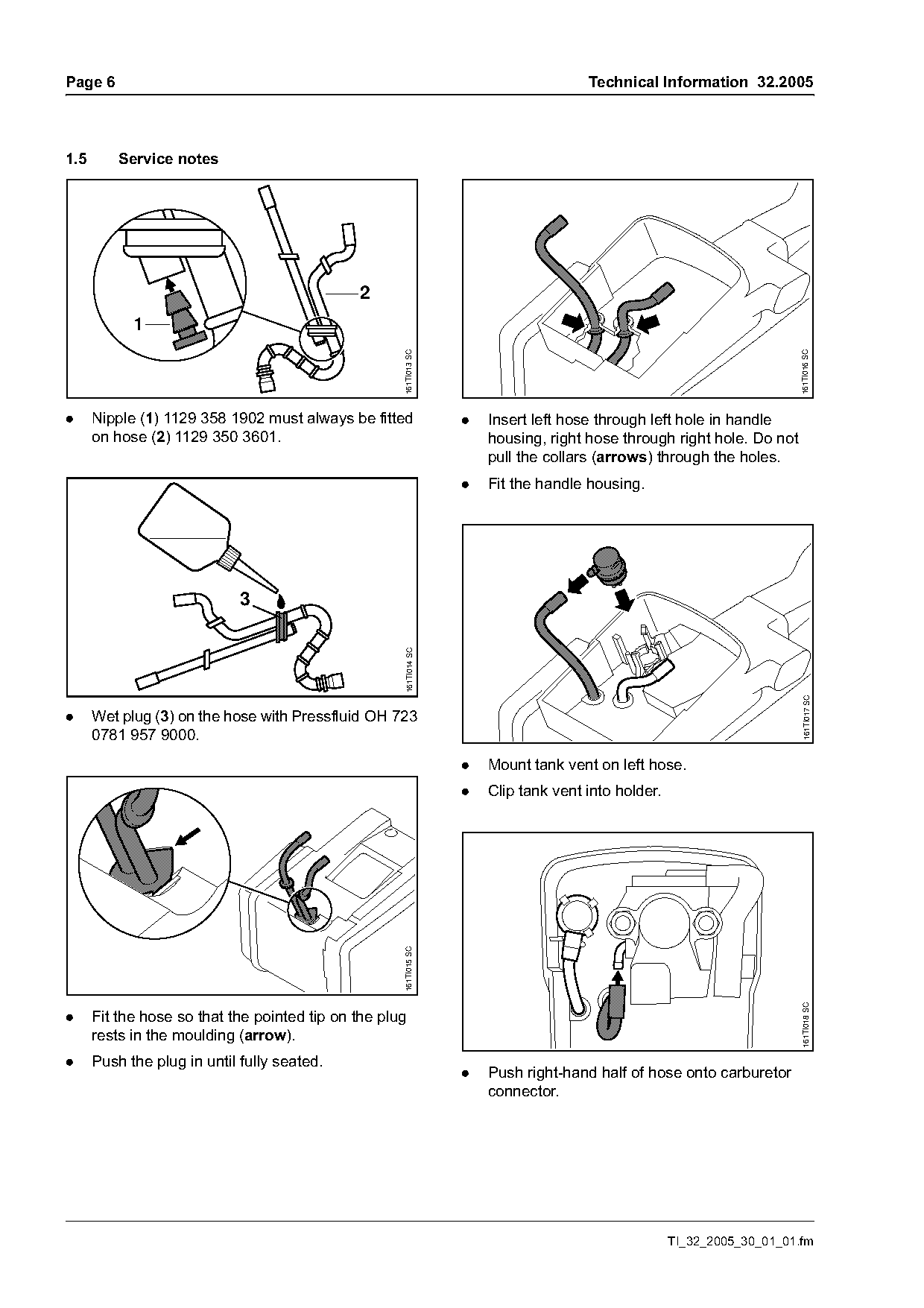

1.5 Service notes
2
1
161TI016 SC
161TI013 SC
. Nipple (1) 1129 358 1902 must always be fitted . Insert left hose through left hole in handle
on hose (2) 1129 350 3601. housing, right hose through right hole. Do not
pull the collars (arrows) through the holes.
. Fit the handle housing.
3
161TI014 SC
161TI017 SC
. Wet plug (3) on the hose with Pressfluid OH 723
0781 957 9000.
. Mount tank vent on left hose.
. Clip tank vent into holder.
161TI015 SC
161TI018 SC
. Fit the hose so that the pointed tip on the plug
rests in the moulding (arrow).
. Push the plug in until fully seated.
. Push right-hand half of hose onto carburetor
connector.
TI_32_2005_30_01_01.fm Page 4 of 12
Technical Information 32.2005 Page 7

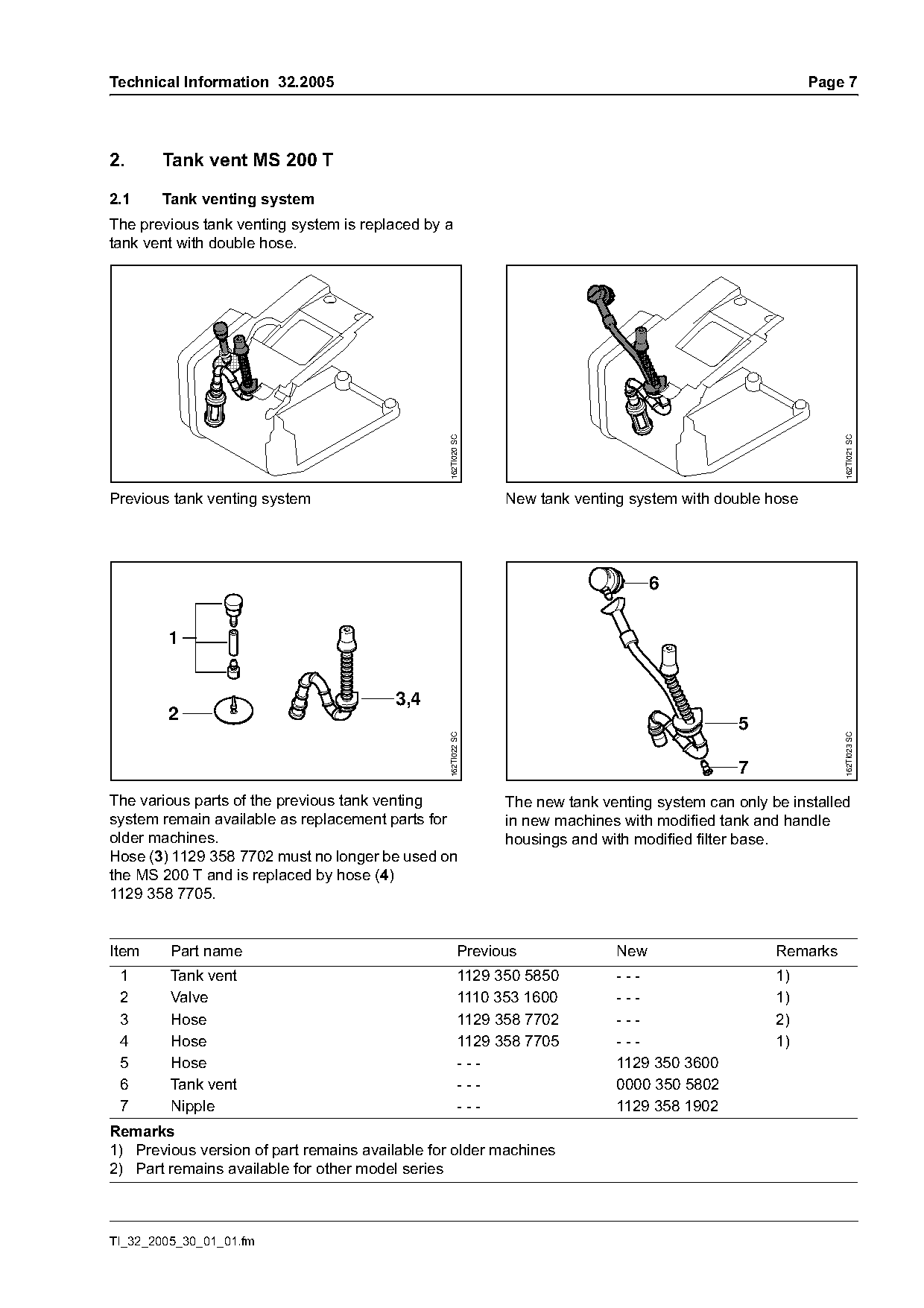

2. Tank vent MS 200 T
2.1 Tank venting system
The previous tank venting system is replaced by a
tank vent with double hose.
162TI020 SC
162TI021 SC
Previous tank venting system New tank venting system with double hose
3,4
2
5
162TI023 SC
162TI022 SC
7
The various parts of the previous tank venting The new tank venting system can only be installed
system remain available as replacement parts for in new machines with modified tank and handle
older machines. housings and with modified filter base.
Hose (3) 1129 358 7702 must no longer be used on
the MS 200 T and is replaced by hose (4)
1129 358 7705.
Item Part name Previous New Remarks
1 Tank vent 1129 350 5850 --- 1)
2 Valve 1110 353 1600 --- 1)
3 Hose 1129 358 7702 --- 2)
4 Hose 1129 358 7705 --- 1)
5 Hose --- 1129 350 3600
6 Tank vent --- 0000 350 5802
7 Nipple --- 1129 358 1902
Remarks
1) Previous version of part remains available for older machines
2) Part remains available for other model series
TI_32_2005_30_01_01.fm
)m~ge 8 Technical Information 32.2005

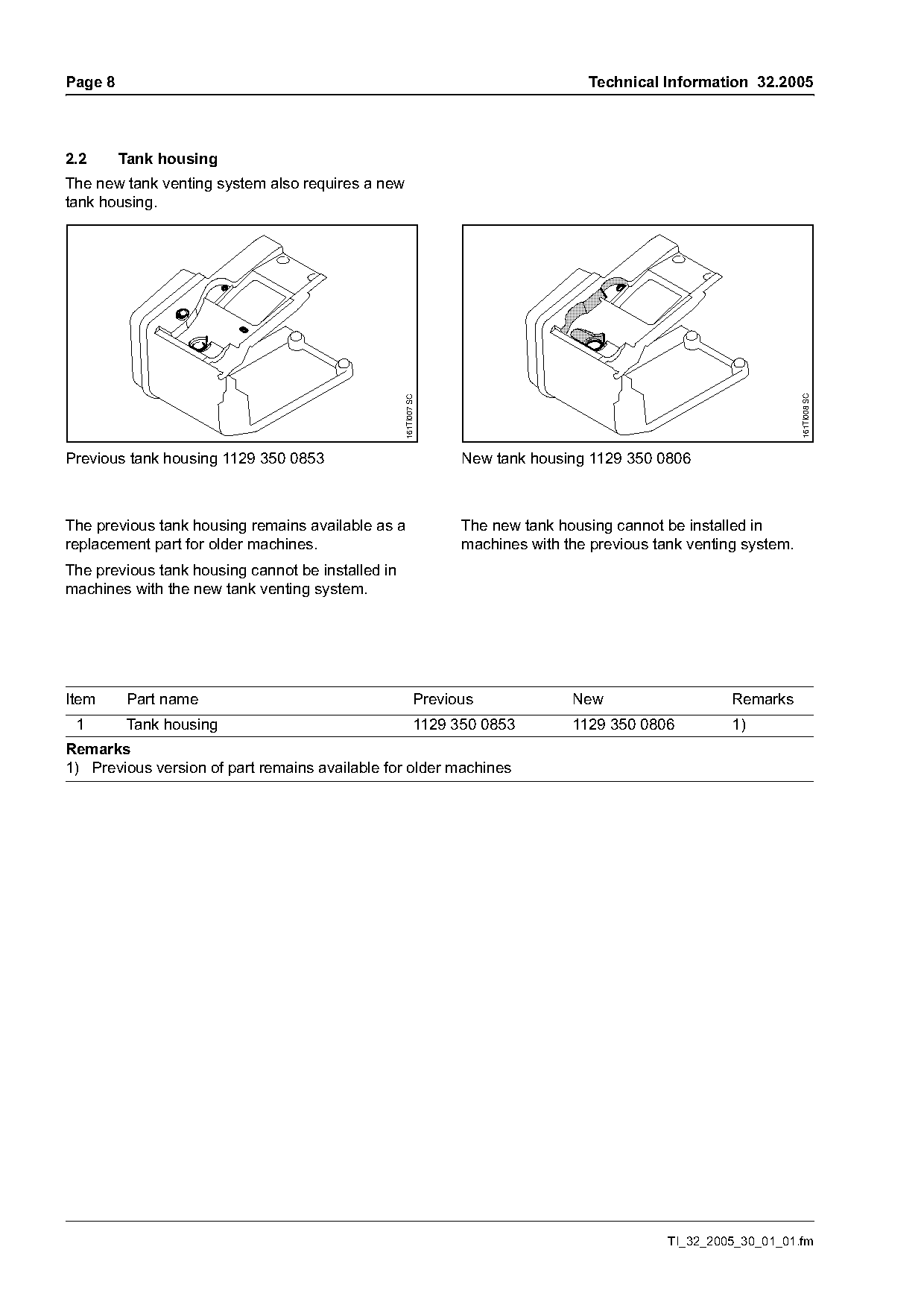

2.2 Tank housing
The new tank venting system also requires a new
tank housing.
161TI008 SC
161TI007 SC
Previous tank housing 1129 350 0853 New tank housing 1129 350 0806
The previous tank housing remains available as a The new tank housing cannot be installed in
replacement part for older machines. machines with the previous tank venting system.
The previous tank housing cannot be installed in
machines with the new tank venting system.
Item Part name Previous New Remarks
1 Tank housing 1129 350 0853 1129 350 0806 1)
Remarks
1) Previous version of part remains available for older machines
TI_32_2005_30_01_01.fm Page 5 of 12
Technical Information 32.2005 Page 9

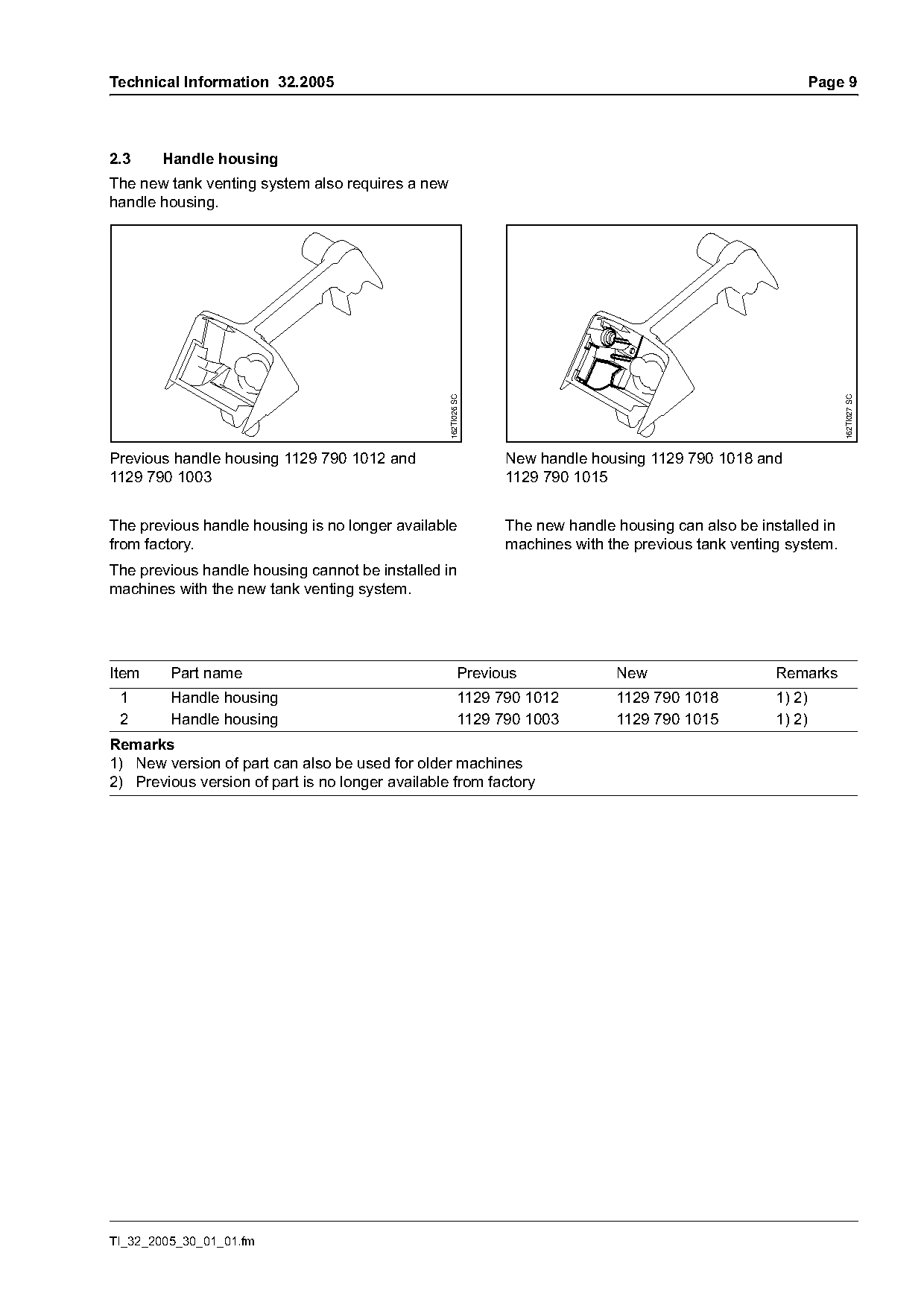

2.3 Handle housing
The new tank venting system also requires a new
handle housing.
162TI026 SC
162TI027 SC
Previous handle housing 1129 790 1012 and New handle housing 1129 790 1018 and
1129 790 1003 1129 790 1015
The previous handle housing is no longer available The new handle housing can also be installed in
from factory. machines with the previous tank venting system.
The previous handle housing cannot be installed in
machines with the new tank venting system.
Item Part name Previous New Remarks
1 Handle housing 1129 790 1012 1129 790 1018 1) 2)
2 Handle housing 1129 790 1003 1129 790 1015 1) 2)
Remarks
1) New version of part can also be used for older machines
2) Previous version of part is no longer available from factory
TI_32_2005_30_01_01.fm
)m~ge 10 Technical Information 32.2005

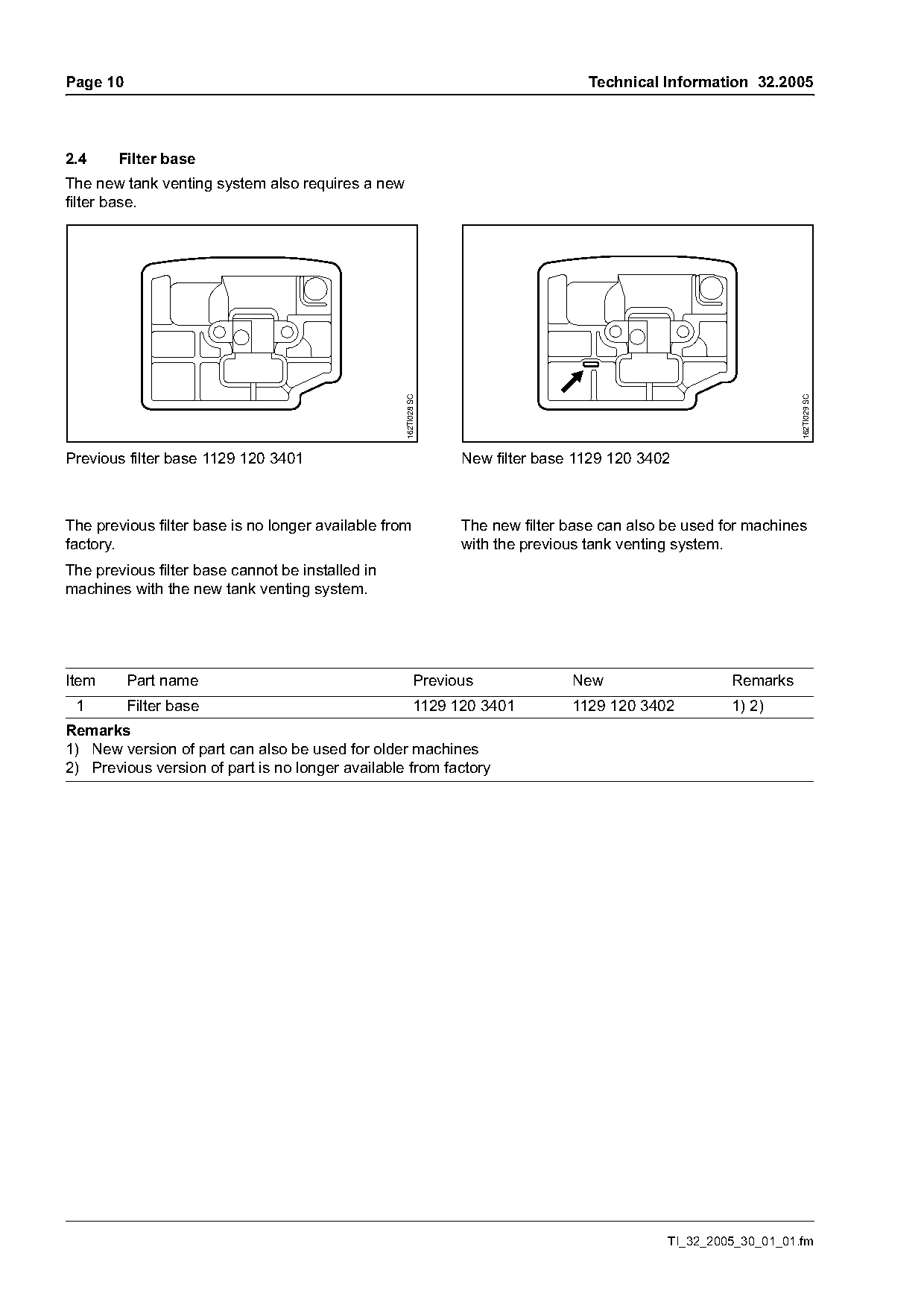

2.4 Filter base
The new tank venting system also requires a new
filter base.
162TI029 SC
162TI028 SC
Previous filter base 1129 120 3401 New filter base 1129 120 3402
The previous filter base is no longer available from The new filter base can also be used for machines
factory. with the previous tank venting system.
The previous filter base cannot be installed in
machines with the new tank venting system.
Item Part name Previous New Remarks
1 Filter base 1129 120 3401 1129 120 3402 1) 2)
Remarks
1) New version of part can also be used for older machines
2) Previous version of part is no longer available from factory
TI_32_2005_30_01_01.fm Page 6 of 12
Technical Information 32.2005 Page 11

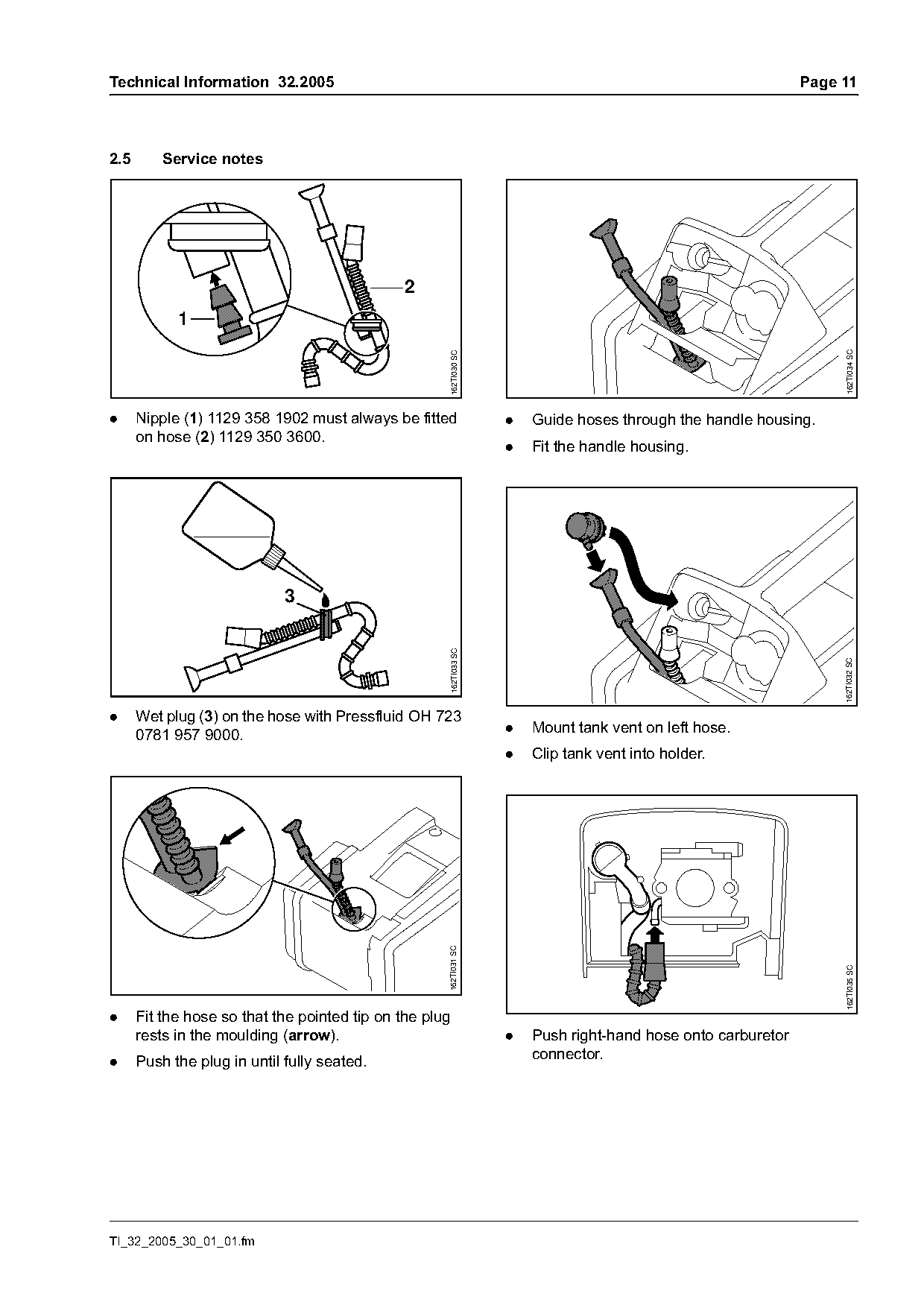

2.5 Service notes
2
1
162TI034 SC
162TI030 SC
. Nipple (1) 1129 358 1902 must always be fitted . Guide hoses through the handle housing.
on hose (2) 1129 350 3600.
. Fit the handle housing.
3
162TI033 SC
162TI032 SC
. Wet plug (3) on the hose with Pressfluid OH 723
. Mount tank vent on left hose.
0781 957 9000.
. Clip tank vent into holder.
162TI031 SC
162TI035 SC
. Fit the hose so that the pointed tip on the plug
rests in the moulding (arrow). . Push right-hand hose onto carburetor
connector.
. Push the plug in until fully seated.
TI_32_2005_30_01_01.fm
)m~ge 12 Technical Information 32.2005

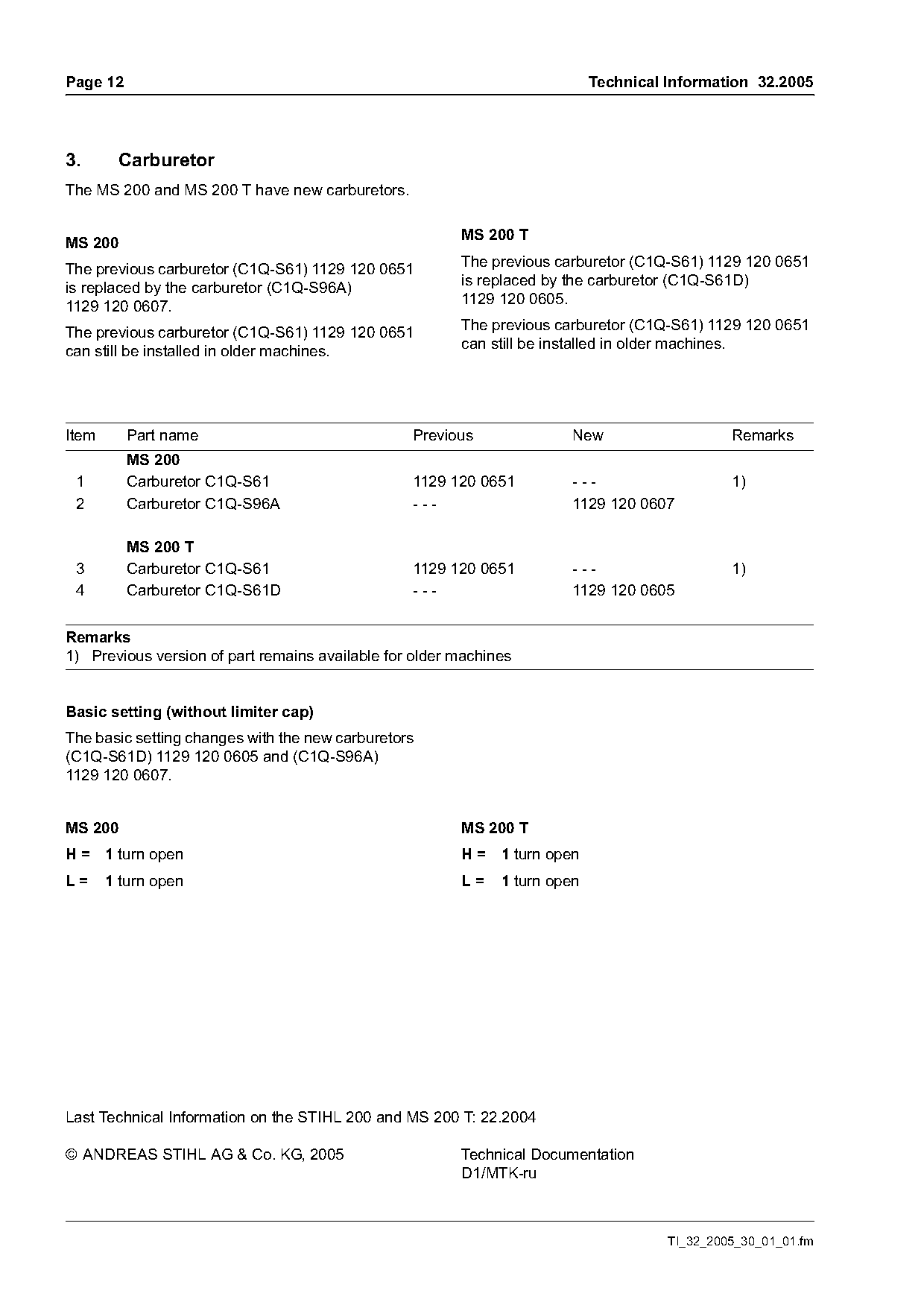

3. Carburetor
The MS 200 and MS 200 T have new carburetors.
MS 200 T
MS 200
The previous carburetor (C1Q-S61) 1129 120 0651
The previous carburetor (C1Q-S61) 1129 120 0651
is replaced by the carburetor (C1Q-S61D)
is replaced by the carburetor (C1Q-S96A)
1129 120 0605.
1129 120 0607.
The previous carburetor (C1Q-S61) 1129 120 0651
The previous carburetor (C1Q-S61) 1129 120 0651
can still be installed in older machines.
can still be installed in older machines.
Item Part name Previous New Remarks
MS 200
1 Carburetor C1Q-S61 1129 120 0651 --- 1)
2 Carburetor C1Q-S96A --- 1129 120 0607
MS 200 T
3 Carburetor C1Q-S61 1129 120 0651 --- 1)
4 Carburetor C1Q-S61D --- 1129 120 0605
Remarks
1) Previous version of part remains available for older machines
Basic setting (without limiter cap)
The basic setting changes with the new carburetors
(C1Q-S61D) 1129 120 0605 and (C1Q-S96A)
1129 120 0607.
MS 200 MS 200 T
H = 1 turn open H = 1 turn open
L= 1 turn open L= 1 turn open
Last Technical Information on the STIHL 200 and MS 200 T: 22.2004
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-ru
TI_32_2005_30_01_01.fm Page 7 of 12
