Technical Information · issue 36 of 2005
Clutch, clutch shoe; Stop buffer; MS 341, 361, 361 C: crankshaft / flywheel; Summary
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 160 2001 | 1128 160 2004 | Clutch, clutch shoe To further improve the service life and reduce the noise when idling, the previous clutch 1128 160 2001 with clutch shoe 1128 162 0806 is replaced by the new version 1128 160 2004 with clutch shoe 1128 162 0807. |
Full text
Page 1 of 3
STIH)

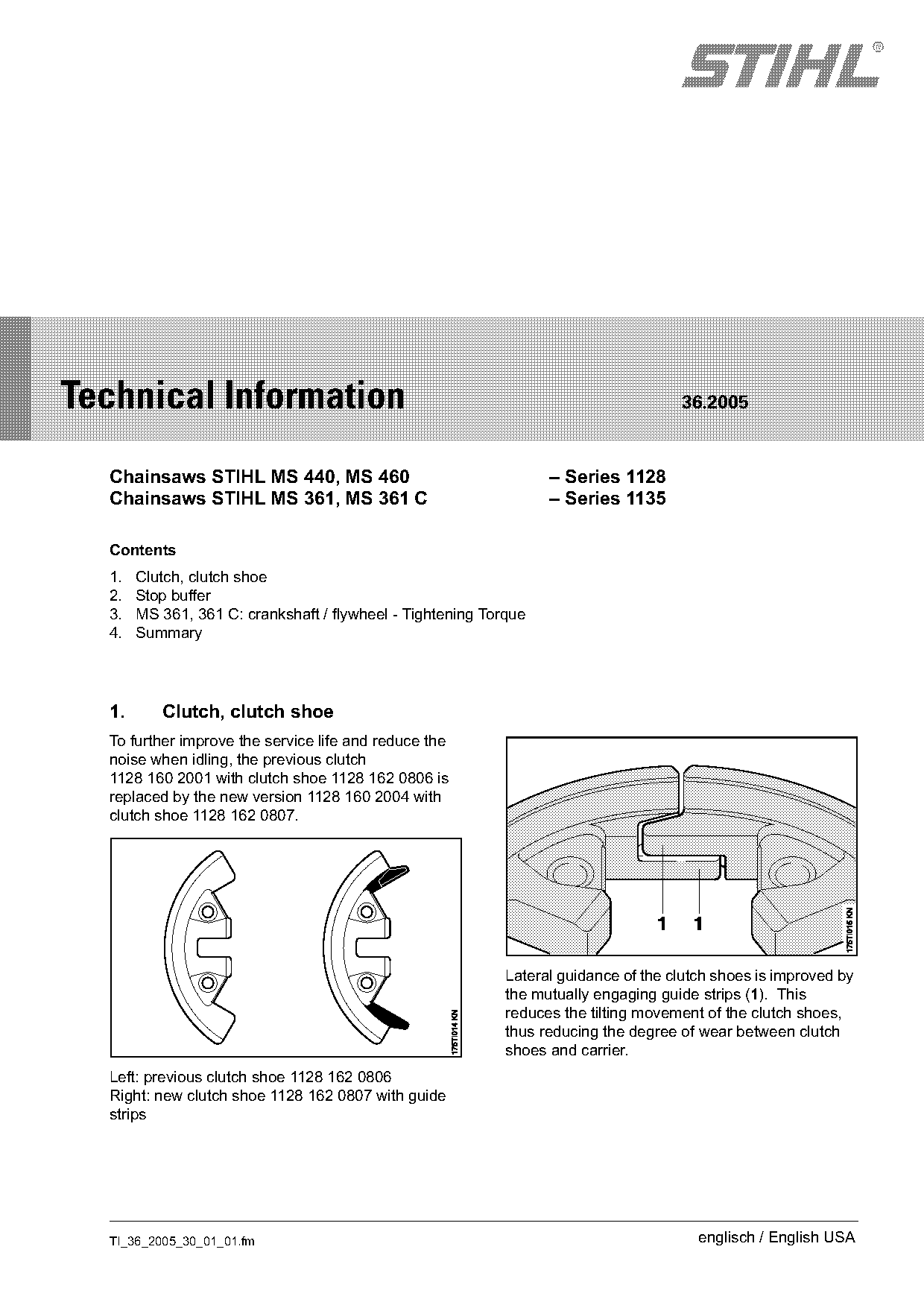

Technical Information 36.2005
Chainsaws STIHL MS 440, MS 460 – Series 1128
Chainsaws STIHL MS 361, MS 361 C – Series 1135
Contents
1. Clutch, clutch shoe
2. Stop buffer
3. MS 361, 361 C: crankshaft / flywheel - Tightening Torque
4. Summary
1. Clutch, clutch shoe
To further improve the service life and reduce the
noise when idling, the previous clutch
1128 160 2001 with clutch shoe 1128 162 0806 is
replaced by the new version 1128 160 2004 with
clutch shoe 1128 162 0807.
Lateral guidance of the clutch shoes is improved by
the mutually engaging guide strips (1). This
reduces the tilting movement of the clutch shoes,
thus reducing the degree of wear between clutch
shoes and carrier.
Left: previous clutch shoe 1128 162 0806
Right: new clutch shoe 1128 162 0807 with guide
strips
TI_36_2005_30_01_01.fm englisch / English USA

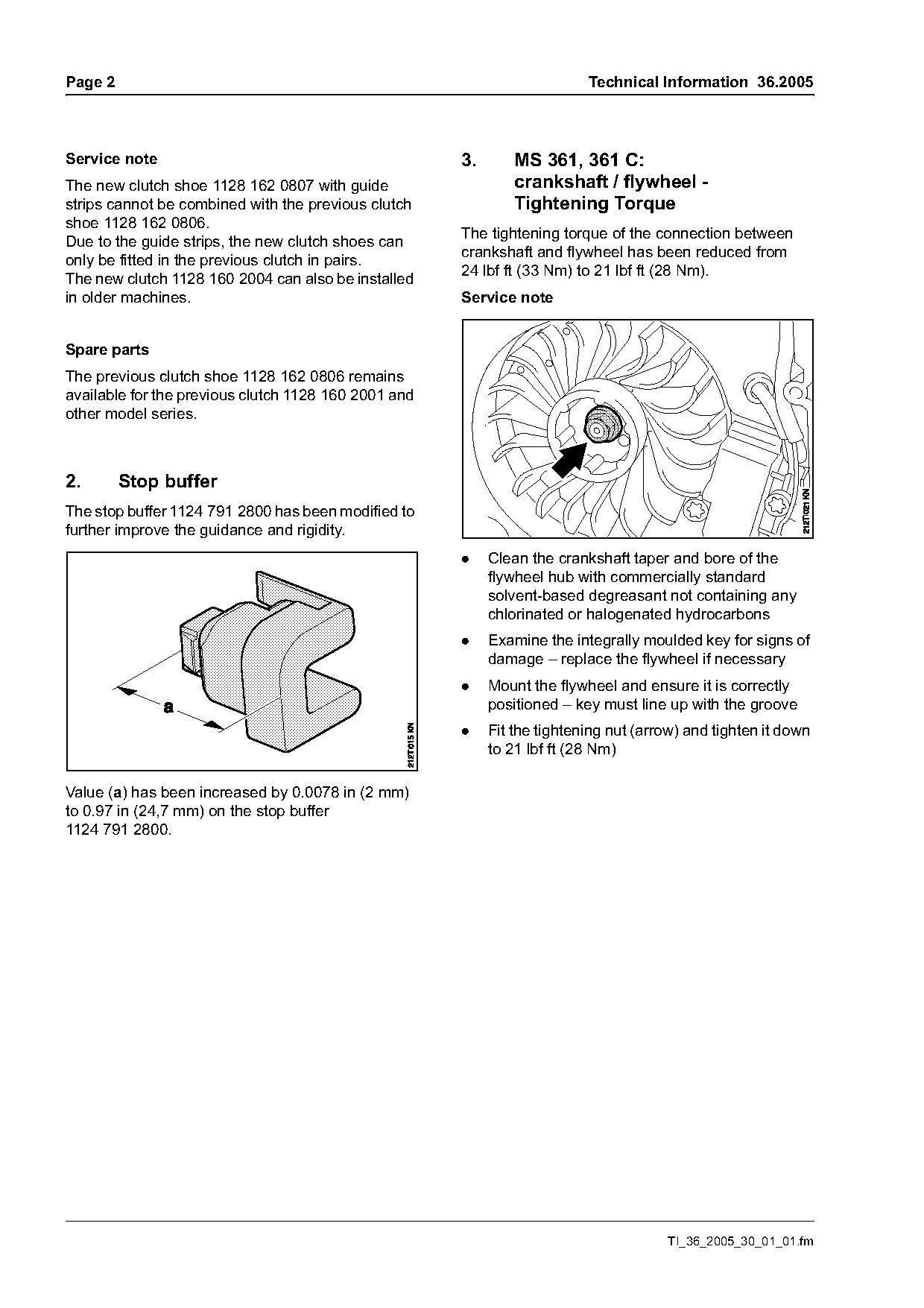

)m~ge 2 Technical Information 36.2005
Service note 3. MS 361, 361 C:
The new clutch shoe 1128 162 0807 with guide crankshaft / flywheel -
strips cannot be combined with the previous clutch Tightening Torque
shoe 1128 162 0806.
The tightening torque of the connection between
Due to the guide strips, the new clutch shoes can
crankshaft and flywheel has been reduced from
only be fitted in the previous clutch in pairs.
24 lbf ft (33 Nm) to 21 lbf ft (28 Nm).
The new clutch 1128 160 2004 can also be installed
in older machines. Service note
Spare parts
The previous clutch shoe 1128 162 0806 remains
available for the previous clutch 1128 160 2001 and
other model series.
2. Stop buffer
The stop buffer 1124 791 2800 has been modified to
further improve the guidance and rigidity.
. Clean the crankshaft taper and bore of the
flywheel hub with commercially standard
solvent-based degreasant not containing any
chlorinated or halogenated hydrocarbons
. Examine the integrally moulded key for signs of
damage – replace the flywheel if necessary
. Mount the flywheel and ensure it is correctly
positioned – key must line up with the groove
. Fit the tightening nut (arrow) and tighten it down
to 21 lbf ft (28 Nm)
Value (a) has been increased by 0.0078 in (2 mm)
to 0.97 in (24,7 mm) on the stop buffer
1124 791 2800.
TI_36_2005_30_01_01.fm Page 2 of 3

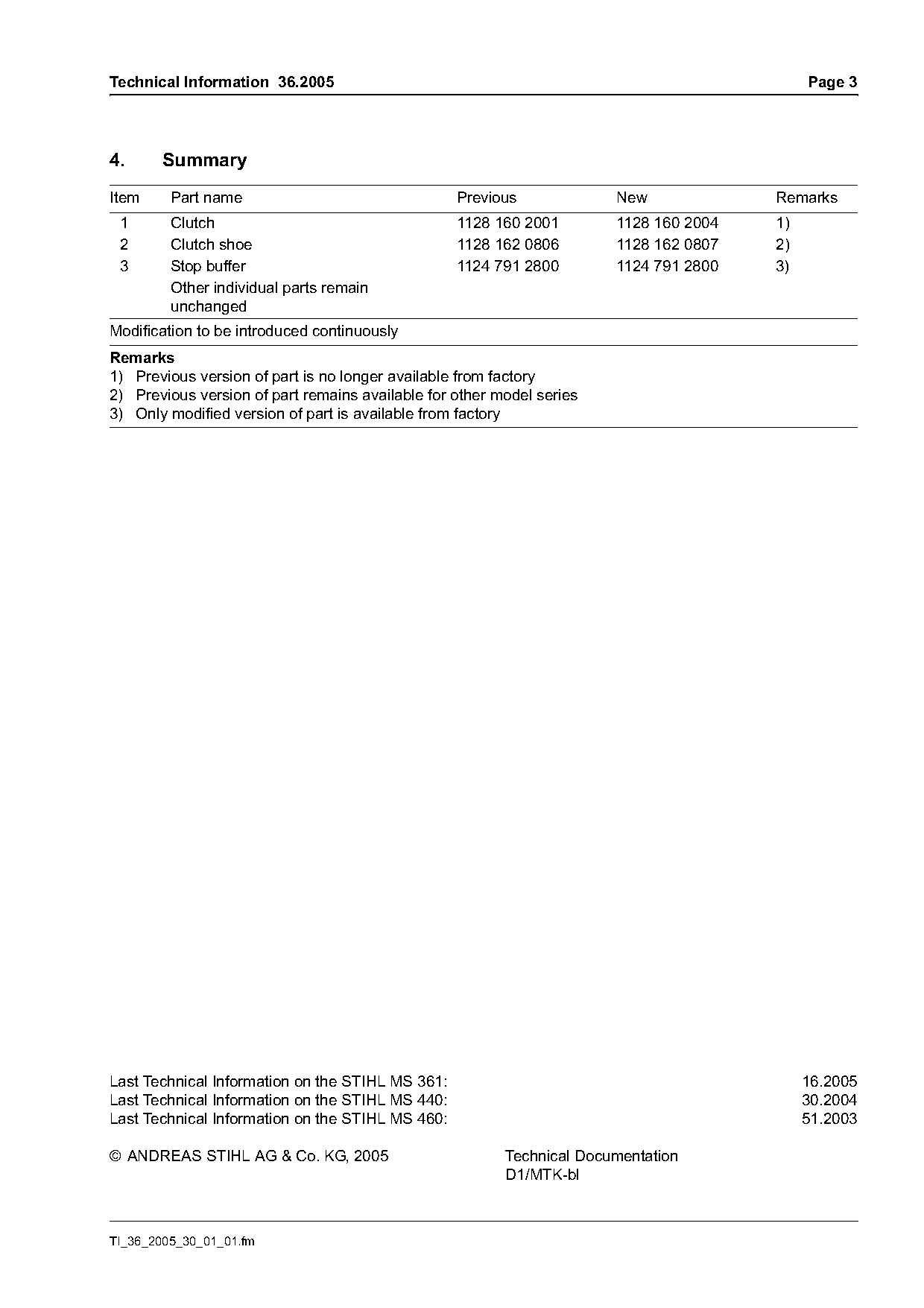

Technical Information 36.2005 Page 3
4. Summary
Item Part name Previous New Remarks
1 Clutch 1128 160 2001 1128 160 2004 1)
2 Clutch shoe 1128 162 0806 1128 162 0807 2)
3 Stop buffer 1124 791 2800 1124 791 2800 3)
Other individual parts remain
unchanged
Modification to be introduced continuously
Remarks
1) Previous version of part is no longer available from factory
2) Previous version of part remains available for other model series
3) Only modified version of part is available from factory
Last Technical Information on the STIHL MS 361: 16.2005
Last Technical Information on the STIHL MS 440: 30.2004
Last Technical Information on the STIHL MS 460: 51.2003
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-bl
TI_36_2005_30_01_01.fm Page 3 of 3
