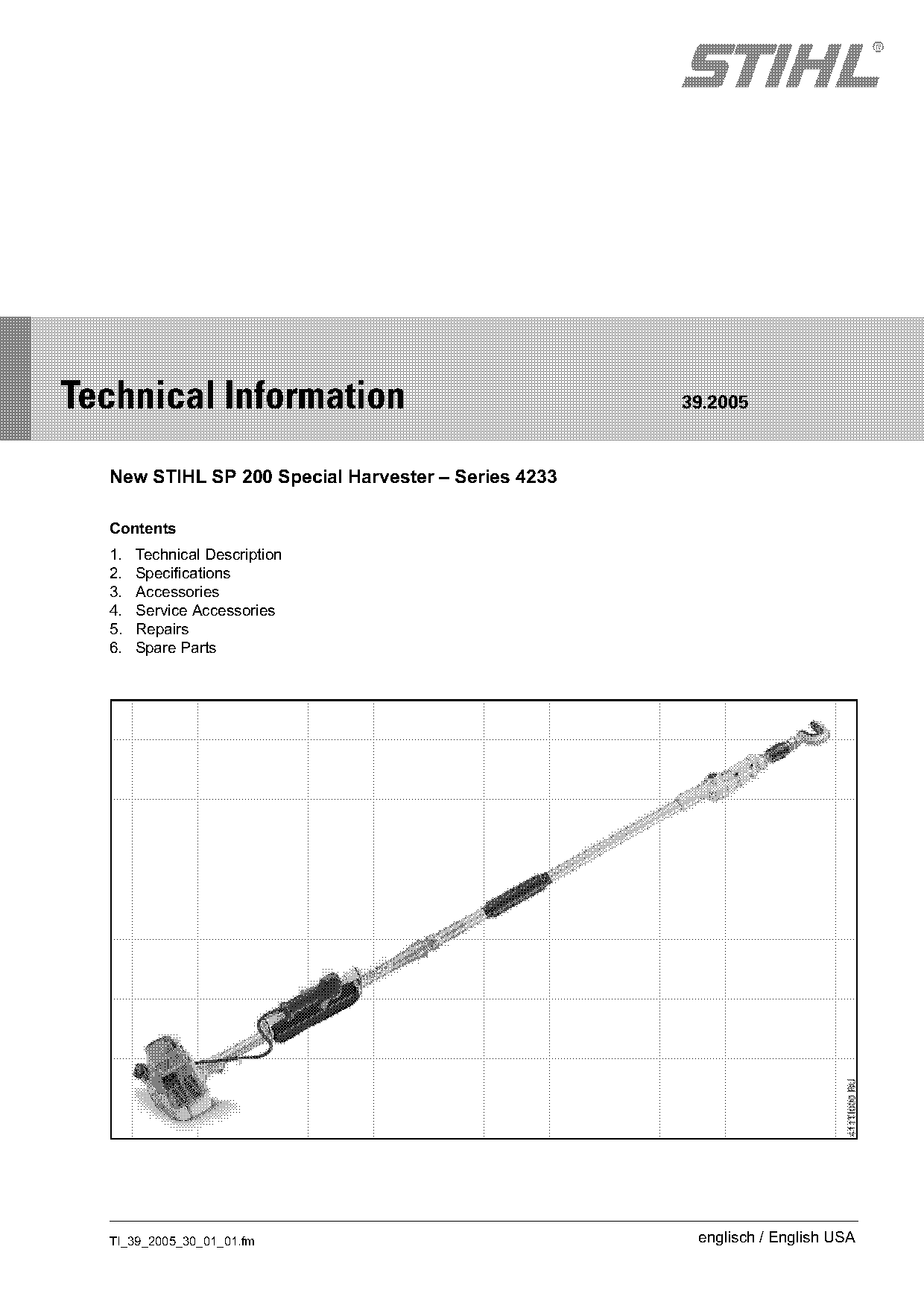

STIH)
Technical Information 39.2005
New STIHL SP 200 Special Harvester – Series 4233
Contents
1. Technical Description
2. Specifications
3. Accessories
4. Service Accessories
5. Repairs
6. Spare Parts
TI_39_2005_30_01_01.fm englisch / English USA

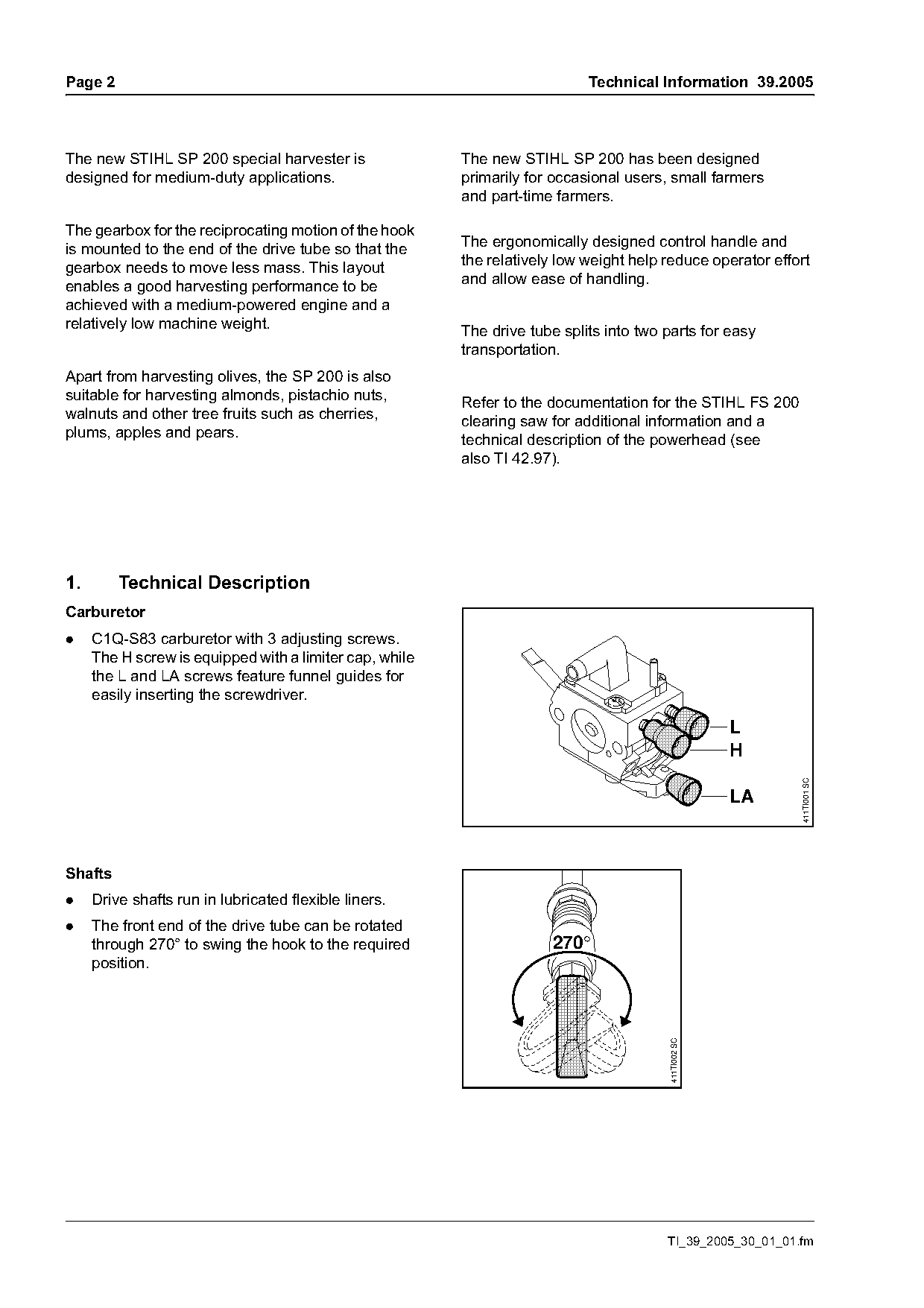

)m~ge 2 Technical Information 39.2005
The new STIHL SP 200 special harvester is The new STIHL SP 200 has been designed
designed for medium-duty applications. primarily for occasional users, small farmers
and part-time farmers.
The gearbox for the reciprocating motion of the hook
The ergonomically designed control handle and
is mounted to the end of the drive tube so that the
the relatively low weight help reduce operator effort
gearbox needs to move less mass. This layout
and allow ease of handling.
enables a good harvesting performance to be
achieved with a medium-powered engine and a
relatively low machine weight. The drive tube splits into two parts for easy
transportation.
Apart from harvesting olives, the SP 200 is also
suitable for harvesting almonds, pistachio nuts, Refer to the documentation for the STIHL FS 200
walnuts and other tree fruits such as cherries, clearing saw for additional information and a
plums, apples and pears. technical description of the powerhead (see
also TI 42.97).
1. Technical Description
Carburetor
. C1Q-S83 carburetor with 3 adjusting screws.
The H screw is equipped with a limiter cap, while
the L and LA screws feature funnel guides for
easily inserting the screwdriver.
411TI001 SC
LA
Shafts
. Drive shafts run in lubricated flexible liners.
. The front end of the drive tube can be rotated
through 270° to swing the hook to the required 270°
position.
411TI002 SC
TI_39_2005_30_01_01.fm Page 2 of 6

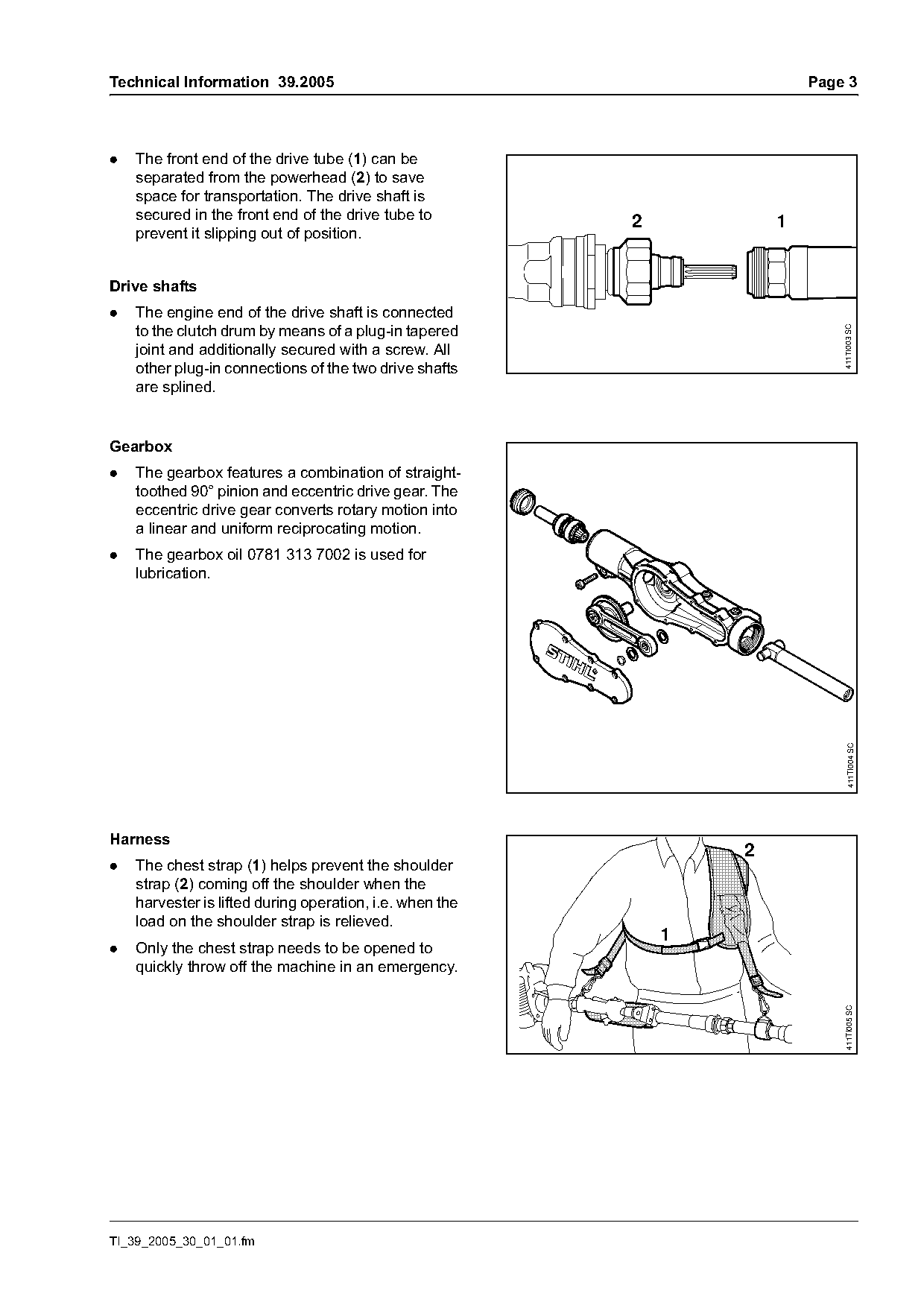

Technical Information 39.2005 Page 3
. The front end of the drive tube (1) can be
separated from the powerhead (2) to save
space for transportation. The drive shaft is
secured in the front end of the drive tube to 2 1
prevent it slipping out of position.
Drive shafts
. The engine end of the drive shaft is connected
to the clutch drum by means of a plug-in tapered
411TI003 SC
joint and additionally secured with a screw. All
other plug-in connections of the two drive shafts
are splined.
Gearbox
. The gearbox features a combination of straight-
toothed 90° pinion and eccentric drive gear. The
eccentric drive gear converts rotary motion into
a linear and uniform reciprocating motion.
. The gearbox oil 0781 313 7002 is used for
lubrication.
411TI004 SC
Harness
2
. The chest strap (1) helps prevent the shoulder
strap (2) coming off the shoulder when the
harvester is lifted during operation, i.e. when the
load on the shoulder strap is relieved.
1
. Only the chest strap needs to be opened to
quickly throw off the machine in an emergency.
411TI005 SC
TI_39_2005_30_01_01.fm

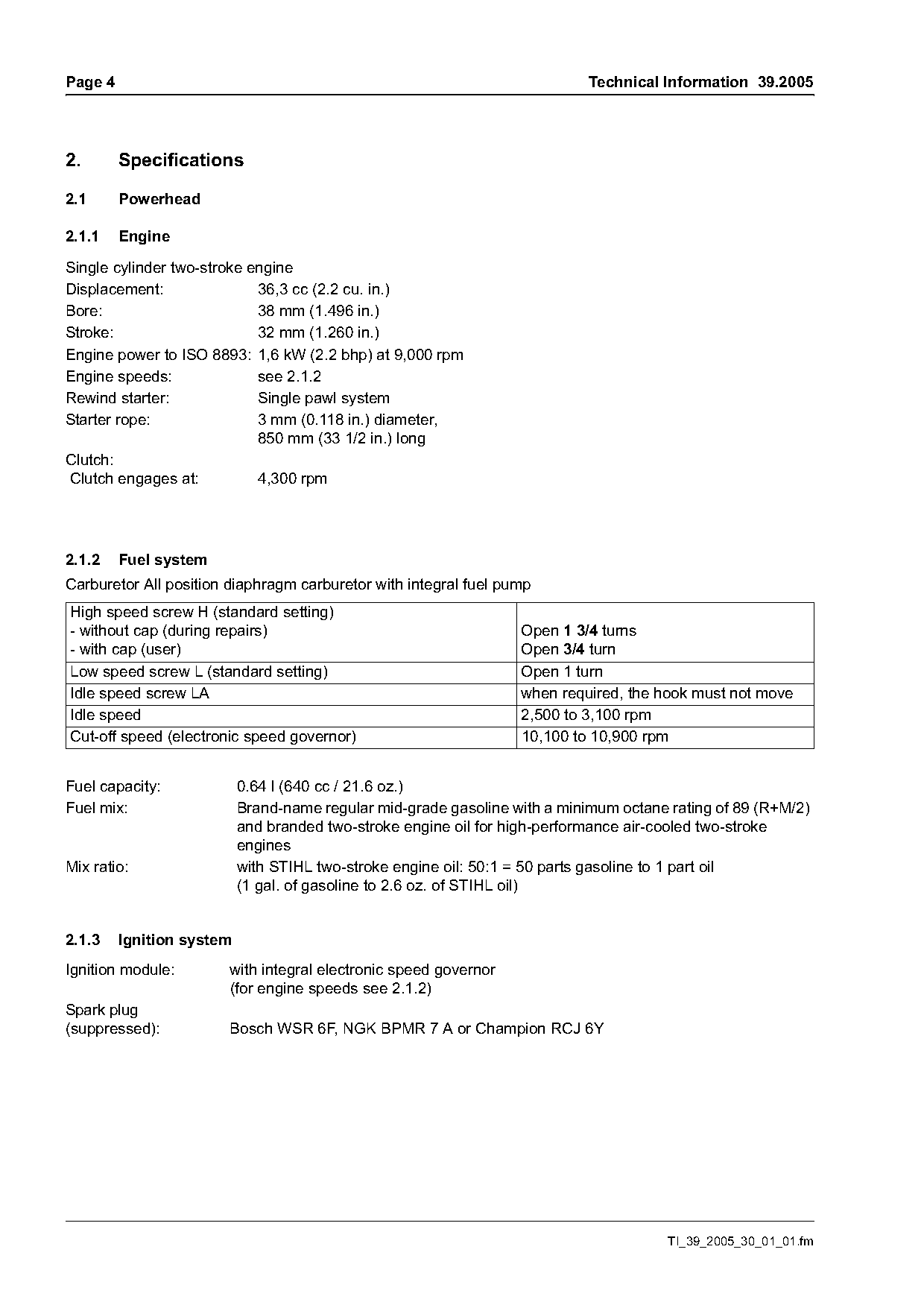

)m~ge 4 Technical Information 39.2005
2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two-stroke engine
Displacement: 36,3 cc (2.2 cu. in.)
Bore: 38 mm (1.496 in.)
Stroke: 32 mm (1.260 in.)
Engine power to ISO 8893: 1,6 kW (2.2 bhp) at 9,000 rpm
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 3 mm (0.118 in.) diameter,
850 mm (33 1/2 in.) long
Clutch:
Clutch engages at: 4,300 rpm
2.1.2 Fuel system
Carburetor All position diaphragm carburetor with integral fuel pump
High speed screw H (standard setting)
- without cap (during repairs) Open 1 3/4 turns
- with cap (user) Open 3/4 turn
Low speed screw L (standard setting) Open 1 turn
Idle speed screw LA when required, the hook must not move
Idle speed 2,500 to 3,100 rpm
Cut-off speed (electronic speed governor) 10,100 to 10,900 rpm
Fuel capacity: 0.64 l (640 cc / 21.6 oz.)
Fuel mix: Brand-name regular mid-grade gasoline with a minimum octane rating of 89 (R+M/2)
and branded two-stroke engine oil for high-performance air-cooled two-stroke
engines
Mix ratio: with STIHL two-stroke engine oil: 50:1 = 50 parts gasoline to 1 part oil
(1 gal. of gasoline to 2.6 oz. of STIHL oil)
2.1.3 Ignition system
Ignition module: with integral electronic speed governor
(for engine speeds see 2.1.2)
Spark plug
(suppressed): Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y
TI_39_2005_30_01_01.fm Page 3 of 6

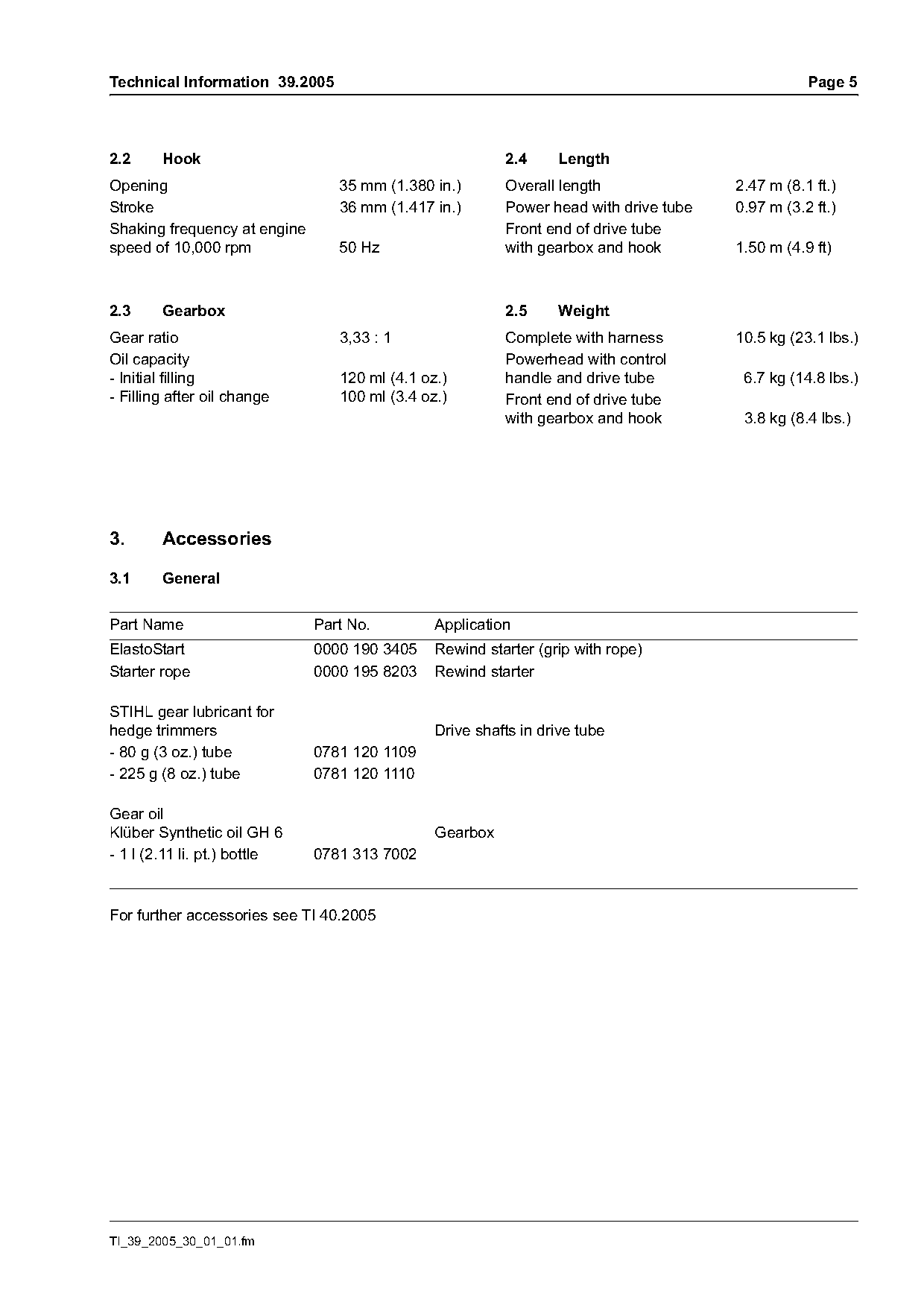

Technical Information 39.2005 Page 5
2.2 Hook 2.4 Length
Opening 35 mm (1.380 in.) Overall length 2.47 m (8.1 ft.)
Stroke 36 mm (1.417 in.) Power head with drive tube 0.97 m (3.2 ft.)
Shaking frequency at engine Front end of drive tube
speed of 10,000 rpm 50 Hz with gearbox and hook 1.50 m (4.9 ft)
2.3 Gearbox 2.5 Weight
Gear ratio 3,33 : 1 Complete with harness 10.5 kg (23.1 lbs.)
Oil capacity Powerhead with control
- Initial filling 120 ml (4.1 oz.) handle and drive tube 6.7 kg (14.8 lbs.)
- Filling after oil change 100 ml (3.4 oz.) Front end of drive tube
with gearbox and hook 3.8 kg (8.4 lbs.)
3. Accessories
3.1 General
Part Name Part No. Application
ElastoStart 0000 190 3405 Rewind starter (grip with rope)
Starter rope 0000 195 8203 Rewind starter
STIHL gear lubricant for
hedge trimmers Drive shafts in drive tube
- 80 g (3 oz.) tube 0781 120 1109
- 225 g (8 oz.) tube 0781 120 1110
Gear oil
Klüber Synthetic oil GH 6 Gearbox
- 1 l (2.11 li. pt.) bottle 0781 313 7002
For further accessories see TI 40.2005
TI_39_2005_30_01_01.fm

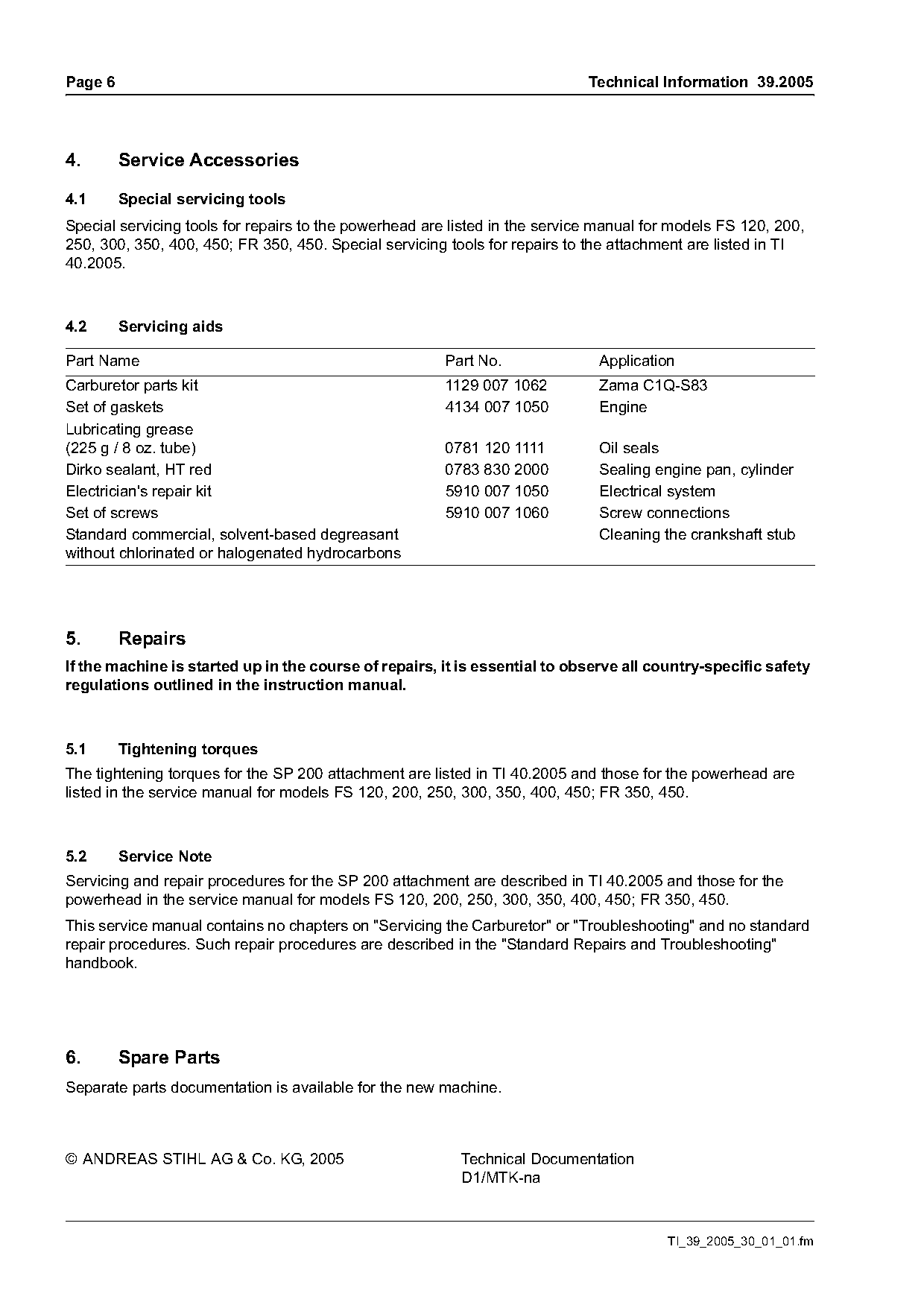

)m~ge 6 Technical Information 39.2005
4. Service Accessories
4.1 Special servicing tools
Special servicing tools for repairs to the powerhead are listed in the service manual for models FS 120, 200,
250, 300, 350, 400, 450; FR 350, 450. Special servicing tools for repairs to the attachment are listed in TI
40.2005.
4.2 Servicing aids
Part Name Part No. Application
Carburetor parts kit 1129 007 1062 Zama C1Q-S83
Set of gaskets 4134 007 1050 Engine
Lubricating grease
(225 g / 8 oz. tube) 0781 120 1111 Oil seals
Dirko sealant, HT red 0783 830 2000 Sealing engine pan, cylinder
Electrician's repair kit 5910 007 1050 Electrical system
Set of screws 5910 007 1060 Screw connections
Standard commercial, solvent-based degreasant Cleaning the crankshaft stub
without chlorinated or halogenated hydrocarbons
5. Repairs
If the machine is started up in the course of repairs, it is essential to observe all country-specific safety
regulations outlined in the instruction manual.
5.1 Tightening torques
The tightening torques for the SP 200 attachment are listed in TI 40.2005 and those for the powerhead are
listed in the service manual for models FS 120, 200, 250, 300, 350, 400, 450; FR 350, 450.
5.2 Service Note
Servicing and repair procedures for the SP 200 attachment are described in TI 40.2005 and those for the
powerhead in the service manual for models FS 120, 200, 250, 300, 350, 400, 450; FR 350, 450.
This service manual contains no chapters on "Servicing the Carburetor" or "Troubleshooting" and no standard
repair procedures. Such repair procedures are described in the "Standard Repairs and Troubleshooting"
handbook.
6. Spare Parts
Separate parts documentation is available for the new machine.
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-na
