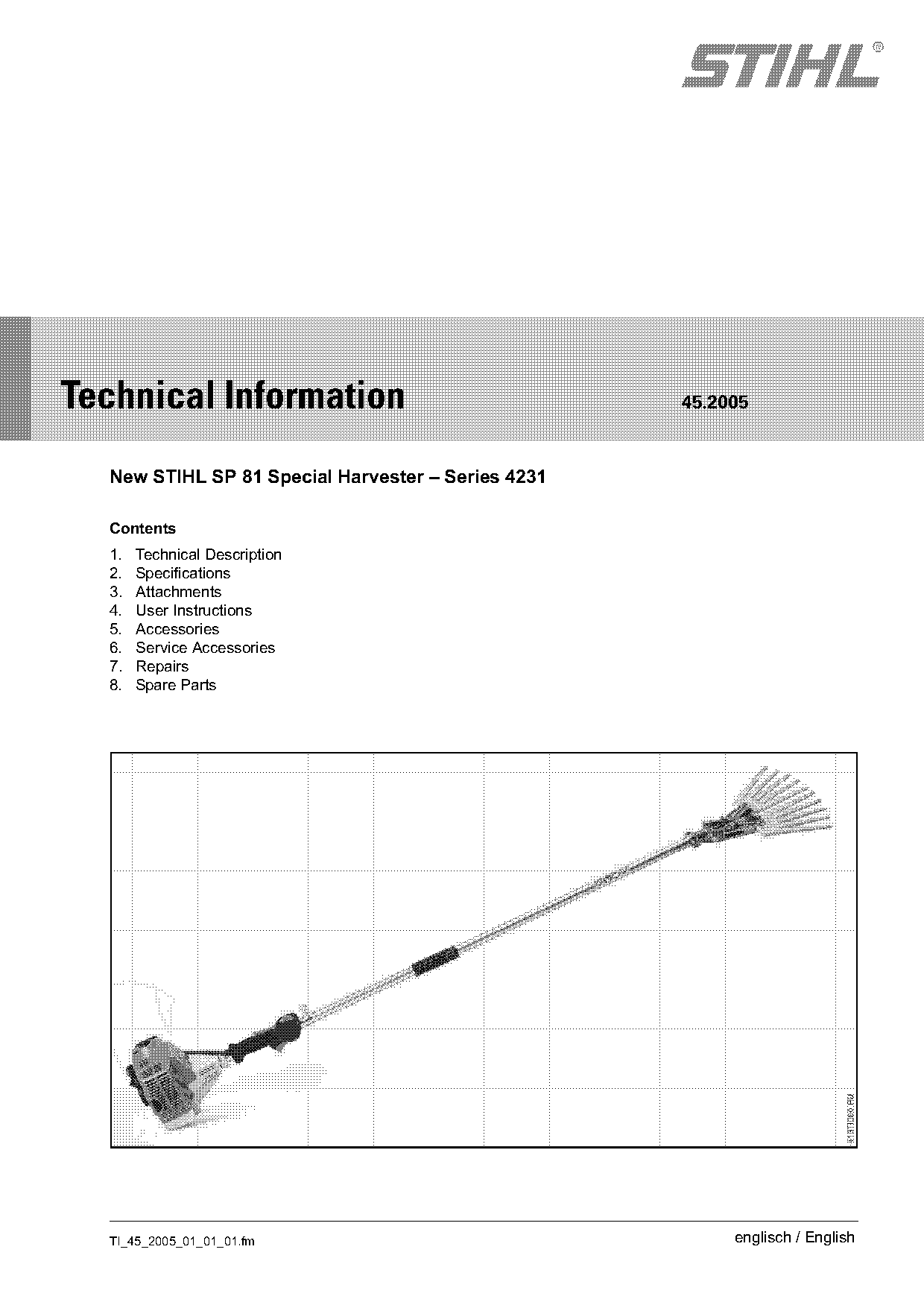

Technical Information 45.2005
New STIHL SP 81 Special Harvester – Series 4231
Contents
1. Technical Description
2. Specifications
3. Attachments
4. User Instructions
5. Accessories
6. Service Accessories
7. Repairs
8. Spare Parts
TI_45_2005_01_01_01.fm englisch / English
)m~ge 2 Technical Information 45.2005

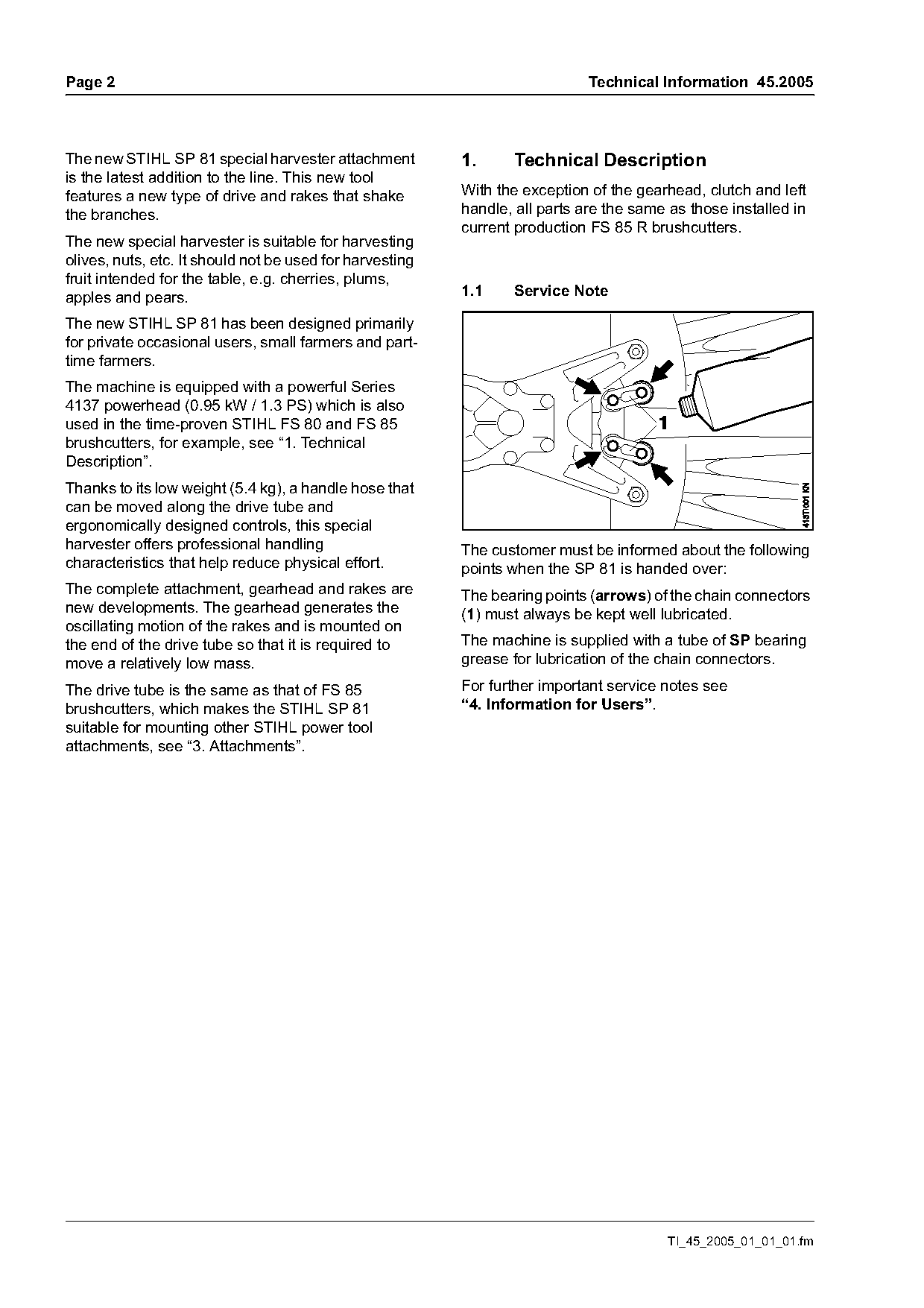

The new STIHL SP 81 special harvester attachment 1. Technical Description
is the latest addition to the line. This new tool
features a new type of drive and rakes that shake With the exception of the gearhead, clutch and left
the branches. handle, all parts are the same as those installed in
current production FS 85 R brushcutters.
The new special harvester is suitable for harvesting
olives, nuts, etc. It should not be used for harvesting
fruit intended for the table, e.g. cherries, plums,
apples and pears. 1.1 Service Note
The new STIHL SP 81 has been designed primarily
for private occasional users, small farmers and part-
time farmers.
The machine is equipped with a powerful Series
4137 powerhead (0.95 kW / 1.3 PS) which is also
used in the time-proven STIHL FS 80 and FS 85
brushcutters, for example, see “1. Technical
Description”.
Thanks to its low weight (5.4 kg), a handle hose that
can be moved along the drive tube and
ergonomically designed controls, this special
harvester offers professional handling The customer must be informed about the following
characteristics that help reduce physical effort. points when the SP 81 is handed over:
The complete attachment, gearhead and rakes are The bearing points (arrows) of the chain connectors
new developments. The gearhead generates the (1) must always be kept well lubricated.
oscillating motion of the rakes and is mounted on
the end of the drive tube so that it is required to The machine is supplied with a tube of SP bearing
move a relatively low mass. grease for lubrication of the chain connectors.
The drive tube is the same as that of FS 85 For further important service notes see
brushcutters, which makes the STIHL SP 81 “4. Information for Users”.
suitable for mounting other STIHL power tool
attachments, see “3. Attachments”.
TI_45_2005_01_01_01.fm Page 2 of 11
Technical Information 45.2005 Page 3

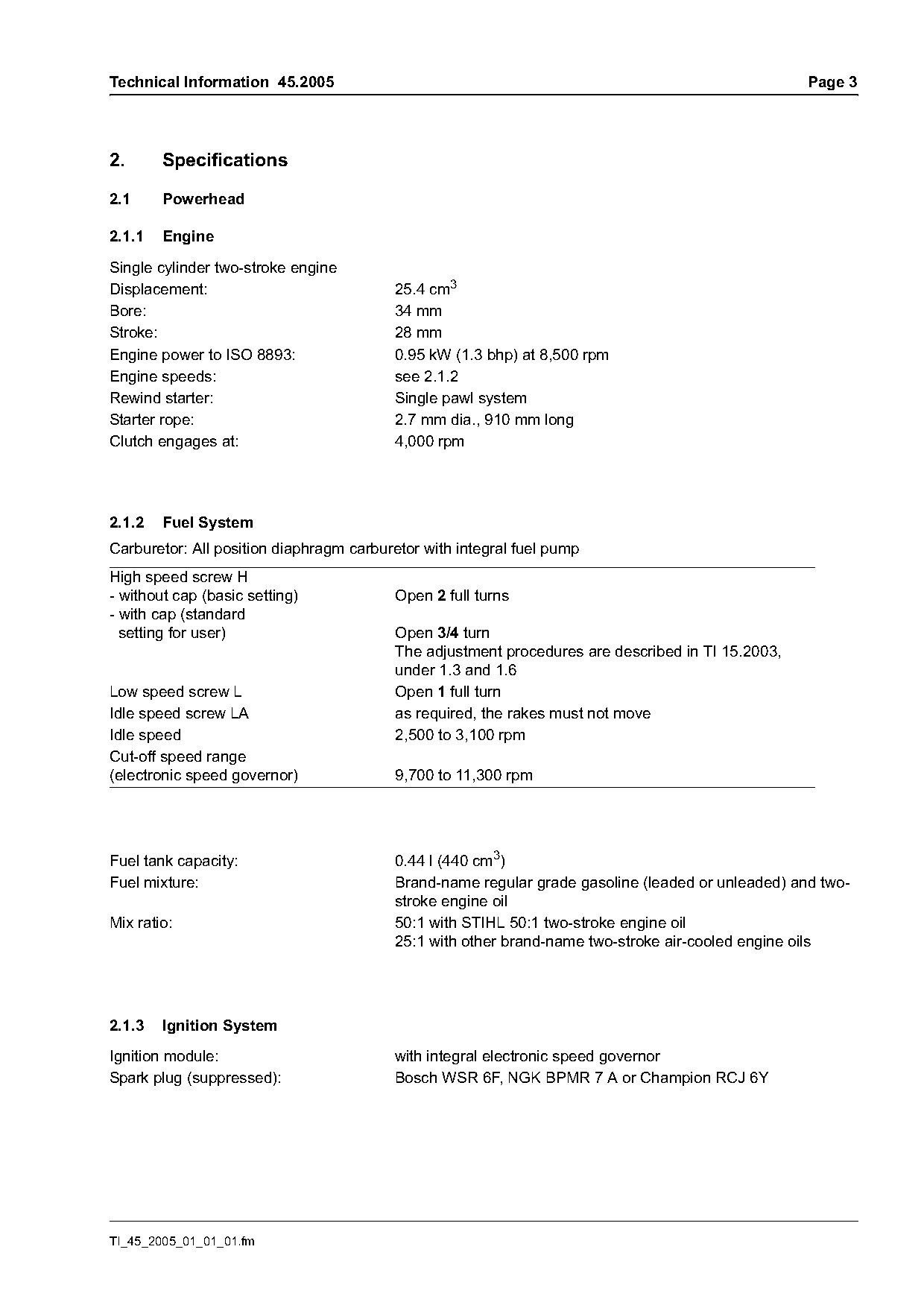

2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two-stroke engine
Displacement: 25.4 cm3
Bore: 34 mm
Stroke: 28 mm
Engine power to ISO 8893: 0.95 kW (1.3 bhp) at 8,500 rpm
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 2.7 mm dia., 910 mm long
Clutch engages at: 4,000 rpm
2.1.2 Fuel System
Carburetor: All position diaphragm carburetor with integral fuel pump
High speed screw H
- without cap (basic setting) Open 2 full turns
- with cap (standard
setting for user) Open 3/4 turn
The adjustment procedures are described in TI 15.2003,
under 1.3 and 1.6
Low speed screw L Open 1 full turn
Idle speed screw LA as required, the rakes must not move
Idle speed 2,500 to 3,100 rpm
Cut-off speed range
(electronic speed governor) 9,700 to 11,300 rpm
Fuel tank capacity: 0.44 l (440 cm3)
Fuel mixture: Brand-name regular grade gasoline (leaded or unleaded) and two-
stroke engine oil
Mix ratio: 50:1 with STIHL 50:1 two-stroke engine oil
25:1 with other brand-name two-stroke air-cooled engine oils
2.1.3 Ignition System
Ignition module: with integral electronic speed governor
Spark plug (suppressed): Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y
TI_45_2005_01_01_01.fm

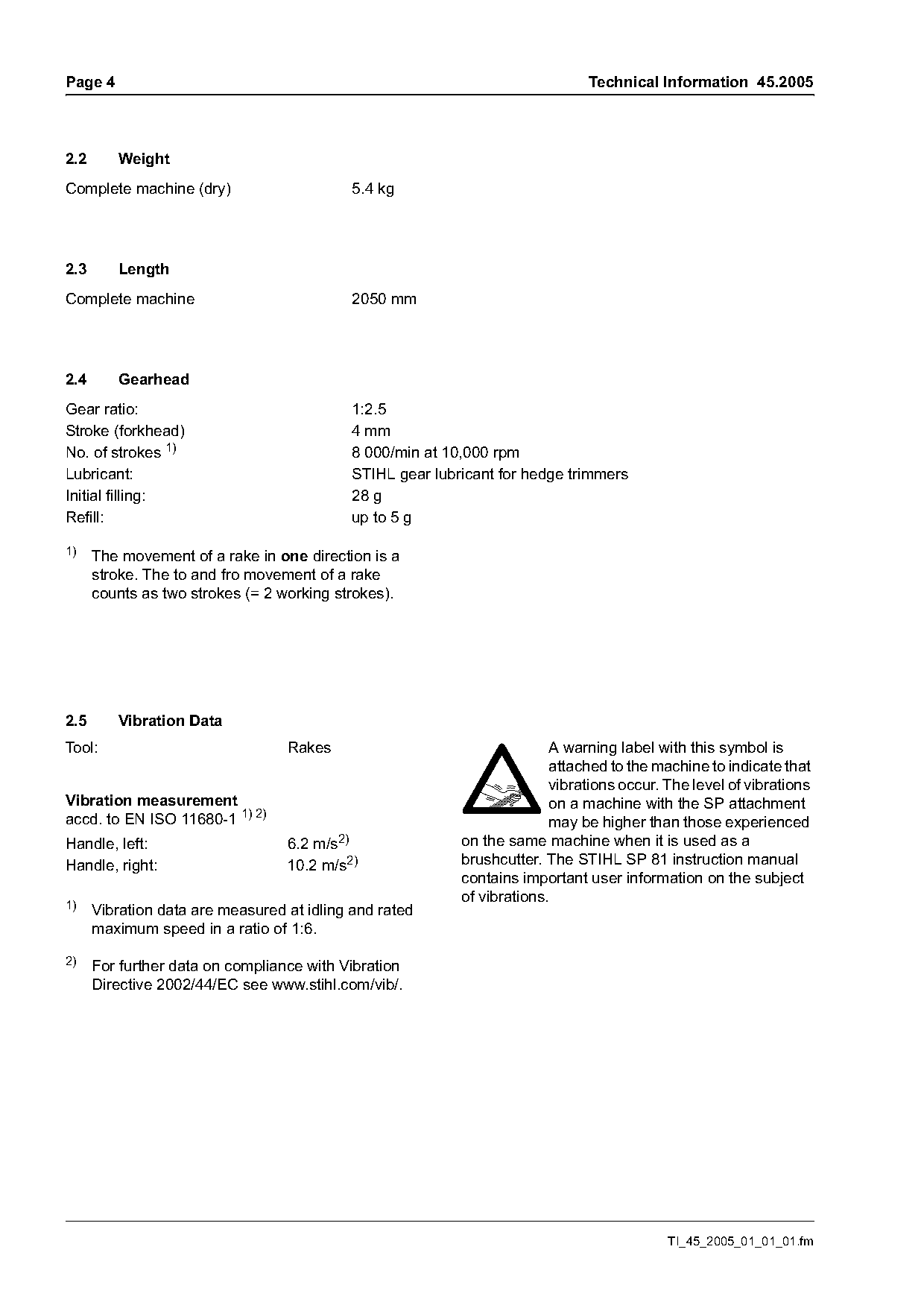

)m~ge 4 Technical Information 45.2005
2.2 Weight
Complete machine (dry) 5.4 kg
2.3 Length
Complete machine 2050 mm
2.4 Gearhead
Gear ratio: 1:2.5
Stroke (forkhead) 4 mm
No. of strokes 1) 8 000/min at 10,000 rpm
Lubricant: STIHL gear lubricant for hedge trimmers
Initial filling: 28 g
Refill: up to 5 g
1)
The movement of a rake in one direction is a
stroke. The to and fro movement of a rake
counts as two strokes (= 2 working strokes).
2.5 Vibration Data
Tool: Rakes A warning label with this symbol is
attached to the machine to indicate that
vibrations occur. The level of vibrations
Vibration measurement on a machine with the SP attachment
accd. to EN ISO 11680-1 1) 2) may be higher than those experienced
Handle, left: 6.2 m/s2) on the same machine when it is used as a
Handle, right: 10.2 m/s2) brushcutter. The STIHL SP 81 instruction manual
contains important user information on the subject
of vibrations.
1) Vibration data are measured at idling and rated
maximum speed in a ratio of 1:6.
2) For further data on compliance with Vibration
Directive 2002/44/EC see www.stihl.com/vib/.
TI_45_2005_01_01_01.fm Page 3 of 11
Technical Information 45.2005 Page 5

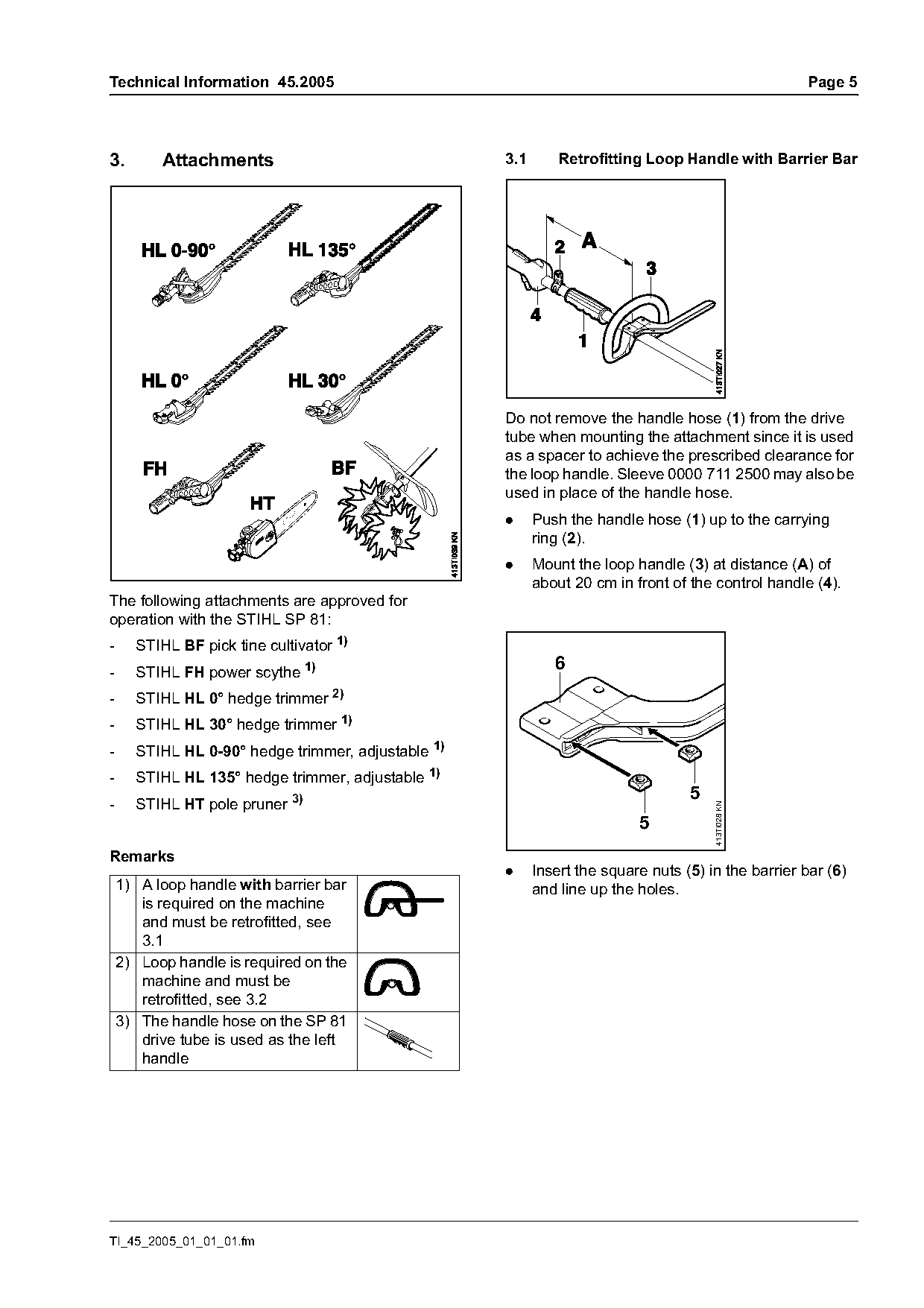

3. Attachments 3.1 Retrofitting Loop Handle with Barrier Bar
Do not remove the handle hose (1) from the drive
tube when mounting the attachment since it is used
as a spacer to achieve the prescribed clearance for
the loop handle. Sleeve 0000 711 2500 may also be
used in place of the handle hose.
. Push the handle hose (1) up to the carrying
ring (2).
. Mount the loop handle (3) at distance (A) of
about 20 cm in front of the control handle (4).
The following attachments are approved for
operation with the STIHL SP 81:
- STIHL BF pick tine cultivator 1)
- STIHL FH power scythe 1)
6
- STIHL HL 0° hedge trimmer 2)
- STIHL HL 30° hedge trimmer 1)
- STIHL HL 0-90° hedge trimmer, adjustable 1)
- STIHL HL 135° hedge trimmer, adjustable 1)
5
- STIHL HT pole pruner 3)
413TI028 KN
5
Remarks
. Insert the square nuts (5) in the barrier bar (6)
1) A loop handle with barrier bar and line up the holes.
is required on the machine
and must be retrofitted, see
3.1
2) Loop handle is required on the
machine and must be
002BA002 K
retrofitted, see 3.2
3) The handle hose on the SP 81
drive tube is used as the left
handle
TI_45_2005_01_01_01.fm
)m~ge 6 Technical Information 45.2005

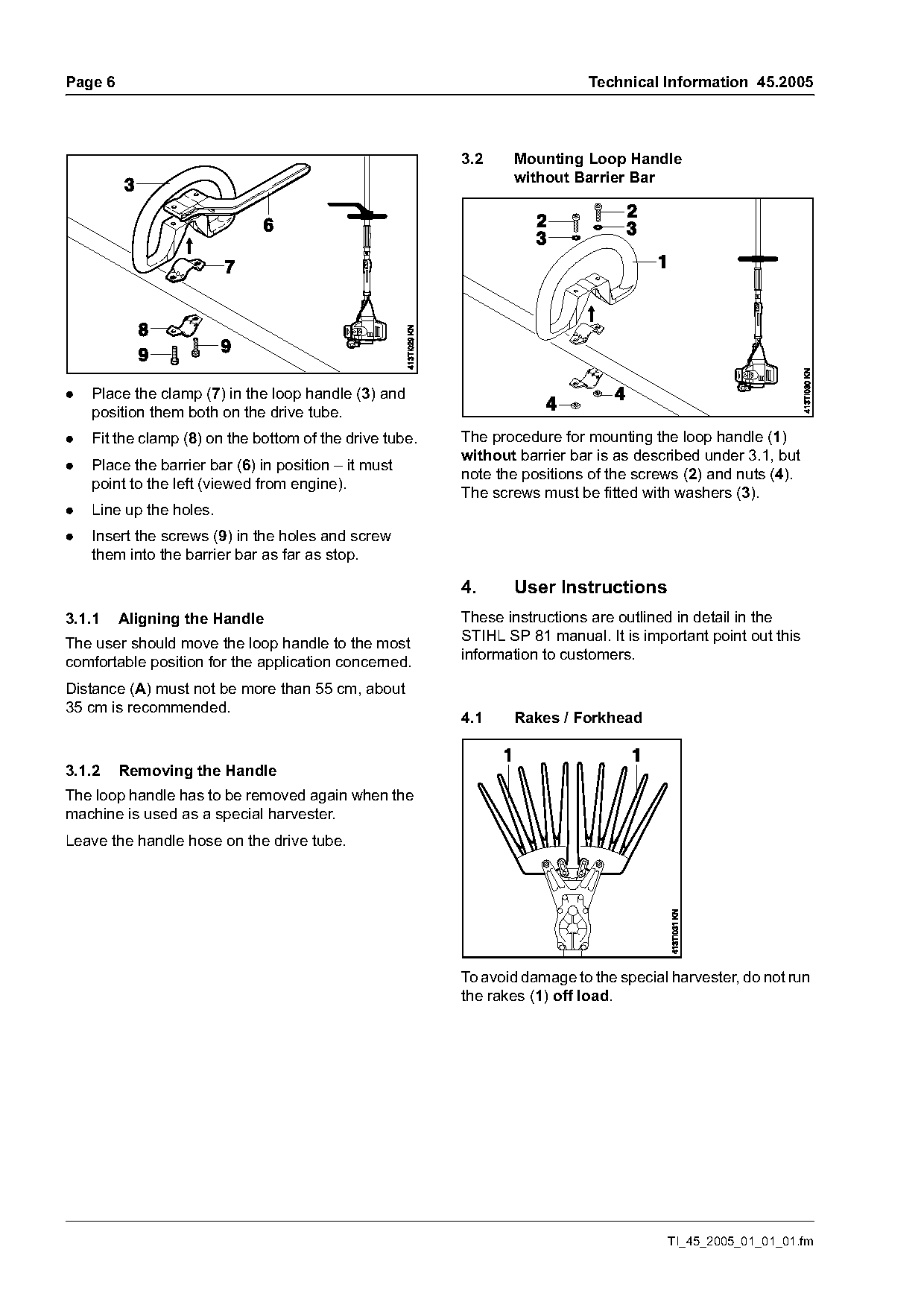

3.2 Mounting Loop Handle
without Barrier Bar
. Place the clamp (7) in the loop handle (3) and
position them both on the drive tube.
. Fit the clamp (8) on the bottom of the drive tube. The procedure for mounting the loop handle (1)
without barrier bar is as described under 3.1, but
. Place the barrier bar (6) in position – it must
note the positions of the screws (2) and nuts (4).
point to the left (viewed from engine).
The screws must be fitted with washers (3).
. Line up the holes.
. Insert the screws (9) in the holes and screw
them into the barrier bar as far as stop.
4. User Instructions
3.1.1 Aligning the Handle These instructions are outlined in detail in the
The user should move the loop handle to the most STIHL SP 81 manual. It is important point out this
comfortable position for the application concerned. information to customers.
Distance (A) must not be more than 55 cm, about
35 cm is recommended.
4.1 Rakes / Forkhead
3.1.2 Removing the Handle
The loop handle has to be removed again when the
machine is used as a special harvester.
Leave the handle hose on the drive tube.
To avoid damage to the special harvester, do not run
the rakes (1) off load.
TI_45_2005_01_01_01.fm Page 4 of 11

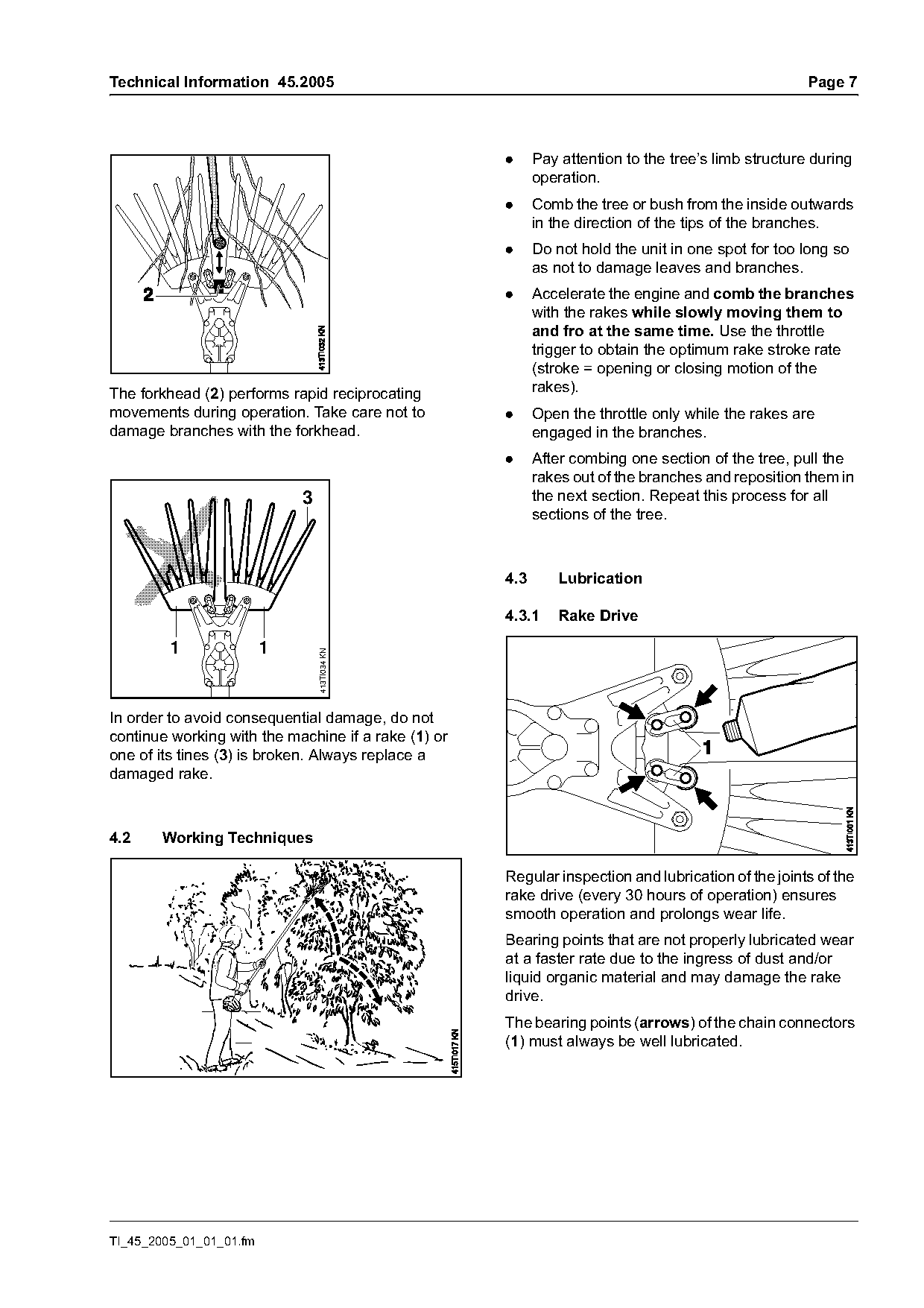

Technical Information 45.2005 Page 7
. Pay attention to the tree’s limb structure during
operation.
. Comb the tree or bush from the inside outwards
in the direction of the tips of the branches.
. Do not hold the unit in one spot for too long so
as not to damage leaves and branches.
. Accelerate the engine and comb the branches
with the rakes while slowly moving them to
and fro at the same time. Use the throttle
trigger to obtain the optimum rake stroke rate
(stroke = opening or closing motion of the
The forkhead (2) performs rapid reciprocating rakes).
movements during operation. Take care not to . Open the throttle only while the rakes are
damage branches with the forkhead. engaged in the branches.
. After combing one section of the tree, pull the
rakes out of the branches and reposition them in
3 the next section. Repeat this process for all
sections of the tree.
4.3 Lubrication
4.3.1 Rake Drive
1 1
413TI034 KN
In order to avoid consequential damage, do not
continue working with the machine if a rake (1) or
one of its tines (3) is broken. Always replace a
damaged rake.
4.2 Working Techniques
Regular inspection and lubrication of the joints of the
rake drive (every 30 hours of operation) ensures
smooth operation and prolongs wear life.
Bearing points that are not properly lubricated wear
at a faster rate due to the ingress of dust and/or
liquid organic material and may damage the rake
drive.
The bearing points (arrows) of the chain connectors
(1) must always be well lubricated.
TI_45_2005_01_01_01.fm

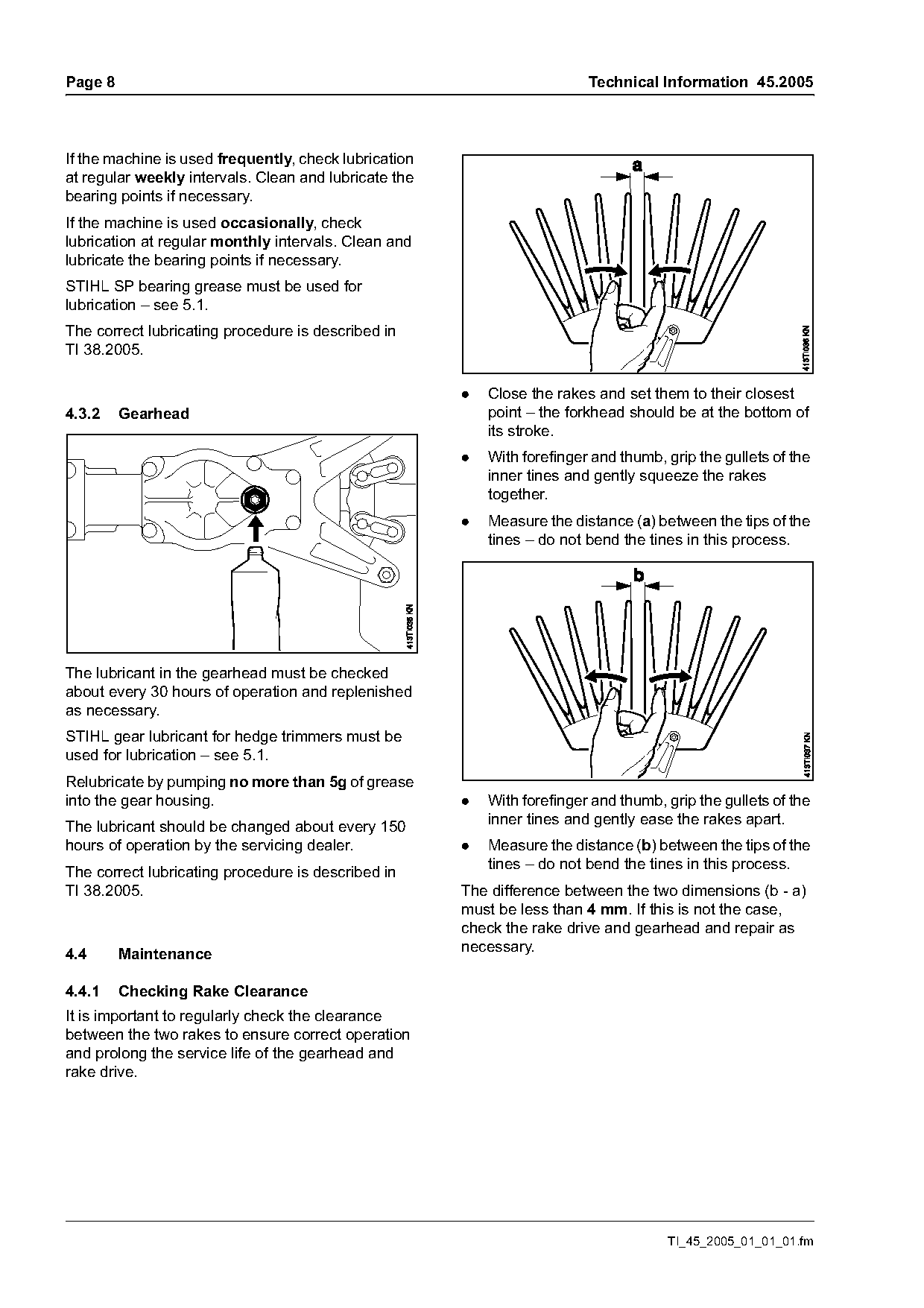

)m~ge 8 Technical Information 45.2005
If the machine is used frequently, check lubrication
at regular weekly intervals. Clean and lubricate the
bearing points if necessary.
If the machine is used occasionally, check
lubrication at regular monthly intervals. Clean and
lubricate the bearing points if necessary.
STIHL SP bearing grease must be used for
lubrication – see 5.1.
The correct lubricating procedure is described in
TI 38.2005.
. Close the rakes and set them to their closest
4.3.2 Gearhead point – the forkhead should be at the bottom of
its stroke.
. With forefinger and thumb, grip the gullets of the
inner tines and gently squeeze the rakes
together.
. Measure the distance (a) between the tips of the
tines – do not bend the tines in this process.
The lubricant in the gearhead must be checked
about every 30 hours of operation and replenished
as necessary.
STIHL gear lubricant for hedge trimmers must be
used for lubrication – see 5.1.
Relubricate by pumping no more than 5g of grease
into the gear housing. . With forefinger and thumb, grip the gullets of the
The lubricant should be changed about every 150 inner tines and gently ease the rakes apart.
hours of operation by the servicing dealer. . Measure the distance (b) between the tips of the
tines – do not bend the tines in this process.
The correct lubricating procedure is described in
TI 38.2005. The difference between the two dimensions (b - a)
must be less than 4 mm. If this is not the case,
check the rake drive and gearhead and repair as
4.4 Maintenance necessary.
4.4.1 Checking Rake Clearance
It is important to regularly check the clearance
between the two rakes to ensure correct operation
and prolong the service life of the gearhead and
rake drive.
TI_45_2005_01_01_01.fm Page 5 of 11
Technical Information 45.2005 Page 9

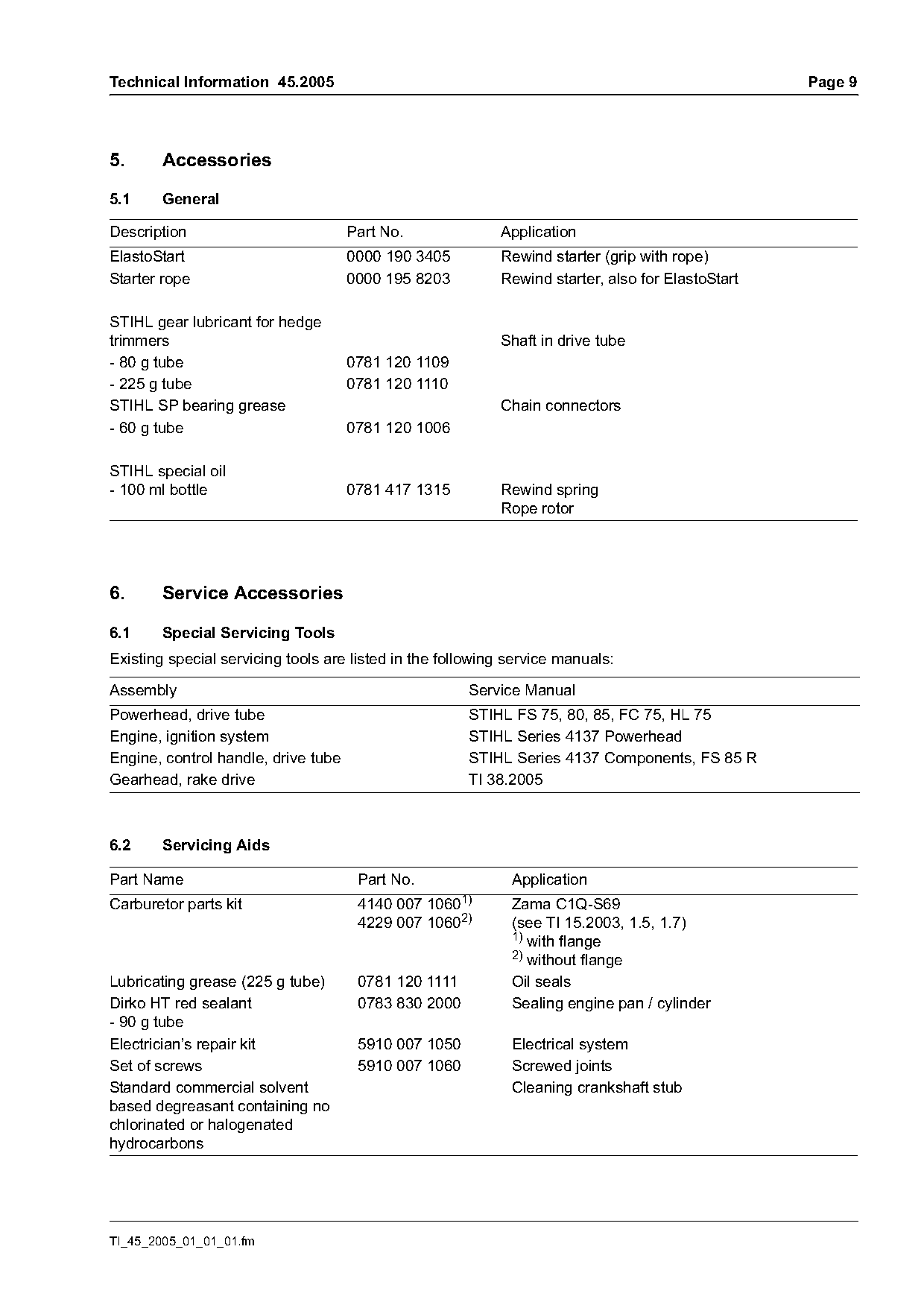

5. Accessories
5.1 General
Description Part No. Application
ElastoStart 0000 190 3405 Rewind starter (grip with rope)
Starter rope 0000 195 8203 Rewind starter, also for ElastoStart
STIHL gear lubricant for hedge
trimmers Shaft in drive tube
- 80 g tube 0781 120 1109
- 225 g tube 0781 120 1110
STIHL SP bearing grease Chain connectors
- 60 g tube 0781 120 1006
STIHL special oil
- 100 ml bottle 0781 417 1315 Rewind spring
Rope rotor
6. Service Accessories
6.1 Special Servicing Tools
Existing special servicing tools are listed in the following service manuals:
Assembly Service Manual
Powerhead, drive tube STIHL FS 75, 80, 85, FC 75, HL 75
Engine, ignition system STIHL Series 4137 Powerhead
Engine, control handle, drive tube STIHL Series 4137 Components, FS 85 R
Gearhead, rake drive TI 38.2005
6.2 Servicing Aids
Part Name Part No. Application
1)
Carburetor parts kit 4140 007 1060 Zama C1Q-S69
4229 007 10602) (see TI 15.2003, 1.5, 1.7)
1)
with flange
2)
without flange
Lubricating grease (225 g tube) 0781 120 1111 Oil seals
Dirko HT red sealant 0783 830 2000 Sealing engine pan / cylinder
- 90 g tube
Electrician’s repair kit 5910 007 1050 Electrical system
Set of screws 5910 007 1060 Screwed joints
Standard commercial solvent Cleaning crankshaft stub
based degreasant containing no
chlorinated or halogenated
hydrocarbons
TI_45_2005_01_01_01.fm
)m~ge 10 Technical Information 45.2005

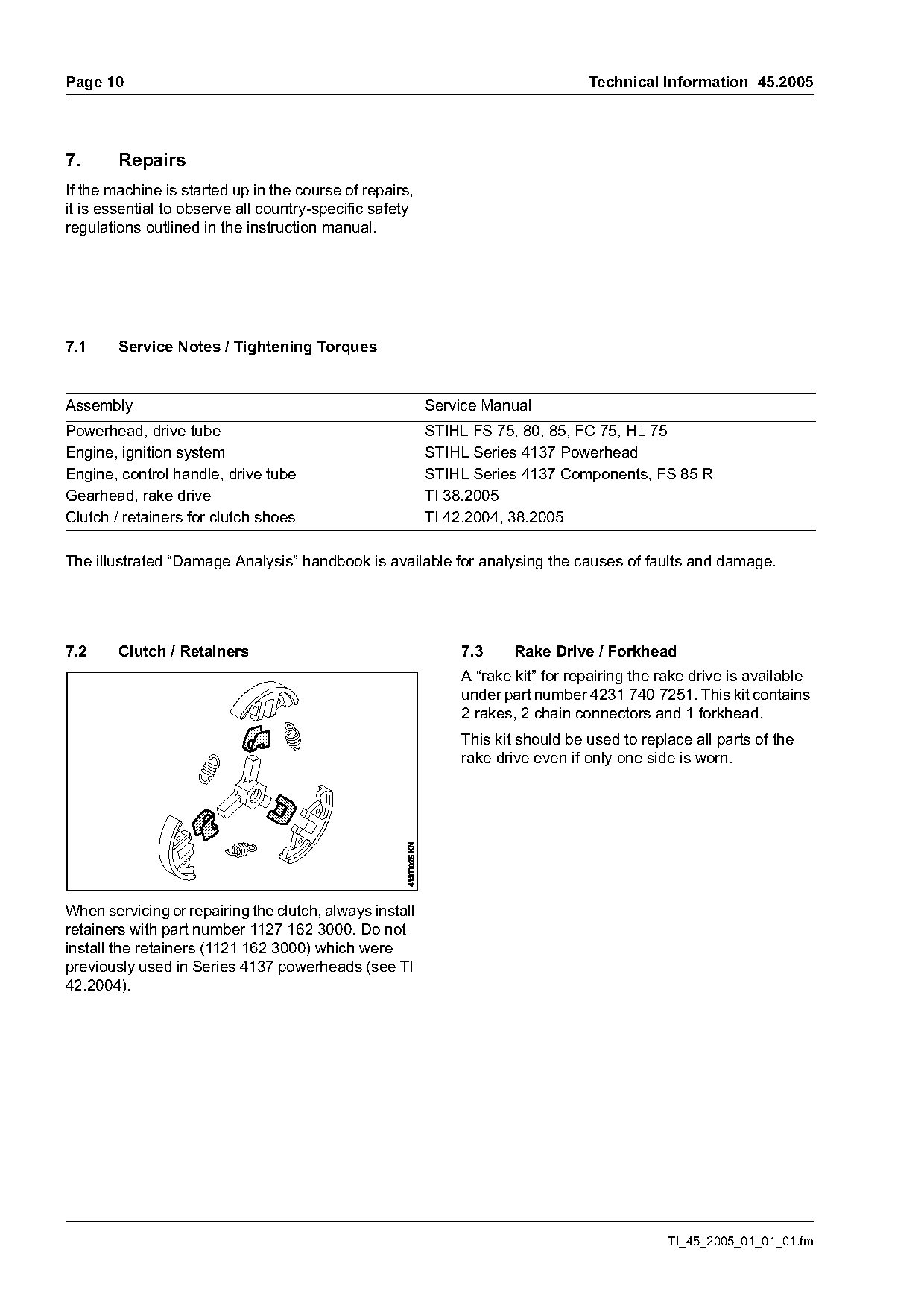

7. Repairs
If the machine is started up in the course of repairs,
it is essential to observe all country-specific safety
regulations outlined in the instruction manual.
7.1 Service Notes / Tightening Torques
Assembly Service Manual
Powerhead, drive tube STIHL FS 75, 80, 85, FC 75, HL 75
Engine, ignition system STIHL Series 4137 Powerhead
Engine, control handle, drive tube STIHL Series 4137 Components, FS 85 R
Gearhead, rake drive TI 38.2005
Clutch / retainers for clutch shoes TI 42.2004, 38.2005
The illustrated “Damage Analysis” handbook is available for analysing the causes of faults and damage.
7.2 Clutch / Retainers 7.3 Rake Drive / Forkhead
A “rake kit” for repairing the rake drive is available
under part number 4231 740 7251. This kit contains
2 rakes, 2 chain connectors and 1 forkhead.
This kit should be used to replace all parts of the
rake drive even if only one side is worn.
When servicing or repairing the clutch, always install
retainers with part number 1127 162 3000. Do not
install the retainers (1121 162 3000) which were
previously used in Series 4137 powerheads (see TI
42.2004).
TI_45_2005_01_01_01.fm Page 6 of 11
Technical Information 45.2005 Page 11

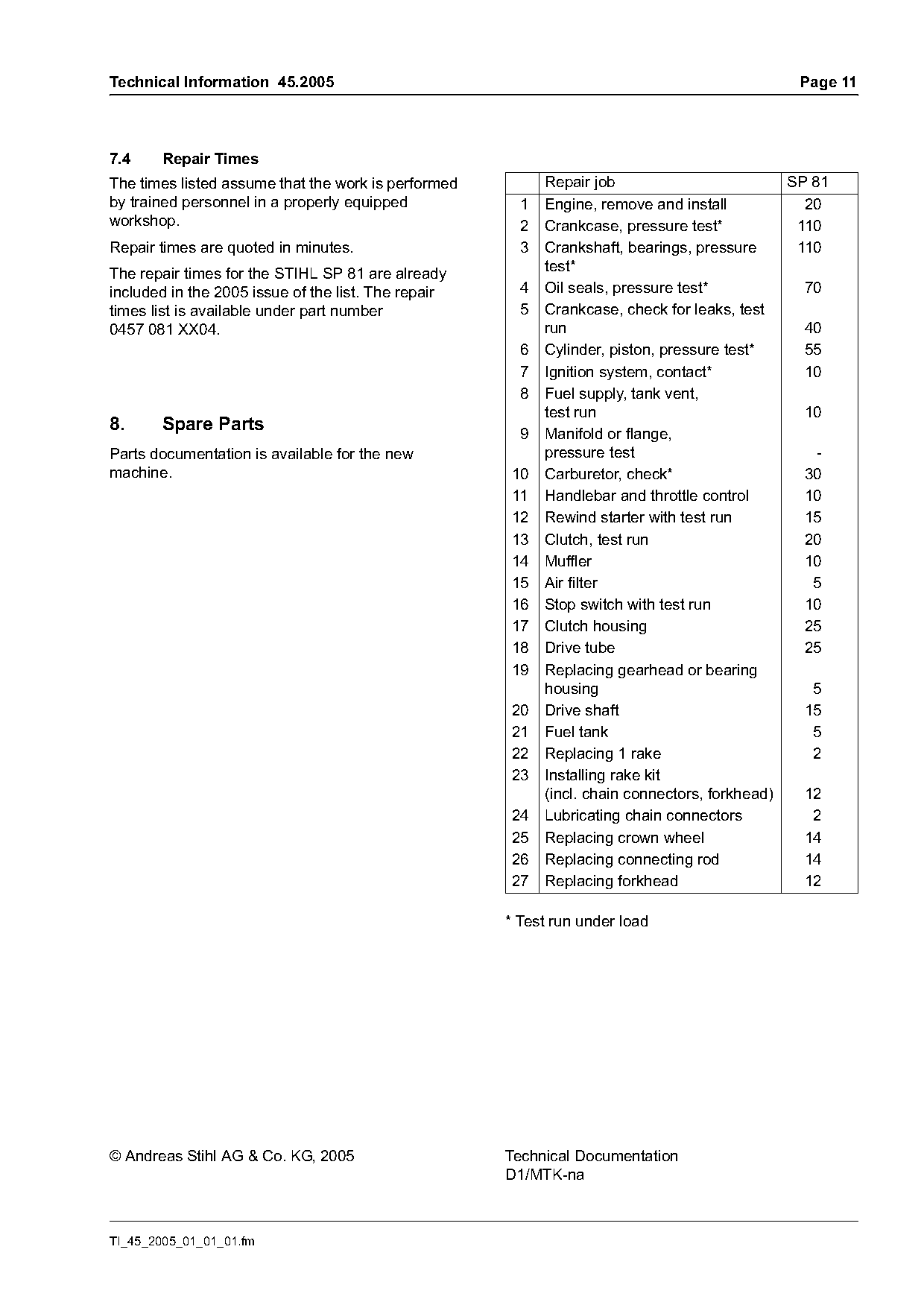

7.4 Repair Times
The times listed assume that the work is performed Repair job SP 81
by trained personnel in a properly equipped 1 Engine, remove and install 20
workshop. 2 Crankcase, pressure test* 110
Repair times are quoted in minutes. 3 Crankshaft, bearings, pressure 110
test*
The repair times for the STIHL SP 81 are already
included in the 2005 issue of the list. The repair 4 Oil seals, pressure test* 70
times list is available under part number 5 Crankcase, check for leaks, test
0457 081 XX04. run 40
6 Cylinder, piston, pressure test* 55
7 Ignition system, contact* 10
8 Fuel supply, tank vent,
test run 10
8. Spare Parts 9 Manifold or flange,
Parts documentation is available for the new pressure test -
machine. 10 Carburetor, check* 30
11 Handlebar and throttle control 10
12 Rewind starter with test run 15
13 Clutch, test run 20
14 Muffler 10
15 Air filter 5
16 Stop switch with test run 10
17 Clutch housing 25
18 Drive tube 25
19 Replacing gearhead or bearing
housing 5
20 Drive shaft 15
21 Fuel tank 5
22 Replacing 1 rake 2
23 Installing rake kit
(incl. chain connectors, forkhead) 12
24 Lubricating chain connectors 2
25 Replacing crown wheel 14
26 Replacing connecting rod 14
27 Replacing forkhead 12
* Test run under load
© Andreas Stihl AG & Co. KG, 2005 Technical Documentation
D1/MTK-na
TI_45_2005_01_01_01.fm Page 7 of 11
Page 8 of 11
Page 9 of 11
Page 10 of 11
Page 11 of 11
Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
