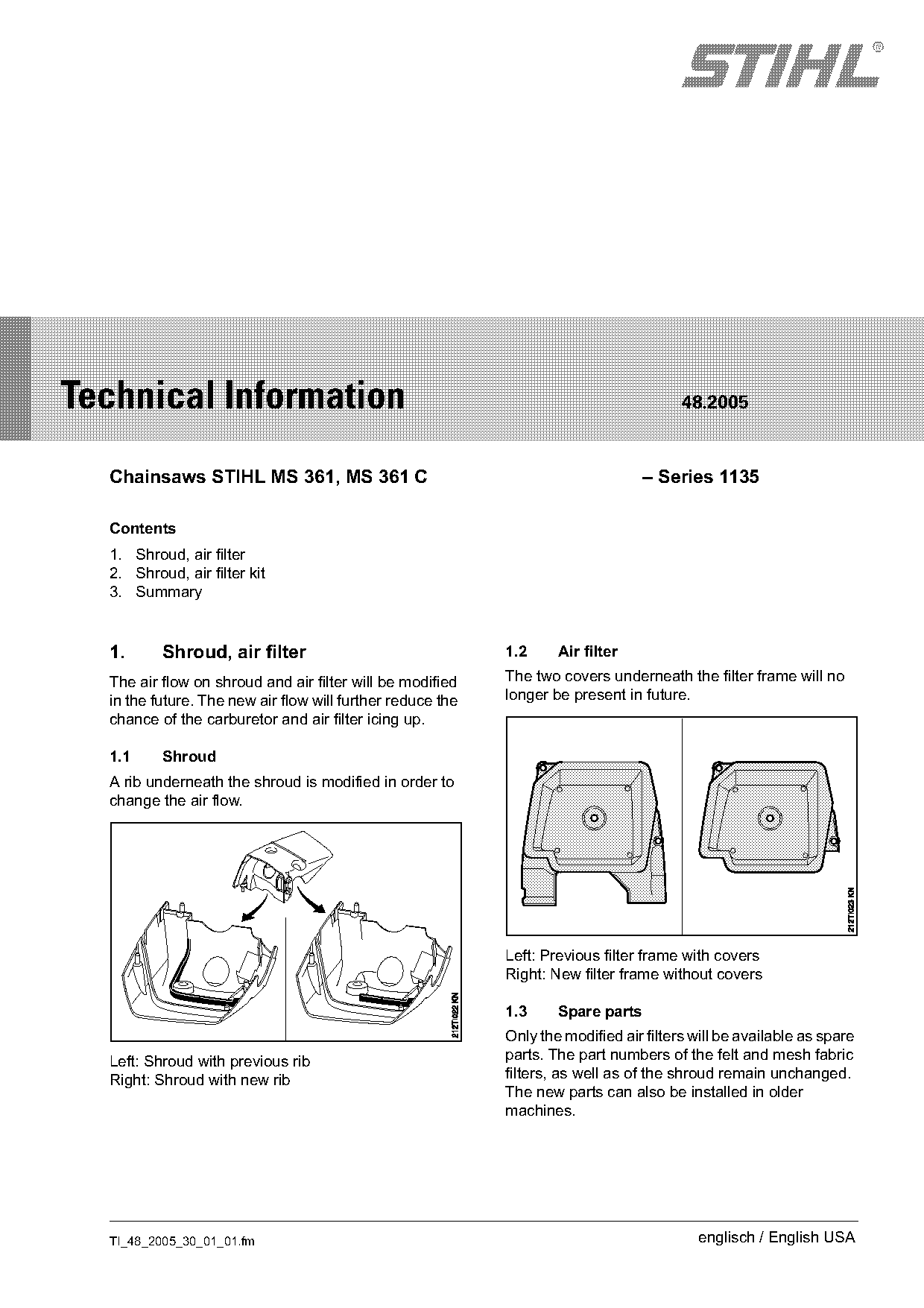

Technical Information 48.2005

Chainsaws STIHL MS 361, MS 361 C – Series 1135

Contents
1. Shroud, air filter
2. Shroud, air filter kit
3. Summary

1. Shroud, air filter 1.2 Air filter

The air flow on shroud and air filter will be modified The two covers underneath the filter frame will no
in the future. The new air flow will further reduce the longer be present in future.
chance of the carburetor and air filter icing up.

1.1 Shroud
A rib underneath the shroud is modified in order to
change the air flow.

Left: Previous filter frame with covers
Right: New filter frame without covers

1.3 Spare parts
Only the modified air filters will be available as spare
Left: Shroud with previous rib parts. The part numbers of the felt and mesh fabric
Right: Shroud with new rib filters, as well as of the shroud remain unchanged.
The new parts can also be installed in older
machines.

TI_48_2005_30_01_01.fm englisch / English USA

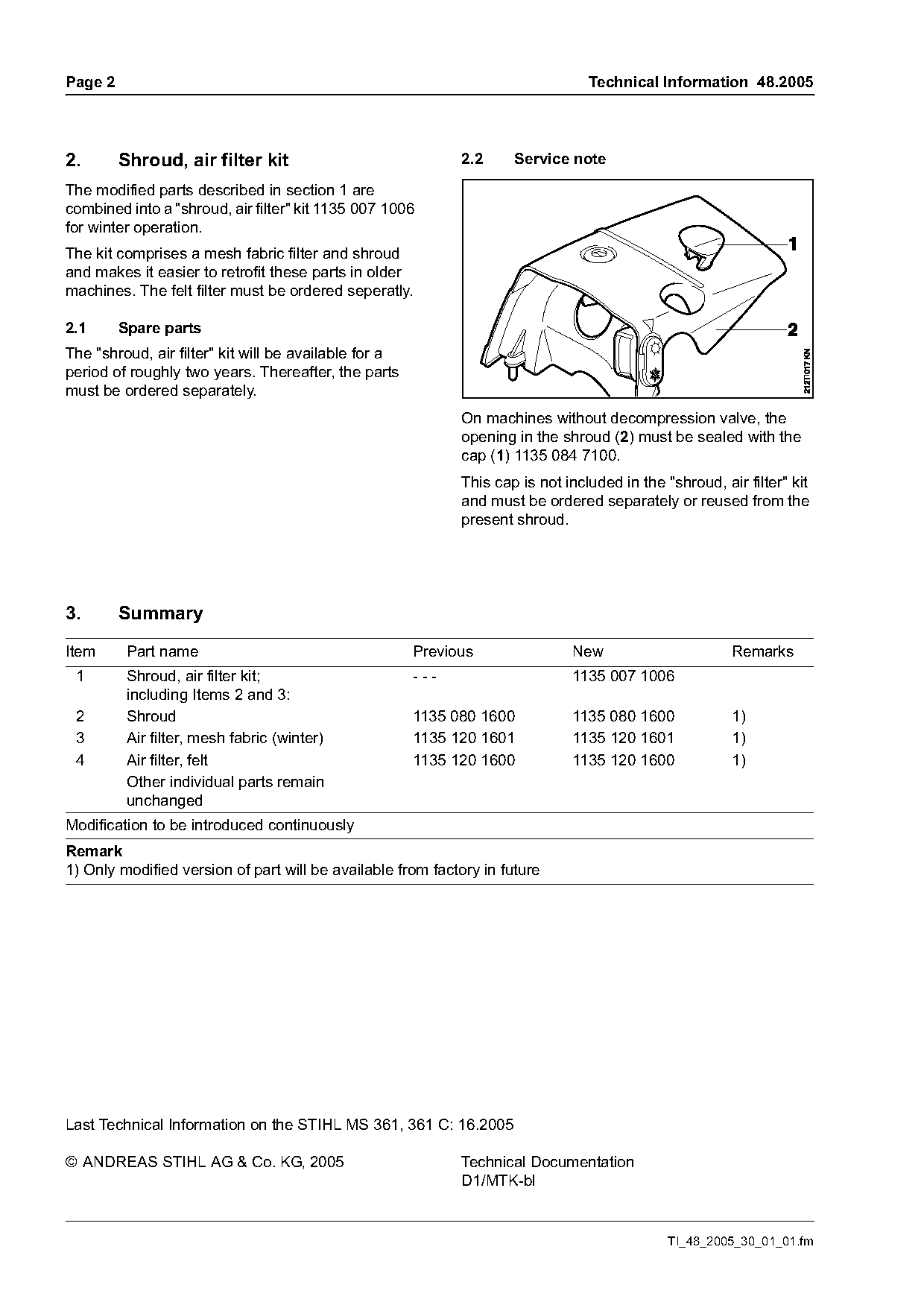

)m~ge 2 Technical Information 48.2005

2. Shroud, air filter kit 2.2 Service note

The modified parts described in section 1 are
combined into a "shroud, air filter" kit 1135 007 1006
for winter operation.
The kit comprises a mesh fabric filter and shroud
and makes it easier to retrofit these parts in older
machines. The felt filter must be ordered seperatly.

2.1 Spare parts
The "shroud, air filter" kit will be available for a
period of roughly two years. Thereafter, the parts
must be ordered separately.
On machines without decompression valve, the
opening in the shroud (2) must be sealed with the
cap (1) 1135 084 7100.
This cap is not included in the "shroud, air filter" kit
and must be ordered separately or reused from the
present shroud.

3. Summary
Item Part name Previous New Remarks
1 Shroud, air filter kit; --- 1135 007 1006
including Items 2 and 3:
2 Shroud 1135 080 1600 1135 080 1600 1)
3 Air filter, mesh fabric (winter) 1135 120 1601 1135 120 1601 1)
4 Air filter, felt 1135 120 1600 1135 120 1600 1)
Other individual parts remain
unchanged
Modification to be introduced continuously
Remark
1) Only modified version of part will be available from factory in future

Last Technical Information on the STIHL MS 361, 361 C: 16.2005
