Technical Information · issue 55 of 2005
Fuel hose; Holder; Cable retainer
IssueTI 55/2005
Engine family 1137
Full text
Page 1 of 5
STIH)
Technical Information 55.2005
Chain Saw STIHL MS 192 T – Series 1137
Contents
1. Fuel hose
2. Holder
3. Cable retainer

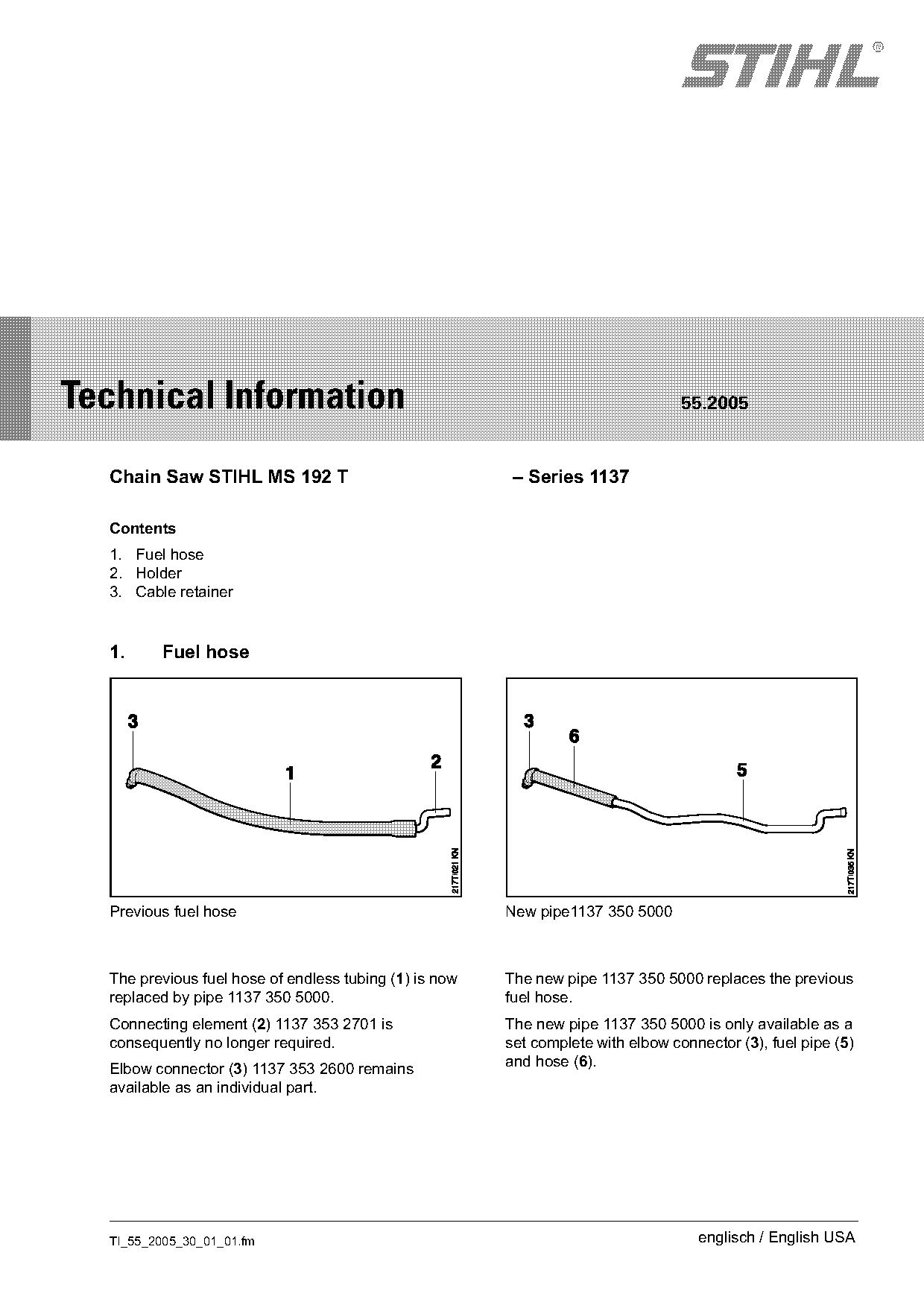

1. Fuel hose
Previous fuel hose New pipe1137 350 5000
The previous fuel hose of endless tubing (1) is now The new pipe 1137 350 5000 replaces the previous
replaced by pipe 1137 350 5000. fuel hose.
Connecting element (2) 1137 353 2701 is The new pipe 1137 350 5000 is only available as a
consequently no longer required. set complete with elbow connector (3), fuel pipe (5)
and hose (6).
Elbow connector (3) 1137 353 2600 remains
available as an individual part.
TI_55_2005_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 55.2005

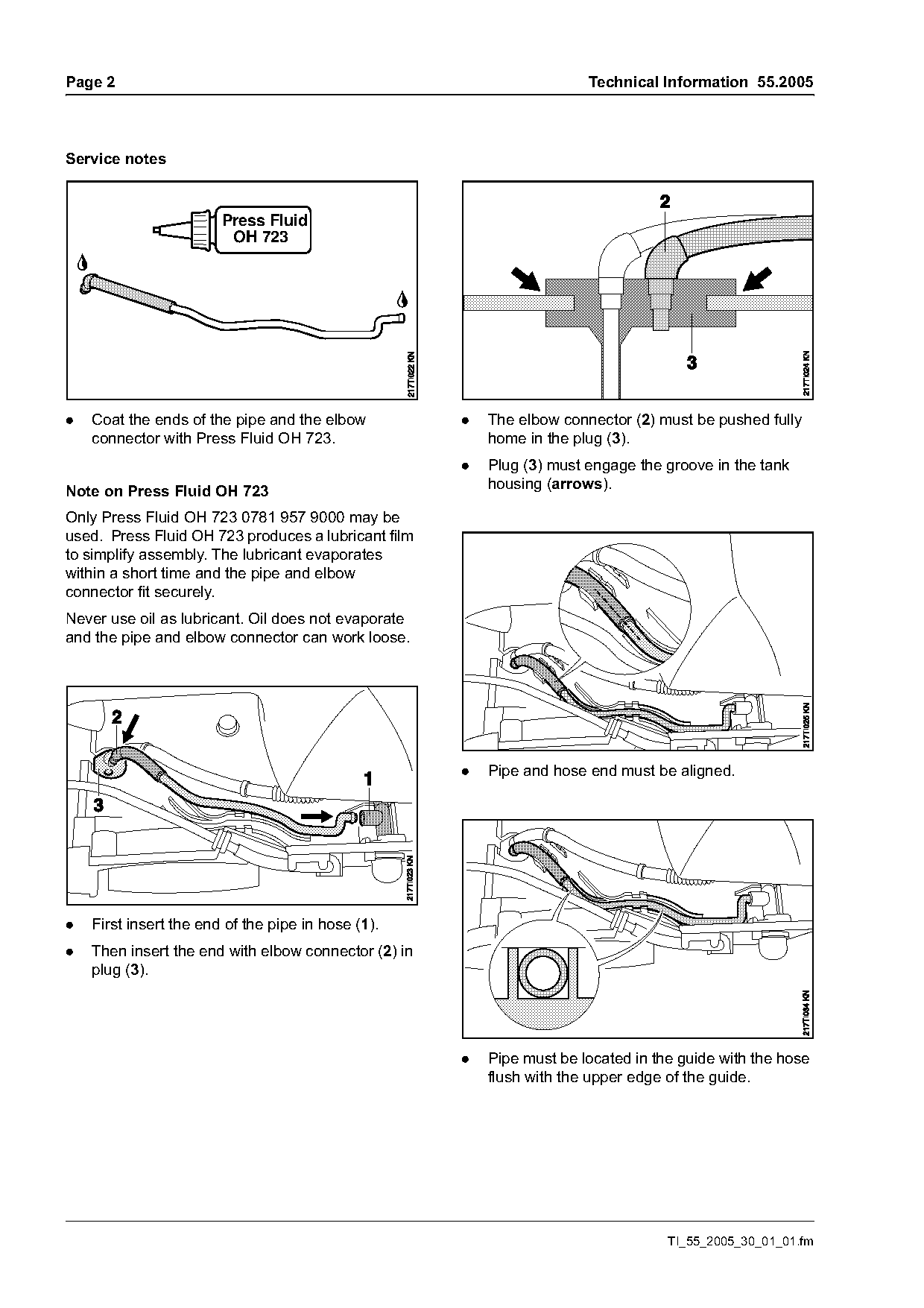

Service notes
Press Fluid
OH 723
. Coat the ends of the pipe and the elbow . The elbow connector (2) must be pushed fully
connector with Press Fluid OH 723. home in the plug (3).
. Plug (3) must engage the groove in the tank
housing (arrows).
Note on Press Fluid OH 723
Only Press Fluid OH 723 0781 957 9000 may be
used. Press Fluid OH 723 produces a lubricant film
to simplify assembly. The lubricant evaporates
within a short time and the pipe and elbow
connector fit securely.
Never use oil as lubricant. Oil does not evaporate
and the pipe and elbow connector can work loose.
. Pipe and hose end must be aligned.
. First insert the end of the pipe in hose (1).
. Then insert the end with elbow connector (2) in
plug (3).
. Pipe must be located in the guide with the hose
flush with the upper edge of the guide.
TI_55_2005_30_01_01.fm Page 2 of 5
Technical Information 55.2005 Page 3

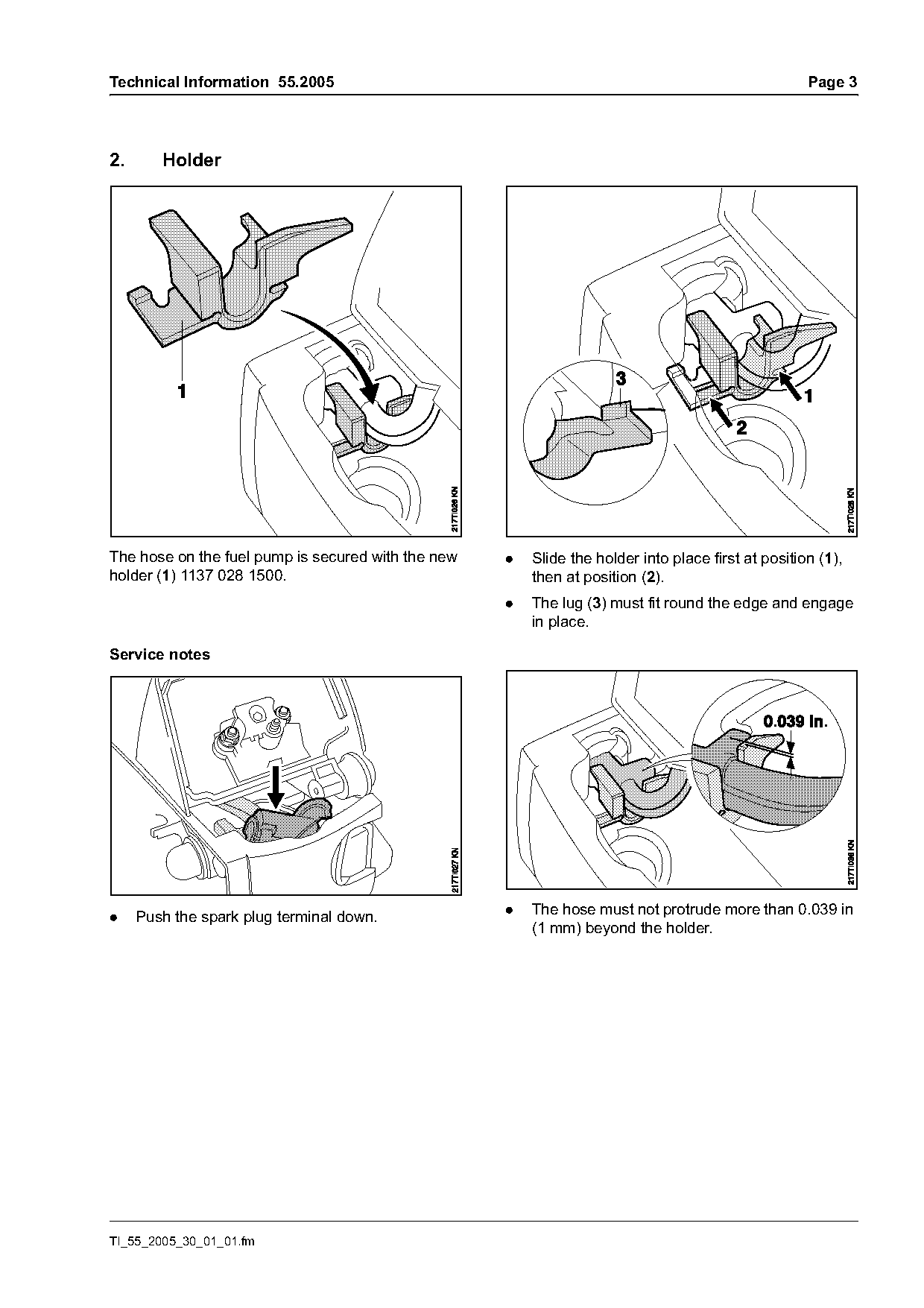

2. Holder
The hose on the fuel pump is secured with the new . Slide the holder into place first at position (1),
holder (1) 1137 028 1500. then at position (2).
. The lug (3) must fit round the edge and engage
in place.
Service notes
. The hose must not protrude more than 0.039 in
. Push the spark plug terminal down.
(1 mm) beyond the holder.
TI_55_2005_30_01_01.fm
)m~ge 4 Technical Information 55.2005

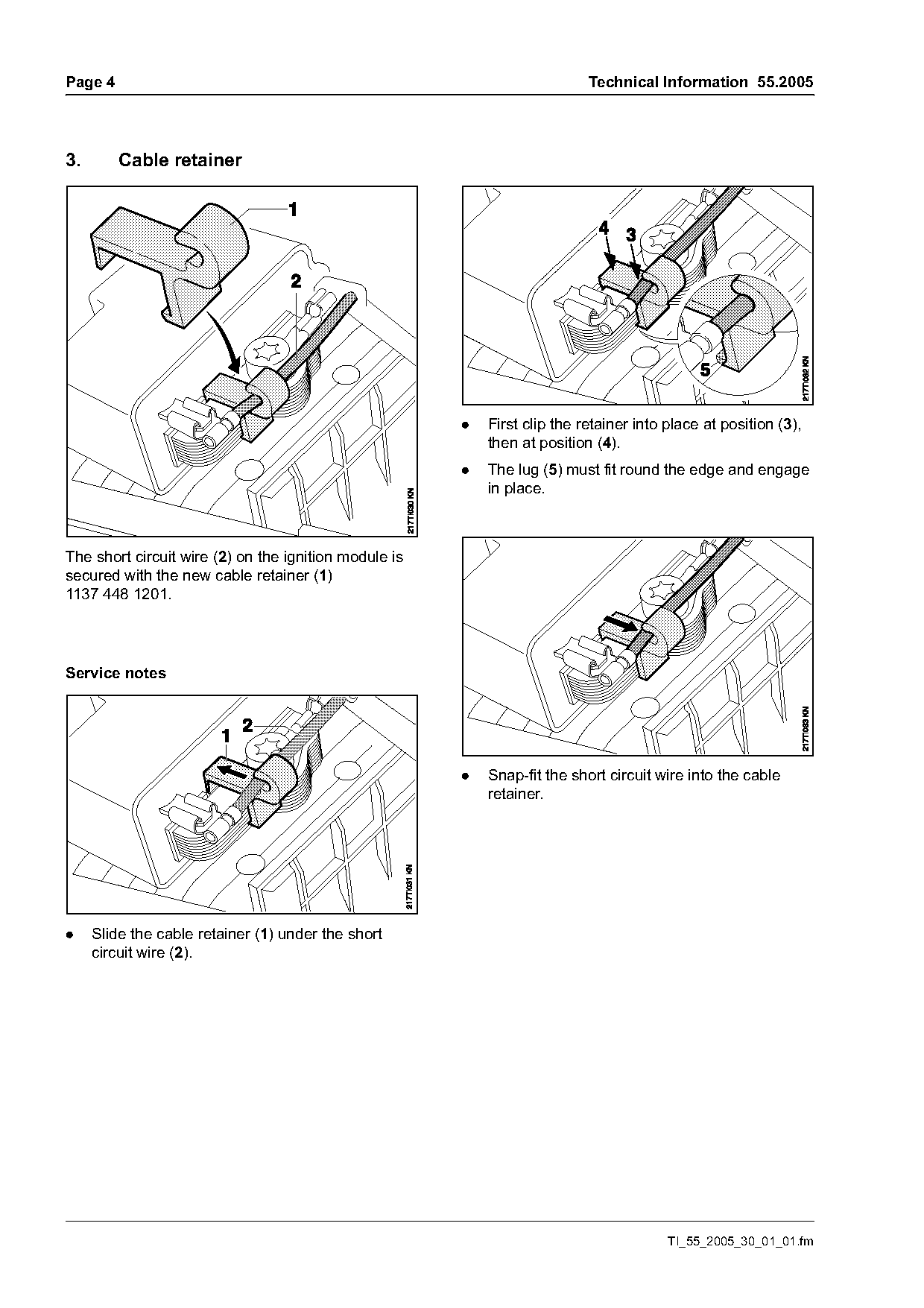

3. Cable retainer
. First clip the retainer into place at position (3),
then at position (4).
. The lug (5) must fit round the edge and engage
in place.
The short circuit wire (2) on the ignition module is
secured with the new cable retainer (1)
1137 448 1201.
Service notes
. Snap-fit the short circuit wire into the cable
retainer.
. Slide the cable retainer (1) under the short
circuit wire (2).
TI_55_2005_30_01_01.fm Page 3 of 5
Technical Information 55.2005 Page 5

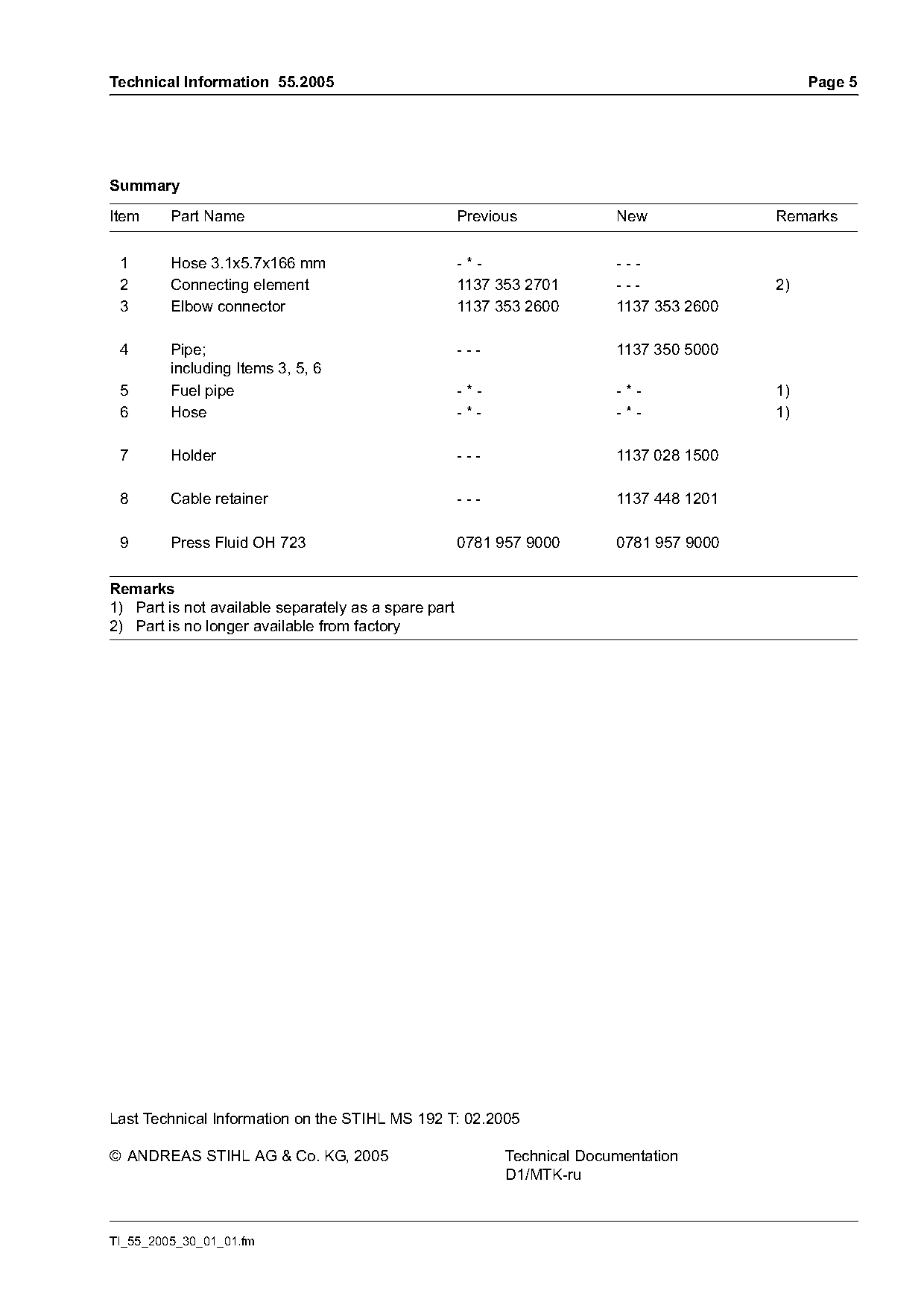

Summary
Item Part Name Previous New Remarks
1 Hose 3.1x5.7x166 mm -*- ---
2 Connecting element 1137 353 2701 --- 2)
3 Elbow connector 1137 353 2600 1137 353 2600
4 Pipe; --- 1137 350 5000
including Items 3, 5, 6
5 Fuel pipe -*- -*- 1)
6 Hose -*- -*- 1)
7 Holder --- 1137 028 1500
8 Cable retainer --- 1137 448 1201
9 Press Fluid OH 723 0781 957 9000 0781 957 9000
Remarks
1) Part is not available separately as a spare part
2) Part is no longer available from factory
Last Technical Information on the STIHL MS 192 T: 02.2005
© ANDREAS STIHL AG & Co. KG, 2005 Technical Documentation
D1/MTK-ru
TI_55_2005_30_01_01.fm Page 4 of 5
Page 5 of 5
