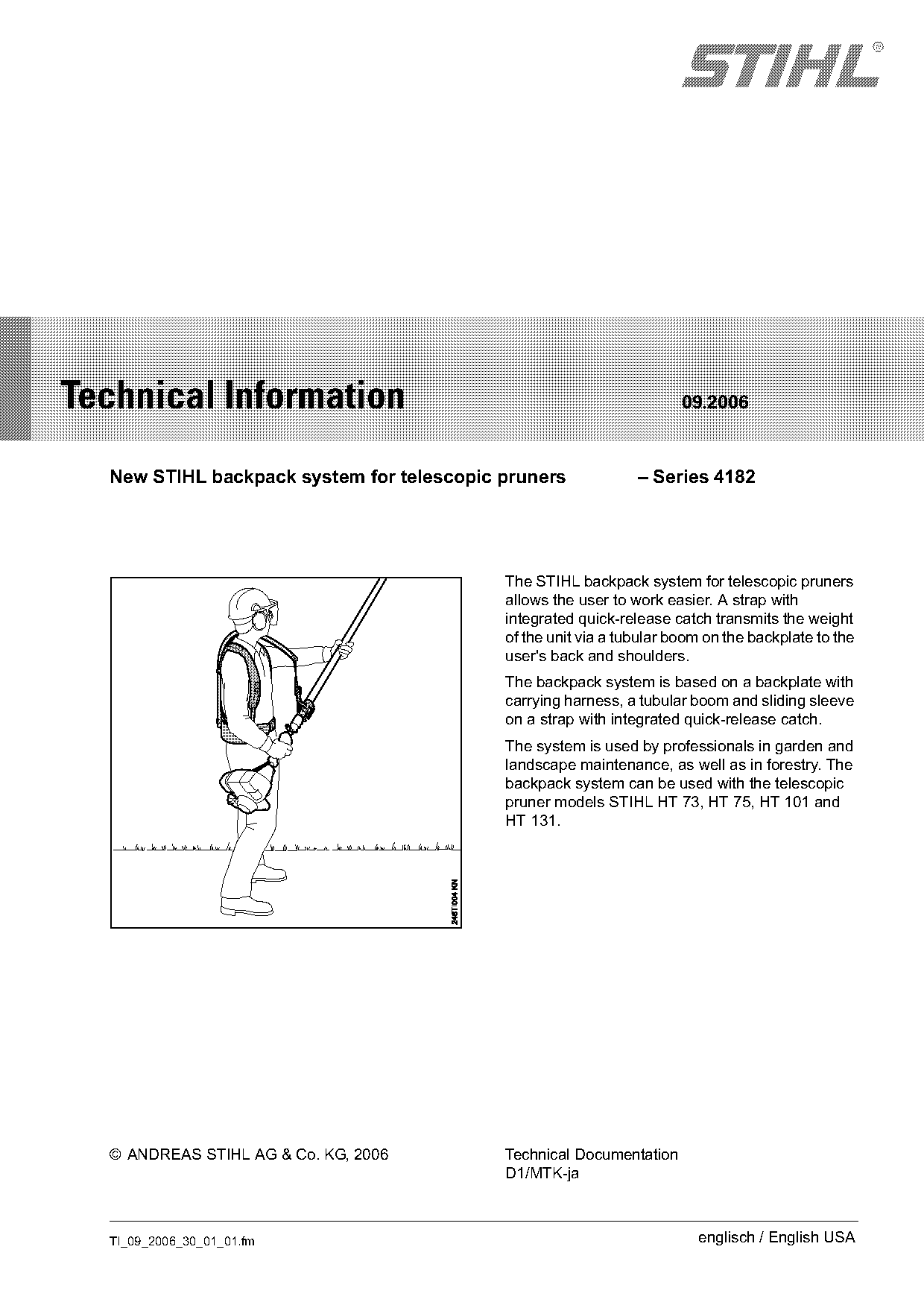

Technical Information 09.2006
New STIHL backpack system for telescopic pruners – Series 4182
The STIHL backpack system for telescopic pruners
allows the user to work easier. A strap with
integrated quick-release catch transmits the weight
of the unit via a tubular boom on the backplate to the
user's back and shoulders.
The backpack system is based on a backplate with
carrying harness, a tubular boom and sliding sleeve
on a strap with integrated quick-release catch.
The system is used by professionals in garden and
landscape maintenance, as well as in forestry. The
backpack system can be used with the telescopic
pruner models STIHL HT 73, HT 75, HT 101 and
HT 131.
