Technical Information · issue 11 of 2006
New saw chains STIHL .325" Rapid Micro Comfort 3
IssueTI 11/2006
Full text
Page 1 of 4
STIH)

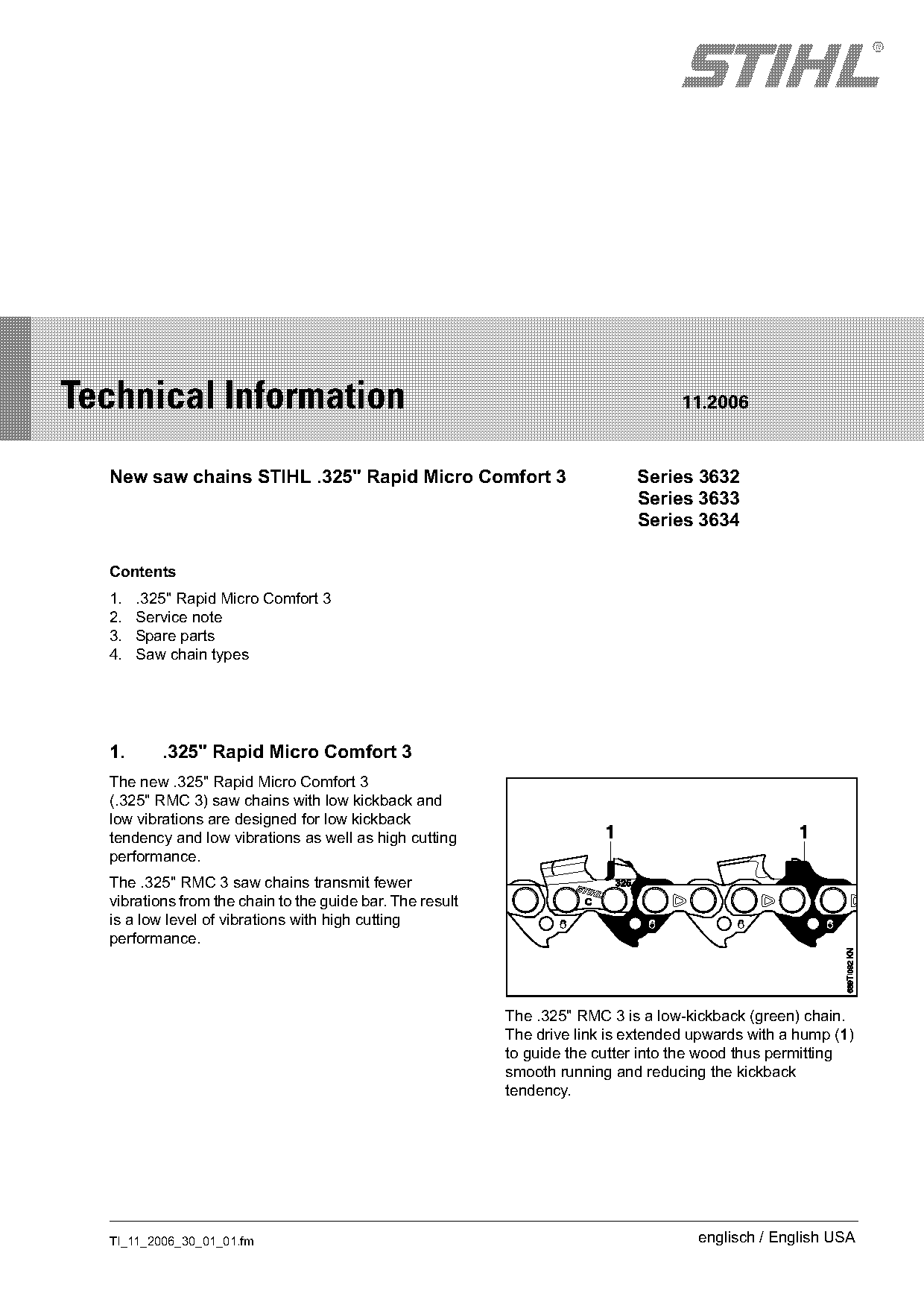

Technical Information 11.2006
New saw chains STIHL .325" Rapid Micro Comfort 3 Series 3632
Series 3633
Series 3634
Contents
1. .325" Rapid Micro Comfort 3
2. Service note
3. Spare parts
4. Saw chain types
1. .325" Rapid Micro Comfort 3
The new .325" Rapid Micro Comfort 3
(.325" RMC 3) saw chains with low kickback and
low vibrations are designed for low kickback
tendency and low vibrations as well as high cutting
performance.
The .325" RMC 3 saw chains transmit fewer
vibrations from the chain to the guide bar. The result
is a low level of vibrations with high cutting
performance.
The .325" RMC 3 is a low-kickback (green) chain.
The drive link is extended upwards with a hump (1)
to guide the cutter into the wood thus permitting
smooth running and reducing the kickback
tendency.
TI_11_2006_30_01_01.fm englisch / English USA

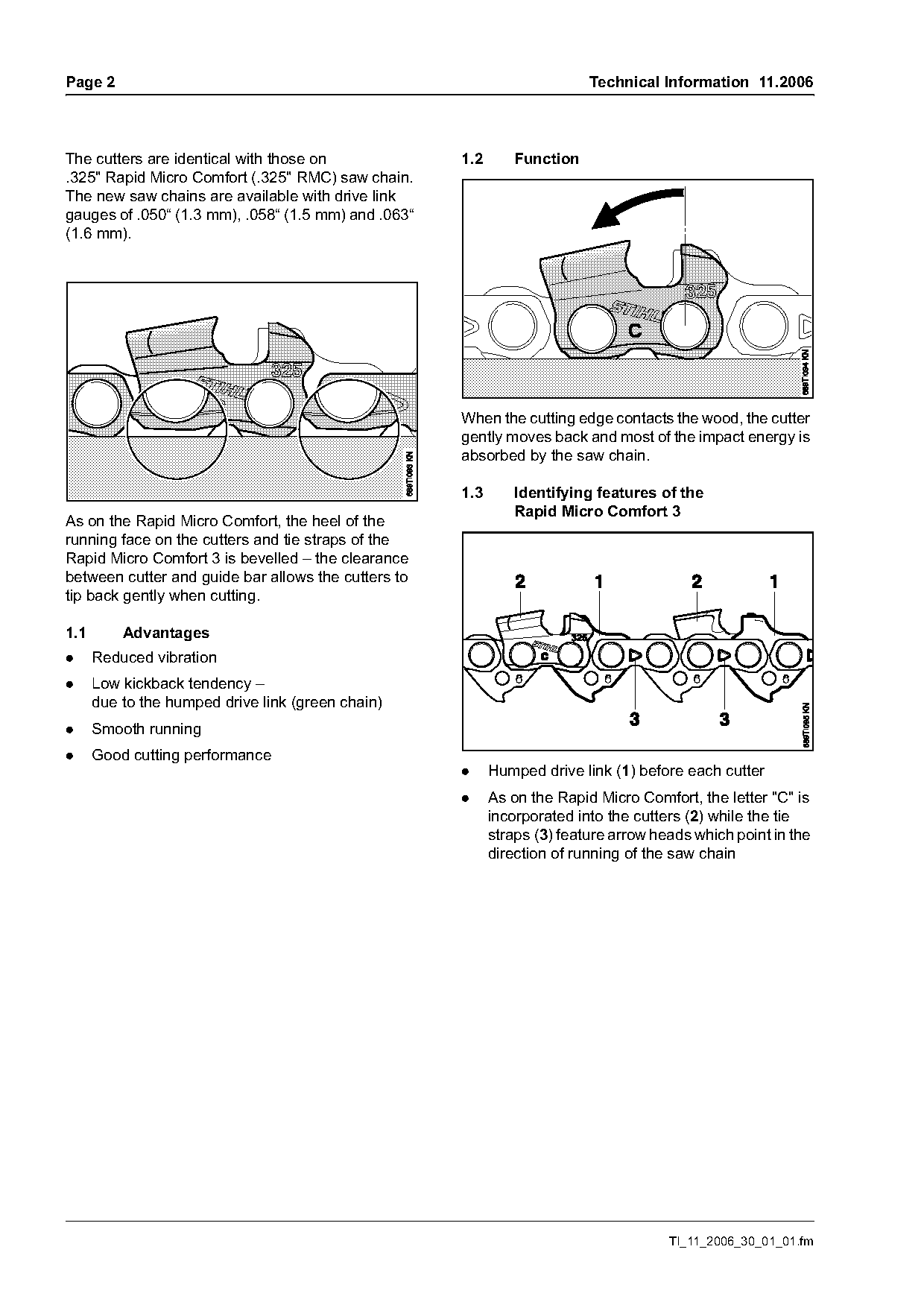

)m~ge 2 Technical Information 11.2006
The cutters are identical with those on 1.2 Function
.325" Rapid Micro Comfort (.325" RMC) saw chain.
The new saw chains are available with drive link
gauges of .050“ (1.3 mm), .058“ (1.5 mm) and .063“
(1.6 mm).
When the cutting edge contacts the wood, the cutter
gently moves back and most of the impact energy is
absorbed by the saw chain.
1.3 Identifying features of the
Rapid Micro Comfort 3
As on the Rapid Micro Comfort, the heel of the
running face on the cutters and tie straps of the
Rapid Micro Comfort 3 is bevelled – the clearance
between cutter and guide bar allows the cutters to
tip back gently when cutting.
1.1 Advantages
. Reduced vibration
. Low kickback tendency –
due to the humped drive link (green chain)
. Smooth running
. Good cutting performance
. Humped drive link (1) before each cutter
. As on the Rapid Micro Comfort, the letter "C" is
incorporated into the cutters (2) while the tie
straps (3) feature arrow heads which point in the
direction of running of the saw chain
TI_11_2006_30_01_01.fm Page 2 of 4

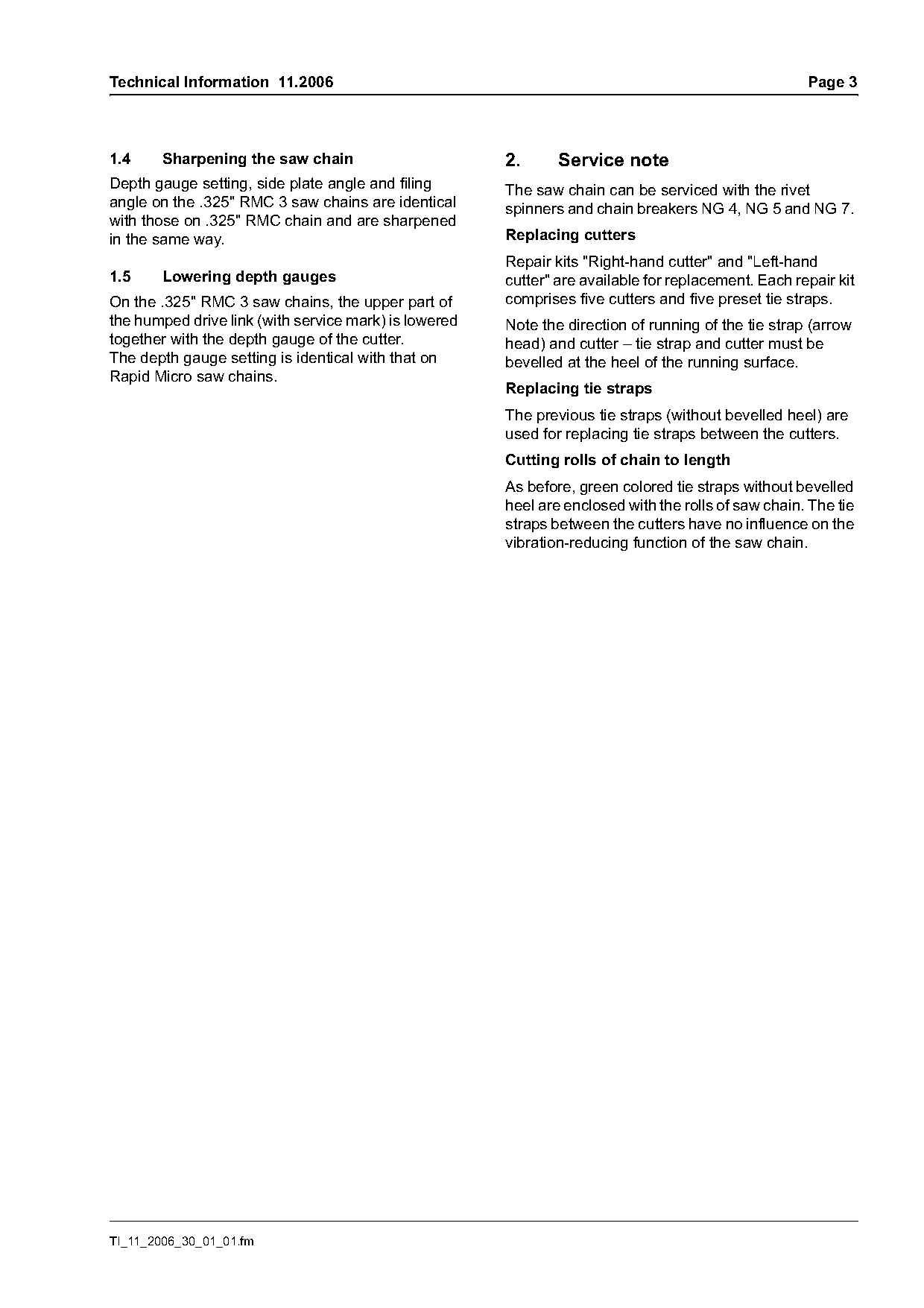

Technical Information 11.2006 Page 3
1.4 Sharpening the saw chain 2. Service note
Depth gauge setting, side plate angle and filing The saw chain can be serviced with the rivet
angle on the .325" RMC 3 saw chains are identical spinners and chain breakers NG 4, NG 5 and NG 7.
with those on .325" RMC chain and are sharpened
in the same way. Replacing cutters
Repair kits "Right-hand cutter" and "Left-hand
1.5 Lowering depth gauges cutter" are available for replacement. Each repair kit
On the .325" RMC 3 saw chains, the upper part of comprises five cutters and five preset tie straps.
the humped drive link (with service mark) is lowered Note the direction of running of the tie strap (arrow
together with the depth gauge of the cutter. head) and cutter – tie strap and cutter must be
The depth gauge setting is identical with that on bevelled at the heel of the running surface.
Rapid Micro saw chains.
Replacing tie straps
The previous tie straps (without bevelled heel) are
used for replacing tie straps between the cutters.
Cutting rolls of chain to length
As before, green colored tie straps without bevelled
heel are enclosed with the rolls of saw chain. The tie
straps between the cutters have no influence on the
vibration-reducing function of the saw chain.
TI_11_2006_30_01_01.fm

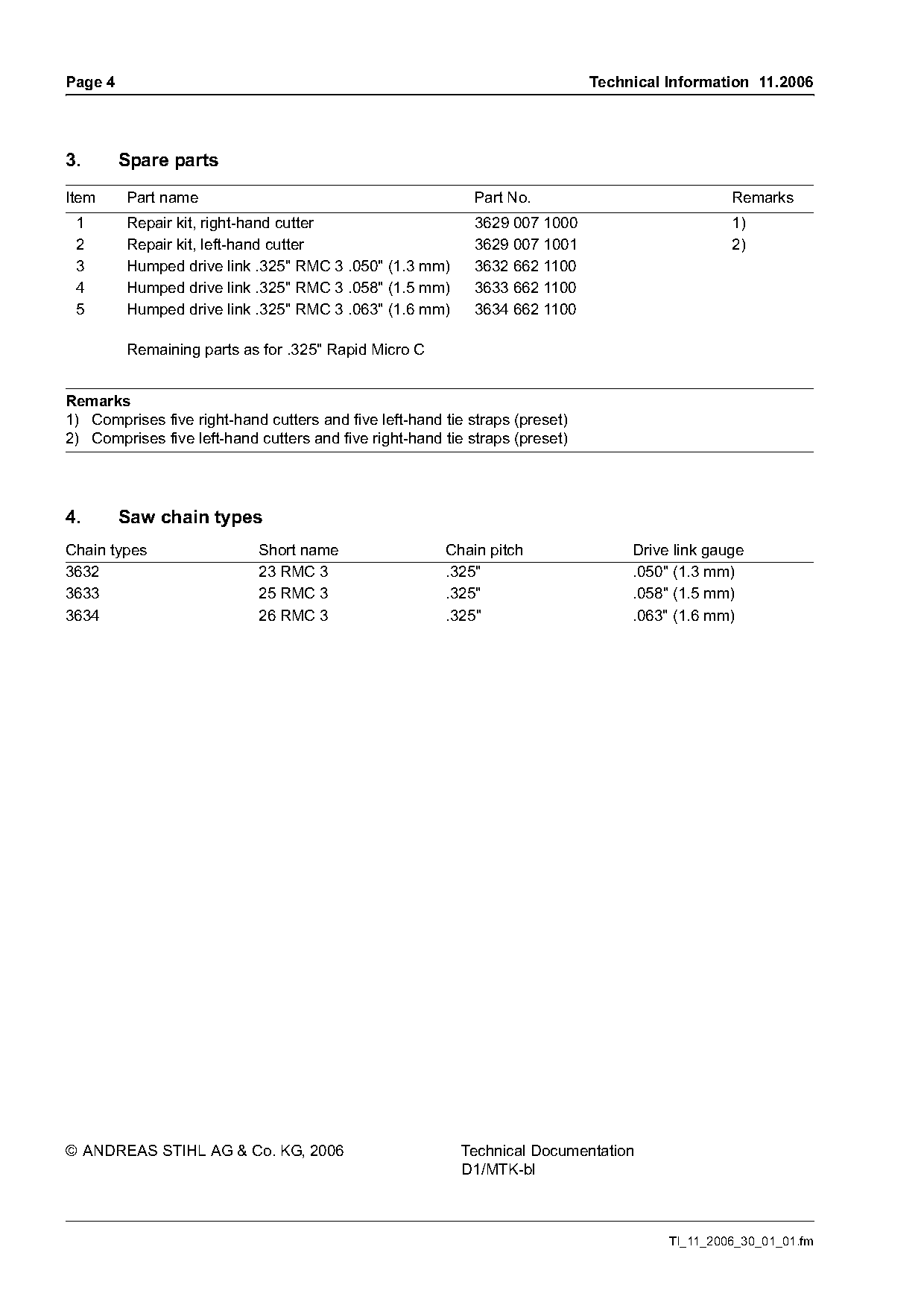

)m~ge 4 Technical Information 11.2006
3. Spare parts
Item Part name Part No. Remarks
1 Repair kit, right-hand cutter 3629 007 1000 1)
2 Repair kit, left-hand cutter 3629 007 1001 2)
3 Humped drive link .325" RMC 3 .050" (1.3 mm) 3632 662 1100
4 Humped drive link .325" RMC 3 .058" (1.5 mm) 3633 662 1100
5 Humped drive link .325" RMC 3 .063" (1.6 mm) 3634 662 1100
Remaining parts as for .325" Rapid Micro C
Remarks
1) Comprises five right-hand cutters and five left-hand tie straps (preset)
2) Comprises five left-hand cutters and five right-hand tie straps (preset)
4. Saw chain types
Chain types Short name Chain pitch Drive link gauge
3632 23 RMC 3 .325" .050" (1.3 mm)
3633 25 RMC 3 .325" .058" (1.5 mm)
3634 26 RMC 3 .325" .063" (1.6 mm)
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
TI_11_2006_30_01_01.fm Page 3 of 4
