Technical Information · issue 19 of 2006
New STIHL Carving Guide Bars
IssueTI 19/2006
Full text
Page 1 of 3
STIH)

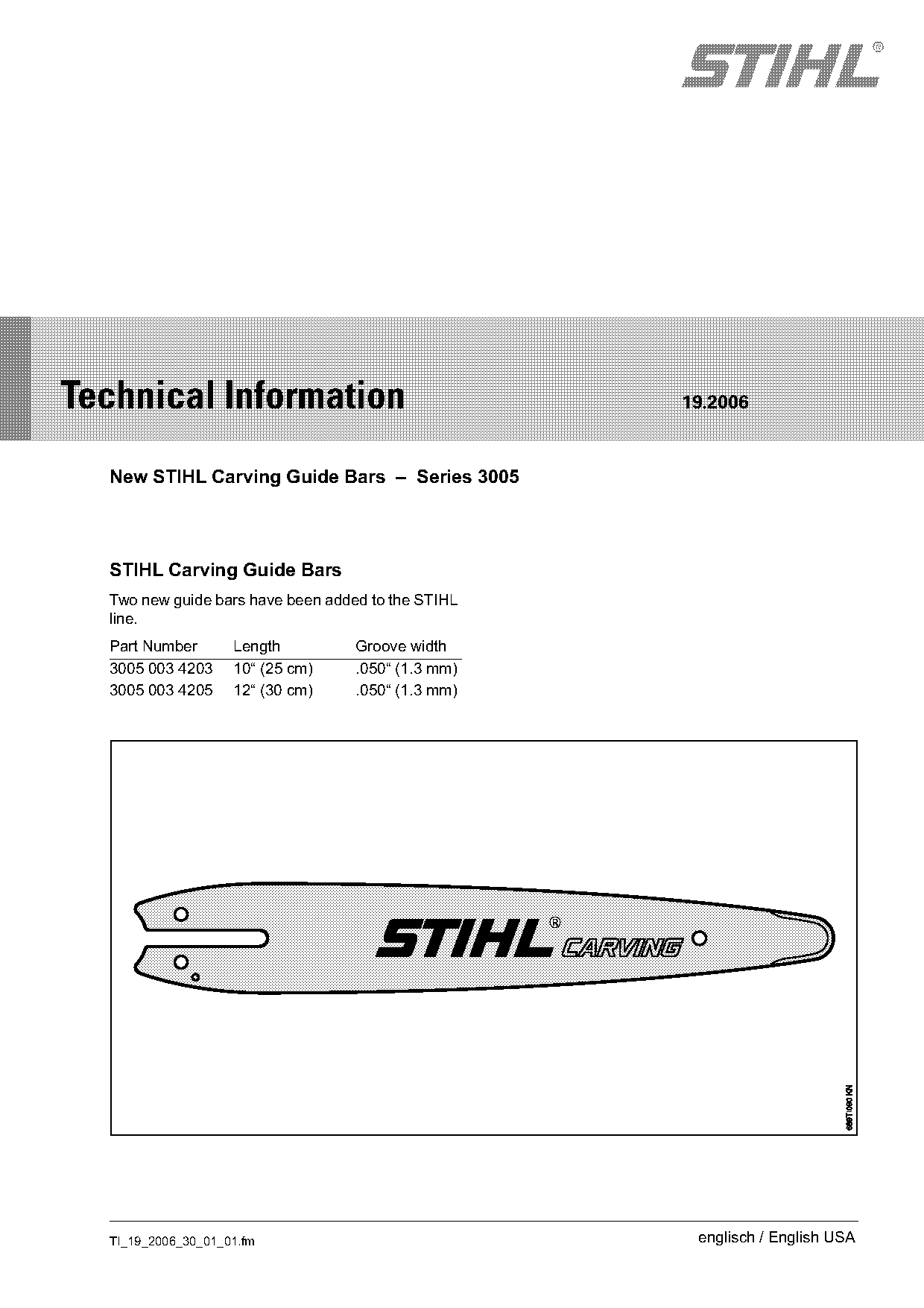

Technical Information 19.2006
New STIHL Carving Guide Bars – Series 3005
STIHL Carving Guide Bars
Two new guide bars have been added to the STIHL
line.
Part Number Length Groove width
3005 003 4203 10“ (25 cm) .050“ (1.3 mm)
3005 003 4205 12“ (30 cm) .050“ (1.3 mm)
TI_19_2006_30_01_01.fm englisch / English USA

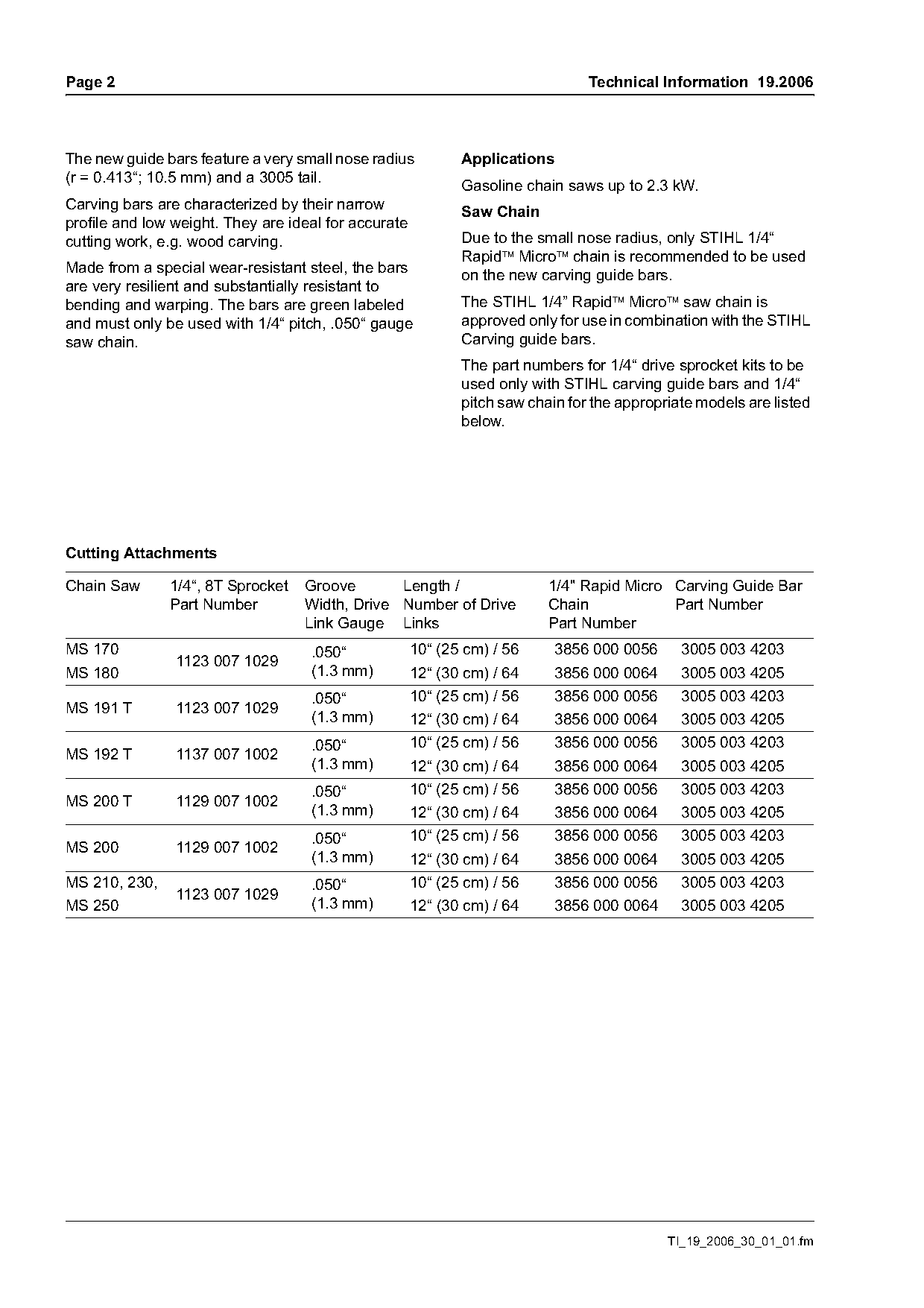

)m~ge 2 Technical Information 19.2006
The new guide bars feature a very small nose radius Applications
(r = 0.413“; 10.5 mm) and a 3005 tail.
Gasoline chain saws up to 2.3 kW.
Carving bars are characterized by their narrow Saw Chain
profile and low weight. They are ideal for accurate
cutting work, e.g. wood carving. Due to the small nose radius, only STIHL 1/4“
Rapid Micro chain is recommended to be used
Made from a special wear-resistant steel, the bars on the new carving guide bars.
are very resilient and substantially resistant to
bending and warping. The bars are green labeled The STIHL 1/4” Rapid Micro saw chain is
and must only be used with 1/4“ pitch, .050“ gauge approved only for use in combination with the STIHL
saw chain. Carving guide bars.
The part numbers for 1/4“ drive sprocket kits to be
used only with STIHL carving guide bars and 1/4“
pitch saw chain for the appropriate models are listed
below.
Cutting Attachments
Chain Saw 1/4“, 8T Sprocket Groove Length / 1/4" Rapid Micro Carving Guide Bar
Part Number Width, Drive Number of Drive Chain Part Number
Link Gauge Links Part Number
MS 170 .050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
1123 007 1029
MS 180 (1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
.050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
MS 191 T 1123 007 1029
(1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
.050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
MS 192 T 1137 007 1002
(1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
.050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
MS 200 T 1129 007 1002
(1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
.050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
MS 200 1129 007 1002
(1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
MS 210, 230, .050“ 10“ (25 cm) / 56 3856 000 0056 3005 003 4203
1123 007 1029
MS 250 (1.3 mm) 12“ (30 cm) / 64 3856 000 0064 3005 003 4205
TI_19_2006_30_01_01.fm Page 2 of 3

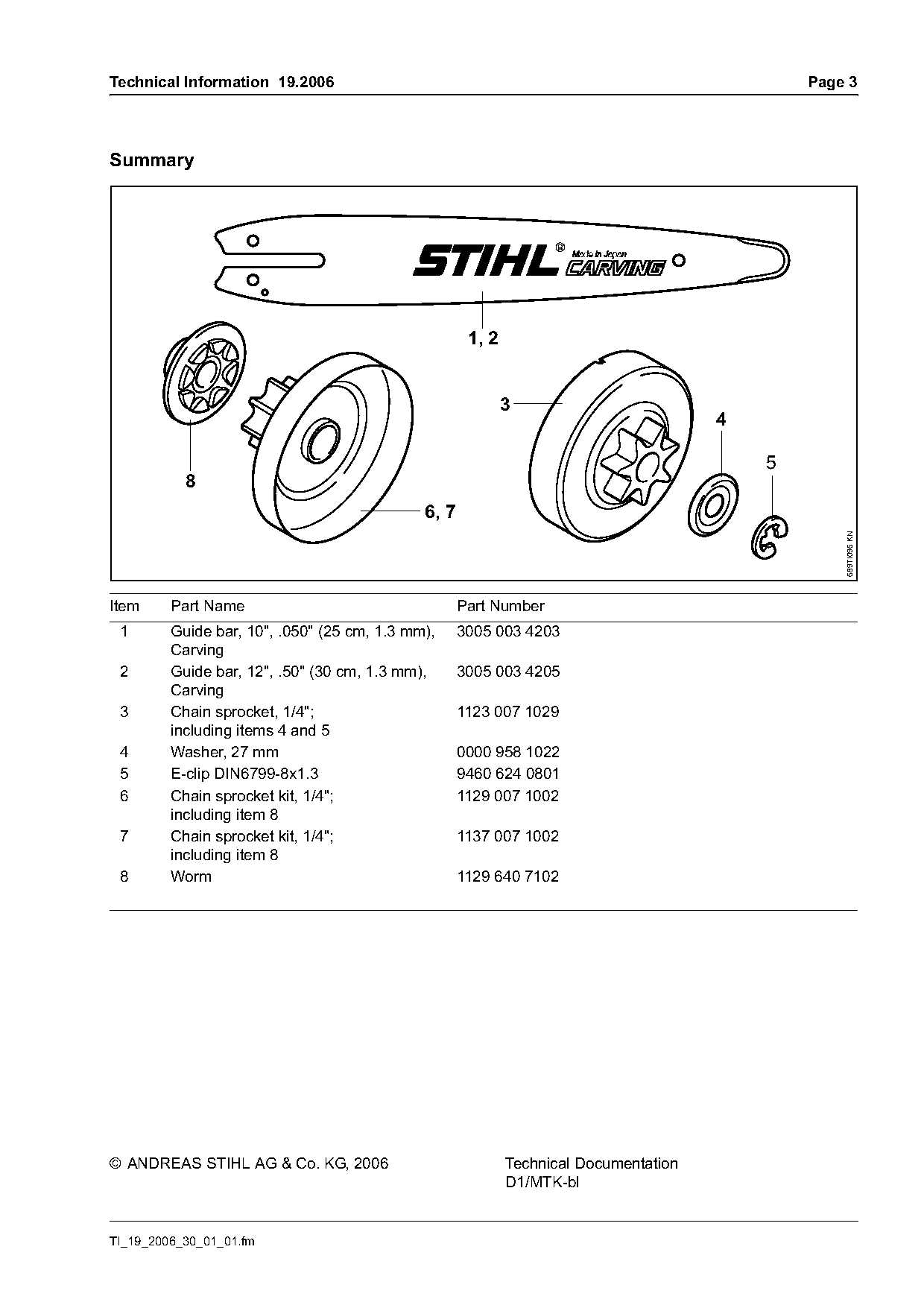

Technical Information 19.2006 Page 3
Summary
1, 2
3
4
5
8
6, 7
689TI096 KN
Item Part Name Part Number
1 Guide bar, 10", .050" (25 cm, 1.3 mm), 3005 003 4203
Carving
2 Guide bar, 12", .50" (30 cm, 1.3 mm), 3005 003 4205
Carving
3 Chain sprocket, 1/4"; 1123 007 1029
including items 4 and 5
4 Washer, 27 mm 0000 958 1022
5 E-clip DIN6799-8x1.3 9460 624 0801
6 Chain sprocket kit, 1/4"; 1129 007 1002
including item 8
7 Chain sprocket kit, 1/4"; 1137 007 1002
including item 8
8 Worm 1129 640 7102
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
TI_19_2006_30_01_01.fm Page 3 of 3
