Technical Information · issue 26 of 2006
Fan shroud; Summary
IssueTI 26/2006
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 5203 084 1303 | 5203 084 1304 | Fan shroud Fan shroud 5203 084 1303 is replaced by version 5203 084 1304. |
Full text
Page 1 of 2
STIH)
Technical Information 26.2006
Chain sharpeners STIHL HOS and STIHL USG – 5203, 5202
Contents
1. Fan shroud
2. Summary

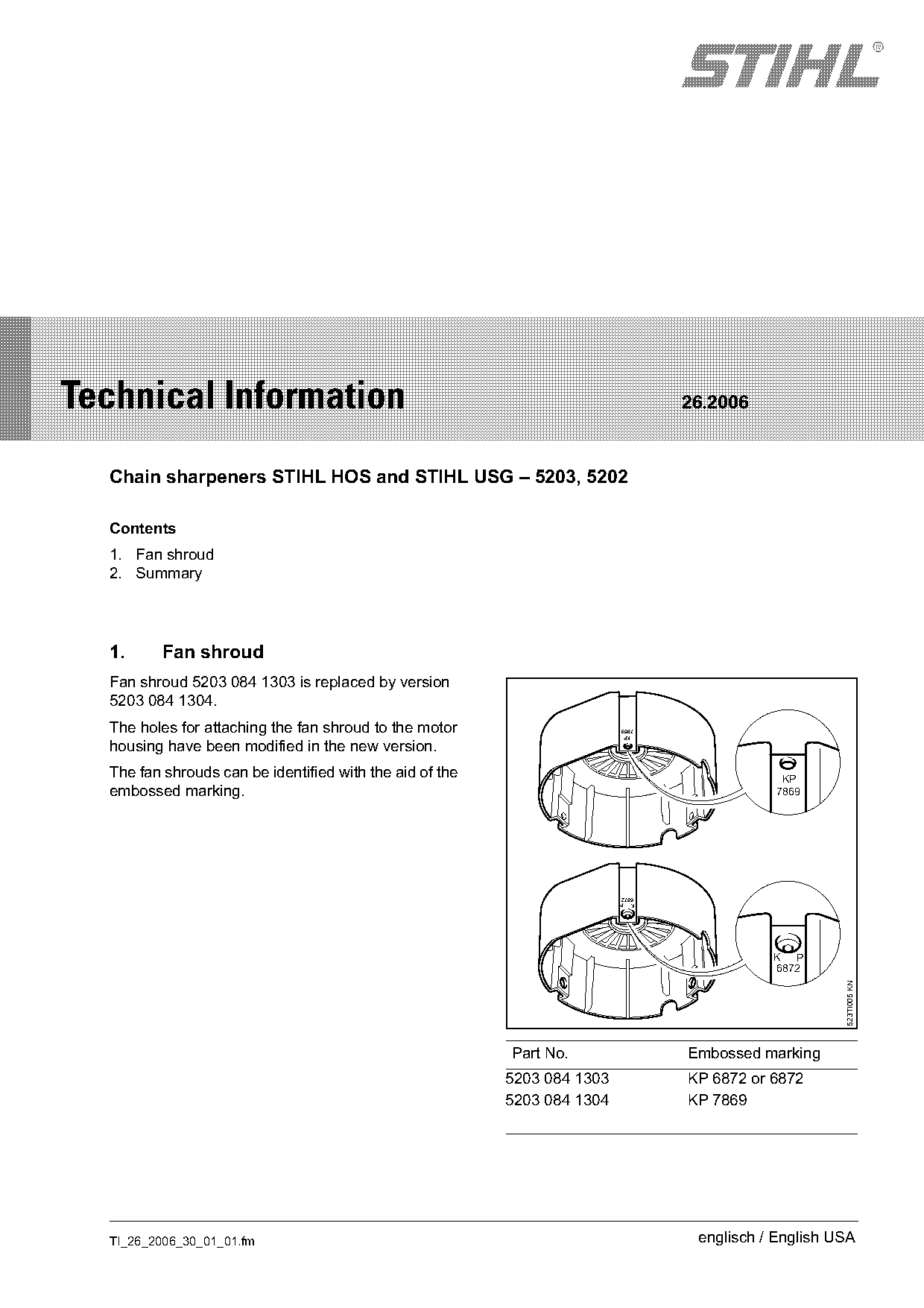

1. Fan shroud
Fan shroud 5203 084 1303 is replaced by version
5203 084 1304.
The holes for attaching the fan shroud to the motor 7869
KP
housing have been modified in the new version.
The fan shrouds can be identified with the aid of the KP
embossed marking. 7869
6872
K P
K P
6872
523TI005 KN
Part No. Embossed marking
5203 084 1303 KP 6872 or 6872
5203 084 1304 KP 7869
TI_26_2006_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 26.2006

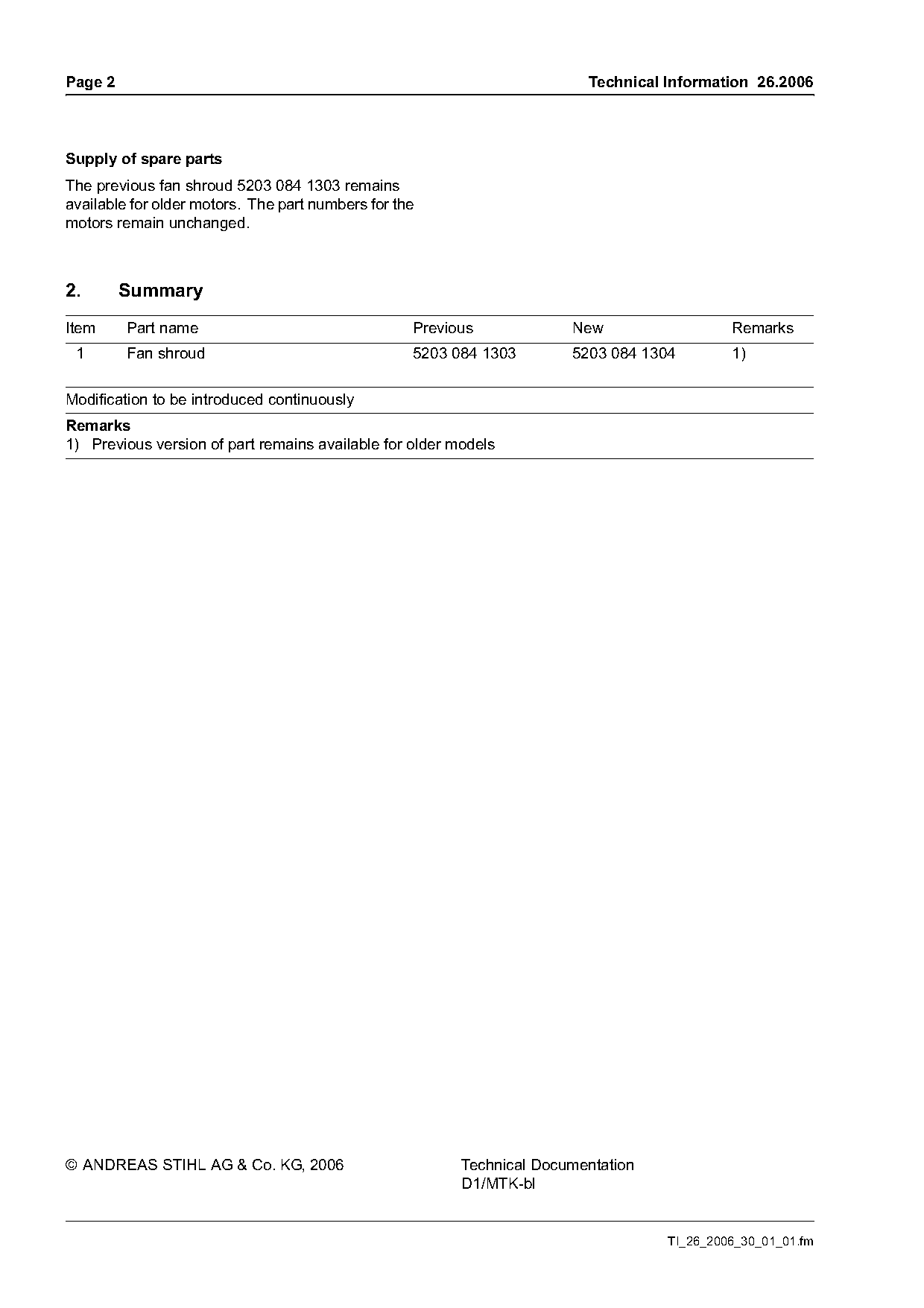

Supply of spare parts
The previous fan shroud 5203 084 1303 remains
available for older motors. The part numbers for the
motors remain unchanged.
2. Summary
Item Part name Previous New Remarks
1 Fan shroud 5203 084 1303 5203 084 1304 1)
Modification to be introduced continuously
Remarks
1) Previous version of part remains available for older models
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
TI_26_2006_30_01_01.fm Page 2 of 2
