Technical Information · issue 30 of 2006
¼" sprocket wheel
IssueTI 30/2006
Full text
Page 1 of 2
STIH)
Technical Information 30.2006

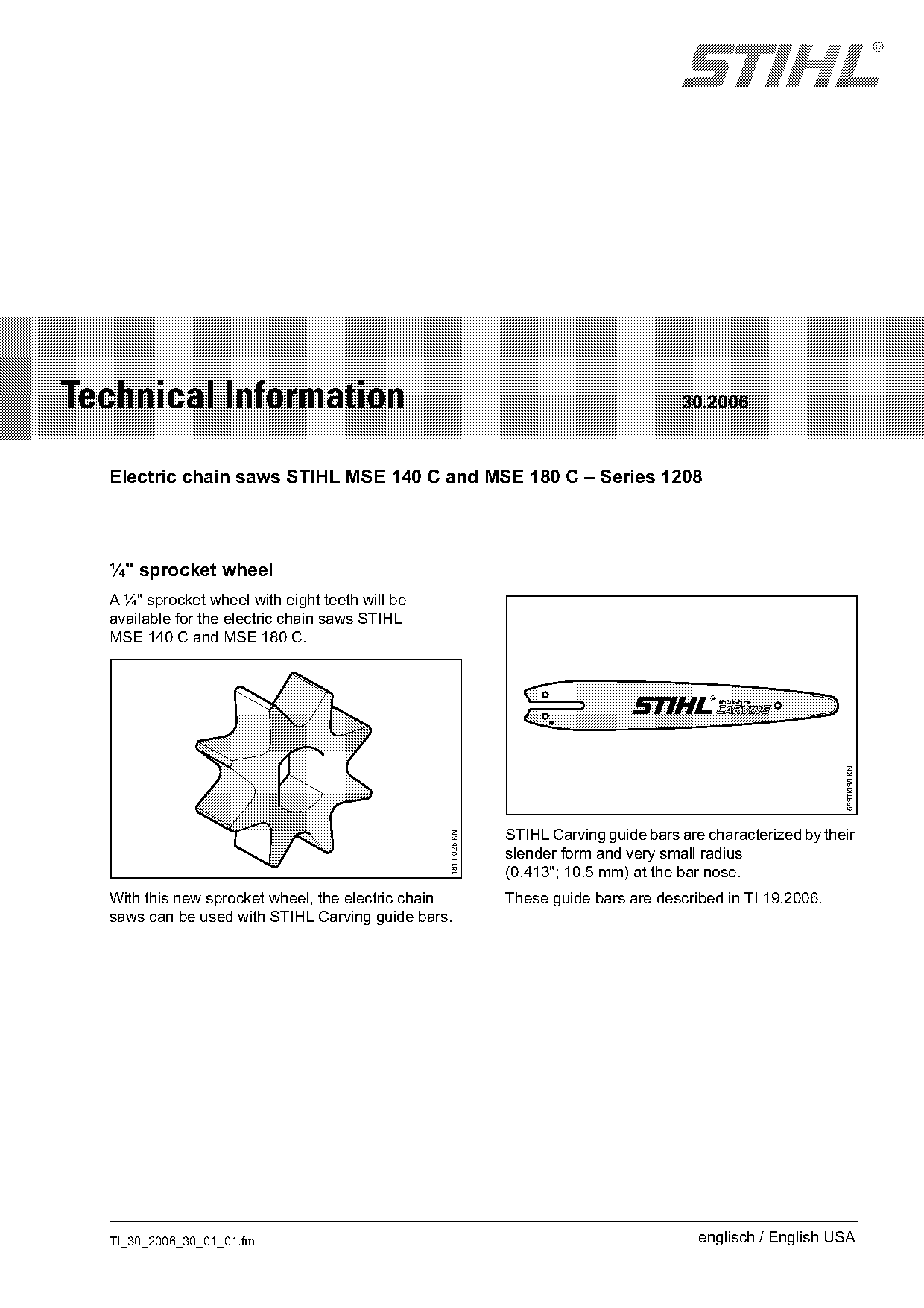

Electric chain saws STIHL MSE 140 C and MSE 180 C – Series 1208
¼" sprocket wheel
A ¼" sprocket wheel with eight teeth will be
available for the electric chain saws STIHL
MSE 140 C and MSE 180 C.
689TI098 KN
STIHL Carving guide bars are characterized by their
181TI025 KN
slender form and very small radius
(0.413"; 10.5 mm) at the bar nose.
With this new sprocket wheel, the electric chain These guide bars are described in TI 19.2006.
saws can be used with STIHL Carving guide bars.
TI_30_2006_30_01_01.fm englisch / English USA

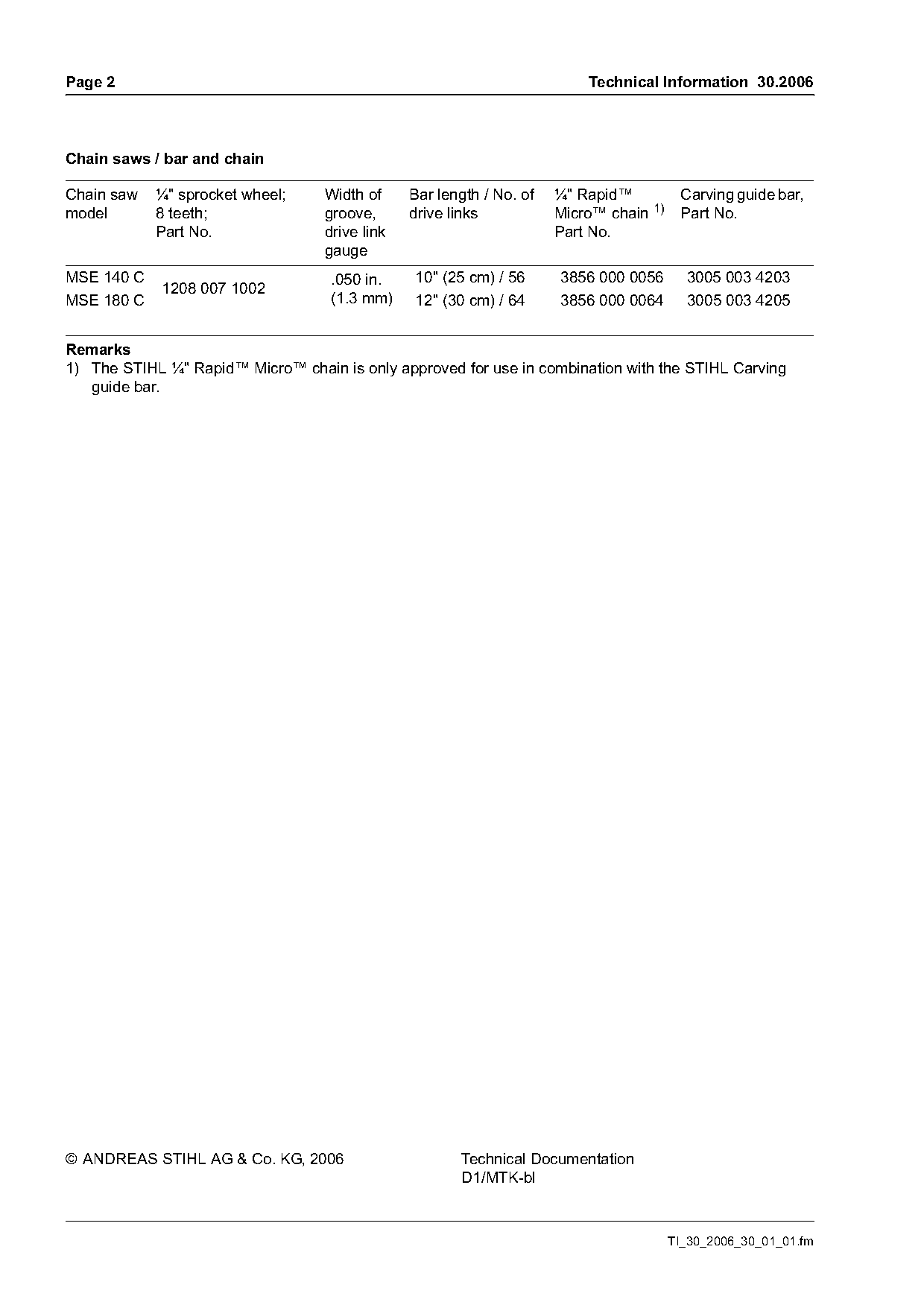

)m~ge 2 Technical Information 30.2006
Chain saws / bar and chain
Chain saw ¼" sprocket wheel; Width of Bar length / No. of ¼" Rapid™ Carving guide bar,
model 8 teeth; groove, drive links Micro™ chain 1) Part No.
Part No. drive link Part No.
gauge
MSE 140 C .050 in. 10" (25 cm) / 56 3856 000 0056 3005 003 4203
1208 007 1002
MSE 180 C (1.3 mm) 12" (30 cm) / 64 3856 000 0064 3005 003 4205
Remarks
1) The STIHL ¼" Rapid™ Micro™ chain is only approved for use in combination with the STIHL Carving
guide bar.
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
TI_30_2006_30_01_01.fm Page 2 of 2
