Technical Information · issue 33 of 2006
New saw chain STIHL 3/8" Picco Micro Comfort 3
IssueTI 33/2006
Full text
Page 1 of 4
Text of page 1 — search, copy, screen readers
STIH)

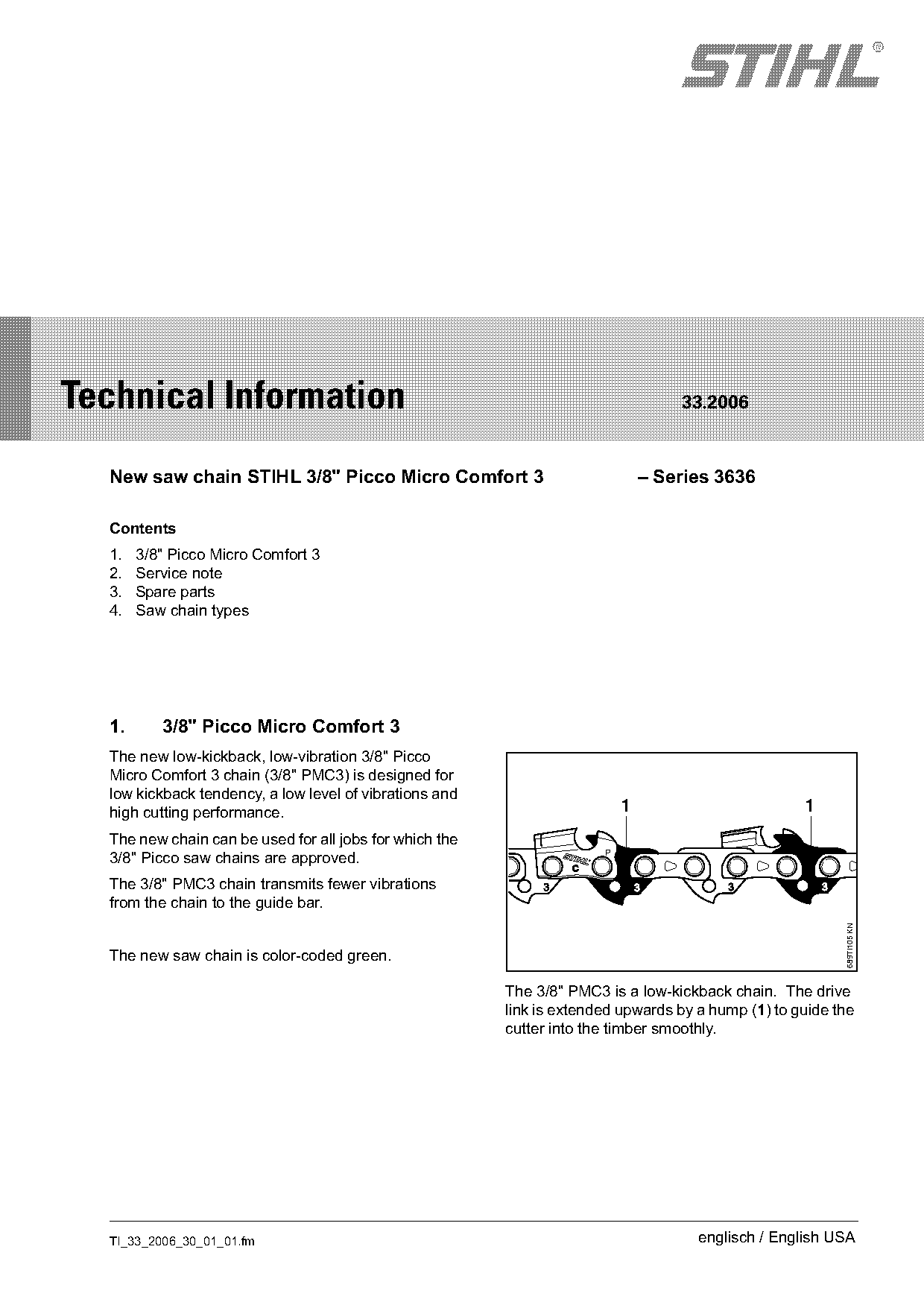

Technical Information 33.2006
New saw chain STIHL 3/8" Picco Micro Comfort 3 – Series 3636
Contents
1. 3/8" Picco Micro Comfort 3
2. Service note
3. Spare parts
4. Saw chain types
1. 3/8" Picco Micro Comfort 3
The new low-kickback, low-vibration 3/8" Picco
Micro Comfort 3 chain (3/8" PMC3) is designed for
low kickback tendency, a low level of vibrations and
high cutting performance. 1 1
The new chain can be used for all jobs for which the
3/8" Picco saw chains are approved. P
The 3/8" PMC3 chain transmits fewer vibrations
from the chain to the guide bar.
689TI105 KN
The new saw chain is color-coded green.
The 3/8" PMC3 is a low-kickback chain. The drive
link is extended upwards by a hump (1) to guide the
cutter into the timber smoothly.
TI_33_2006_30_01_01.fm englisch / English USA Page 2 of 4
Text of page 2 — search, copy, screen readers

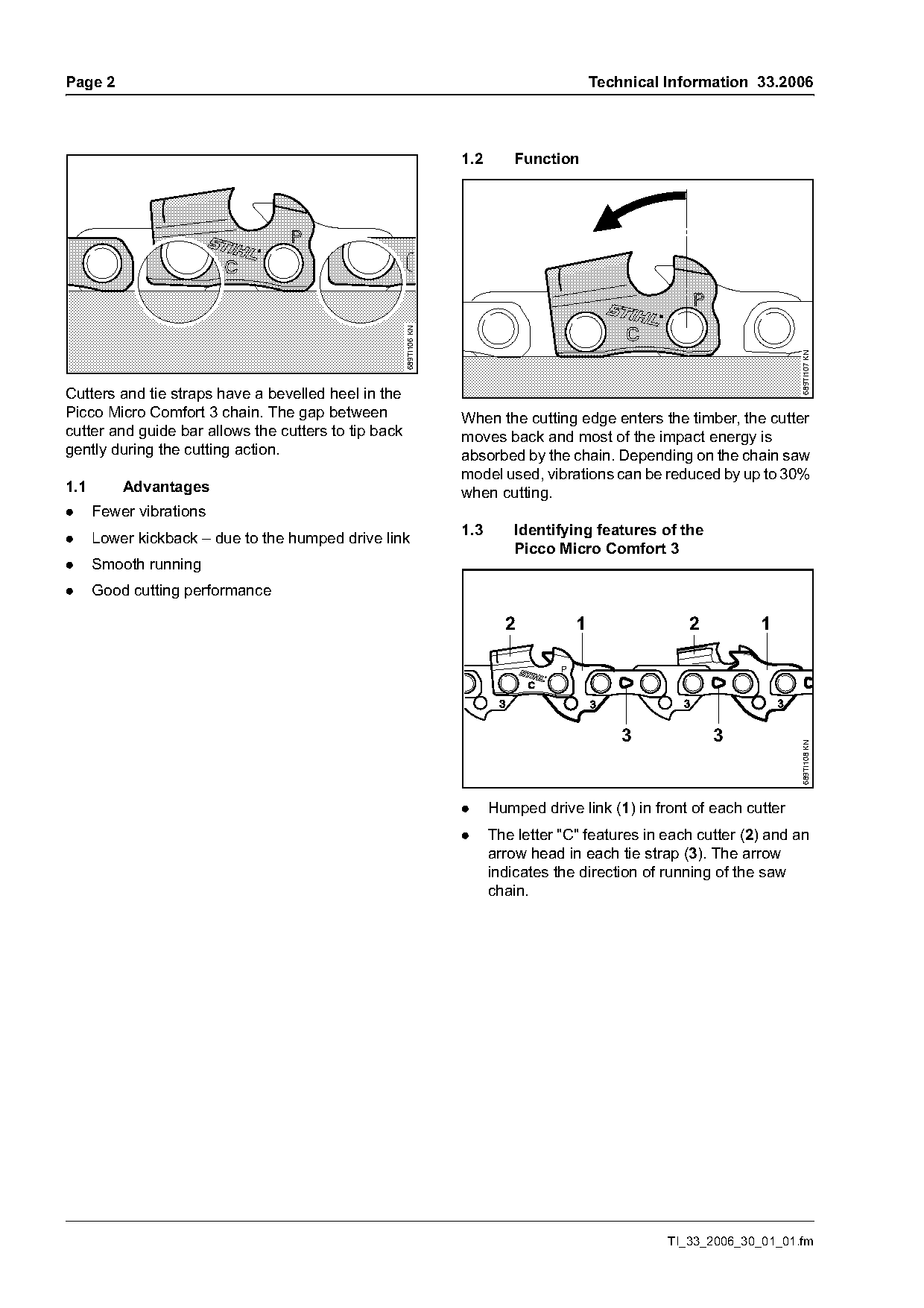

Page 2 Technical Information 33.2006
1.2 Function
689TI106 KN
689TI107 KN
Cutters and tie straps have a bevelled heel in the
Picco Micro Comfort 3 chain. The gap between When the cutting edge enters the timber, the cutter
cutter and guide bar allows the cutters to tip back moves back and most of the impact energy is
gently during the cutting action. absorbed by the chain. Depending on the chain saw
model used, vibrations can be reduced by up to 30%
1.1 Advantages when cutting.
. Fewer vibrations
1.3 Identifying features of the
. Lower kickback – due to the humped drive link
Picco Micro Comfort 3
. Smooth running
. Good cutting performance
2 1 2 1
3 3
689TI108 KN
. Humped drive link (1) in front of each cutter
. The letter "C" features in each cutter (2) and an
arrow head in each tie strap (3). The arrow
indicates the direction of running of the saw
chain.
TI_33_2006_30_01_01.fm Page 3 of 4
Text of page 3 — search, copy, screen readers

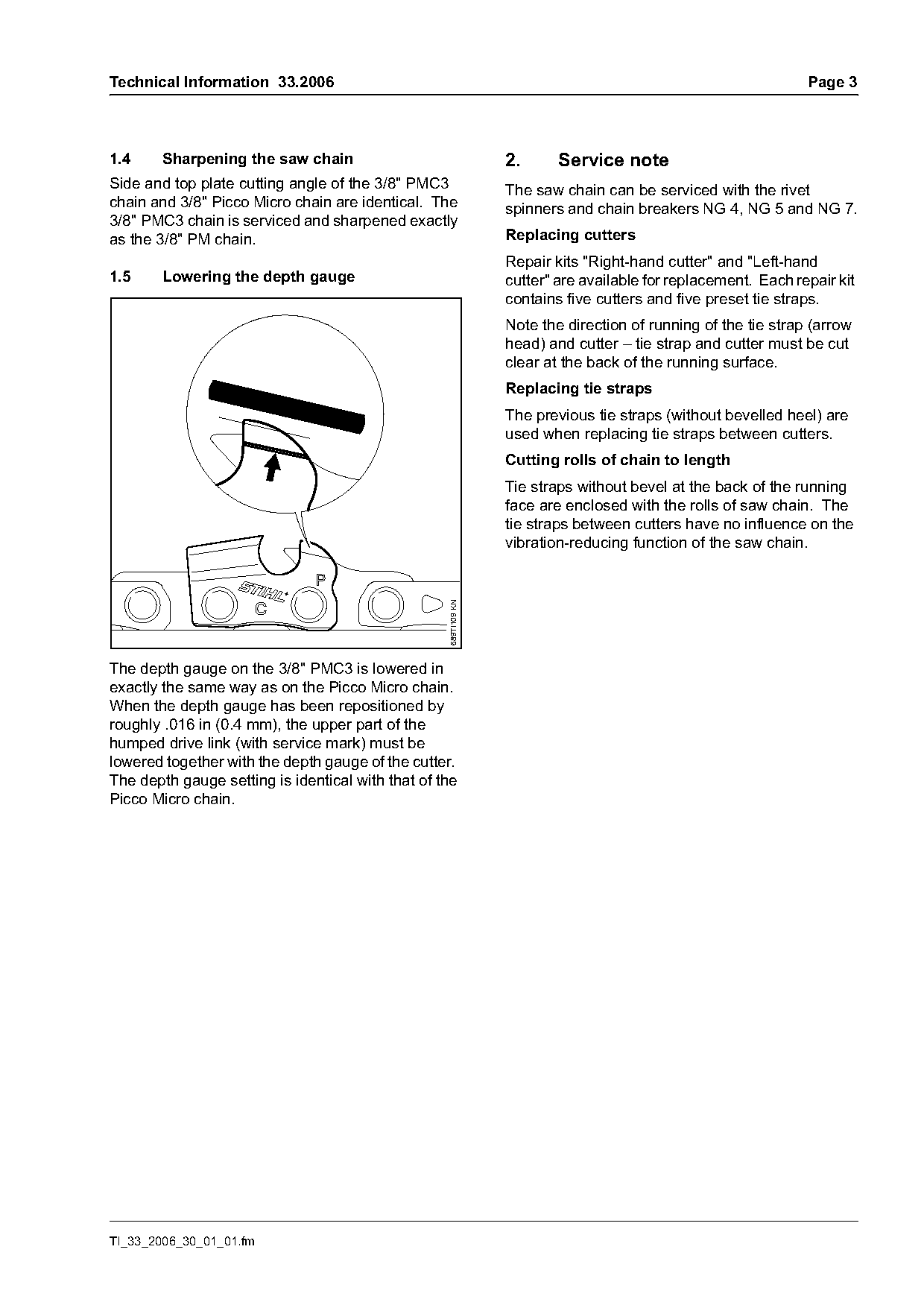

Technical Information 33.2006 Page 3
1.4 Sharpening the saw chain 2. Service note
Side and top plate cutting angle of the 3/8" PMC3 The saw chain can be serviced with the rivet
chain and 3/8" Picco Micro chain are identical. The spinners and chain breakers NG 4, NG 5 and NG 7.
3/8" PMC3 chain is serviced and sharpened exactly
as the 3/8" PM chain. Replacing cutters
Repair kits "Right-hand cutter" and "Left-hand
1.5 Lowering the depth gauge cutter" are available for replacement. Each repair kit
contains five cutters and five preset tie straps.
Note the direction of running of the tie strap (arrow
head) and cutter – tie strap and cutter must be cut
clear at the back of the running surface.
Replacing tie straps
The previous tie straps (without bevelled heel) are
used when replacing tie straps between cutters.
Cutting rolls of chain to length
Tie straps without bevel at the back of the running
face are enclosed with the rolls of saw chain. The
tie straps between cutters have no influence on the
vibration-reducing function of the saw chain.
689TI109 KN
The depth gauge on the 3/8" PMC3 is lowered in
exactly the same way as on the Picco Micro chain.
When the depth gauge has been repositioned by
roughly .016 in (0.4 mm), the upper part of the
humped drive link (with service mark) must be
lowered together with the depth gauge of the cutter.
The depth gauge setting is identical with that of the
Picco Micro chain.
TI_33_2006_30_01_01.fm Page 4 of 4
Text of page 4 — search, copy, screen readers

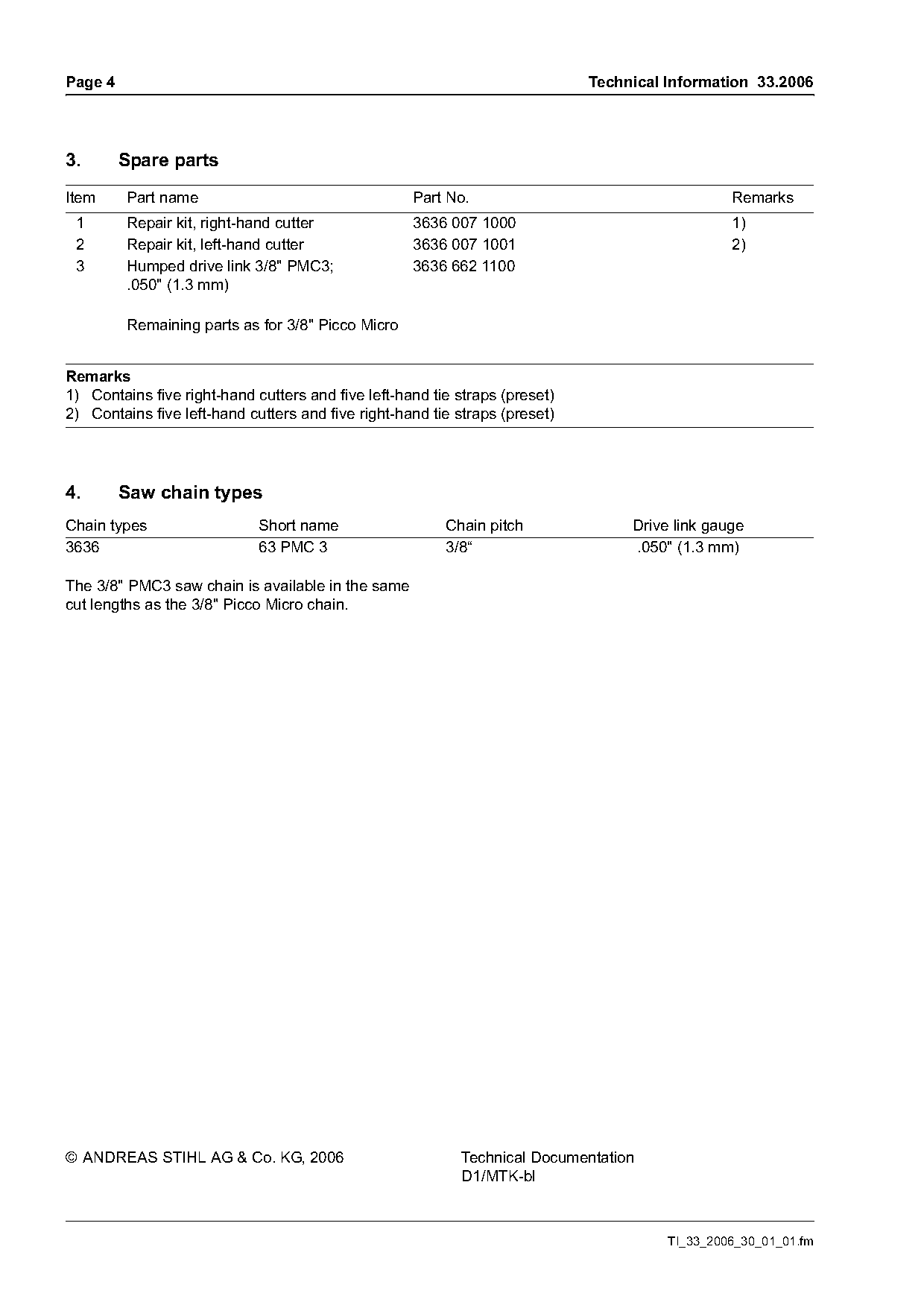

Page 4 Technical Information 33.2006
3. Spare parts
Item Part name Part No. Remarks
1 Repair kit, right-hand cutter 3636 007 1000 1)
2 Repair kit, left-hand cutter 3636 007 1001 2)
3 Humped drive link 3/8" PMC3; 3636 662 1100
.050" (1.3 mm)
Remaining parts as for 3/8" Picco Micro
Remarks
1) Contains five right-hand cutters and five left-hand tie straps (preset)
2) Contains five left-hand cutters and five right-hand tie straps (preset)
4. Saw chain types
Chain types Short name Chain pitch Drive link gauge
3636 63 PMC 3 3/8“ .050" (1.3 mm)
The 3/8" PMC3 saw chain is available in the same
cut lengths as the 3/8" Picco Micro chain.
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
