Control handles; Description of changes; Control handles for machines; with two-handed handle bar; Control handle for hedge trimmers; Summary
Model TI No.
IssueTI 37/2006
Full text
Page 1 of 5
STIH)
Technical Information 37.2006

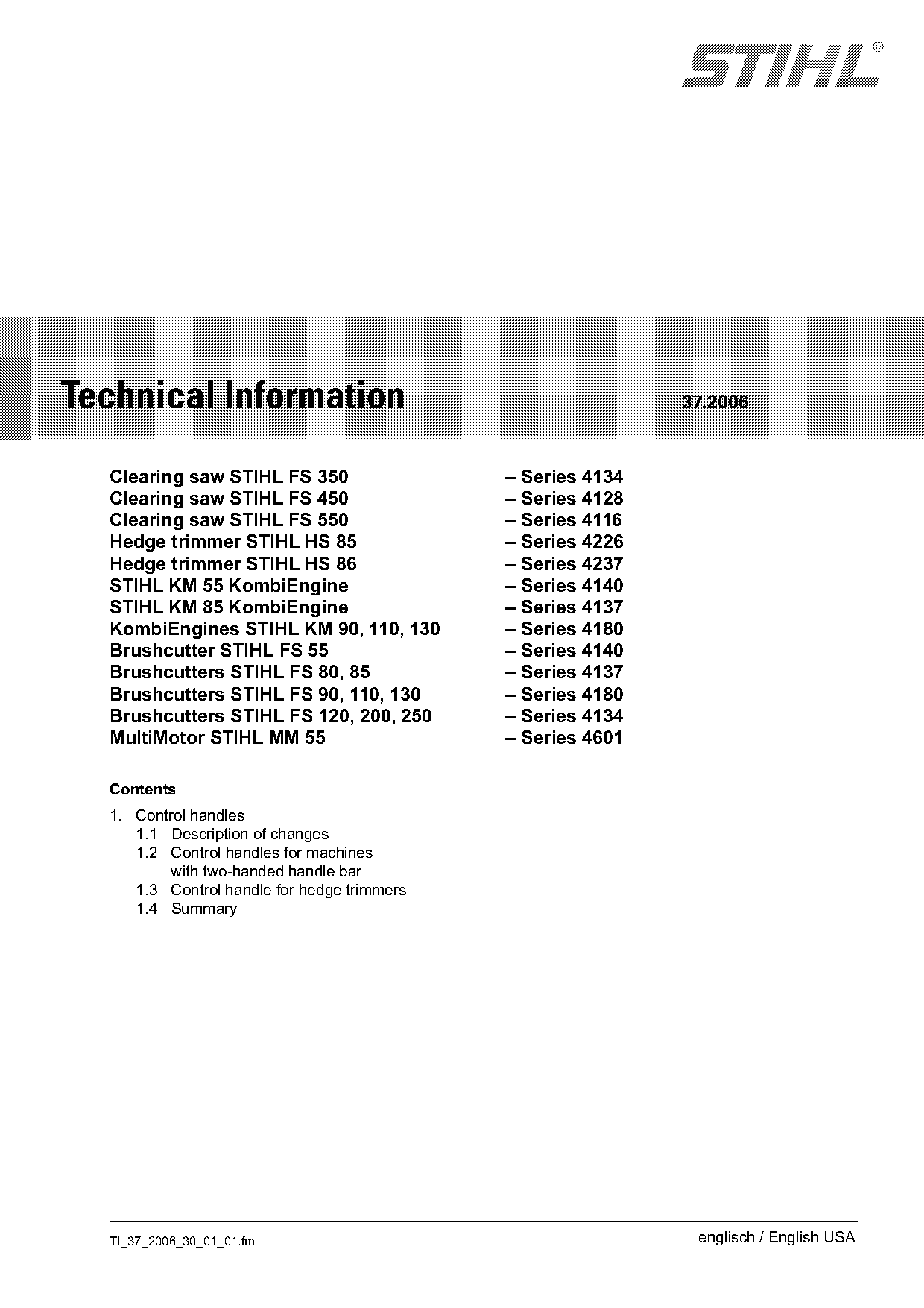

Clearing saw STIHL FS 350 – Series 4134
Clearing saw STIHL FS 450 – Series 4128
Clearing saw STIHL FS 550 – Series 4116
Hedge trimmer STIHL HS 85 – Series 4226
Hedge trimmer STIHL HS 86 – Series 4237
STIHL KM 55 KombiEngine – Series 4140
STIHL KM 85 KombiEngine – Series 4137
KombiEngines STIHL KM 90, 110, 130 – Series 4180
Brushcutter STIHL FS 55 – Series 4140
Brushcutters STIHL FS 80, 85 – Series 4137
Brushcutters STIHL FS 90, 110, 130 – Series 4180
Brushcutters STIHL FS 120, 200, 250 – Series 4134
MultiMotor STIHL MM 55 – Series 4601
Contents
1. Control handles
1.1 Description of changes
1.2 Control handles for machines
with two-handed handle bar
1.3 Control handle for hedge trimmers
1.4 Summary
TI_37_2006_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 37.2006
1. Control handles

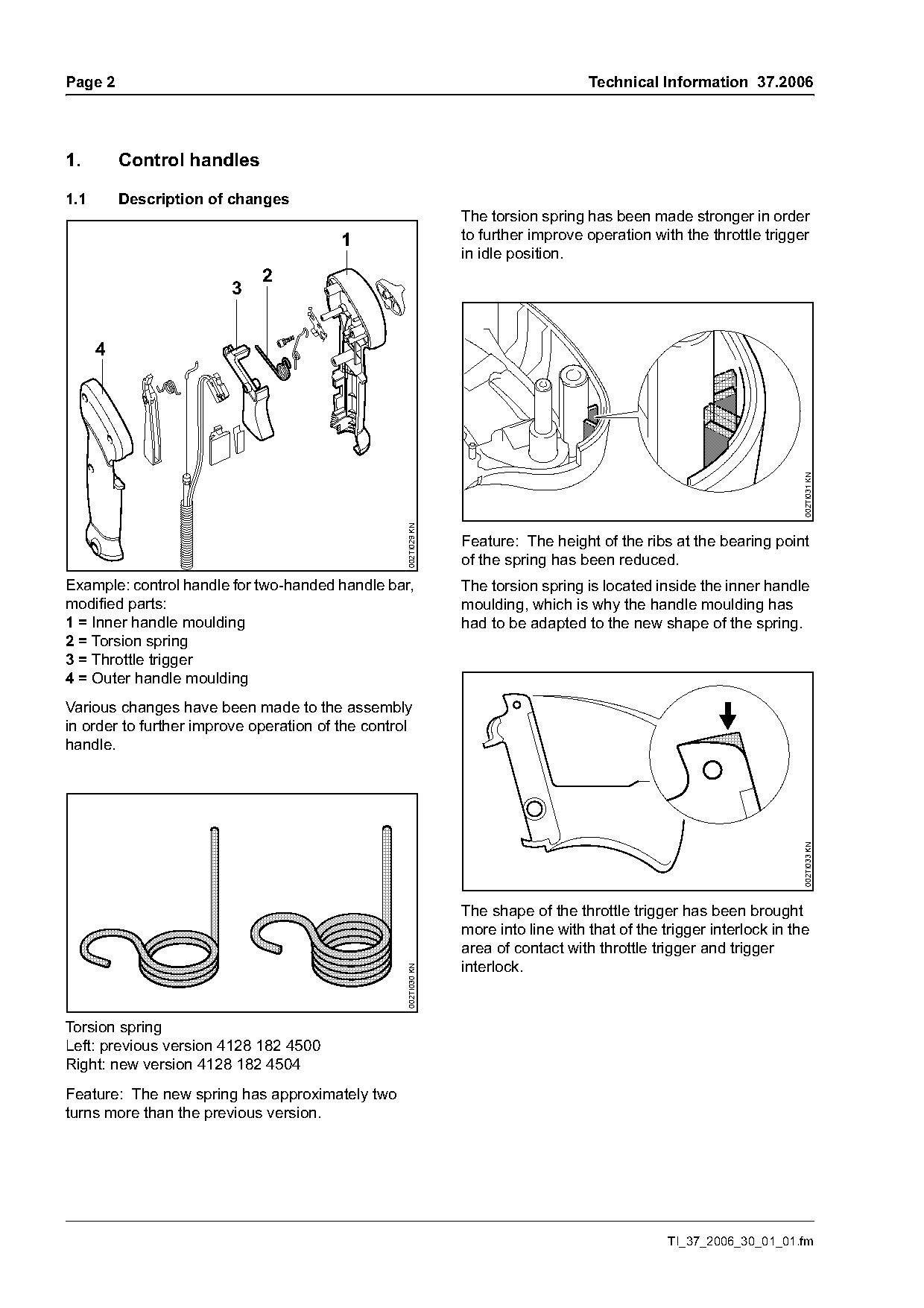

1.1 Description of changes
The torsion spring has been made stronger in order
1 to further improve operation with the throttle trigger
in idle position.
2
3
002TI031 KN
002TI029 KN
Feature: The height of the ribs at the bearing point
of the spring has been reduced.
Example: control handle for two-handed handle bar, The torsion spring is located inside the inner handle
modified parts: moulding, which is why the handle moulding has
1 = Inner handle moulding had to be adapted to the new shape of the spring.
2 = Torsion spring
3 = Throttle trigger
4 = Outer handle moulding
Various changes have been made to the assembly
in order to further improve operation of the control
handle.
002TI033 KN
The shape of the throttle trigger has been brought
more into line with that of the trigger interlock in the
area of contact with throttle trigger and trigger
interlock.
002TI030 KN
Torsion spring
Left: previous version 4128 182 4500
Right: new version 4128 182 4504
Feature: The new spring has approximately two
turns more than the previous version.
TI_37_2006_30_01_01.fm Page 2 of 5
Technical Information 37.2006 Page 3

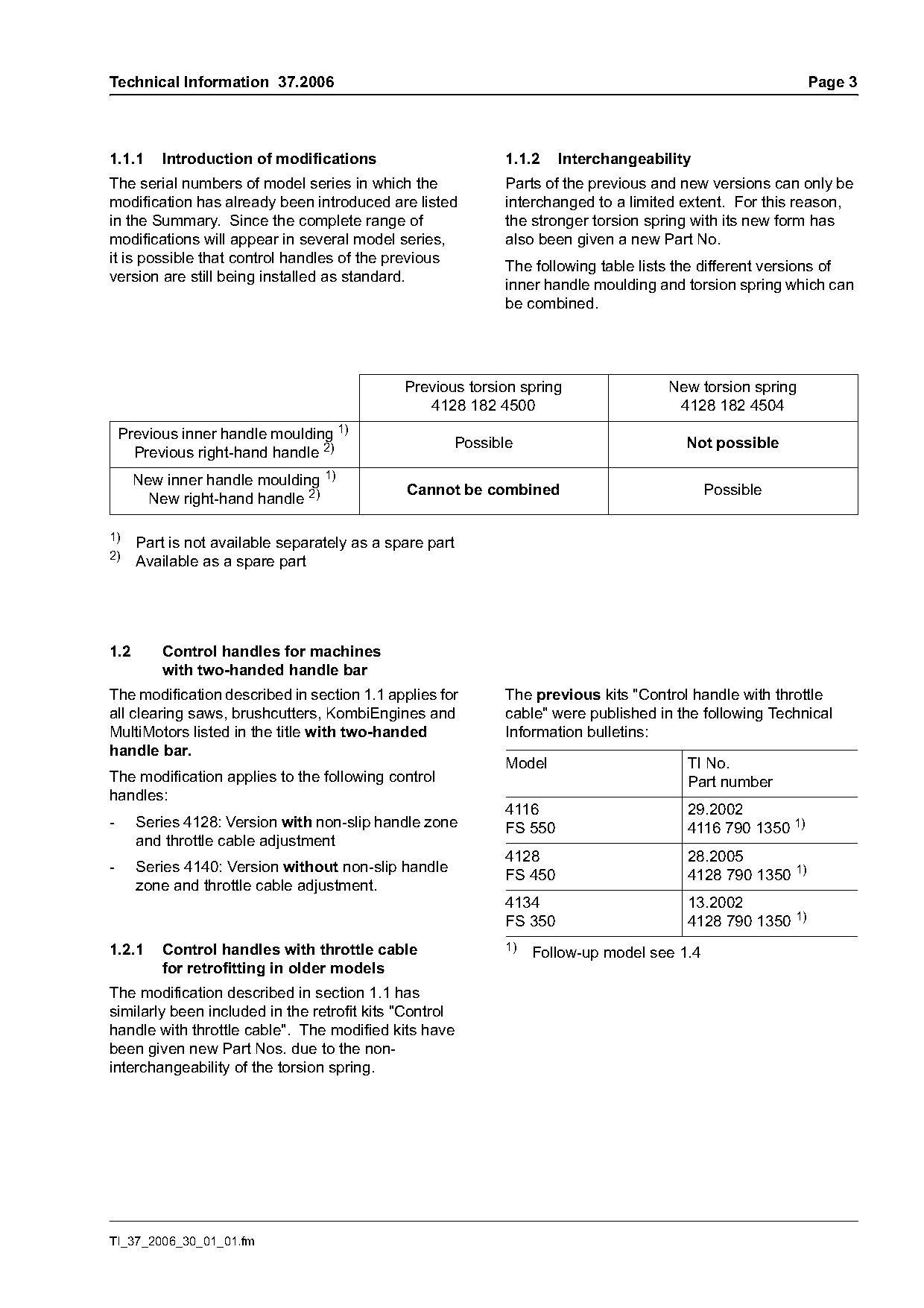

1.1.1 Introduction of modifications 1.1.2 Interchangeability
The serial numbers of model series in which the Parts of the previous and new versions can only be
modification has already been introduced are listed interchanged to a limited extent. For this reason,
in the Summary. Since the complete range of the stronger torsion spring with its new form has
modifications will appear in several model series, also been given a new Part No.
it is possible that control handles of the previous The following table lists the different versions of
version are still being installed as standard. inner handle moulding and torsion spring which can
be combined.
Previous torsion spring New torsion spring
4128 182 4500 4128 182 4504
Previous inner handle moulding 1)
Possible Not possible
Previous right-hand handle 2)
New inner handle moulding 1)
Cannot be combined Possible
New right-hand handle 2)
1)
Part is not available separately as a spare part
2)
Available as a spare part
1.2 Control handles for machines
with two-handed handle bar
The modification described in section 1.1 applies for The previous kits "Control handle with throttle
all clearing saws, brushcutters, KombiEngines and cable" were published in the following Technical
MultiMotors listed in the title with two-handed Information bulletins:
handle bar.
Model TI No.
The modification applies to the following control Part number
handles:
4116 29.2002
- Series 4128: Version with non-slip handle zone FS 550 4116 790 1350 1)
and throttle cable adjustment
4128 28.2005
- Series 4140: Version without non-slip handle
FS 450 4128 790 1350 1)
zone and throttle cable adjustment.
4134 13.2002
FS 350 4128 790 1350 1)
1.2.1 Control handles with throttle cable 1) Follow-up model see 1.4
for retrofitting in older models
The modification described in section 1.1 has
similarly been included in the retrofit kits "Control
handle with throttle cable". The modified kits have
been given new Part Nos. due to the non-
interchangeability of the torsion spring.
TI_37_2006_30_01_01.fm
)m~ge 4 Technical Information 37.2006
1.3 Control handle for hedge trimmers
The modification described in section 1.1 applies for
the hedge trimmer models HS 85 and HS 86 listed
in the title (only versions with single-sided blade).
The control handle is of series 4140 and is also used
on brushcutters and clearing saws (see sections 1.2
and 1.4).

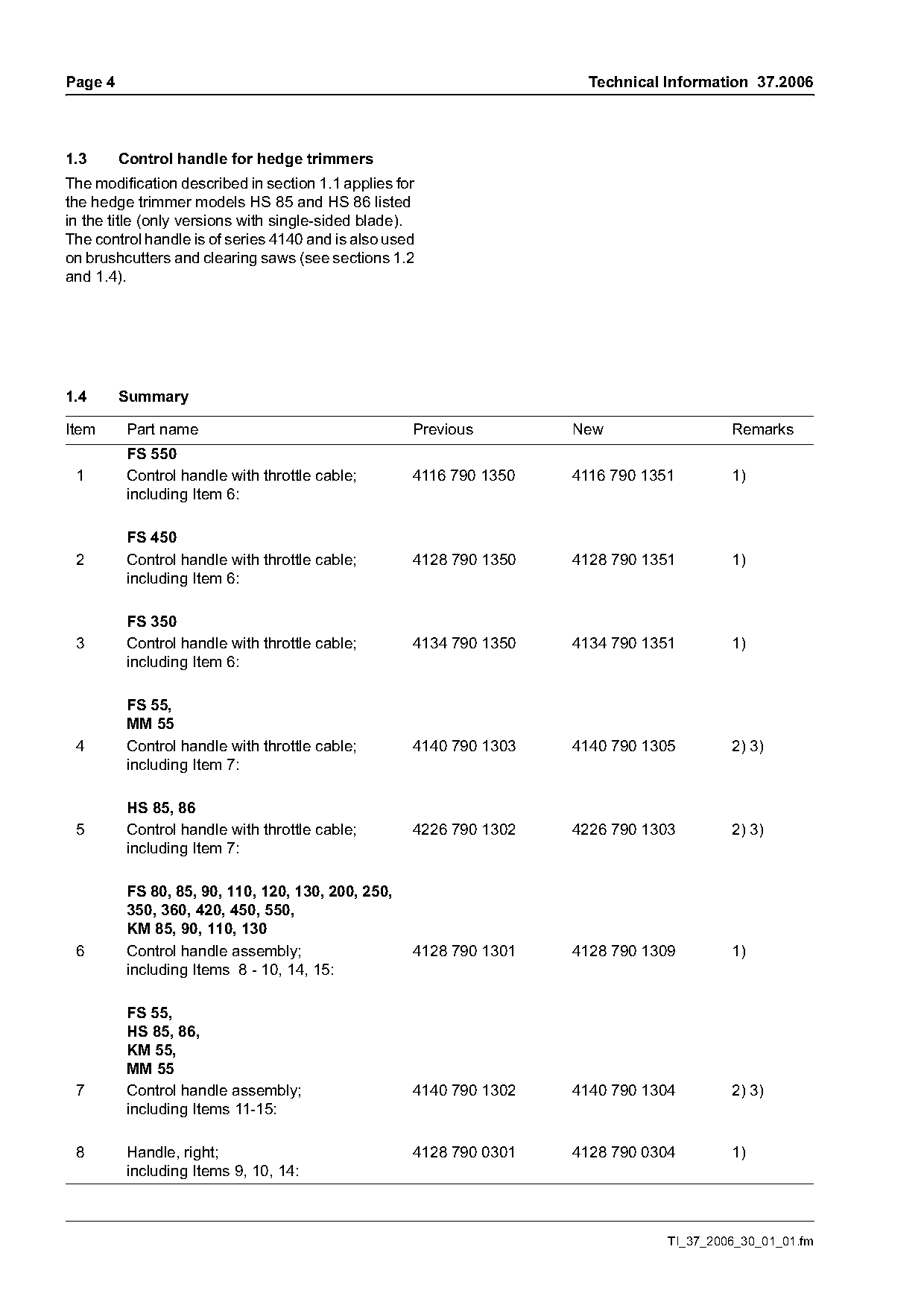

1.4 Summary
Item Part name Previous New Remarks
FS 550
1 Control handle with throttle cable; 4116 790 1350 4116 790 1351 1)
including Item 6:
FS 450
2 Control handle with throttle cable; 4128 790 1350 4128 790 1351 1)
including Item 6:
FS 350
3 Control handle with throttle cable; 4134 790 1350 4134 790 1351 1)
including Item 6:
FS 55,
MM 55
4 Control handle with throttle cable; 4140 790 1303 4140 790 1305 2) 3)
including Item 7:
HS 85, 86
5 Control handle with throttle cable; 4226 790 1302 4226 790 1303 2) 3)
including Item 7:
FS 80, 85, 90, 110, 120, 130, 200, 250,
350, 360, 420, 450, 550,
KM 85, 90, 110, 130
6 Control handle assembly; 4128 790 1301 4128 790 1309 1)
including Items 8 - 10, 14, 15:
FS 55,
HS 85, 86,
KM 55,
MM 55
7 Control handle assembly; 4140 790 1302 4140 790 1304 2) 3)
including Items 11-15:
8 Handle, right; 4128 790 0301 4128 790 0304 1)
including Items 9, 10, 14:
TI_37_2006_30_01_01.fm Page 3 of 5
Technical Information 37.2006 Page 5

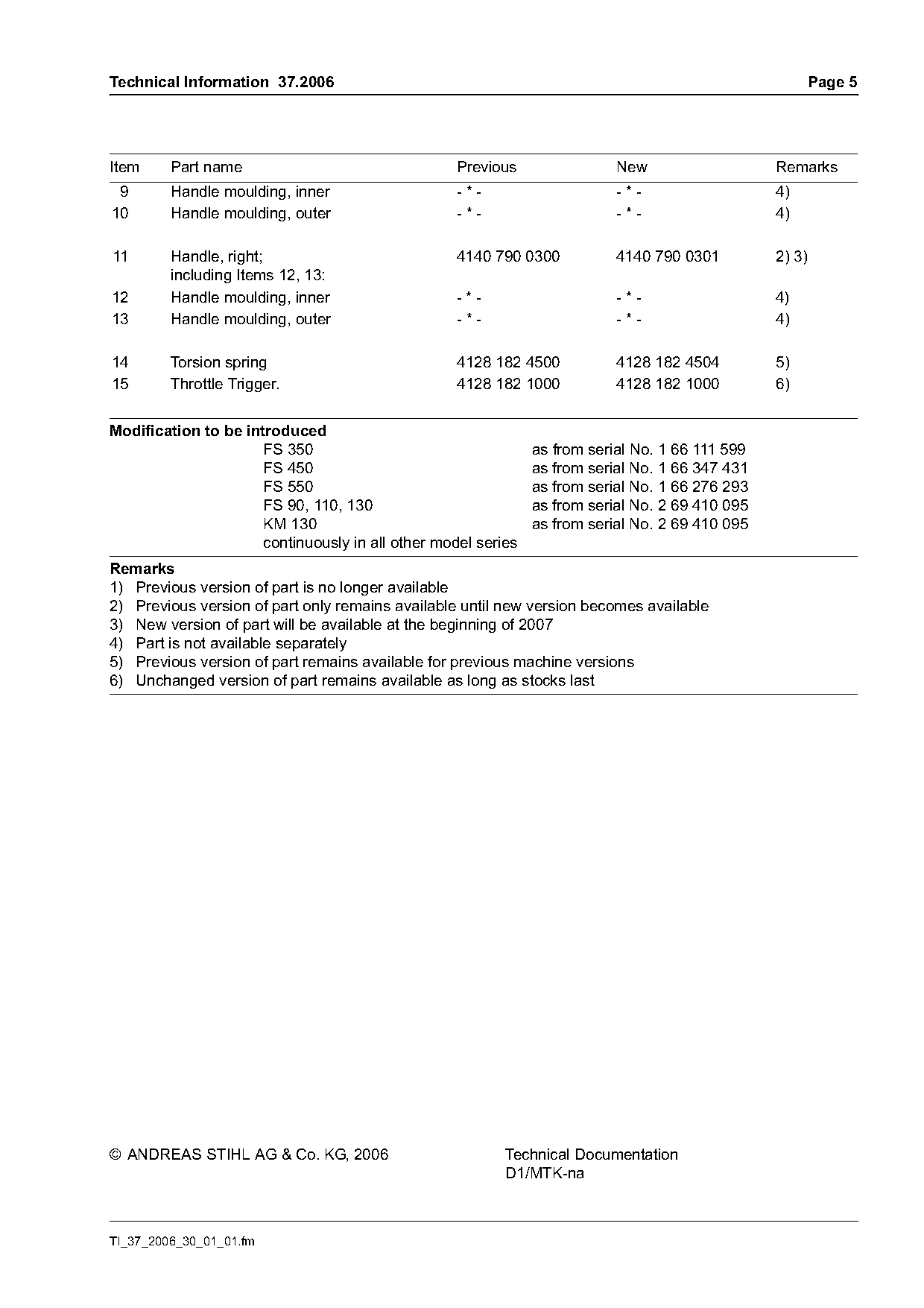

Item Part name Previous New Remarks
9 Handle moulding, inner -*- -*- 4)
10 Handle moulding, outer -*- -*- 4)
11 Handle, right; 4140 790 0300 4140 790 0301 2) 3)
including Items 12, 13:
12 Handle moulding, inner -*- -*- 4)
13 Handle moulding, outer -*- -*- 4)
14 Torsion spring 4128 182 4500 4128 182 4504 5)
15 Throttle Trigger. 4128 182 1000 4128 182 1000 6)
Modification to be introduced
FS 350 as from serial No. 1 66 111 599
FS 450 as from serial No. 1 66 347 431
FS 550 as from serial No. 1 66 276 293
FS 90, 110, 130 as from serial No. 2 69 410 095
KM 130 as from serial No. 2 69 410 095
continuously in all other model series
Remarks
1) Previous version of part is no longer available
2) Previous version of part only remains available until new version becomes available
3) New version of part will be available at the beginning of 2007
4) Part is not available separately
5) Previous version of part remains available for previous machine versions
6) Unchanged version of part remains available as long as stocks last
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-na
TI_37_2006_30_01_01.fm Page 4 of 5
Page 5 of 5
