Technical Information · issue 39 of 2006
Chain quick tensioning; Cover; Tank housing, rubber buffer; Set wrap-around handlebar (Special accessory for MS 361); Summary
Model series MS 361 now also includes a version
IssueTI 39/2006
Engine family 1135
Part changes (4)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1135 350 0804 | 1135 350 0814 | 1 Tank housing for MS 361 The previous tank housing 1135 350 0804 is replaced by the version 1135 350 0814. |
| 1135 350 0805 | 1135 350 0815 | 213TI037 KN (with dual brake system) The previous tank housing 1135 350 0805 is The tensioning gear (1) with stud bolt and replaced by the version 1135 350 0815. |
| 1135 021 1101 | 1135 021 1103 | Spare parts / Service note The previous cover 1135 021 1101 is replaced by the version 1135 021 1103 with guide strip. |
| 1135 790 9900 | 1135 007 1007 | Wrap-around handlebar kit At the same time, the previous rubber buffer (Special accessory for MS 361) 1135 790 9900 with stop will be replaced by the A wrap-around handlebar kit 1135 007 1007 is version 1135 790 9902. |
Full text
Page 1 of 6
STIH)

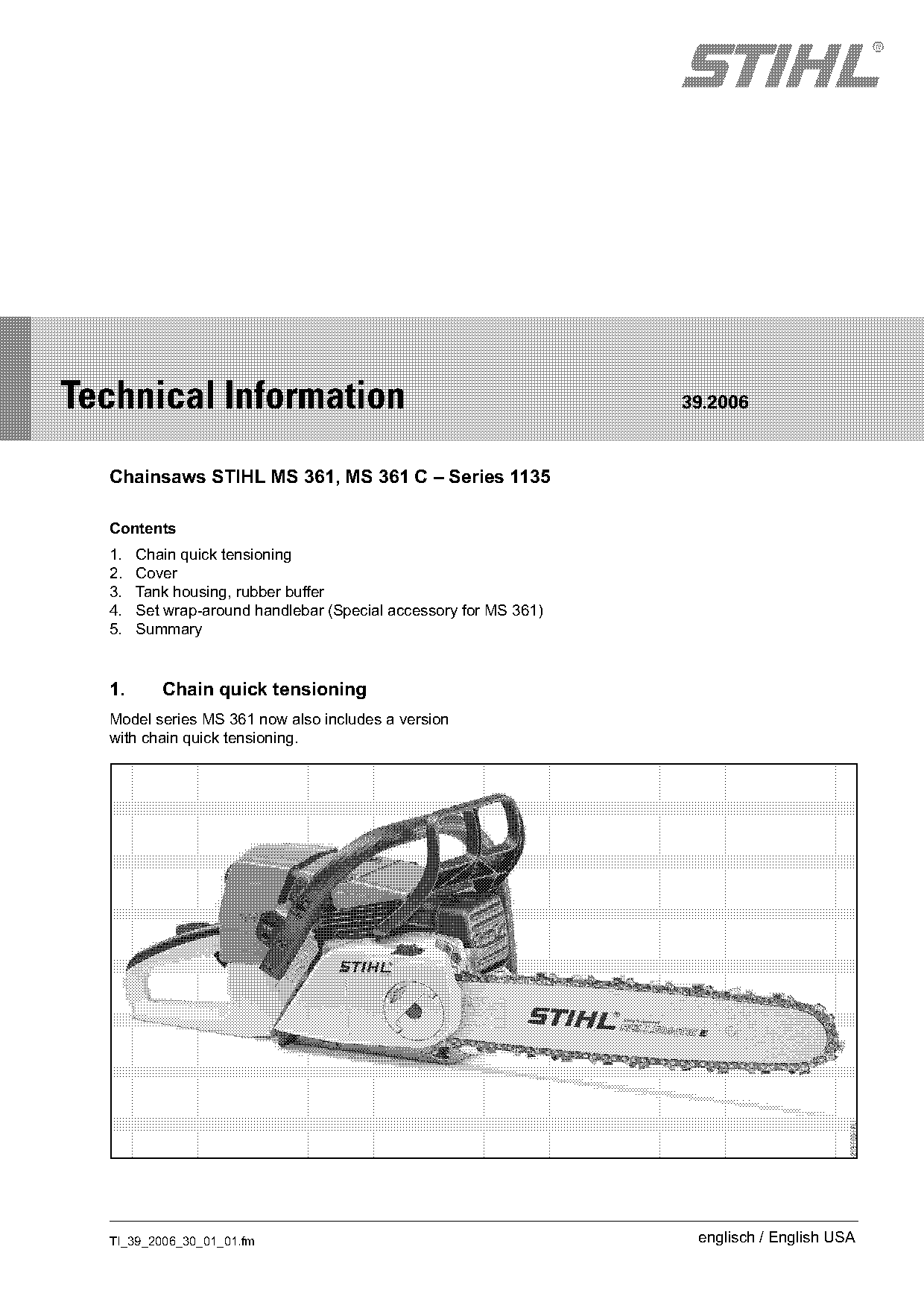

Technical Information 39.2006
Chainsaws STIHL MS 361, MS 361 C – Series 1135
Contents
1. Chain quick tensioning
2. Cover
3. Tank housing, rubber buffer
4. Set wrap-around handlebar (Special accessory for MS 361)
5. Summary
1. Chain quick tensioning
Model series MS 361 now also includes a version
with chain quick tensioning.
TI_39_2006_30_01_01.fm englisch / English USA

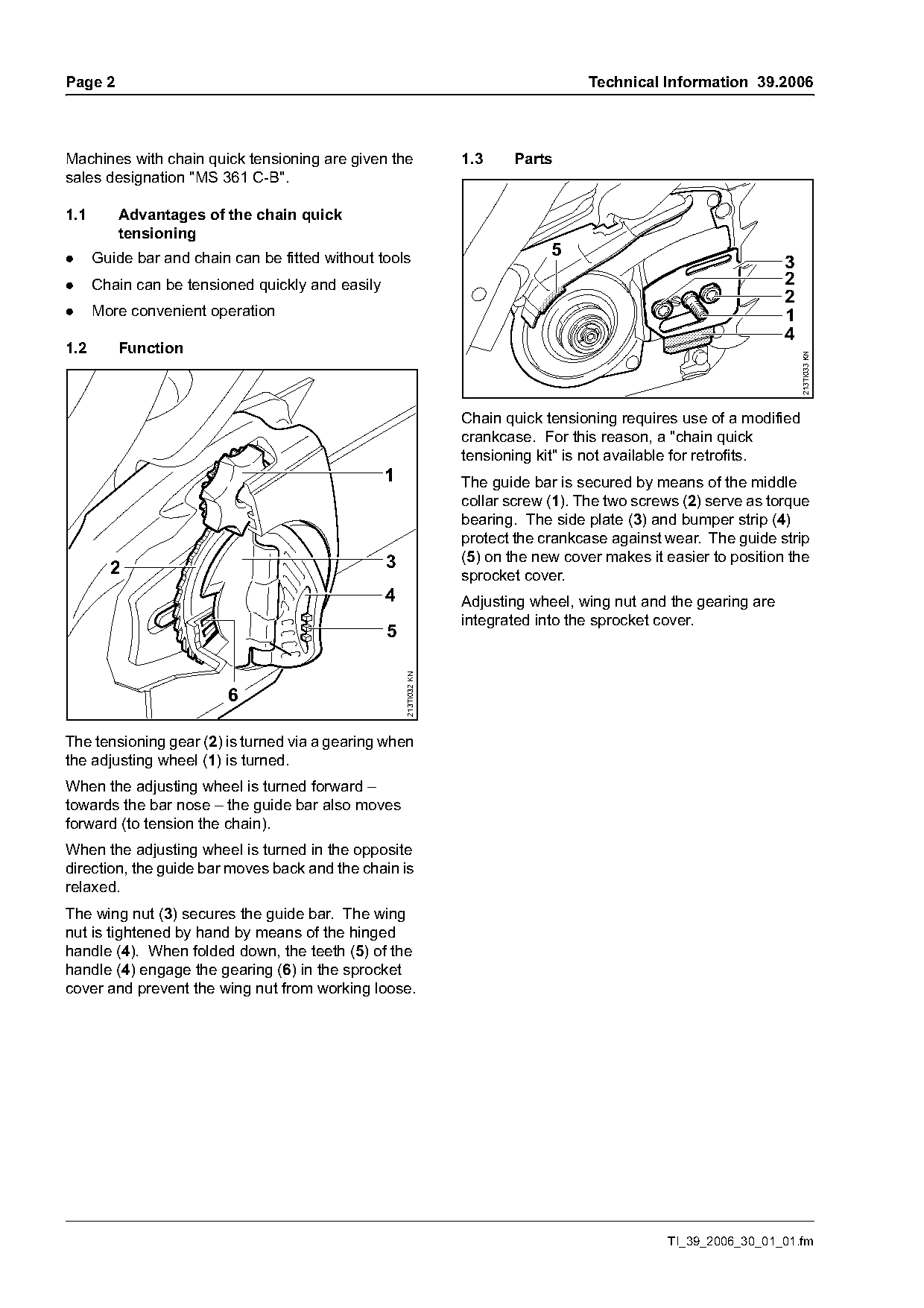

)m~ge 2 Technical Information 39.2006
Machines with chain quick tensioning are given the 1.3 Parts
sales designation "MS 361 C-B".
1.1 Advantages of the chain quick
tensioning
. Guide bar and chain can be fitted without tools 5
3
. Chain can be tensioned quickly and easily 2
2
. More convenient operation 1
4
1.2 Function
213TI033 KN
Chain quick tensioning requires use of a modified
crankcase. For this reason, a "chain quick
tensioning kit" is not available for retrofits.
1 The guide bar is secured by means of the middle
collar screw (1). The two screws (2) serve as torque
bearing. The side plate (3) and bumper strip (4)
protect the crankcase against wear. The guide strip
3 (5) on the new cover makes it easier to position the
2 sprocket cover.
4 Adjusting wheel, wing nut and the gearing are
integrated into the sprocket cover.
5
213TI032 KN
The tensioning gear (2) is turned via a gearing when
the adjusting wheel (1) is turned.
When the adjusting wheel is turned forward –
towards the bar nose – the guide bar also moves
forward (to tension the chain).
When the adjusting wheel is turned in the opposite
direction, the guide bar moves back and the chain is
relaxed.
The wing nut (3) secures the guide bar. The wing
nut is tightened by hand by means of the hinged
handle (4). When folded down, the teeth (5) of the
handle (4) engage the gearing (6) in the sprocket
cover and prevent the wing nut from working loose.
TI_39_2006_30_01_01.fm Page 2 of 6

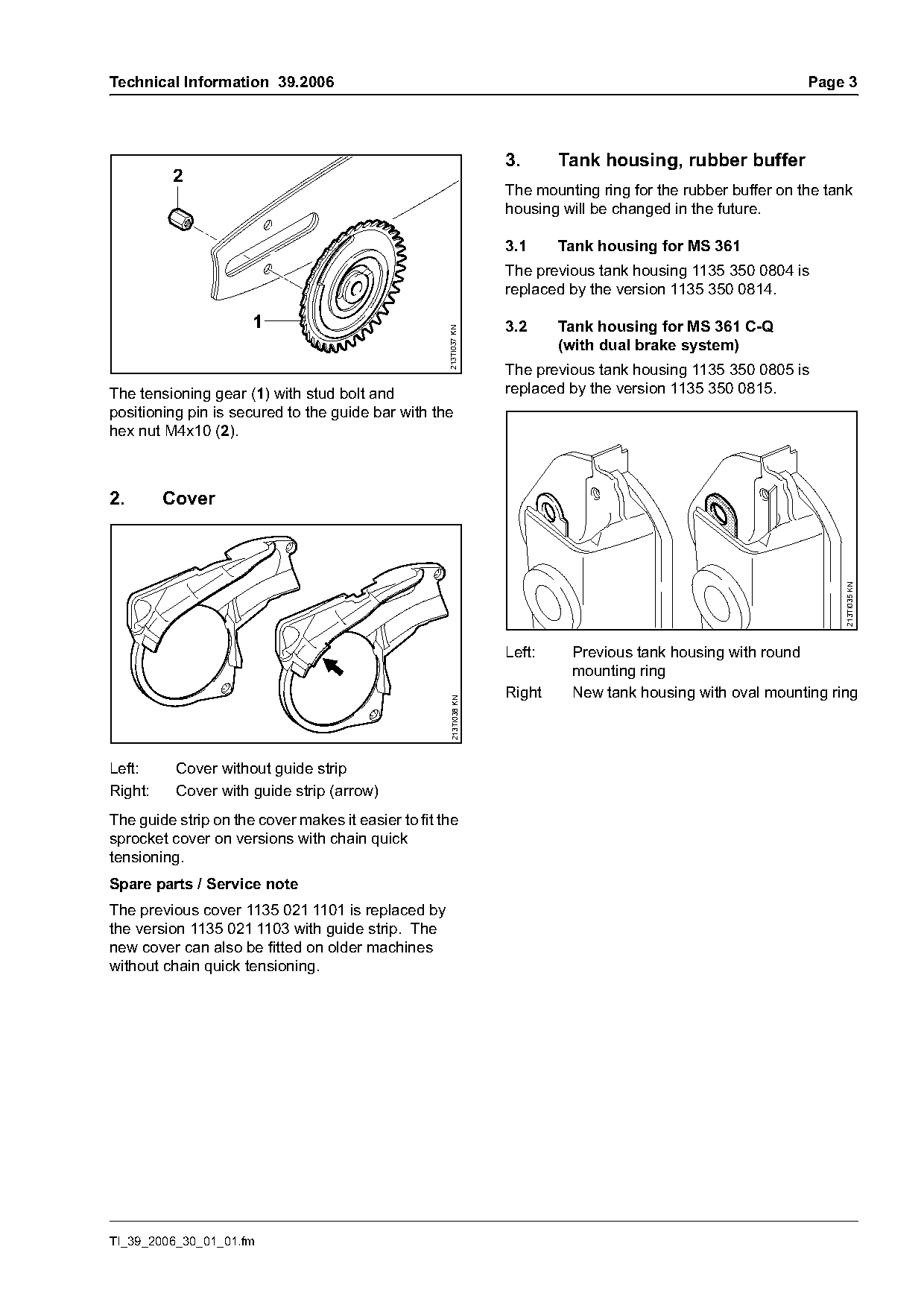

Technical Information 39.2006 Page 3
3. Tank housing, rubber buffer
2
The mounting ring for the rubber buffer on the tank
housing will be changed in the future.
3.1 Tank housing for MS 361
The previous tank housing 1135 350 0804 is
replaced by the version 1135 350 0814.
1 3.2 Tank housing for MS 361 C-Q
213TI037 KN
(with dual brake system)
The previous tank housing 1135 350 0805 is
The tensioning gear (1) with stud bolt and replaced by the version 1135 350 0815.
positioning pin is secured to the guide bar with the
hex nut M4x10 (2).
2. Cover
213TI035 KN
Left: Previous tank housing with round
mounting ring
Right New tank housing with oval mounting ring
213TI038 KN
Left: Cover without guide strip
Right: Cover with guide strip (arrow)
The guide strip on the cover makes it easier to fit the
sprocket cover on versions with chain quick
tensioning.
Spare parts / Service note
The previous cover 1135 021 1101 is replaced by
the version 1135 021 1103 with guide strip. The
new cover can also be fitted on older machines
without chain quick tensioning.
TI_39_2006_30_01_01.fm

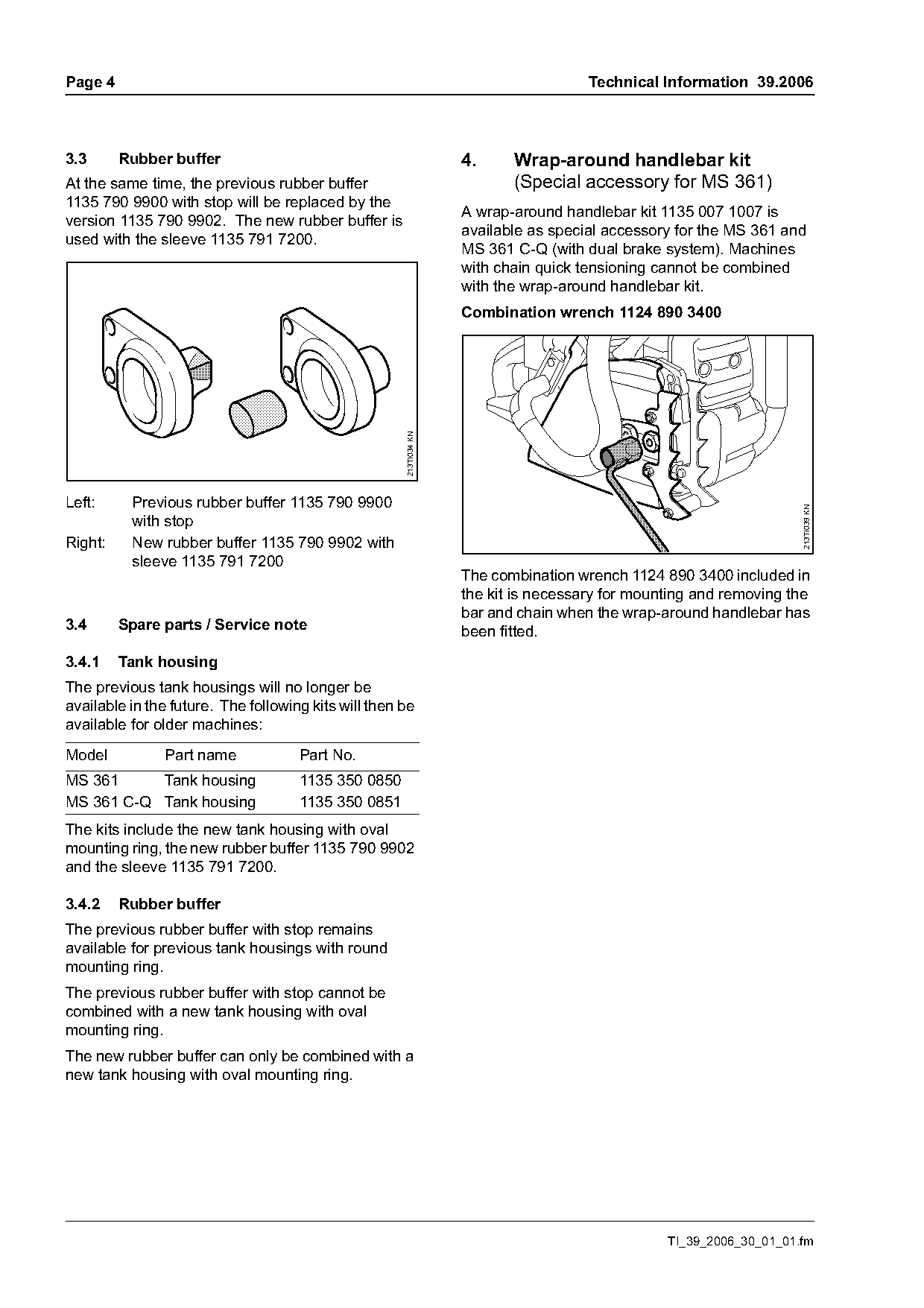

)m~ge 4 Technical Information 39.2006
3.3 Rubber buffer 4. Wrap-around handlebar kit
At the same time, the previous rubber buffer (Special accessory for MS 361)
1135 790 9900 with stop will be replaced by the
A wrap-around handlebar kit 1135 007 1007 is
version 1135 790 9902. The new rubber buffer is
available as special accessory for the MS 361 and
used with the sleeve 1135 791 7200.
MS 361 C-Q (with dual brake system). Machines
with chain quick tensioning cannot be combined
with the wrap-around handlebar kit.
Combination wrench 1124 890 3400
213TI034 KN
Left: Previous rubber buffer 1135 790 9900
213TI039 KN
with stop
Right: New rubber buffer 1135 790 9902 with
sleeve 1135 791 7200
The combination wrench 1124 890 3400 included in
the kit is necessary for mounting and removing the
bar and chain when the wrap-around handlebar has
3.4 Spare parts / Service note been fitted.
3.4.1 Tank housing
The previous tank housings will no longer be
available in the future. The following kits will then be
available for older machines:
Model Part name Part No.
MS 361 Tank housing 1135 350 0850
MS 361 C-Q Tank housing 1135 350 0851
The kits include the new tank housing with oval
mounting ring, the new rubber buffer 1135 790 9902
and the sleeve 1135 791 7200.
3.4.2 Rubber buffer
The previous rubber buffer with stop remains
available for previous tank housings with round
mounting ring.
The previous rubber buffer with stop cannot be
combined with a new tank housing with oval
mounting ring.
The new rubber buffer can only be combined with a
new tank housing with oval mounting ring.
TI_39_2006_30_01_01.fm Page 3 of 6

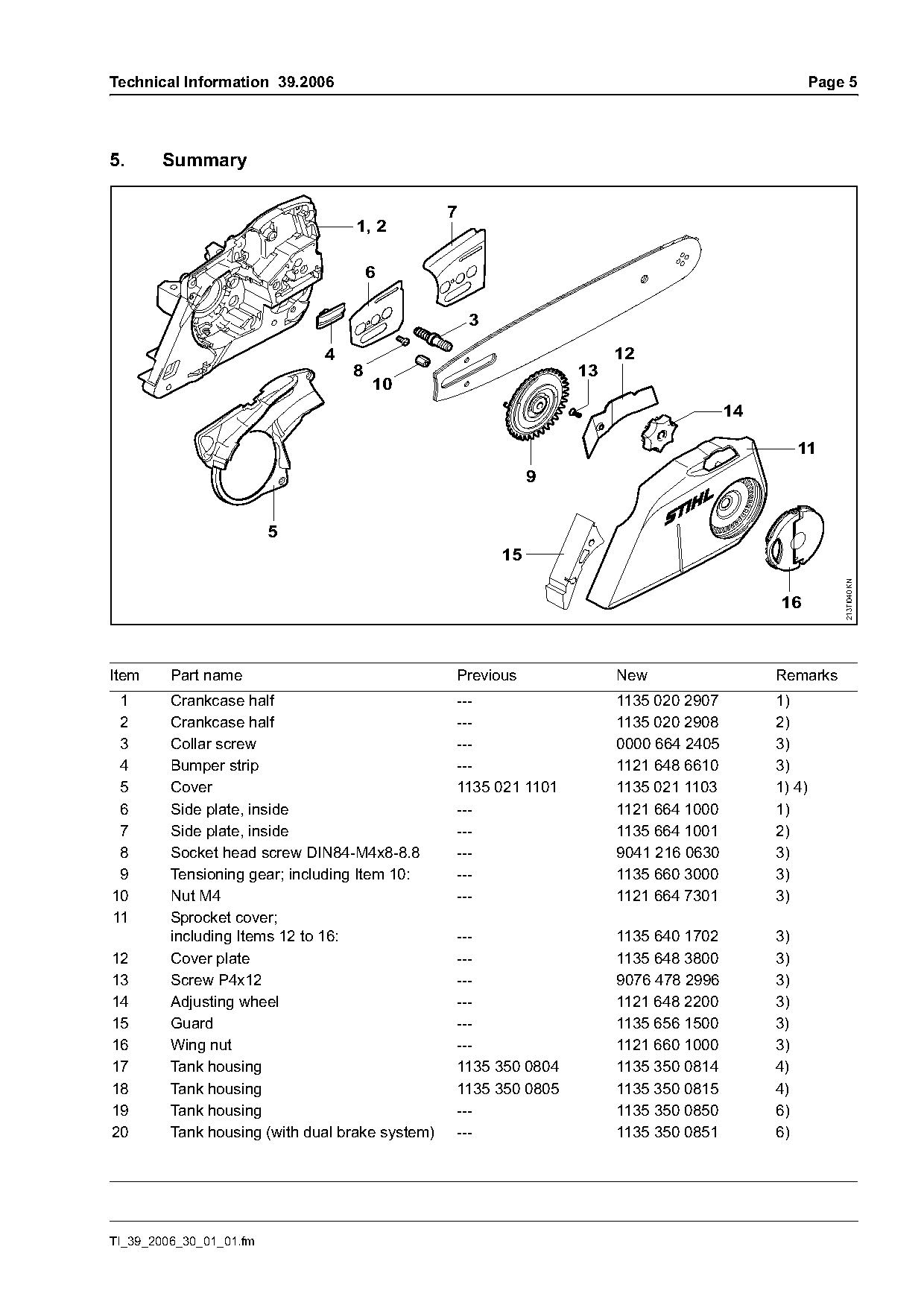

Technical Information 39.2006 Page 5
5. Summary
7
1, 2
4 12
8 13
10
14
11
9
5
15
213TI040 KN
16
Item Part name Previous New Remarks
1 Crankcase half --- 1135 020 2907 1)
2 Crankcase half --- 1135 020 2908 2)
3 Collar screw --- 0000 664 2405 3)
4 Bumper strip --- 1121 648 6610 3)
5 Cover 1135 021 1101 1135 021 1103 1) 4)
6 Side plate, inside --- 1121 664 1000 1)
7 Side plate, inside --- 1135 664 1001 2)
8 Socket head screw DIN84-M4x8-8.8 --- 9041 216 0630 3)
9 Tensioning gear; including Item 10: --- 1135 660 3000 3)
10 Nut M4 --- 1121 664 7301 3)
11 Sprocket cover;
including Items 12 to 16: --- 1135 640 1702 3)
12 Cover plate --- 1135 648 3800 3)
13 Screw P4x12 --- 9076 478 2996 3)
14 Adjusting wheel --- 1121 648 2200 3)
15 Guard --- 1135 656 1500 3)
16 Wing nut --- 1121 660 1000 3)
17 Tank housing 1135 350 0804 1135 350 0814 4)
18 Tank housing 1135 350 0805 1135 350 0815 4)
19 Tank housing --- 1135 350 0850 6)
20 Tank housing (with dual brake system) --- 1135 350 0851 6)
TI_39_2006_30_01_01.fm

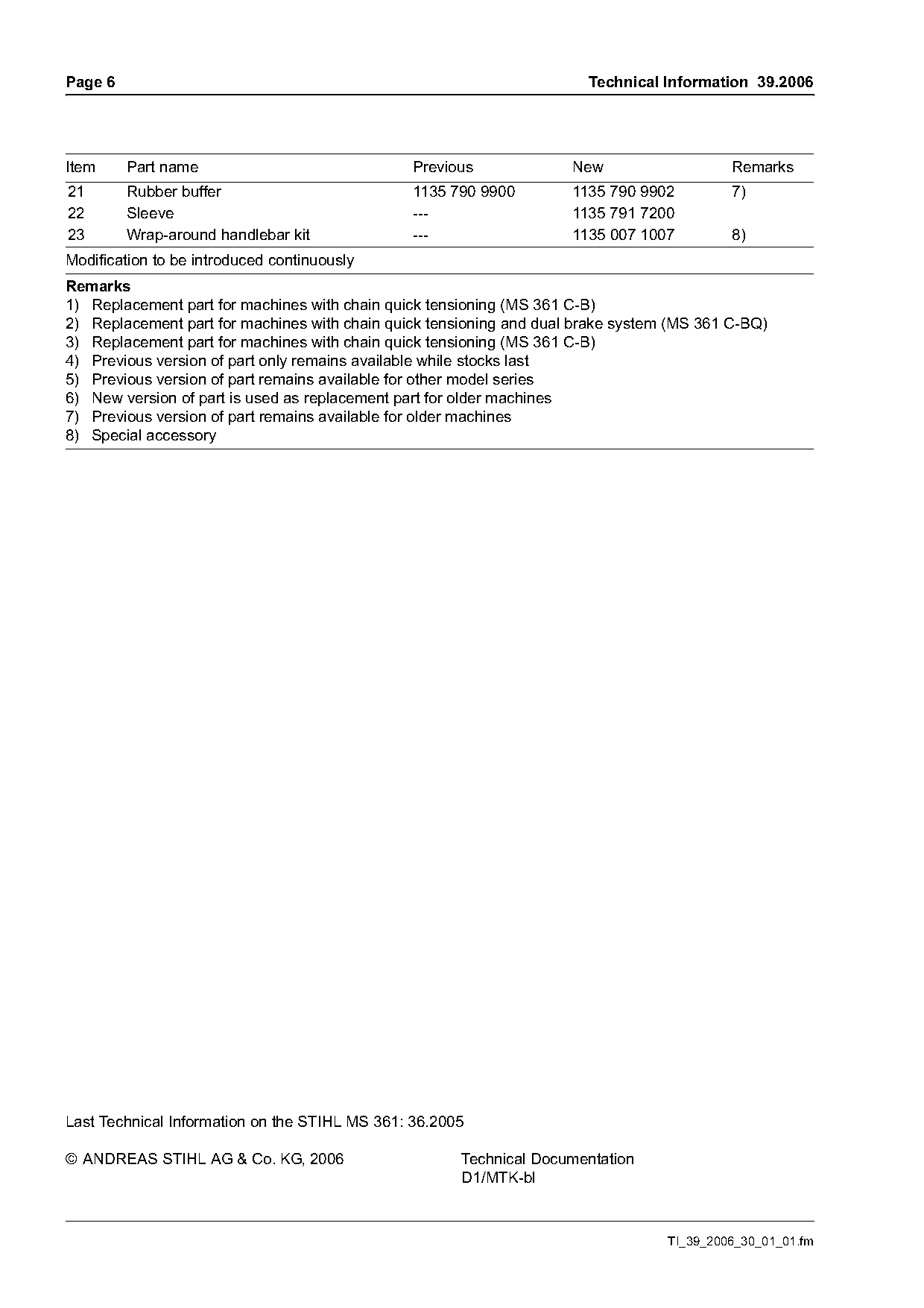

)m~ge 6 Technical Information 39.2006
Item Part name Previous New Remarks
21 Rubber buffer 1135 790 9900 1135 790 9902 7)
22 Sleeve --- 1135 791 7200
23 Wrap-around handlebar kit --- 1135 007 1007 8)
Modification to be introduced continuously
Remarks
1) Replacement part for machines with chain quick tensioning (MS 361 C-B)
2) Replacement part for machines with chain quick tensioning and dual brake system (MS 361 C-BQ)
3) Replacement part for machines with chain quick tensioning (MS 361 C-B)
4) Previous version of part only remains available while stocks last
5) Previous version of part remains available for other model series
6) New version of part is used as replacement part for older machines
7) Previous version of part remains available for older machines
8) Special accessory
Last Technical Information on the STIHL MS 361: 36.2005
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-bl
TI_39_2006_30_01_01.fm Page 4 of 6
Page 5 of 6
Page 6 of 6
