Technical Information · issue 41 of 2006
Carburetor – accelerator pump and throttle shaft; Carburetor – spare parts for 020 T, MS 200 T and MS 200; ElastoStart starter rope
IssueTI 41/2006
Engine family 1129
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1129 120 9700 | 1129 120 9701 | 1 Previous models The pump piston kit 1129 120 9700 for the previous models is now replaced by the new pump piston kit 1129 120 9701. |
| 1129 120 0651 | 1129 121 0800 | When installing the carburetor 1129 120 0651 in machines without compensator, the end cover of the new carburetor must be removed and replaced by the end cover 1129 121 0800 from the set of parts. |
Full text

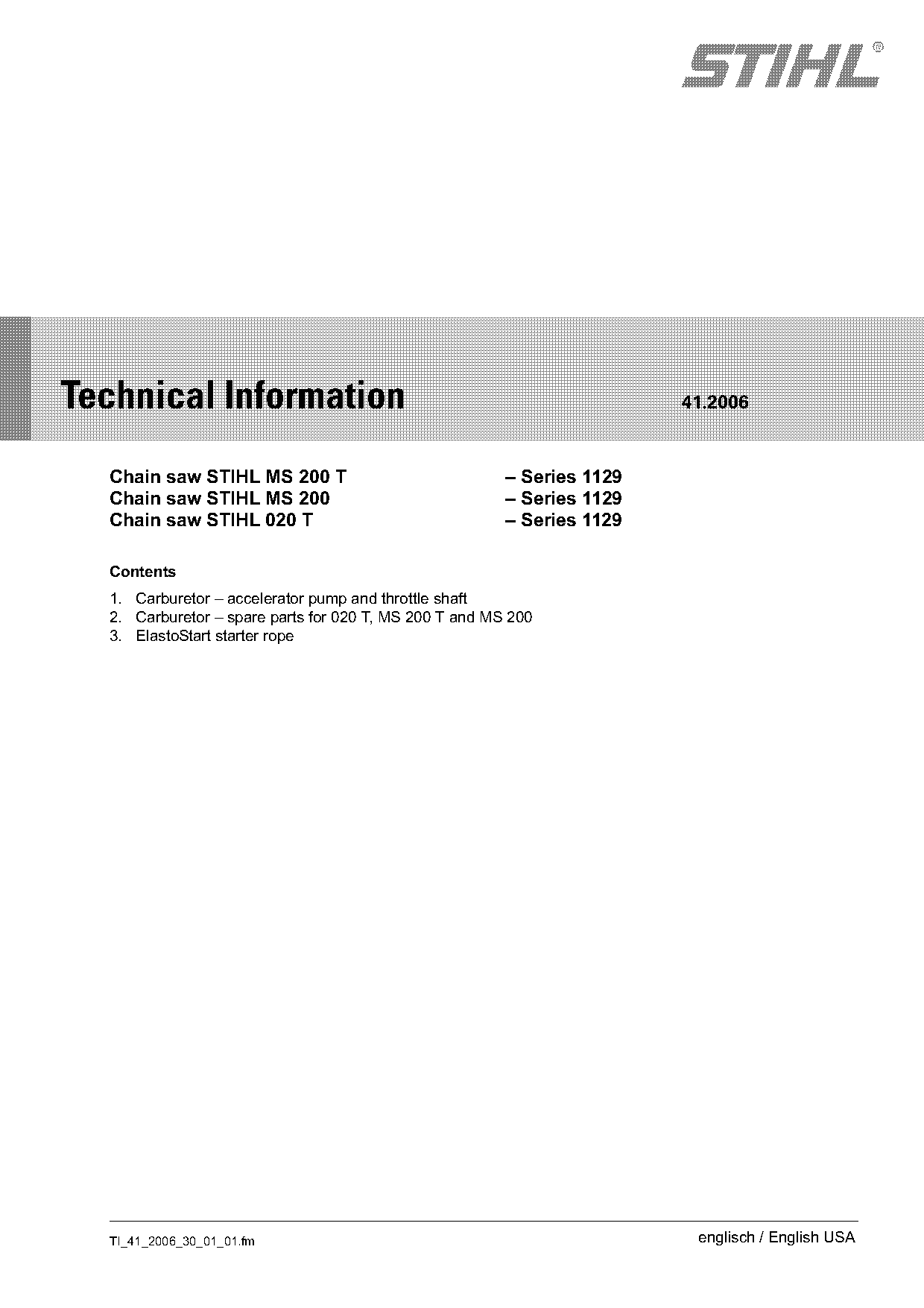

Page 1 of 4
STIH)
Technical Information 41.2006
Chain saw STIHL MS 200 T – Series 1129
Chain saw STIHL MS 200 – Series 1129
Chain saw STIHL 020 T – Series 1129
Contents
1. Carburetor – accelerator pump and throttle shaft
2. Carburetor – spare parts for 020 T, MS 200 T and MS 200
3. ElastoStart starter rope
TI_41_2006_30_01_01.fm englisch / English USA

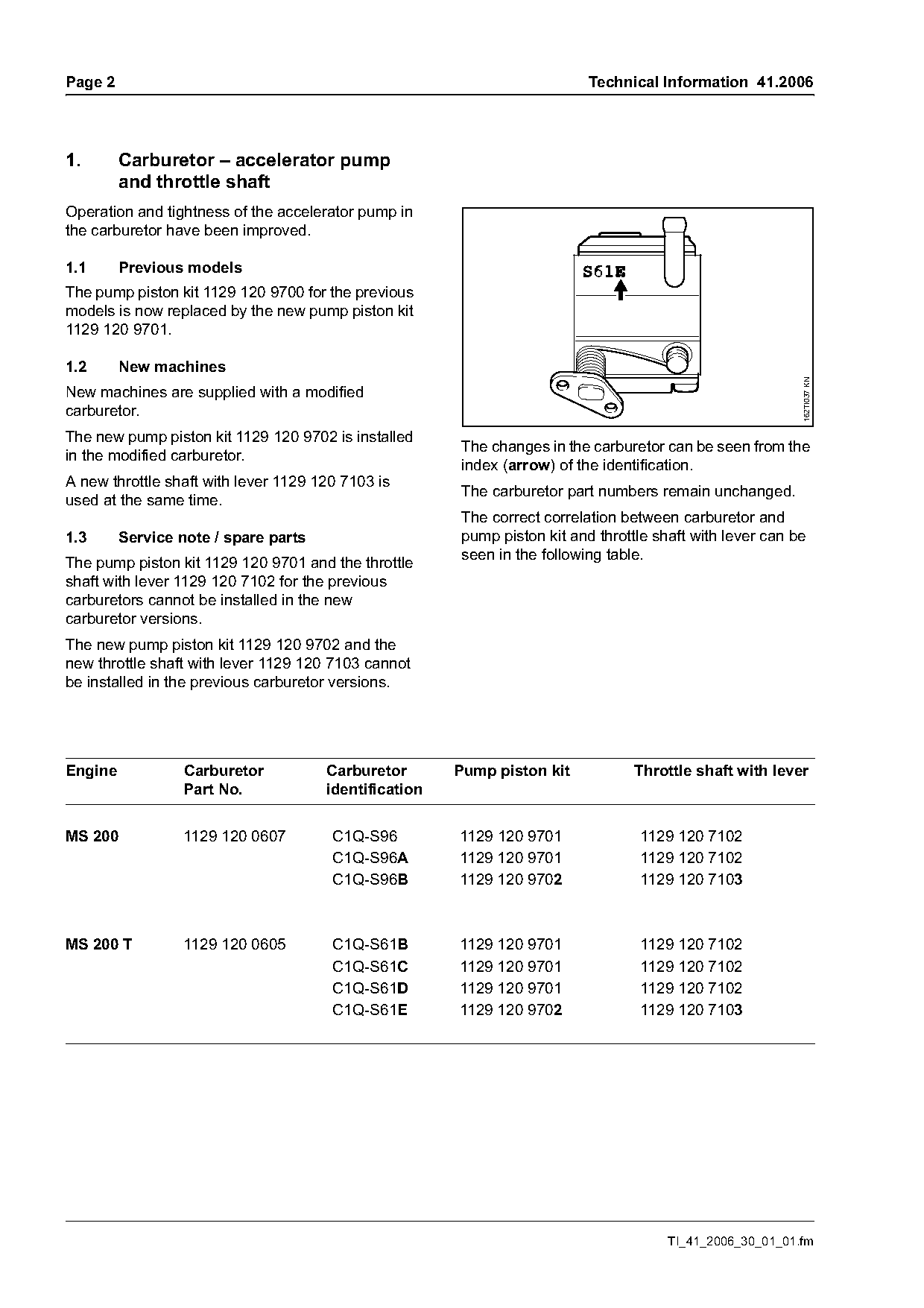

)m~ge 2 Technical Information 41.2006
1. Carburetor – accelerator pump
and throttle shaft
Operation and tightness of the accelerator pump in
the carburetor have been improved.
1.1 Previous models
The pump piston kit 1129 120 9700 for the previous
models is now replaced by the new pump piston kit
1129 120 9701.
1.2 New machines
162TI037 KN
New machines are supplied with a modified
carburetor.
The new pump piston kit 1129 120 9702 is installed
The changes in the carburetor can be seen from the
in the modified carburetor.
index (arrow) of the identification.
A new throttle shaft with lever 1129 120 7103 is
The carburetor part numbers remain unchanged.
used at the same time.
The correct correlation between carburetor and
1.3 Service note / spare parts pump piston kit and throttle shaft with lever can be
seen in the following table.
The pump piston kit 1129 120 9701 and the throttle
shaft with lever 1129 120 7102 for the previous
carburetors cannot be installed in the new
carburetor versions.
The new pump piston kit 1129 120 9702 and the
new throttle shaft with lever 1129 120 7103 cannot
be installed in the previous carburetor versions.
Engine Carburetor Carburetor Pump piston kit Throttle shaft with lever
Part No. identification
MS 200 1129 120 0607 C1Q-S96 1129 120 9701 1129 120 7102
C1Q-S96A 1129 120 9701 1129 120 7102
C1Q-S96B 1129 120 9702 1129 120 7103
MS 200 T 1129 120 0605 C1Q-S61B 1129 120 9701 1129 120 7102
C1Q-S61C 1129 120 9701 1129 120 7102
C1Q-S61D 1129 120 9701 1129 120 7102
C1Q-S61E 1129 120 9702 1129 120 7103
TI_41_2006_30_01_01.fm Page 2 of 4

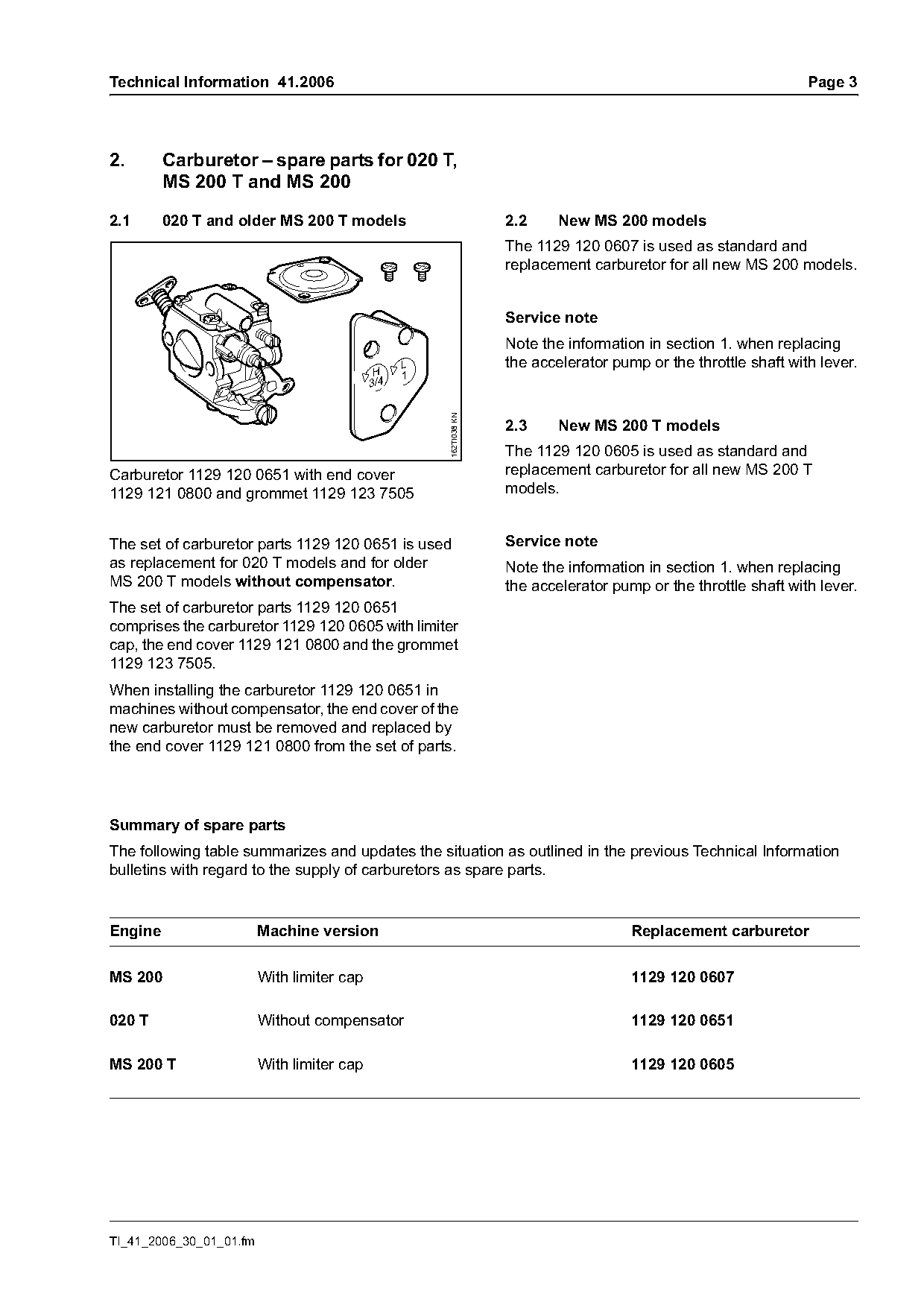

Technical Information 41.2006 Page 3
2. Carburetor – spare parts for 020 T,
MS 200 T and MS 200
2.1 020 T and older MS 200 T models 2.2 New MS 200 models
The 1129 120 0607 is used as standard and
replacement carburetor for all new MS 200 models.
Service note
Note the information in section 1. when replacing
L the accelerator pump or the throttle shaft with lever.
H 1
3/4
162TI038 KN
2.3 New MS 200 T models
The 1129 120 0605 is used as standard and
Carburetor 1129 120 0651 with end cover replacement carburetor for all new MS 200 T
1129 121 0800 and grommet 1129 123 7505 models.
The set of carburetor parts 1129 120 0651 is used Service note
as replacement for 020 T models and for older Note the information in section 1. when replacing
MS 200 T models without compensator. the accelerator pump or the throttle shaft with lever.
The set of carburetor parts 1129 120 0651
comprises the carburetor 1129 120 0605 with limiter
cap, the end cover 1129 121 0800 and the grommet
1129 123 7505.
When installing the carburetor 1129 120 0651 in
machines without compensator, the end cover of the
new carburetor must be removed and replaced by
the end cover 1129 121 0800 from the set of parts.
Summary of spare parts
The following table summarizes and updates the situation as outlined in the previous Technical Information
bulletins with regard to the supply of carburetors as spare parts.
Engine Machine version Replacement carburetor
MS 200 With limiter cap 1129 120 0607
020 T Without compensator 1129 120 0651
MS 200 T With limiter cap 1129 120 0605
TI_41_2006_30_01_01.fm

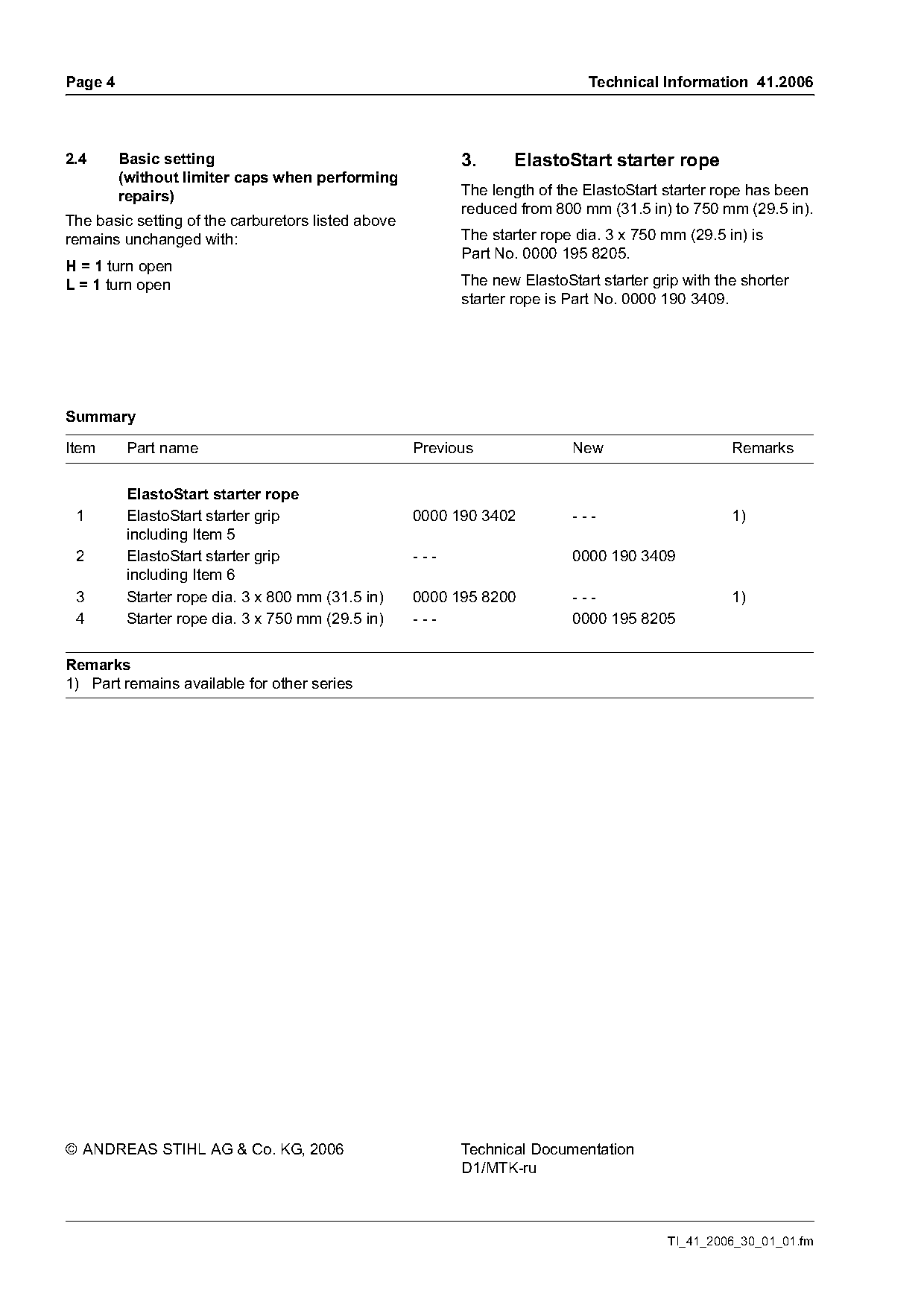

)m~ge 4 Technical Information 41.2006
2.4 Basic setting 3. ElastoStart starter rope
(without limiter caps when performing
repairs) The length of the ElastoStart starter rope has been
reduced from 800 mm (31.5 in) to 750 mm (29.5 in).
The basic setting of the carburetors listed above
remains unchanged with: The starter rope dia. 3 x 750 mm (29.5 in) is
Part No. 0000 195 8205.
H = 1 turn open
L = 1 turn open The new ElastoStart starter grip with the shorter
starter rope is Part No. 0000 190 3409.
Summary
Item Part name Previous New Remarks
ElastoStart starter rope
1 ElastoStart starter grip 0000 190 3402 --- 1)
including Item 5
2 ElastoStart starter grip --- 0000 190 3409
including Item 6
3 Starter rope dia. 3 x 800 mm (31.5 in) 0000 195 8200 --- 1)
4 Starter rope dia. 3 x 750 mm (29.5 in) --- 0000 195 8205
Remarks
1) Part remains available for other series
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-ru
TI_41_2006_30_01_01.fm Page 3 of 4
Page 4 of 4
