Technical Information · issue 42 of 2006
Gear Box
IssueTI 42/2006
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4601 640 0100 | 4601 640 0101 | 1 Gear housing / thrust washers In conjunction with the standardization of parts, gear box 4601 640 0100 is replaced by the new version 4601 640 0101 which has already been used for some time on the MM 55. |
Full text

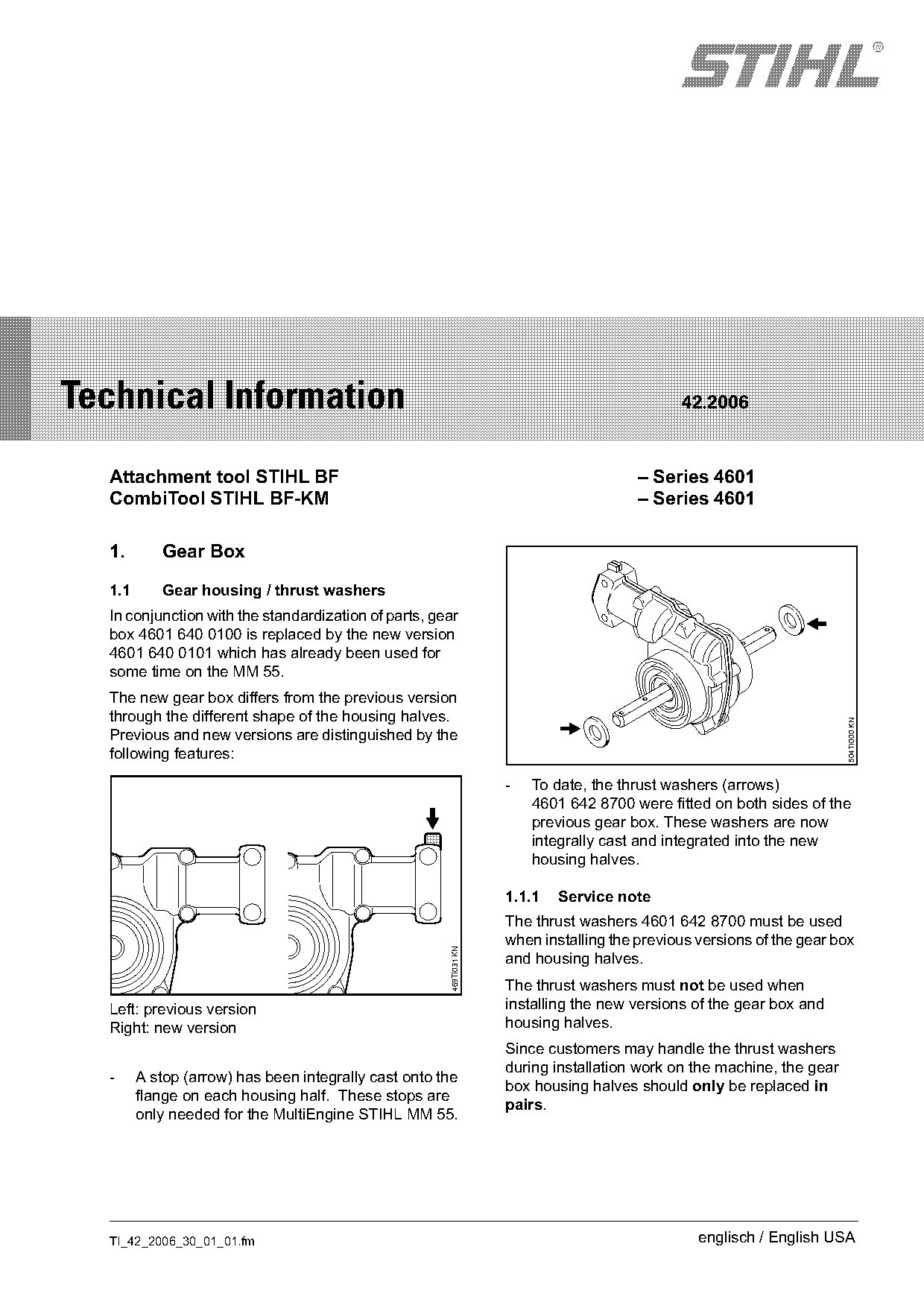

Page 1 of 2
STIH)
Technical Information 42.2006
Attachment tool STIHL BF – Series 4601
CombiTool STIHL BF-KM – Series 4601
1. Gear Box
1.1 Gear housing / thrust washers
In conjunction with the standardization of parts, gear
box 4601 640 0100 is replaced by the new version
4601 640 0101 which has already been used for
some time on the MM 55.
The new gear box differs from the previous version
through the different shape of the housing halves.
504TI000 KN
Previous and new versions are distinguished by the
following features:
- To date, the thrust washers (arrows)
4601 642 8700 were fitted on both sides of the
previous gear box. These washers are now
integrally cast and integrated into the new
housing halves.
1.1.1 Service note
The thrust washers 4601 642 8700 must be used
when installing the previous versions of the gear box
469TI031 KN
and housing halves.
The thrust washers must not be used when
Left: previous version installing the new versions of the gear box and
Right: new version housing halves.
Since customers may handle the thrust washers
during installation work on the machine, the gear
- A stop (arrow) has been integrally cast onto the
box housing halves should only be replaced in
flange on each housing half. These stops are
pairs.
only needed for the MultiEngine STIHL MM 55.
TI_42_2006_30_01_01.fm englisch / English USA

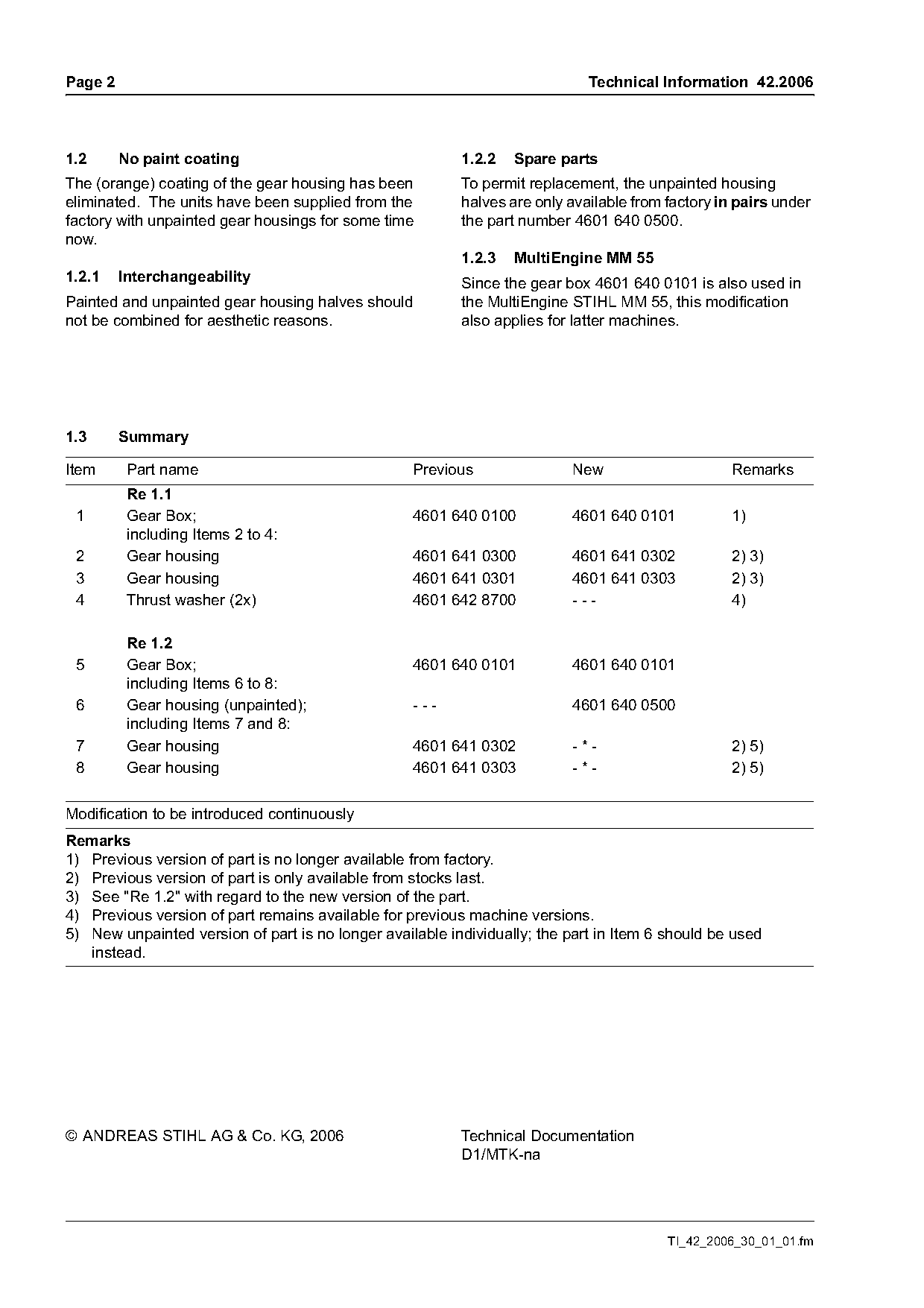

)m~ge 2 Technical Information 42.2006
1.2 No paint coating 1.2.2 Spare parts
The (orange) coating of the gear housing has been To permit replacement, the unpainted housing
eliminated. The units have been supplied from the halves are only available from factory in pairs under
factory with unpainted gear housings for some time the part number 4601 640 0500.
now.
1.2.3 MultiEngine MM 55
1.2.1 Interchangeability Since the gear box 4601 640 0101 is also used in
Painted and unpainted gear housing halves should the MultiEngine STIHL MM 55, this modification
not be combined for aesthetic reasons. also applies for latter machines.
1.3 Summary
Item Part name Previous New Remarks
Re 1.1
1 Gear Box; 4601 640 0100 4601 640 0101 1)
including Items 2 to 4:
2 Gear housing 4601 641 0300 4601 641 0302 2) 3)
3 Gear housing 4601 641 0301 4601 641 0303 2) 3)
4 Thrust washer (2x) 4601 642 8700 --- 4)
Re 1.2
5 Gear Box; 4601 640 0101 4601 640 0101
including Items 6 to 8:
6 Gear housing (unpainted); --- 4601 640 0500
including Items 7 and 8:
7 Gear housing 4601 641 0302 -*- 2) 5)
8 Gear housing 4601 641 0303 -*- 2) 5)
Modification to be introduced continuously
Remarks
1) Previous version of part is no longer available from factory.
2) Previous version of part is only available from stocks last.
3) See "Re 1.2" with regard to the new version of the part.
4) Previous version of part remains available for previous machine versions.
5) New unpainted version of part is no longer available individually; the part in Item 6 should be used
instead.
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-na
TI_42_2006_30_01_01.fm Page 2 of 2
