STIH)
Technical Information 45.2006

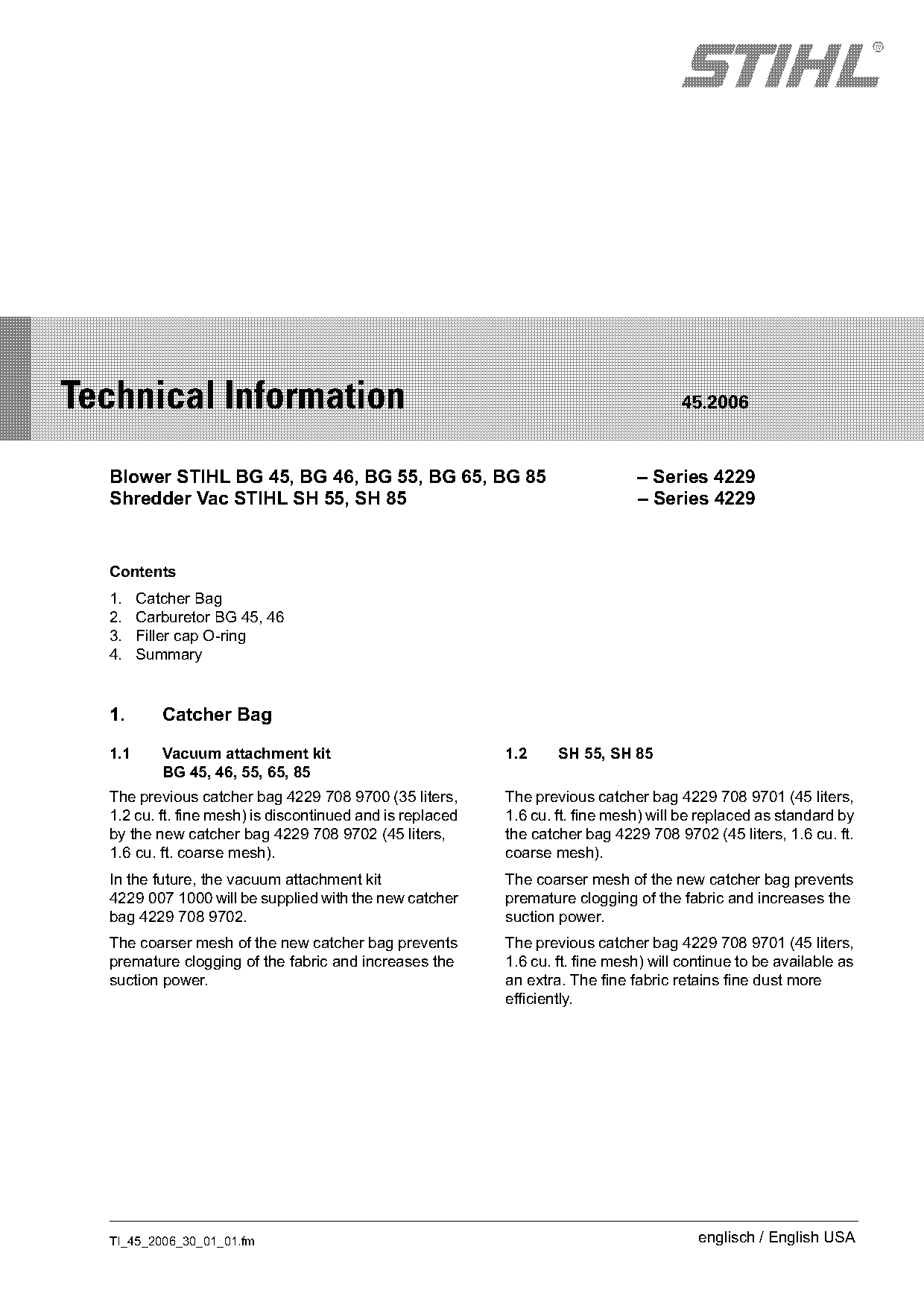

Blower STIHL BG 45, BG 46, BG 55, BG 65, BG 85 – Series 4229
Shredder Vac STIHL SH 55, SH 85 – Series 4229
Contents
1. Catcher Bag
2. Carburetor BG 45, 46
3. Filler cap O-ring
4. Summary
1. Catcher Bag
1.1 Vacuum attachment kit 1.2 SH 55, SH 85
BG 45, 46, 55, 65, 85
The previous catcher bag 4229 708 9700 (35 liters, The previous catcher bag 4229 708 9701 (45 liters,
1.2 cu. ft. fine mesh) is discontinued and is replaced 1.6 cu. ft. fine mesh) will be replaced as standard by
by the new catcher bag 4229 708 9702 (45 liters, the catcher bag 4229 708 9702 (45 liters, 1.6 cu. ft.
1.6 cu. ft. coarse mesh). coarse mesh).
In the future, the vacuum attachment kit The coarser mesh of the new catcher bag prevents
4229 007 1000 will be supplied with the new catcher premature clogging of the fabric and increases the
bag 4229 708 9702. suction power.
The coarser mesh of the new catcher bag prevents The previous catcher bag 4229 708 9701 (45 liters,
premature clogging of the fabric and increases the 1.6 cu. ft. fine mesh) will continue to be available as
suction power. an extra. The fine fabric retains fine dust more
efficiently.
TI_45_2006_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 45.2006

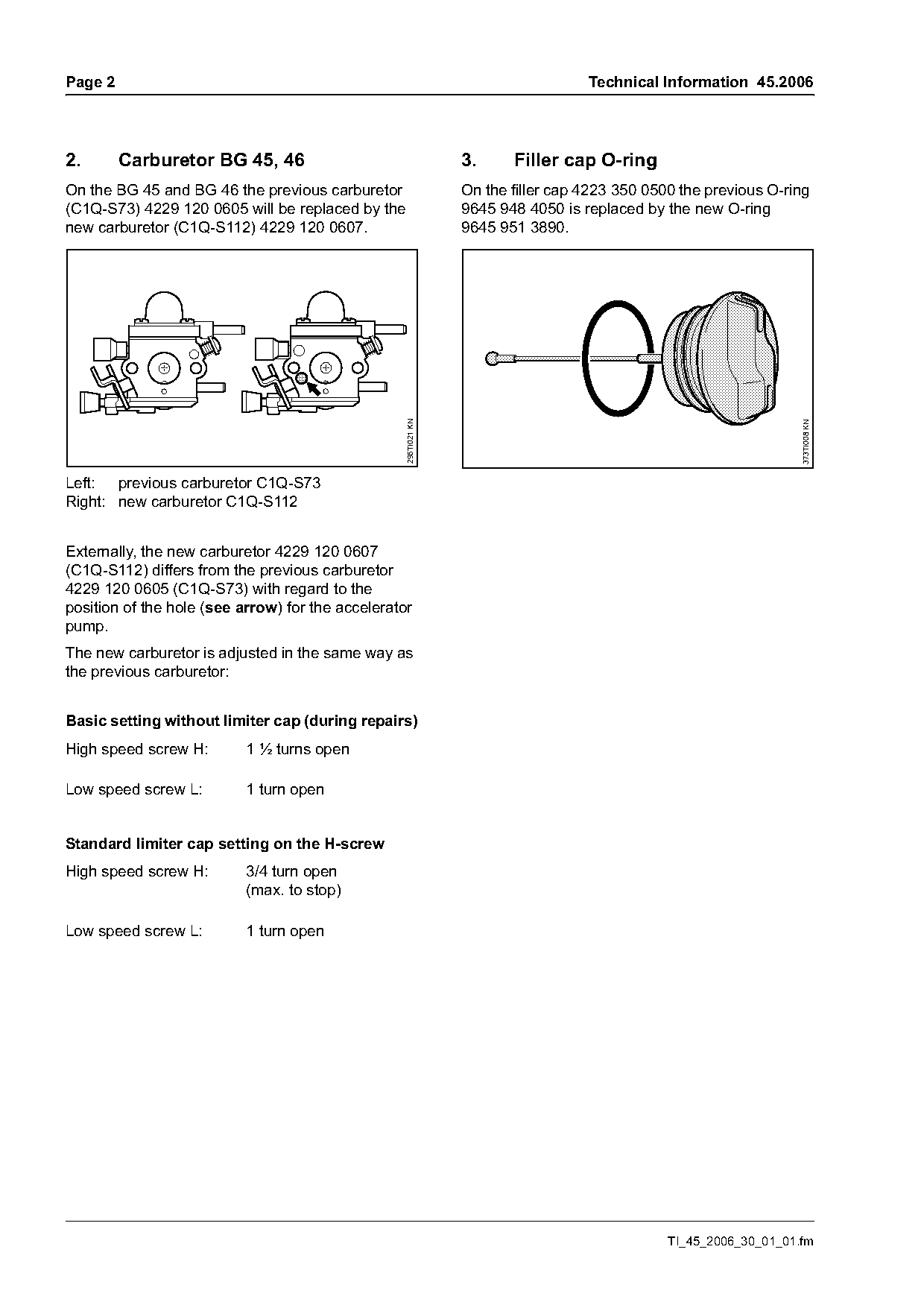

2. Carburetor BG 45, 46 3. Filler cap O-ring
On the BG 45 and BG 46 the previous carburetor On the filler cap 4223 350 0500 the previous O-ring
(C1Q-S73) 4229 120 0605 will be replaced by the 9645 948 4050 is replaced by the new O-ring
new carburetor (C1Q-S112) 4229 120 0607. 9645 951 3890.
295TI021 KN
373TI008 KN
Left: previous carburetor C1Q-S73
Right: new carburetor C1Q-S112
Externally, the new carburetor 4229 120 0607
(C1Q-S112) differs from the previous carburetor
4229 120 0605 (C1Q-S73) with regard to the
position of the hole (see arrow) for the accelerator
pump.
The new carburetor is adjusted in the same way as
the previous carburetor:
Basic setting without limiter cap (during repairs)
High speed screw H: 1 ½ turns open
Low speed screw L: 1 turn open
Standard limiter cap setting on the H-screw
High speed screw H: 3/4 turn open
(max. to stop)
Low speed screw L: 1 turn open
TI_45_2006_30_01_01.fm Page 2 of 3
Technical Information 45.2006 Page 3

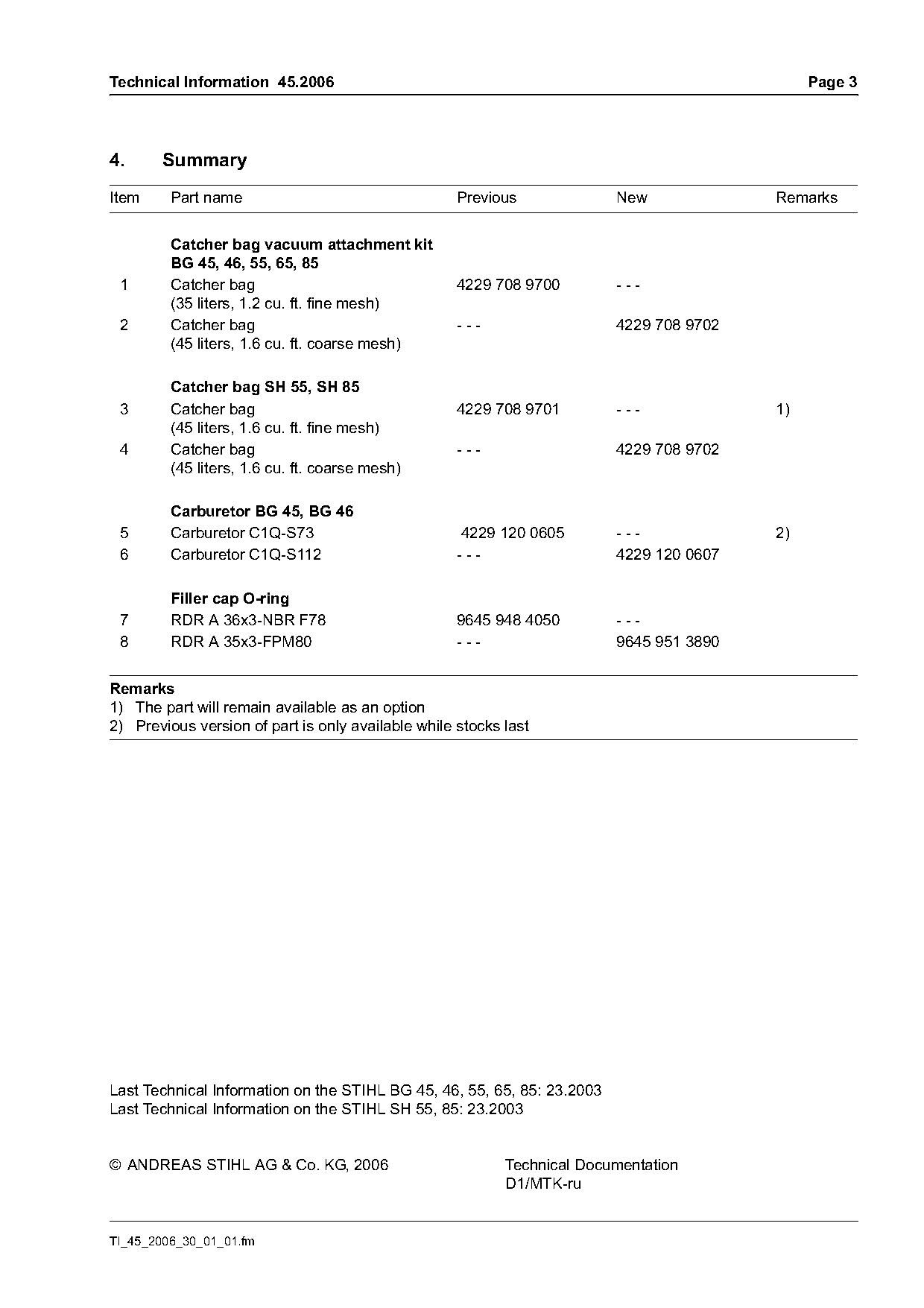

4. Summary
Item Part name Previous New Remarks
Catcher bag vacuum attachment kit
BG 45, 46, 55, 65, 85
1 Catcher bag 4229 708 9700 ---
(35 liters, 1.2 cu. ft. fine mesh)
2 Catcher bag --- 4229 708 9702
(45 liters, 1.6 cu. ft. coarse mesh)
Catcher bag SH 55, SH 85
3 Catcher bag 4229 708 9701 --- 1)
(45 liters, 1.6 cu. ft. fine mesh)
4 Catcher bag --- 4229 708 9702
(45 liters, 1.6 cu. ft. coarse mesh)
Carburetor BG 45, BG 46
5 Carburetor C1Q-S73 4229 120 0605 --- 2)
6 Carburetor C1Q-S112 --- 4229 120 0607
Filler cap O-ring
7 RDR A 36x3-NBR F78 9645 948 4050 ---
8 RDR A 35x3-FPM80 --- 9645 951 3890
Remarks
1) The part will remain available as an option
2) Previous version of part is only available while stocks last
Last Technical Information on the STIHL BG 45, 46, 55, 65, 85: 23.2003
Last Technical Information on the STIHL SH 55, 85: 23.2003
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-ru
