Technical Information · issue 54 of 2006
Cutting tools for the STIHL FS 100 RX; STIHL PolyCut™ 20-3 mowing head; New STIHL FixCut™ 25-2 mowing head
IssueTI 54/2006
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4001 710 2131 | 4001 710 2102 | The previous version of the STIHL FixCut™ 25-2 mowing head, part number 4001 710 2131 (1) will be replaced by the new version 4001 710 2102 (2). |
| 4002 710 9600 | 4002 710 9601 | The previous top 4002 710 9600 (1) has been replaced by new version (2) 4002 710 9601, which has a modified shape. |
Full text

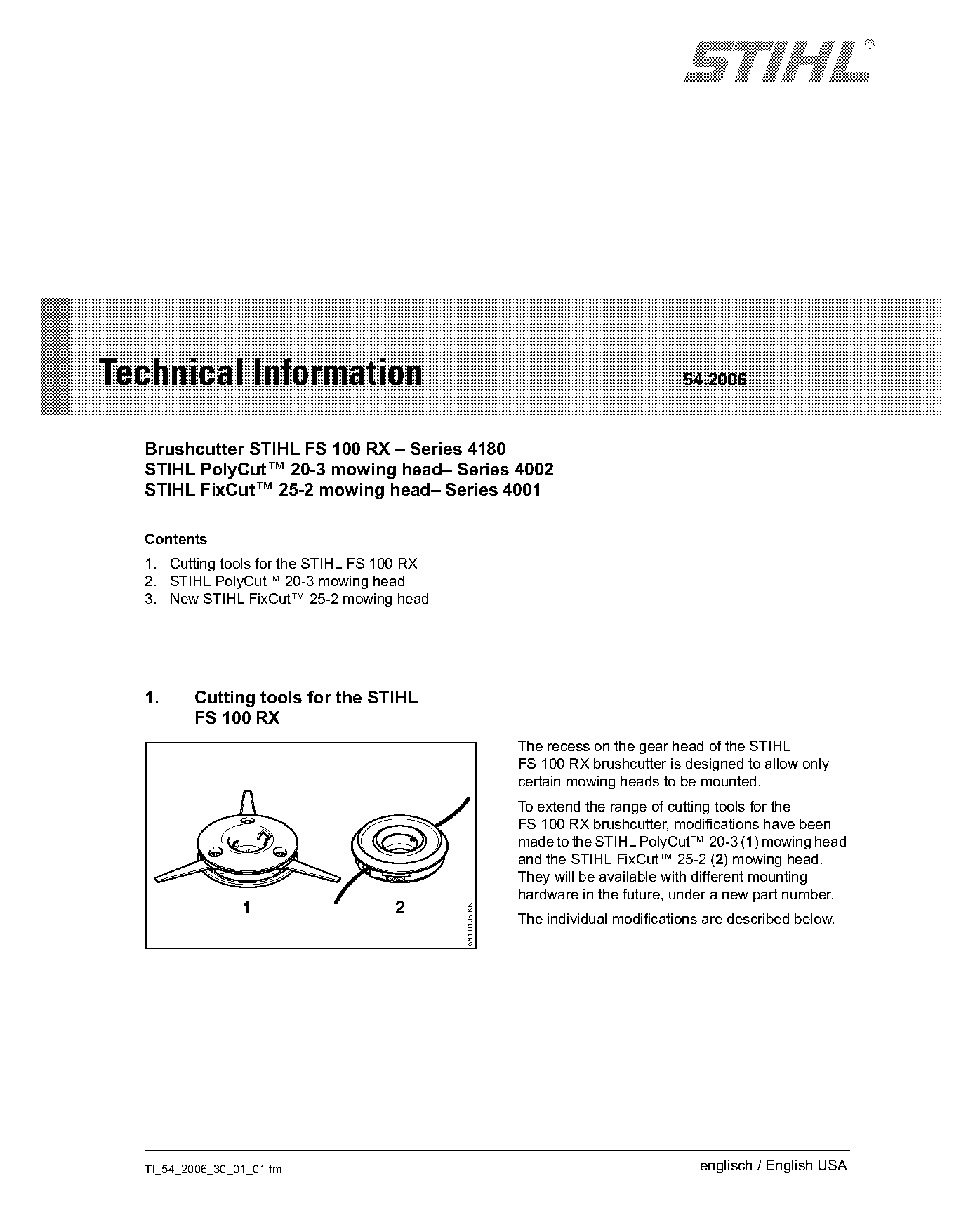

Page 1 of 4
STIH)
Technical Information 54.2006
Brushcutter STIHL FS 100 RX – Series 4180
STIHL PolyCut™ 20-3 mowing head– Series 4002
STIHL FixCut™ 25-2 mowing head– Series 4001
Contents
1. Cutting tools for the STIHL FS 100 RX
2. STIHL PolyCut™ 20-3 mowing head
3. New STIHL FixCut™ 25-2 mowing head
1. Cutting tools for the STIHL
FS 100 RX
The recess on the gear head of the STIHL
FS 100 RX brushcutter is designed to allow only
certain mowing heads to be mounted.
To extend the range of cutting tools for the
FS 100 RX brushcutter, modifications have been
made to the STIHL PolyCut™ 20-3 (1) mowing head
and the STIHL FixCut™ 25-2 (2) mowing head.
They will be available with different mounting
hardware in the future, under a new part number.
1 2
681TI135 KN
The individual modifications are described below.
TI_54_2006_30_01_01.fm englisch / English USA

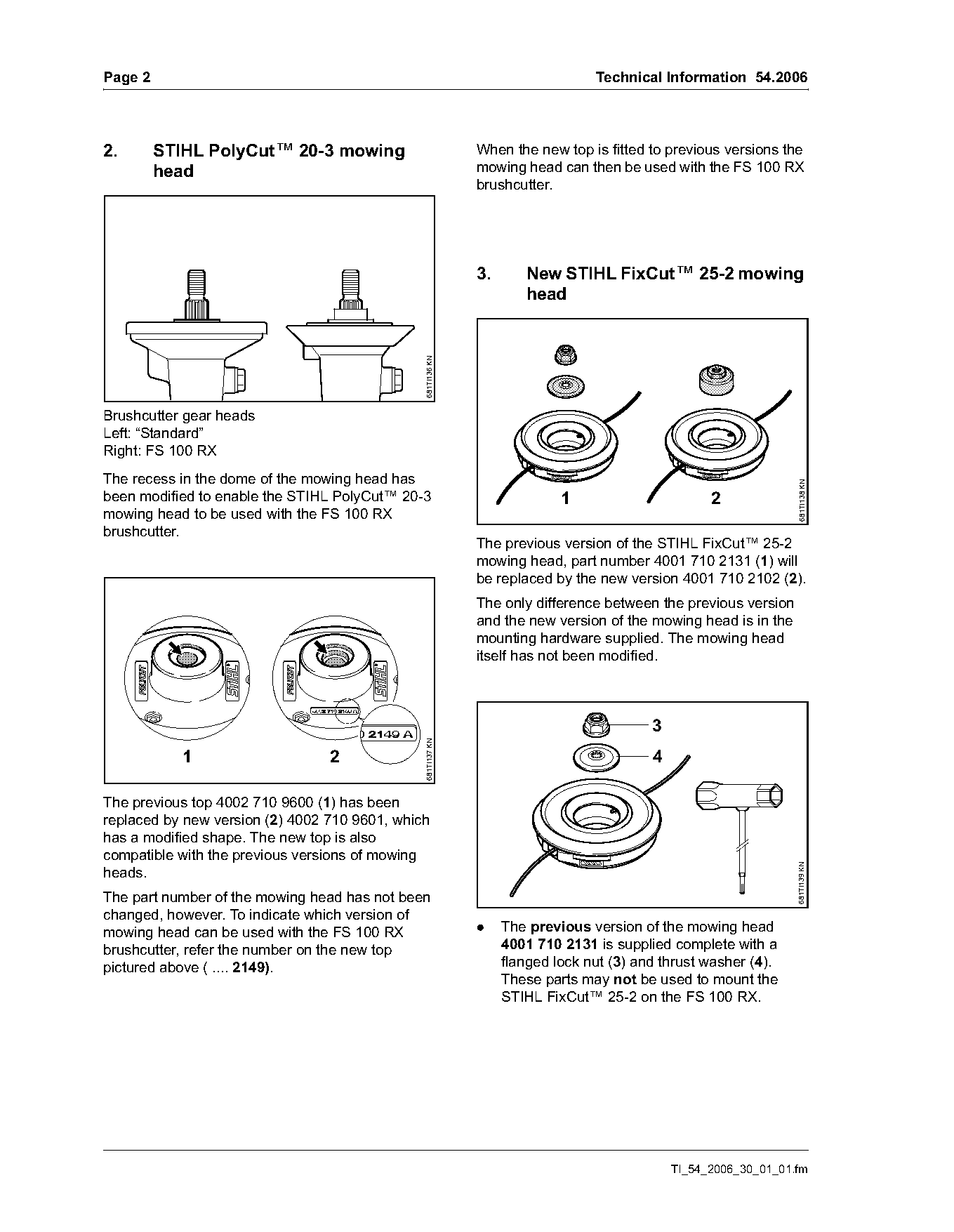

)m~ge 2 Technical Information 54.2006
2. STIHL PolyCut™ 20-3 mowing When the new top is fitted to previous versions the
head mowing head can then be used with the FS 100 RX
brushcutter.
3. New STIHL FixCut™ 25-2 mowing
head
681TI136 KN
Brushcutter gear heads
Left: “Standard”
Right: FS 100 RX
The recess in the dome of the mowing head has
681TI138 KN
been modified to enable the STIHL PolyCut™ 20-3 1 2
mowing head to be used with the FS 100 RX
brushcutter.
The previous version of the STIHL FixCut™ 25-2
mowing head, part number 4001 710 2131 (1) will
be replaced by the new version 4001 710 2102 (2).
The only difference between the previous version
and the new version of the mowing head is in the
mounting hardware supplied. The mowing head
itself has not been modified.
3
681TI137 KN
1 2 4
The previous top 4002 710 9600 (1) has been
replaced by new version (2) 4002 710 9601, which
has a modified shape. The new top is also
compatible with the previous versions of mowing
681TI139 KN
heads.
The part number of the mowing head has not been
changed, however. To indicate which version of
mowing head can be used with the FS 100 RX . The previous version of the mowing head
brushcutter, refer the number on the new top 4001 710 2131 is supplied complete with a
pictured above ( .... 2149). flanged lock nut (3) and thrust washer (4).
These parts may not be used to mount the
STIHL FixCut™ 25-2 on the FS 100 RX.
TI_54_2006_30_01_01.fm Page 2 of 4

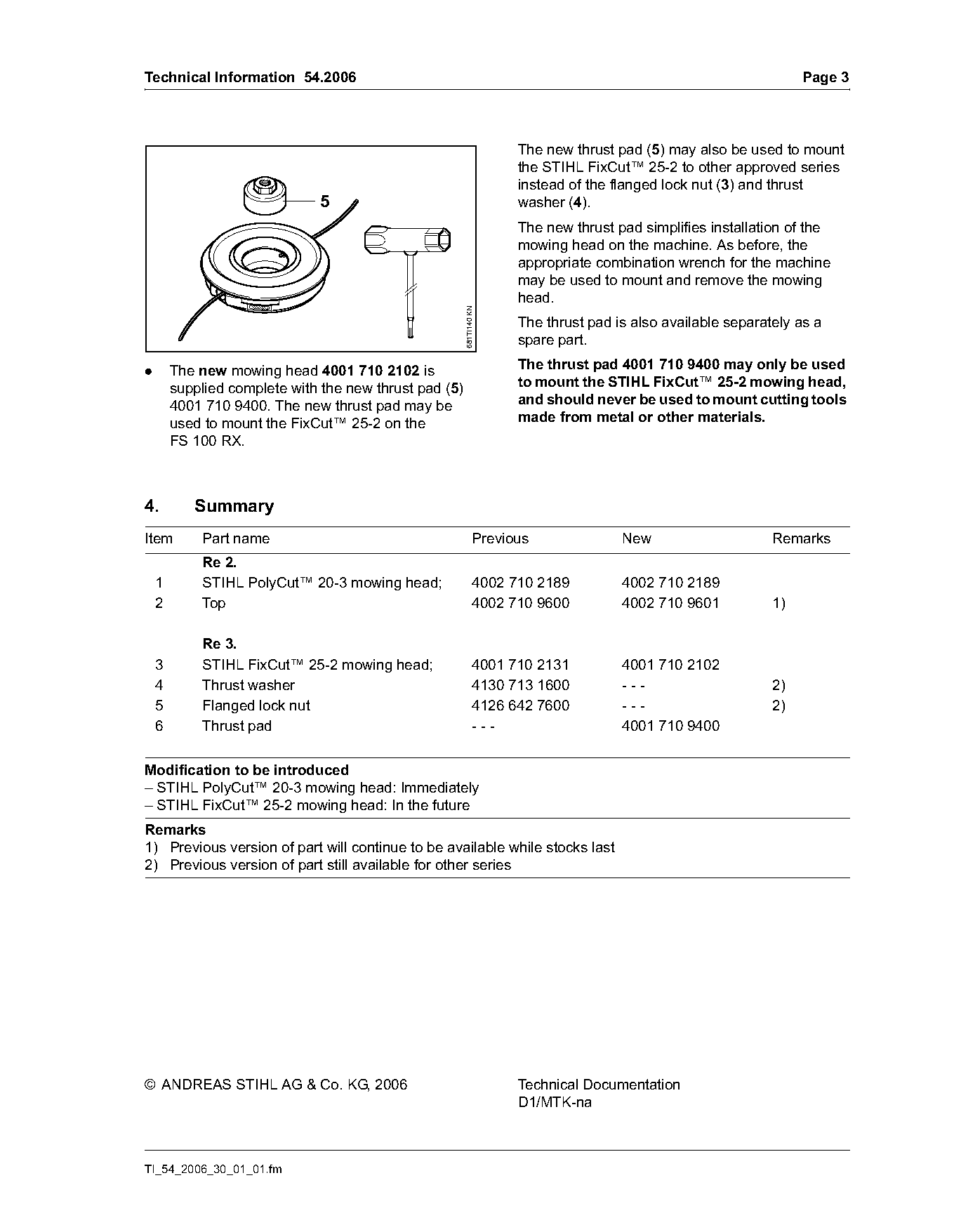

Technical Information 54.2006 Page 3
The new thrust pad (5) may also be used to mount
the STIHL FixCut™ 25-2 to other approved series
instead of the flanged lock nut (3) and thrust
5 washer (4).
The new thrust pad simplifies installation of the
mowing head on the machine. As before, the
appropriate combination wrench for the machine
may be used to mount and remove the mowing
head.
681TI140 KN
The thrust pad is also available separately as a
spare part.
. The new mowing head 4001 710 2102 is The thrust pad 4001 710 9400 may only be used
supplied complete with the new thrust pad (5) to mount the STIHL FixCut™ 25-2 mowing head,
4001 710 9400. The new thrust pad may be and should never be used to mount cutting tools
used to mount the FixCut™ 25-2 on the made from metal or other materials.
FS 100 RX.
4. Summary
Item Part name Previous New Remarks
Re 2.
1 STIHL PolyCut™ 20-3 mowing head; 4002 710 2189 4002 710 2189
2 Top 4002 710 9600 4002 710 9601 1)
Re 3.
3 STIHL FixCut™ 25-2 mowing head; 4001 710 2131 4001 710 2102
4 Thrust washer 4130 713 1600 --- 2)
5 Flanged lock nut 4126 642 7600 --- 2)
6 Thrust pad --- 4001 710 9400
Modification to be introduced
– STIHL PolyCut™ 20-3 mowing head: Immediately
– STIHL FixCut™ 25-2 mowing head: In the future
Remarks
1) Previous version of part will continue to be available while stocks last
2) Previous version of part still available for other series
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-na
TI_54_2006_30_01_01.fm
)m~ge 4 Technical Information 54.2006
TI_54_2006_30_01_01.fm Page 3 of 4
