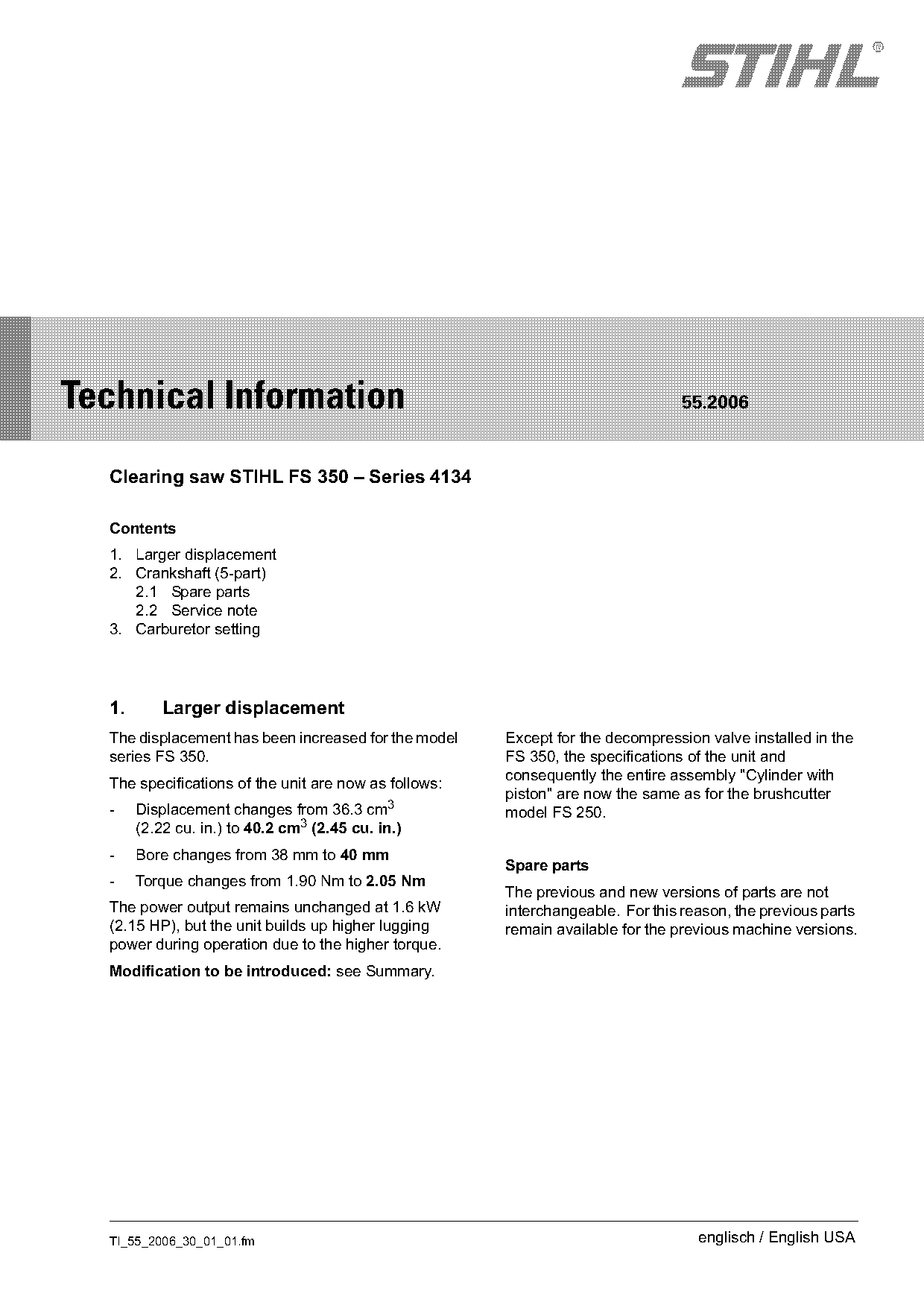

Technical Information 55.2006
Clearing saw STIHL FS 350 – Series 4134
Contents
1. Larger displacement
2. Crankshaft (5-part)
2.1 Spare parts
2.2 Service note
3. Carburetor setting
1. Larger displacement
The displacement has been increased for the model Except for the decompression valve installed in the
series FS 350. FS 350, the specifications of the unit and
consequently the entire assembly "Cylinder with
The specifications of the unit are now as follows:
piston" are now the same as for the brushcutter
- Displacement changes from 36.3 cm3 model FS 250.
(2.22 cu. in.) to 40.2 cm3 (2.45 cu. in.)
- Bore changes from 38 mm to 40 mm
Spare parts
- Torque changes from 1.90 Nm to 2.05 Nm
The previous and new versions of parts are not
The power output remains unchanged at 1.6 kW interchangeable. For this reason, the previous parts
(2.15 HP), but the unit builds up higher lugging remain available for the previous machine versions.
power during operation due to the higher torque.
Modification to be introduced: see Summary.
TI_55_2006_30_01_01.fm englisch / English USA

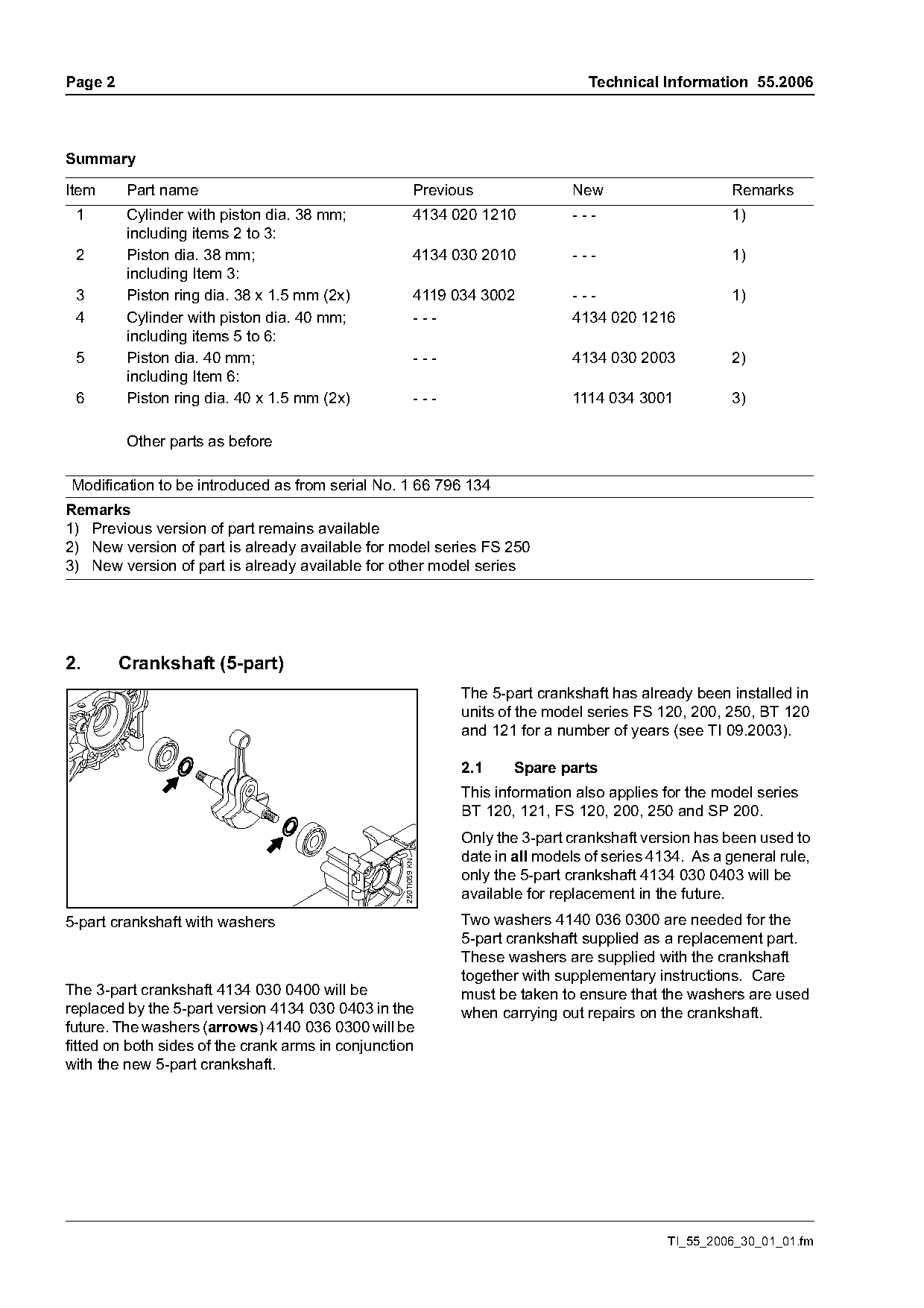

)m~ge 2 Technical Information 55.2006
Summary
Item Part name Previous New Remarks
1 Cylinder with piston dia. 38 mm; 4134 020 1210 --- 1)
including items 2 to 3:
2 Piston dia. 38 mm; 4134 030 2010 --- 1)
including Item 3:
3 Piston ring dia. 38 x 1.5 mm (2x) 4119 034 3002 --- 1)
4 Cylinder with piston dia. 40 mm; --- 4134 020 1216
including items 5 to 6:
5 Piston dia. 40 mm; --- 4134 030 2003 2)
including Item 6:
6 Piston ring dia. 40 x 1.5 mm (2x) --- 1114 034 3001 3)
Other parts as before
Modification to be introduced as from serial No. 1 66 796 134
Remarks
1) Previous version of part remains available
2) New version of part is already available for model series FS 250
3) New version of part is already available for other model series
2. Crankshaft (5-part)
The 5-part crankshaft has already been installed in
units of the model series FS 120, 200, 250, BT 120
and 121 for a number of years (see TI 09.2003).
2.1 Spare parts
This information also applies for the model series
BT 120, 121, FS 120, 200, 250 and SP 200.
Only the 3-part crankshaft version has been used to
date in all models of series 4134. As a general rule,
250TI059 KN
only the 5-part crankshaft 4134 030 0403 will be
available for replacement in the future.
5-part crankshaft with washers Two washers 4140 036 0300 are needed for the
5-part crankshaft supplied as a replacement part.
These washers are supplied with the crankshaft
together with supplementary instructions. Care
The 3-part crankshaft 4134 030 0400 will be must be taken to ensure that the washers are used
replaced by the 5-part version 4134 030 0403 in the when carrying out repairs on the crankshaft.
future. The washers (arrows) 4140 036 0300 will be
fitted on both sides of the crank arms in conjunction
with the new 5-part crankshaft.
TI_55_2006_30_01_01.fm Page 2 of 3

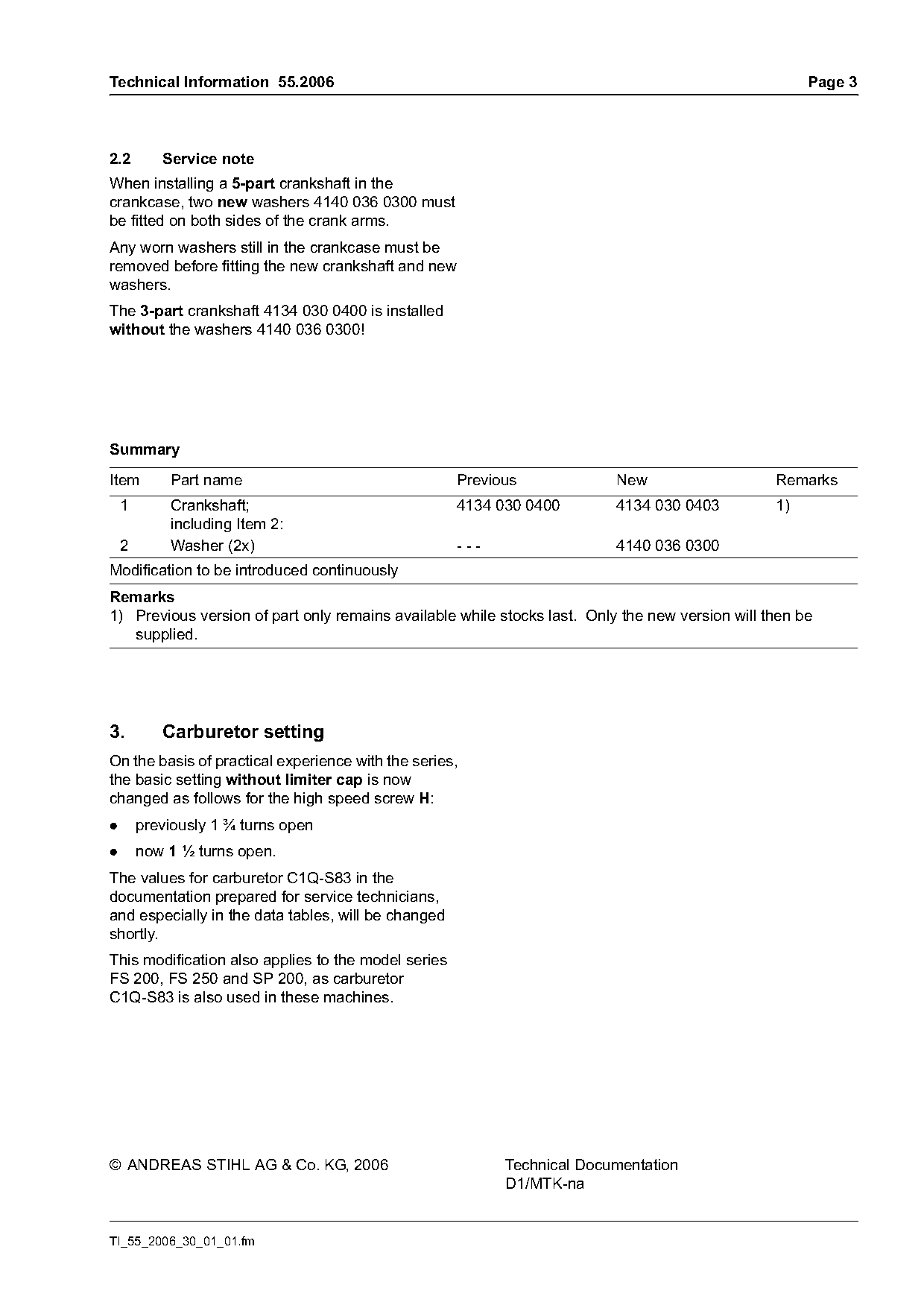

Technical Information 55.2006 Page 3
2.2 Service note
When installing a 5-part crankshaft in the
crankcase, two new washers 4140 036 0300 must
be fitted on both sides of the crank arms.
Any worn washers still in the crankcase must be
removed before fitting the new crankshaft and new
washers.
The 3-part crankshaft 4134 030 0400 is installed
without the washers 4140 036 0300!
Summary
Item Part name Previous New Remarks
1 Crankshaft; 4134 030 0400 4134 030 0403 1)
including Item 2:
2 Washer (2x) --- 4140 036 0300
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available while stocks last. Only the new version will then be
supplied.
3. Carburetor setting
On the basis of practical experience with the series,
the basic setting without limiter cap is now
changed as follows for the high speed screw H:
. previously 1 ¾ turns open
. now 1 ½ turns open.
The values for carburetor C1Q-S83 in the
documentation prepared for service technicians,
and especially in the data tables, will be changed
shortly.
This modification also applies to the model series
FS 200, FS 250 and SP 200, as carburetor
C1Q-S83 is also used in these machines.
© ANDREAS STIHL AG & Co. KG, 2006 Technical Documentation
D1/MTK-na
TI_55_2006_30_01_01.fm Page 3 of 3
