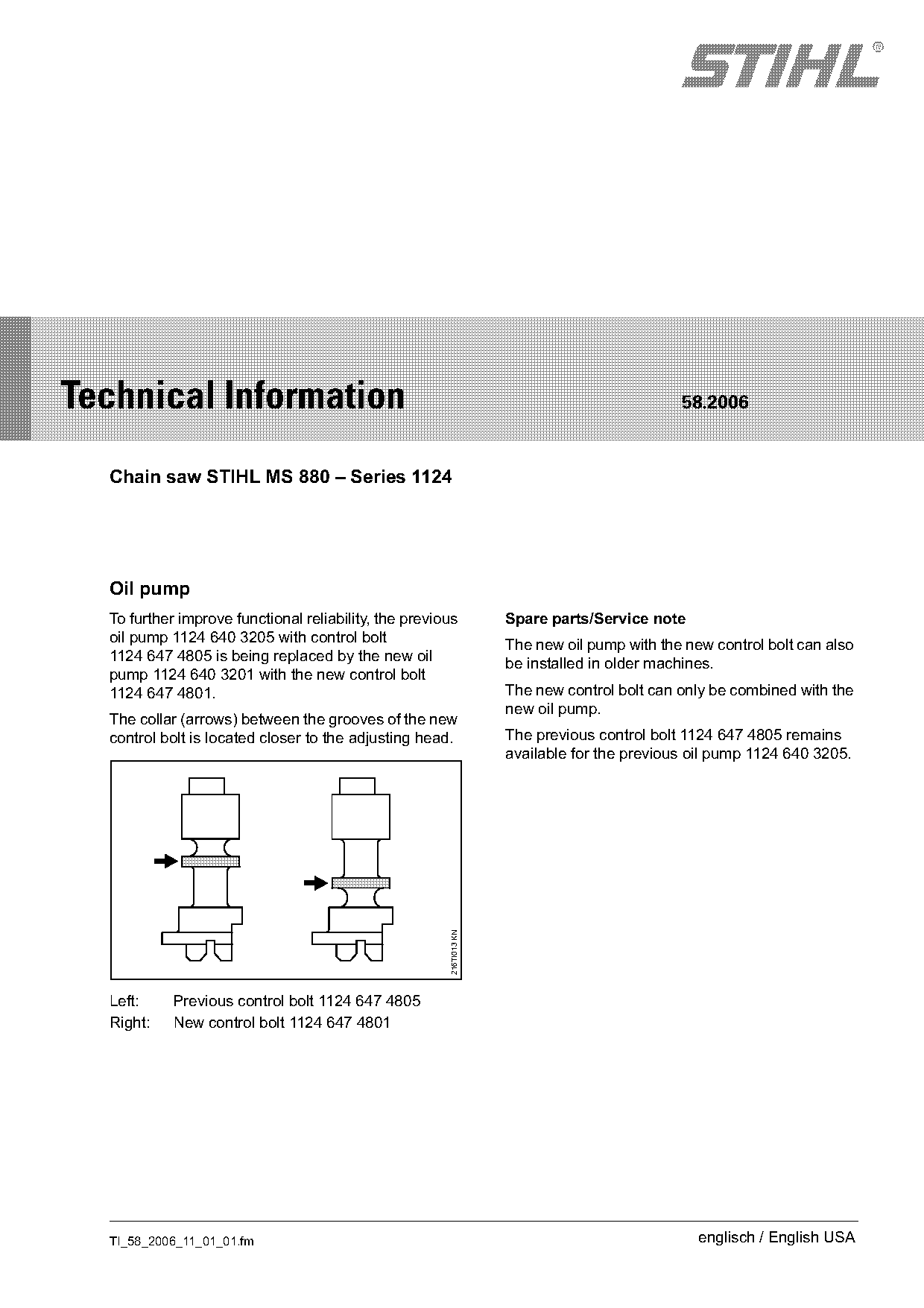

Technical Information 58.2006
Chain saw STIHL MS 880 – Series 1124
Oil pump
To further improve functional reliability, the previous Spare parts/Service note
oil pump 1124 640 3205 with control bolt The new oil pump with the new control bolt can also
1124 647 4805 is being replaced by the new oil be installed in older machines.
pump 1124 640 3201 with the new control bolt
1124 647 4801. The new control bolt can only be combined with the
new oil pump.
The collar (arrows) between the grooves of the new
control bolt is located closer to the adjusting head. The previous control bolt 1124 647 4805 remains
available for the previous oil pump 1124 640 3205.
216TI013 KN
Left: Previous control bolt 1124 647 4805
Right: New control bolt 1124 647 4801
TI_58_2006_11_01_01.fm englisch / English USA
)m~ge 2 Technical Information 58.2006

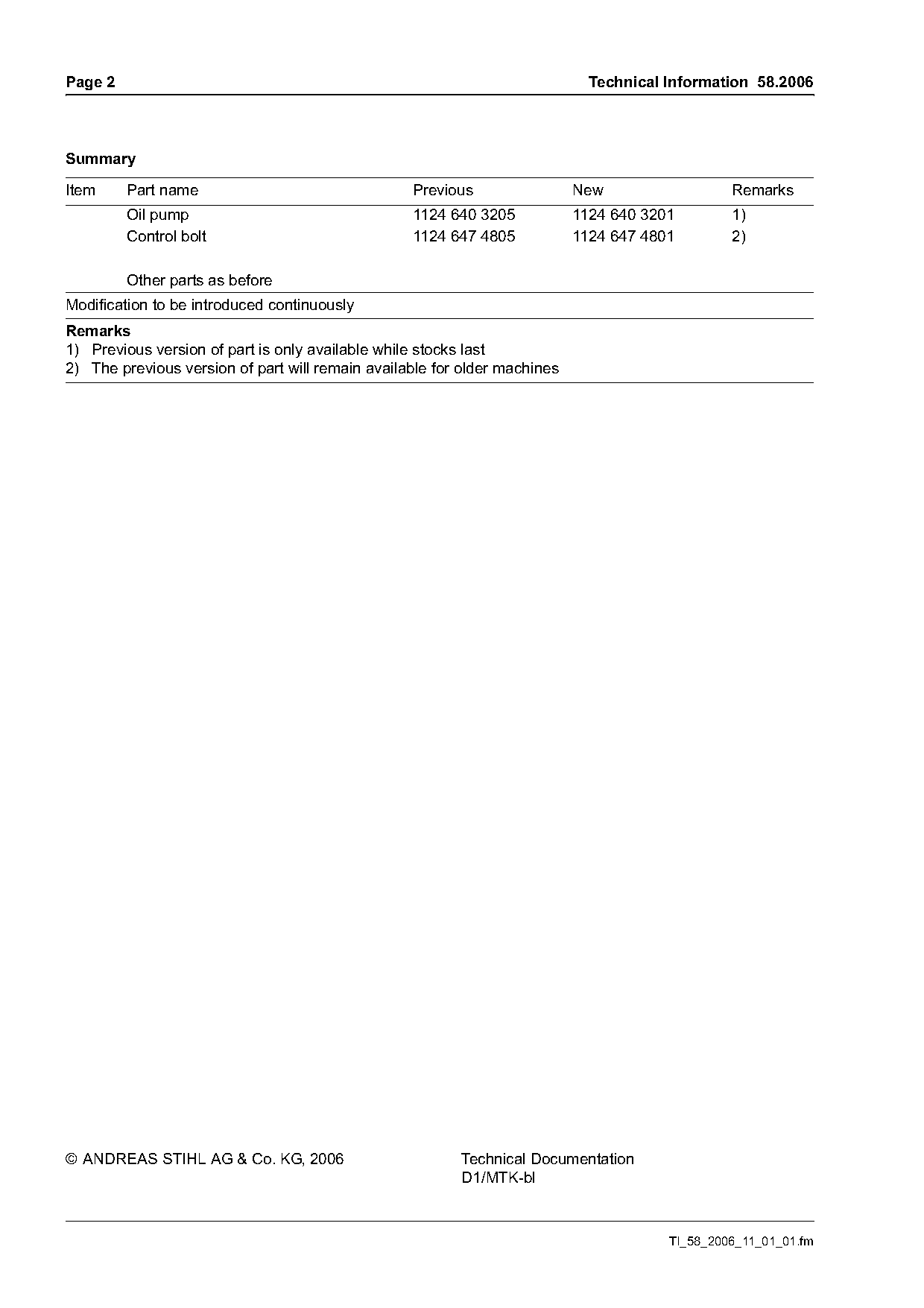

Summary
Item Part name Previous New Remarks
Oil pump 1124 640 3205 1124 640 3201 1)
Control bolt 1124 647 4805 1124 647 4801 2)
Other parts as before
Modification to be introduced continuously
Remarks
1) Previous version of part is only available while stocks last
2) The previous version of part will remain available for older machines
