Technical Information 01.2007

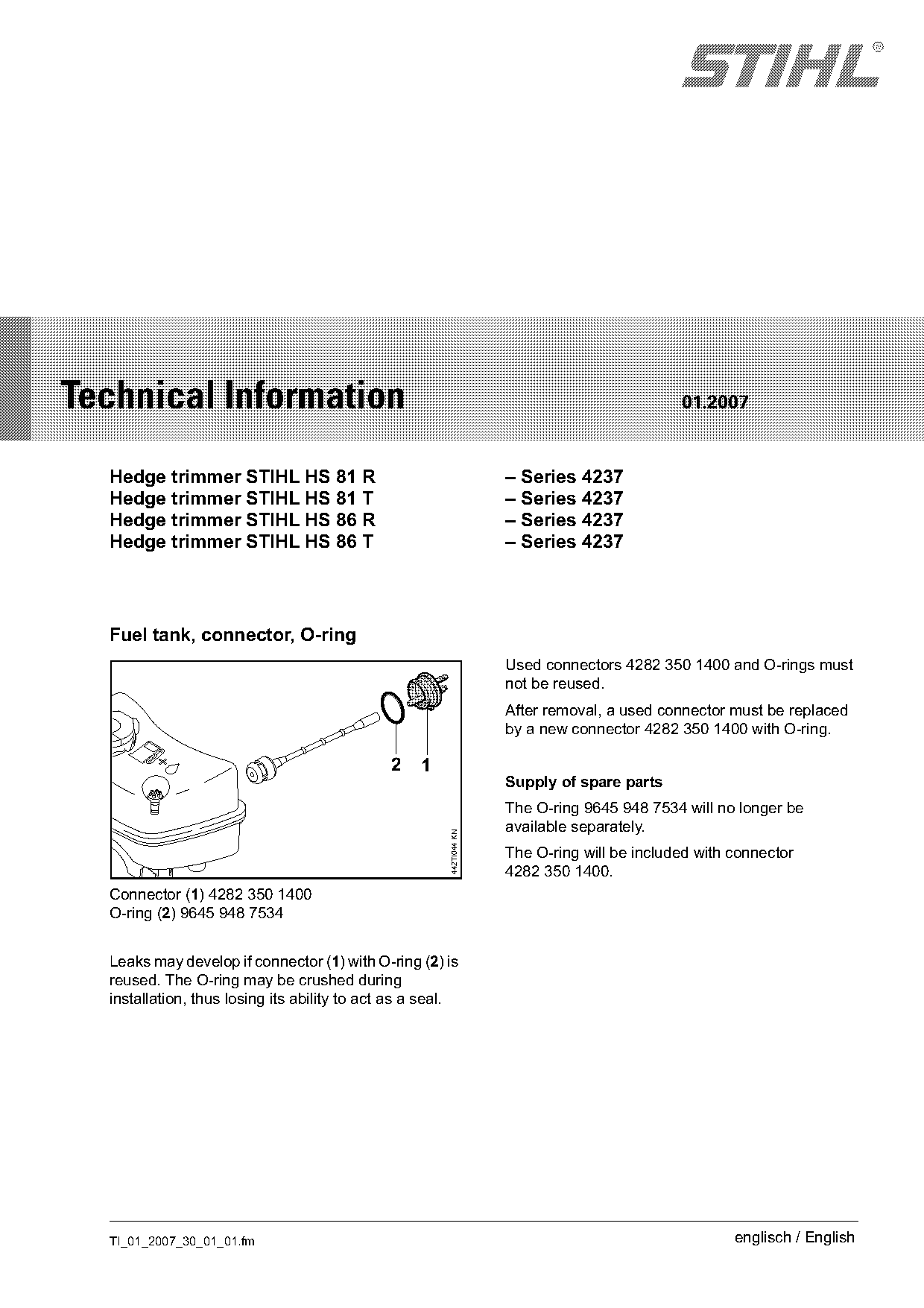

Hedge trimmer STIHL HS 81 R – Series 4237
Hedge trimmer STIHL HS 81 T – Series 4237
Hedge trimmer STIHL HS 86 R – Series 4237
Hedge trimmer STIHL HS 86 T – Series 4237
Fuel tank, connector, O-ring
Used connectors 4282 350 1400 and O-rings must
not be reused.
After removal, a used connector must be replaced
by a new connector 4282 350 1400 with O-ring.
2 1
Supply of spare parts
The O-ring 9645 948 7534 will no longer be
available separately.
442TI044 KN
The O-ring will be included with connector
4282 350 1400.
Connector (1) 4282 350 1400
O-ring (2) 9645 948 7534
Leaks may develop if connector (1) with O-ring (2) is
reused. The O-ring may be crushed during
installation, thus losing its ability to act as a seal.
TI_01_2007_30_01_01.fm englisch / English
)m~ge 2 Technical Information 01.2007

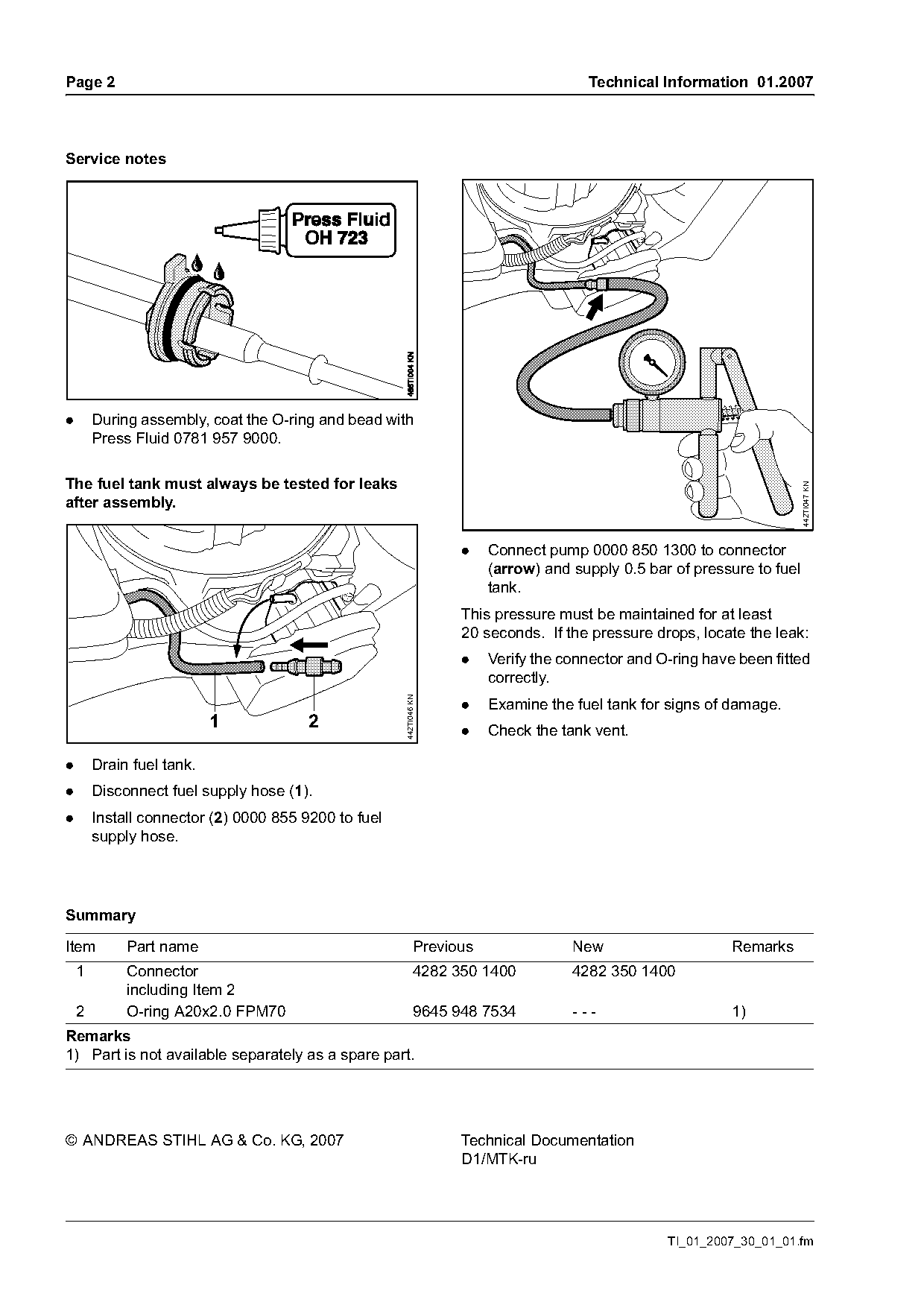

Service notes
. During assembly, coat the O-ring and bead with
Press Fluid 0781 957 9000.
The fuel tank must always be tested for leaks
442TI047 KN
after assembly.
. Connect pump 0000 850 1300 to connector
(arrow) and supply 0.5 bar of pressure to fuel
tank.
This pressure must be maintained for at least
20 seconds. If the pressure drops, locate the leak:
. Verify the connector and O-ring have been fitted
correctly.
442TI046 KN
. Examine the fuel tank for signs of damage.
1 2 . Check the tank vent.
. Drain fuel tank.
. Disconnect fuel supply hose (1).
. Install connector (2) 0000 855 9200 to fuel
supply hose.
Summary
Item Part name Previous New Remarks
1 Connector 4282 350 1400 4282 350 1400
including Item 2
2 O-ring A20x2.0 FPM70 9645 948 7534 --- 1)
Remarks
1) Part is not available separately as a spare part.
