STIH)
Technical Information 08.2007

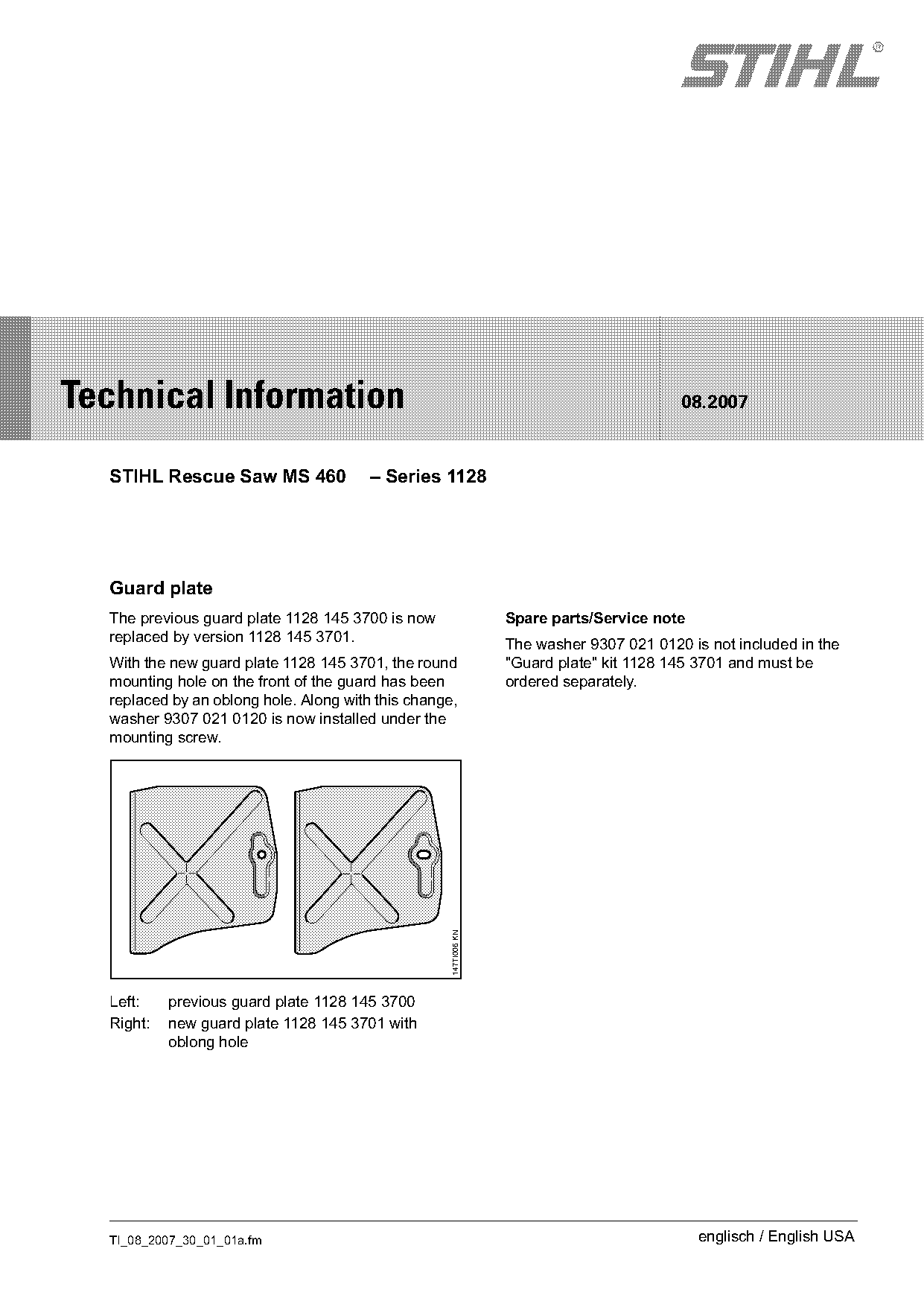

STIHL Rescue Saw MS 460 – Series 1128
Guard plate
The previous guard plate 1128 145 3700 is now Spare parts/Service note
replaced by version 1128 145 3701.
The washer 9307 021 0120 is not included in the
With the new guard plate 1128 145 3701, the round "Guard plate" kit 1128 145 3701 and must be
mounting hole on the front of the guard has been ordered separately.
replaced by an oblong hole. Along with this change,
washer 9307 021 0120 is now installed under the
mounting screw.
147TI006 KN
Left: previous guard plate 1128 145 3700
Right: new guard plate 1128 145 3701 with
oblong hole
TI_08_2007_30_01_01a.fm englisch / English USA
)m~ge 2 Technical Information 08.2007

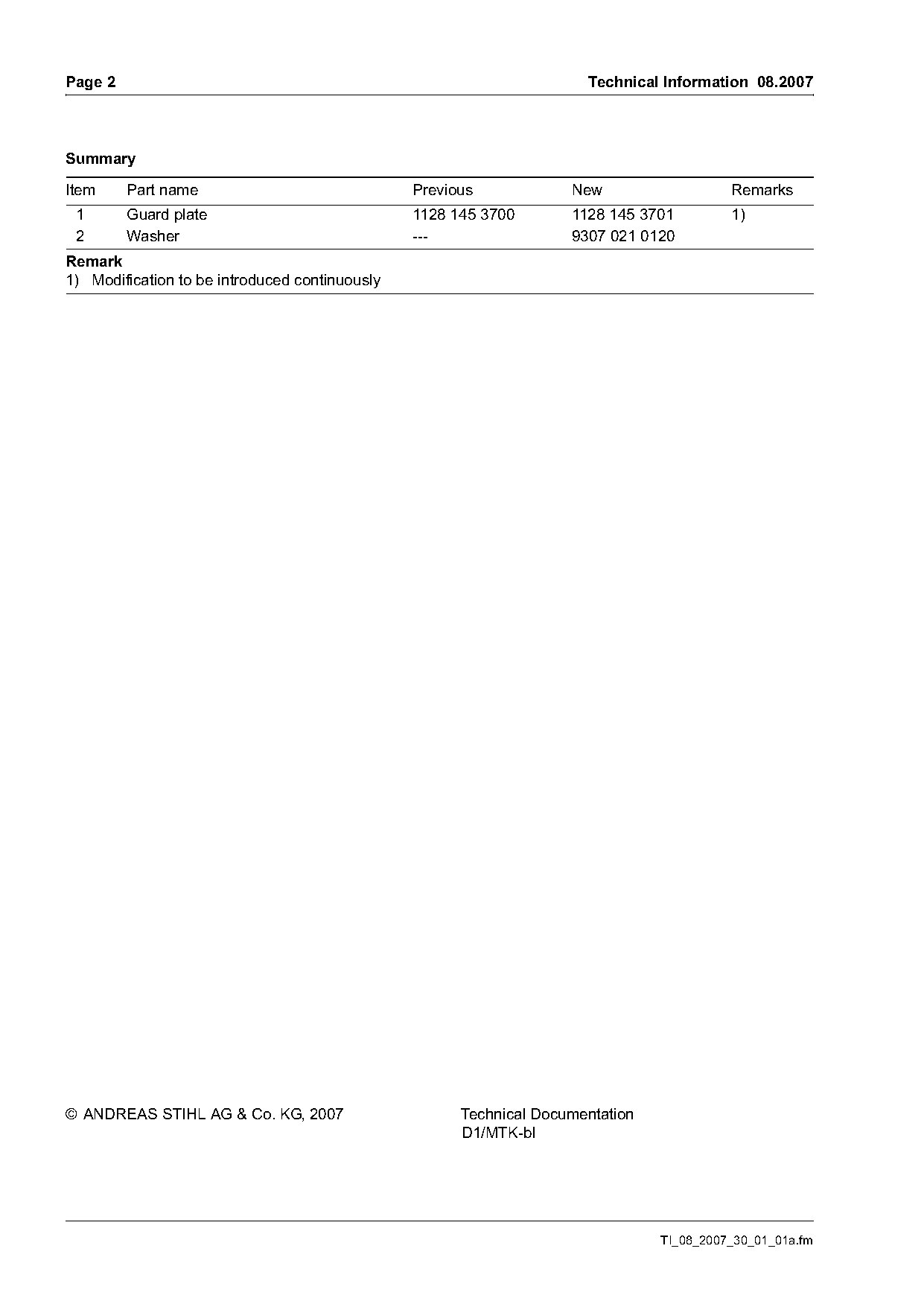

Summary
Item Part name Previous New Remarks
1 Guard plate 1128 145 3700 1128 145 3701 1)
2 Washer --- 9307 021 0120
Remark
1) Modification to be introduced continuously
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
TI_08_2007_30_01_01a.fm Page 2 of 2
