Technical Information · issue 12 of 2007
Shroud, Spacer Plate (Cooling Plate), Hand Guard; Summary
IssueTI 12/2007
Engine family 1121
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1121 080 1605 | 1121 080 1650 | 1 Shroud The previous shroud 1121 080 1605 has been replaced by the new version 1121 080 1650. |
Full text
Page 1 of 3
STIH)

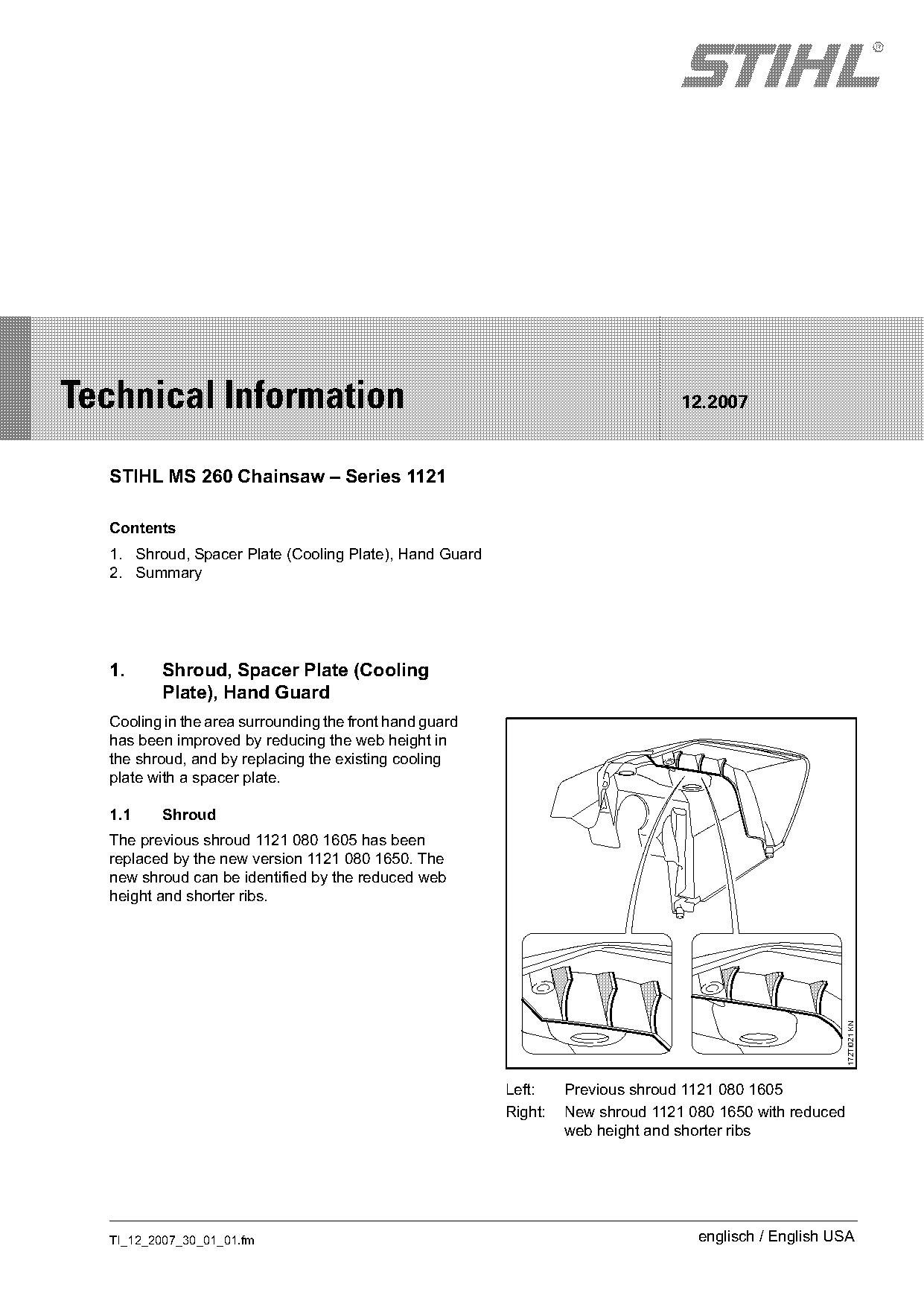

Technical Information 12.2007
STIHL MS 260 Chainsaw – Series 1121
Contents
1. Shroud, Spacer Plate (Cooling Plate), Hand Guard
2. Summary
1. Shroud, Spacer Plate (Cooling
Plate), Hand Guard
Cooling in the area surrounding the front hand guard
has been improved by reducing the web height in
the shroud, and by replacing the existing cooling
plate with a spacer plate.
1.1 Shroud
The previous shroud 1121 080 1605 has been
replaced by the new version 1121 080 1650. The
new shroud can be identified by the reduced web
height and shorter ribs.
172TI021 KN
Left: Previous shroud 1121 080 1605
Right: New shroud 1121 080 1650 with reduced
web height and shorter ribs
TI_12_2007_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 12.2007

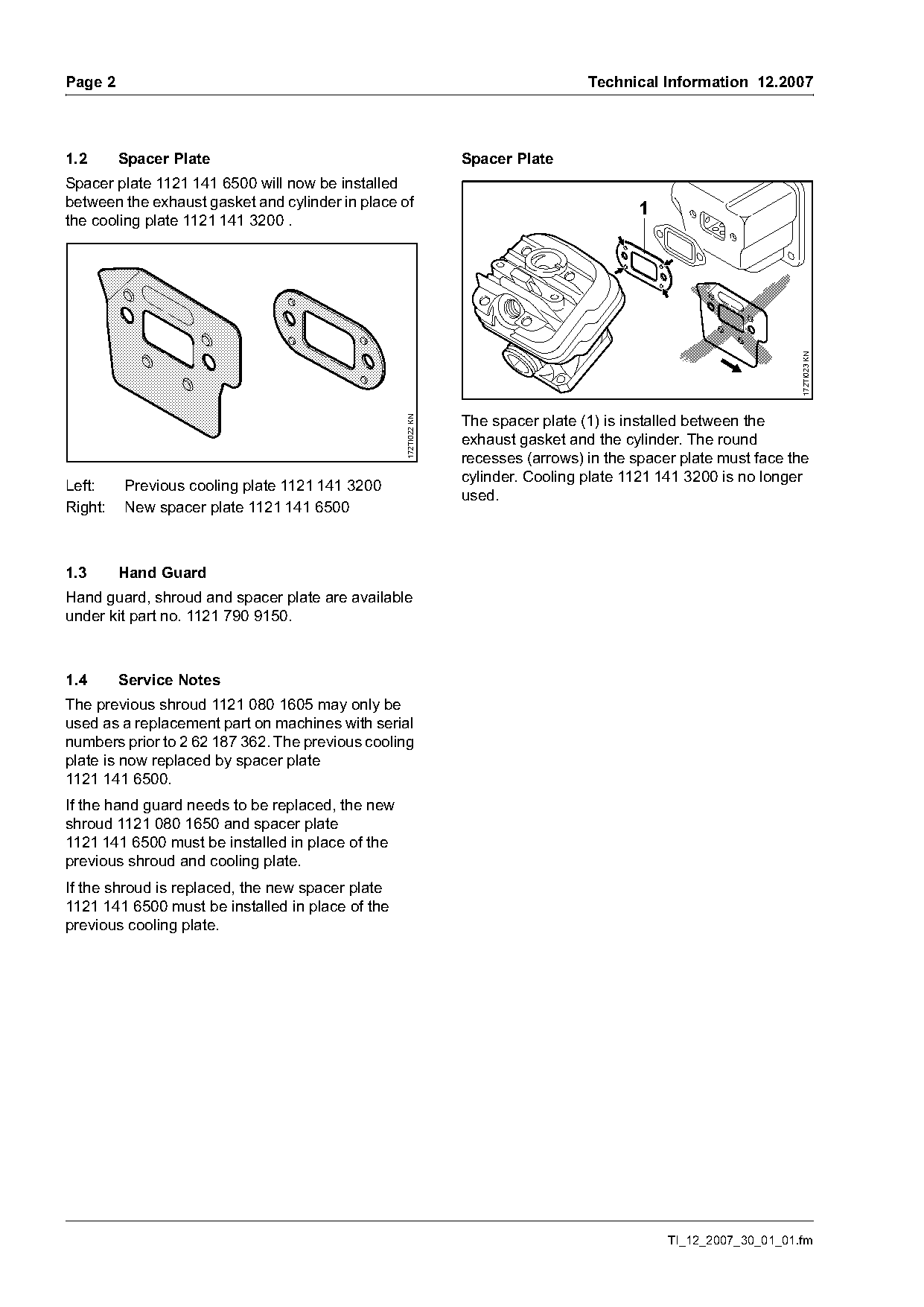

1.2 Spacer Plate Spacer Plate
Spacer plate 1121 141 6500 will now be installed
between the exhaust gasket and cylinder in place of 1
the cooling plate 1121 141 3200 .
172TI023 KN
The spacer plate (1) is installed between the
172TI022 KN
exhaust gasket and the cylinder. The round
recesses (arrows) in the spacer plate must face the
cylinder. Cooling plate 1121 141 3200 is no longer
Left: Previous cooling plate 1121 141 3200
used.
Right: New spacer plate 1121 141 6500
1.3 Hand Guard
Hand guard, shroud and spacer plate are available
under kit part no. 1121 790 9150.
1.4 Service Notes
The previous shroud 1121 080 1605 may only be
used as a replacement part on machines with serial
numbers prior to 2 62 187 362. The previous cooling
plate is now replaced by spacer plate
1121 141 6500.
If the hand guard needs to be replaced, the new
shroud 1121 080 1650 and spacer plate
1121 141 6500 must be installed in place of the
previous shroud and cooling plate.
If the shroud is replaced, the new spacer plate
1121 141 6500 must be installed in place of the
previous cooling plate.
TI_12_2007_30_01_01.fm Page 2 of 3
Technical Information 12.2007 Page 3

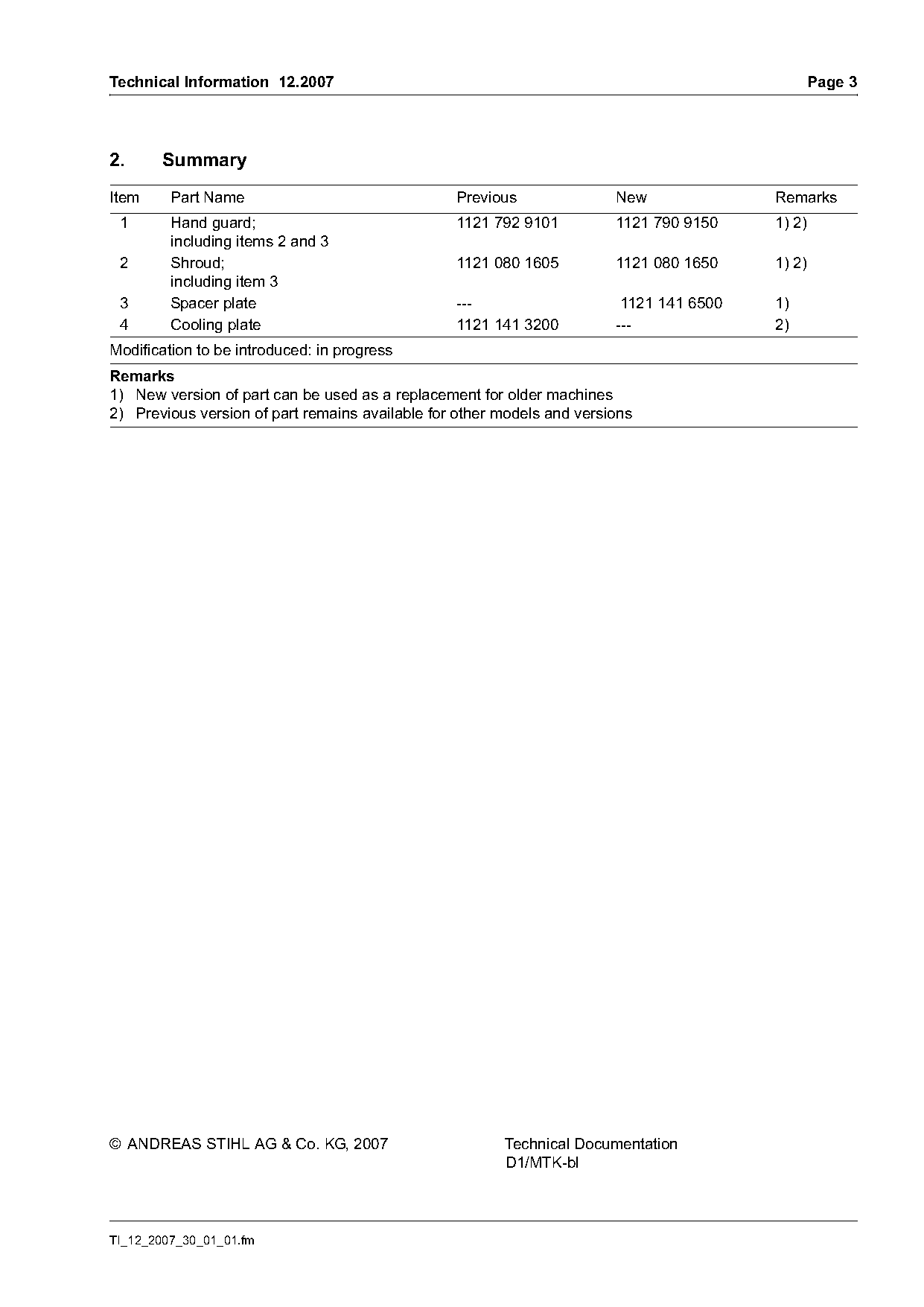

2. Summary
Item Part Name Previous New Remarks
1 Hand guard; 1121 792 9101 1121 790 9150 1) 2)
including items 2 and 3
2 Shroud; 1121 080 1605 1121 080 1650 1) 2)
including item 3
3 Spacer plate --- 1121 141 6500 1)
4 Cooling plate 1121 141 3200 --- 2)
Modification to be introduced: in progress
Remarks
1) New version of part can be used as a replacement for older machines
2) Previous version of part remains available for other models and versions
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
TI_12_2007_30_01_01.fm Page 3 of 3
