Technical Information · issue 13 of 2007
Standardizing Parts; Carburetor
IssueTI 13/2007
Engine family 1137
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1137 020 1201 | 1137 020 1203 | and 1137 020 1201 have been replaced by versions The carburetors can be identified by their 1137 020 1203 and 1137 020 1204. |
| 1137 141 2200 | 1137 141 2201 | 2 Manifold (MS 192 T only) The previous manifold 1137 141 2200 has been replaced by 1137 141 2201. |
Full text

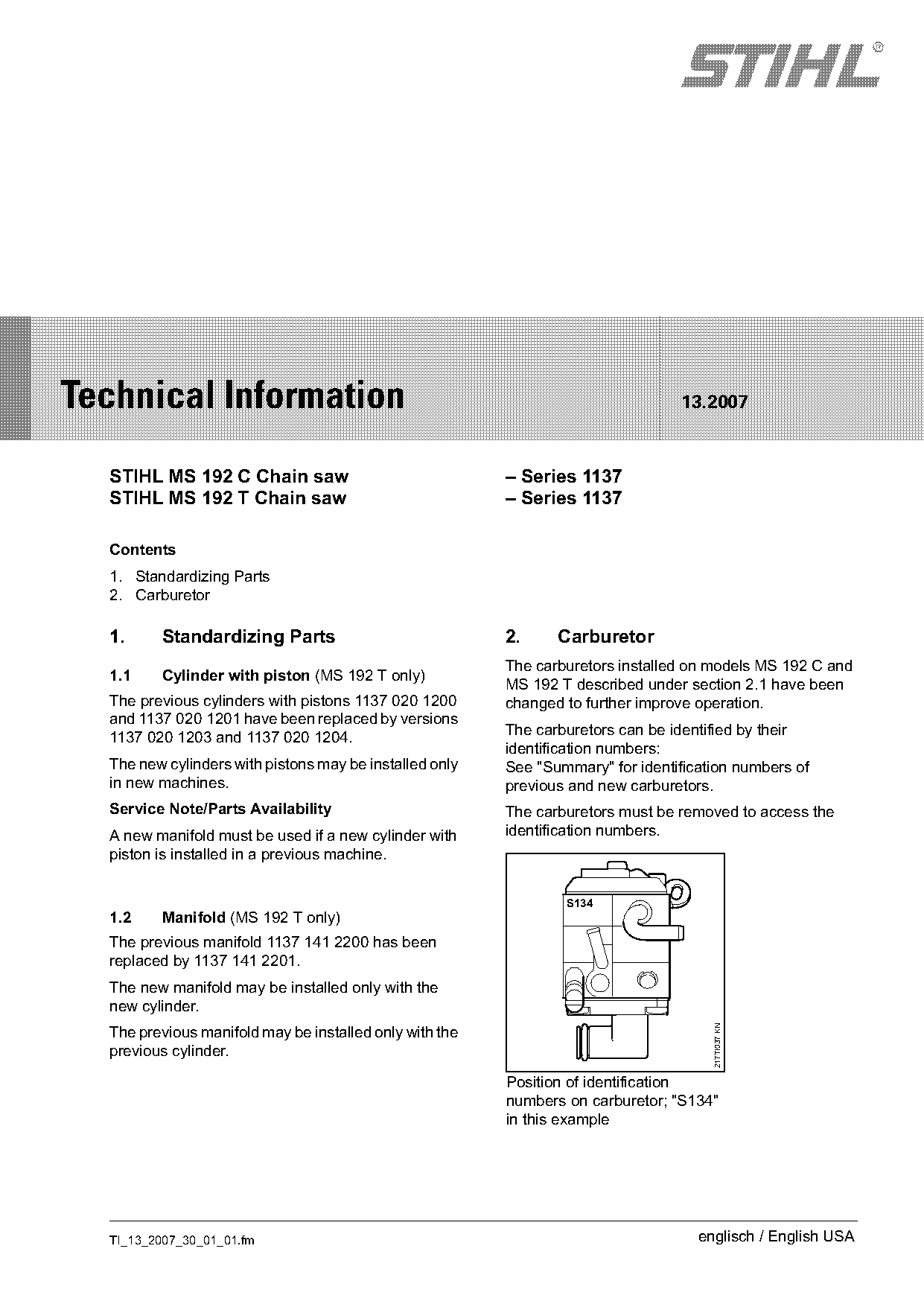

Page 1 of 3
STIH)
Technical Information 13.2007
STIHL MS 192 C Chain saw – Series 1137
STIHL MS 192 T Chain saw – Series 1137
Contents
1. Standardizing Parts
2. Carburetor
1. Standardizing Parts 2. Carburetor
The carburetors installed on models MS 192 C and
1.1 Cylinder with piston (MS 192 T only)
MS 192 T described under section 2.1 have been
The previous cylinders with pistons 1137 020 1200 changed to further improve operation.
and 1137 020 1201 have been replaced by versions
The carburetors can be identified by their
1137 020 1203 and 1137 020 1204.
identification numbers:
The new cylinders with pistons may be installed only See "Summary" for identification numbers of
in new machines. previous and new carburetors.
Service Note/Parts Availability The carburetors must be removed to access the
A new manifold must be used if a new cylinder with identification numbers.
piston is installed in a previous machine.
S134
1.2 Manifold (MS 192 T only)
The previous manifold 1137 141 2200 has been
replaced by 1137 141 2201.
The new manifold may be installed only with the
new cylinder.
217TI037 KN
The previous manifold may be installed only with the
previous cylinder.
Position of identification
numbers on carburetor; "S134"
in this example
TI_13_2007_30_01_01.fm englisch / English USA

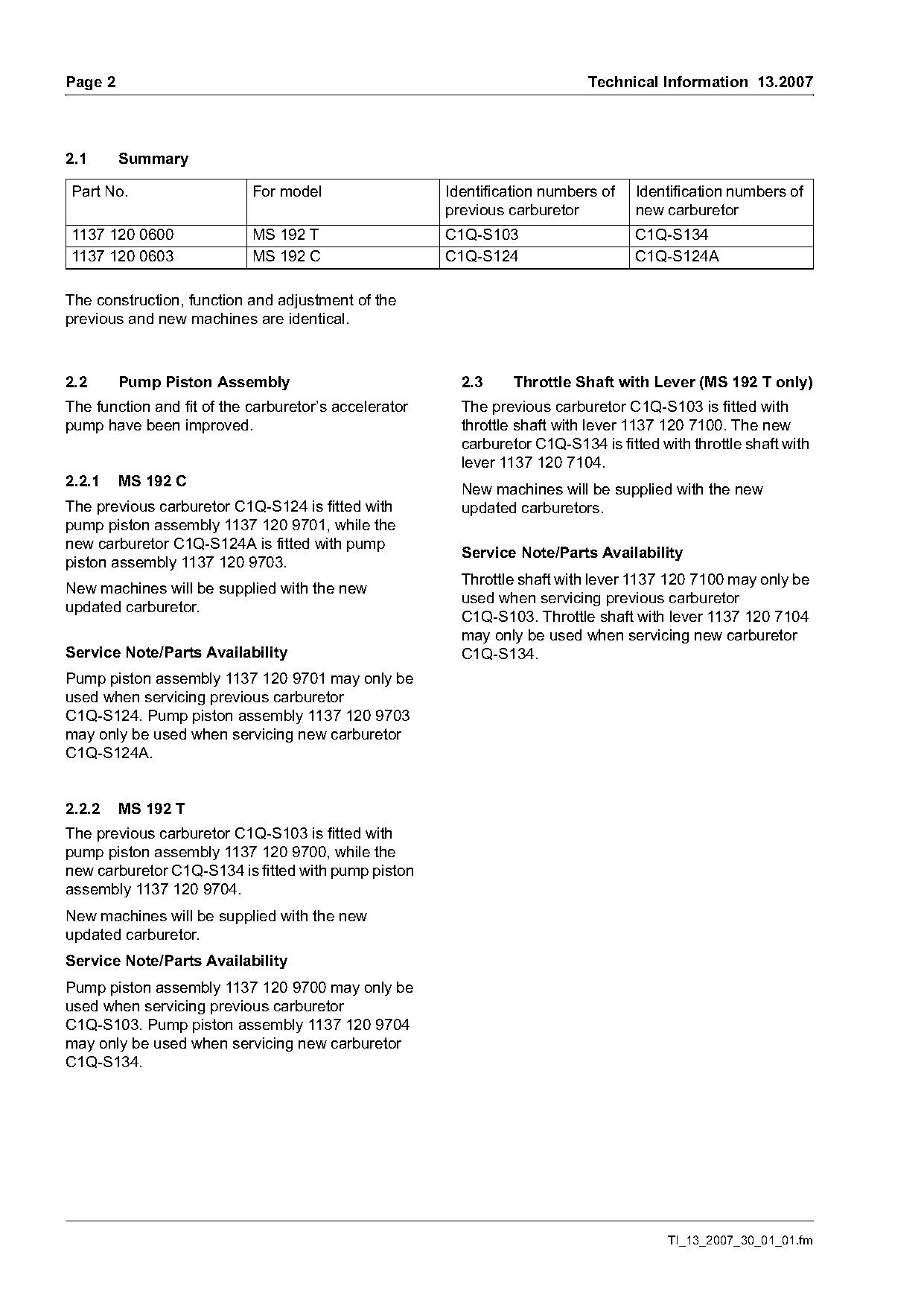

)m~ge 2 Technical Information 13.2007
2.1 Summary
Part No. For model Identification numbers of Identification numbers of
previous carburetor new carburetor
1137 120 0600 MS 192 T C1Q-S103 C1Q-S134
1137 120 0603 MS 192 C C1Q-S124 C1Q-S124A
The construction, function and adjustment of the
previous and new machines are identical.
2.2 Pump Piston Assembly 2.3 Throttle Shaft with Lever (MS 192 T only)
The function and fit of the carburetor’s accelerator The previous carburetor C1Q-S103 is fitted with
pump have been improved. throttle shaft with lever 1137 120 7100. The new
carburetor C1Q-S134 is fitted with throttle shaft with
lever 1137 120 7104.
2.2.1 MS 192 C
New machines will be supplied with the new
The previous carburetor C1Q-S124 is fitted with updated carburetors.
pump piston assembly 1137 120 9701, while the
new carburetor C1Q-S124A is fitted with pump
Service Note/Parts Availability
piston assembly 1137 120 9703.
Throttle shaft with lever 1137 120 7100 may only be
New machines will be supplied with the new
used when servicing previous carburetor
updated carburetor.
C1Q-S103. Throttle shaft with lever 1137 120 7104
may only be used when servicing new carburetor
Service Note/Parts Availability C1Q-S134.
Pump piston assembly 1137 120 9701 may only be
used when servicing previous carburetor
C1Q-S124. Pump piston assembly 1137 120 9703
may only be used when servicing new carburetor
C1Q-S124A.
2.2.2 MS 192 T
The previous carburetor C1Q-S103 is fitted with
pump piston assembly 1137 120 9700, while the
new carburetor C1Q-S134 is fitted with pump piston
assembly 1137 120 9704.
New machines will be supplied with the new
updated carburetor.
Service Note/Parts Availability
Pump piston assembly 1137 120 9700 may only be
used when servicing previous carburetor
C1Q-S103. Pump piston assembly 1137 120 9704
may only be used when servicing new carburetor
C1Q-S134.
TI_13_2007_30_01_01.fm Page 2 of 3

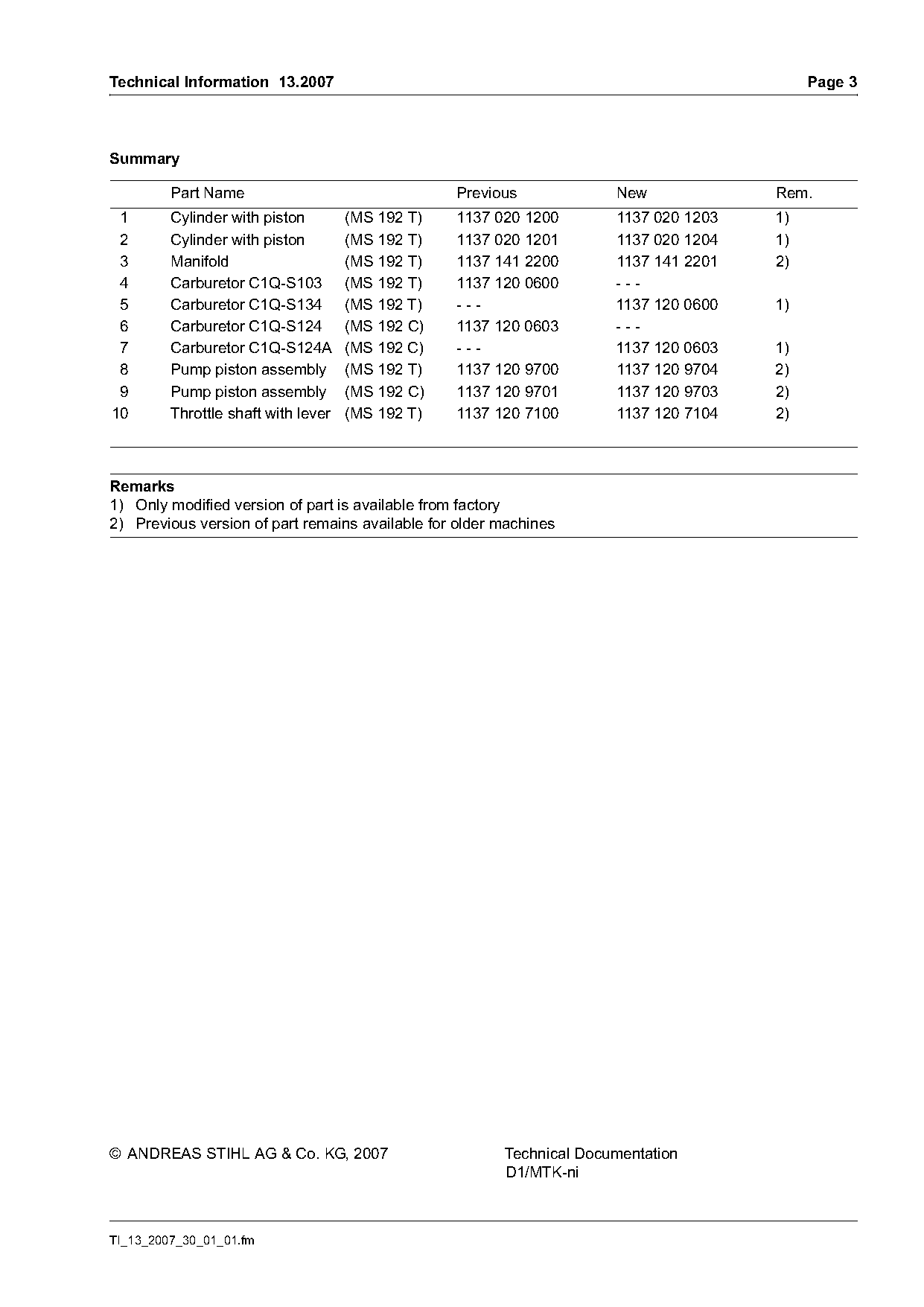

Technical Information 13.2007 Page 3
Summary
Part Name Previous New Rem.
1 Cylinder with piston (MS 192 T) 1137 020 1200 1137 020 1203 1)
2 Cylinder with piston (MS 192 T) 1137 020 1201 1137 020 1204 1)
3 Manifold (MS 192 T) 1137 141 2200 1137 141 2201 2)
4 Carburetor C1Q-S103 (MS 192 T) 1137 120 0600 ---
5 Carburetor C1Q-S134 (MS 192 T) --- 1137 120 0600 1)
6 Carburetor C1Q-S124 (MS 192 C) 1137 120 0603 ---
7 Carburetor C1Q-S124A (MS 192 C) --- 1137 120 0603 1)
8 Pump piston assembly (MS 192 T) 1137 120 9700 1137 120 9704 2)
9 Pump piston assembly (MS 192 C) 1137 120 9701 1137 120 9703 2)
10 Throttle shaft with lever (MS 192 T) 1137 120 7100 1137 120 7104 2)
Remarks
1) Only modified version of part is available from factory
2) Previous version of part remains available for older machines
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-ni
TI_13_2007_30_01_01.fm Page 3 of 3
