Technical Information · issue 15 of 2007
Crankcase, Chain sprocket cover; Conversion kit rescue saw; Wrap around handlebar, elbow connector (MS 460 only); Crankcase and ball bearing (MS 460 only); Summary
IssueTI 15/2007
Engine family 1128
Part changes (10)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 020 2122 | 1128 020 2136 | 1 MS 440: Crankcase Crankcase 1128 020 2122 is replaced by version 1128 020 2136 with the new collar screws 1138 664 2400. |
| 1128 020 2123 | 1128 020 2137 | 2 MS 460: Crankcase Crankcase 1128 020 2123 is replaced by version 1128 020 2137 with the new collar screws 1138 664 2400. |
| 1128 640 1701 | 1128 640 1707 | The chain sprocket cover with bumper spike and chain catcher 1128 640 1701 is replaced by version 1128 640 1707 with countersunk drill-holes. |
| 1122 648 0401 | 1122 648 0403 | Chain sprocket cover for machines with wrap around handlebar Chain sprocket cover 1122 648 0401 is replaced by version 1122 648 0403 with countersunk drill-holes. |
| 1128 640 1700 | 1128 640 1708 | Chain sprocket cover 1128 640 1700 (including bumper spike and chain catcher) is replaced by version 1128 640 1708. |
| 1125 640 1701 | 1128 640 1706 | 2 MS 440: Chain sprocket cover Chain sprocket cover 1125 640 1701 is replaced by version 1128 640 1706 with countersunk drill-holes. |
| 1128 664 1002 | 1128 664 1001 | If a new chain sprocket cover with countersunk holes is fitted when servicing the machine, the side plate with retaining lugs 1128 664 1002 must also be replaced by the side plate 1128 664 1001 without retaining lugs. |
| 1128 791 5500 | 1128 791 5501 | 1 Wrap around handlebar The previous elbow connector 1128 791 5500 is The new handlebar is longer and the bending radius replaced by version 1128 791 5501. |
| 1128 790 3603 | 1128 790 3619 | Wrap around handlebar (Heated Handle) The previous wrap around handlebar with handle heating 1128 790 3603 is replaced by version 1128 790 3619. |
| 9523 003 4266 | 9523 003 4278 | The previous grooved ball bearing (1) 9523 003 4266 is replaced by version 9523 003 4278. |
Full text
Page 1 of 8
STIH)

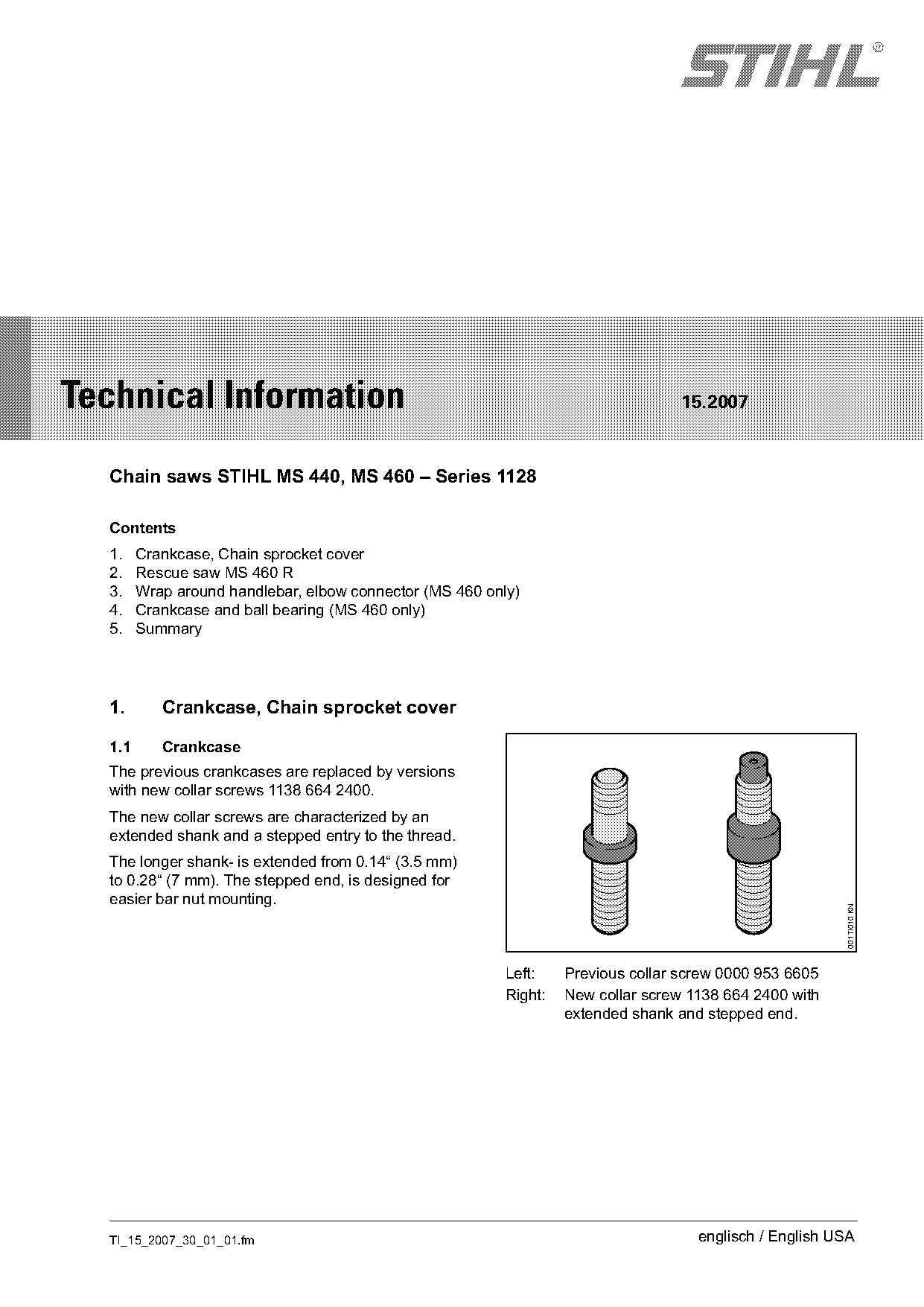

Technical Information 15.2007
Chain saws STIHL MS 440, MS 460 – Series 1128
Contents
1. Crankcase, Chain sprocket cover
2. Rescue saw MS 460 R
3. Wrap around handlebar, elbow connector (MS 460 only)
4. Crankcase and ball bearing (MS 460 only)
5. Summary
1. Crankcase, Chain sprocket cover
1.1 Crankcase
The previous crankcases are replaced by versions
with new collar screws 1138 664 2400.
The new collar screws are characterized by an
extended shank and a stepped entry to the thread.
The longer shank- is extended from 0.14“ (3.5 mm)
to 0.28“ (7 mm). The stepped end, is designed for
easier bar nut mounting.
001TI010 KN
Left: Previous collar screw 0000 953 6605
Right: New collar screw 1138 664 2400 with
extended shank and stepped end.
TI_15_2007_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 15.2007

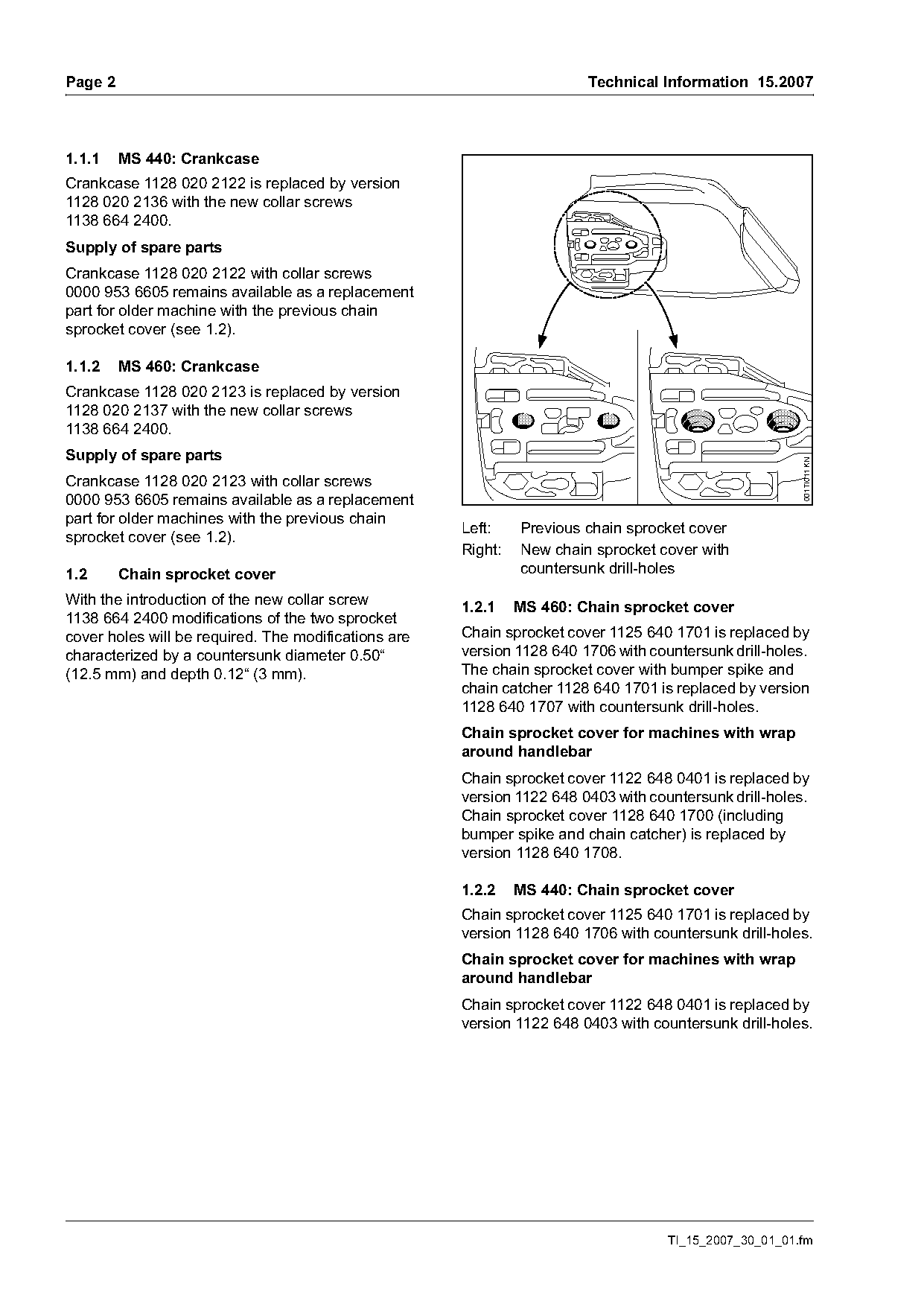

1.1.1 MS 440: Crankcase
Crankcase 1128 020 2122 is replaced by version
1128 020 2136 with the new collar screws
1138 664 2400.
Supply of spare parts
Crankcase 1128 020 2122 with collar screws
0000 953 6605 remains available as a replacement
part for older machine with the previous chain
sprocket cover (see 1.2).
1.1.2 MS 460: Crankcase
Crankcase 1128 020 2123 is replaced by version
1128 020 2137 with the new collar screws
1138 664 2400.
Supply of spare parts
001TI011 KN
Crankcase 1128 020 2123 with collar screws
0000 953 6605 remains available as a replacement
part for older machines with the previous chain
Left: Previous chain sprocket cover
sprocket cover (see 1.2).
Right: New chain sprocket cover with
1.2 Chain sprocket cover countersunk drill-holes
With the introduction of the new collar screw
1.2.1 MS 460: Chain sprocket cover
1138 664 2400 modifications of the two sprocket
cover holes will be required. The modifications are Chain sprocket cover 1125 640 1701 is replaced by
characterized by a countersunk diameter 0.50“ version 1128 640 1706 with countersunk drill-holes.
(12.5 mm) and depth 0.12“ (3 mm). The chain sprocket cover with bumper spike and
chain catcher 1128 640 1701 is replaced by version
1128 640 1707 with countersunk drill-holes.
Chain sprocket cover for machines with wrap
around handlebar
Chain sprocket cover 1122 648 0401 is replaced by
version 1122 648 0403 with countersunk drill-holes.
Chain sprocket cover 1128 640 1700 (including
bumper spike and chain catcher) is replaced by
version 1128 640 1708.
1.2.2 MS 440: Chain sprocket cover
Chain sprocket cover 1125 640 1701 is replaced by
version 1128 640 1706 with countersunk drill-holes.
Chain sprocket cover for machines with wrap
around handlebar
Chain sprocket cover 1122 648 0401 is replaced by
version 1122 648 0403 with countersunk drill-holes.
TI_15_2007_30_01_01.fm Page 2 of 8
Technical Information 15.2007 Page 3

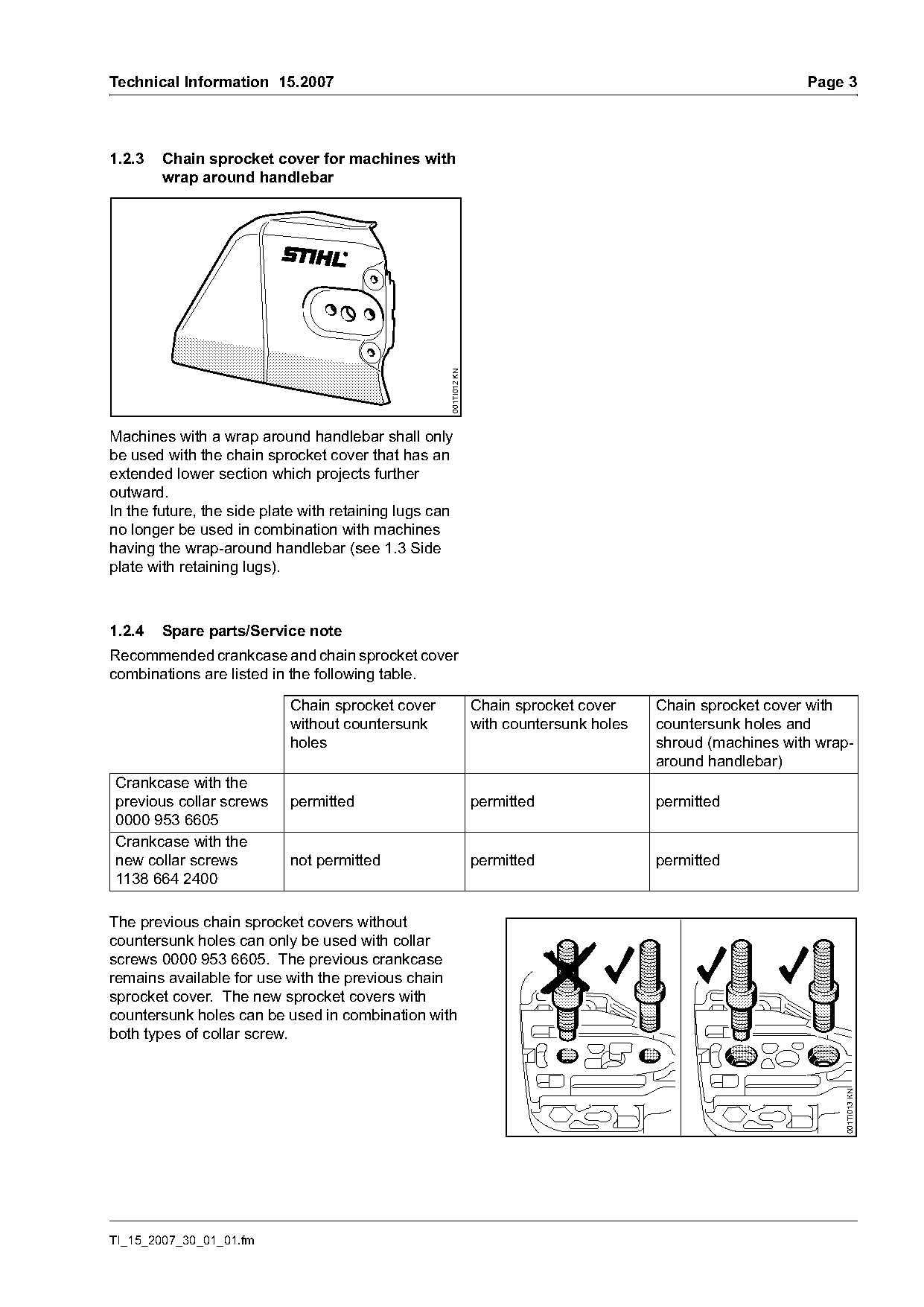

1.2.3 Chain sprocket cover for machines with
wrap around handlebar
001TI012 KN
Machines with a wrap around handlebar shall only
be used with the chain sprocket cover that has an
extended lower section which projects further
outward.
In the future, the side plate with retaining lugs can
no longer be used in combination with machines
having the wrap-around handlebar (see 1.3 Side
plate with retaining lugs).
1.2.4 Spare parts/Service note
Recommended crankcase and chain sprocket cover
combinations are listed in the following table.
Chain sprocket cover Chain sprocket cover Chain sprocket cover with
without countersunk with countersunk holes countersunk holes and
holes shroud (machines with wrap-
around handlebar)
Crankcase with the
previous collar screws permitted permitted permitted
0000 953 6605
Crankcase with the
new collar screws not permitted permitted permitted
1138 664 2400
The previous chain sprocket covers without
countersunk holes can only be used with collar
screws 0000 953 6605. The previous crankcase
remains available for use with the previous chain
sprocket cover. The new sprocket covers with
countersunk holes can be used in combination with
both types of collar screw.
001TI013 KN
TI_15_2007_30_01_01.fm
)m~ge 4 Technical Information 15.2007

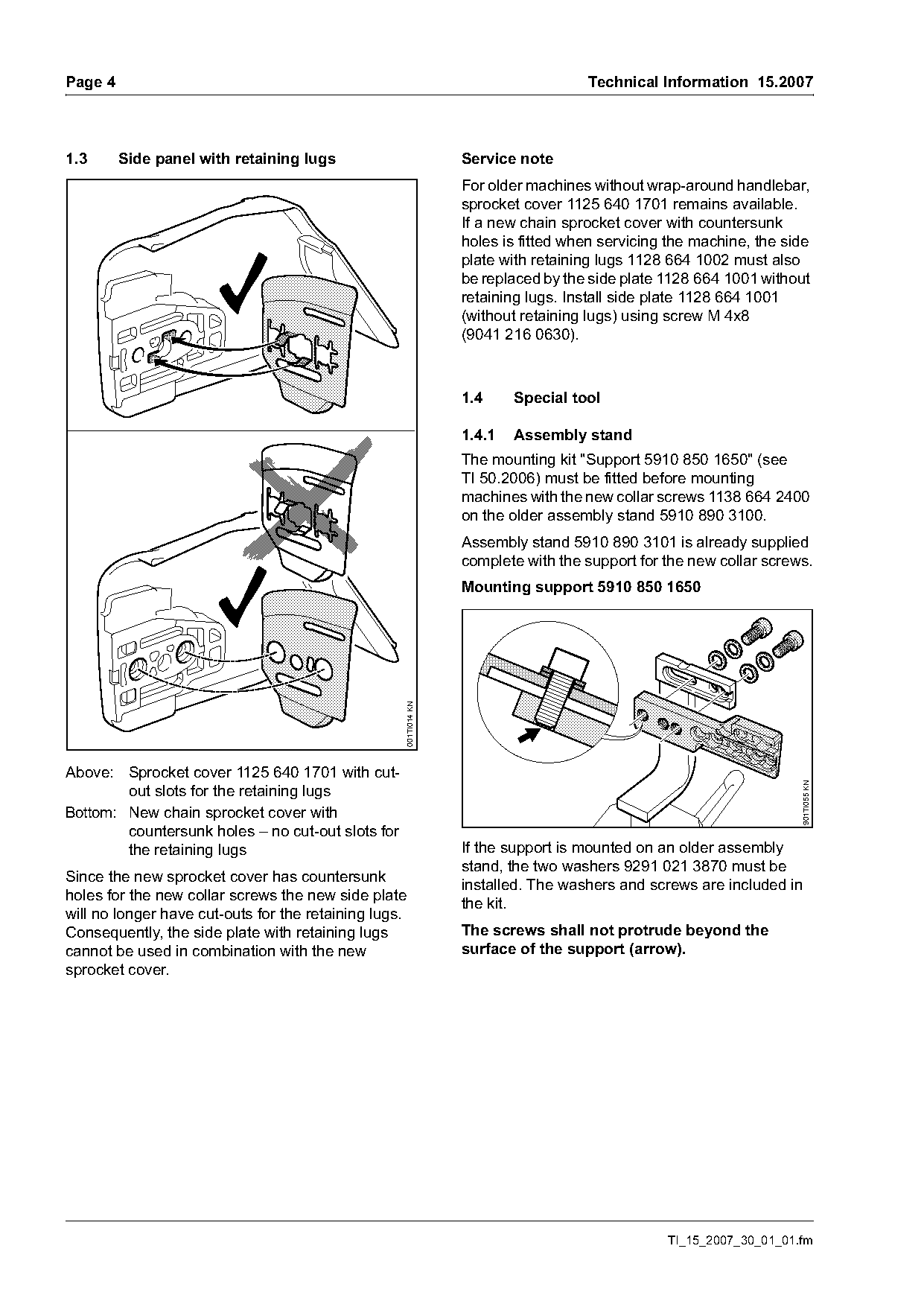

1.3 Side panel with retaining lugs Service note
For older machines without wrap-around handlebar,
sprocket cover 1125 640 1701 remains available.
If a new chain sprocket cover with countersunk
holes is fitted when servicing the machine, the side
plate with retaining lugs 1128 664 1002 must also
be replaced by the side plate 1128 664 1001 without
retaining lugs. Install side plate 1128 664 1001
(without retaining lugs) using screw M 4x8
(9041 216 0630).
1.4 Special tool
1.4.1 Assembly stand
The mounting kit "Support 5910 850 1650" (see
TI 50.2006) must be fitted before mounting
machines with the new collar screws 1138 664 2400
on the older assembly stand 5910 890 3100.
Assembly stand 5910 890 3101 is already supplied
complete with the support for the new collar screws.
Mounting support 5910 850 1650
001TI014 KN
Above: Sprocket cover 1125 640 1701 with cut-
901TI055 KN
out slots for the retaining lugs
Bottom: New chain sprocket cover with
countersunk holes – no cut-out slots for
the retaining lugs If the support is mounted on an older assembly
stand, the two washers 9291 021 3870 must be
Since the new sprocket cover has countersunk
installed. The washers and screws are included in
holes for the new collar screws the new side plate
the kit.
will no longer have cut-outs for the retaining lugs.
Consequently, the side plate with retaining lugs The screws shall not protrude beyond the
cannot be used in combination with the new surface of the support (arrow).
sprocket cover.
TI_15_2007_30_01_01.fm Page 3 of 8
Technical Information 15.2007 Page 5

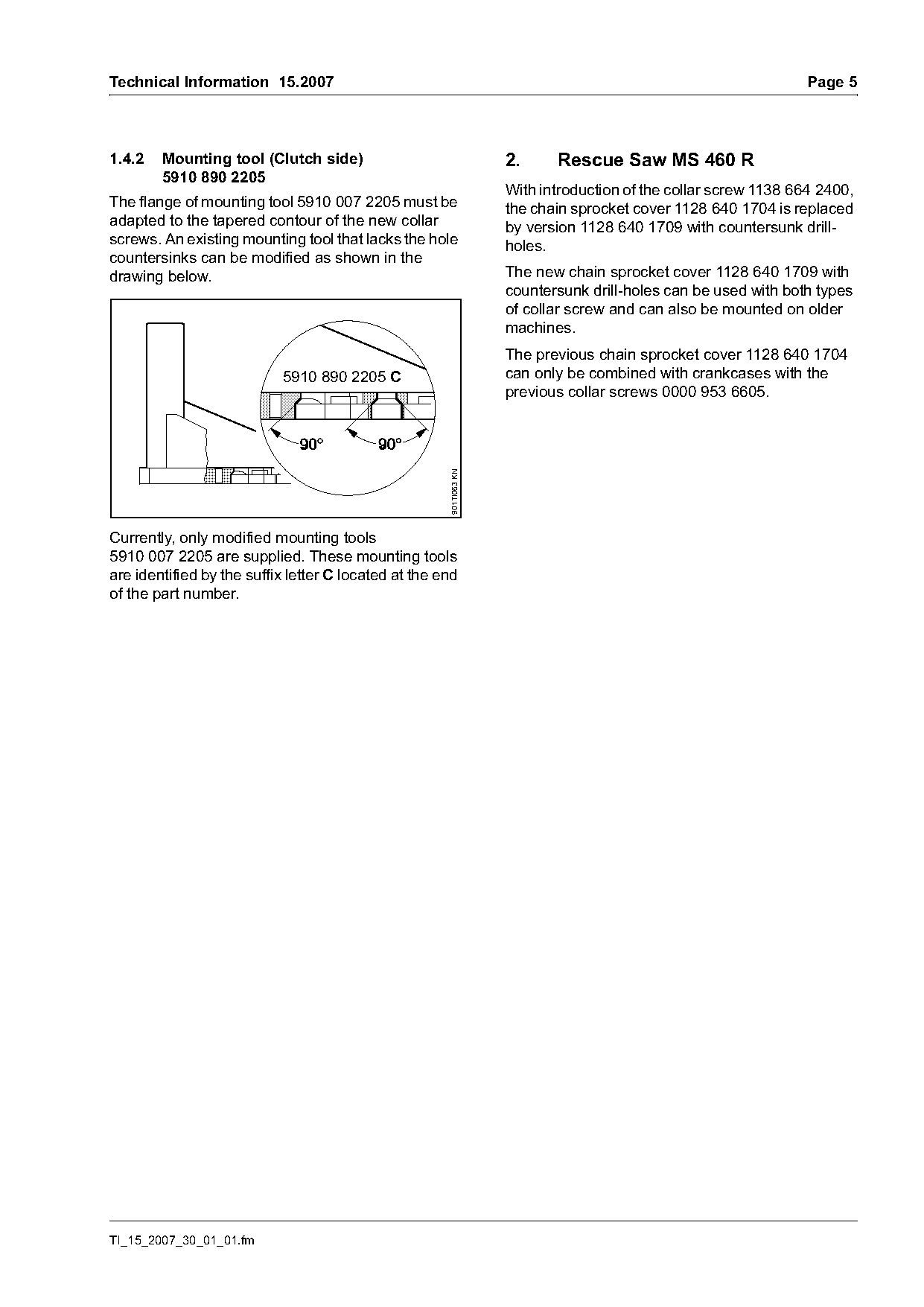

1.4.2 Mounting tool (Clutch side) 2. Rescue Saw MS 460 R
5910 890 2205
With introduction of the collar screw 1138 664 2400,
The flange of mounting tool 5910 007 2205 must be the chain sprocket cover 1128 640 1704 is replaced
adapted to the tapered contour of the new collar by version 1128 640 1709 with countersunk drill-
screws. An existing mounting tool that lacks the hole holes.
countersinks can be modified as shown in the
drawing below. The new chain sprocket cover 1128 640 1709 with
countersunk drill-holes can be used with both types
of collar screw and can also be mounted on older
machines.
The previous chain sprocket cover 1128 640 1704
5910 890 2205 C can only be combined with crankcases with the
previous collar screws 0000 953 6605.
901TI063 KN
Currently, only modified mounting tools
5910 007 2205 are supplied. These mounting tools
are identified by the suffix letter C located at the end
of the part number.
TI_15_2007_30_01_01.fm
)m~ge 6 Technical Information 15.2007

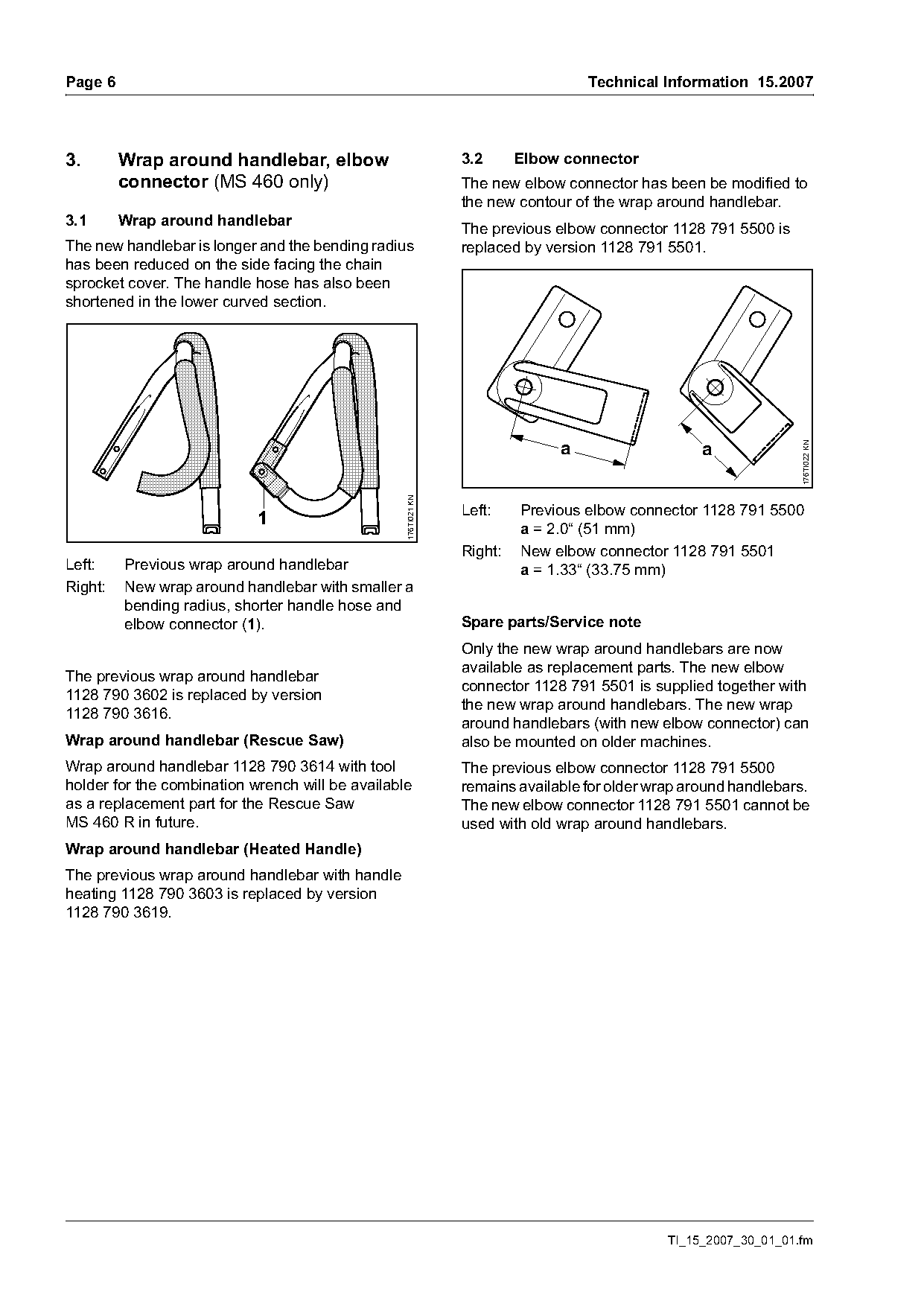

3. Wrap around handlebar, elbow 3.2 Elbow connector
connector (MS 460 only) The new elbow connector has been be modified to
the new contour of the wrap around handlebar.
3.1 Wrap around handlebar
The previous elbow connector 1128 791 5500 is
The new handlebar is longer and the bending radius replaced by version 1128 791 5501.
has been reduced on the side facing the chain
sprocket cover. The handle hose has also been
shortened in the lower curved section.
a a
176TI022 KN
176TI021 KN
Left: Previous elbow connector 1128 791 5500
1
a = 2.0“ (51 mm)
Right: New elbow connector 1128 791 5501
Left: Previous wrap around handlebar a = 1.33“ (33.75 mm)
Right: New wrap around handlebar with smaller a
bending radius, shorter handle hose and
elbow connector (1). Spare parts/Service note
Only the new wrap around handlebars are now
available as replacement parts. The new elbow
The previous wrap around handlebar
connector 1128 791 5501 is supplied together with
1128 790 3602 is replaced by version
the new wrap around handlebars. The new wrap
1128 790 3616.
around handlebars (with new elbow connector) can
Wrap around handlebar (Rescue Saw) also be mounted on older machines.
Wrap around handlebar 1128 790 3614 with tool The previous elbow connector 1128 791 5500
holder for the combination wrench will be available remains available for older wrap around handlebars.
as a replacement part for the Rescue Saw The new elbow connector 1128 791 5501 cannot be
MS 460 R in future. used with old wrap around handlebars.
Wrap around handlebar (Heated Handle)
The previous wrap around handlebar with handle
heating 1128 790 3603 is replaced by version
1128 790 3619.
TI_15_2007_30_01_01.fm Page 4 of 8
Technical Information 15.2007 Page 7

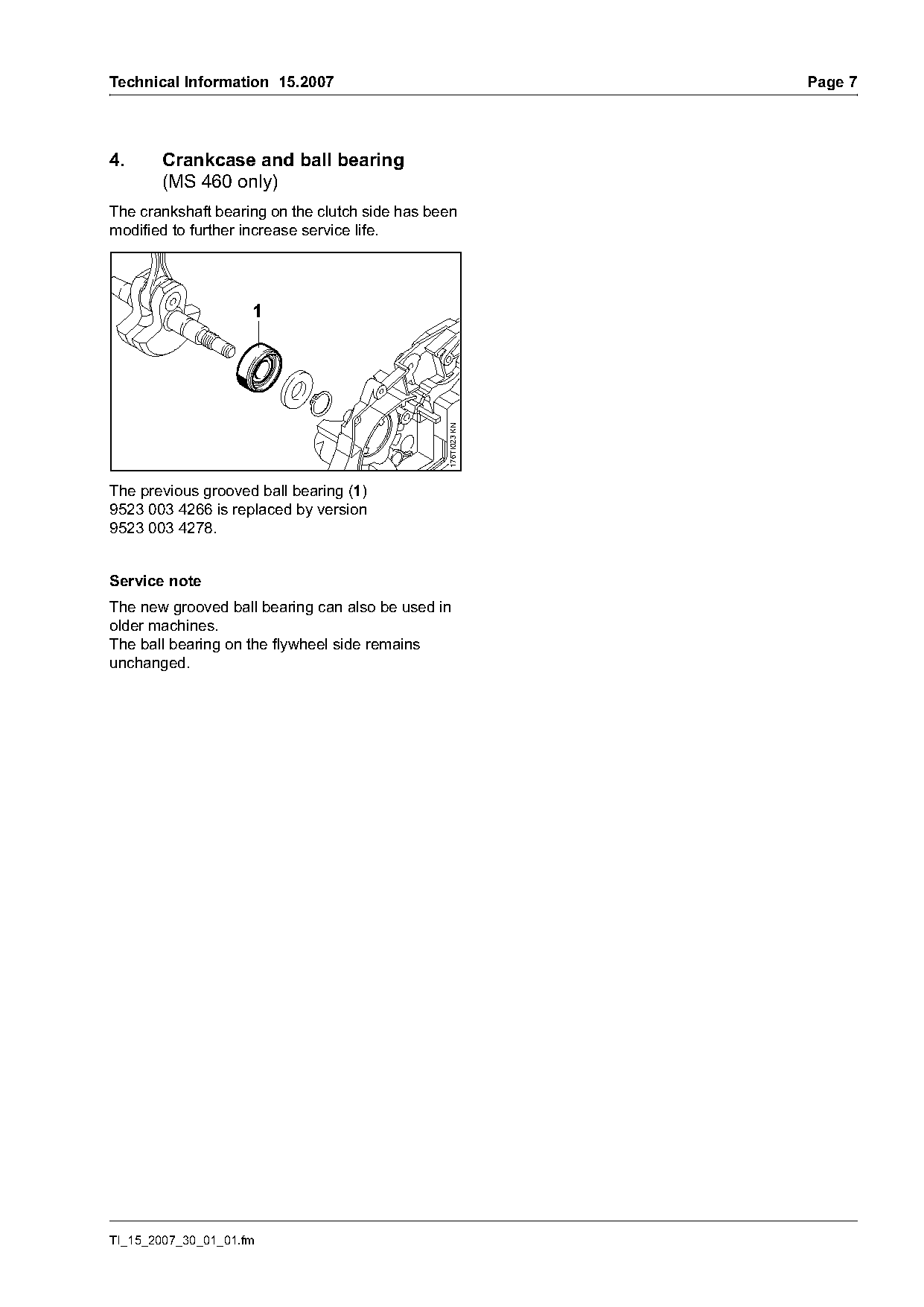

4. Crankcase and ball bearing
(MS 460 only)
The crankshaft bearing on the clutch side has been
modified to further increase service life.
176TI023 KN
The previous grooved ball bearing (1)
9523 003 4266 is replaced by version
9523 003 4278.
Service note
The new grooved ball bearing can also be used in
older machines.
The ball bearing on the flywheel side remains
unchanged.
TI_15_2007_30_01_01.fm
)m~ge 8 Technical Information 15.2007

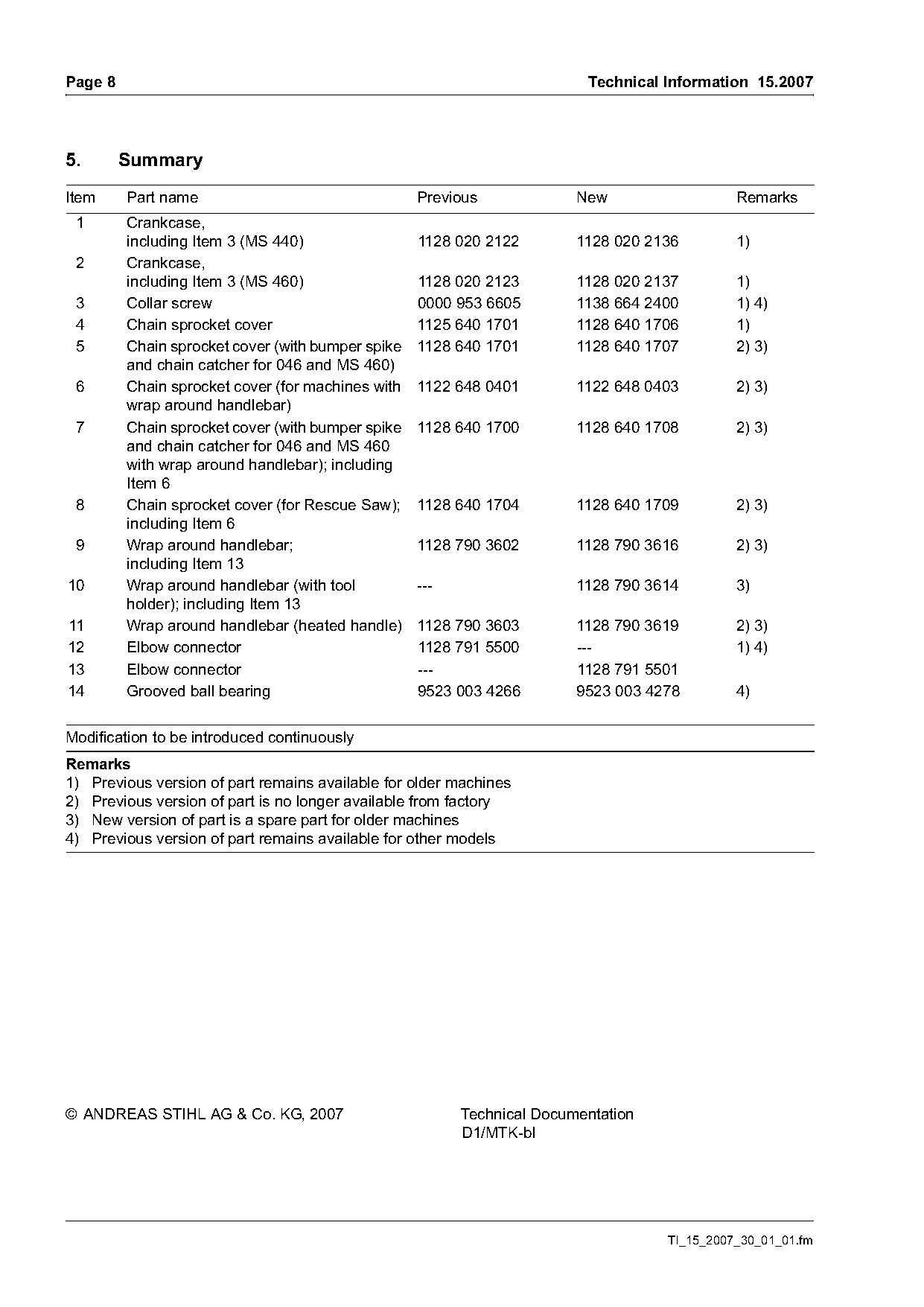

5. Summary
Item Part name Previous New Remarks
1 Crankcase,
including Item 3 (MS 440) 1128 020 2122 1128 020 2136 1)
2 Crankcase,
including Item 3 (MS 460) 1128 020 2123 1128 020 2137 1)
3 Collar screw 0000 953 6605 1138 664 2400 1) 4)
4 Chain sprocket cover 1125 640 1701 1128 640 1706 1)
5 Chain sprocket cover (with bumper spike 1128 640 1701 1128 640 1707 2) 3)
and chain catcher for 046 and MS 460)
6 Chain sprocket cover (for machines with 1122 648 0401 1122 648 0403 2) 3)
wrap around handlebar)
7 Chain sprocket cover (with bumper spike 1128 640 1700 1128 640 1708 2) 3)
and chain catcher for 046 and MS 460
with wrap around handlebar); including
Item 6
8 Chain sprocket cover (for Rescue Saw); 1128 640 1704 1128 640 1709 2) 3)
including Item 6
9 Wrap around handlebar; 1128 790 3602 1128 790 3616 2) 3)
including Item 13
10 Wrap around handlebar (with tool --- 1128 790 3614 3)
holder); including Item 13
11 Wrap around handlebar (heated handle) 1128 790 3603 1128 790 3619 2) 3)
12 Elbow connector 1128 791 5500 --- 1) 4)
13 Elbow connector --- 1128 791 5501
14 Grooved ball bearing 9523 003 4266 9523 003 4278 4)
Modification to be introduced continuously
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part is no longer available from factory
3) New version of part is a spare part for older machines
4) Previous version of part remains available for other models
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
TI_15_2007_30_01_01.fm Page 5 of 8
Page 6 of 8
Page 7 of 8
Page 8 of 8
