Technical Information · issue 26 of 2007
New STIHL cutting tools for brushcutters and clearing saws
IssueTI 26/2007
Full text

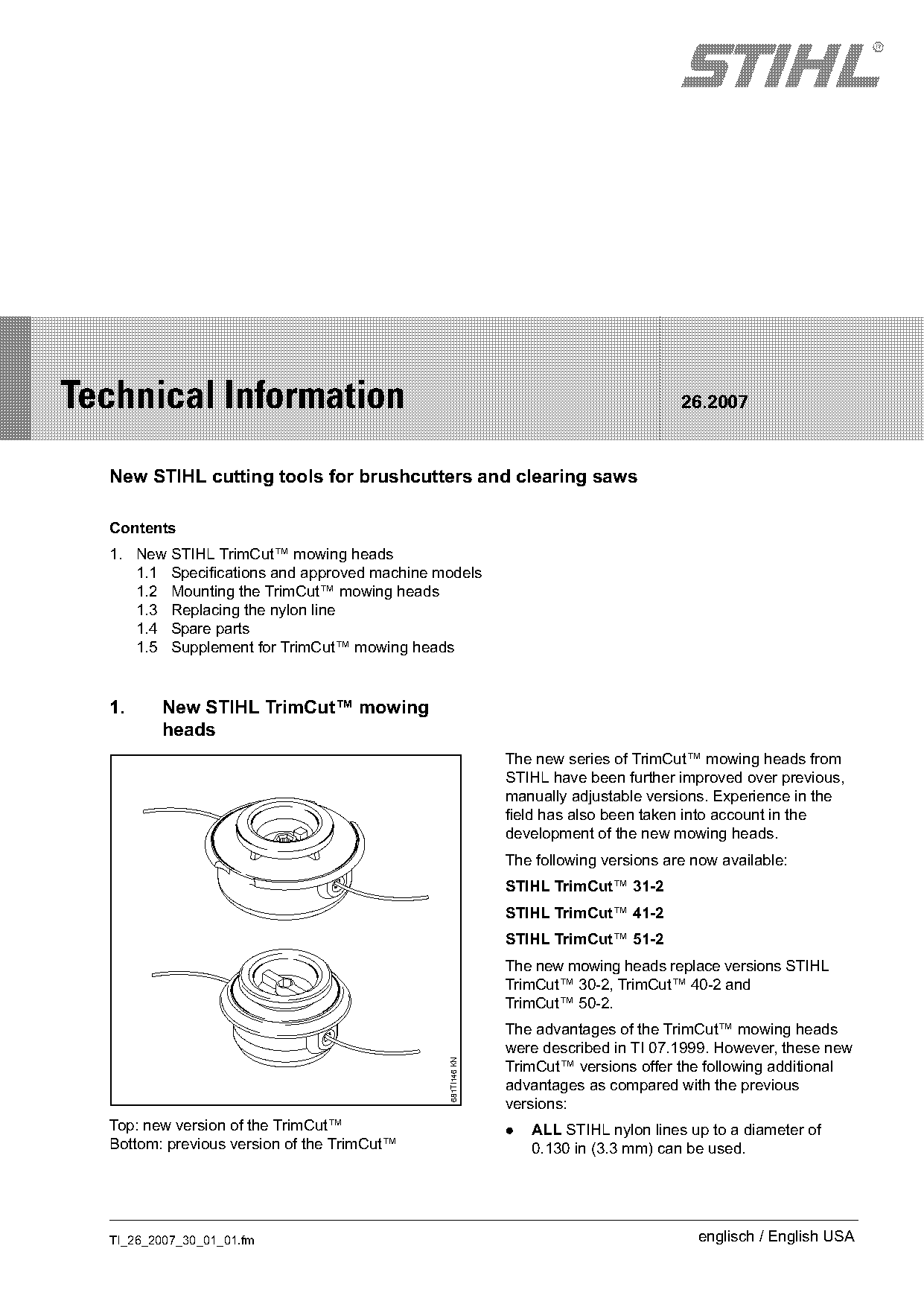

Page 1 of 7
STIH)
Technical Information 26.2007
New STIHL cutting tools for brushcutters and clearing saws
Contents
1. New STIHL TrimCut™ mowing heads
1.1 Specifications and approved machine models
1.2 Mounting the TrimCut™ mowing heads
1.3 Replacing the nylon line
1.4 Spare parts
1.5 Supplement for TrimCut™ mowing heads
1. New STIHL TrimCut™ mowing
heads
The new series of TrimCut™ mowing heads from
STIHL have been further improved over previous,
manually adjustable versions. Experience in the
field has also been taken into account in the
development of the new mowing heads.
The following versions are now available:
STIHL TrimCut™ 31-2
STIHL TrimCut™ 41-2
STIHL TrimCut™ 51-2
The new mowing heads replace versions STIHL
TrimCut™ 30-2, TrimCut™ 40-2 and
TrimCut™ 50-2.
The advantages of the TrimCut™ mowing heads
were described in TI 07.1999. However, these new
681TI146 KN
TrimCut™ versions offer the following additional
advantages as compared with the previous
versions:
Top: new version of the TrimCut™ . ALL STIHL nylon lines up to a diameter of
Bottom: previous version of the TrimCut™ 0.130 in (3.3 mm) can be used.
TI_26_2007_30_01_01.fm englisch / English USA

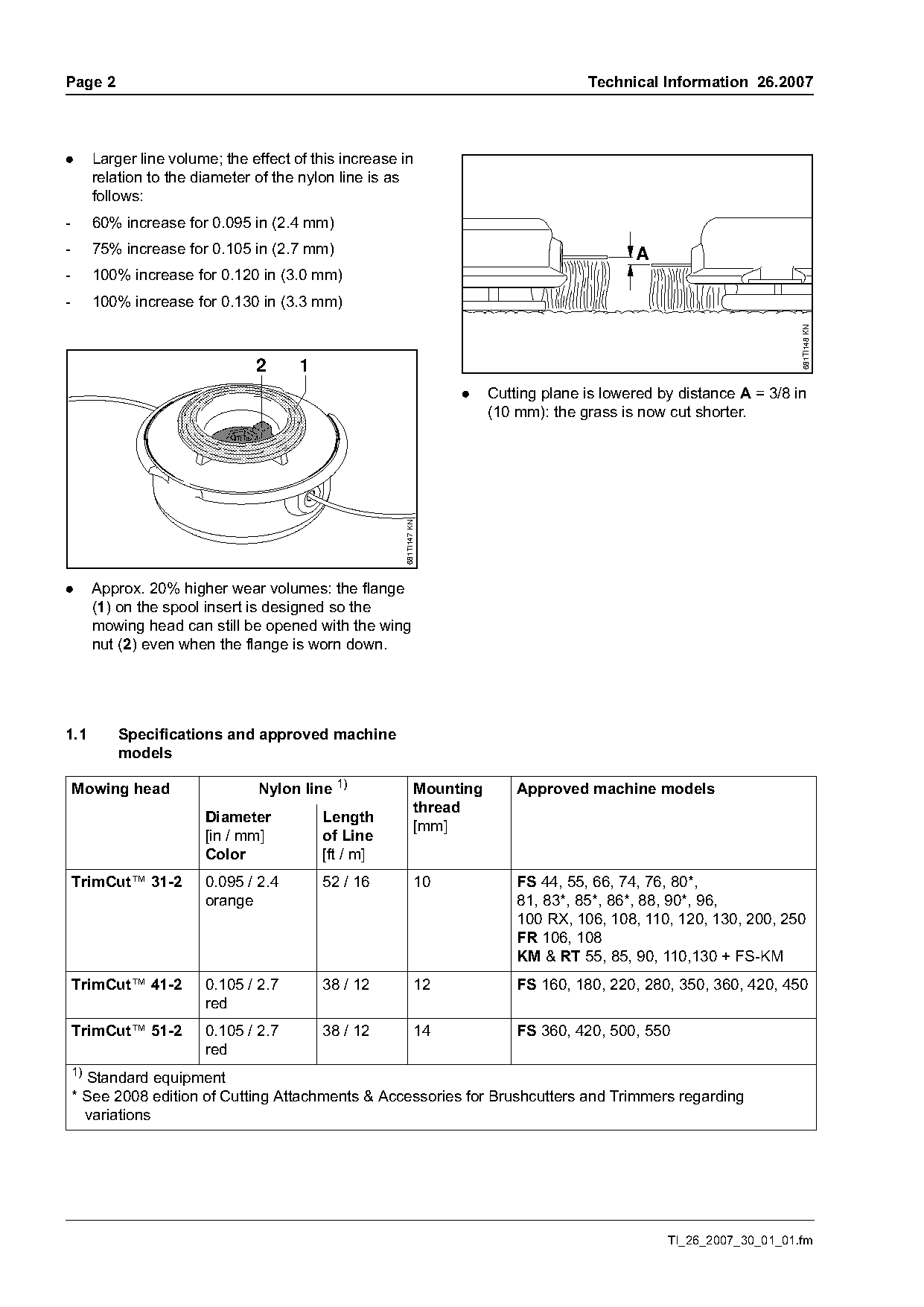

)m~ge 2 Technical Information 26.2007
. Larger line volume; the effect of this increase in
relation to the diameter of the nylon line is as
follows:
- 60% increase for 0.095 in (2.4 mm)
- 75% increase for 0.105 in (2.7 mm) A
- 100% increase for 0.120 in (3.0 mm)
- 100% increase for 0.130 in (3.3 mm)
681TI148 KN
2 1
. Cutting plane is lowered by distance A = 3/8 in
681TI147 KN
(10 mm): the grass is now cut shorter.
. Approx. 20% higher wear volumes: the flange
(1) on the spool insert is designed so the
mowing head can still be opened with the wing
nut (2) even when the flange is worn down.
1.1 Specifications and approved machine
models
Mowing head Nylon line 1) Mounting Approved machine models
thread
Diameter Length
[mm]
[in / mm] of Line
Color [ft / m]
TrimCut™ 31-2 0.095 / 2.4 52 / 16 10 FS 44, 55, 66, 74, 76, 80*,
orange 81, 83*, 85*, 86*, 88, 90*, 96,
100 RX, 106, 108, 110, 120, 130, 200, 250
FR 106, 108
KM & RT 55, 85, 90, 110,130 + FS-KM
TrimCut™ 41-2 0.105 / 2.7 38 / 12 12 FS 160, 180, 220, 280, 350, 360, 420, 450
red
TrimCut™ 51-2 0.105 / 2.7 38 / 12 14 FS 360, 420, 500, 550
red
1) Standard equipment
* See 2008 edition of Cutting Attachments & Accessories for Brushcutters and Trimmers regarding
variations
TI_26_2007_30_01_01.fm Page 2 of 7

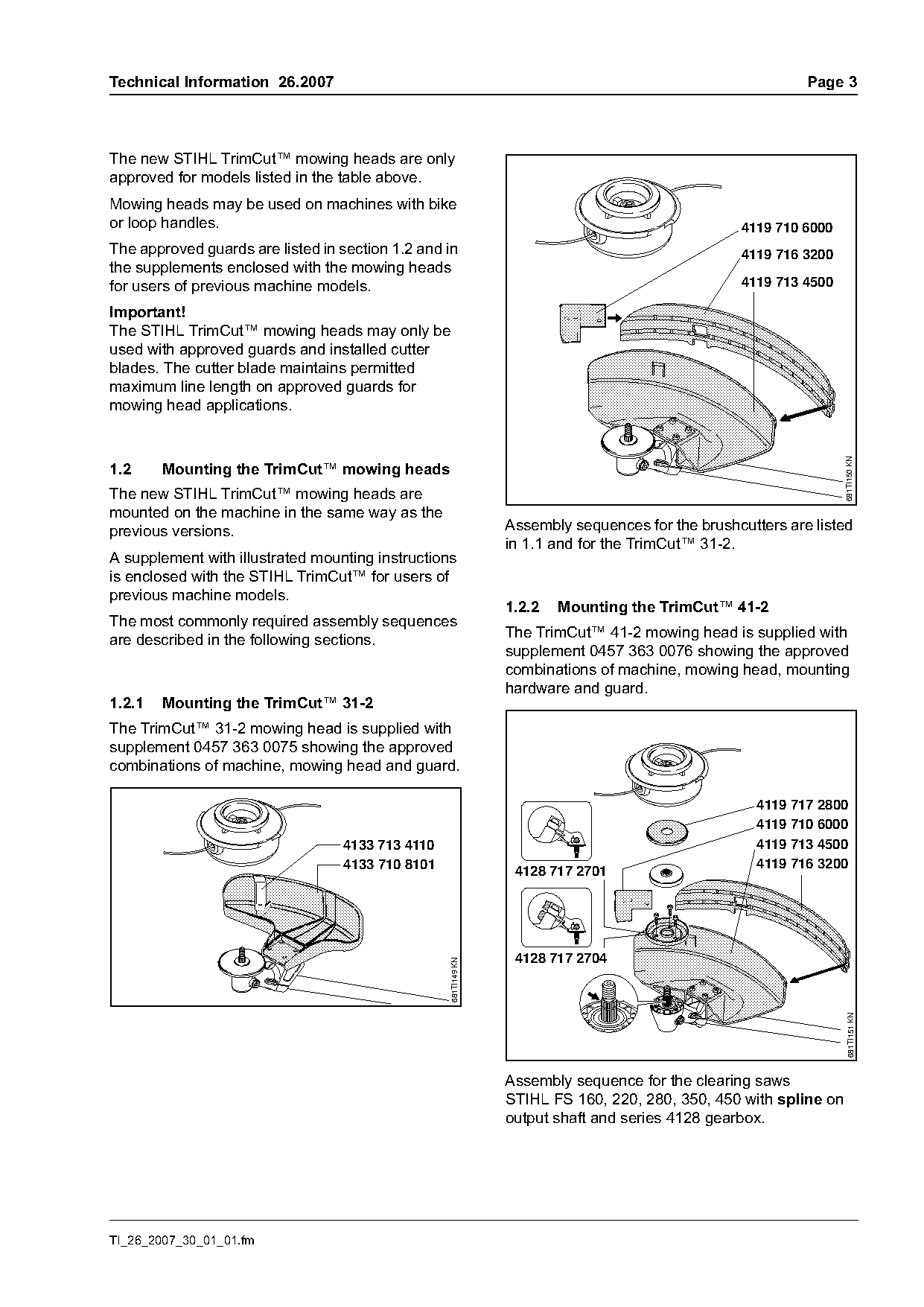

Technical Information 26.2007 Page 3
The new STIHL TrimCut™ mowing heads are only
approved for models listed in the table above.
Mowing heads may be used on machines with bike
or loop handles. 4119 710 6000
The approved guards are listed in section 1.2 and in 4119 716 3200
the supplements enclosed with the mowing heads
for users of previous machine models. 4119 713 4500
Important!
The STIHL TrimCut™ mowing heads may only be
used with approved guards and installed cutter
blades. The cutter blade maintains permitted
maximum line length on approved guards for
mowing head applications.
681TI150 KN
1.2 Mounting the TrimCut™ mowing heads
The new STIHL TrimCut™ mowing heads are
mounted on the machine in the same way as the
previous versions. Assembly sequences for the brushcutters are listed
in 1.1 and for the TrimCut™ 31-2.
A supplement with illustrated mounting instructions
is enclosed with the STIHL TrimCut™ for users of
previous machine models.
1.2.2 Mounting the TrimCut™ 41-2
The most commonly required assembly sequences
are described in the following sections. The TrimCut™ 41-2 mowing head is supplied with
supplement 0457 363 0076 showing the approved
combinations of machine, mowing head, mounting
hardware and guard.
1.2.1 Mounting the TrimCut™ 31-2
The TrimCut™ 31-2 mowing head is supplied with
supplement 0457 363 0075 showing the approved
combinations of machine, mowing head and guard.
4119 717 2800
4119 710 6000
4133 713 4110 4119 713 4500
4133 710 8101 4119 716 3200
4128 717 2701
4128 717 2704
681TI149 KN
681TI151 KN
Assembly sequence for the clearing saws
STIHL FS 160, 220, 280, 350, 450 with spline on
output shaft and series 4128 gearbox.
TI_26_2007_30_01_01.fm

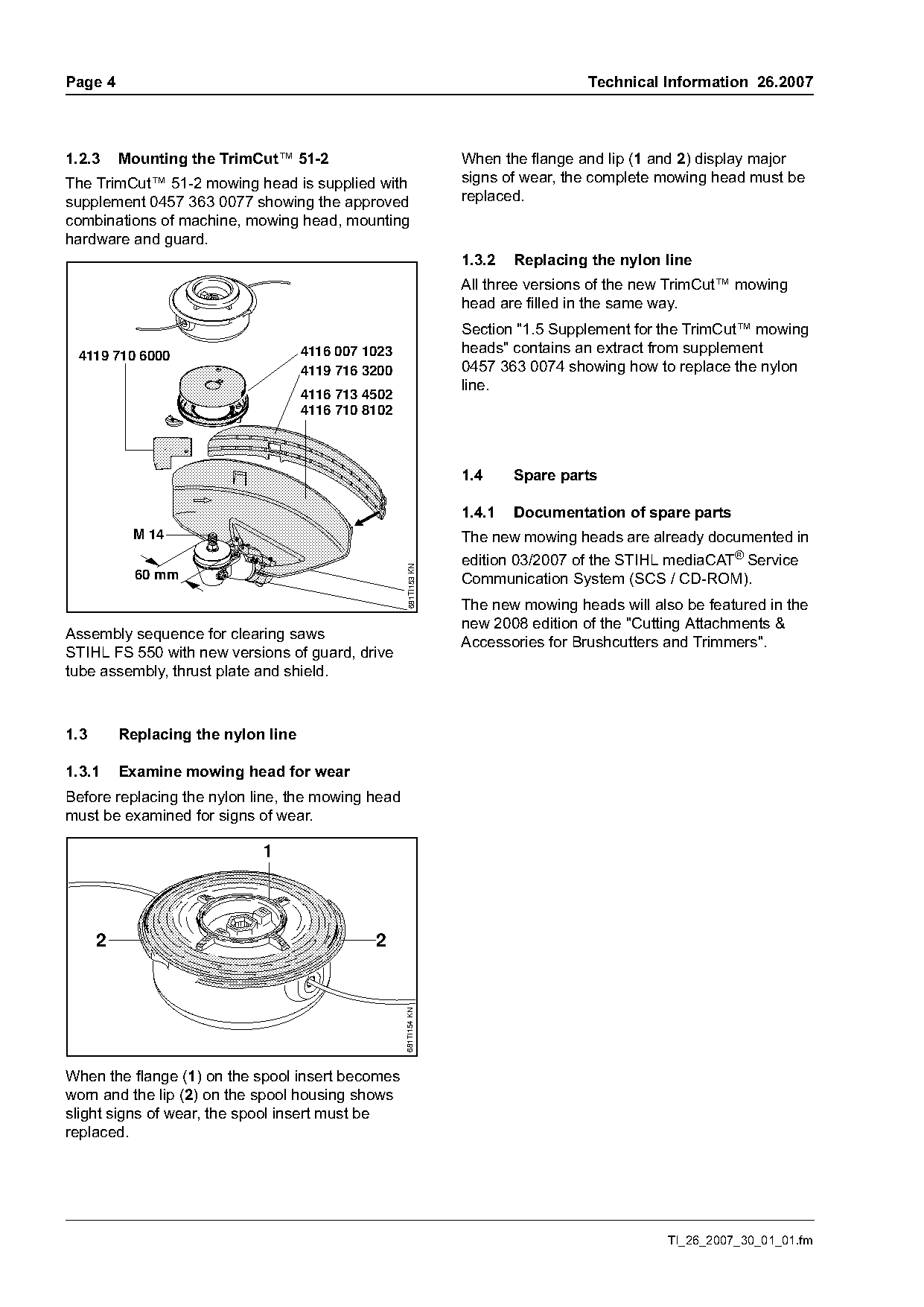

)m~ge 4 Technical Information 26.2007
1.2.3 Mounting the TrimCut™ 51-2 When the flange and lip (1 and 2) display major
The TrimCut™ 51-2 mowing head is supplied with signs of wear, the complete mowing head must be
supplement 0457 363 0077 showing the approved replaced.
combinations of machine, mowing head, mounting
hardware and guard.
1.3.2 Replacing the nylon line
All three versions of the new TrimCut™ mowing
head are filled in the same way.
Section "1.5 Supplement for the TrimCut™ mowing
4119 710 6000 4116 007 1023 heads" contains an extract from supplement
4119 716 3200 0457 363 0074 showing how to replace the nylon
line.
4116 713 4502
4116 710 8102
1.4 Spare parts
1.4.1 Documentation of spare parts
M 14 The new mowing heads are already documented in
edition 03/2007 of the STIHL mediaCAT® Service
681TI153 KN
60 mm Communication System (SCS / CD-ROM).
The new mowing heads will also be featured in the
new 2008 edition of the "Cutting Attachments &
Assembly sequence for clearing saws
Accessories for Brushcutters and Trimmers".
STIHL FS 550 with new versions of guard, drive
tube assembly, thrust plate and shield.
1.3 Replacing the nylon line
1.3.1 Examine mowing head for wear
Before replacing the nylon line, the mowing head
must be examined for signs of wear.
2 2
681TI154 KN
When the flange (1) on the spool insert becomes
worn and the lip (2) on the spool housing shows
slight signs of wear, the spool insert must be
replaced.
TI_26_2007_30_01_01.fm Page 3 of 7

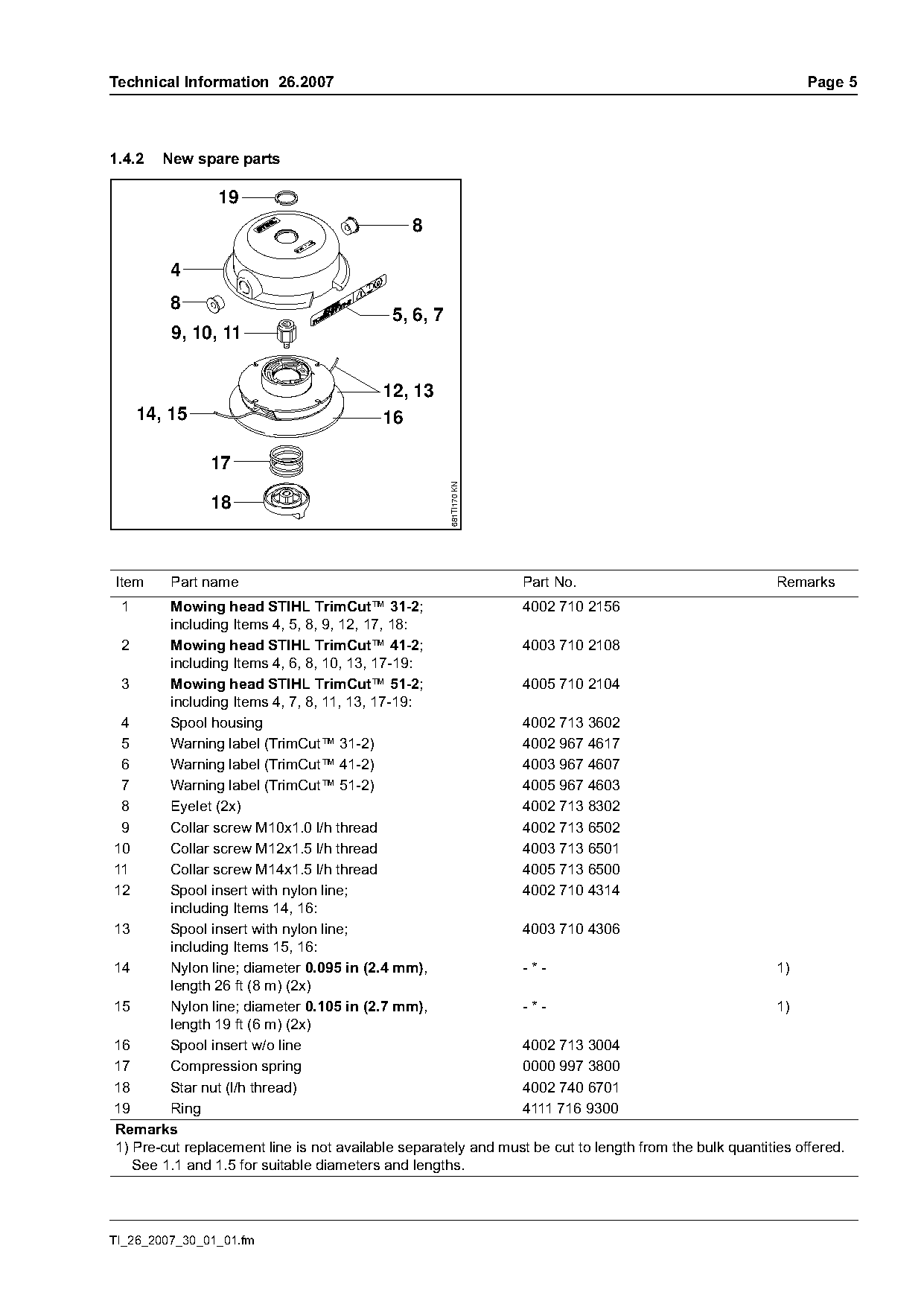

Technical Information 26.2007 Page 5
1.4.2 New spare parts
19
8
4
8
5, 6, 7
9, 10, 11
12, 13
14, 15 16
17
681TI170 KN
Item Part name Part No. Remarks
1 Mowing head STIHL TrimCut™ 31-2; 4002 710 2156
including Items 4, 5, 8, 9, 12, 17, 18:
2 Mowing head STIHL TrimCut™ 41-2; 4003 710 2108
including Items 4, 6, 8, 10, 13, 17-19:
3 Mowing head STIHL TrimCut™ 51-2; 4005 710 2104
including Items 4, 7, 8, 11, 13, 17-19:
4 Spool housing 4002 713 3602
5 Warning label (TrimCut™ 31-2) 4002 967 4617
6 Warning label (TrimCut™ 41-2) 4003 967 4607
7 Warning label (TrimCut™ 51-2) 4005 967 4603
8 Eyelet (2x) 4002 713 8302
9 Collar screw M10x1.0 l/h thread 4002 713 6502
10 Collar screw M12x1.5 l/h thread 4003 713 6501
11 Collar screw M14x1.5 l/h thread 4005 713 6500
12 Spool insert with nylon line; 4002 710 4314
including Items 14, 16:
13 Spool insert with nylon line; 4003 710 4306
including Items 15, 16:
14 Nylon line; diameter 0.095 in (2.4 mm), -*- 1)
length 26 ft (8 m) (2x)
15 Nylon line; diameter 0.105 in (2.7 mm), -*- 1)
length 19 ft (6 m) (2x)
16 Spool insert w/o line 4002 713 3004
17 Compression spring 0000 997 3800
18 Star nut (l/h thread) 4002 740 6701
19 Ring 4111 716 9300
Remarks
1) Pre-cut replacement line is not available separately and must be cut to length from the bulk quantities offered.
See 1.1 and 1.5 for suitable diameters and lengths.
TI_26_2007_30_01_01.fm

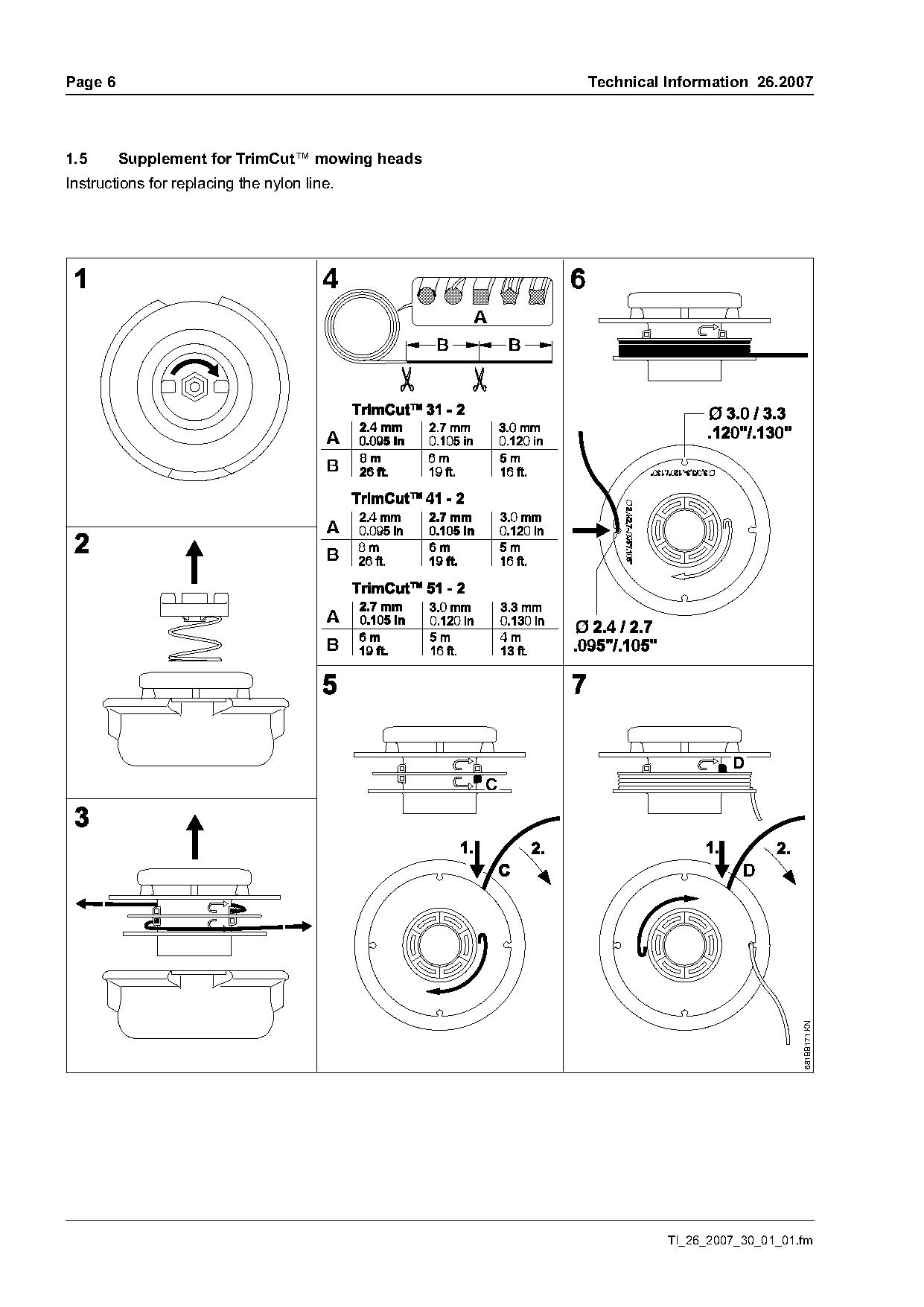

)m~ge 6 Technical Information 26.2007
1.5 Supplement for TrimCut™ mowing heads
Instructions for replacing the nylon line.
D
C
681BB171 KN
TI_26_2007_30_01_01.fm Page 4 of 7

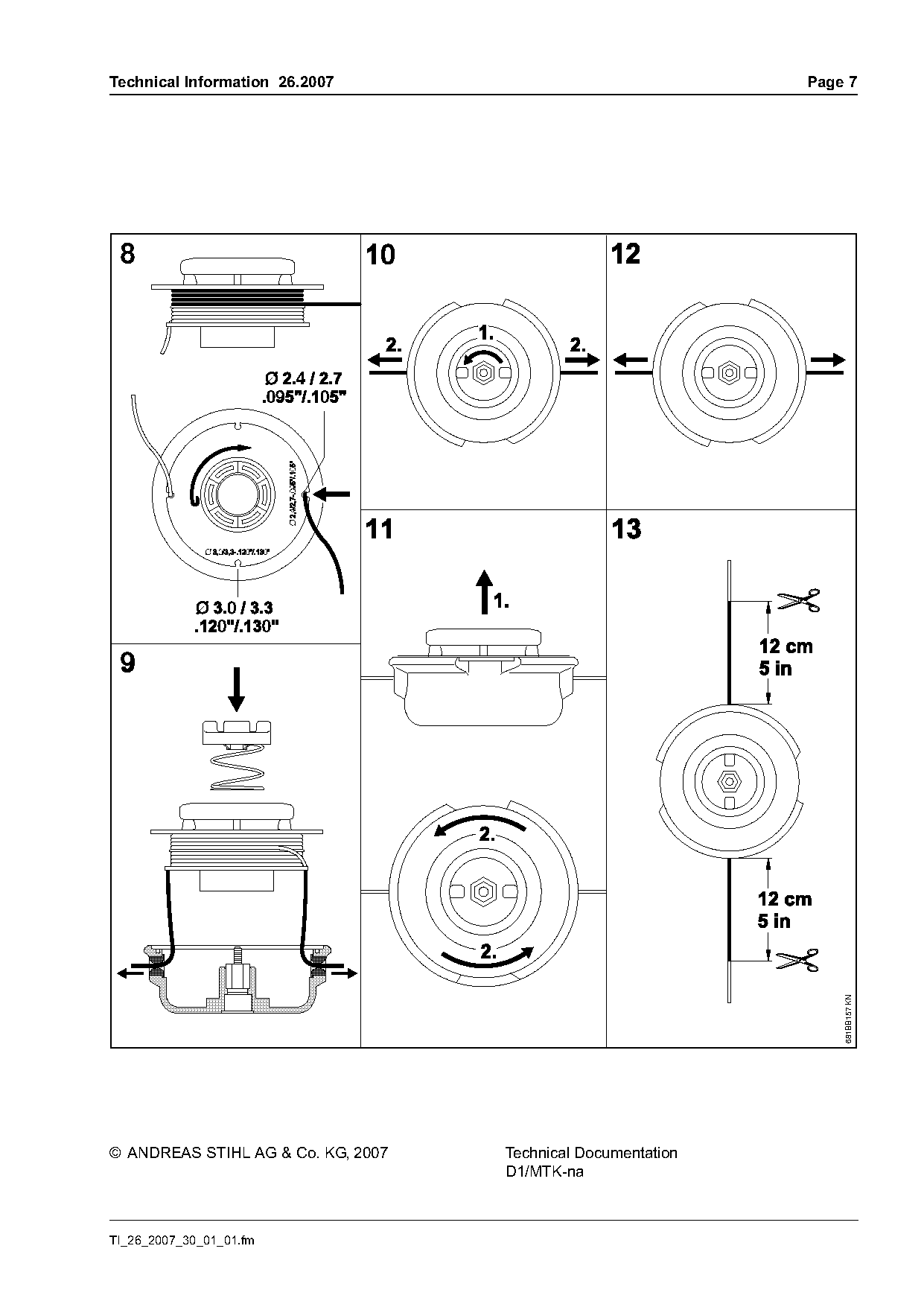

Technical Information 26.2007 Page 7
681BB157 KN
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-na
TI_26_2007_30_01_01.fm Page 5 of 7
Page 6 of 7
Page 7 of 7
