Technical Information · issue 40 of 2007
New STIHL Rollomatic® E Harvester guide bars
IssueTI 40/2007
Full text
Page 1 of 6

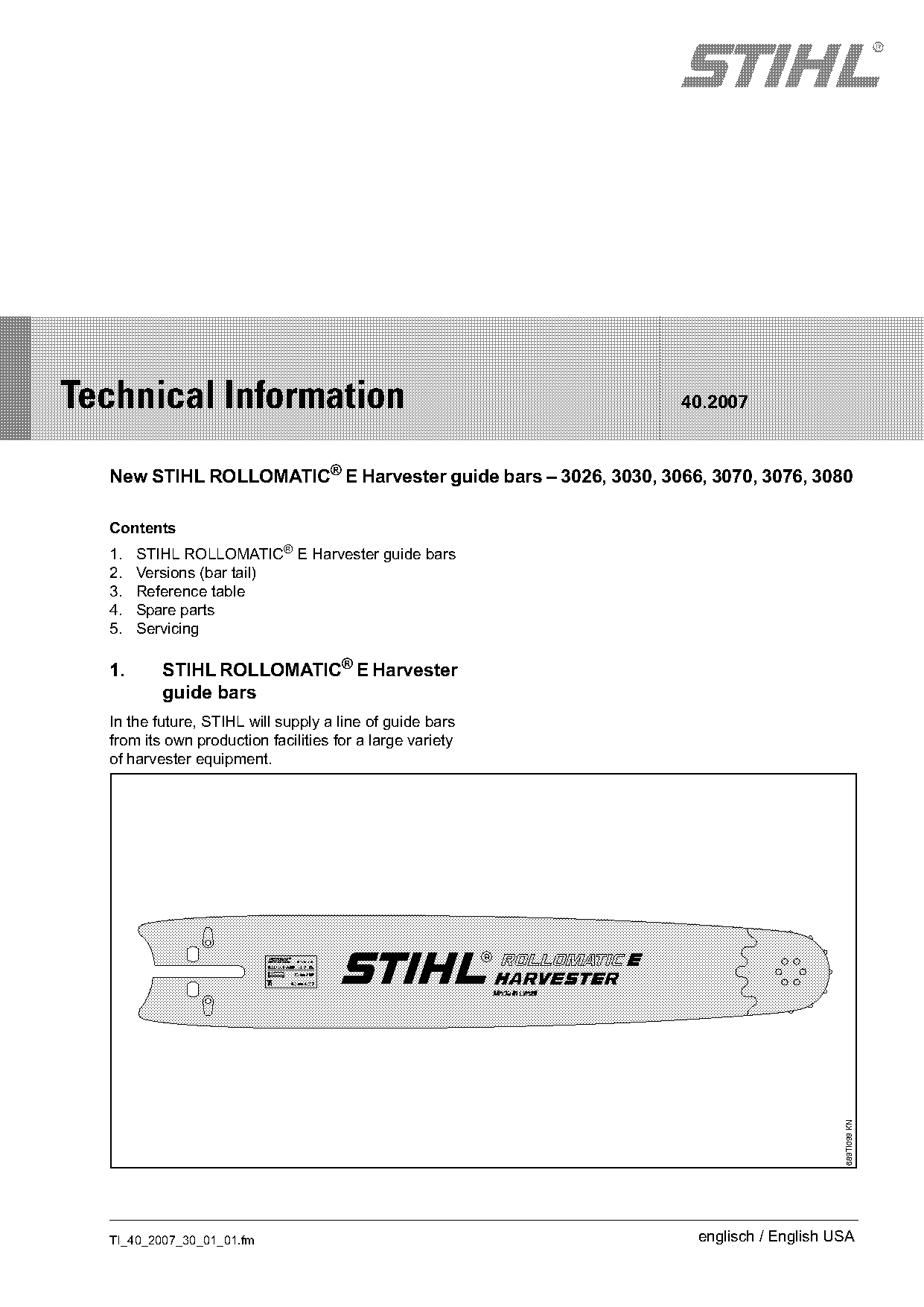

STIH)
Technical Information 40.2007
New STIHL ROLLOMATIC® E Harvester guide bars – 3026, 3030, 3066, 3070, 3076, 3080
Contents
1. STIHL ROLLOMATIC® E Harvester guide bars
2. Versions (bar tail)
3. Reference table
4. Spare parts
5. Servicing
1. STIHL ROLLOMATIC® E Harvester
guide bars
In the future, STIHL will supply a line of guide bars
from its own production facilities for a large variety
of harvester equipment.
689TI099 KN
TI_40_2007_30_01_01.fm englisch / English USA

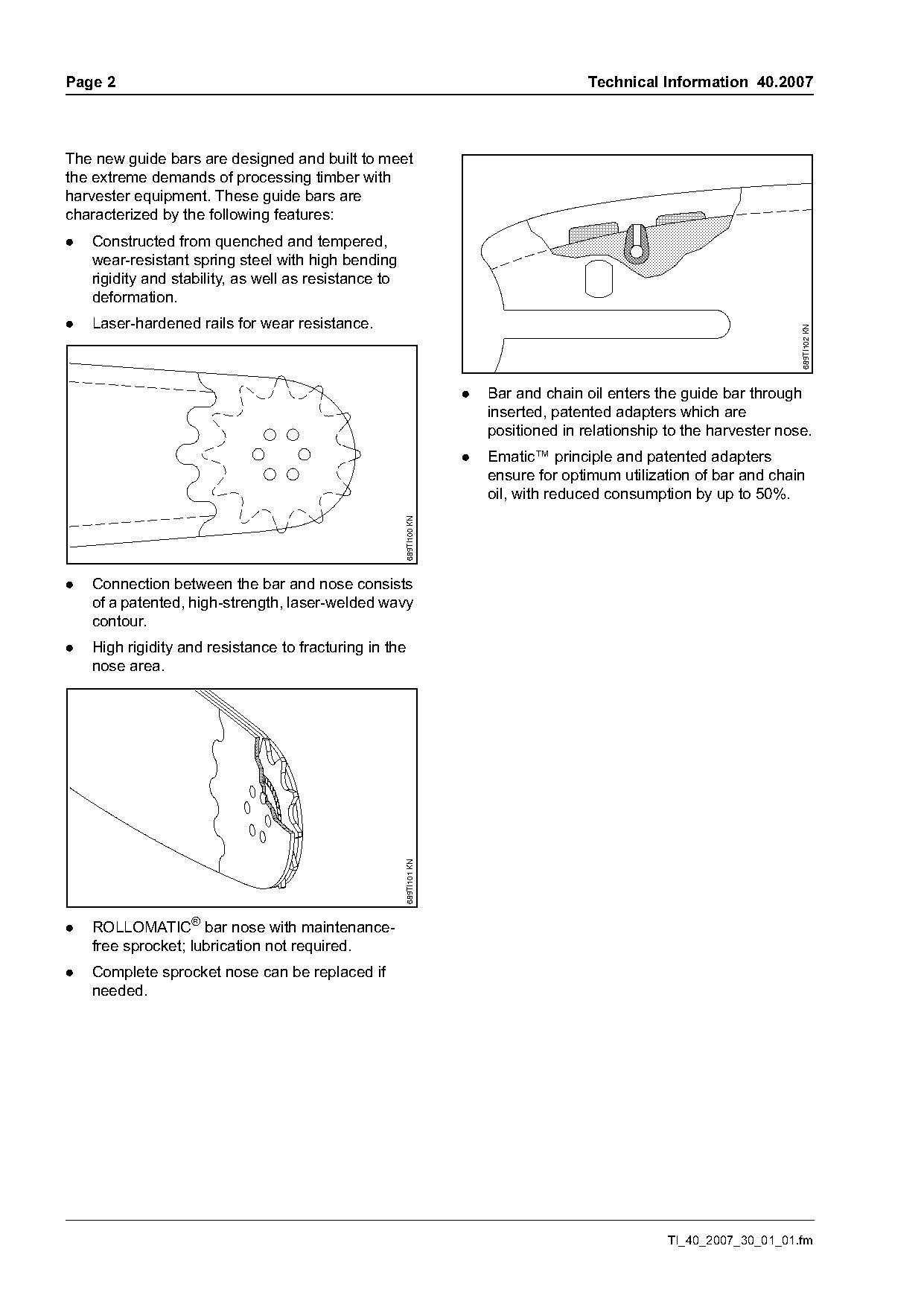

)m~ge 2 Technical Information 40.2007
The new guide bars are designed and built to meet
the extreme demands of processing timber with
harvester equipment. These guide bars are
characterized by the following features:
. Constructed from quenched and tempered,
wear-resistant spring steel with high bending
rigidity and stability, as well as resistance to
deformation.
. Laser-hardened rails for wear resistance.
689TI102 KN
. Bar and chain oil enters the guide bar through
inserted, patented adapters which are
positioned in relationship to the harvester nose.
. Ematic™ principle and patented adapters
ensure for optimum utilization of bar and chain
oil, with reduced consumption by up to 50%.
689TI100 KN
. Connection between the bar and nose consists
of a patented, high-strength, laser-welded wavy
contour.
. High rigidity and resistance to fracturing in the
nose area.
689TI101 KN
. ROLLOMATIC® bar nose with maintenance-
free sprocket; lubrication not required.
. Complete sprocket nose can be replaced if
needed.
TI_40_2007_30_01_01.fm Page 2 of 6
Technical Information 40.2007 Page 3

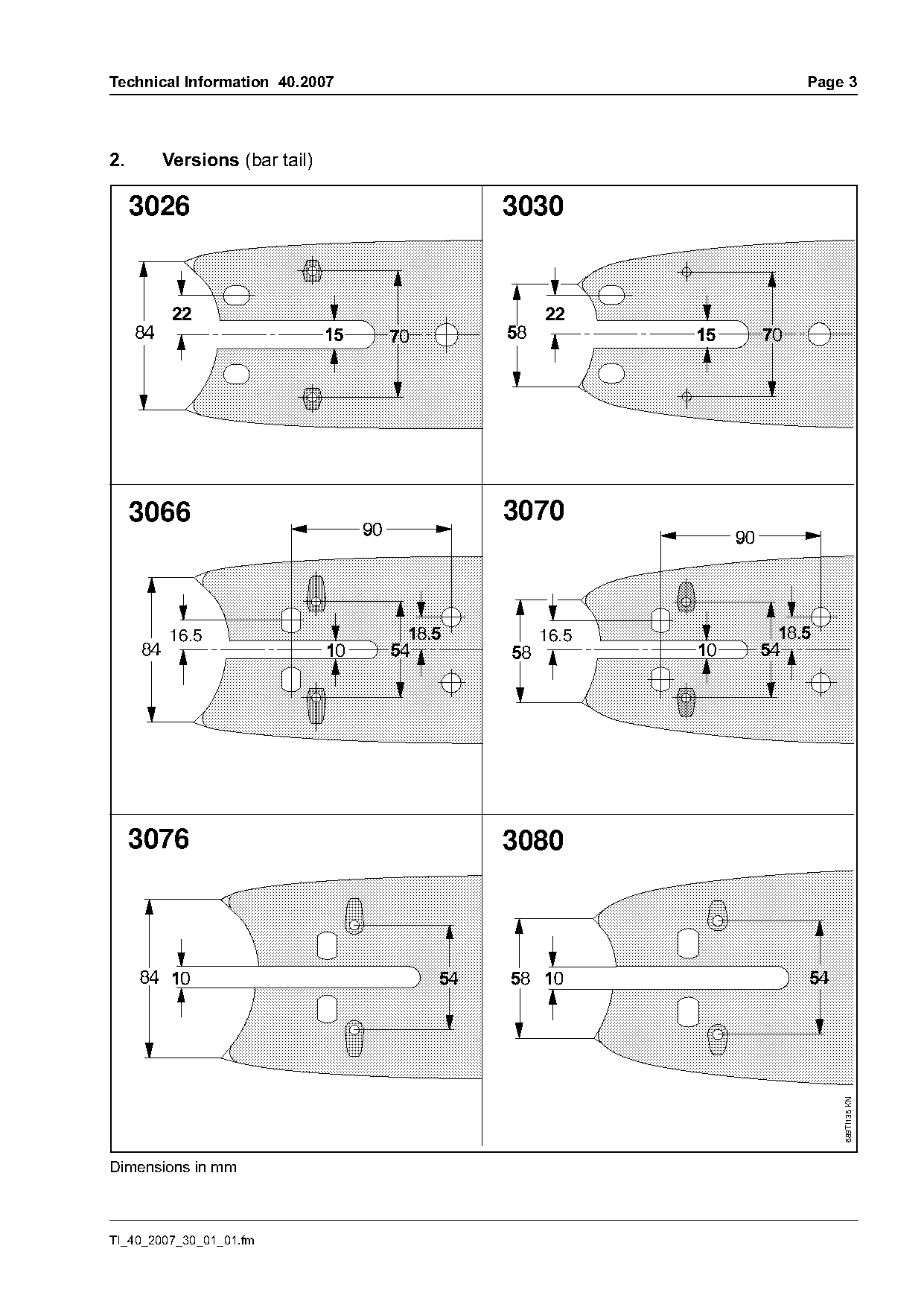

2. Versions (bar tail)
3026 3030
3066 3070
16.5 16.5
3076 3080 689TI135 KN
Dimensions in mm
TI_40_2007_30_01_01.fm

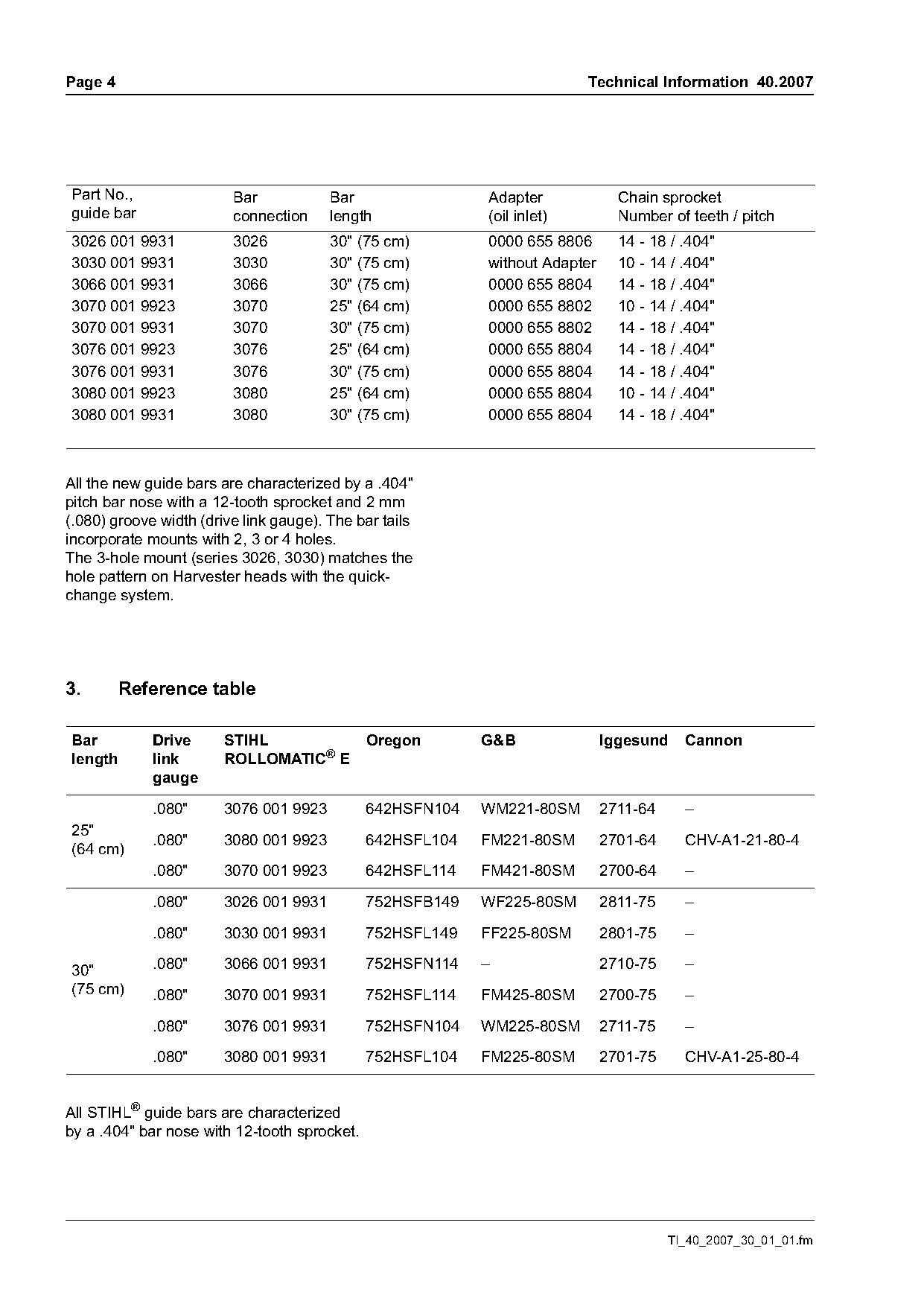

)m~ge 4 Technical Information 40.2007
Part No., Bar Bar Adapter Chain sprocket
guide bar connection length (oil inlet) Number of teeth / pitch
3026 001 9931 3026 30" (75 cm) 0000 655 8806 14 - 18 / .404"
3030 001 9931 3030 30" (75 cm) without Adapter 10 - 14 / .404"
3066 001 9931 3066 30" (75 cm) 0000 655 8804 14 - 18 / .404"
3070 001 9923 3070 25" (64 cm) 0000 655 8802 10 - 14 / .404"
3070 001 9931 3070 30" (75 cm) 0000 655 8802 14 - 18 / .404"
3076 001 9923 3076 25" (64 cm) 0000 655 8804 14 - 18 / .404"
3076 001 9931 3076 30" (75 cm) 0000 655 8804 14 - 18 / .404"
3080 001 9923 3080 25" (64 cm) 0000 655 8804 10 - 14 / .404"
3080 001 9931 3080 30" (75 cm) 0000 655 8804 14 - 18 / .404"
All the new guide bars are characterized by a .404"
pitch bar nose with a 12-tooth sprocket and 2 mm
(.080) groove width (drive link gauge). The bar tails
incorporate mounts with 2, 3 or 4 holes.
The 3-hole mount (series 3026, 3030) matches the
hole pattern on Harvester heads with the quick-
change system.
3. Reference table
Bar Drive STIHL Oregon G&B Iggesund Cannon
length link ROLLOMATIC® E
gauge
.080" 3076 001 9923 642HSFN104 WM221-80SM 2711-64 –
25"
.080" 3080 001 9923 642HSFL104 FM221-80SM 2701-64 CHV-A1-21-80-4
(64 cm)
.080" 3070 001 9923 642HSFL114 FM421-80SM 2700-64 –
.080" 3026 001 9931 752HSFB149 WF225-80SM 2811-75 –
.080" 3030 001 9931 752HSFL149 FF225-80SM 2801-75 –
30" .080" 3066 001 9931 752HSFN114 – 2710-75 –
(75 cm) .080" 3070 001 9931 752HSFL114 FM425-80SM 2700-75 –
.080" 3076 001 9931 752HSFN104 WM225-80SM 2711-75 –
.080" 3080 001 9931 752HSFL104 FM225-80SM 2701-75 CHV-A1-25-80-4
All STIHL® guide bars are characterized
by a .404" bar nose with 12-tooth sprocket.
TI_40_2007_30_01_01.fm Page 3 of 6
Technical Information 40.2007 Page 5

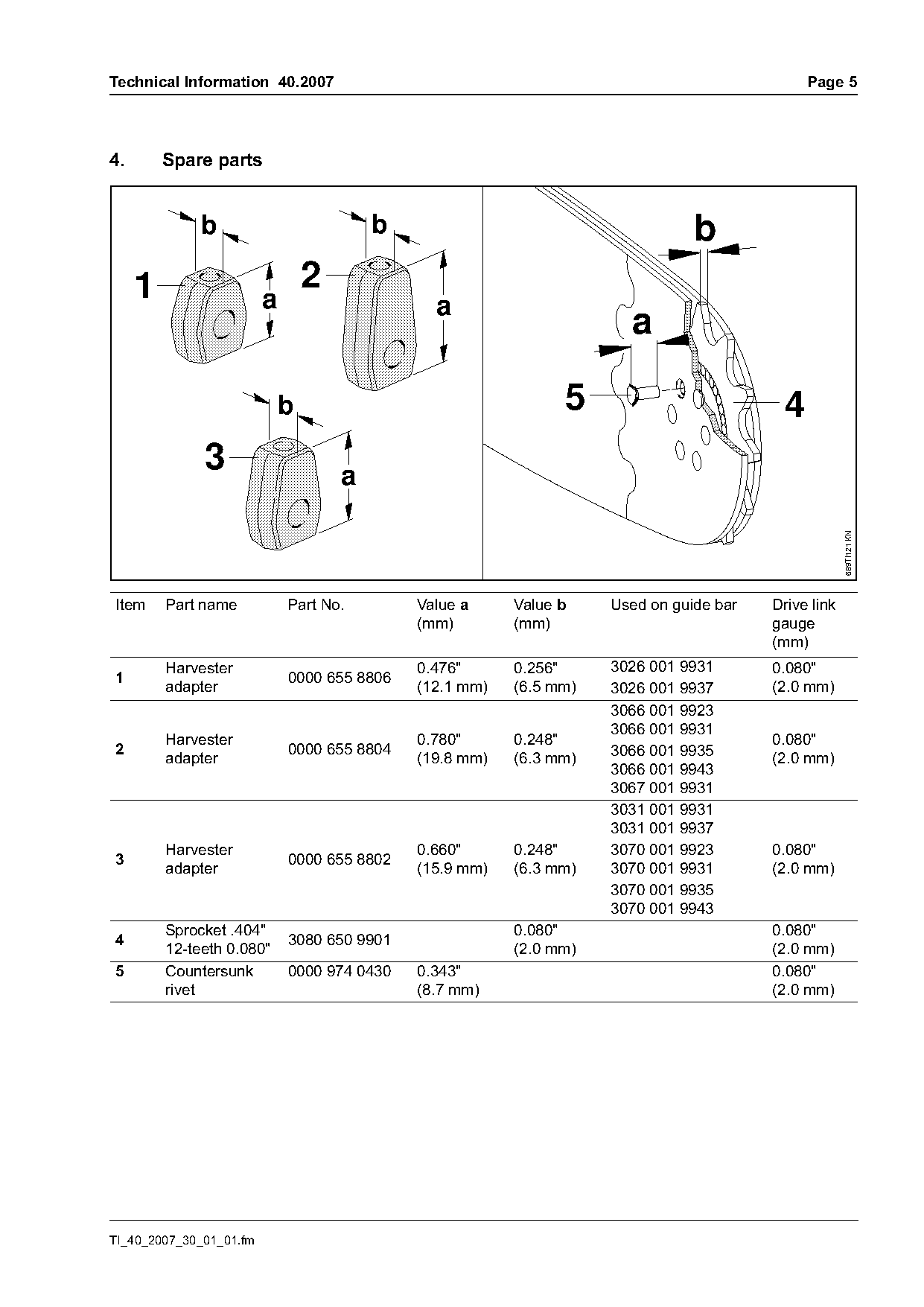

4. Spare parts
b b b
1 2
a a
a
b 5 4
3 a
689TI121 KN
Item Part name Part No. Value a Value b Used on guide bar Drive link
(mm) (mm) gauge
(mm)
Harvester 0.476" 0.256" 3026 001 9931 0.080"
1 0000 655 8806
adapter (12.1 mm) (6.5 mm) 3026 001 9937 (2.0 mm)
3066 001 9923
3066 001 9931
Harvester 0.780" 0.248" 0.080"
2 0000 655 8804 3066 001 9935
adapter (19.8 mm) (6.3 mm) (2.0 mm)
3066 001 9943
3067 001 9931
3031 001 9931
3031 001 9937
Harvester 0.660" 0.248" 3070 001 9923 0.080"
3 0000 655 8802
adapter (15.9 mm) (6.3 mm) 3070 001 9931 (2.0 mm)
3070 001 9935
3070 001 9943
Sprocket .404" 0.080" 0.080"
4 3080 650 9901
12-teeth 0.080" (2.0 mm) (2.0 mm)
5 Countersunk 0000 974 0430 0.343" 0.080"
rivet (8.7 mm) (2.0 mm)
TI_40_2007_30_01_01.fm
)m~ge 6 Technical Information 40.2007

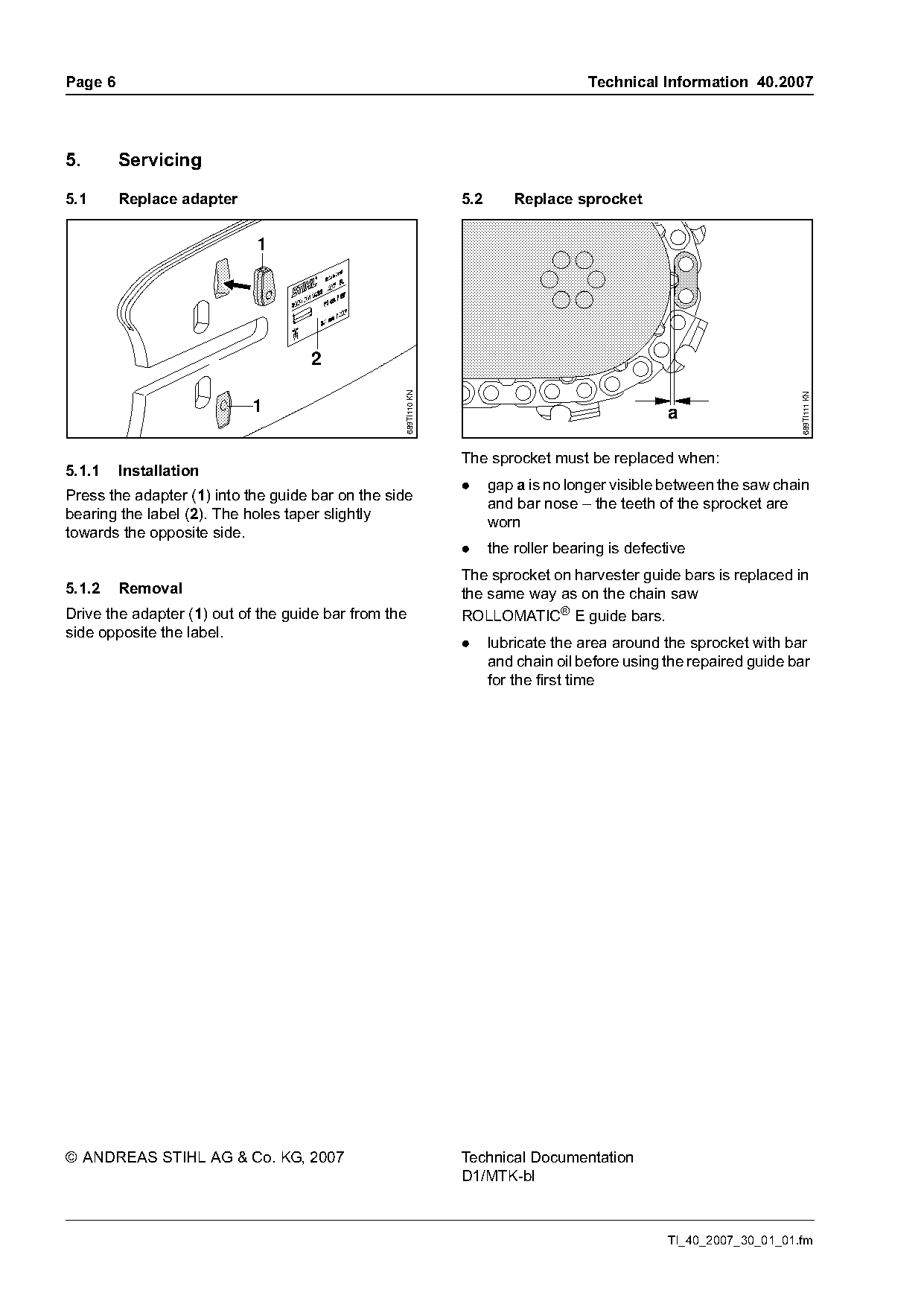

5. Servicing
5.1 Replace adapter 5.2 Replace sprocket
689TI110 KN
689TI111 KN
1 a
The sprocket must be replaced when:
5.1.1 Installation
. gap a is no longer visible between the saw chain
Press the adapter (1) into the guide bar on the side and bar nose – the teeth of the sprocket are
bearing the label (2). The holes taper slightly worn
towards the opposite side.
. the roller bearing is defective
The sprocket on harvester guide bars is replaced in
5.1.2 Removal the same way as on the chain saw
Drive the adapter (1) out of the guide bar from the ROLLOMATIC® E guide bars.
side opposite the label.
. lubricate the area around the sprocket with bar
and chain oil before using the repaired guide bar
for the first time
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
TI_40_2007_30_01_01.fm Page 4 of 6
