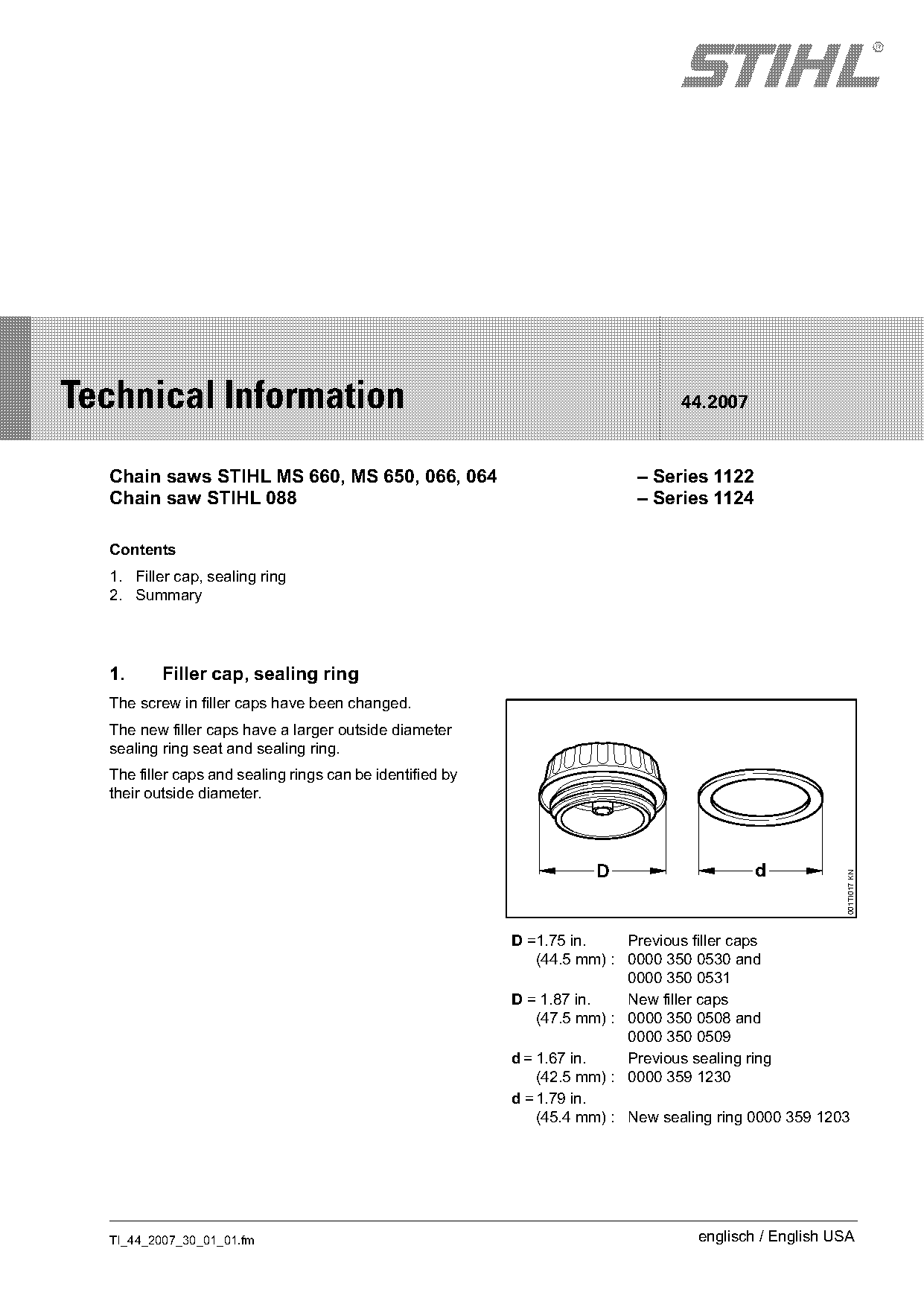

Technical Information 44.2007
Chain saws STIHL MS 660, MS 650, 066, 064 – Series 1122
Chain saw STIHL 088 – Series 1124
Contents
1. Filler cap, sealing ring
2. Summary
1. Filler cap, sealing ring
The screw in filler caps have been changed.
The new filler caps have a larger outside diameter
sealing ring seat and sealing ring.
The filler caps and sealing rings can be identified by
their outside diameter.
D d
001TI017 KN
D =1.75 in. Previous filler caps
(44.5 mm) : 0000 350 0530 and
0000 350 0531
D = 1.87 in. New filler caps
(47.5 mm) : 0000 350 0508 and
0000 350 0509
d = 1.67 in. Previous sealing ring
(42.5 mm) : 0000 359 1230
d = 1.79 in.
(45.4 mm) : New sealing ring 0000 359 1203
TI_44_2007_30_01_01.fm englisch / English USA

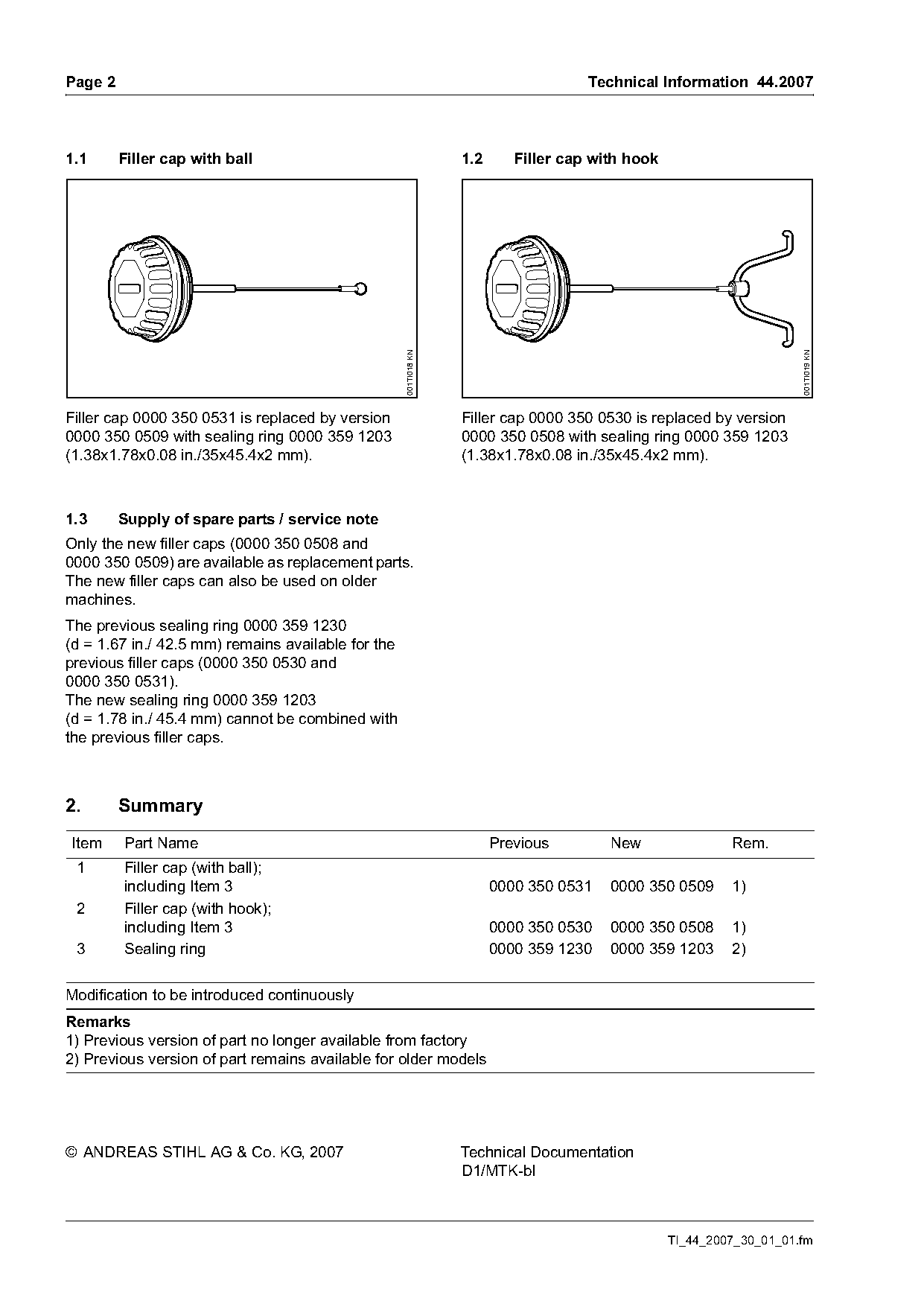

)m~ge 2 Technical Information 44.2007
1.1 Filler cap with ball 1.2 Filler cap with hook
001TI018 KN
001TI019 KN
Filler cap 0000 350 0531 is replaced by version Filler cap 0000 350 0530 is replaced by version
0000 350 0509 with sealing ring 0000 359 1203 0000 350 0508 with sealing ring 0000 359 1203
(1.38x1.78x0.08 in./35x45.4x2 mm). (1.38x1.78x0.08 in./35x45.4x2 mm).
1.3 Supply of spare parts / service note
Only the new filler caps (0000 350 0508 and
0000 350 0509) are available as replacement parts.
The new filler caps can also be used on older
machines.
The previous sealing ring 0000 359 1230
(d = 1.67 in./ 42.5 mm) remains available for the
previous filler caps (0000 350 0530 and
0000 350 0531).
The new sealing ring 0000 359 1203
(d = 1.78 in./ 45.4 mm) cannot be combined with
the previous filler caps.
2. Summary
Item Part Name Previous New Rem.
1 Filler cap (with ball);
including Item 3 0000 350 0531 0000 350 0509 1)
2 Filler cap (with hook);
including Item 3 0000 350 0530 0000 350 0508 1)
3 Sealing ring 0000 359 1230 0000 359 1203 2)
Modification to be introduced continuously
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
