Technical Information · issue 61 of 2007
Purge primer; Filter base; Summary
IssueTI 61/2007
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1130 350 6200 | 0000 350 6202 | Purge primer In the future, the previous purge primer (1) 1130 350 6200 with smooth connectors (2, 3) will be replaced by the new purge primer (4) 0000 350 6202 with barbed connectors (5, 6). |
Full text

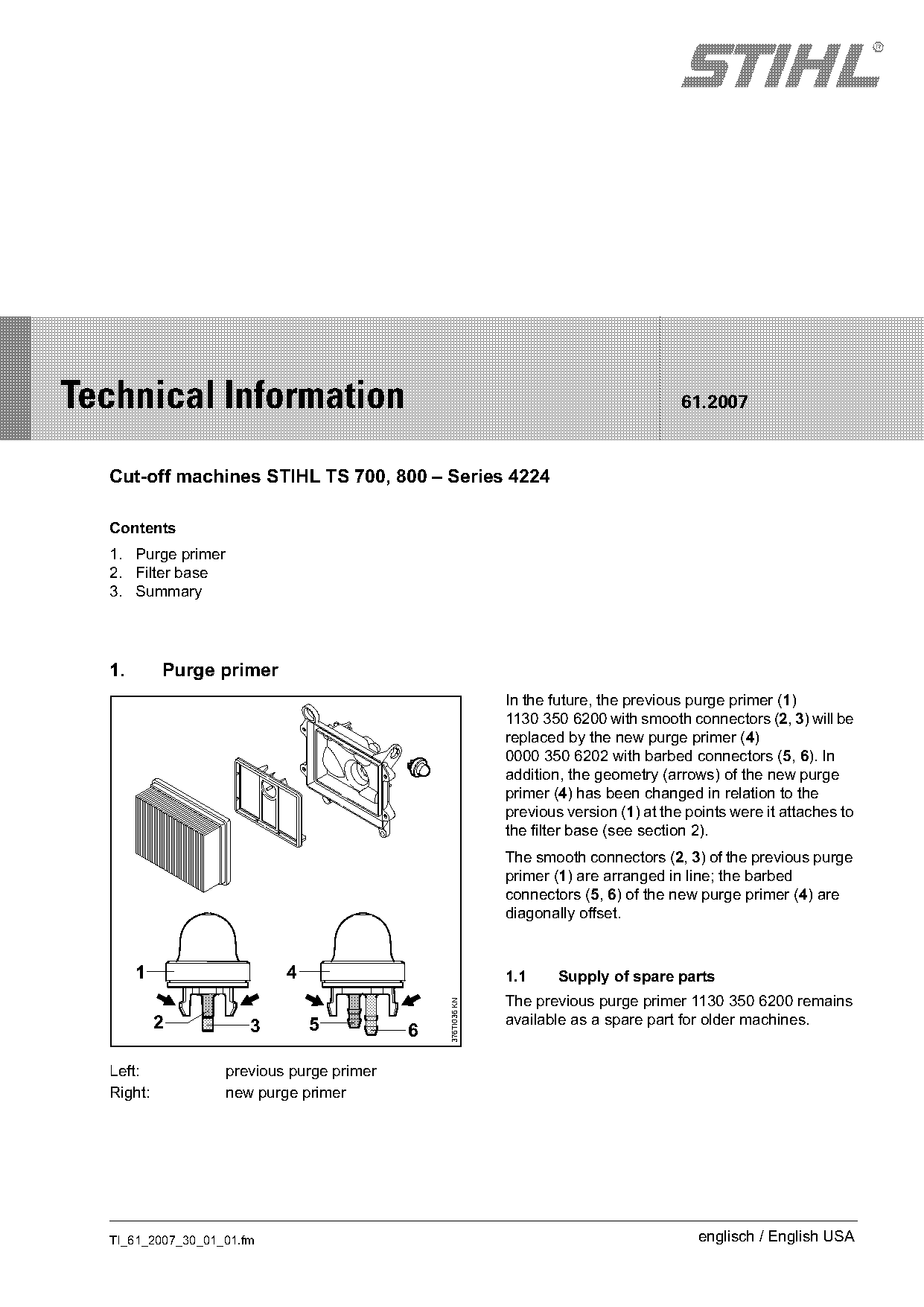

Page 1 of 3
STIH)
Technical Information 61.2007
Cut-off machines STIHL TS 700, 800 – Series 4224
Contents
1. Purge primer
2. Filter base
3. Summary
1. Purge primer
In the future, the previous purge primer (1)
1130 350 6200 with smooth connectors (2, 3) will be
replaced by the new purge primer (4)
0000 350 6202 with barbed connectors (5, 6). In
addition, the geometry (arrows) of the new purge
primer (4) has been changed in relation to the
previous version (1) at the points were it attaches to
the filter base (see section 2).
The smooth connectors (2, 3) of the previous purge
primer (1) are arranged in line; the barbed
connectors (5, 6) of the new purge primer (4) are
diagonally offset.
1 4 1.1 Supply of spare parts
The previous purge primer 1130 350 6200 remains
376TI036 KN
2 3 5 available as a spare part for older machines.
6
Left: previous purge primer
Right: new purge primer
TI_61_2007_30_01_01.fm englisch / English USA

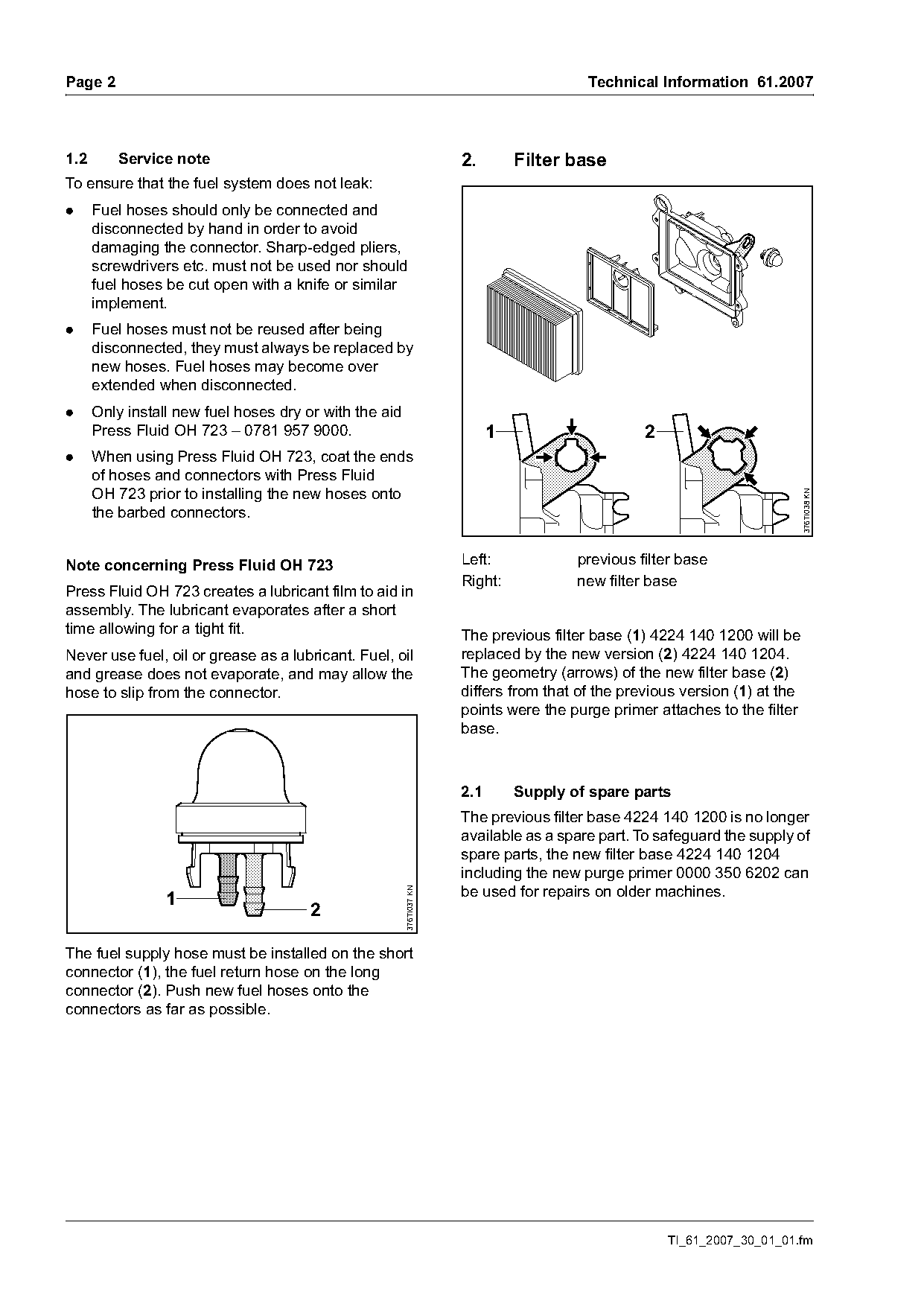

)m~ge 2 Technical Information 61.2007
1.2 Service note 2. Filter base
To ensure that the fuel system does not leak:
. Fuel hoses should only be connected and
disconnected by hand in order to avoid
damaging the connector. Sharp-edged pliers,
screwdrivers etc. must not be used nor should
fuel hoses be cut open with a knife or similar
implement.
. Fuel hoses must not be reused after being
disconnected, they must always be replaced by
new hoses. Fuel hoses may become over
extended when disconnected.
. Only install new fuel hoses dry or with the aid
Press Fluid OH 723 – 0781 957 9000. 1 2
. When using Press Fluid OH 723, coat the ends
of hoses and connectors with Press Fluid
OH 723 prior to installing the new hoses onto
376TI038 KN
the barbed connectors.
Note concerning Press Fluid OH 723 Left: previous filter base
Right: new filter base
Press Fluid OH 723 creates a lubricant film to aid in
assembly. The lubricant evaporates after a short
time allowing for a tight fit. The previous filter base (1) 4224 140 1200 will be
Never use fuel, oil or grease as a lubricant. Fuel, oil replaced by the new version (2) 4224 140 1204.
and grease does not evaporate, and may allow the The geometry (arrows) of the new filter base (2)
hose to slip from the connector. differs from that of the previous version (1) at the
points were the purge primer attaches to the filter
base.
2.1 Supply of spare parts
The previous filter base 4224 140 1200 is no longer
available as a spare part. To safeguard the supply of
spare parts, the new filter base 4224 140 1204
including the new purge primer 0000 350 6202 can
be used for repairs on older machines.
376TI037 KN
1
2
The fuel supply hose must be installed on the short
connector (1), the fuel return hose on the long
connector (2). Push new fuel hoses onto the
connectors as far as possible.
TI_61_2007_30_01_01.fm Page 2 of 3

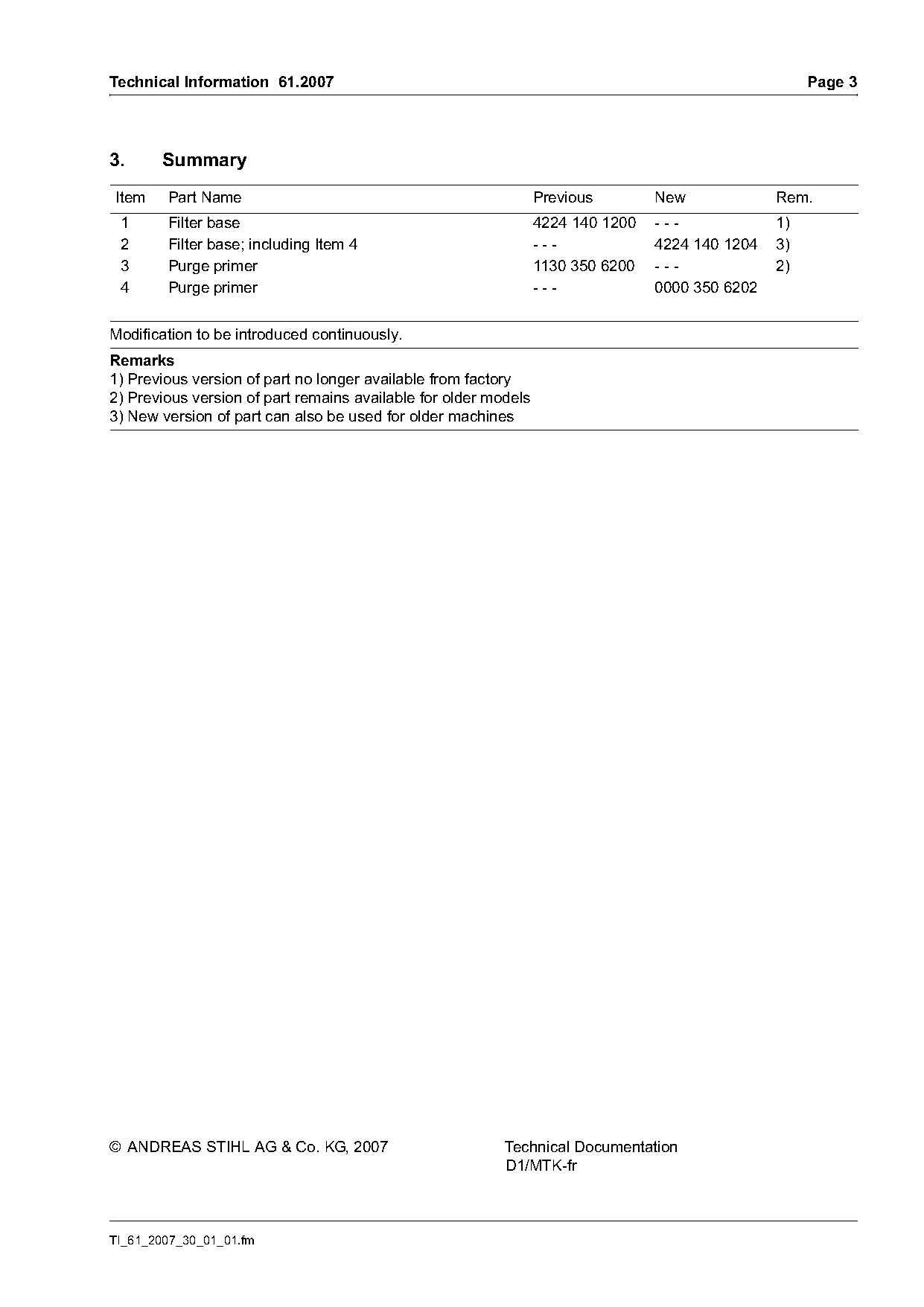

Technical Information 61.2007 Page 3
3. Summary
Item Part Name Previous New Rem.
1 Filter base 4224 140 1200 --- 1)
2 Filter base; including Item 4 --- 4224 140 1204 3)
3 Purge primer 1130 350 6200 --- 2)
4 Purge primer --- 0000 350 6202
Modification to be introduced continuously.
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
3) New version of part can also be used for older machines
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-fr
TI_61_2007_30_01_01.fm Page 3 of 3
