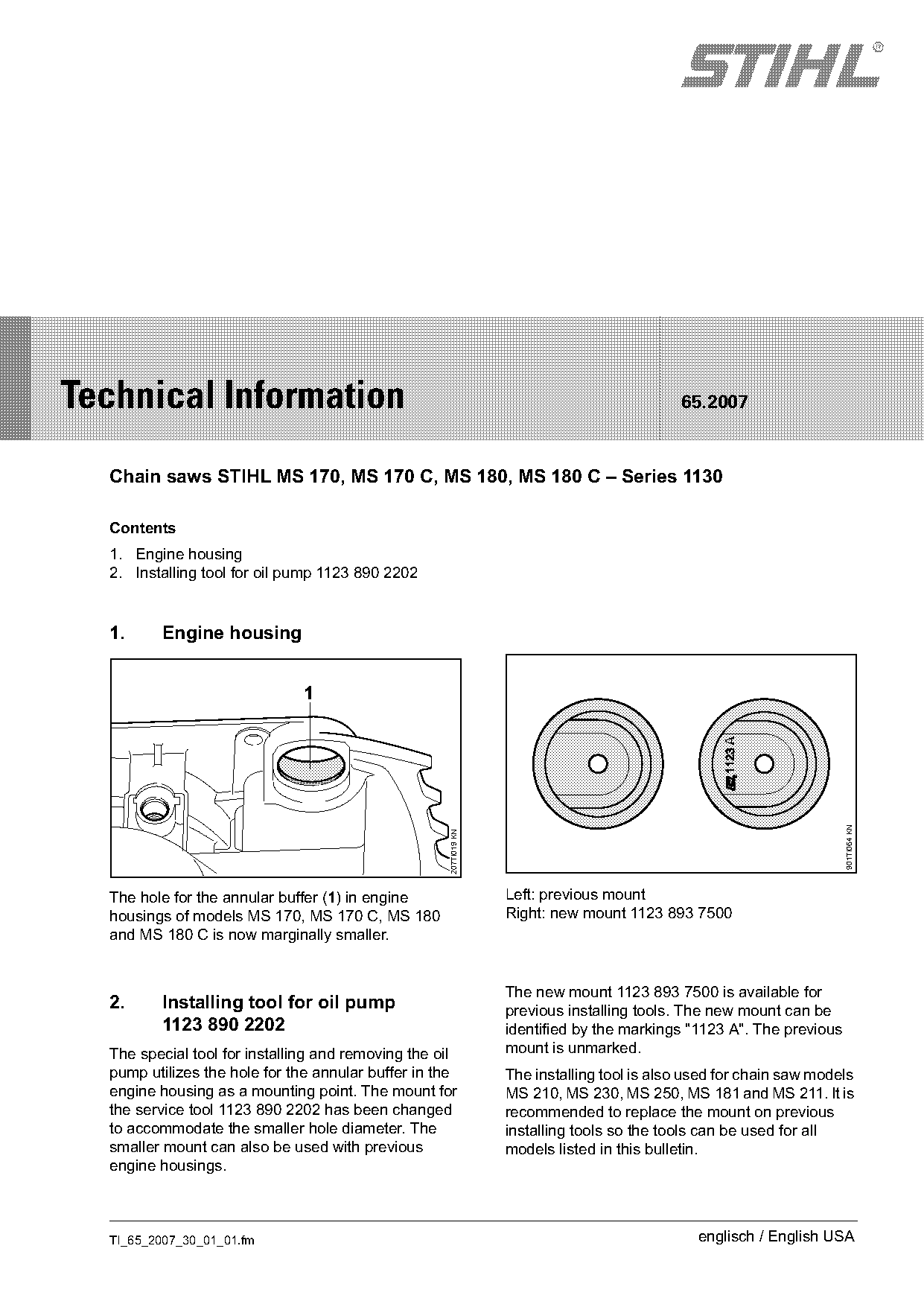

  Chain saws STIHL MS 170, MS 170 C, MS 180, MS 180 C – Series 1130

  Contents
  1. Engine housing
  2. Installing tool for oil pump 1123 890 2202

  1.     Engine housing


                                                                                                                      901TI064 KN
                                                    207TI019 KN

  The hole for the annular buffer (1) in engine                   Left: previous mount
  housings of models MS 170, MS 170 C, MS 180                     Right: new mount 1123 893 7500
  and MS 180 C is now marginally smaller.

                                                                  The new mount 1123 893 7500 is available for
  2.     Installing tool for oil pump                             previous installing tools. The new mount can be
         1123 890 2202                                            identified by the markings "1123 A". The previous
  The special tool for installing and removing the oil            mount is unmarked.
  pump utilizes the hole for the annular buffer in the            The installing tool is also used for chain saw models
  engine housing as a mounting point. The mount for               MS 210, MS 230, MS 250, MS 181 and MS 211. It is
  the service tool 1123 890 2202 has been changed                 recommended to replace the mount on previous
  to accommodate the smaller hole diameter. The                   installing tools so the tools can be used for all
  smaller mount can also be used with previous                    models listed in this bulletin.
  engine housings.

  TI_65_2007_30_01_01.fm                                                                       englisch / English USA
)m~ge 2                                                                       Technical Information 65.2007

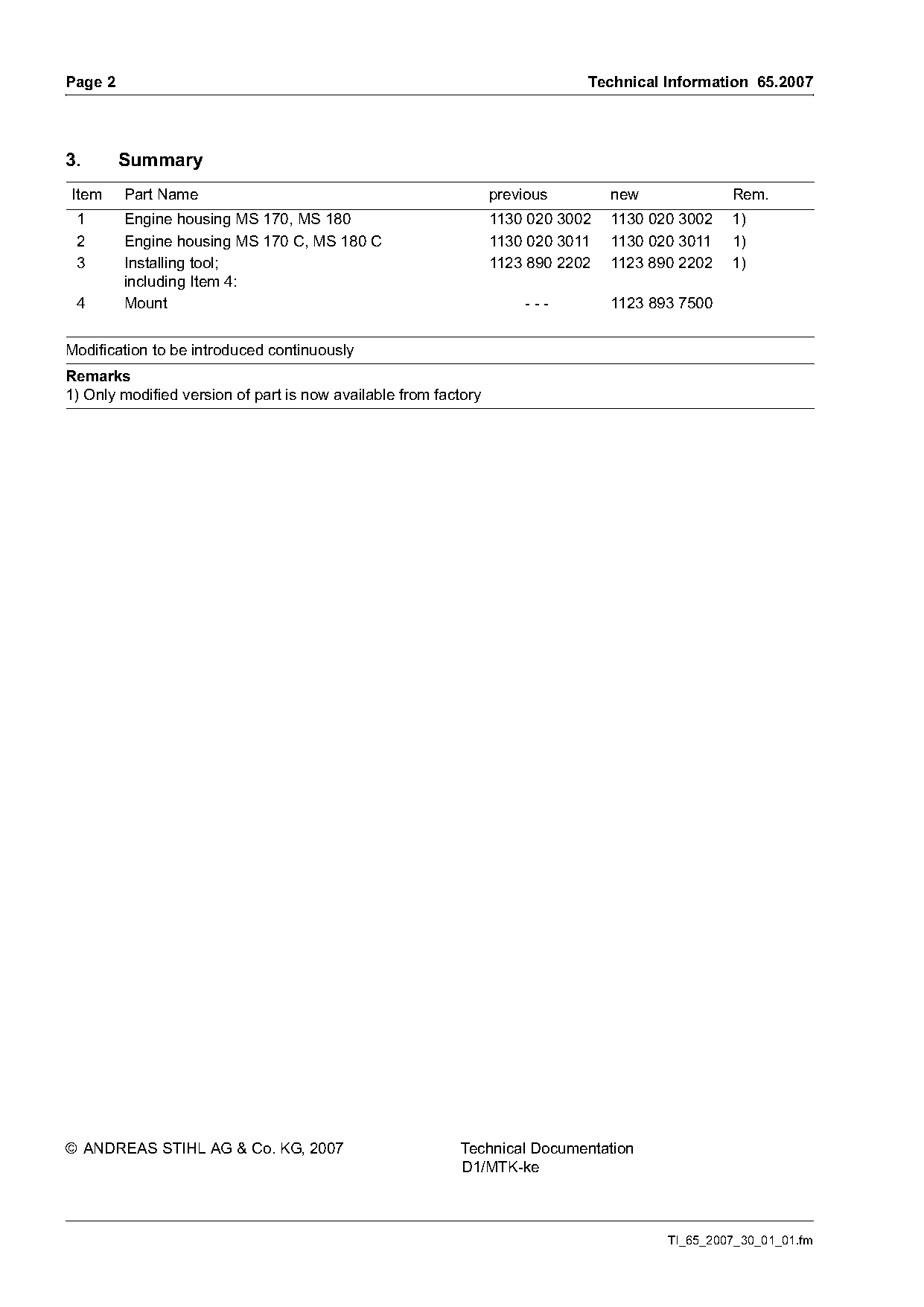

3.       Summary
Item     Part Name                                               previous        new             Rem.
 1       Engine housing MS 170, MS 180                           1130 020 3002   1130 020 3002   1)
 2       Engine housing MS 170 C, MS 180 C                       1130 020 3011   1130 020 3011   1)
 3       Installing tool;                                        1123 890 2202   1123 890 2202   1)
         including Item 4:
 4       Mount                                                       ---         1123 893 7500

Modification to be introduced continuously
Remarks
1) Only modified version of part is now available from factory

© ANDREAS STIHL AG & Co. KG, 2007                          Technical Documentation
                                                           D1/MTK-ke

                                                                                        TI_65_2007_30_01_01.fm
