Technical Information 66.2007
Guide bars STIHL Rollomatic® E Super – Series 3002, 3003
Ematic™ S
Rollomatic® E Super guide bars with a length of The improved oblong oil output hole increases the
28 in (71 cm) or more will be offered with an flow rate of chain lubricant, improves lubrication of
improved oblong oil output hole. drive links and reduces clogging.
The service life and lubrication characteristics of the
guide bars have been improved as a result of this
change.
The part numbers of the guide bars remain
unchanged.
689TI128 KN

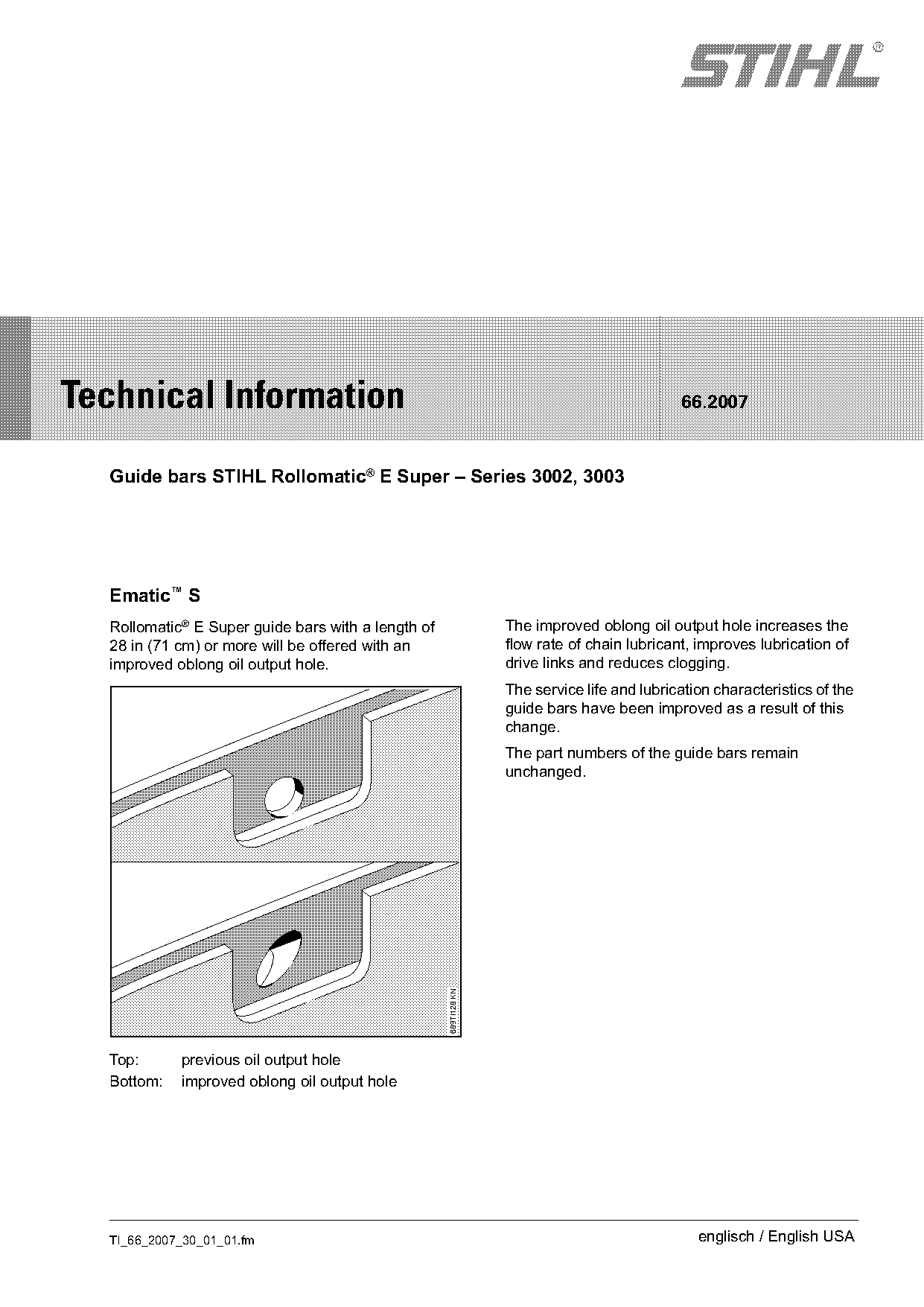

Top: previous oil output hole
Bottom: improved oblong oil output hole
TI_66_2007_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 66.2007

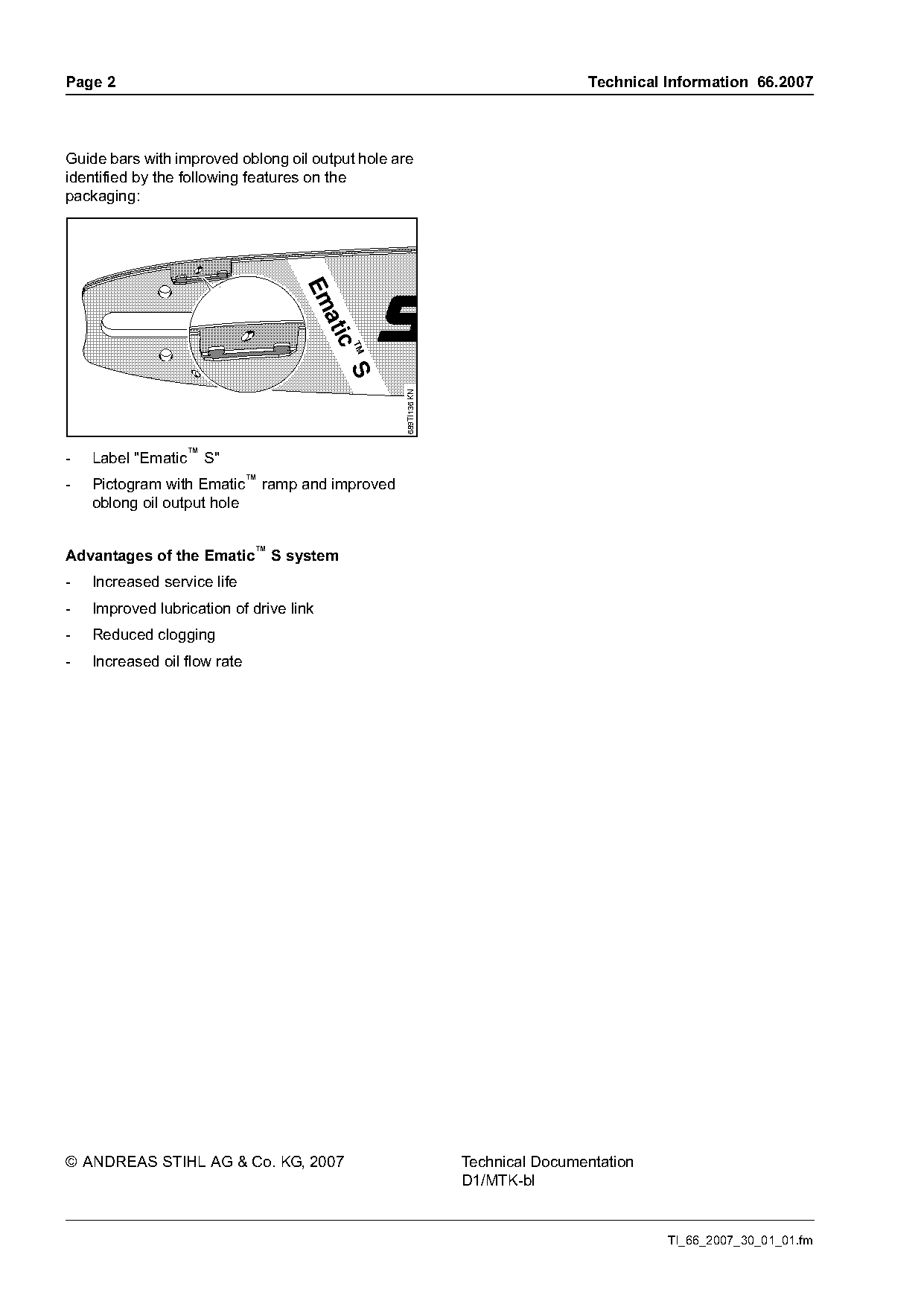

Guide bars with improved oblong oil output hole are
identified by the following features on the
packaging:
Em
ati
c
TM
689TI136 KN
- Label "Ematic™ S"
- Pictogram with Ematic™ ramp and improved
oblong oil output hole
Advantages of the Ematic™ S system
- Increased service life
- Improved lubrication of drive link
- Reduced clogging
- Increased oil flow rate
© ANDREAS STIHL AG & Co. KG, 2007 Technical Documentation
D1/MTK-bl
