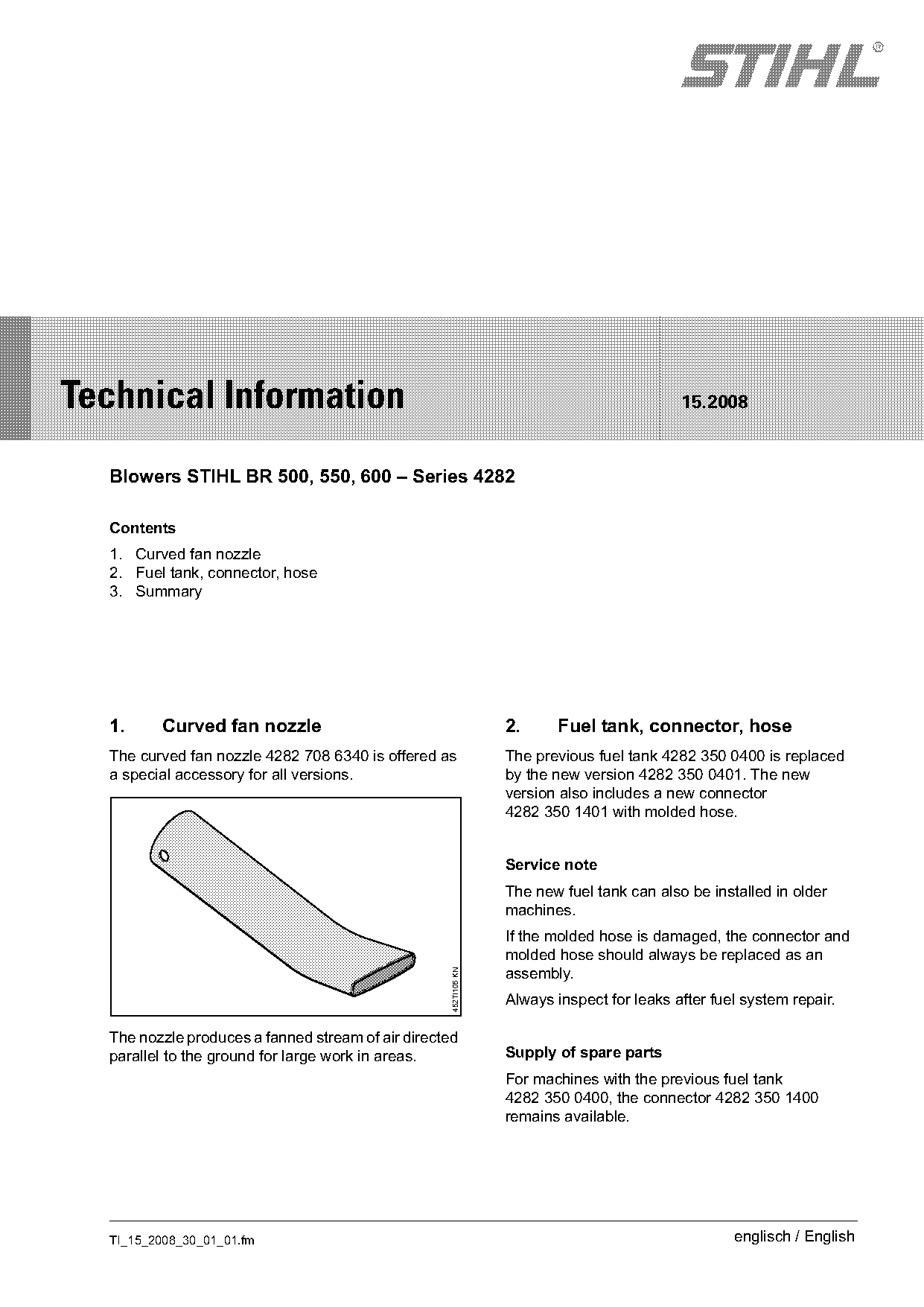

Page 1 of 2

STIH)

Technical Information                                                                      15.2008

  Blowers STIHL BR 500, 550, 600 – Series 4282

  Contents
  1. Curved fan nozzle
  2. Fuel tank, connector, hose
  3. Summary

  1.     Curved fan nozzle                                       2.     Fuel tank, connector, hose
  The curved fan nozzle 4282 708 6340 is offered as              The previous fuel tank 4282 350 0400 is replaced
  a special accessory for all versions.                          by the new version 4282 350 0401. The new
                                                                 version also includes a new connector
                                                                 4282 350 1401 with molded hose.

                                                                 Service note
                                                                 The new fuel tank can also be installed in older
                                                                 machines.
                                                                 If the molded hose is damaged, the connector and
                                                                 molded hose should always be replaced as an
                                                                 assembly.
                                                   452TI105 KN

                                                                 Always inspect for leaks after fuel system repair.

  The nozzle produces a fanned stream of air directed
  parallel to the ground for large work in areas.                Supply of spare parts
                                                                 For machines with the previous fuel tank
                                                                 4282 350 0400, the connector 4282 350 1400
                                                                 remains available.

  TI_15_2008_30_01_01.fm                                                                           englisch / English

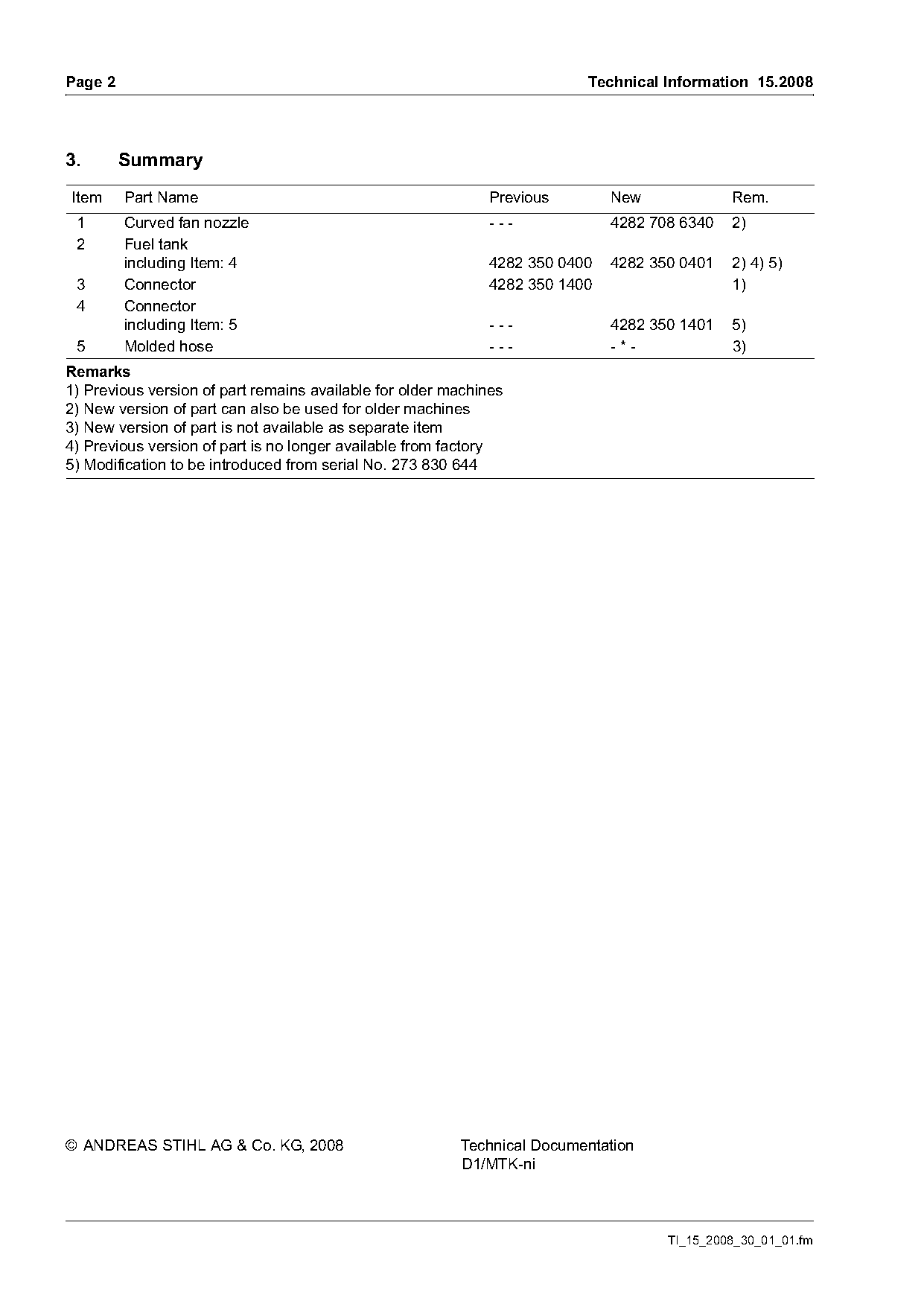

)m~ge 2                                                                   Technical Information 15.2008

3.       Summary
Item     Part Name                                           Previous        New             Rem.
 1       Curved fan nozzle                                   ---             4282 708 6340   2)
 2       Fuel tank
         including Item: 4                                   4282 350 0400   4282 350 0401   2) 4) 5)
 3       Connector                                           4282 350 1400                   1)
 4       Connector
         including Item: 5                                   ---             4282 350 1401   5)
 5       Molded hose                                         ---             -*-             3)
Remarks
1) Previous version of part remains available for older machines
2) New version of part can also be used for older machines
3) New version of part is not available as separate item
4) Previous version of part is no longer available from factory
5) Modification to be introduced from serial No. 273 830 644

© ANDREAS STIHL AG & Co. KG, 2008                        Technical Documentation
                                                         D1/MTK-ni

                                                                                    TI_15_2008_30_01_01.fm

Page 2 of 2
