Technical Information · issue 19 of 2008
Chain Sprocket Cover – Collar Nut, Hex Nut; New Carburetors; Adjusting the Carburetor
IssueTI 19/2008
Engine family 1129
Part changes (5)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 0000 955 0804 | 0000 955 0801 | Chain Sprocket Cover – Collar Nut, Hex Nut The collar nut 0000 955 0804 used to secure the guide bar and chain sprocket cover has been 0000 955 0804 replaced by hex nut 0000 955 0801 in order to conform to the latest production line modifications. |
| 1129 120 0605 | 1129 120 0653 | New Carburetors MS 200 T The previous carburetor (C1Q-S61E) 1129 120 0605 has been replaced by carburetor kit 1129 120 0653 (includes C1Q-S126 carburetor). |
| 1129 120 0607 | 1129 120 0653 | 1129 120 0607 has been replaced by carburetor kit If carburetor kit 1129 120 0653 is installed in 1129 120 0654 (includes C1Q-S127 carburetor). |
| 1129 123 7505 | 1129 123 7508 | 161TI022 KN Right: New version of part (with larger openings for 1129 123 7507 1129 123 7509 the adjusting screws) Service note: Left: Previous version of part Grommet 1129 123 7505 has been replaced by the new grommet 1129 123 7508. |
| 1129 123 7507 | 1129 123 7509 | Grommet 1129 123 7507 has been replaced by the new grommet 1129 123 7509. |
Full text

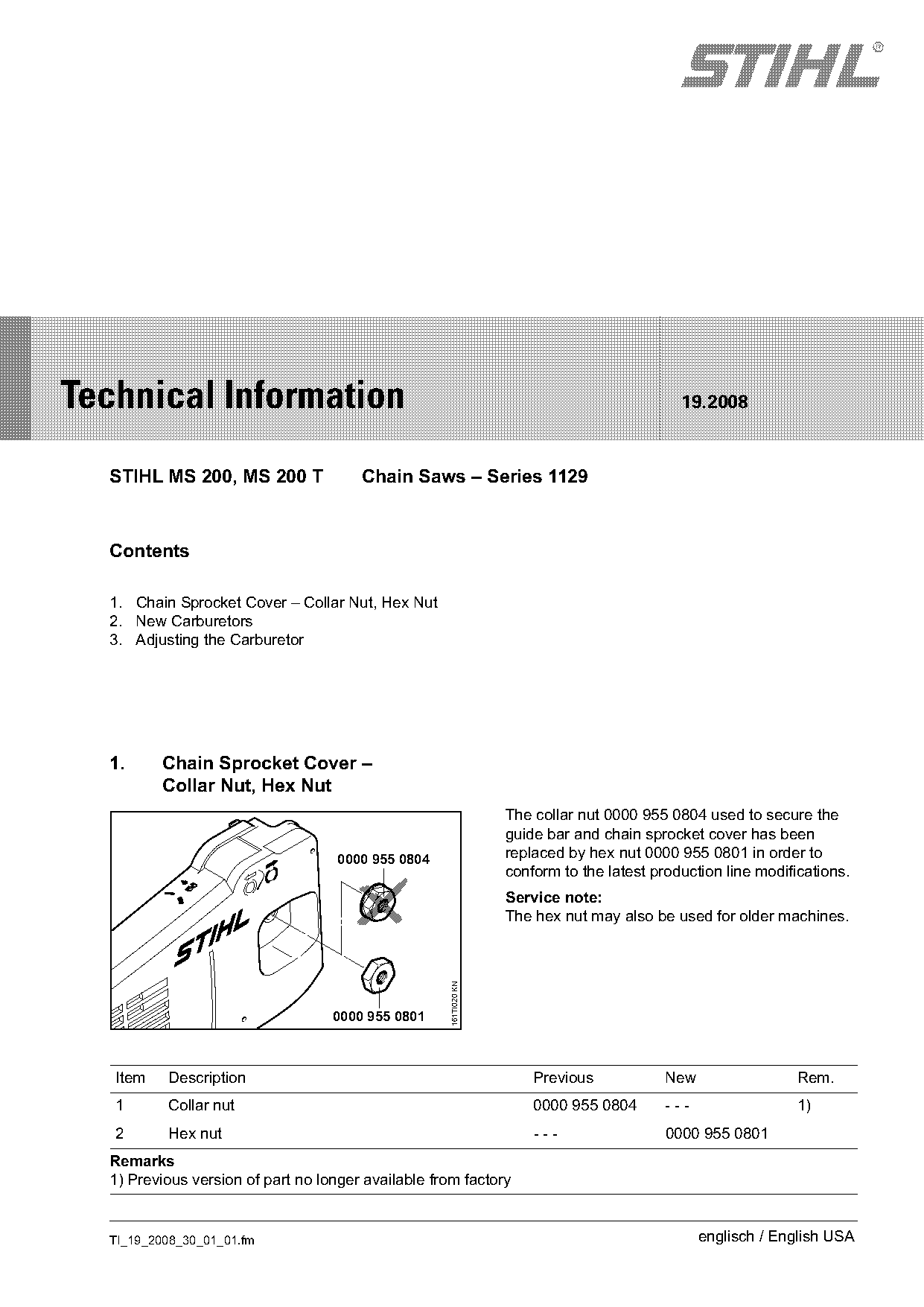

Page 1 of 5
STIH)
Technical Information 19.2008
STIHL MS 200, MS 200 T Chain Saws – Series 1129
Contents
1. Chain Sprocket Cover – Collar Nut, Hex Nut
2. New Carburetors
3. Adjusting the Carburetor
1. Chain Sprocket Cover –
Collar Nut, Hex Nut
The collar nut 0000 955 0804 used to secure the
guide bar and chain sprocket cover has been
0000 955 0804 replaced by hex nut 0000 955 0801 in order to
conform to the latest production line modifications.
Service note:
The hex nut may also be used for older machines.
161TI020 KN
0000 955 0801
Item Description Previous New Rem.
1 Collar nut 0000 955 0804 --- 1)
2 Hex nut --- 0000 955 0801
Remarks
1) Previous version of part no longer available from factory
TI_19_2008_30_01_01.fm englisch / English USA

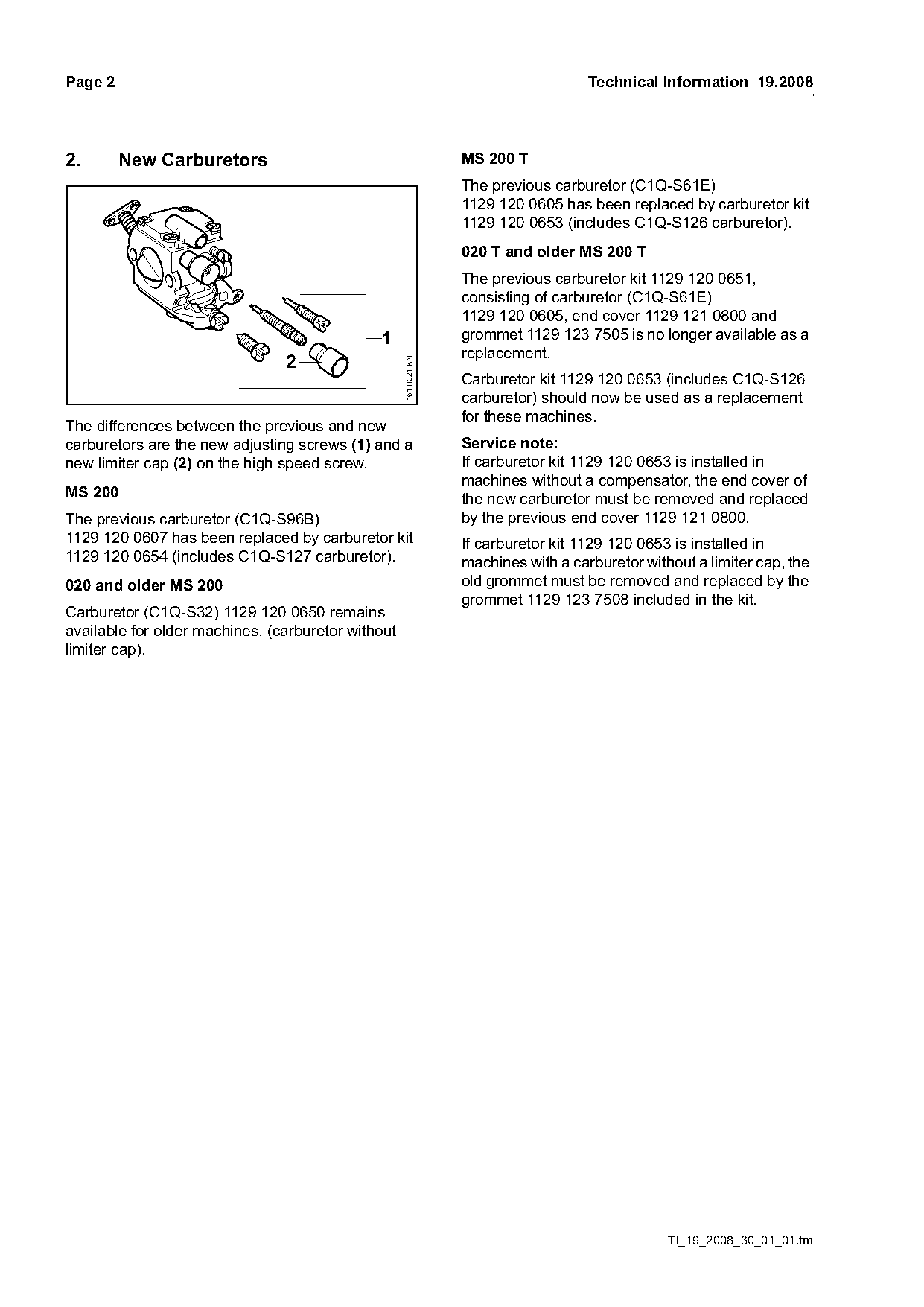

)m~ge 2 Technical Information 19.2008
2. New Carburetors MS 200 T
The previous carburetor (C1Q-S61E)
1129 120 0605 has been replaced by carburetor kit
1129 120 0653 (includes C1Q-S126 carburetor).
020 T and older MS 200 T
The previous carburetor kit 1129 120 0651,
consisting of carburetor (C1Q-S61E)
1129 120 0605, end cover 1129 121 0800 and
1 grommet 1129 123 7505 is no longer available as a
replacement.
2
161TI021 KN
Carburetor kit 1129 120 0653 (includes C1Q-S126
carburetor) should now be used as a replacement
for these machines.
The differences between the previous and new
carburetors are the new adjusting screws (1) and a Service note:
new limiter cap (2) on the high speed screw. If carburetor kit 1129 120 0653 is installed in
machines without a compensator, the end cover of
MS 200 the new carburetor must be removed and replaced
The previous carburetor (C1Q-S96B) by the previous end cover 1129 121 0800.
1129 120 0607 has been replaced by carburetor kit If carburetor kit 1129 120 0653 is installed in
1129 120 0654 (includes C1Q-S127 carburetor). machines with a carburetor without a limiter cap, the
020 and older MS 200 old grommet must be removed and replaced by the
grommet 1129 123 7508 included in the kit.
Carburetor (C1Q-S32) 1129 120 0650 remains
available for older machines. (carburetor without
limiter cap).
TI_19_2008_30_01_01.fm Page 2 of 5

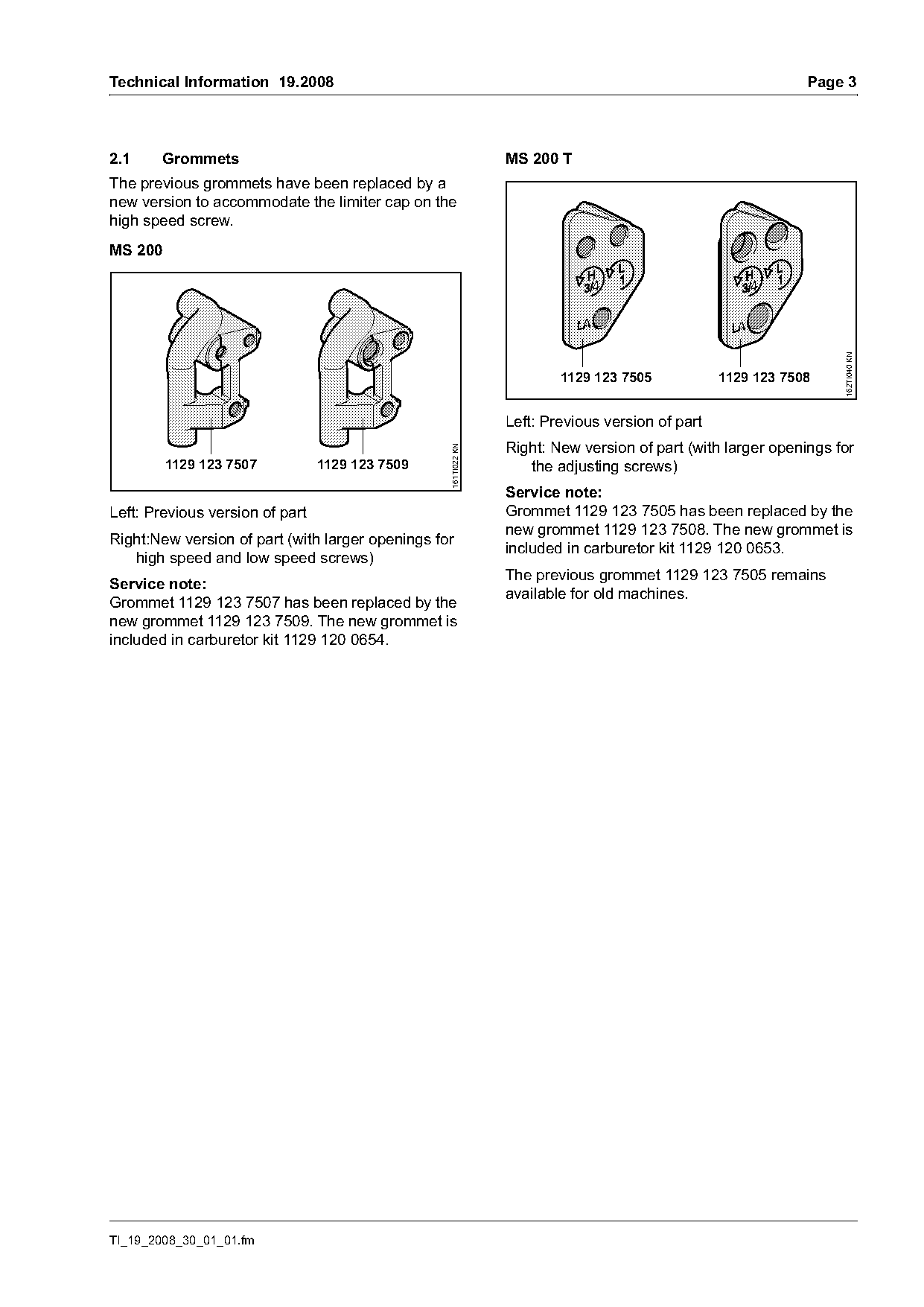

Technical Information 19.2008 Page 3
2.1 Grommets MS 200 T
The previous grommets have been replaced by a
new version to accommodate the limiter cap on the
high speed screw.
MS 200
162TI040 KN
1129 123 7505 1129 123 7508
Left: Previous version of part
161TI022 KN
Right: New version of part (with larger openings for
1129 123 7507 1129 123 7509 the adjusting screws)
Service note:
Left: Previous version of part Grommet 1129 123 7505 has been replaced by the
new grommet 1129 123 7508. The new grommet is
Right:New version of part (with larger openings for
included in carburetor kit 1129 120 0653.
high speed and low speed screws)
The previous grommet 1129 123 7505 remains
Service note:
available for old machines.
Grommet 1129 123 7507 has been replaced by the
new grommet 1129 123 7509. The new grommet is
included in carburetor kit 1129 120 0654.
TI_19_2008_30_01_01.fm

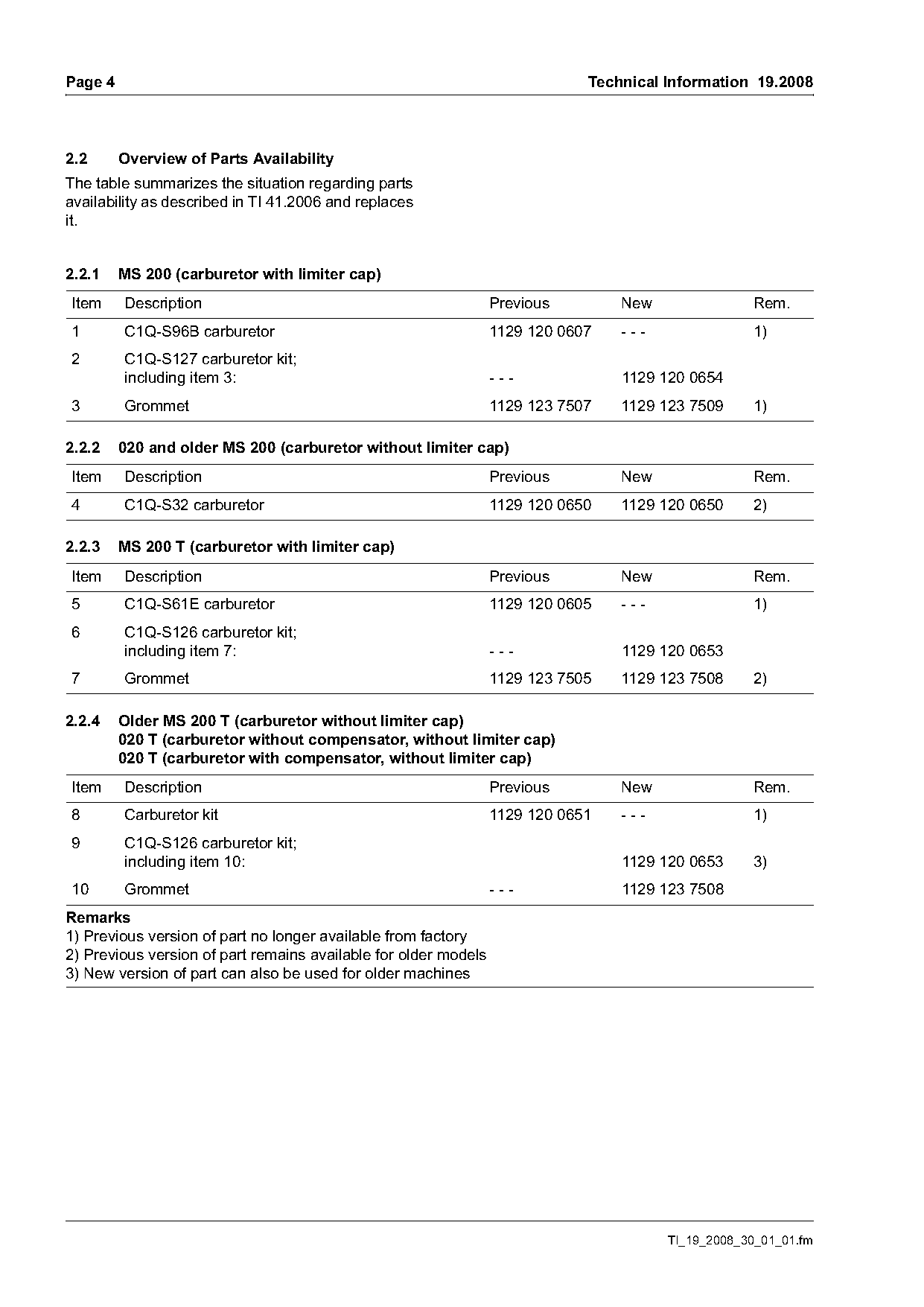

)m~ge 4 Technical Information 19.2008
2.2 Overview of Parts Availability
The table summarizes the situation regarding parts
availability as described in TI 41.2006 and replaces
it.
2.2.1 MS 200 (carburetor with limiter cap)
Item Description Previous New Rem.
1 C1Q-S96B carburetor 1129 120 0607 --- 1)
2 C1Q-S127 carburetor kit;
including item 3: --- 1129 120 0654
3 Grommet 1129 123 7507 1129 123 7509 1)
2.2.2 020 and older MS 200 (carburetor without limiter cap)
Item Description Previous New Rem.
4 C1Q-S32 carburetor 1129 120 0650 1129 120 0650 2)
2.2.3 MS 200 T (carburetor with limiter cap)
Item Description Previous New Rem.
5 C1Q-S61E carburetor 1129 120 0605 --- 1)
6 C1Q-S126 carburetor kit;
including item 7: --- 1129 120 0653
7 Grommet 1129 123 7505 1129 123 7508 2)
2.2.4 Older MS 200 T (carburetor without limiter cap)
020 T (carburetor without compensator, without limiter cap)
020 T (carburetor with compensator, without limiter cap)
Item Description Previous New Rem.
8 Carburetor kit 1129 120 0651 --- 1)
9 C1Q-S126 carburetor kit;
including item 10: 1129 120 0653 3)
10 Grommet --- 1129 123 7508
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older models
3) New version of part can also be used for older machines
TI_19_2008_30_01_01.fm Page 3 of 5

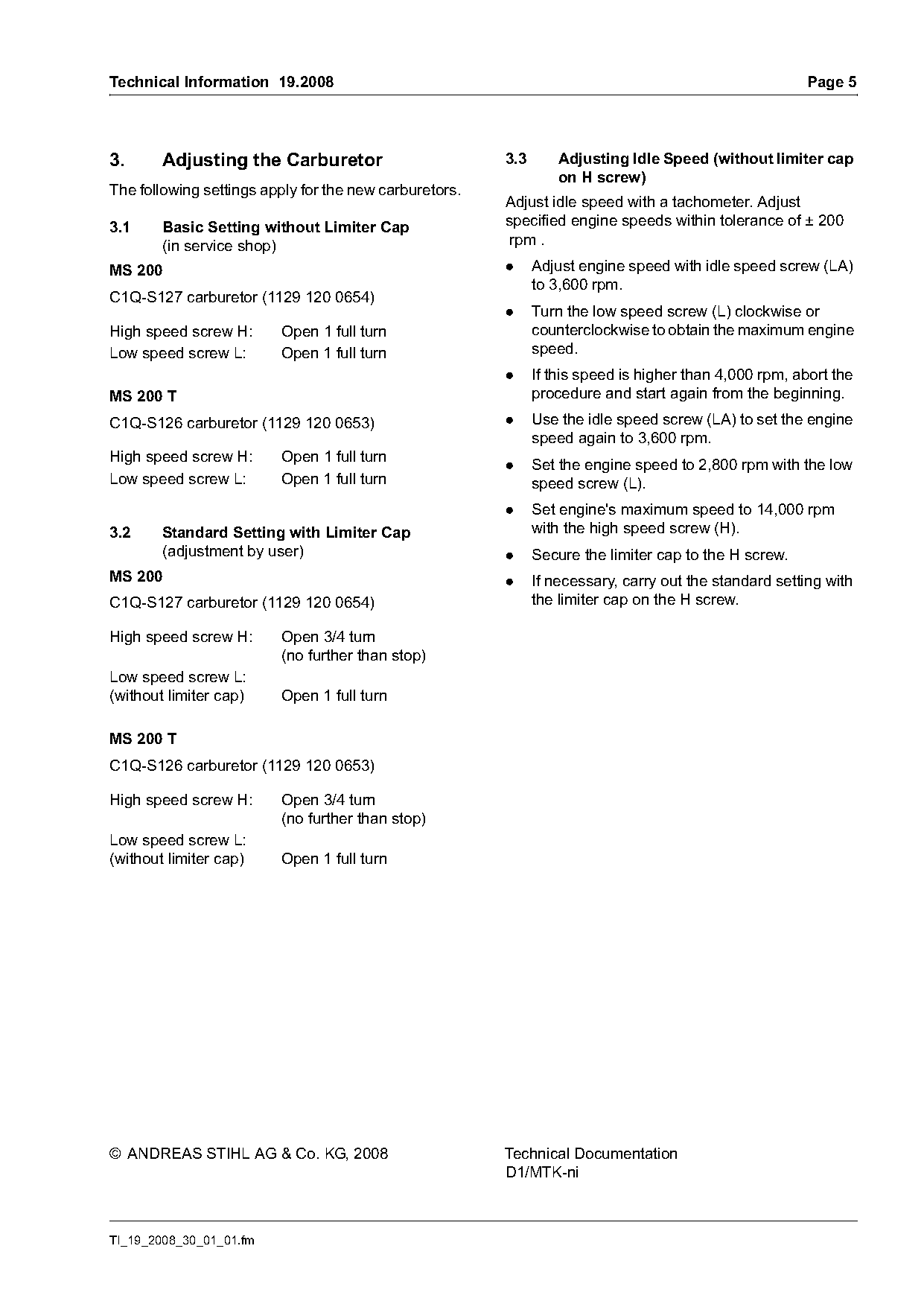

Technical Information 19.2008 Page 5
3. Adjusting the Carburetor 3.3 Adjusting Idle Speed (without limiter cap
on H screw)
The following settings apply for the new carburetors.
Adjust idle speed with a tachometer. Adjust
3.1 Basic Setting without Limiter Cap specified engine speeds within tolerance of ± 200
(in service shop) rpm .
MS 200 . Adjust engine speed with idle speed screw (LA)
to 3,600 rpm.
C1Q-S127 carburetor (1129 120 0654)
. Turn the low speed screw (L) clockwise or
High speed screw H: Open 1 full turn counterclockwise to obtain the maximum engine
Low speed screw L: Open 1 full turn speed.
. If this speed is higher than 4,000 rpm, abort the
MS 200 T procedure and start again from the beginning.
C1Q-S126 carburetor (1129 120 0653) . Use the idle speed screw (LA) to set the engine
speed again to 3,600 rpm.
High speed screw H: Open 1 full turn
. Set the engine speed to 2,800 rpm with the low
Low speed screw L: Open 1 full turn speed screw (L).
. Set engine's maximum speed to 14,000 rpm
3.2 Standard Setting with Limiter Cap with the high speed screw (H).
(adjustment by user) . Secure the limiter cap to the H screw.
MS 200 . If necessary, carry out the standard setting with
C1Q-S127 carburetor (1129 120 0654) the limiter cap on the H screw.
High speed screw H: Open 3/4 turn
(no further than stop)
Low speed screw L:
(without limiter cap) Open 1 full turn
MS 200 T
C1Q-S126 carburetor (1129 120 0653)
High speed screw H: Open 3/4 turn
(no further than stop)
Low speed screw L:
(without limiter cap) Open 1 full turn
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-ni
TI_19_2008_30_01_01.fm Page 4 of 5
Page 5 of 5
