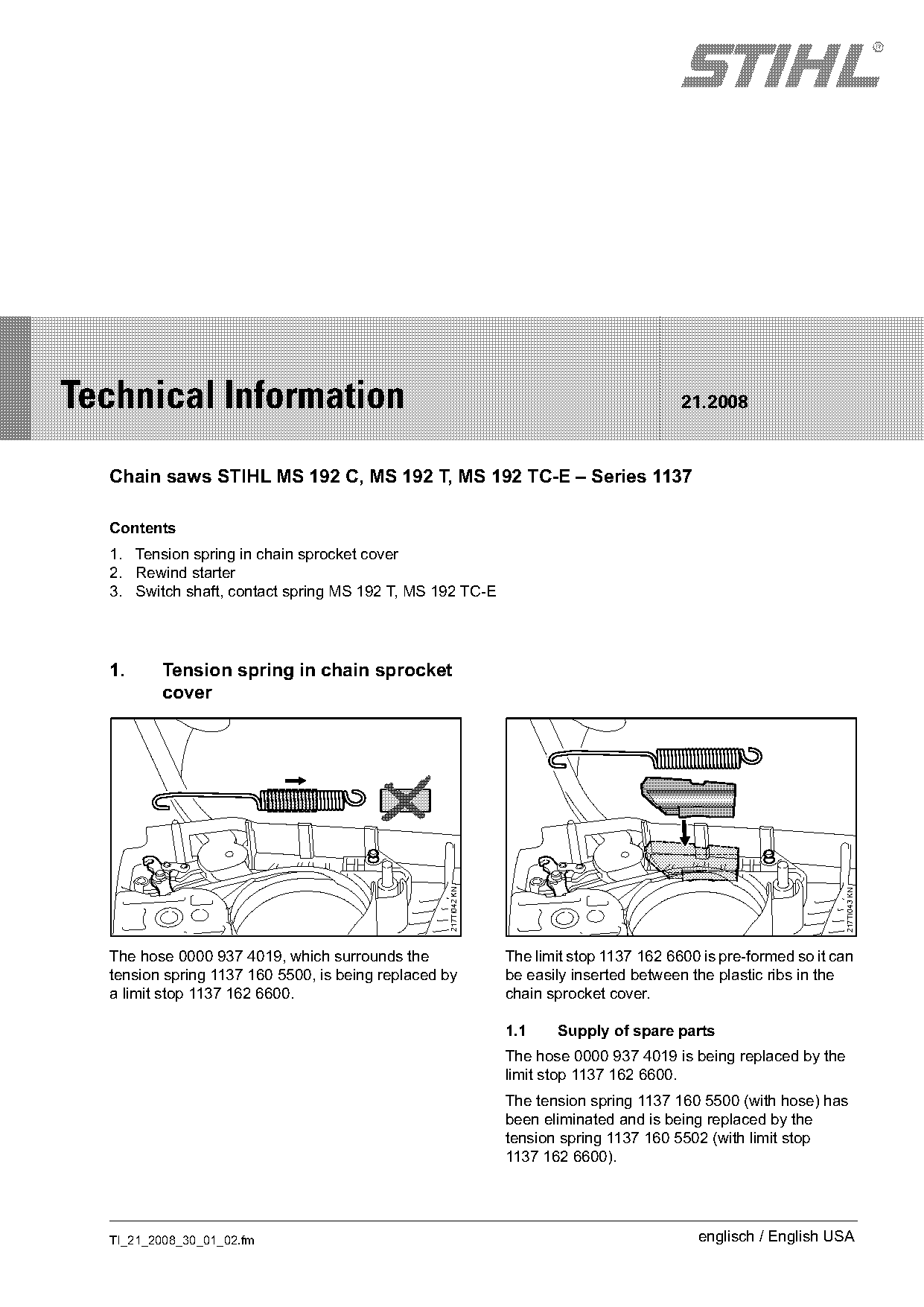

TI 21/2008 page 1
Text of page 1 — search, copy, screen readers
STIH)

Technical Information                                                                     21.2008

  Chain saws STIHL MS 192 C, MS 192 T, MS 192 TC-E – Series 1137

  Contents
  1. Tension spring in chain sprocket cover
  2. Rewind starter
  3. Switch shaft, contact spring MS 192 T, MS 192 TC-E

  1.     Tension spring in chain sprocket
         cover
                                                  217TI042 KN

                                                                                                                  217TI043 KN

  The hose 0000 937 4019, which surrounds the                   The limit stop 1137 162 6600 is pre-formed so it can
  tension spring 1137 160 5500, is being replaced by            be easily inserted between the plastic ribs in the
  a limit stop 1137 162 6600.                                   chain sprocket cover.

                                                                1.1    Supply of spare parts
                                                                The hose 0000 937 4019 is being replaced by the
                                                                limit stop 1137 162 6600.
                                                                The tension spring 1137 160 5500 (with hose) has
                                                                been eliminated and is being replaced by the
                                                                tension spring 1137 160 5502 (with limit stop
                                                                1137 162 6600).

  TI_21_2008_30_01_02.fm                                                                    englisch / English USA

Page 2 of 4

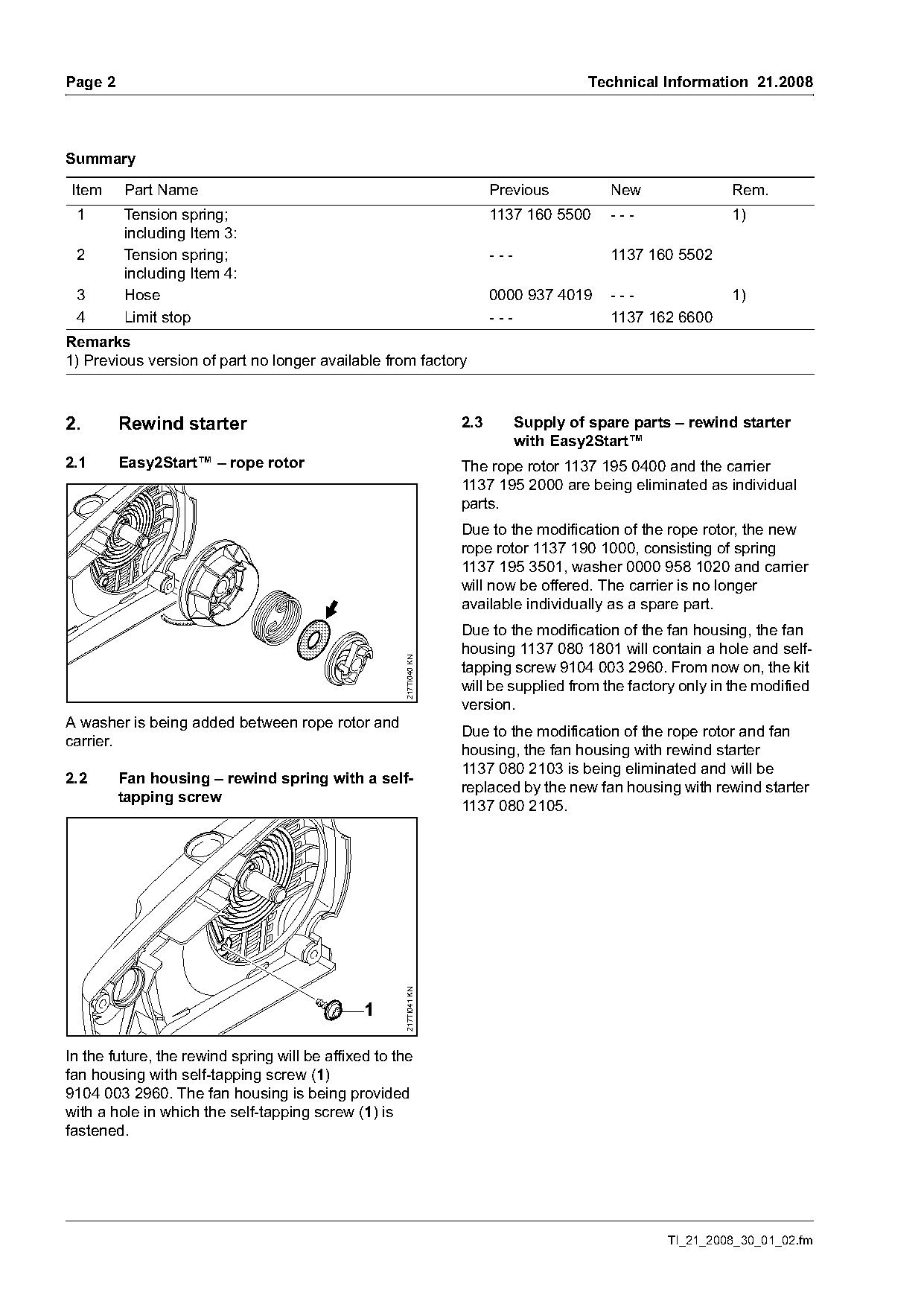

TI 21/2008 page 2
Text of page 2 — search, copy, screen readers
Page 2                                                                                   Technical Information 21.2008

Summary

Item     Part Name                                                       Previous           New              Rem.
 1       Tension spring;                                                 1137 160 5500      ---              1)
         including Item 3:
 2       Tension spring;                                                 ---                1137 160 5502
         including Item 4:
 3       Hose                                                            0000 937 4019      ---              1)
 4       Limit stop                                                      ---                1137 162 6600
Remarks
1) Previous version of part no longer available from factory

2.       Rewind starter                                            2.3         Supply of spare parts – rewind starter
                                                                               with Easy2Start™
2.1      Easy2Start™ – rope rotor                                  The rope rotor 1137 195 0400 and the carrier
                                                                   1137 195 2000 are being eliminated as individual
                                                                   parts.
                                                                   Due to the modification of the rope rotor, the new
                                                                   rope rotor 1137 190 1000, consisting of spring
                                                                   1137 195 3501, washer 0000 958 1020 and carrier
                                                                   will now be offered. The carrier is no longer
                                                                   available individually as a spare part.
                                                                   Due to the modification of the fan housing, the fan
                                                                   housing 1137 080 1801 will contain a hole and self-
                                                     217TI040 KN

                                                                   tapping screw 9104 003 2960. From now on, the kit
                                                                   will be supplied from the factory only in the modified
                                                                   version.
A washer is being added between rope rotor and
                                                                   Due to the modification of the rope rotor and fan
carrier.
                                                                   housing, the fan housing with rewind starter
                                                                   1137 080 2103 is being eliminated and will be
2.2      Fan housing – rewind spring with a self-
                                                                   replaced by the new fan housing with rewind starter
         tapping screw
                                                                   1137 080 2105.
                                                     217TI041 KN


In the future, the rewind spring will be affixed to the
fan housing with self-tapping screw (1)
9104 003 2960. The fan housing is being provided
with a hole in which the self-tapping screw (1) is
fastened.

                                                                                                    TI_21_2008_30_01_02.fm

Page 3 of 4

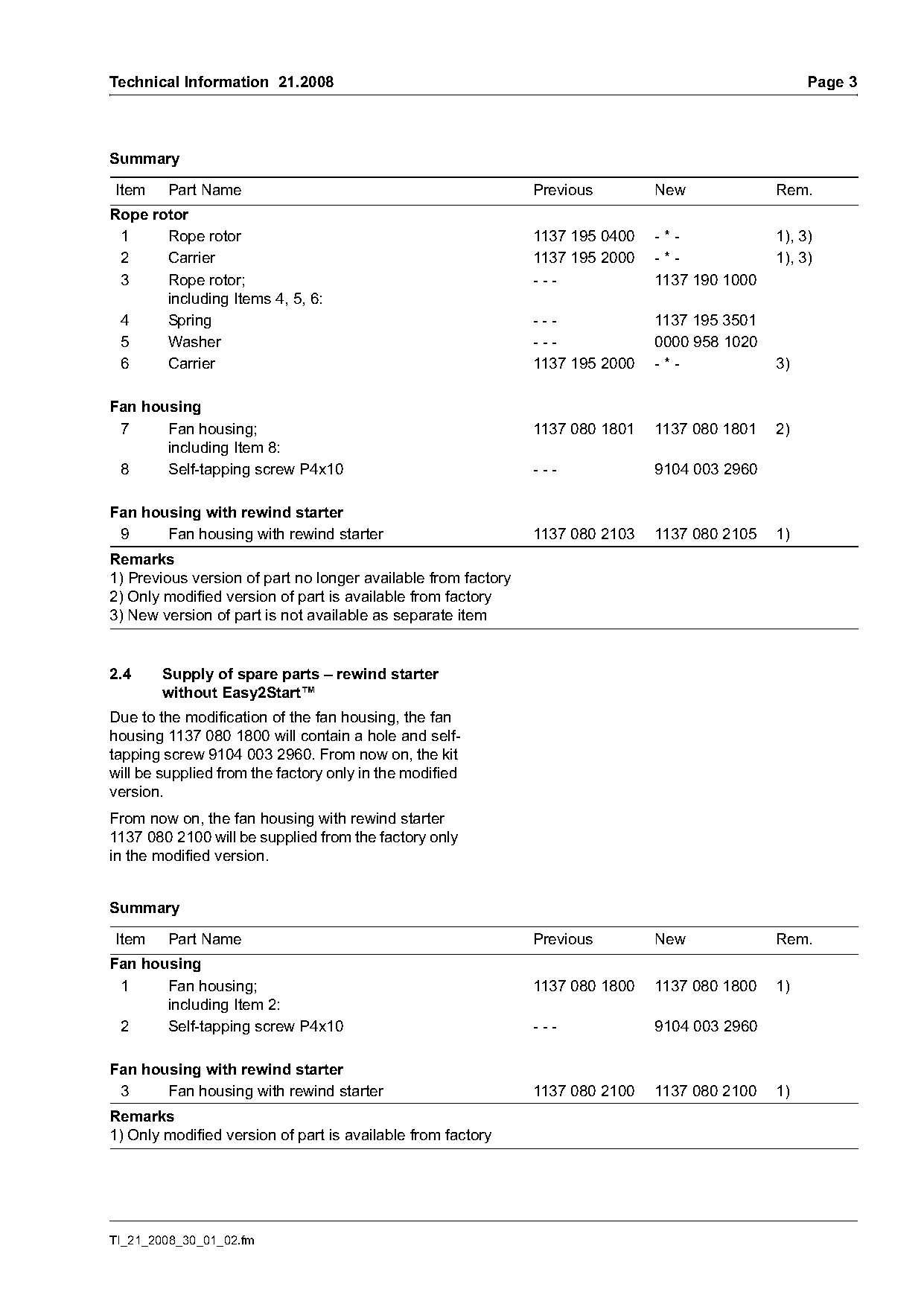

TI 21/2008 page 3
Text of page 3 — search, copy, screen readers
Technical Information 21.2008                                                                       Page 3

Summary

Item     Part Name                                             Previous        New             Rem.
Rope rotor
 1     Rope rotor                                              1137 195 0400   -*-             1), 3)
 2     Carrier                                                 1137 195 2000   -*-             1), 3)
 3     Rope rotor;                                             ---             1137 190 1000
       including Items 4, 5, 6:
 4     Spring                                                  ---             1137 195 3501
 5     Washer                                                  ---             0000 958 1020
 6     Carrier                                                 1137 195 2000   -*-             3)

Fan housing
 7     Fan housing;                                            1137 080 1801   1137 080 1801   2)
       including Item 8:
 8     Self-tapping screw P4x10                                ---             9104 003 2960

Fan housing with rewind starter
 9     Fan housing with rewind starter                         1137 080 2103   1137 080 2105   1)
Remarks
1) Previous version of part no longer available from factory
2) Only modified version of part is available from factory
3) New version of part is not available as separate item

2.4     Supply of spare parts – rewind starter
        without Easy2Start™
Due to the modification of the fan housing, the fan
housing 1137 080 1800 will contain a hole and self-
tapping screw 9104 003 2960. From now on, the kit
will be supplied from the factory only in the modified
version.
From now on, the fan housing with rewind starter
1137 080 2100 will be supplied from the factory only
in the modified version.

Summary

Item     Part Name                                             Previous        New             Rem.
Fan housing
 1     Fan housing;                                            1137 080 1800   1137 080 1800   1)
       including Item 2:
 2     Self-tapping screw P4x10                                ---             9104 003 2960

Fan housing with rewind starter
 3     Fan housing with rewind starter                         1137 080 2100   1137 080 2100   1)
Remarks
1) Only modified version of part is available from factory

TI_21_2008_30_01_02.fm

Page 4 of 4

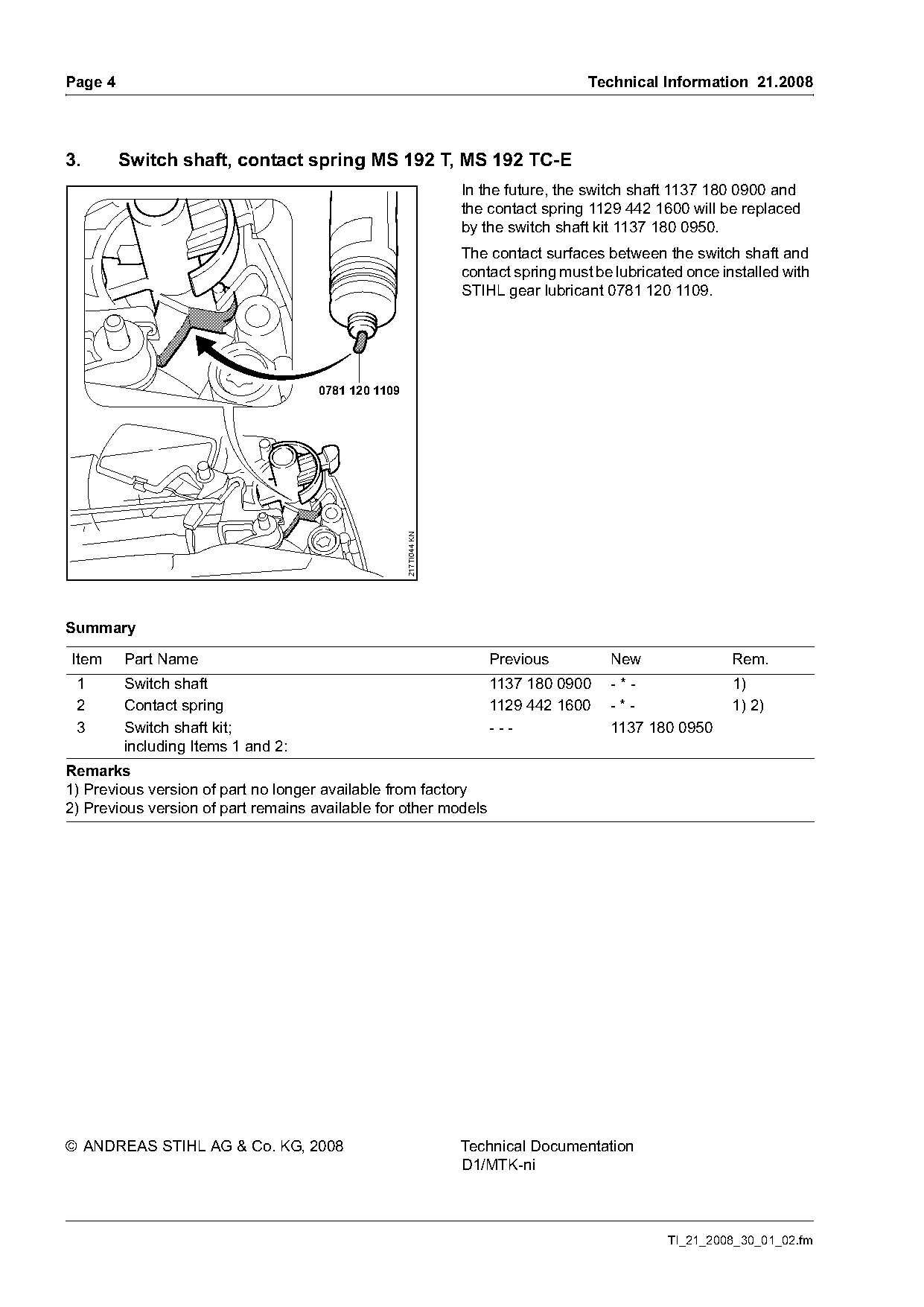

TI 21/2008 page 4
Text of page 4 — search, copy, screen readers
Page 4                                                                                Technical Information 21.2008

3.       Switch shaft, contact spring MS 192 T, MS 192 TC-E
                                                                   In the future, the switch shaft 1137 180 0900 and
                                                                   the contact spring 1129 442 1600 will be replaced
                                                                   by the switch shaft kit 1137 180 0950.
                                                                   The contact surfaces between the switch shaft and
                                                                   contact spring must be lubricated once installed with
                                                                   STIHL gear lubricant 0781 120 1109.

                                     0781 120 1109
                                                     217TI044 KN

Summary

Item     Part Name                                                     Previous          New                Rem.
 1       Switch shaft                                                  1137 180 0900     -*-                1)
 2       Contact spring                                                1129 442 1600     -*-                1) 2)
 3       Switch shaft kit;                                             ---               1137 180 0950
         including Items 1 and 2:
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for other models

© ANDREAS STIHL AG & Co. KG, 2008                                  Technical Documentation
                                                                   D1/MTK-ni

                                                                                                  TI_21_2008_30_01_02.fm
