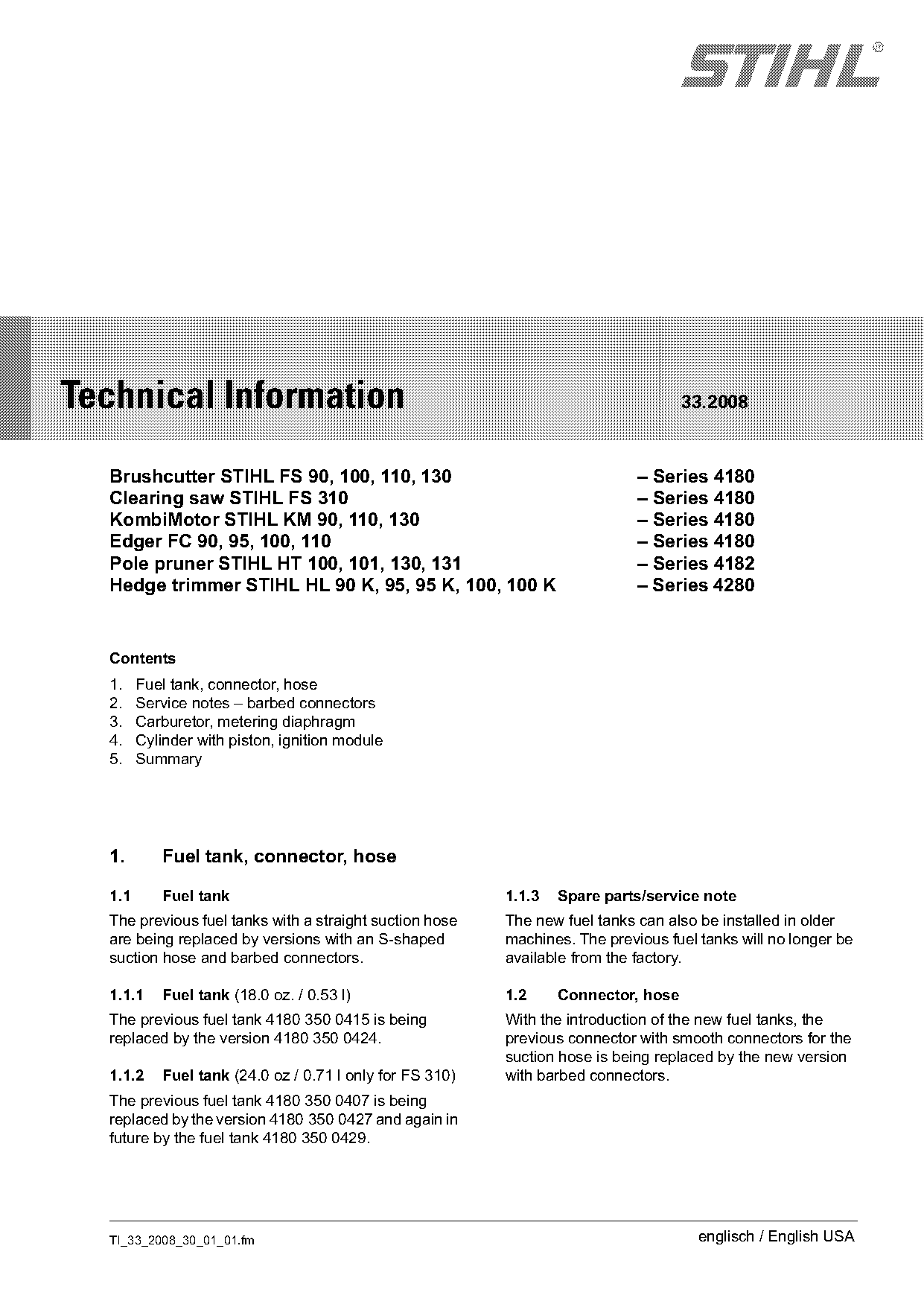

STIH)
Technical Information 33.2008
Brushcutter STIHL FS 90, 100, 110, 130 – Series 4180
Clearing saw STIHL FS 310 – Series 4180
KombiMotor STIHL KM 90, 110, 130 – Series 4180
Edger FC 90, 95, 100, 110 – Series 4180
Pole pruner STIHL HT 100, 101, 130, 131 – Series 4182
Hedge trimmer STIHL HL 90 K, 95, 95 K, 100, 100 K – Series 4280
Contents
1. Fuel tank, connector, hose
2. Service notes – barbed connectors
3. Carburetor, metering diaphragm
4. Cylinder with piston, ignition module
5. Summary
1. Fuel tank, connector, hose
1.1 Fuel tank 1.1.3 Spare parts/service note
The previous fuel tanks with a straight suction hose The new fuel tanks can also be installed in older
are being replaced by versions with an S-shaped machines. The previous fuel tanks will no longer be
suction hose and barbed connectors. available from the factory.
1.1.1 Fuel tank (18.0 oz. / 0.53 l) 1.2 Connector, hose
The previous fuel tank 4180 350 0415 is being With the introduction of the new fuel tanks, the
replaced by the version 4180 350 0424. previous connector with smooth connectors for the
suction hose is being replaced by the new version
1.1.2 Fuel tank (24.0 oz / 0.71 l only for FS 310) with barbed connectors.
The previous fuel tank 4180 350 0407 is being
replaced by the version 4180 350 0427 and again in
future by the fuel tank 4180 350 0429.
TI_33_2008_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 33.2008

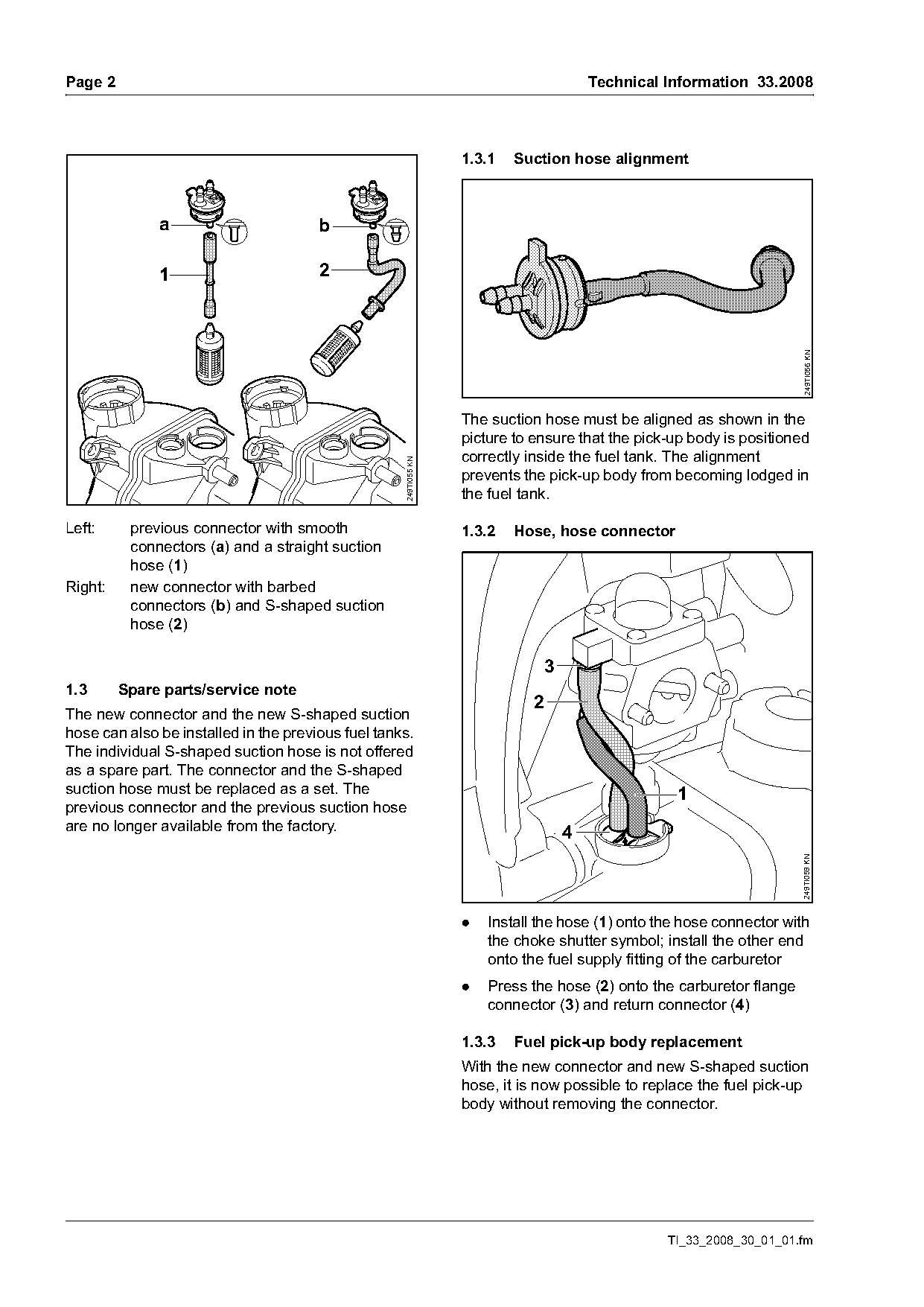

1.3.1 Suction hose alignment
a b
1 2
249TI056 KN
The suction hose must be aligned as shown in the
picture to ensure that the pick-up body is positioned
correctly inside the fuel tank. The alignment
249TI055 KN
prevents the pick-up body from becoming lodged in
the fuel tank.
Left: previous connector with smooth 1.3.2 Hose, hose connector
connectors (a) and a straight suction
hose (1)
Right: new connector with barbed
connectors (b) and S-shaped suction
hose (2)
3
1.3 Spare parts/service note
2
The new connector and the new S-shaped suction
hose can also be installed in the previous fuel tanks.
The individual S-shaped suction hose is not offered
as a spare part. The connector and the S-shaped
suction hose must be replaced as a set. The 1
previous connector and the previous suction hose
are no longer available from the factory. 4
249TI059 KN
. Install the hose (1) onto the hose connector with
the choke shutter symbol; install the other end
onto the fuel supply fitting of the carburetor
. Press the hose (2) onto the carburetor flange
connector (3) and return connector (4)
1.3.3 Fuel pick-up body replacement
With the new connector and new S-shaped suction
hose, it is now possible to replace the fuel pick-up
body without removing the connector.
TI_33_2008_30_01_01.fm Page 2 of 6
Technical Information 33.2008 Page 3

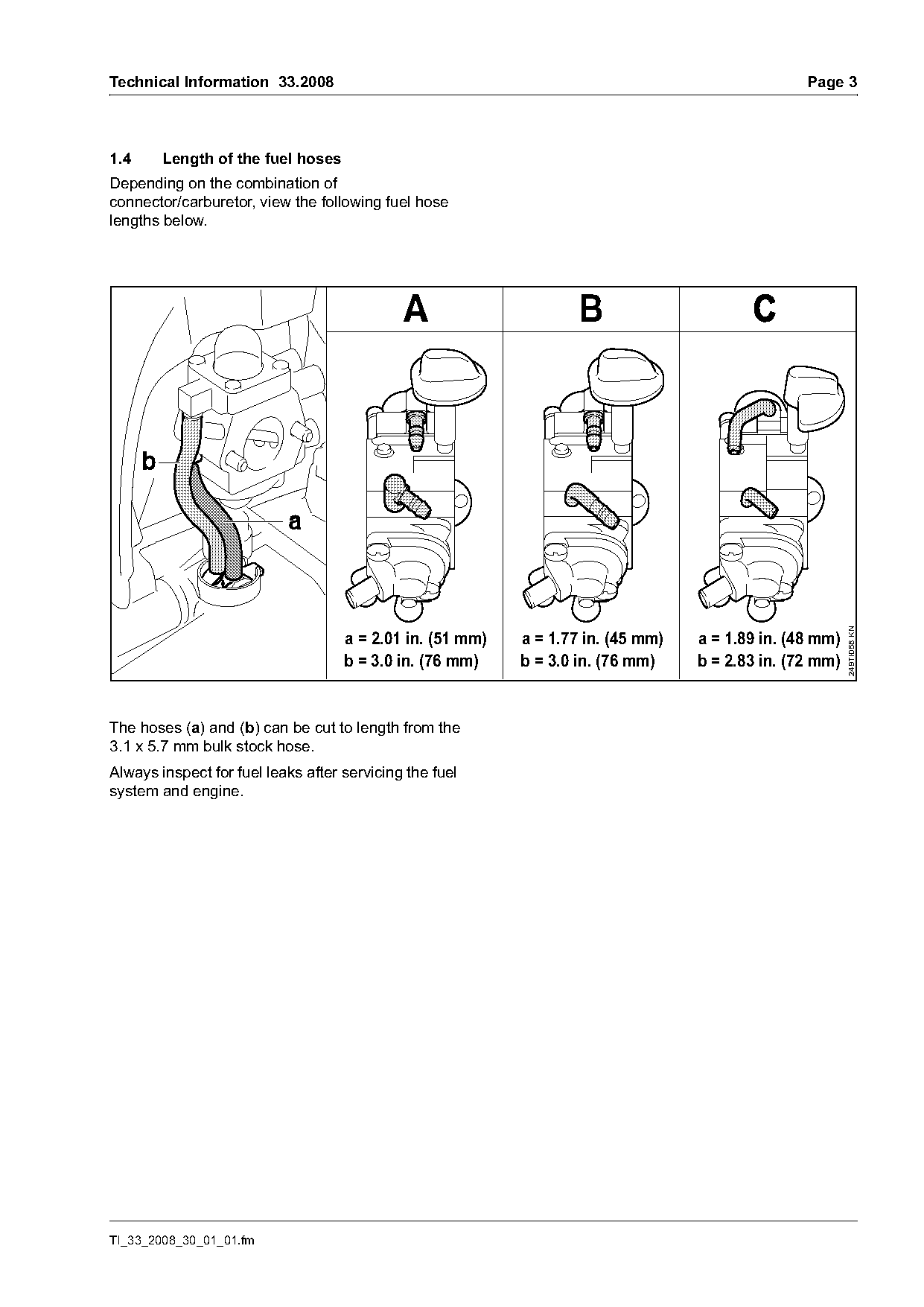

1.4 Length of the fuel hoses
Depending on the combination of
connector/carburetor, view the following fuel hose
lengths below.
249TI058 KN
a = 2.01 in. (51 mm) a = 1.77 in. (45 mm) a = 1.89 in. (48 mm)
b = 3.0 in. (76 mm) b = 3.0 in. (76 mm) b = 2.83 in. (72 mm)
The hoses (a) and (b) can be cut to length from the
3.1 x 5.7 mm bulk stock hose.
Always inspect for fuel leaks after servicing the fuel
system and engine.
TI_33_2008_30_01_01.fm
)m~ge 4 Technical Information 33.2008

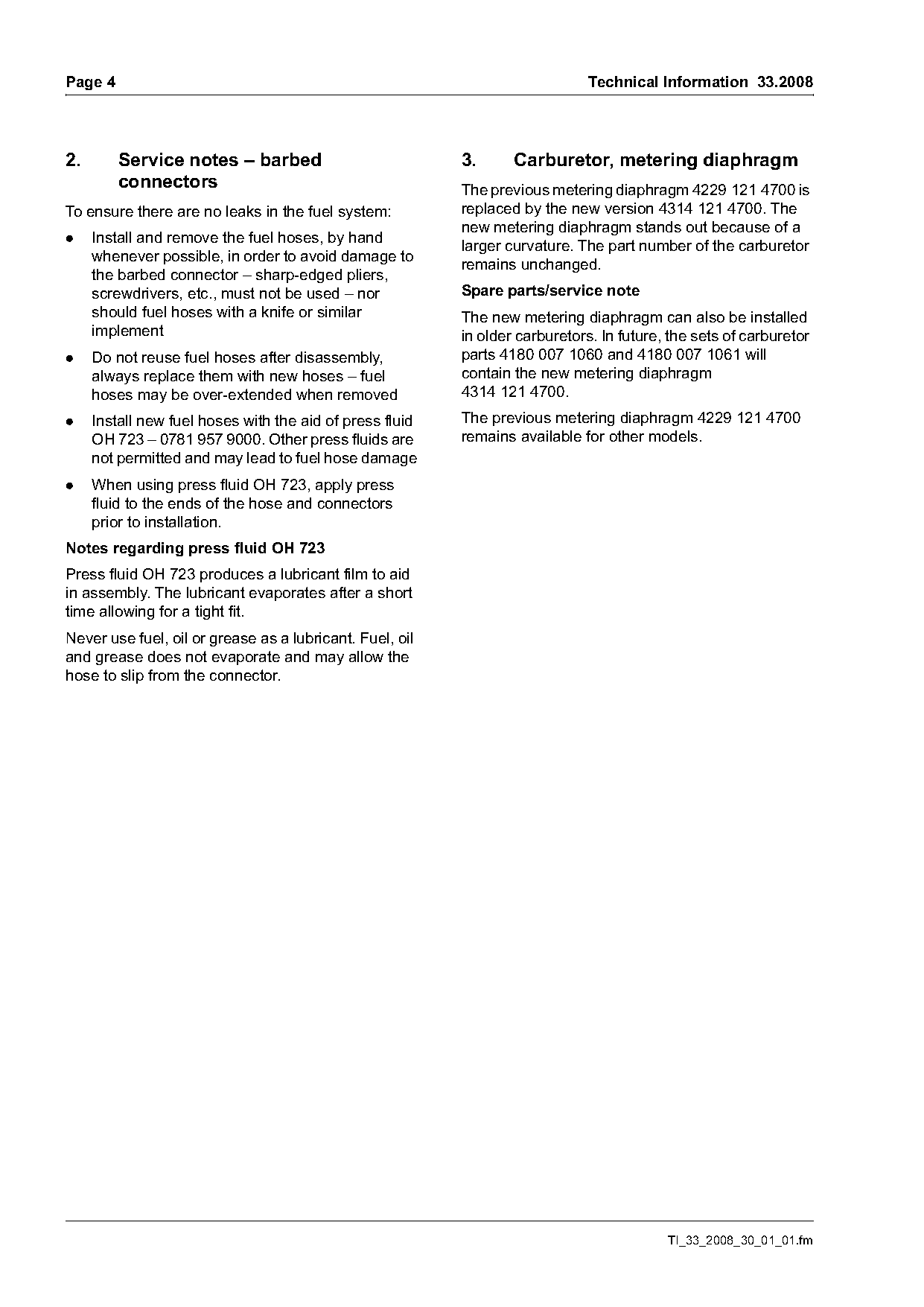

2. Service notes – barbed 3. Carburetor, metering diaphragm
connectors The previous metering diaphragm 4229 121 4700 is
To ensure there are no leaks in the fuel system: replaced by the new version 4314 121 4700. The
new metering diaphragm stands out because of a
. Install and remove the fuel hoses, by hand
larger curvature. The part number of the carburetor
whenever possible, in order to avoid damage to
remains unchanged.
the barbed connector – sharp-edged pliers,
screwdrivers, etc., must not be used – nor Spare parts/service note
should fuel hoses with a knife or similar The new metering diaphragm can also be installed
implement in older carburetors. In future, the sets of carburetor
. Do not reuse fuel hoses after disassembly, parts 4180 007 1060 and 4180 007 1061 will
always replace them with new hoses – fuel contain the new metering diaphragm
hoses may be over-extended when removed 4314 121 4700.
. Install new fuel hoses with the aid of press fluid The previous metering diaphragm 4229 121 4700
OH 723 – 0781 957 9000. Other press fluids are remains available for other models.
not permitted and may lead to fuel hose damage
. When using press fluid OH 723, apply press
fluid to the ends of the hose and connectors
prior to installation.
Notes regarding press fluid OH 723
Press fluid OH 723 produces a lubricant film to aid
in assembly. The lubricant evaporates after a short
time allowing for a tight fit.
Never use fuel, oil or grease as a lubricant. Fuel, oil
and grease does not evaporate and may allow the
hose to slip from the connector.
TI_33_2008_30_01_01.fm Page 3 of 6
Technical Information 33.2008 Page 5

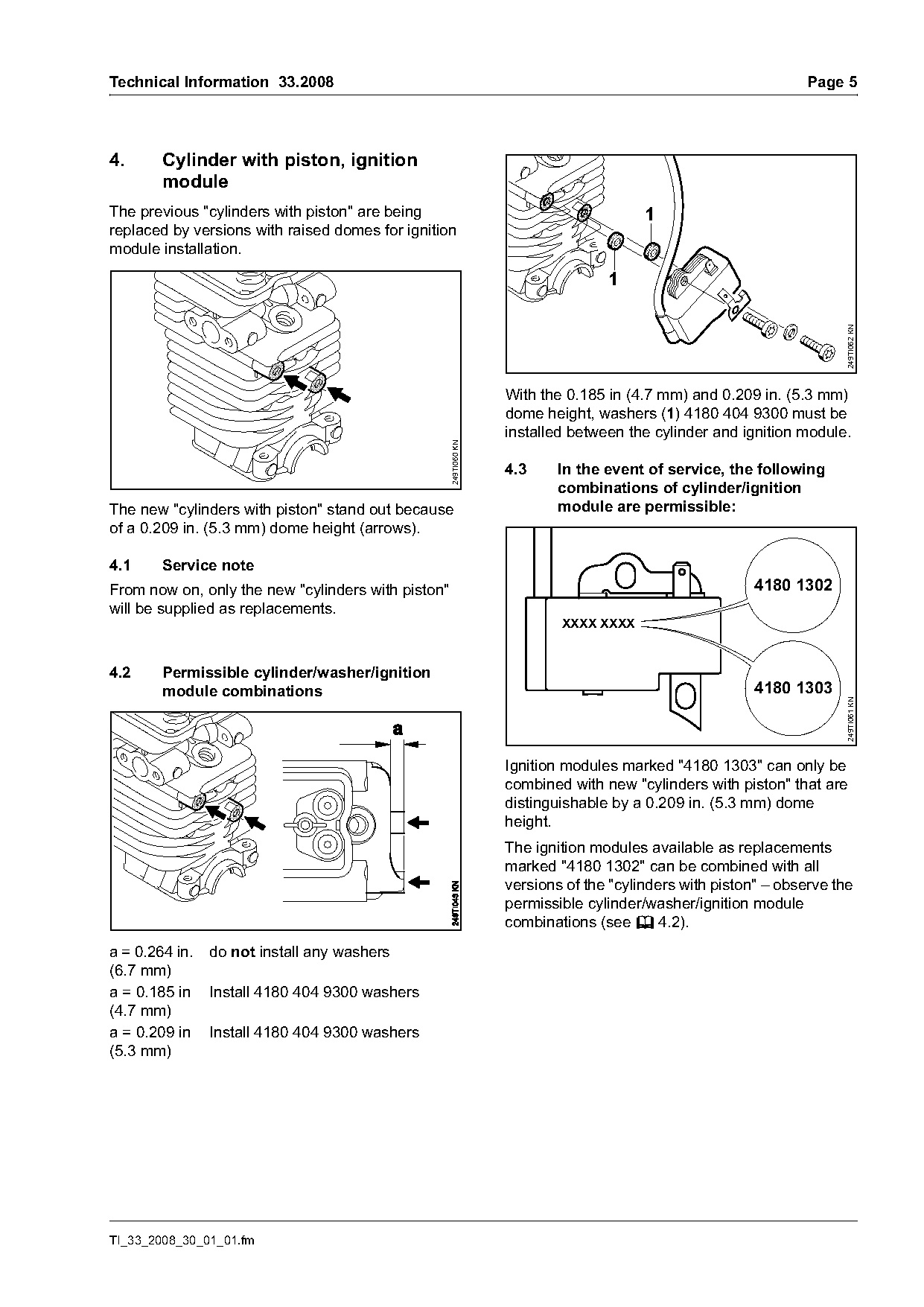

4. Cylinder with piston, ignition
module
The previous "cylinders with piston" are being 1
replaced by versions with raised domes for ignition
module installation.
249TI062 KN
With the 0.185 in (4.7 mm) and 0.209 in. (5.3 mm)
dome height, washers (1) 4180 404 9300 must be
installed between the cylinder and ignition module.
249TI060 KN
4.3 In the event of service, the following
combinations of cylinder/ignition
The new "cylinders with piston" stand out because module are permissible:
of a 0.209 in. (5.3 mm) dome height (arrows).
4.1 Service note
From now on, only the new "cylinders with piston" 4180 1302
will be supplied as replacements.
XXXX XXXX
4.2 Permissible cylinder/washer/ignition
module combinations 4180 1303
249TI061 KN
Ignition modules marked "4180 1303" can only be
combined with new "cylinders with piston" that are
distinguishable by a 0.209 in. (5.3 mm) dome
height.
The ignition modules available as replacements
marked "4180 1302" can be combined with all
versions of the "cylinders with piston" – observe the
permissible cylinder/washer/ignition module
combinations (see b 4.2).
a = 0.264 in. do not install any washers
(6.7 mm)
a = 0.185 in Install 4180 404 9300 washers
(4.7 mm)
a = 0.209 in Install 4180 404 9300 washers
(5.3 mm)
TI_33_2008_30_01_01.fm
)m~ge 6 Technical Information 33.2008

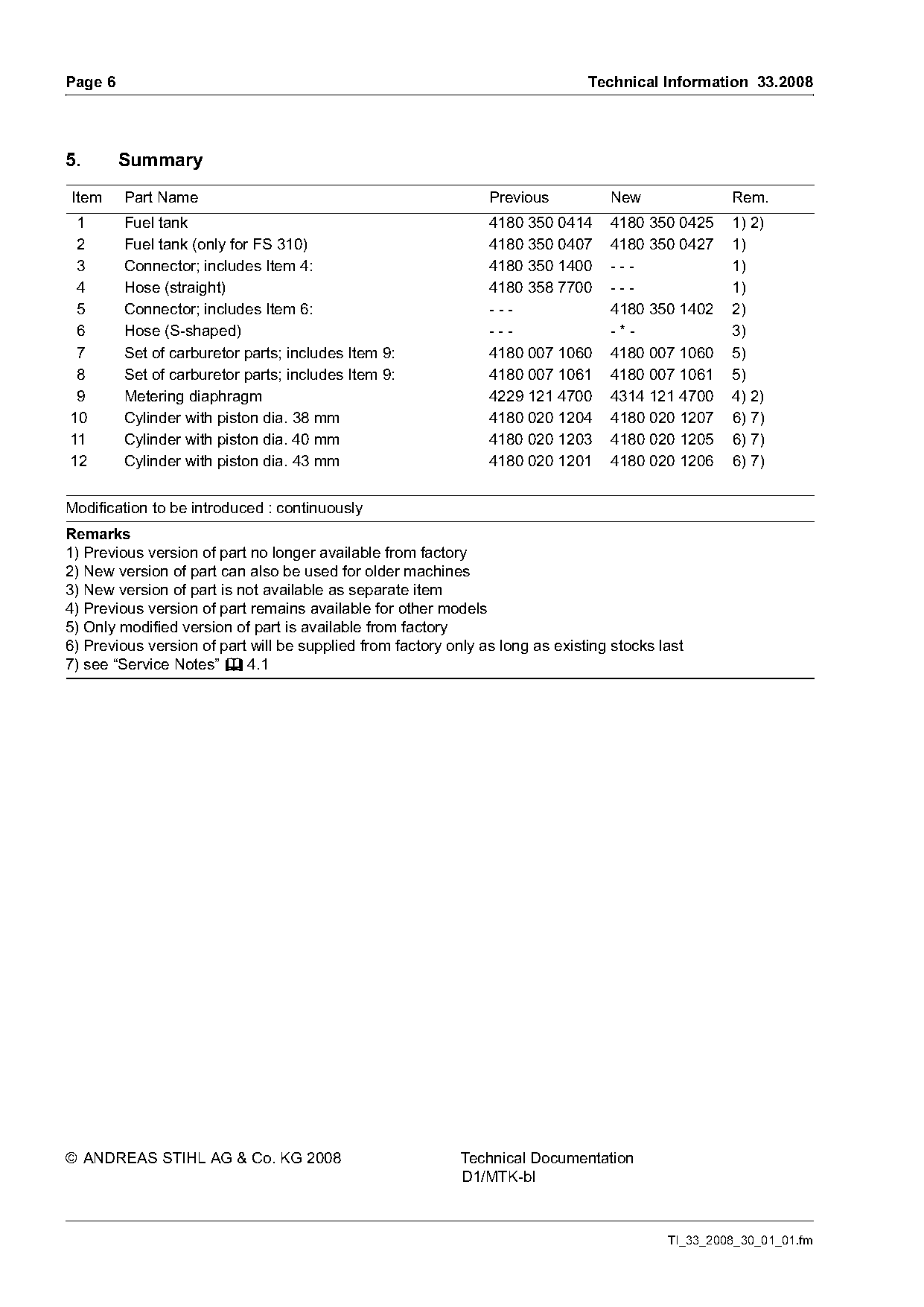

5. Summary
Item Part Name Previous New Rem.
1 Fuel tank 4180 350 0414 4180 350 0425 1) 2)
2 Fuel tank (only for FS 310) 4180 350 0407 4180 350 0427 1)
3 Connector; includes Item 4: 4180 350 1400 --- 1)
4 Hose (straight) 4180 358 7700 --- 1)
5 Connector; includes Item 6: --- 4180 350 1402 2)
6 Hose (S-shaped) --- -*- 3)
7 Set of carburetor parts; includes Item 9: 4180 007 1060 4180 007 1060 5)
8 Set of carburetor parts; includes Item 9: 4180 007 1061 4180 007 1061 5)
9 Metering diaphragm 4229 121 4700 4314 121 4700 4) 2)
10 Cylinder with piston dia. 38 mm 4180 020 1204 4180 020 1207 6) 7)
11 Cylinder with piston dia. 40 mm 4180 020 1203 4180 020 1205 6) 7)
12 Cylinder with piston dia. 43 mm 4180 020 1201 4180 020 1206 6) 7)
Modification to be introduced : continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used for older machines
3) New version of part is not available as separate item
4) Previous version of part remains available for other models
5) Only modified version of part is available from factory
6) Previous version of part will be supplied from factory only as long as existing stocks last
7) see “Service Notes” b 4.1
© ANDREAS STIHL AG & Co. KG 2008 Technical Documentation
D1/MTK-bl
TI_33_2008_30_01_01.fm Page 4 of 6
Page 5 of 6
Page 6 of 6
