Technical Information · issue 42 of 2008
Drive shaft
IssueTI 42/2008
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 9380 620 1360 | 9455 621 0850 | Supply of spare parts Service note The previous roll pins 9380 620 1360 will be replaced by the new circlip 9455 621 0850. |
Full text

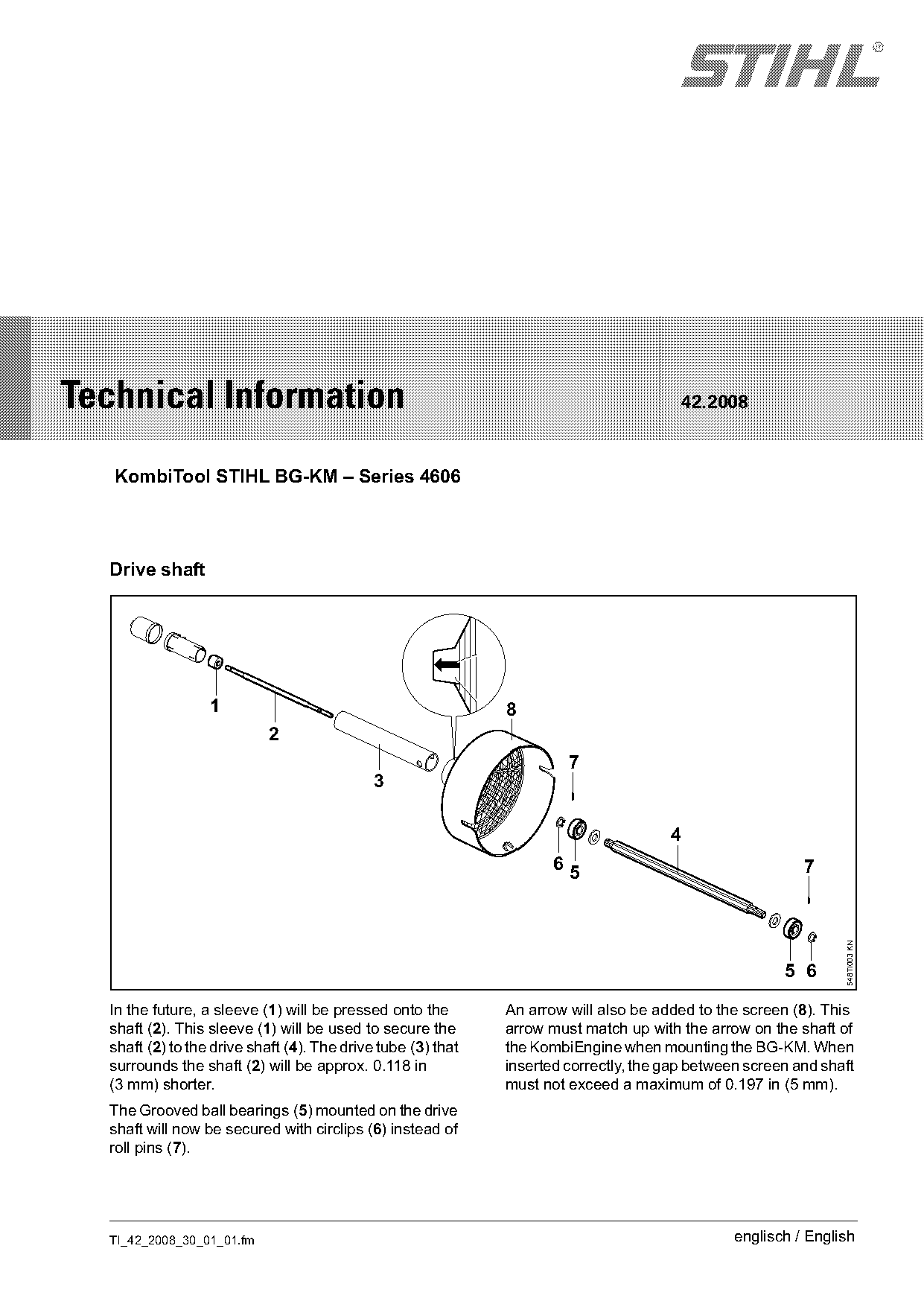

Page 1 of 2
STIH)
Technical Information 42.2008
KombiTool STIHL BG-KM – Series 4606
Drive shaft
1 8
2
7
3
4
65 7
548TI003 KN
5 6
In the future, a sleeve (1) will be pressed onto the An arrow will also be added to the screen (8). This
shaft (2). This sleeve (1) will be used to secure the arrow must match up with the arrow on the shaft of
shaft (2) to the drive shaft (4). The drive tube (3) that the KombiEngine when mounting the BG-KM. When
surrounds the shaft (2) will be approx. 0.118 in inserted correctly, the gap between screen and shaft
(3 mm) shorter. must not exceed a maximum of 0.197 in (5 mm).
The Grooved ball bearings (5) mounted on the drive
shaft will now be secured with circlips (6) instead of
roll pins (7).
TI_42_2008_30_01_01.fm englisch / English

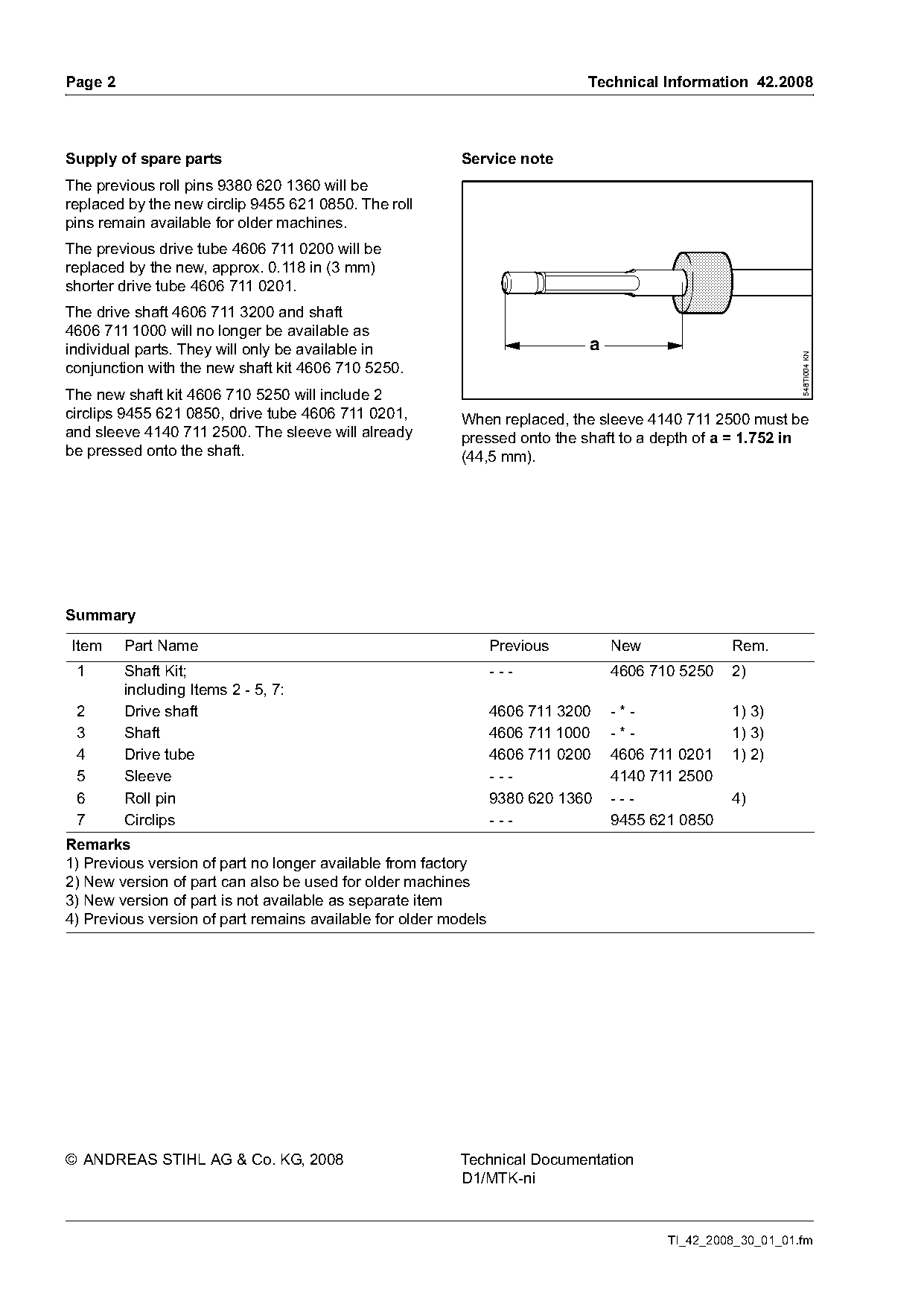

)m~ge 2 Technical Information 42.2008
Supply of spare parts Service note
The previous roll pins 9380 620 1360 will be
replaced by the new circlip 9455 621 0850. The roll
pins remain available for older machines.
The previous drive tube 4606 711 0200 will be
replaced by the new, approx. 0.118 in (3 mm)
shorter drive tube 4606 711 0201.
The drive shaft 4606 711 3200 and shaft
4606 711 1000 will no longer be available as
individual parts. They will only be available in a
548TI004 KN
conjunction with the new shaft kit 4606 710 5250.
The new shaft kit 4606 710 5250 will include 2
circlips 9455 621 0850, drive tube 4606 711 0201, When replaced, the sleeve 4140 711 2500 must be
and sleeve 4140 711 2500. The sleeve will already pressed onto the shaft to a depth of a = 1.752 in
be pressed onto the shaft. (44,5 mm).
Summary
Item Part Name Previous New Rem.
1 Shaft Kit; --- 4606 710 5250 2)
including Items 2 - 5, 7:
2 Drive shaft 4606 711 3200 -*- 1) 3)
3 Shaft 4606 711 1000 -*- 1) 3)
4 Drive tube 4606 711 0200 4606 711 0201 1) 2)
5 Sleeve --- 4140 711 2500
6 Roll pin 9380 620 1360 --- 4)
7 Circlips --- 9455 621 0850
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used for older machines
3) New version of part is not available as separate item
4) Previous version of part remains available for older models
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-ni
TI_42_2008_30_01_01.fm Page 2 of 2
