Technical Information · issue 46 of 2008
Manifold
IssueTI 46/2008
Engine family 1128
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 141 2203 | 1128 141 2204 | Manifold The previous manifold 1128 141 2203 is being Spare parts/service note replaced by the version 1128 141 2204 for use on Manifold 1128 141 2203 remains available for machines with carburetor and handle heating. |
Full text

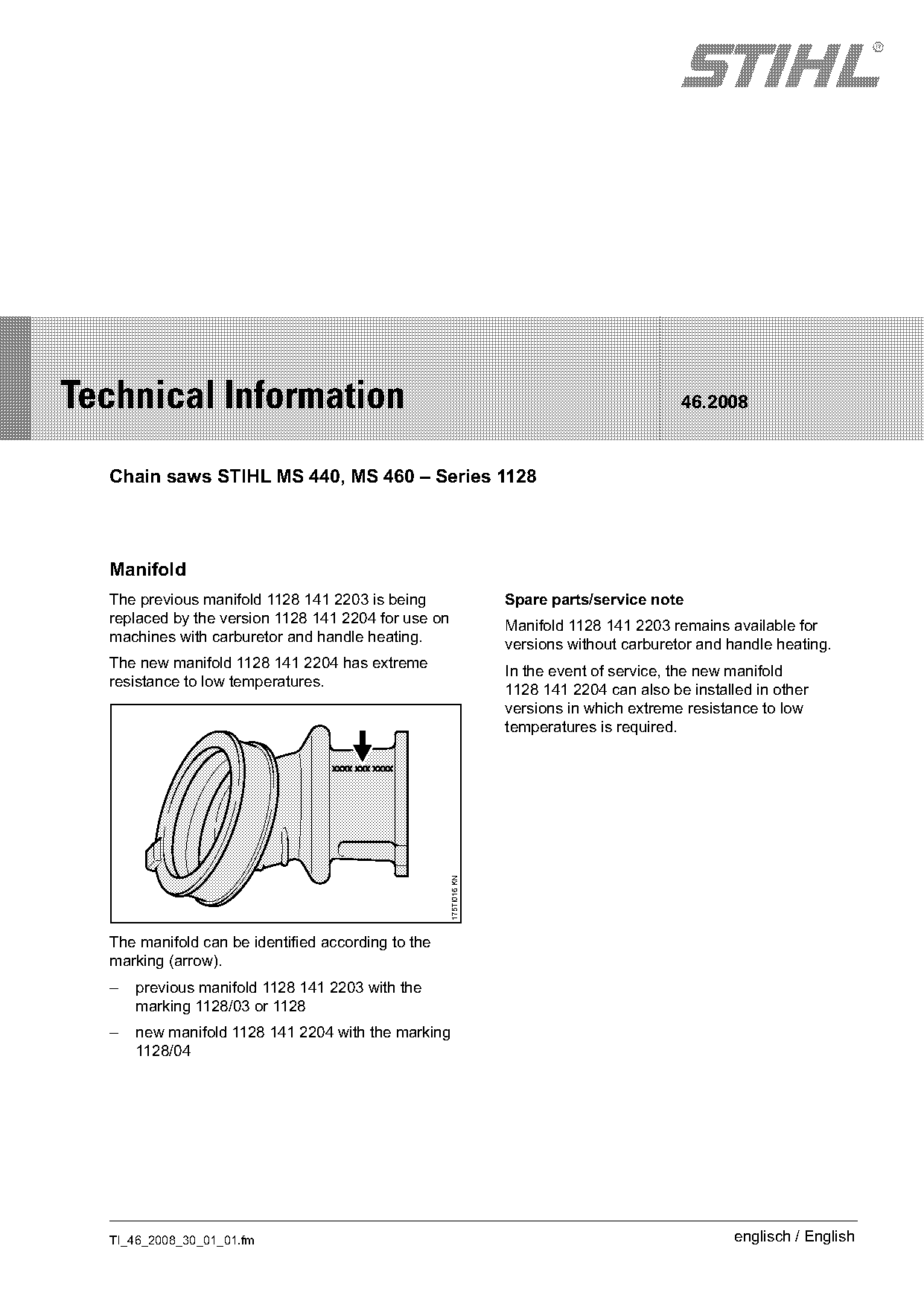

Page 1 of 2
STIH)
Technical Information 46.2008
Chain saws STIHL MS 440, MS 460 – Series 1128
Manifold
The previous manifold 1128 141 2203 is being Spare parts/service note
replaced by the version 1128 141 2204 for use on
Manifold 1128 141 2203 remains available for
machines with carburetor and handle heating.
versions without carburetor and handle heating.
The new manifold 1128 141 2204 has extreme In the event of service, the new manifold
resistance to low temperatures. 1128 141 2204 can also be installed in other
versions in which extreme resistance to low
temperatures is required.
175TI016 KN
The manifold can be identified according to the
marking (arrow).
– previous manifold 1128 141 2203 with the
marking 1128/03 or 1128
– new manifold 1128 141 2204 with the marking
1128/04
TI_46_2008_30_01_01.fm englisch / English

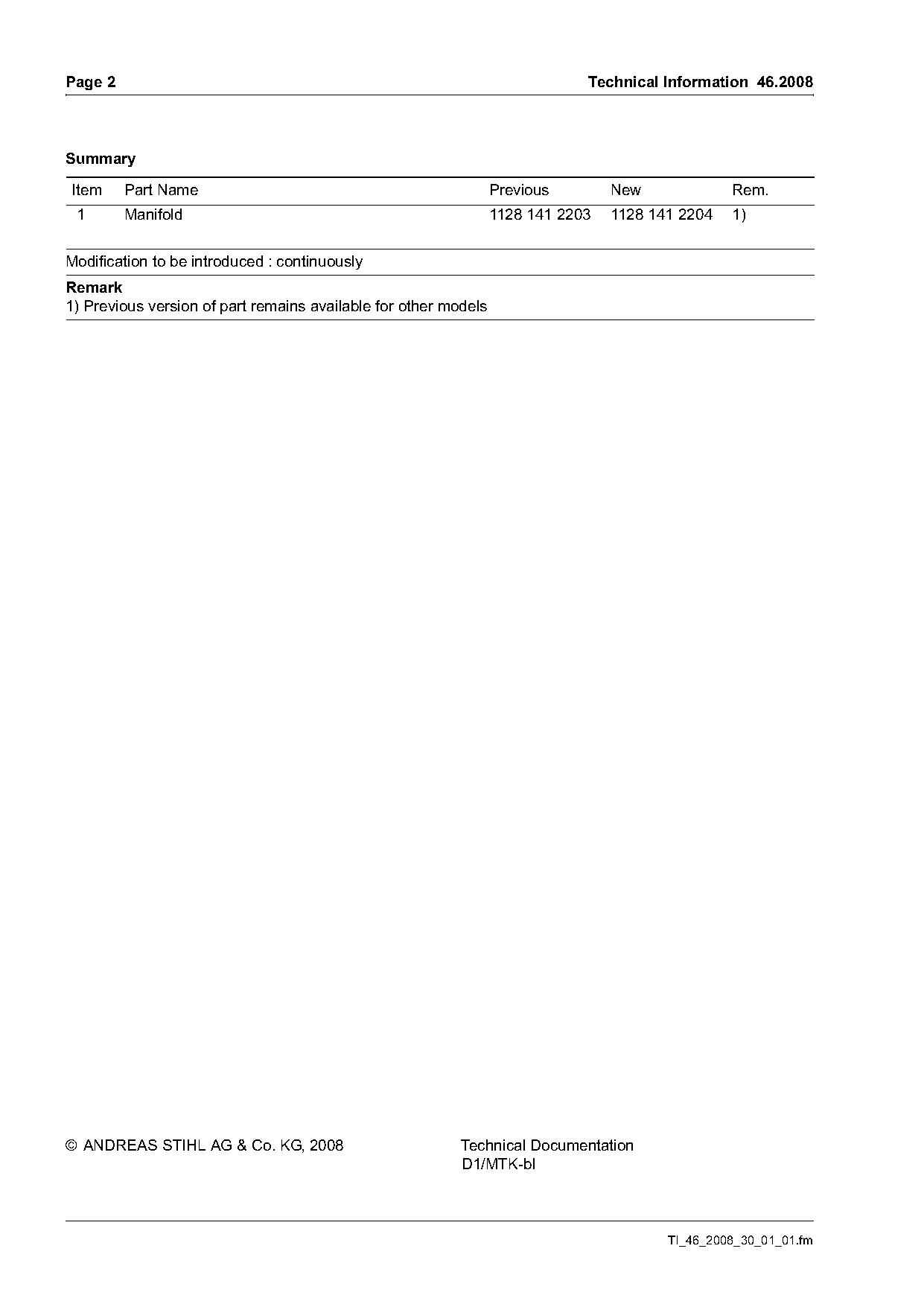

)m~ge 2 Technical Information 46.2008
Summary
Item Part Name Previous New Rem.
1 Manifold 1128 141 2203 1128 141 2204 1)
Modification to be introduced : continuously
Remark
1) Previous version of part remains available for other models
© ANDREAS STIHL AG & Co. KG, 2008 Technical Documentation
D1/MTK-bl
TI_46_2008_30_01_01.fm Page 2 of 2
