Technical Information · issue 47 of 2008
Fan housing with rewind starter; Summary
IssueTI 47/2008
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4237 080 2102 | 4237 080 2108 | Fan housing with rewind starter To further improve function, the previous "Fan housing with rewind starter" 4237 080 2102 is being replaced by the new version 4237 080 2108. |
Full text
Page 1 of 2
STIH)

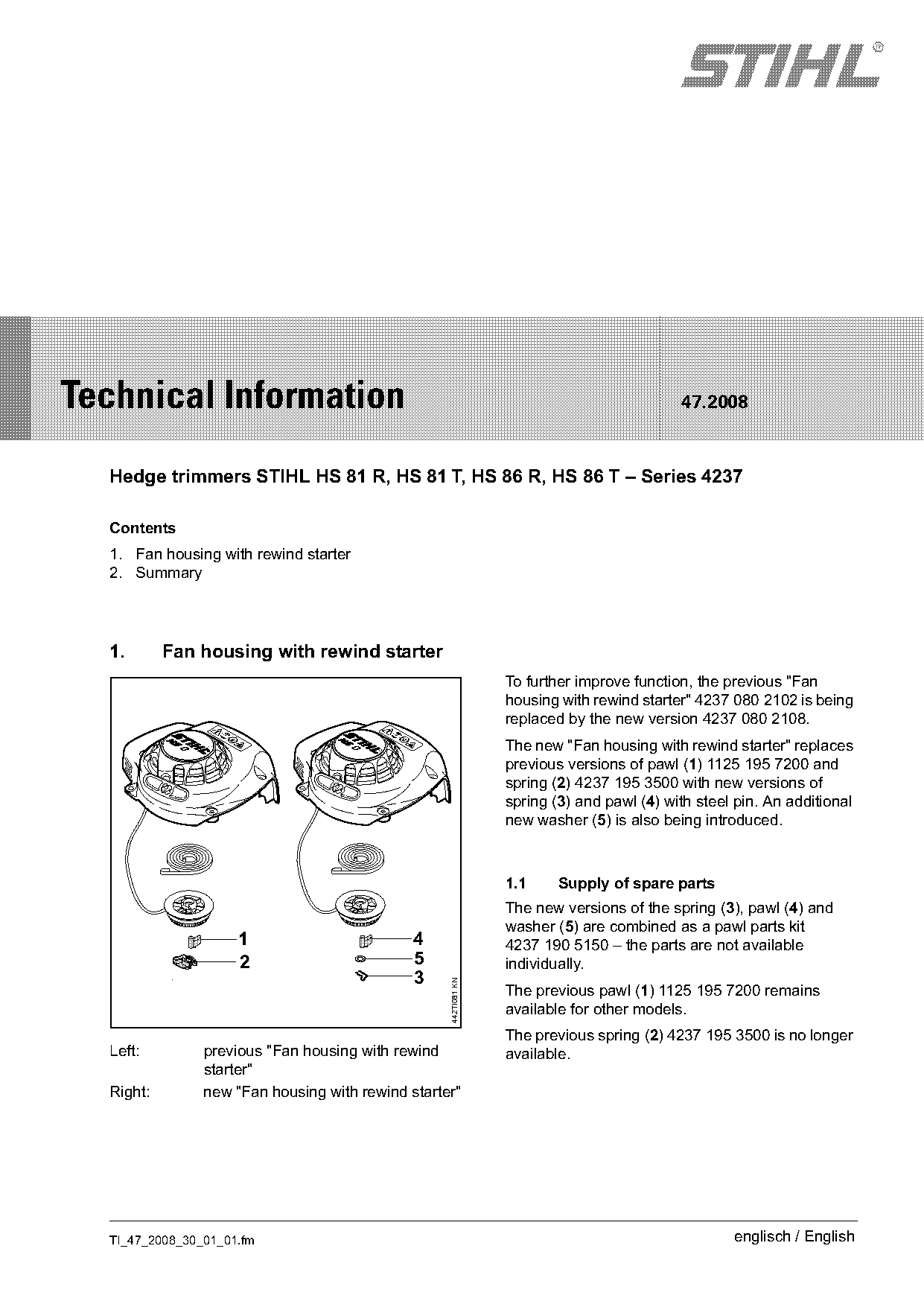

Technical Information 47.2008
Hedge trimmers STIHL HS 81 R, HS 81 T, HS 86 R, HS 86 T – Series 4237
Contents
1. Fan housing with rewind starter
2. Summary
1. Fan housing with rewind starter
To further improve function, the previous "Fan
housing with rewind starter" 4237 080 2102 is being
replaced by the new version 4237 080 2108.
The new "Fan housing with rewind starter" replaces
previous versions of pawl (1) 1125 195 7200 and
spring (2) 4237 195 3500 with new versions of
spring (3) and pawl (4) with steel pin. An additional
new washer (5) is also being introduced.
1.1 Supply of spare parts
The new versions of the spring (3), pawl (4) and
washer (5) are combined as a pawl parts kit
1 4 4237 190 5150 – the parts are not available
2 5 individually.
3
442TI081 KN
The previous pawl (1) 1125 195 7200 remains
available for other models.
The previous spring (2) 4237 195 3500 is no longer
Left: previous "Fan housing with rewind available.
starter"
Right: new "Fan housing with rewind starter"
TI_47_2008_30_01_01.fm englisch / English

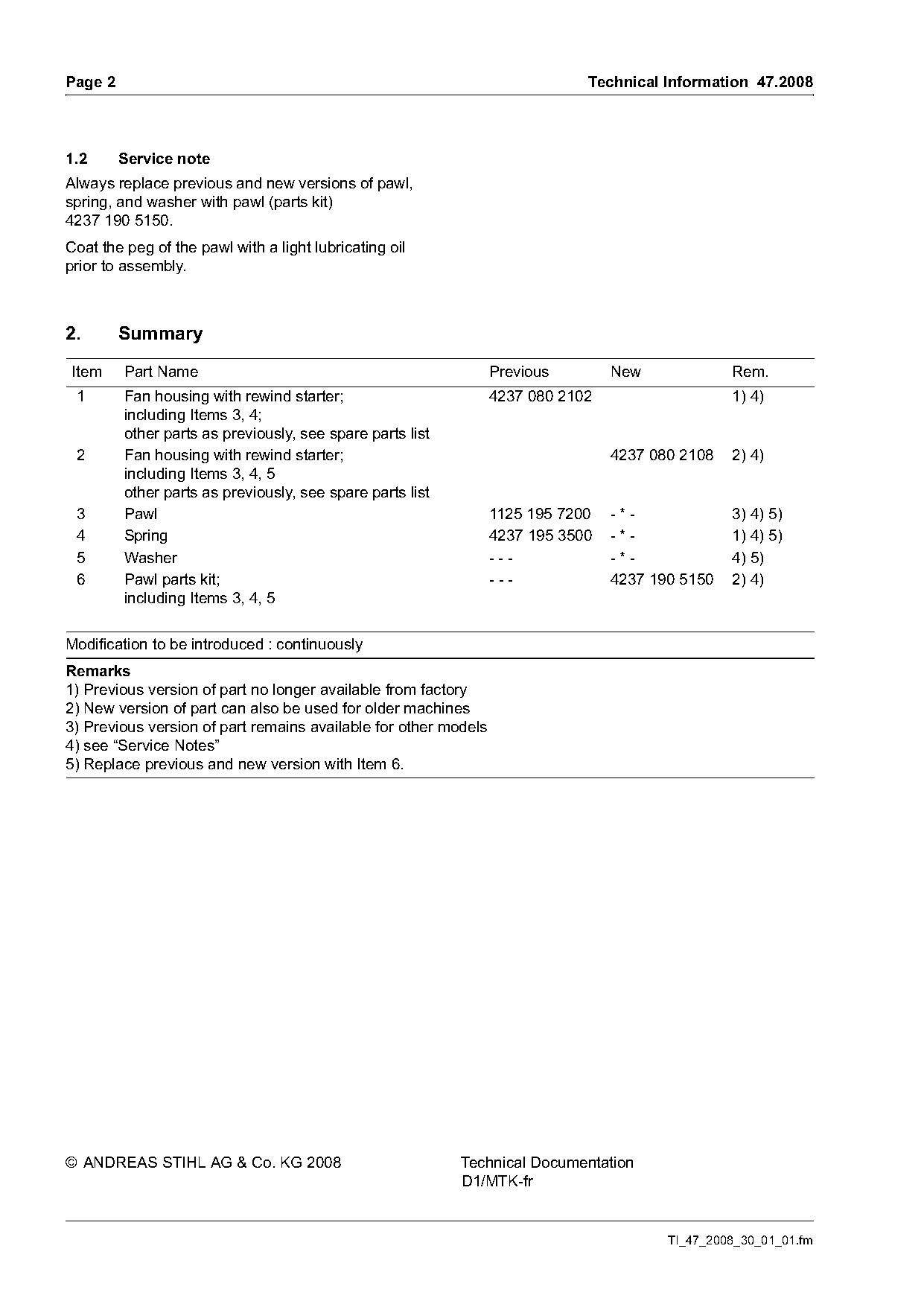

)m~ge 2 Technical Information 47.2008
1.2 Service note
Always replace previous and new versions of pawl,
spring, and washer with pawl (parts kit)
4237 190 5150.
Coat the peg of the pawl with a light lubricating oil
prior to assembly.
2. Summary
Item Part Name Previous New Rem.
1 Fan housing with rewind starter; 4237 080 2102 1) 4)
including Items 3, 4;
other parts as previously, see spare parts list
2 Fan housing with rewind starter; 4237 080 2108 2) 4)
including Items 3, 4, 5
other parts as previously, see spare parts list
3 Pawl 1125 195 7200 -*- 3) 4) 5)
4 Spring 4237 195 3500 -*- 1) 4) 5)
5 Washer --- -*- 4) 5)
6 Pawl parts kit; --- 4237 190 5150 2) 4)
including Items 3, 4, 5
Modification to be introduced : continuously
Remarks
1) Previous version of part no longer available from factory
2) New version of part can also be used for older machines
3) Previous version of part remains available for other models
4) see “Service Notes”
5) Replace previous and new version with Item 6.
© ANDREAS STIHL AG & Co. KG 2008 Technical Documentation
D1/MTK-fr
TI_47_2008_30_01_01.fm Page 2 of 2
